Weelko Multipolar Radiofrequency + Cavitation Aesthetic Device

HIGHTECH COMBI SLIM Weelko WKB004: cavitation and multipolar radiofrequency for professional beauty treatments

Professional

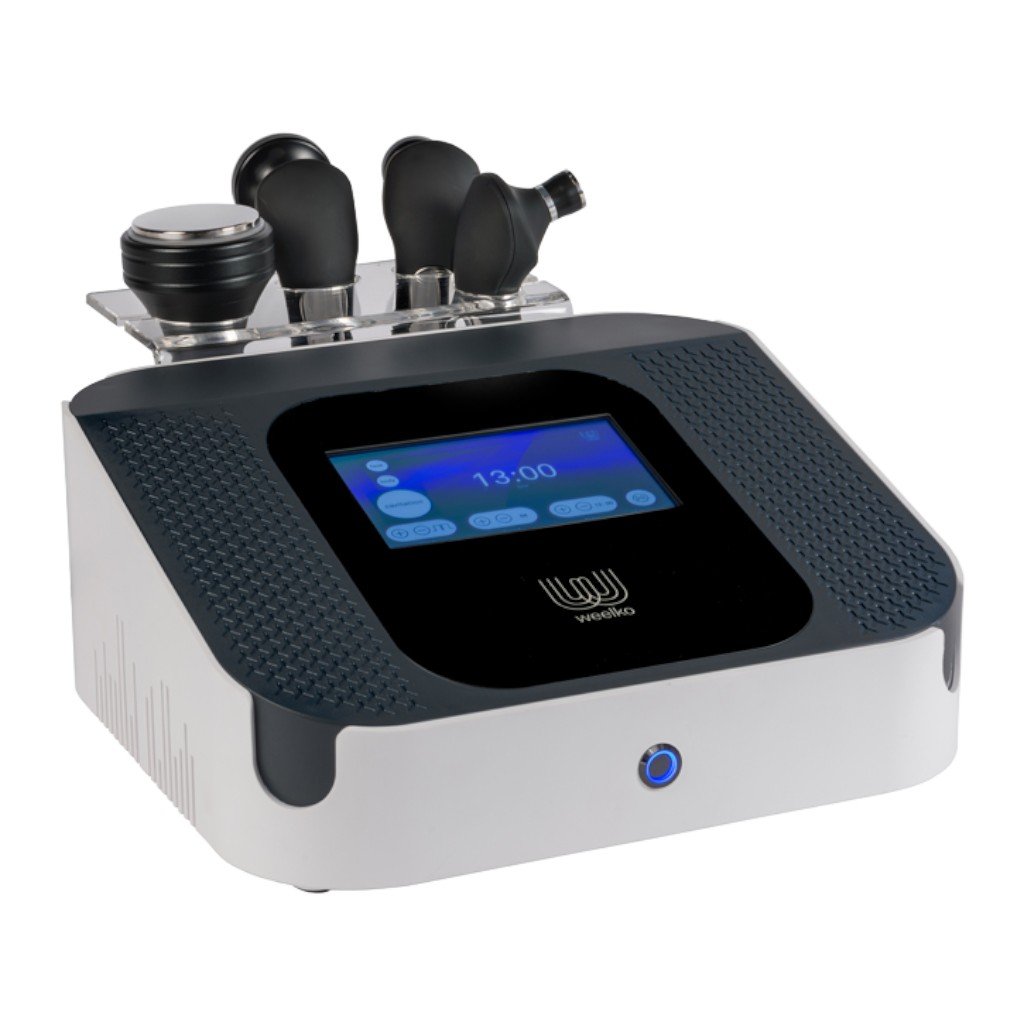

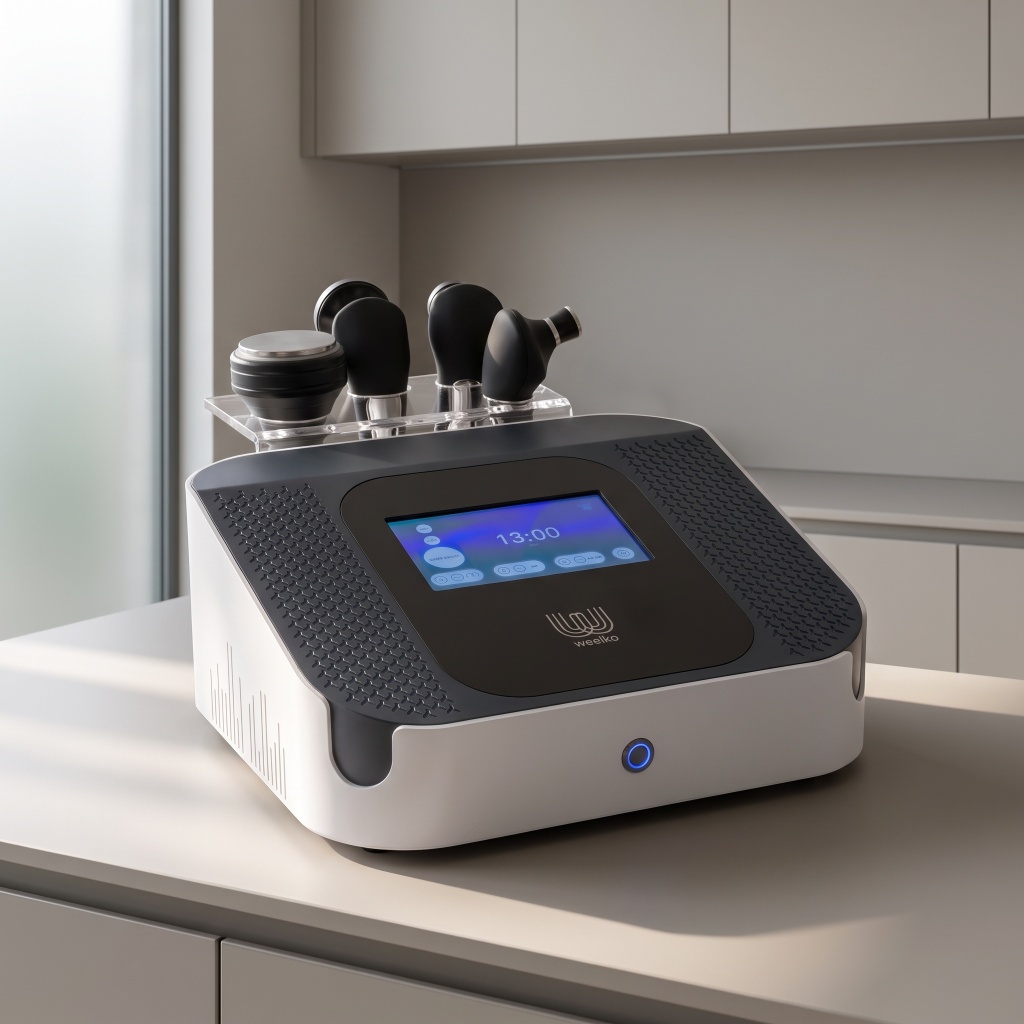

The HIGHTECH COMBI SLIM WKB004 is a digital beauty device with a 7-inch touch screen that combines cavitation and multipolar radiofrequency in a single system for professional use in beauty salons and aesthetic centres. It is designed for non-invasive body and facial protocols aimed at visibly improving the appearance of the skin, skin firmness and the look of areas with localised fat and uneven texture.

The device includes 4 working handpieces: 1 cavitation handpiece and 3 multipolar radiofrequency handpieces for body, facial and small-area work. Its interface allows intensity, time and wave type to be selected according to the aesthetic protocol and the client’s tolerance.

Main functions

• Body aesthetic cavitation.
• Body multipolar radiofrequency.
• Facial multipolar radiofrequency.
• Multipolar radiofrequency for small areas.

Main features

• Digital device with 7-inch touch screen.
• Professional use in the treatment room.
• Combination of cavitation and multipolar radiofrequency.
• 4 handpieces included.
• Intensity adjustment in 10 levels.
• Selection of working time and wave type.

What the device includes

• 1 cavitation handpiece.
• 1 large body RF handpiece.
• 1 medium facial RF handpiece.
• 1 small facial RF handpiece.
• 1 main unit.
• 1 connection / power cable.

Technical data

• Model WKB004
• Brand Weelko
• Line HIGHTECH COMBI SLIM
• Device type Cavitation + multipolar radiofrequency
• Console size 34 x 38 x 15 cm
• Packaging size 51 x 45 x 22 cm
• Weight 9 kg
• Gross weight 10 kg
• Screen 7-inch touch screen
• Cavitation frequency 40 kHz
• Cavitation power 90 W / 0-5 W/cm²
• RF frequency 1 MHz
• Cavitation handpiece 6.8 cm
• Large RF handpiece 6 cm
• Medium RF handpiece 4 cm
• Small RF handpiece 2.5 cm
• Power 120 W
• Voltage 200-240 V, 50/60 Hz

Device description

The cavitation and multipolar radiofrequency functions of the WKB004 are integrated into the same device to perform body and facial aesthetic protocols in a professional treatment room. Cavitation is intended for body aesthetic work on specific areas, while multipolar radiofrequency is used in aesthetic firming protocols and to visibly improve the appearance of the skin.

Its configuration with different handpieces allows the treatment to be adapted to large body areas, the face and smaller areas. The system is operated from the touch screen, with direct access to the face, body and cavitation modes.

Aesthetic applications

• Visible improvement of the appearance of areas with localised fat from an aesthetic approach.
• Complement in body protocols to improve the appearance of skin with uneven texture.
• Facial and body aesthetic firming.
• Visible improvement of skin tone and elasticity.
• Non-invasive aesthetic protocols in a professional treatment room.

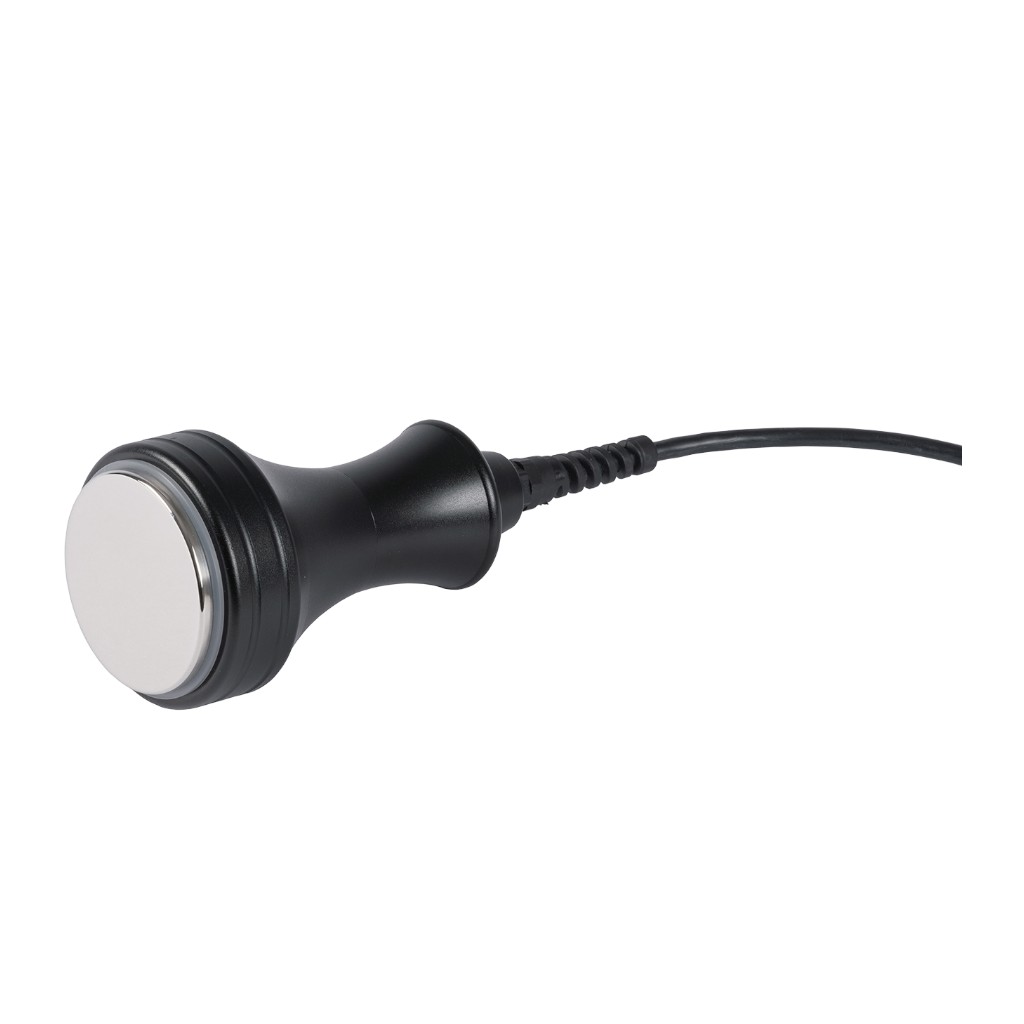

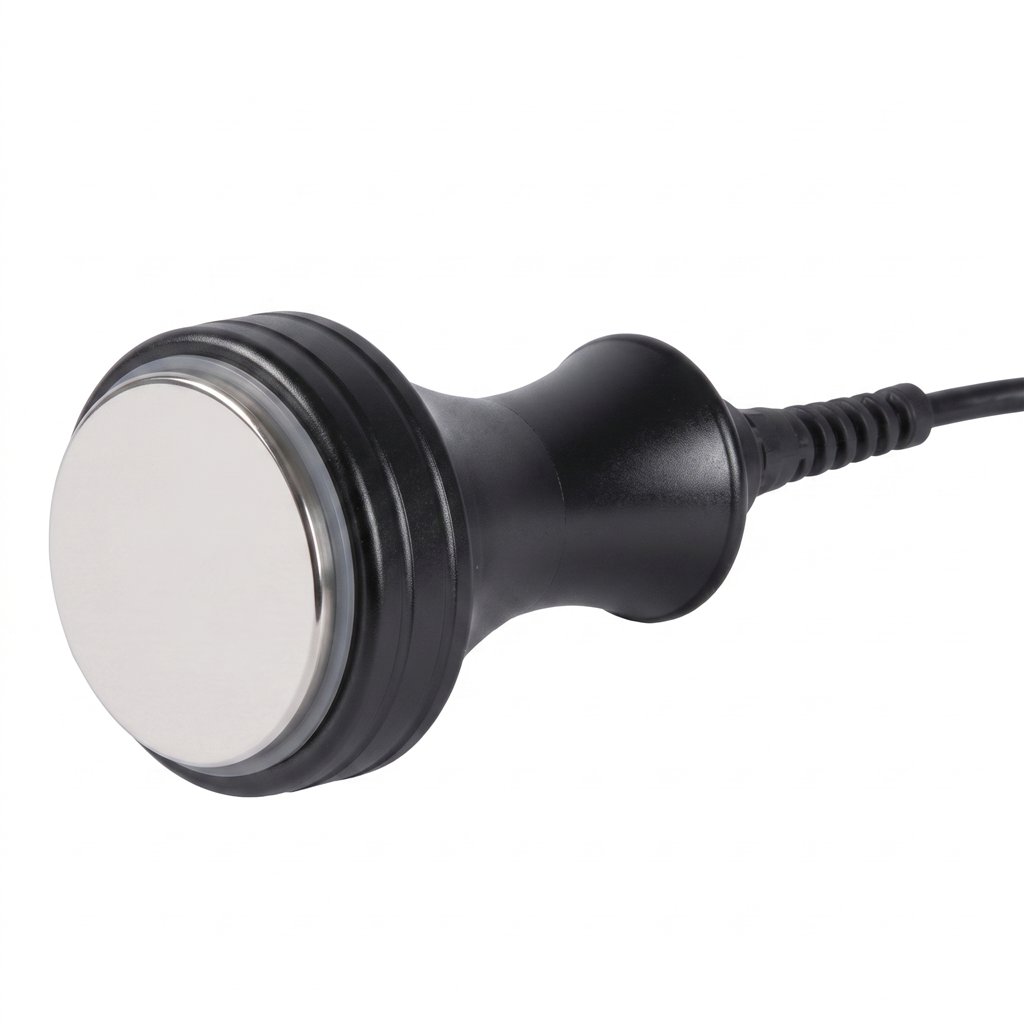

Cavitation

The cavitation function is intended for aesthetic body treatments on the abdomen, hips, buttocks, thighs and knees. It is recommended to use a high-density transparent conductive gel and apply a sufficient amount before the handpiece comes into contact with the skin.

During the session, the handpiece must always be kept moving with continuous movements over the treated area. The recommended time indicated by the manufacturer is 20 minutes and a maximum total of 40 minutes must not be exceeded.

• Frequency 40 kHz
• Power 90 W / 0-5 W/cm²
• Handpiece diameter 6.8 cm
• Recommended time 20 minutes
• Maximum time 40 minutes
• Indicative areas Abdomen, hips, buttocks, thighs and knees

Multipolar radiofrequency

The device’s multipolar radiofrequency is designed for facial and body aesthetic work. Its three handpieces allow the protocol to be adapted to large body areas, the face and smaller areas, always with the application of specific radiofrequency gel or glycerine.

The manufacturer recommends a duration of 10 minutes for facial treatments and 20 minutes for body treatments. In all cases, 60 minutes of total working time must not be exceeded.

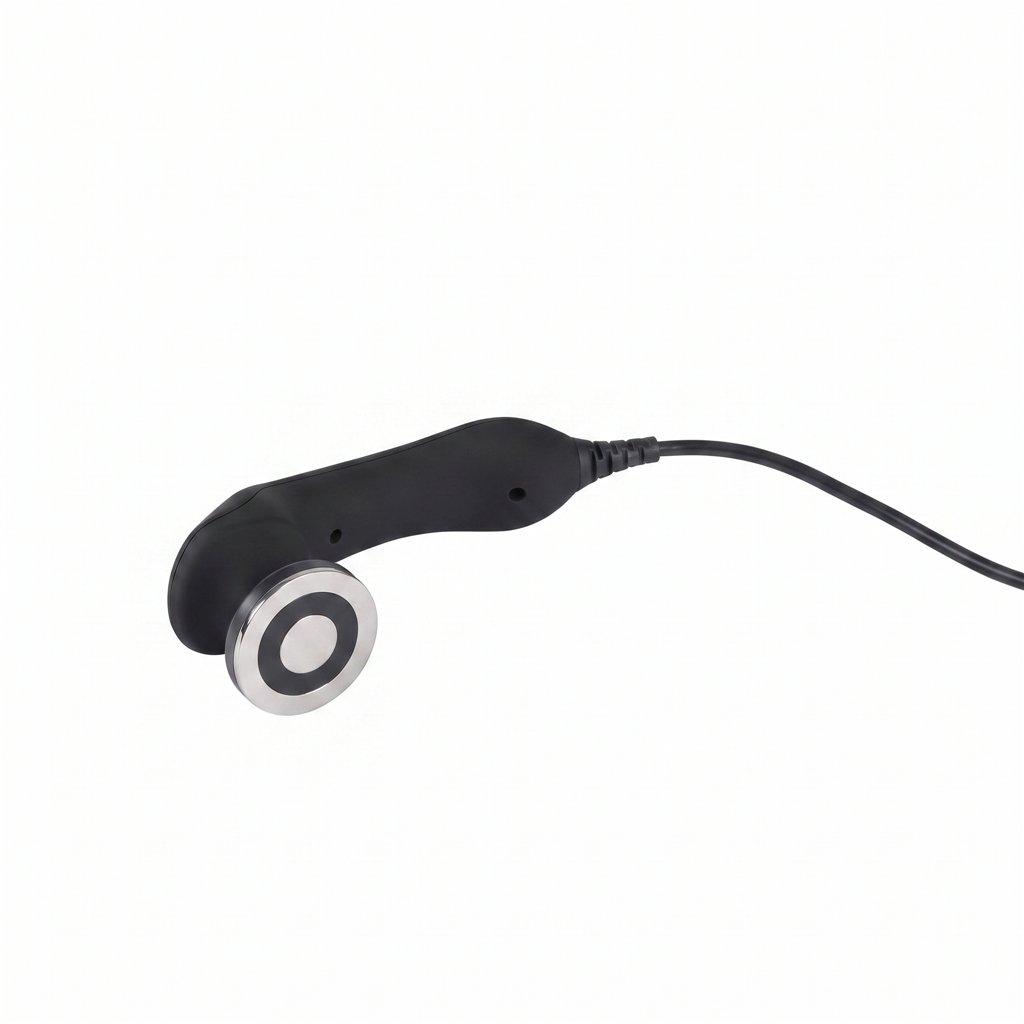

Radiofrequency handpieces

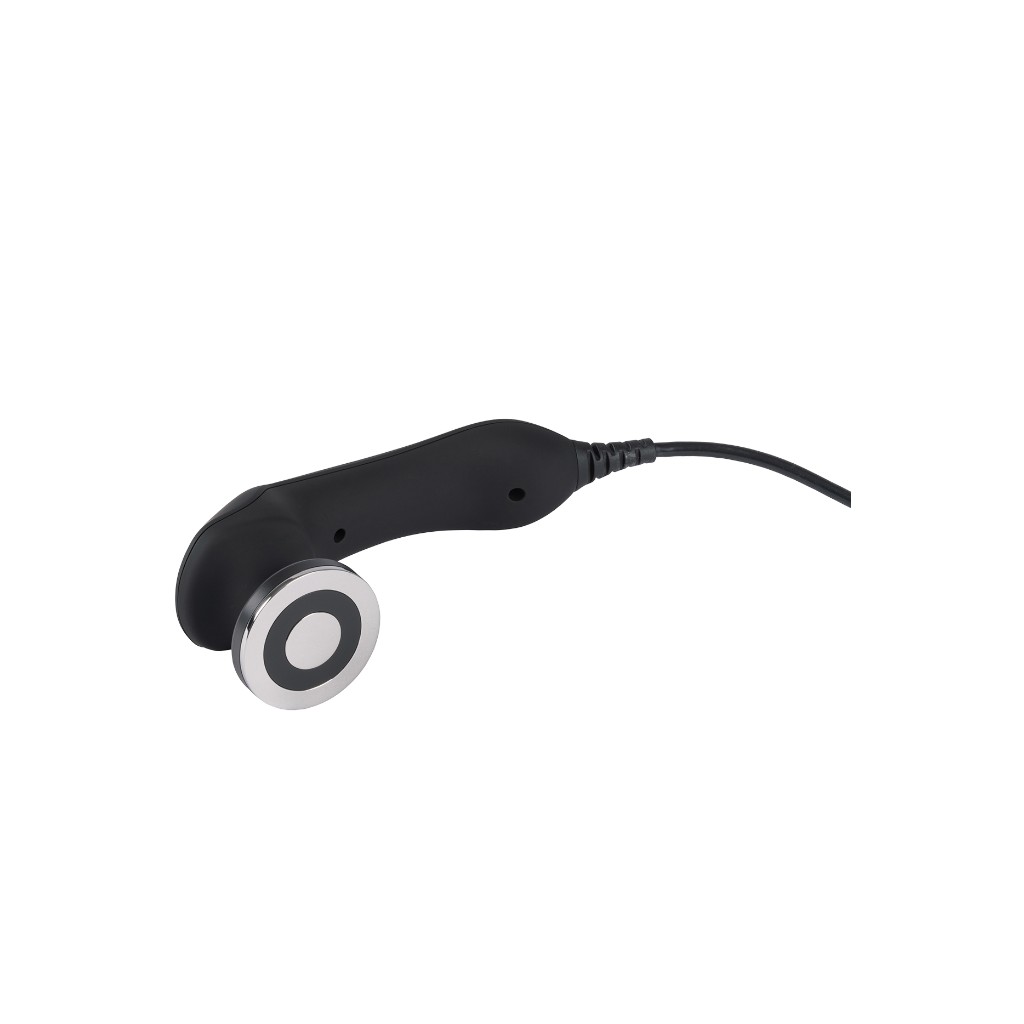

• Large RF handpiece For body work on large areas.

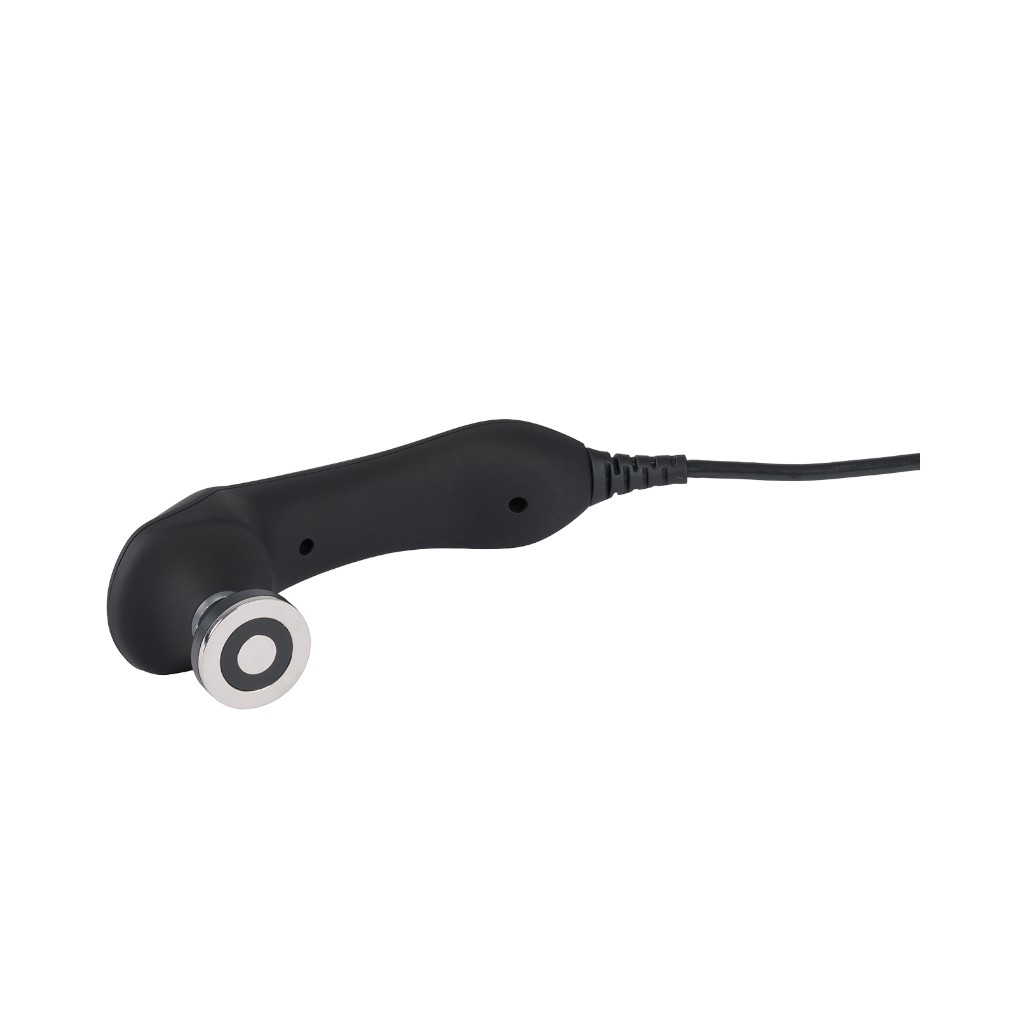

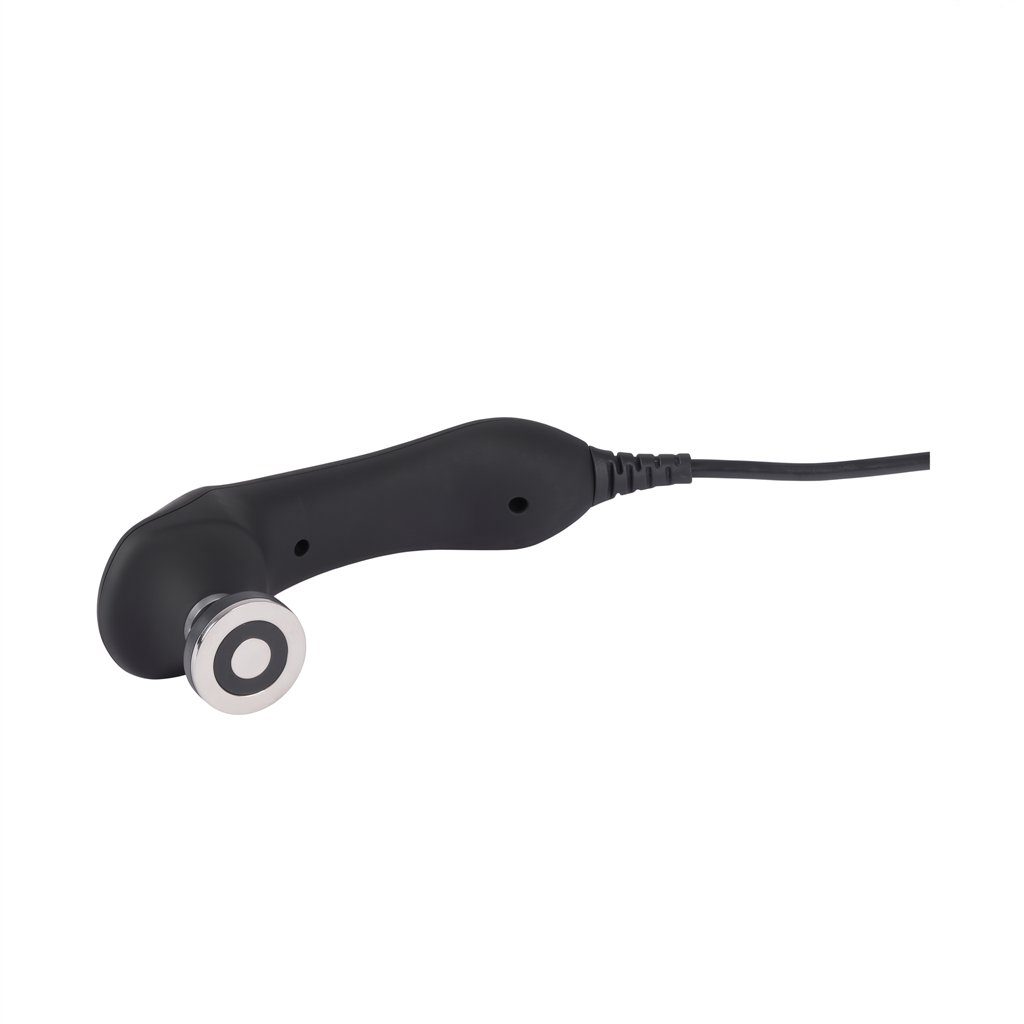

• Medium RF handpiece For facial protocols.

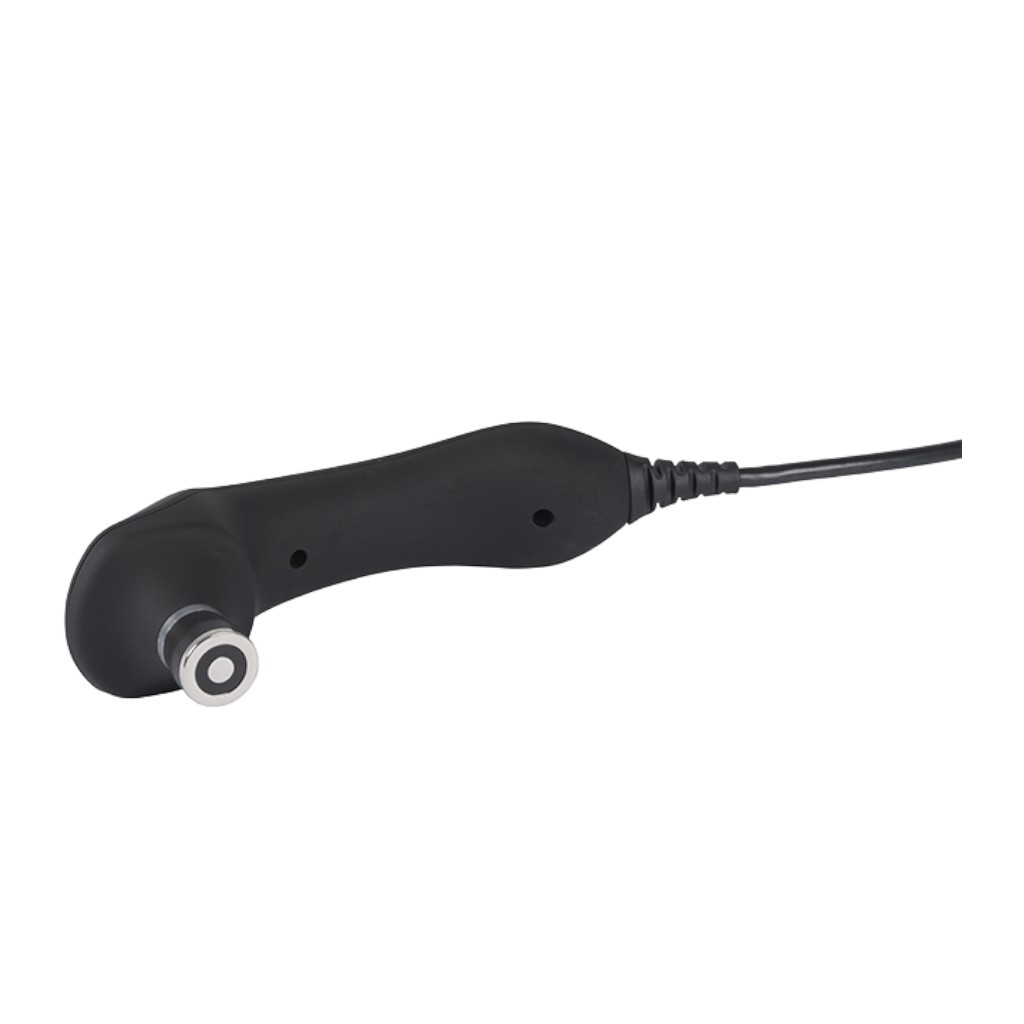

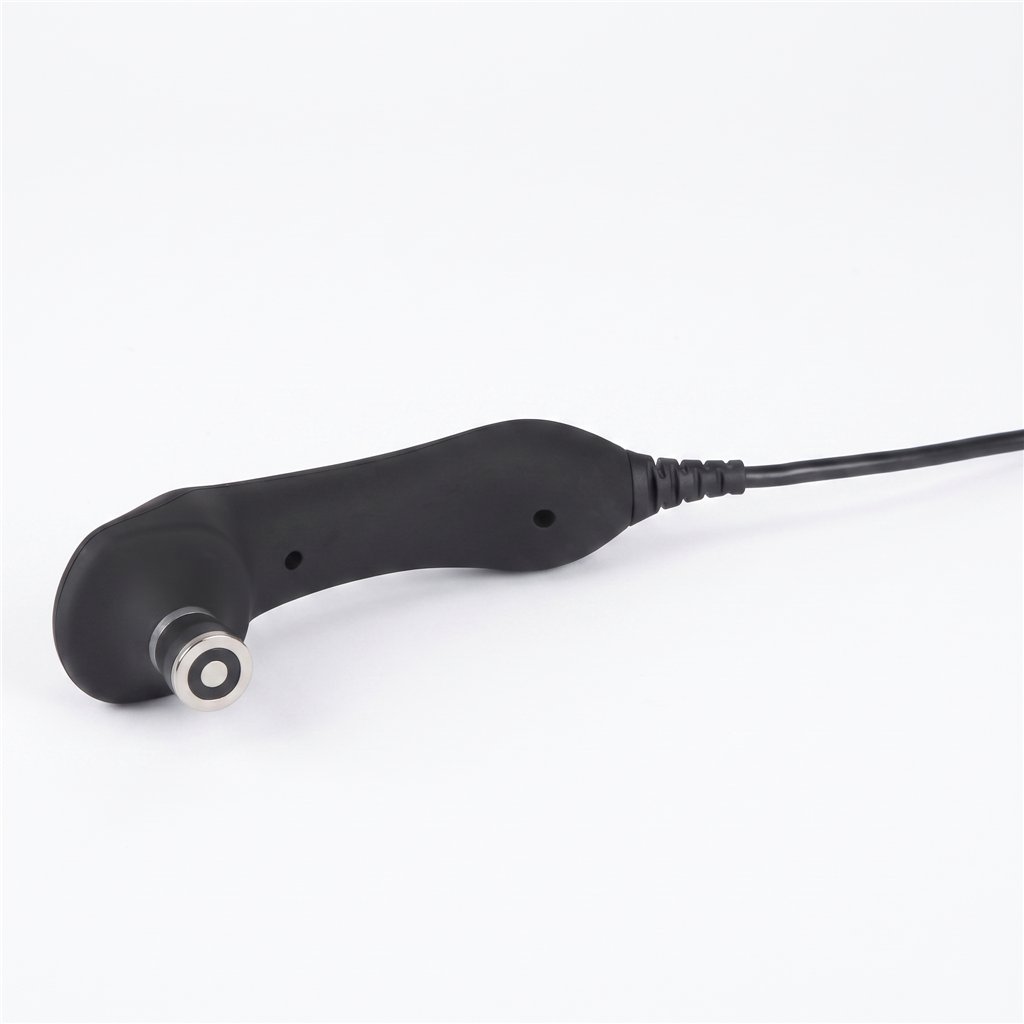

• Small RF handpiece For smaller facial areas.

• RF frequency 1 MHz
• Body handpiece 6 cm
• Medium facial handpiece 4 cm
• Small facial handpiece 2.5 cm
• Recommended facial time 10 minutes
• Recommended body time 20 minutes
• Maximum total time 60 minutes

Device modes and controls

• Face To use the medium and small radiofrequency handpieces.
• Body To use the large radiofrequency handpiece.
• Cavitation To use the cavitation handpiece.
• Level Intensity adjustment in 10 levels.
• Time Treatment time adjustment. The default programme is 20 minutes.
• Mode Wave selection. The device has 3 wave types.
• Play/Pause Start or pause the treatment.

Handpiece connection

• The small and medium handpieces share the same 4-pin connection.
• The large handpiece connects to the other 4-pin output.
• The cavitation handpiece uses the 2-pin connection.

General instructions for use

• Connect the power cable to the rear panel.
• Correctly connect the handpieces to the rear panel.
• Switch on the device using the front button and access the touch menu by pressing the Weelko logo.
• Select face, body or cavitation according to the handpiece you are going to use.
• Apply specific radiofrequency gel or glycerine to the skin, or thick transparent conductive gel for cavitation.
• Adjust the intensity from LEVEL.
• Select the working time from TIME.
• Choose the wave type from MODE.
• Press PLAY/PAUSE to start or pause the session.

Application recommendations

• Always apply a sufficient amount of gel before the handpiece comes into contact with the skin.
• Keep the handpiece in constant motion throughout the treatment.
• Never leave the electrode fixed on the same area.
• Check during the session that the intensity is suitable and comfortable.
• The professional and the client must remove metal objects during the treatment.
• The professional is advised to use insulating gloves.

Maintenance and cleaning

• Clean the handpieces with a damp cloth after each treatment.
• Do not open or inspect the internal components of the device.
• Do not use the device in damp or poorly ventilated environments.
• Do not use the device outdoors.
• If the power cable is damaged, it must be replaced by qualified personnel.

Compliance and directives

• Low Voltage Directive 2014/35/EU
• Electromagnetic compatibility 2014/30/EU

Contraindications and exclusions of use

• Do not use during pregnancy.
• Do not use on people with pacemakers or other heart rhythm control devices.
• Do not use on people with epilepsy.
• Do not use on skin with skin infections.
• Do not work without a suitable conductive product on the skin.
• Do not leave the handpiece fixed on the same area due to the risk of excessive heat.
