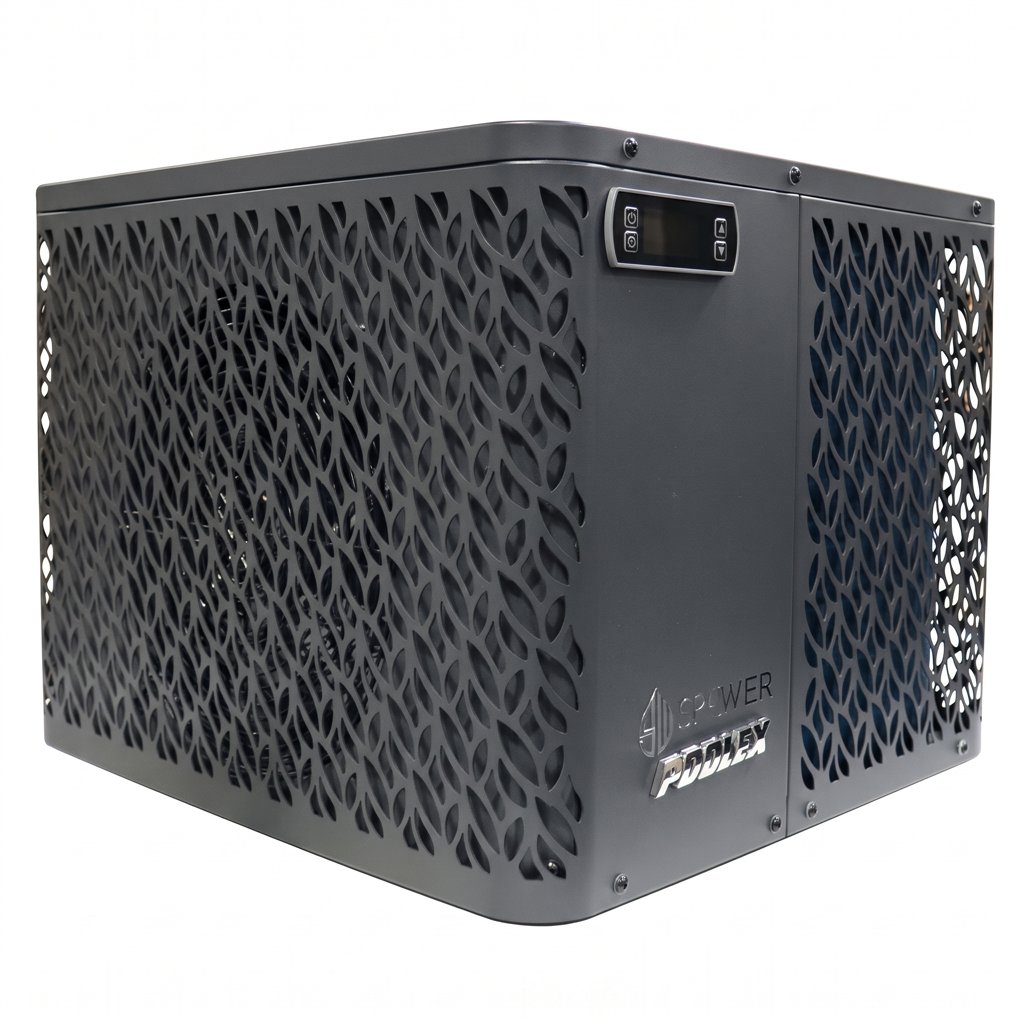

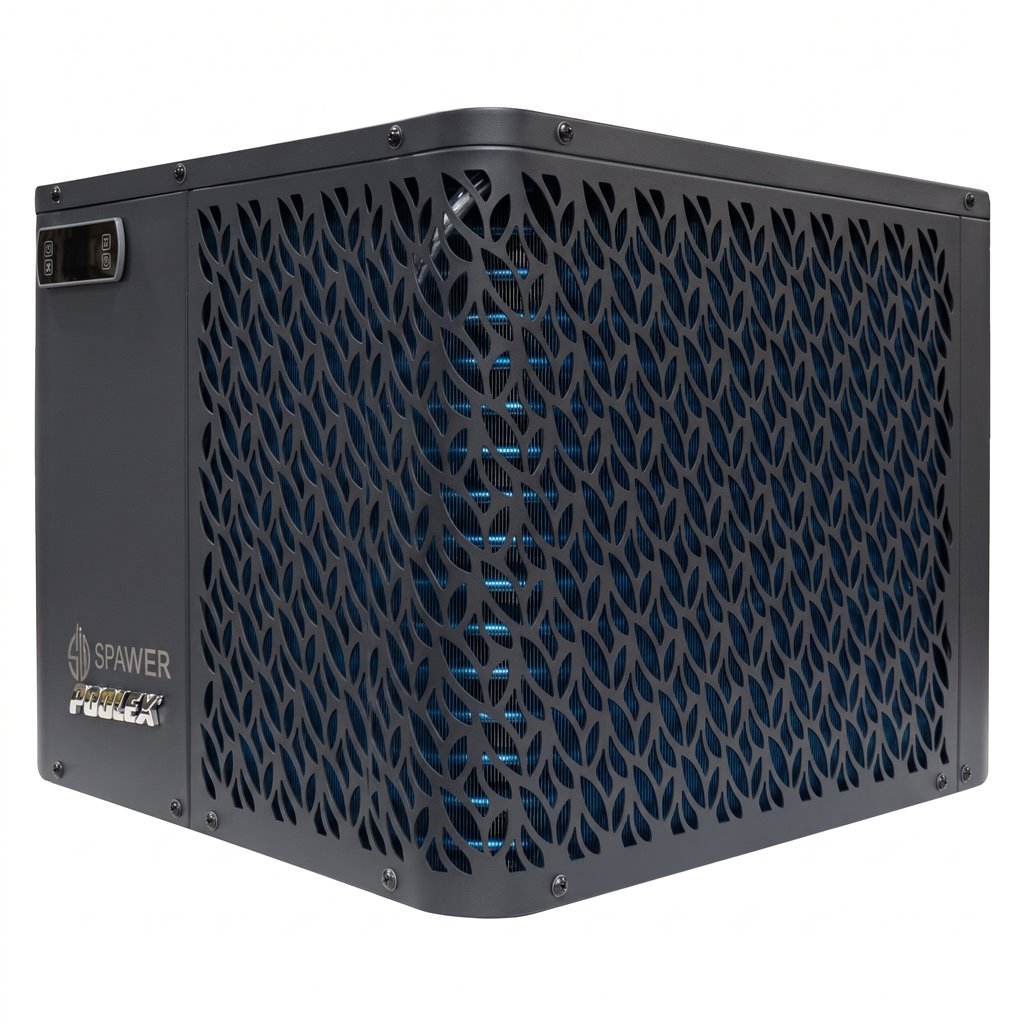

Poolex O'SPA Flow 3 kW spa heat pump with integrated circulation

Poolex O'SPA Flow 3 kW: integrated heating, cooling and circulation for spas

The Poolex O'SPA Flow 3 kW combines a heat pump, cooling function and circulation pump in one compact unit for spas, Nordic baths and small pools. Its dedicated integrated circulation pump enables the unit to be connected directly to the spa, without installing an external bypass.

This configuration maintains a steady flow through the heat exchanger and simplifies hydraulic integration. The unit operates in heating, cooling and automatic modes, allowing the water temperature to be adjusted according to the intended use of the spa throughout the seasons.

Integrated circulation and thermal control

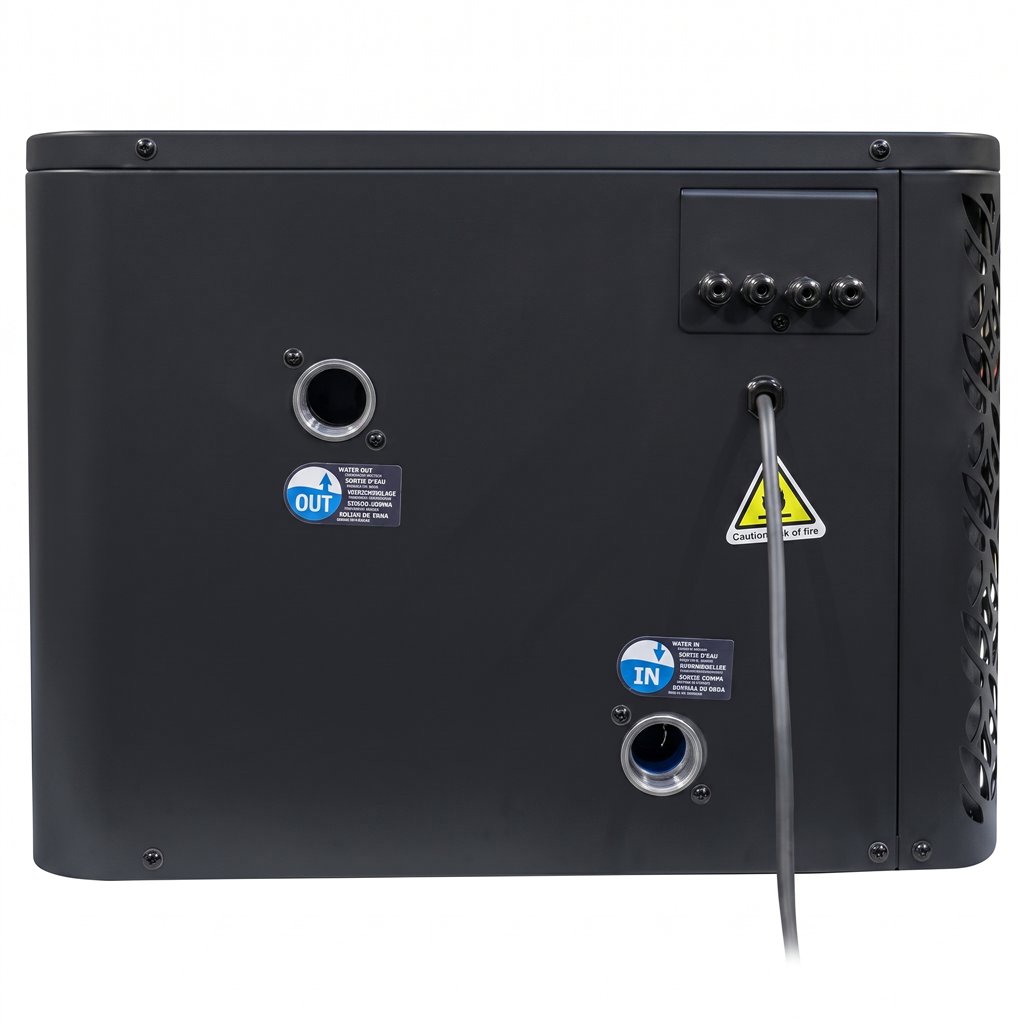

The 3 kW version delivers a water flow rate of 1.40 m³/h, suited to spa circuits, with 32 / 38 mm hydraulic connections. Its Twisted Tech© titanium heat exchanger is designed for contact with circuit water, and the unit is compatible with spa water treatments, including salt treatment.

The integrated relay can control the spa's electric heater when required. This allows the O'SPA Flow to coordinate its operation with the spa's existing heating system.

• Circulation pump Integrated; direct connection without an external bypass
• Water flow rate 1.40 m³/h
• Hydraulic connections 32 / 38 mm
• Heat exchanger Twisted Tech© titanium
• Compressor Rotary
• Compatibility Spa water treatments, including salt treatment

Heating, cooling and Auto mode

O'SPA Flow incorporates heating, chiller or cooling, Auto mode and relay control for the spa heater. The heating water temperature range is 10 to 40 °C, while cooling operation is available between 2 and 30 °C.

Under air conditions of 26 °C, water at 26 °C and 80% relative humidity, this version provides a heating capacity of 3.30 kW, with power consumption of 0.66 kW and a COP of 5. Under air conditions of 15 °C, water at 38 °C and 70% relative humidity, heating capacity is 2.11 kW, with 0.75 kW power consumption and a COP of 2.75.

For cooling, at an air temperature of 35 °C, water at 27 °C and 70% relative humidity, it delivers a capacity of 2.00 kW, with 0.98 kW power consumption and an EER of 2.05. At 15 °C air temperature and 5 °C water temperature, cooling capacity is 1.45 kW, with 0.62 kW power consumption and an EER of 2.35.

• Nominal heating capacity 3.30 kW at 26 °C air / 26 °C water / 80% RH
• Nominal power consumption 0.66 kW at 26 °C air / 26 °C water / 80% RH
• Nominal COP 5 at 26 °C air / 26 °C water / 80% RH
• Heating capacity at 15 °C air / 38 °C water 2.11 kW
• Cooling capacity at 35 °C air / 27 °C water 2.00 kW
• Water heating range 10 to 40 °C
• Water cooling range 2 to 30 °C

Connected control via Wi-Fi

The heat pump features built-in Wi-Fi for remote management of temperature and operating modes through the Poolex mobile app. Poolex Cloud connectivity also enables OTA system updates.

Its compact format makes it easy to position close to the spa. The housing incorporates decorative grilles and brings water circulation and temperature control together in a single unit.

• Connectivity Built-in Wi-Fi
• Remote control Poolex mobile app and Poolex Cloud
• Updates OTA
• Functions Heating, cooling, Auto mode and control relay
• Refrigerant R32, 0.24 kg charge
• Power supply Single-phase 220–240 V ~ 50 Hz
• Maximum power 1.30 kW

Dimensions, noise level and accessories

The O'SPA Flow 3 kW measures 520 × 490 × 390 mm and has a net weight of 33 kg. Its declared sound level is below 50 dB(A) at 1 m and below 30 dB(A) at 10 m. Pressure loss is 2.5 m water column.

It is supplied with a control relay, residual-current plug with a 5 m cable, two sets of hydraulic connectors, two sets of clamps and Netspa kit connectors. An offset touchscreen and a hydraulic connection kit are available as optional accessories.

• Reference PC-OSPA 35P
• EAN-13 3700691421500
• Dimensions 520 × 490 × 390 mm
• Net / gross weight 33 / 38 kg
• Noise at 1 m < 50 dB(A)
• Noise at 10 m < 30 dB(A)
• Pressure loss 2.5 m water column
• Included accessories Relay, residual-current plug with 5 m cable, hydraulic connectors, clamps and Netspa connectors
• Optional accessories Offset touchscreen and hydraulic connection kit

Stated warranties

• Heat pump 2 years
• Compressor 5 years
• Anti-corrosion titanium coil 10 years
