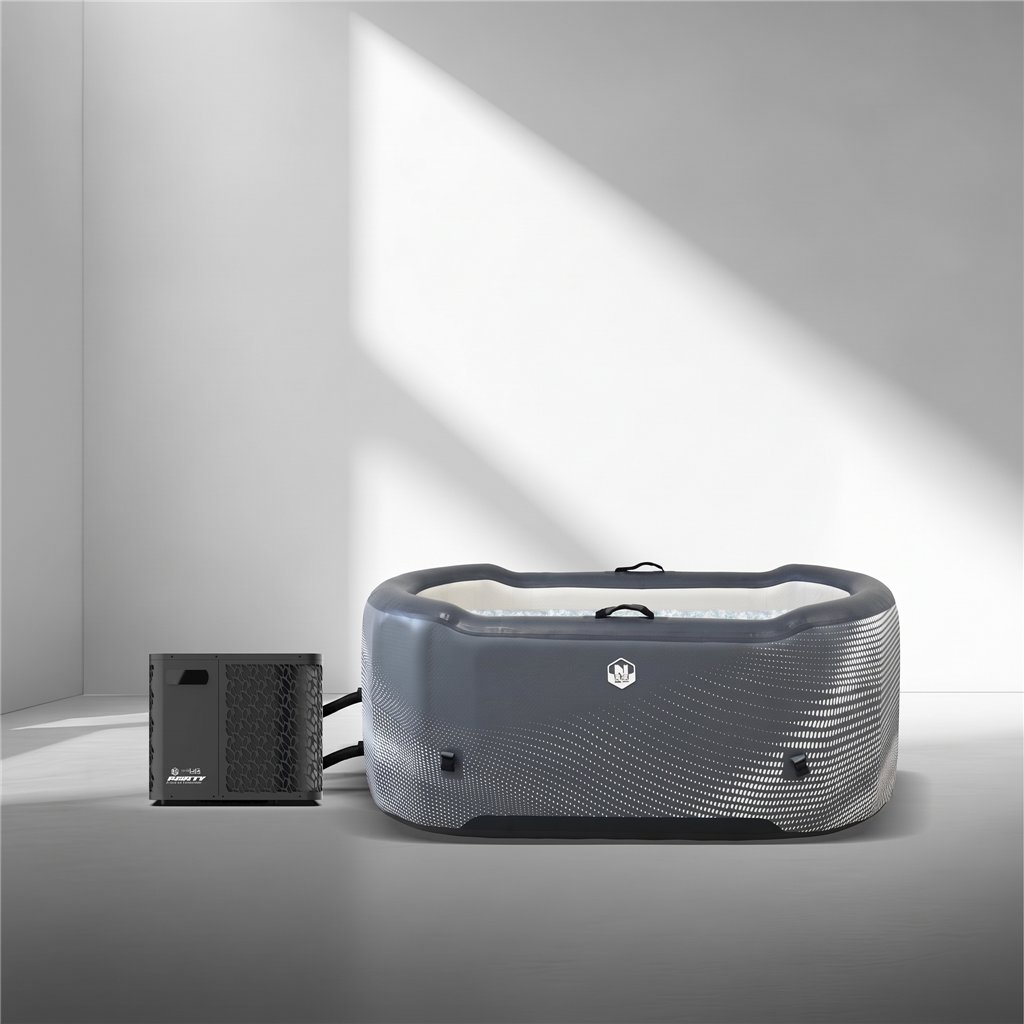

NetSpa Järvi ice bath kit with 5 kW chiller

NetSpa Järvi ice bath kit with 5 kW chiller

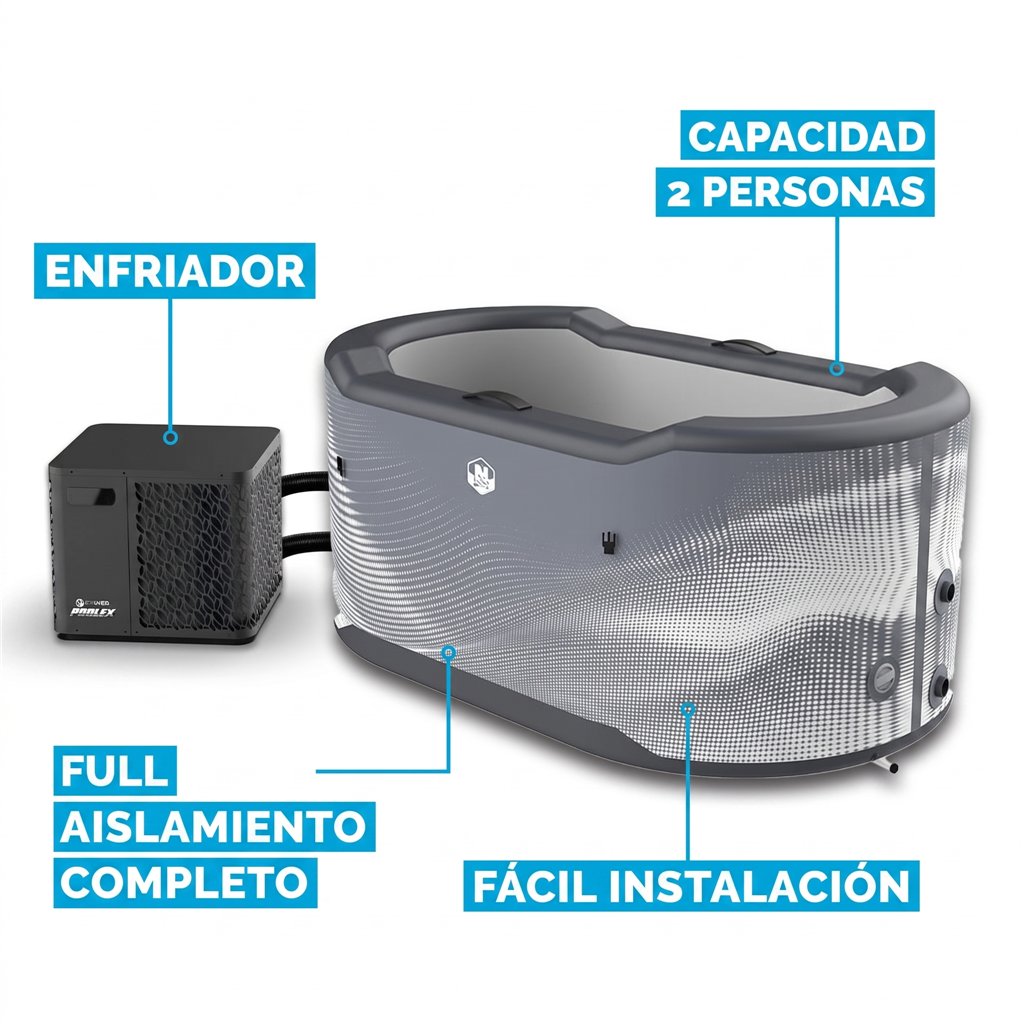

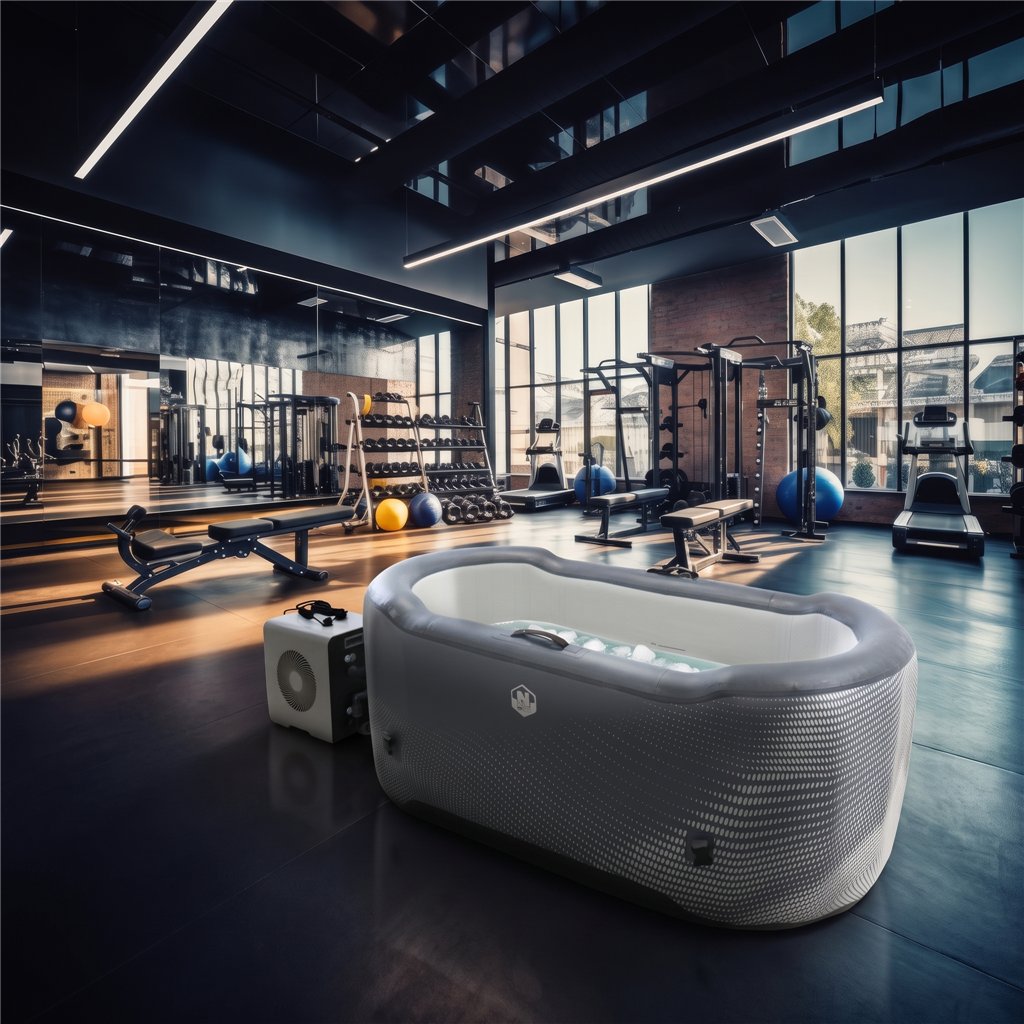

The NetSpa Järvi Chiller 5 kW brings together the components needed to prepare a cold-water bath in a compact format: a Järvi pool with Drop-Stitch technology, circulation pump, hoses and chiller unit. It is designed for wellness spaces, training environments or home use where an ice bath solution with electric cooling is required.

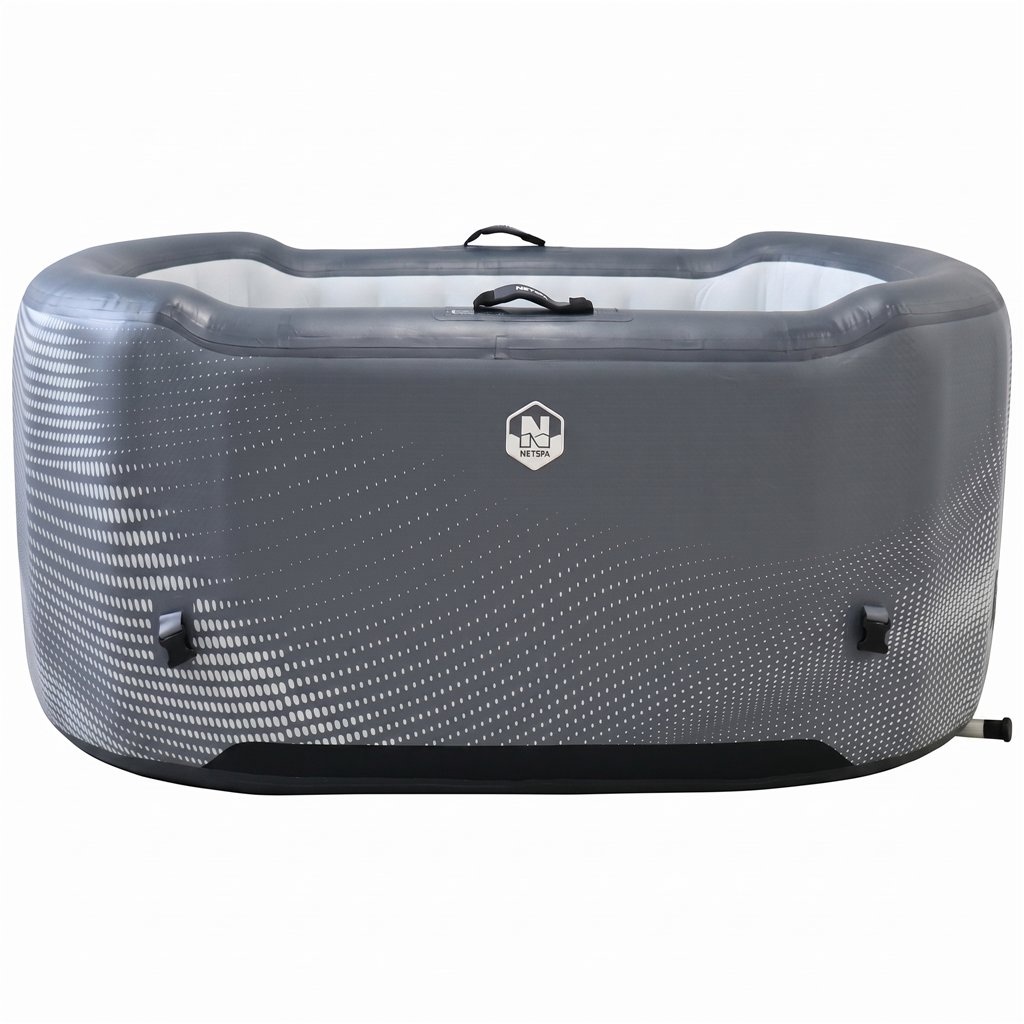

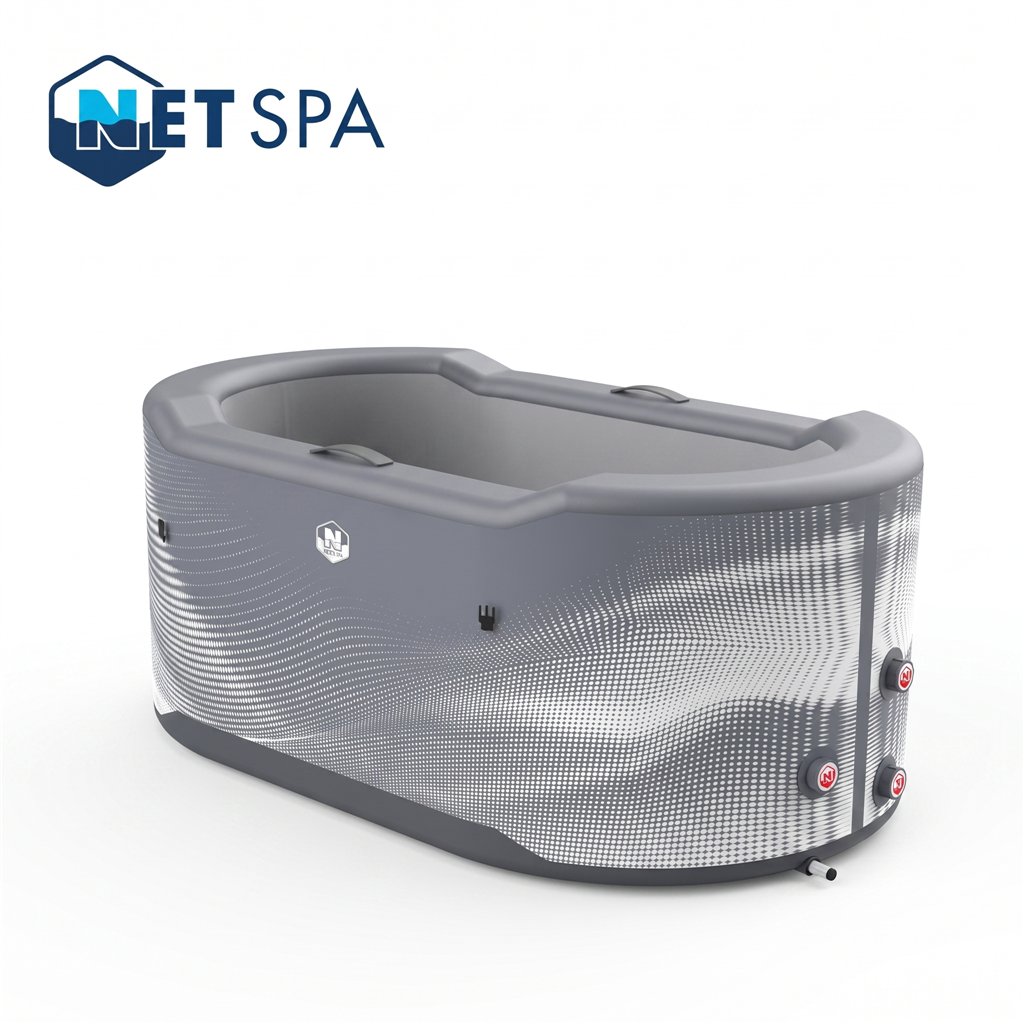

The pool features a high-pressure inflatable structure that combines rigidity with low weight for easier positioning, transport and storage. Its external dimensions of 170 x 92 x 67 cm provide an elongated format, with a stated capacity of up to 2 people.

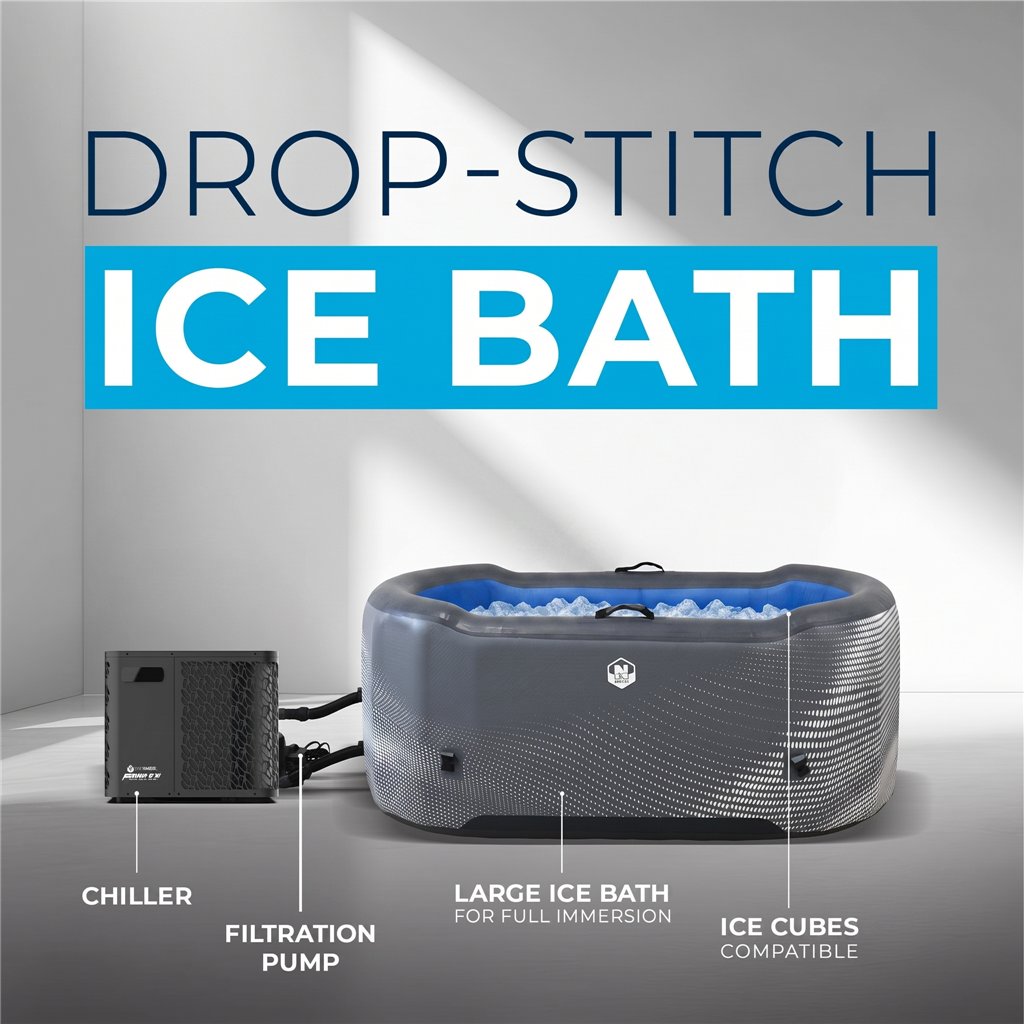

Cooling with a chiller or ice cubes

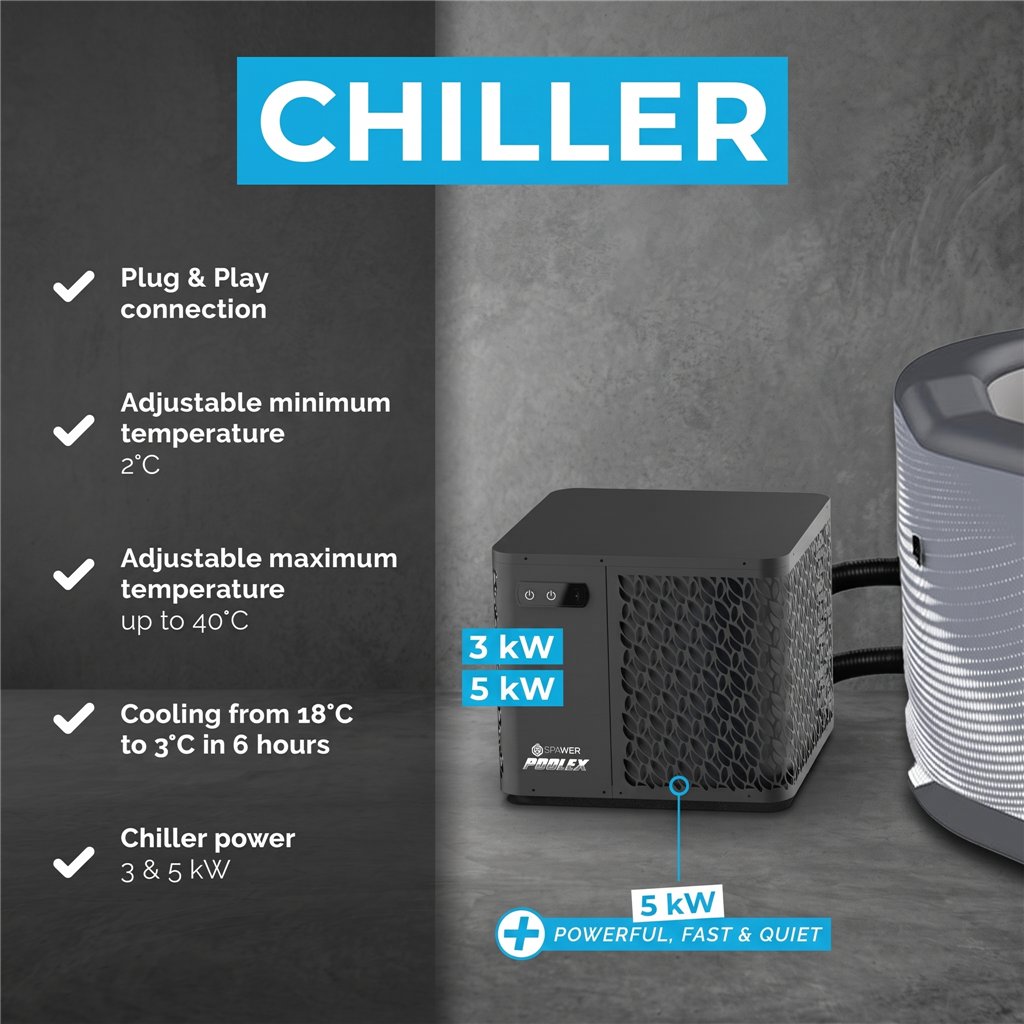

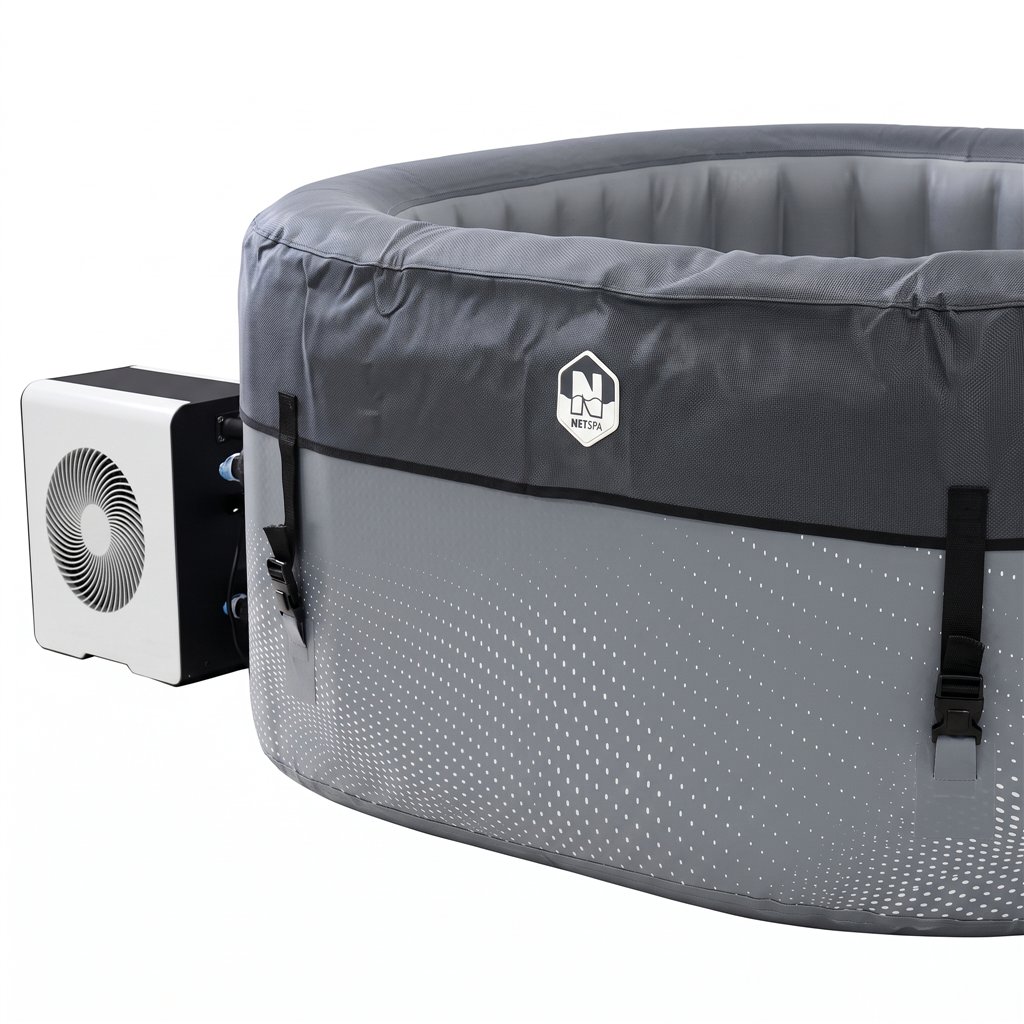

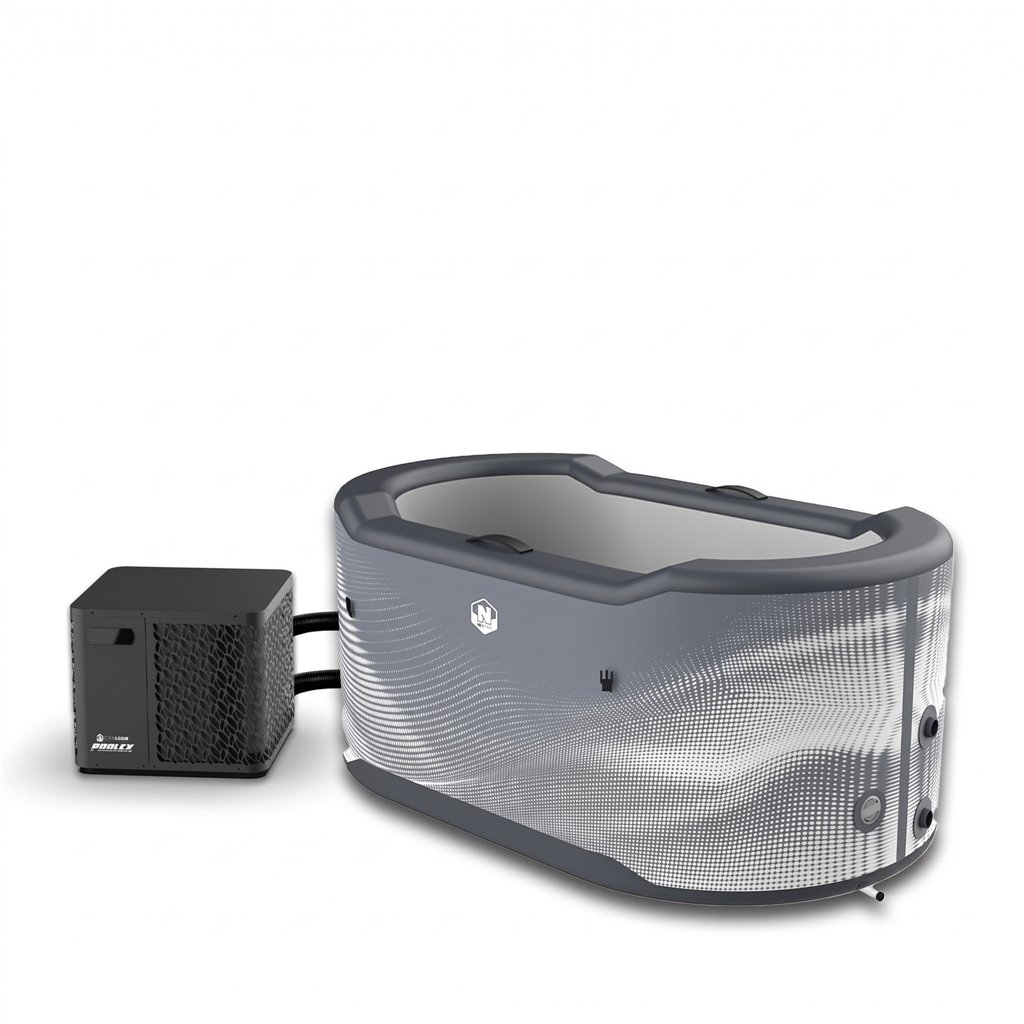

The set includes a 5 kW chiller connected to a circulation pump for electrically cooling the water. Connection is made using the supplied D32 mm kit. Ice cubes can also be used to cool the water when the cooling circuit is not in use.

With the corresponding chiller unit setting, the system can reach a water temperature of up to 3 °C. Using the chiller avoids the need for large quantities of ice for each bath preparation.

Drop-Stitch structure and practical format

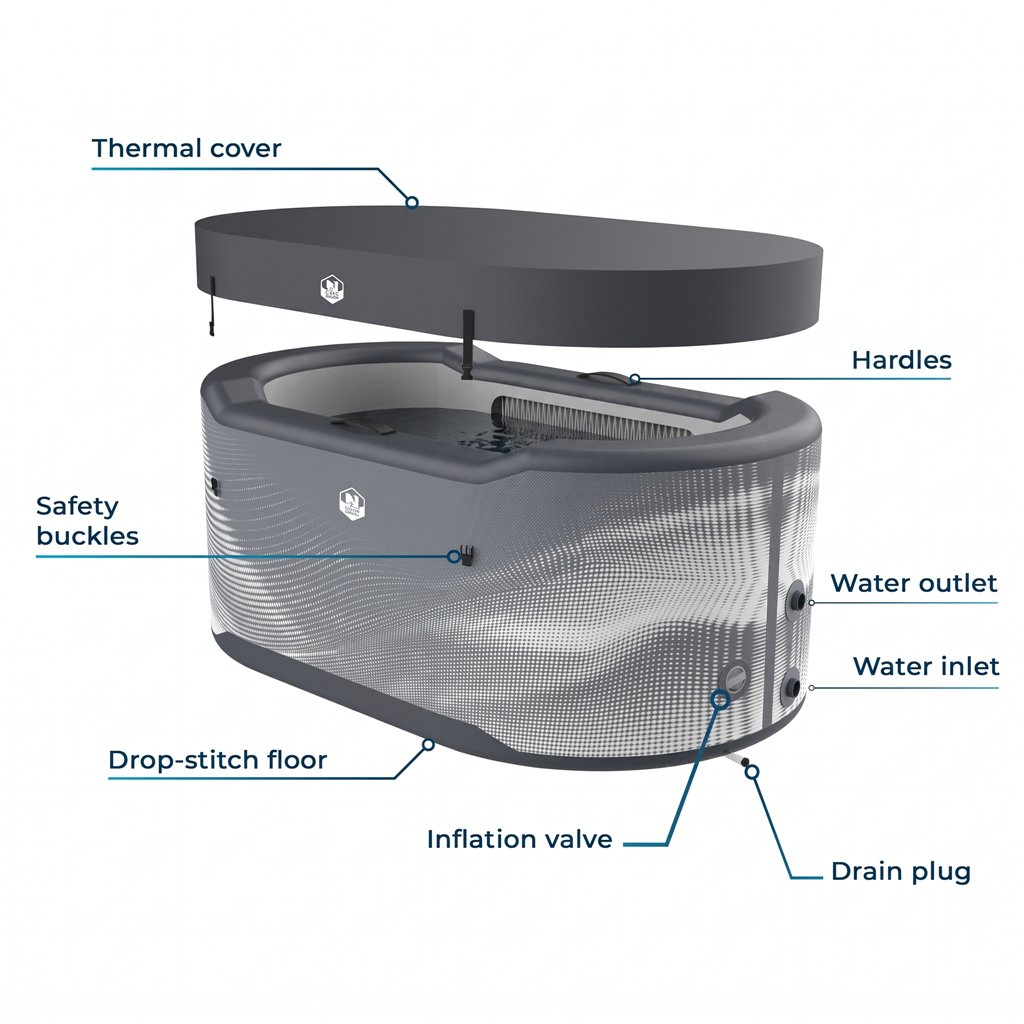

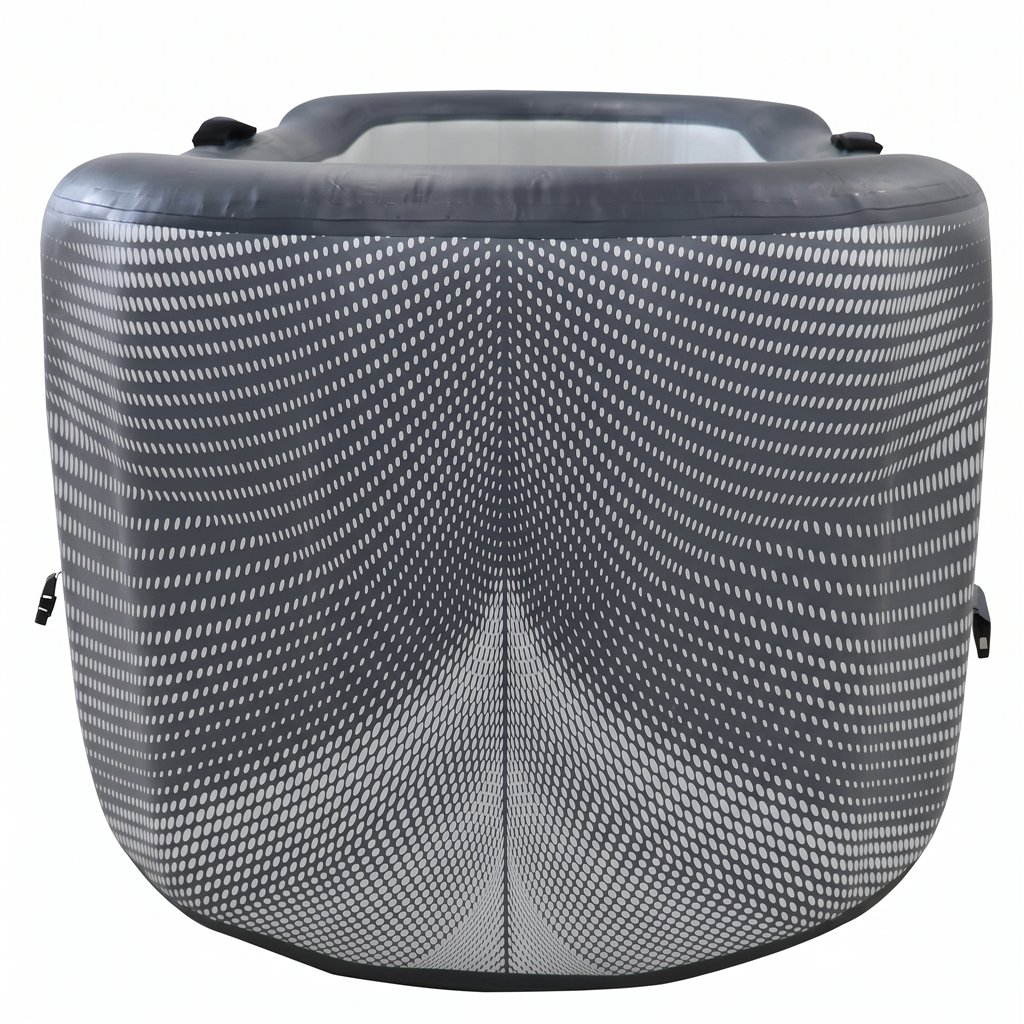

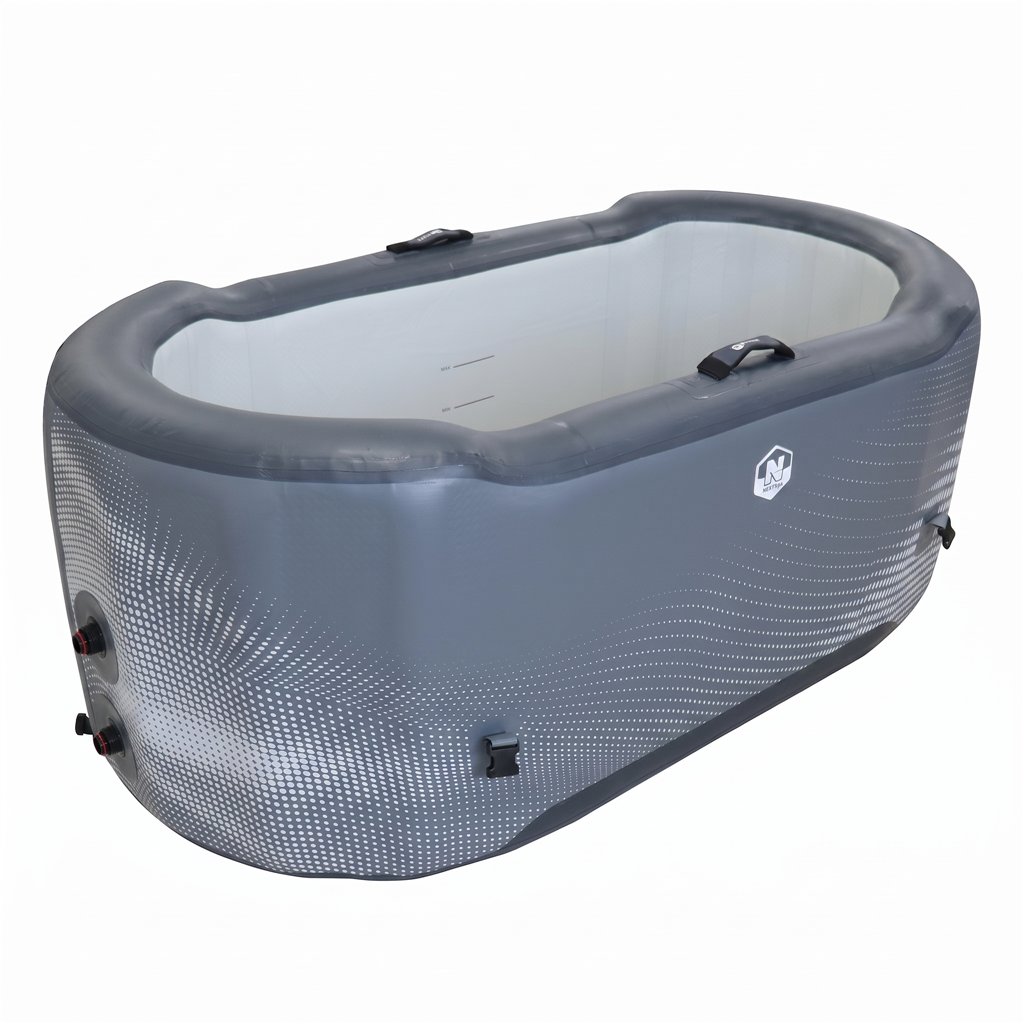

Drop-Stitch technology enables high-pressure inflation to provide stability for the pool. The design incorporates a Drop-Stitch floor, inflation valve, carrying handles, safety buckles, water inlet and outlet, and a drain plug.

According to the manufacturer, the pool can be assembled in under 5 minutes. The included thermal cover helps insulate the water once the installation is ready.

Kit contents

• Pool NetSpa Järvi Drop-Stitch
• Cooling 5 kW chiller or heat pump
• Circulation Circulation pump and hoses
• Hydraulic connection D32 mm connection kit
• Inflation Inflation pump
• Filtration 1 antibacterial cartridge compatible with the chiller and circulation pump
• Insulation Thermal cover
• Transport Carry bag
• Repair Repair kit

Water circuit connection

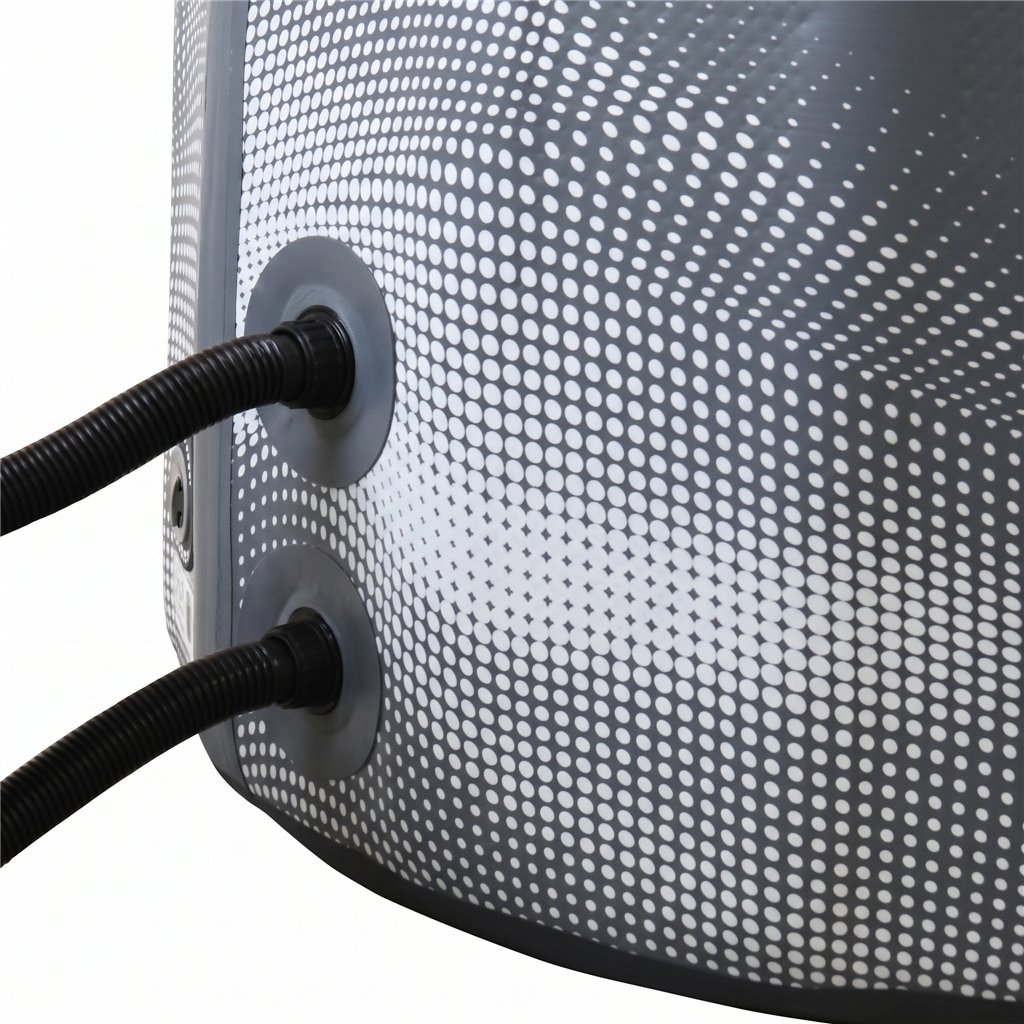

The hydraulic circuit connects the lower outlet of the pool to the inlet of the circulation pump. From the pump outlet, water is directed to the IN inlet of the chiller unit; the unit's OUT outlet connects to the upper inlet of the pool. Before filling, remove the two internal plugs and screw the filter onto the lower nozzle. When the water level is between the outlet and inlet, start the pump to purge air from the circuit before completing the fill.

Technical specifications

• Brand NetSpa
• Model Järvi Chiller 5 kW
• Reference SP-JRV300-CK5
• EAN-13 3700691421890
• Type Ice bath kit with pool, circulation pump and chiller
• Pool technology Drop-Stitch

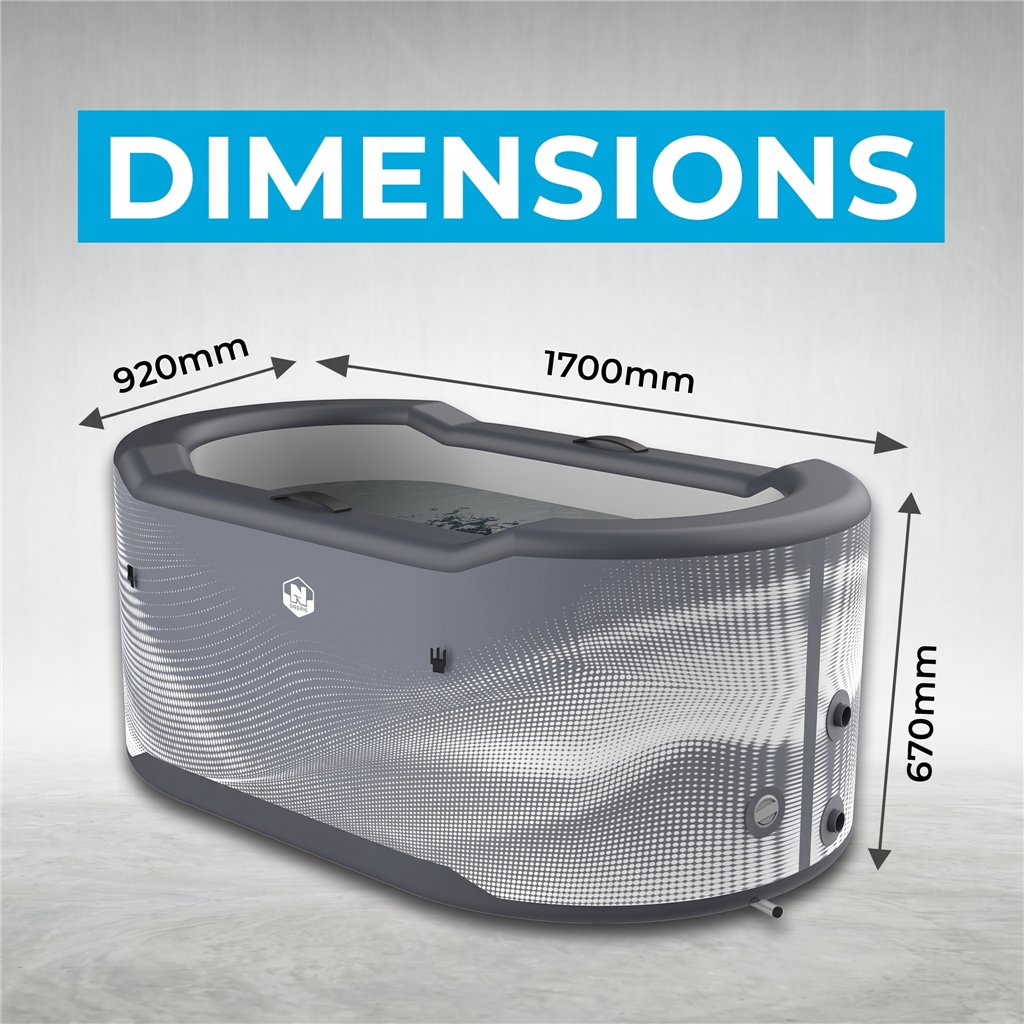

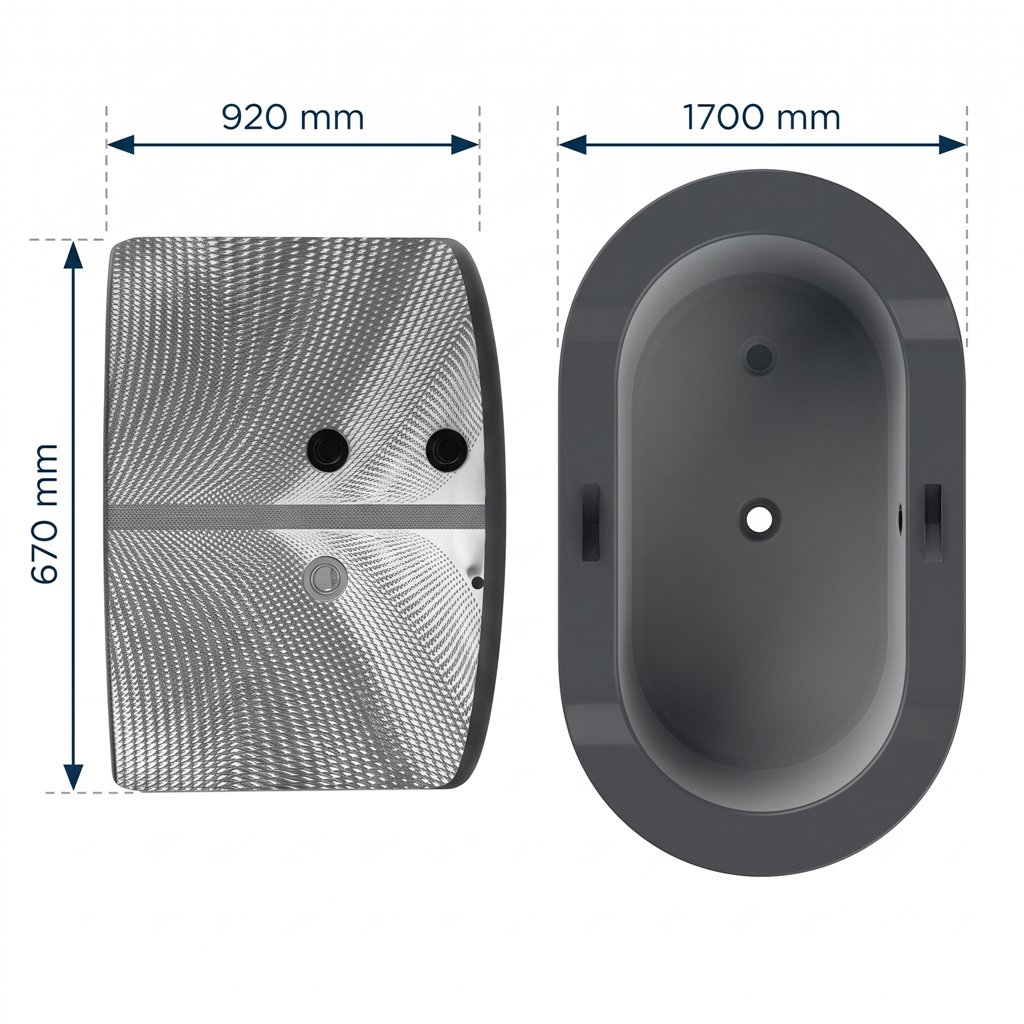

• External dimensions 1700 x 920 x 670 mm
• Stated capacity Up to 2 people
• Included chiller output 5 kW
• Stated minimum temperature Up to 3 °C with the C11 setting configured to 3 °C
• Hydraulic connection D32 mm
• Stated inflation time Under 5 minutes
• Warranty 2 years

Electrical installation and start-up

To operate the chiller below 5 °C, set advanced parameter C11 to 3 °C on the chiller unit. Switch off the heat pump before changing this setting. If required, PTFE tape can be applied to threaded fittings to improve the sealing of the connections.
