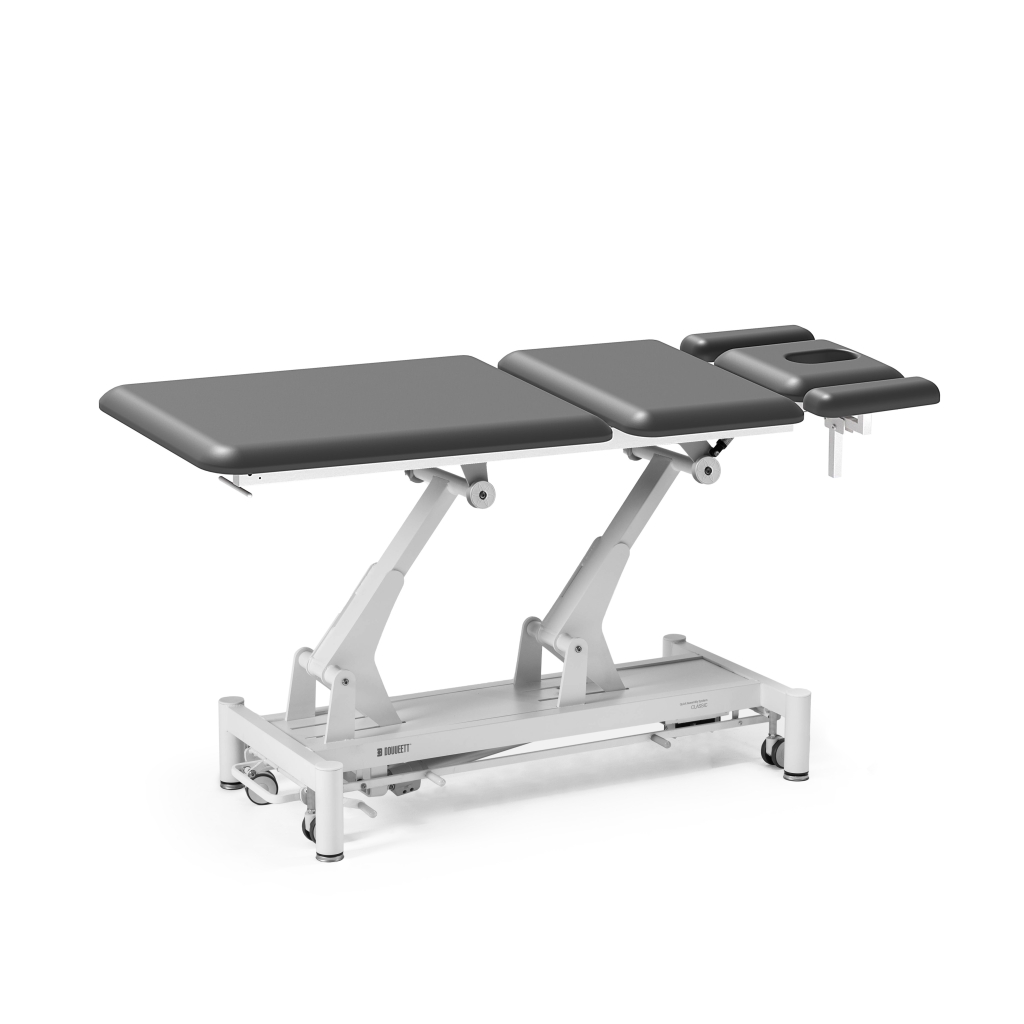

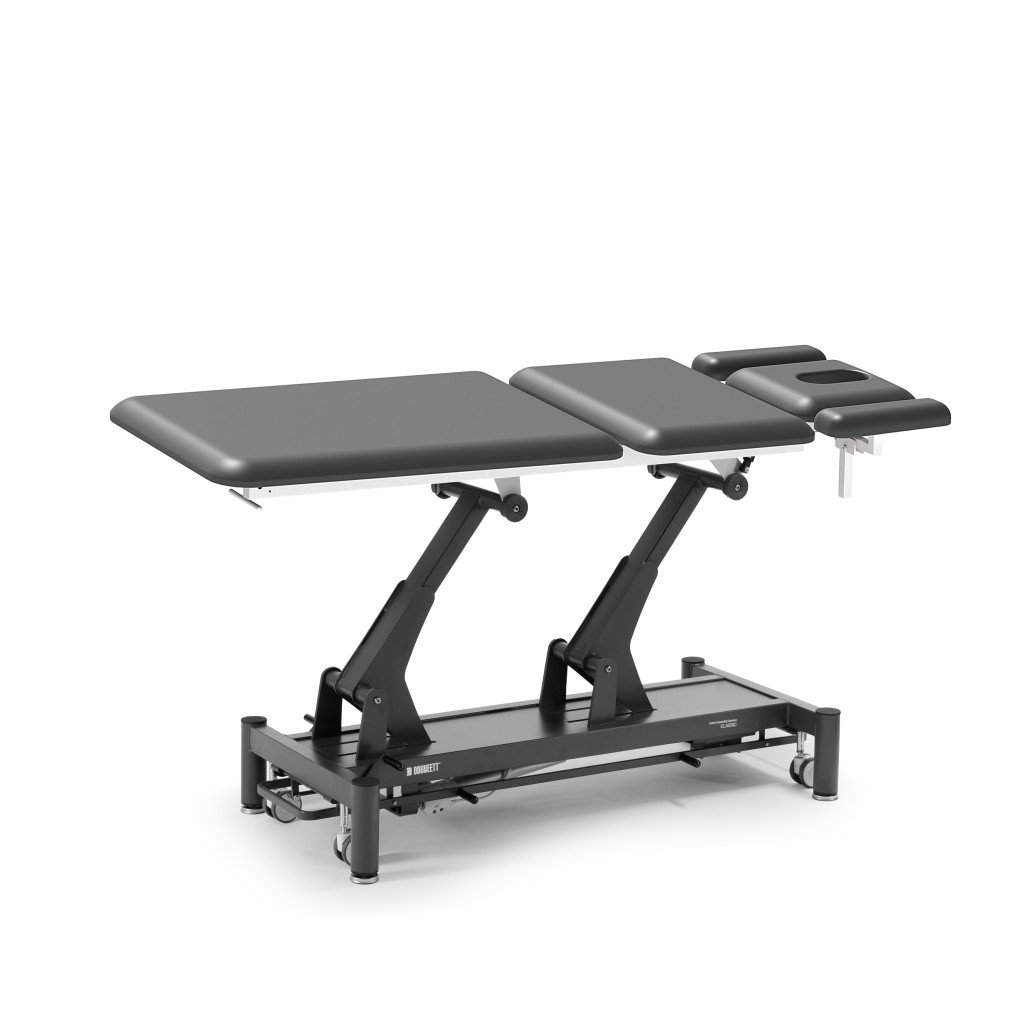

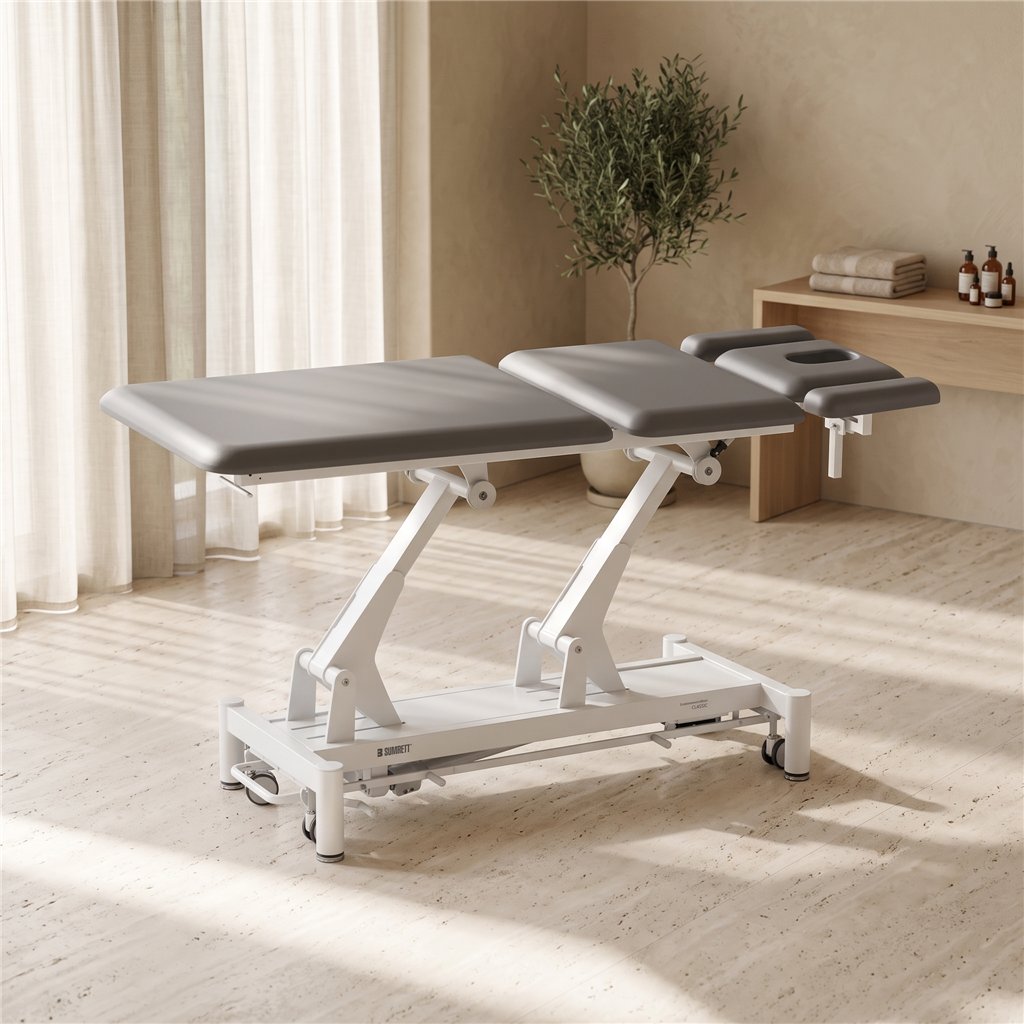

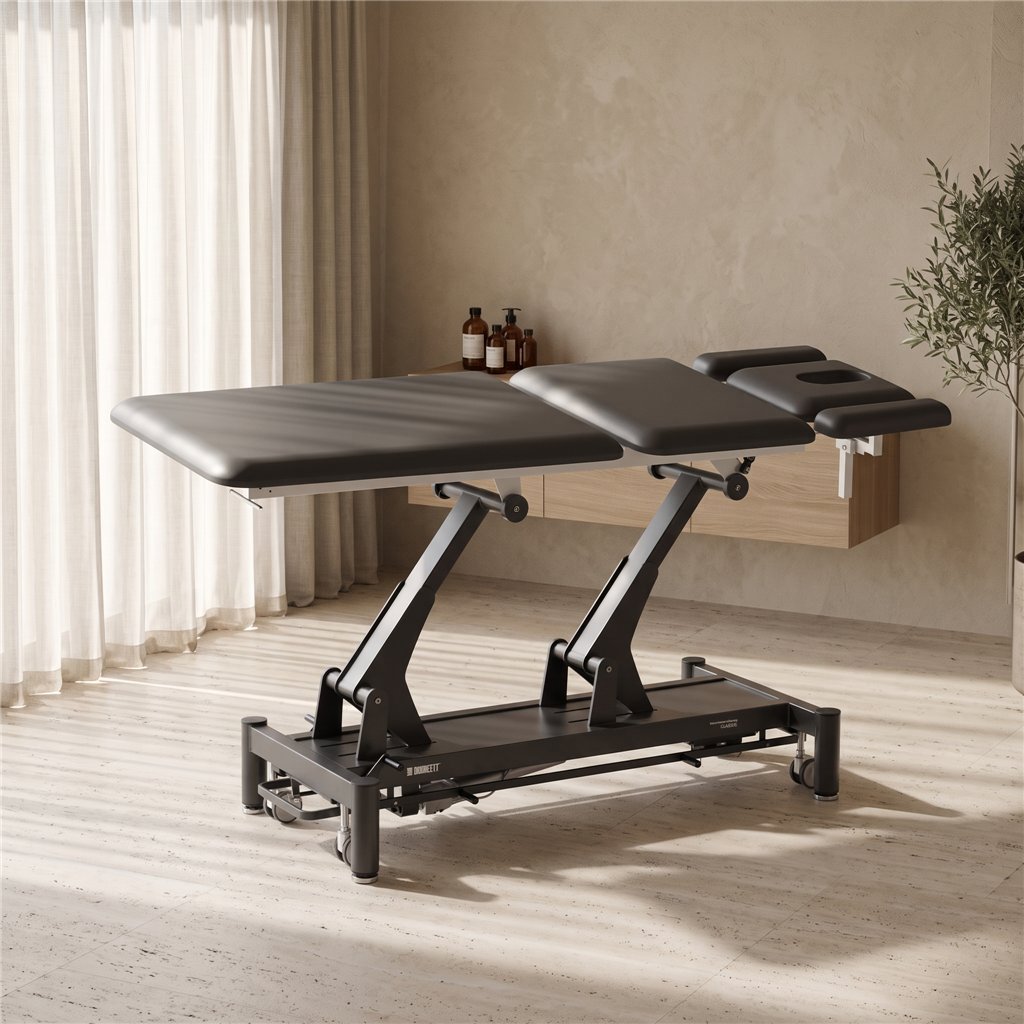

Electric Treatment Table Classic 531 – For professional physiotherapy

Classic 531 Electric Treatment Table – For professional physiotherapy

CE Marked

The Classic 531 Electric Treatment Table is a five-section medical device designed to deliver functionality and precision in clinical physiotherapy and rehabilitation environments.

It features electric height adjustment, adjustable headrest and leg rest tilt, as well as adjustable armrests for complete anatomical adaptation during treatment.

It complies with European healthcare regulations (EU Regulation 2017/745 – Class I, CE Marked), ensuring safety and reliability for medical use.

Key features

• Five-section electric medical treatment table with reinforced frame.
• Height adjustable from 47 to 97 cm via a perimeter bar accessible from any side.
• Articulating headrest with gas strut and tilt from -30° to +70°, plus manually adjustable armrests.
• Fixed centre section and leg rest with adjustable tilt (0° to +80°) by gas strut.
• Healthcare-grade upholstery in medical PVC with high-density foam (5.5 cm, 40 kg/m³).
• Retractable castors with brake for controlled mobility.
• Anatomical face hole and integrated paper roll holder.
• Quiet 6000 N electric motor for stable lifting.

Use in treatment room and type of treatments

Indicated for professional use in:

• Physiotherapy centres and functional rehabilitation facilities.
• Medical practices, osteopathy clinics and manual therapy settings.
• Massage therapy, lymphatic drainage and postural treatments.
• Biomechanical assessments and functional examinations.

Its segmented structure allows each section to be adjusted to position the patient precisely, facilitating access to specific areas during musculoskeletal treatments or motor rehabilitation.

The wide tilt range of the headrest and leg rest optimises the therapist’s working posture.

Controls and adjustments

The electric system allows height to be adjusted smoothly and safely via a perimeter bar surrounding the entire base, providing control from any angle of the treatment table.

The headrest and leg rest are adjusted by gas struts, ensuring smooth and stable movement.

The armrests are adjusted manually, adapting patient ergonomics according to the type of therapeutic intervention.

Materials and finish

Painted steel frame with highly resistant epoxy coating against moisture and wear.

The 5.5 cm thick foam padding with a density of 40 kg/m³ provides firmness and lasting comfort, even during long sessions.

The healthcare-grade upholstery in medical PVC is flame-retardant, antibacterial and resistant to clinical disinfectant products.

Available in various colours according to factory specification.

Maintenance and cleaning

• Disconnect the power supply before cleaning or maintenance.
• Inspect electrical connections, gas struts and screws monthly.
• Clean with a damp cloth and neutral detergent. Avoid abrasive products or solvents.
• Apply a disinfectant compatible with medical PVC without spraying directly onto the surface.
• Keep metal parts dry to prevent corrosion.

Technical specifications and electrical data

• Model Classic 531
• Dimensions 201 x 68 cm
• Adjustable height from 47 to 97 cm
• Number of sections 5
• Headrest tilt -30°/+70°
• Leg rest tilt 0°/+80°
• Weight 82 kg
• Maximum load 250 kg
• Motor 1 x 6000 N electric motor
• Voltage AC 220–240 V / 50–60 Hz
• Motor output DC 24 V / 5.5 A / 132 W
• Foam 5.5 cm, density 40 kg/m³
• Upholstery medical PVC
• Castors retractable with brake
• Operating mode 2 min ON / 18 min OFF
• Certification Regulation (EU) 2017/745 – Class I
• UDI-DI 06976904610031

Certifications and compliance

Manufactured in accordance with the following standards:

• EN 60601-1:2006/A2:2021 – Basic safety and essential performance.
• EN 60601-1-6:2010/A2:2021 – Medical device usability.
• EN 60601-1-2:2015 – Electromagnetic compatibility.

CE Marked

Meets the safety, quality and reliability requirements of Regulation (EU) 2017/745.
