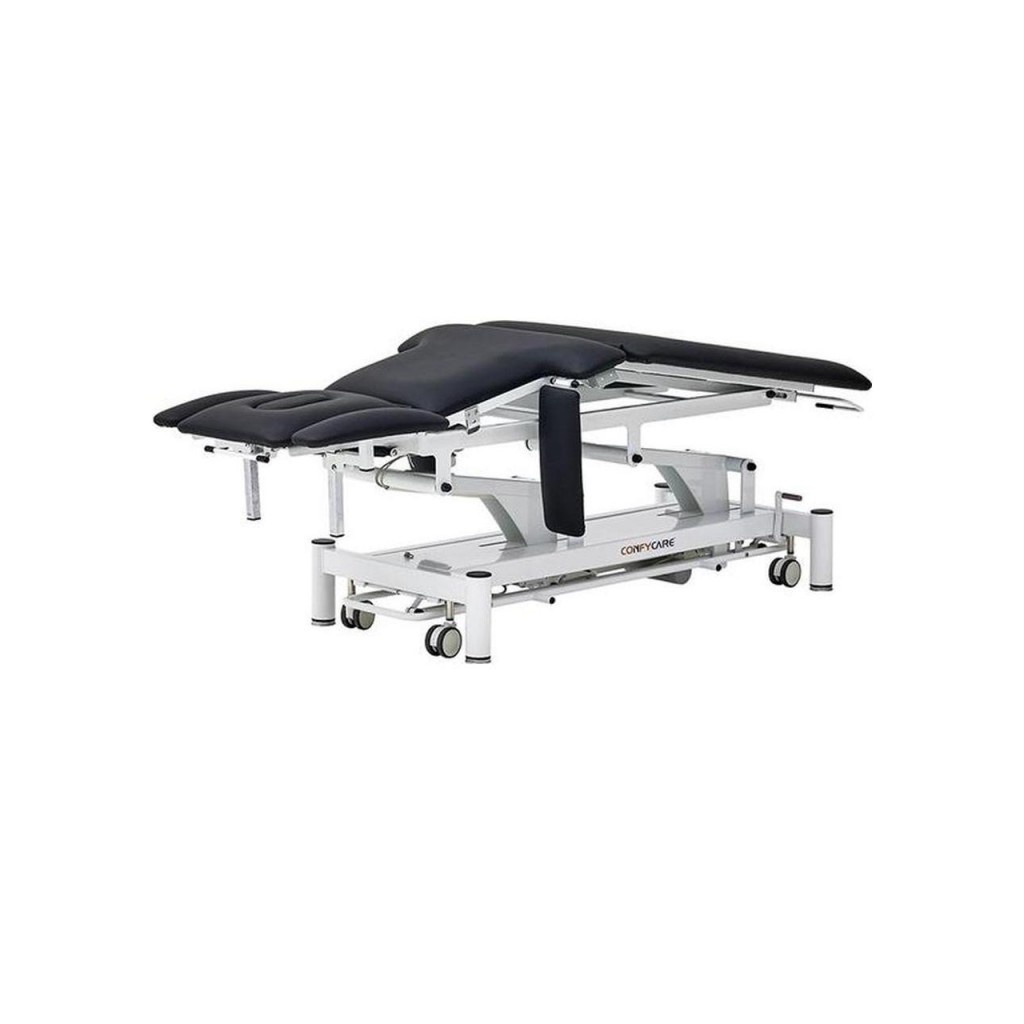

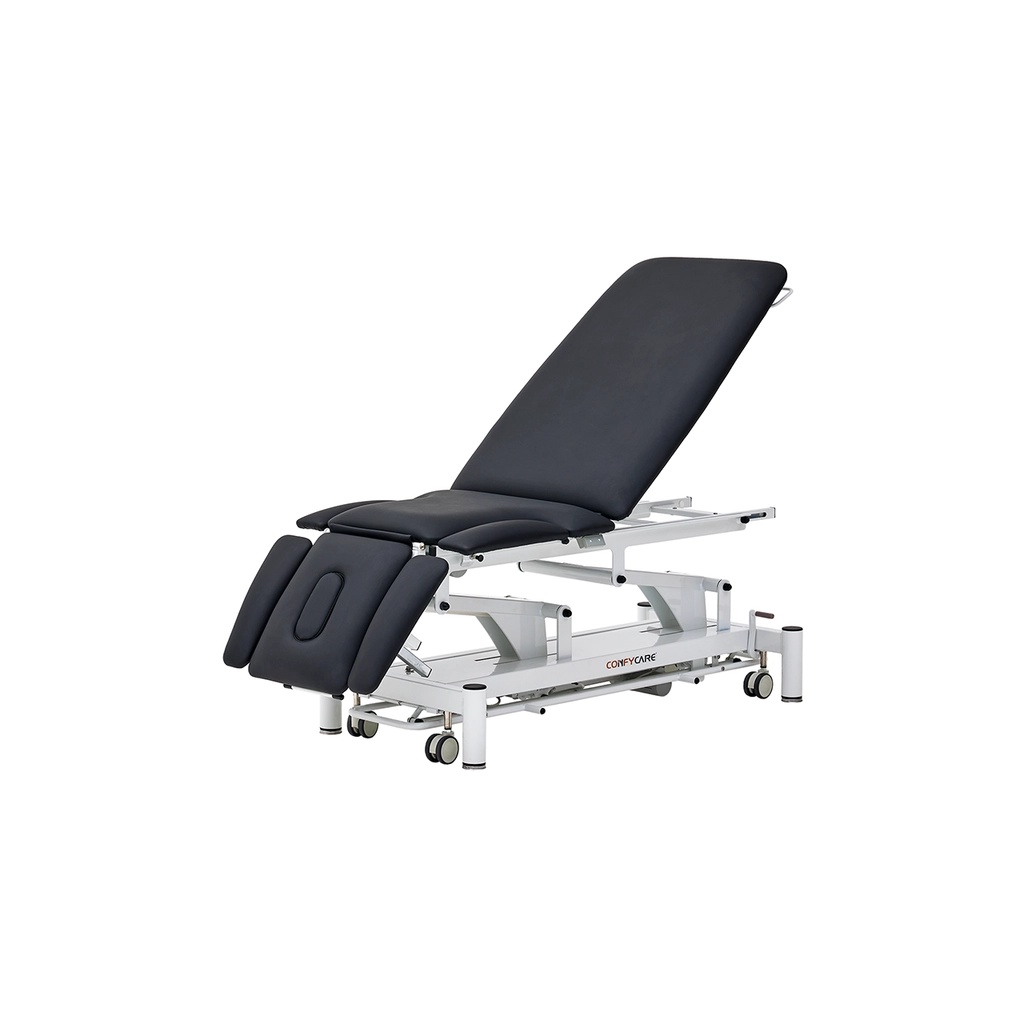

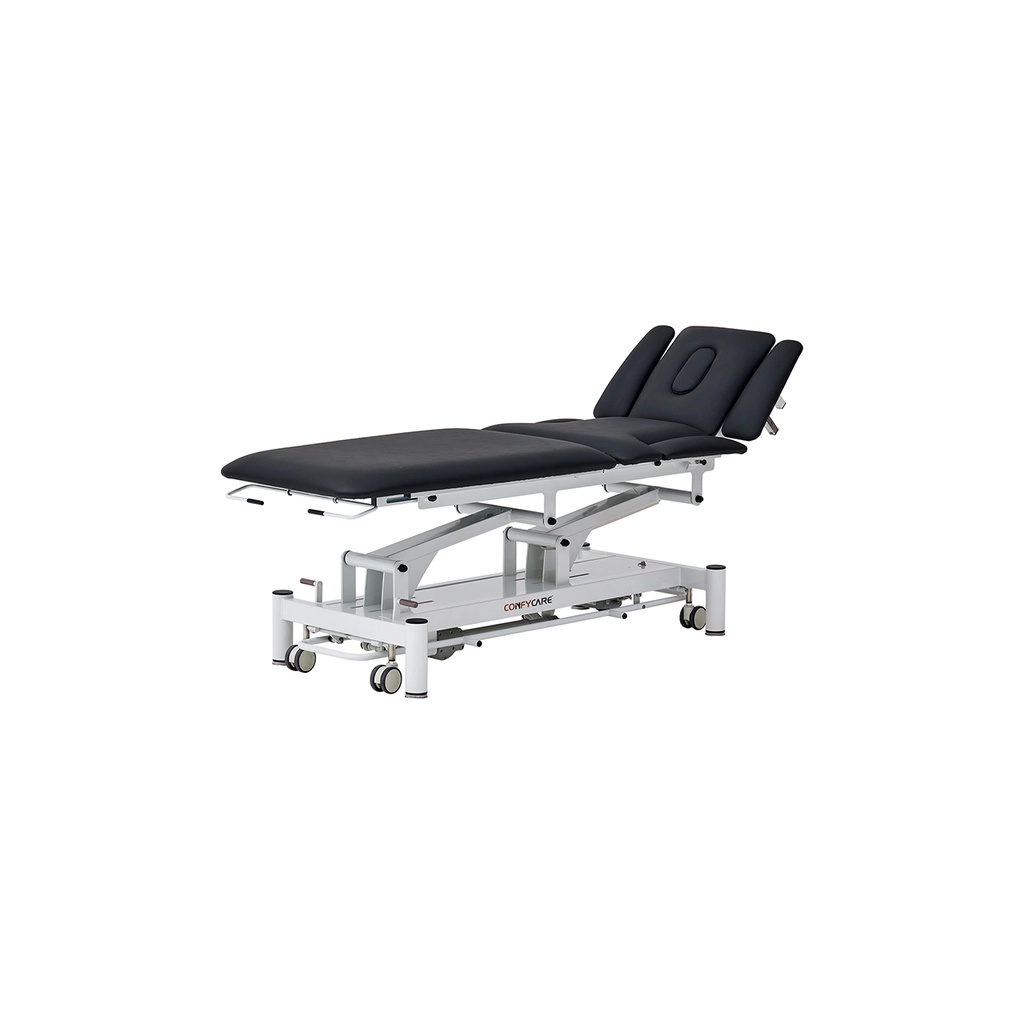

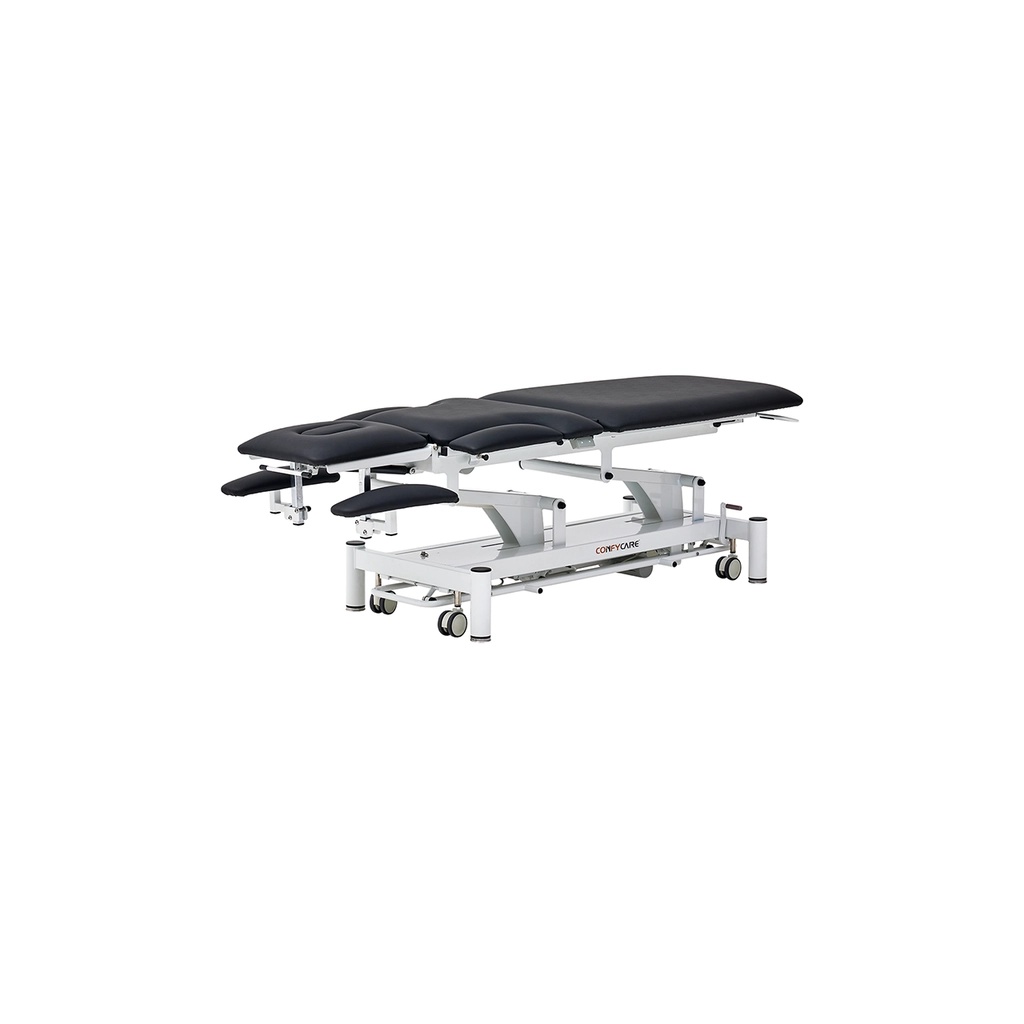

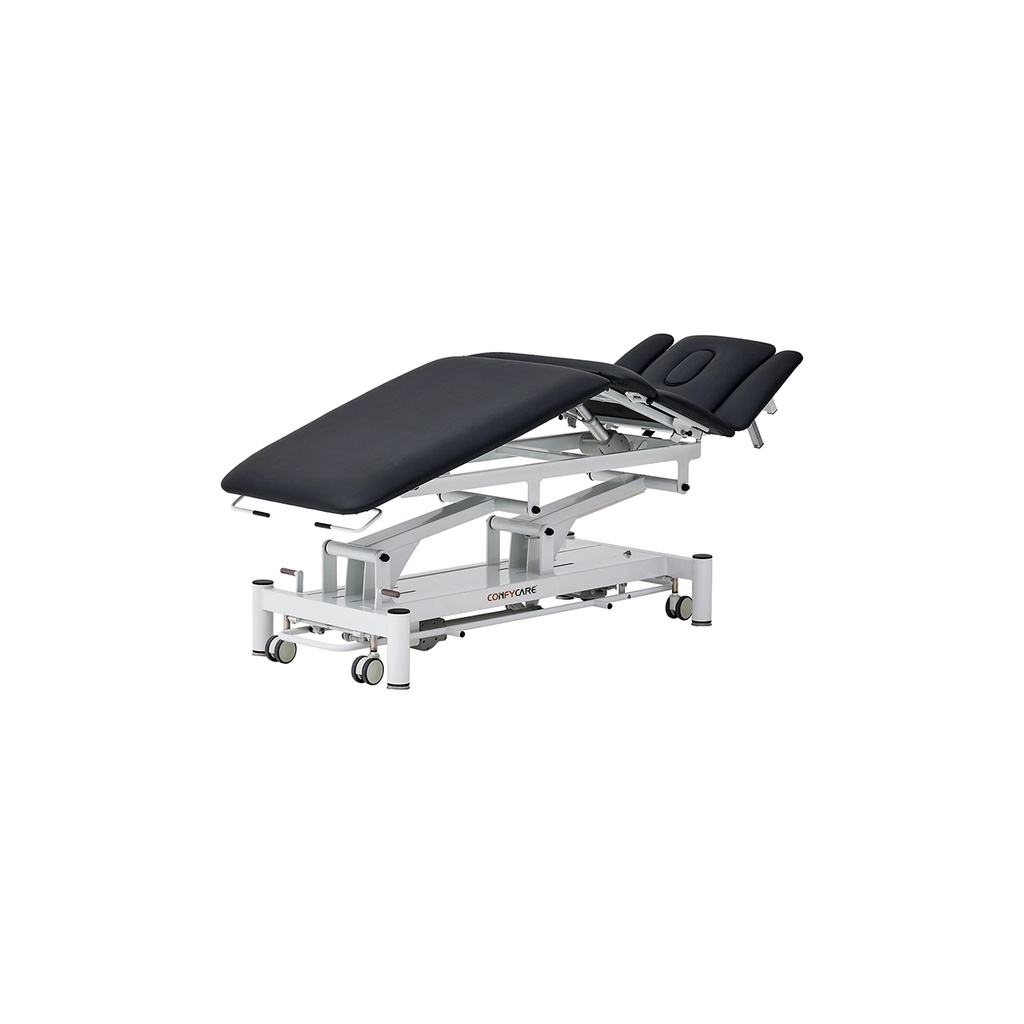

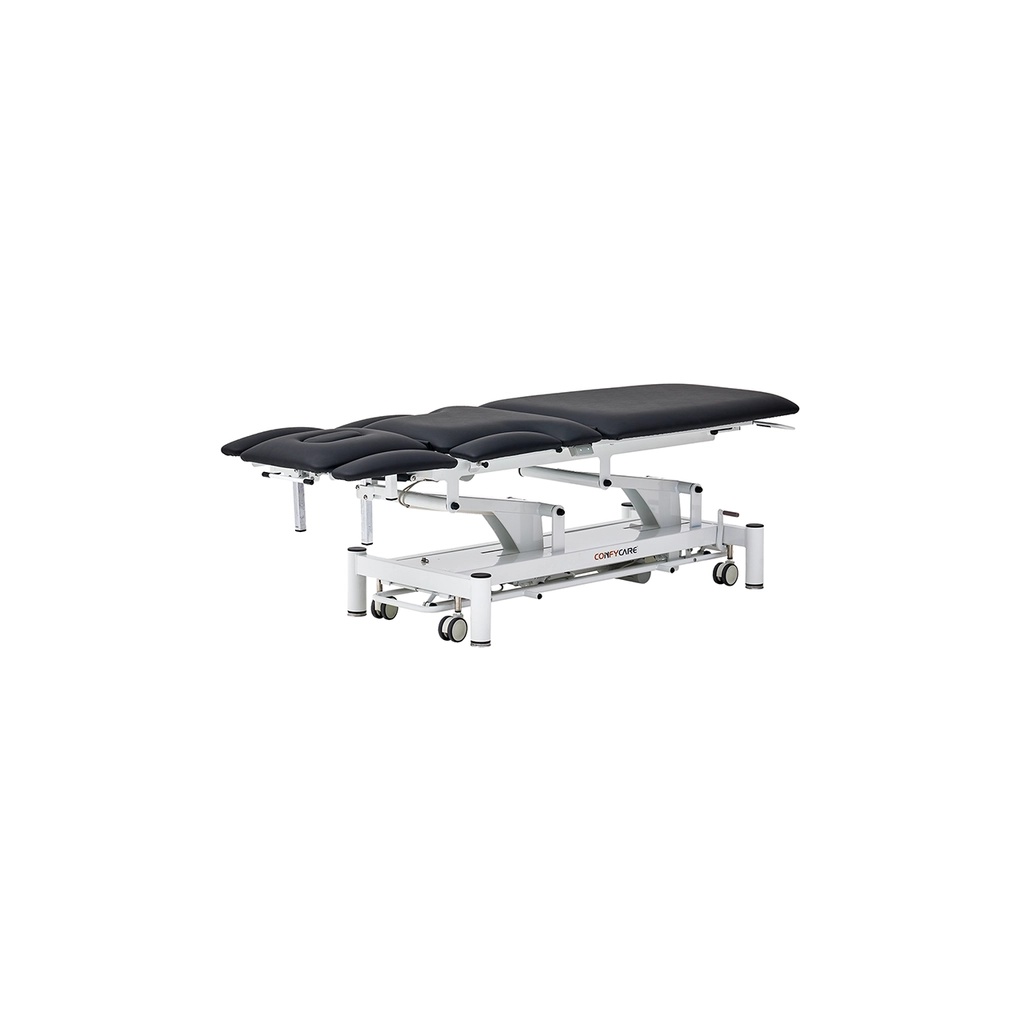

Coinfycare STILL 7-section electric physiotherapy table

Coinfycare STILL 7-section electric physiotherapy table

The Coinfycare STILL is a seven-section electric physiotherapy table for physiotherapy, rehabilitation and massage settings. Its articulated structure allows the different support areas to be adapted to each working position, while electric Hi-Lo height adjustment is operated via a perimeter foot bar.

The model includes an electric postural drainage function, controlled by a side button located on the frame. This configuration allows the table to be adjusted during the session without using manual mechanisms for the indicated functions.

Articulation for different working positions

The treatment surface is divided into seven sections and provides a wide adjustment range across its main areas. The head section adjusts from -55° to +45°; the thoracic section reaches an inclination of 0° to +25°; and the leg section adjusts from 0° to +75°. The thoracic section intended for postural drainage also offers a range of 0° to +25°.

For prone treatments, the head section incorporates a face hole with plug. The padded armrests fold down to 90°, expanding positioning options on the table.

Electric adjustment and in-room mobility

The electric lift has a 50 cm travel range and is powered by a TiMOTION motor. The perimeter bar allows height to be adjusted from either side of the table, while the side control operates the postural drainage position.

The enclosed base covers the technical components and provides clean exterior lines that facilitate surface cleaning. It includes adjustable feet to compensate for minor floor unevenness and quiet wheels for moving the table within the treatment room.

Upholstery and padding

The STILL is equipped with 5 cm thick padding and foam with a density of 36 kg/m³. Its upholstery is flame-retardant PVC vinyl compliant with BS 5852, with declared resistance to stains, mould and wear for up to 150,000 cycles.

Specifications

• Brand and model Coinfycare STILL
• Commercial reference EL52PRO23SL
• Type Articulated electric physiotherapy table for physiotherapy, rehabilitation and massage
• Number of sections 7 sections
• Height adjustment Electric Hi-Lo adjustment via perimeter foot bar
• Lift travel 50 cm
• Postural drainage Electric operation via side button on the frame
• Head section angle -55° to +45°
• Thoracic section angle 0° to +25°
• Leg section angle 0° to +75°
• Thoracic section for postural drainage 0° to +25°
• Armrests Padded and fold-down to 90°
• Head section Face hole with plug
• Motor TiMOTION
• Padding 5 cm thick; 36 kg/m³ foam
• Upholstery Flame-retardant PVC vinyl compliant with BS 5852
• Load capacity 250 kg
• Base Enclosed, with protected technical components
• Stability and mobility Adjustable feet and quiet wheels
• Warranty 1 year

Dimensions and logistics

• Table surface 200 × 70 cm
• Specified weight 101 kg
• Packaging dimensions 189 × 51 × 73 cm
• Packaging volume 0.7 m³
• Declared certification CE and US FDA registration
