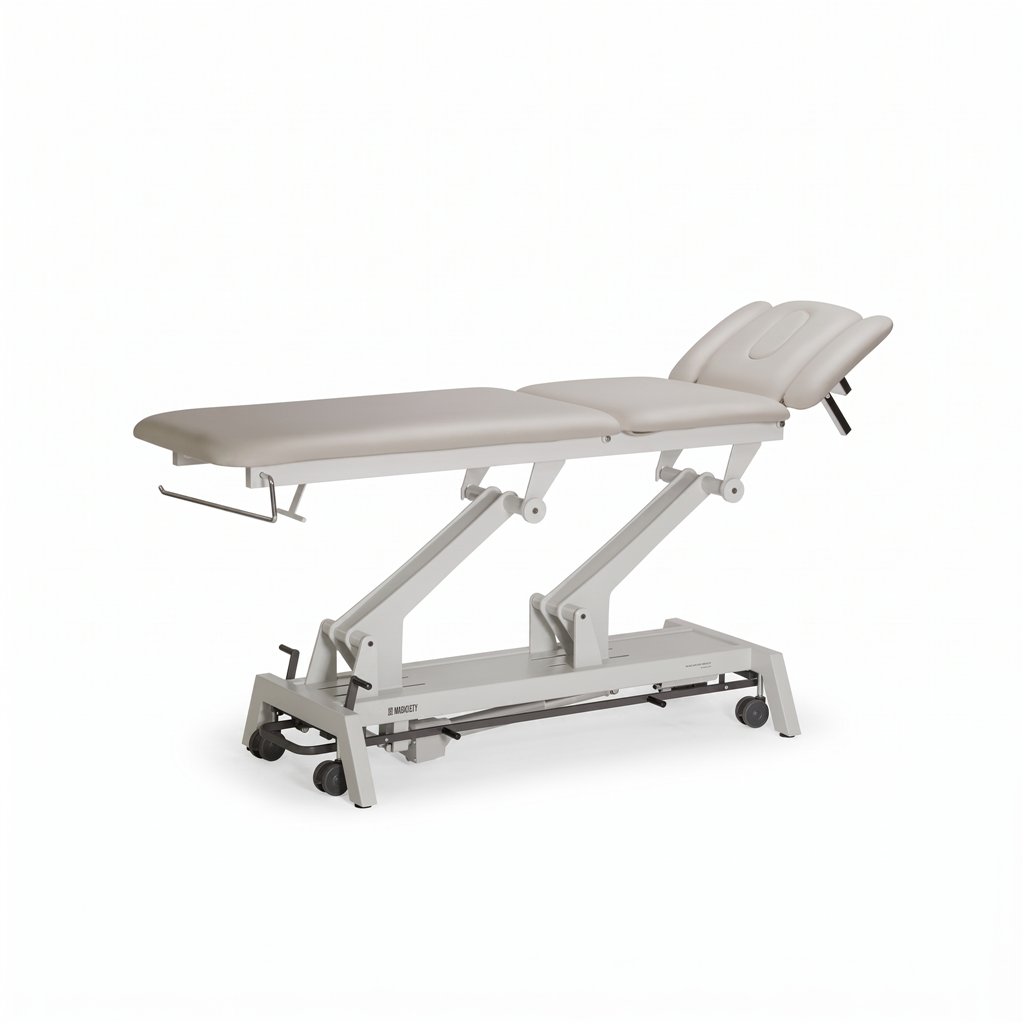

DDUUEETT AVANT 531 electric treatment table, pearl grey

DDUUEETT AVANT 531 electric treatment table

The DDUUEETT AVANT 531 is a five-section electric treatment table designed for physiotherapy and manual therapies. It features a grey base, pearl upholstery and one motor for height adjustment via a foot-operated perimeter bar.

Its working surface measures 201 x 68 cm, with an adjustable height of 47 to 97 cm when flat. The three-section headrest, armrests and footrest allow the working position to be adapted to the technique being performed.

Section adjustment

The headrest is adjusted by a gas spring and offers an angle range from -30° to +70°. The armrests are manually adjustable. The footrest also uses a gas spring and can be inclined from 0° to +80°.

The perimeter bar enables electric height adjustment from different points around the table. Four retractable wheels make the table easier to move. Once positioned in the workspace, the adjustable immobilisation system helps keep it in place during use.

Upholstery and included equipment

The surface is upholstered in Medical PVC, with 5.5 cm padding and a density of 40 kg/m³. It includes a face hole and paper roll holder. The stated contents are one electric treatment table, one paper roll holder and an instruction manual.

• Model DDUUEETT AVANT 531
• Reference 11004382
• Configuration 5 sections with a 3-section headrest
• Motor 1 lifting motor, 6000 N
• Height control Foot-operated perimeter bar
• Adjustable height 47-97 cm
• Dimensions 201 x 68 cm
• Table weight 87 kg
• Maximum load 250 kg
• Headrest inclination -30° to +70°
• Footrest inclination 0° to +80°
• Armrests Manually adjustable
• Mobility 4 retractable wheels
• Upholstery Medical PVC, 5.5 cm, 40 kg/m³
• Colour Grey base and pearl upholstery
• Power supply AC 220-240 V, 50/60 Hz
• Motor data DC 24 V, 5.5 A, 132 W
• Duty cycle 10%; maximum 2 min on / 18 min off
• Protection IPX4 against splashing water or liquids
• Electrical classification Type B
• UDI-DI 06976904610024

Use and maintenance

The AVANT 531 is intended to support the user during physiotherapy and manual therapy treatments. To preserve the upholstery, cover it with a towel, disposable paper or a cover, replacing it between users. Clean the table after each use with a soft cloth. For the upholstery, use lukewarm water and mild detergent applied with a well-wrung cloth.

Disconnect the table from the mains before cleaning or carrying out maintenance. Regularly check the adjustment of the sections, gas springs, screws, wiring and wheel system.

Compliance

Class I medical device in accordance with Regulation (EU) 2017/745. Complies with EN 60601-1:2006/A2:2021, EN 60601-1-6:2010/A2:2021 and EN 60601-1-2:2015 standards.
