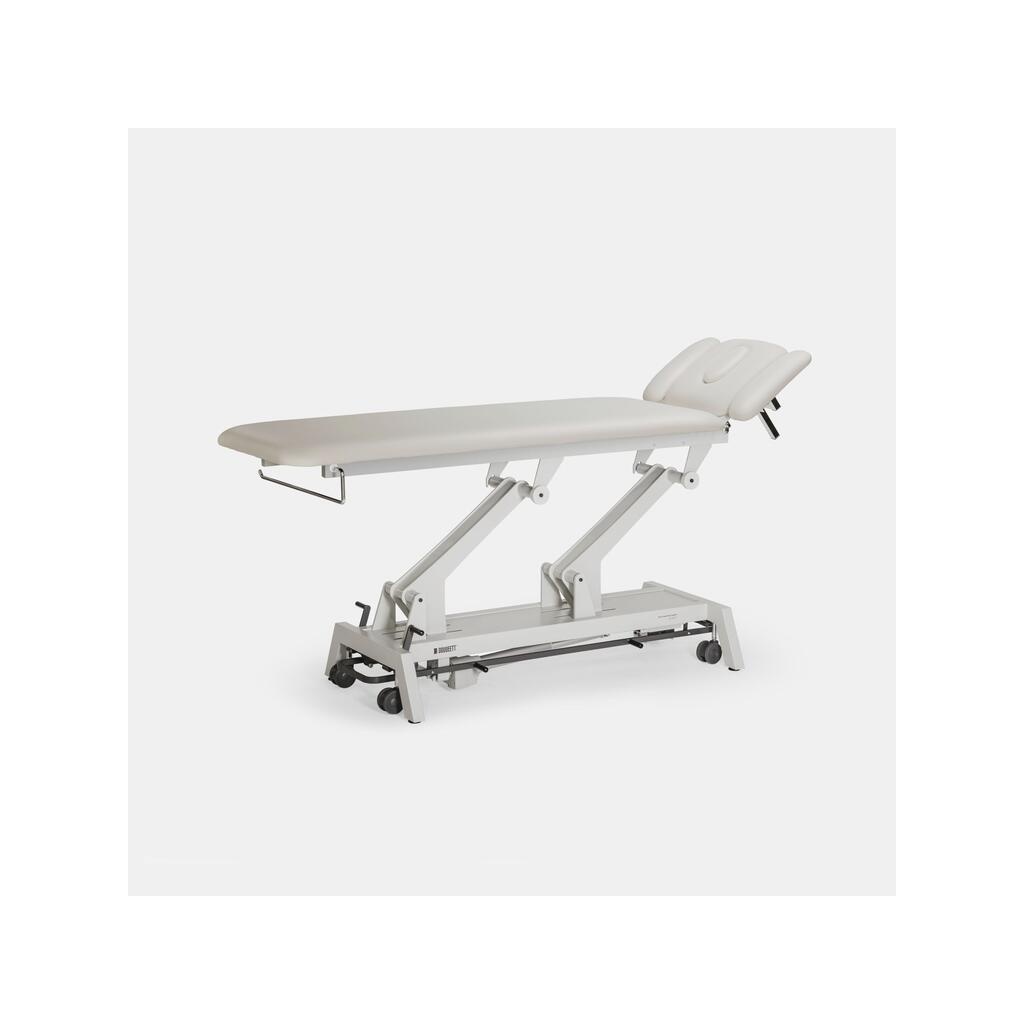

DDUUEETT AVANT 431 electric treatment table with grey base and pearl upholstery

DDUUEETT AVANT 431 4-section electric treatment table

The DDUUEETT AVANT 431 is an electric treatment table for physiotherapy and manual therapies. Its four-section surface incorporates a three-section headrest with manually adjustable armrests, allowing the working position to be adapted for each session.

The grey frame is paired with pearl medical-grade PVC upholstery. The table includes a face hole and paper roll holder for disposable paper. Its surface measures 201 x 68 cm and supports a maximum load of 250 kg.

Electric height adjustment

Height is electrically adjustable from 47 to 97 cm in the flat position. It is operated by a perimeter control bar that can be accessed by foot from the sides of the table. A 6,000 N motor provides height adjustment.

The headrest is adjusted by a gas spring and offers an inclination range from -30° to +70°. The armrests are manually adjustable.

• Model DDUUEETT AVANT 431
• Reference 11003982
• Number of sections 4
• Headrest 3 sections, adjustable by gas spring
• Headrest inclination -30° to +70°
• Armrests Manually adjustable
• Face hole Included
• Paper roll holder Included

Mobility and positioning

The 4 retractable castors make it easier to move the treatment table within the work area. Once positioned, it has an adjustable immobilisation system operated by foot levers.

• Height adjustment Electric, via perimeter control bar
• Motor 1 x 6,000 N motor
• Castors 4 retractable castors
• Immobilisation system Adjustable, operated by foot levers
• Duty cycle Maximum 2 minutes on / 18 minutes off

Dimensions and technical data

• Dimensions 201 x 68 cm
• Adjustable height 47-97 cm
• Table weight 83 kg
• Maximum load 250 kg
• Upholstery Medical-grade PVC
• Padding thickness 5.5 cm
• Padding density 40 kg/m³
• Frame colour Grey
• Upholstery colour Pearl
• Power supply AC 220-240 V, 50/60 Hz
• Motor specifications DC 24 V, 5.5 A, 132 W
• Protection rating IPX4
• Electrical classification Type B

Use and care

The AVANT 431 is intended to support users during physiotherapy and manual therapy treatments; it is not designed for transporting patients. To protect the upholstery, cover the surface with a towel, disposable paper or a cover, and replace it between users.

After each use, remove dust with a soft, dry cloth. For the upholstery, use a well-wrung cloth with lukewarm water and mild detergent. Apply disinfectant products to the cloth, never directly to the treatment table. A monthly visual inspection of the sections, castors, wiring, gas springs and fastening elements is recommended.

Conformity

Class I medical device in accordance with Regulation (EU) 2017/745. UDI-DI: 06976904610024.
