Coinfycare APPA electric chiropractic treatment table with 4 drops

Coinfycare APPA 6-section electric chiropractic treatment table

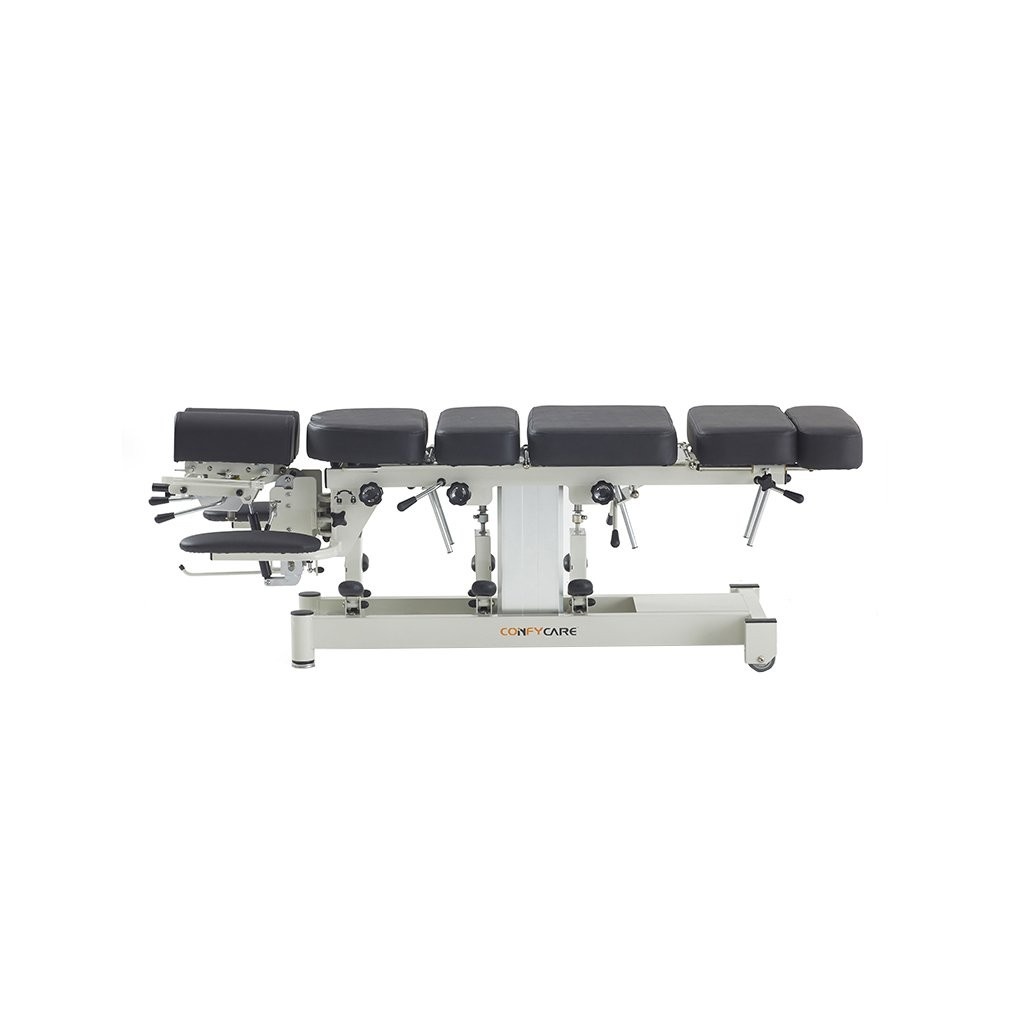

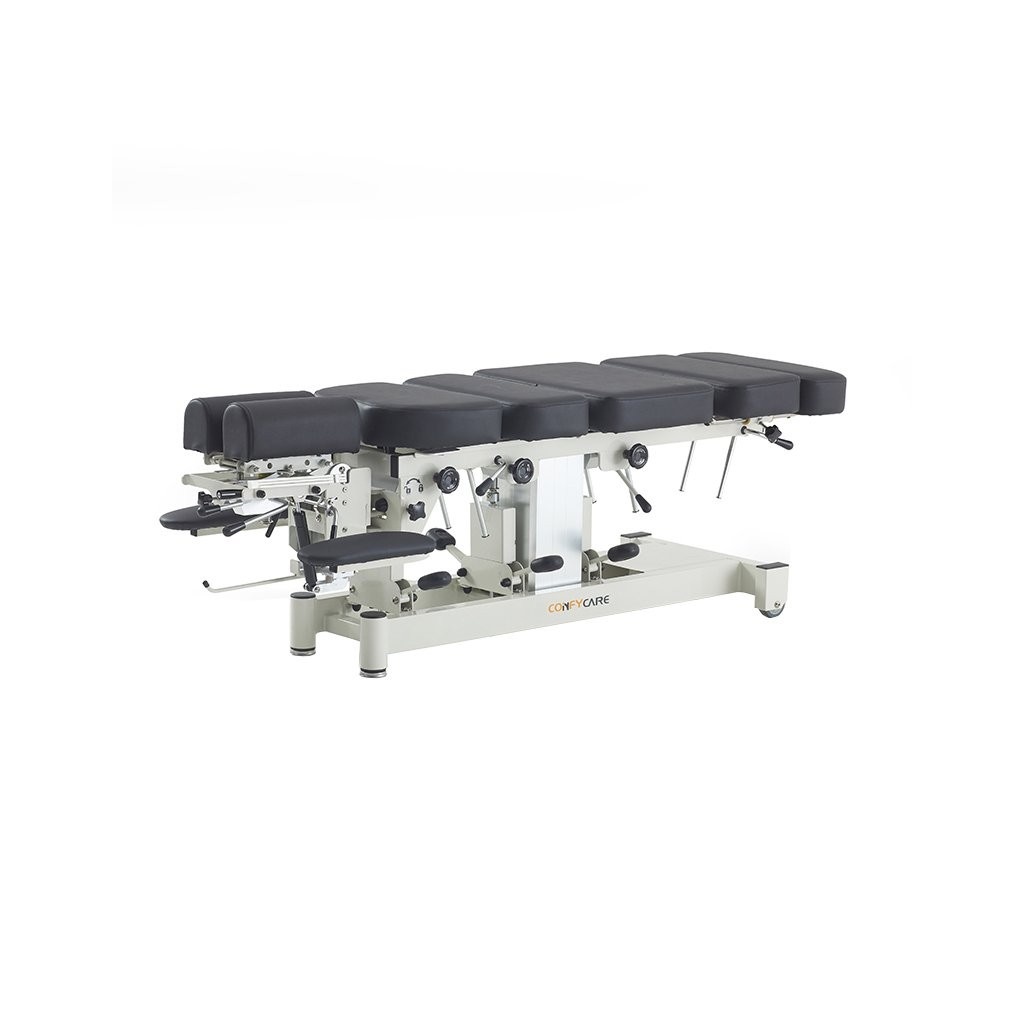

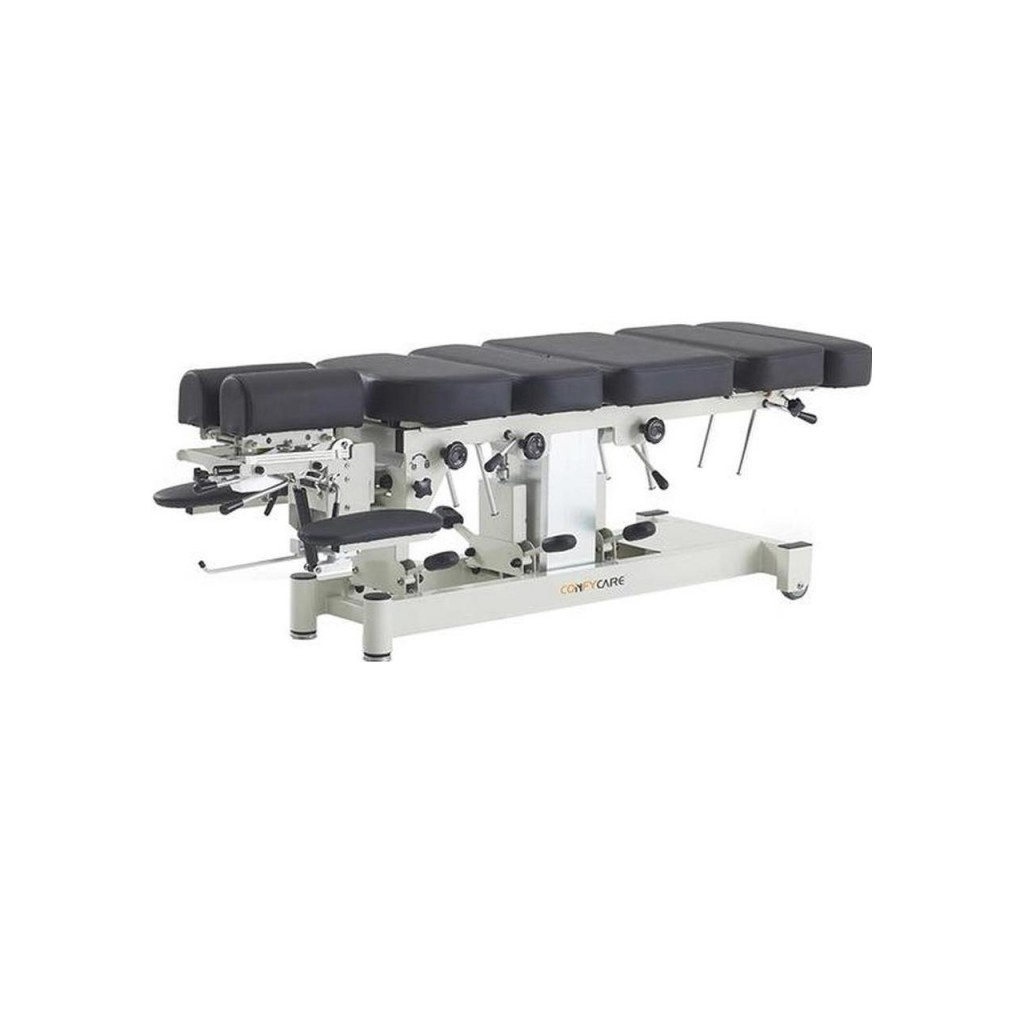

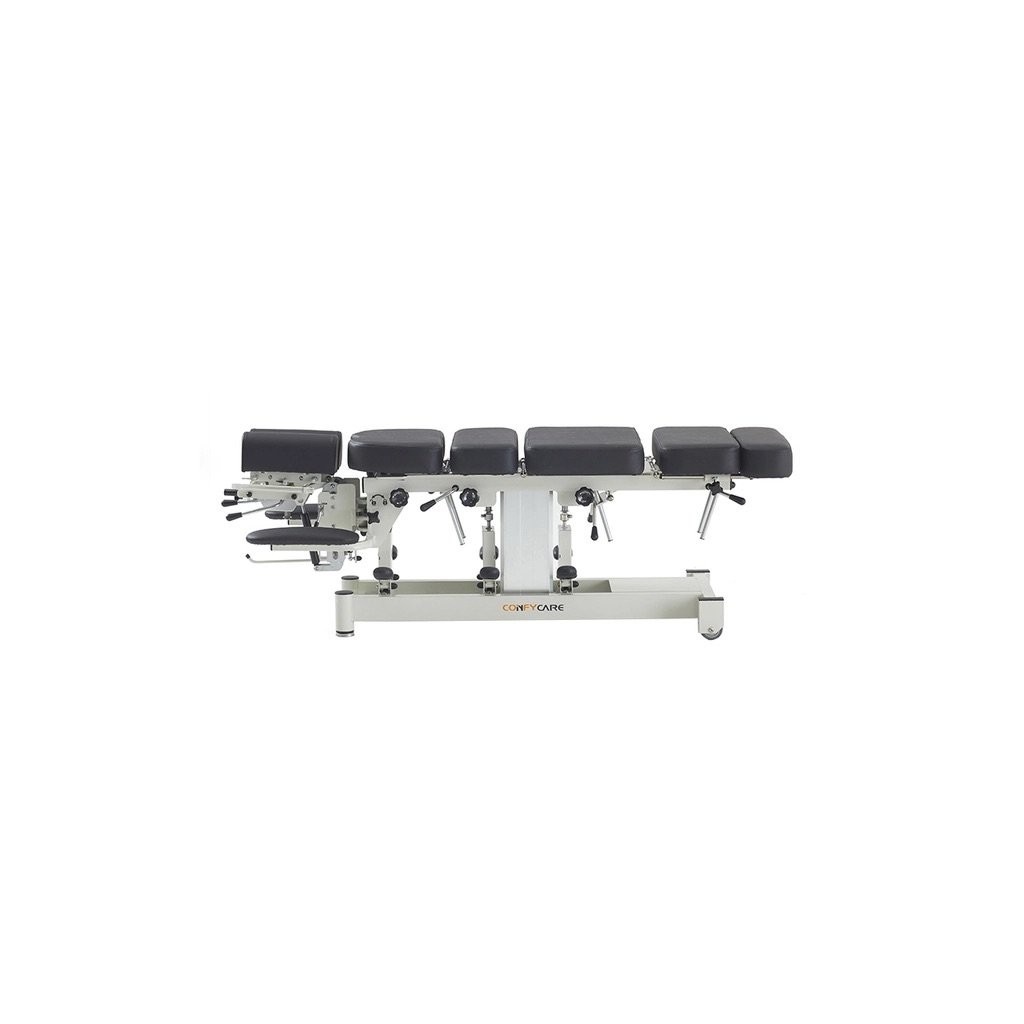

The Coinfycare APPA is a chiropractic treatment table with a central column structure and a 6-section surface. Its configuration combines electric height adjustment via foot control, four pedal-adjustable drops and articulated sections to adapt the working position to the requirements of each professional session.

The lifting system incorporates a TiMOTION column motor and adjusts the table height from 60 to 80 cm. The foot control allows the practitioner to adjust the height without interrupting work or using their hands.

Sectioned surface and pedal-operated drops

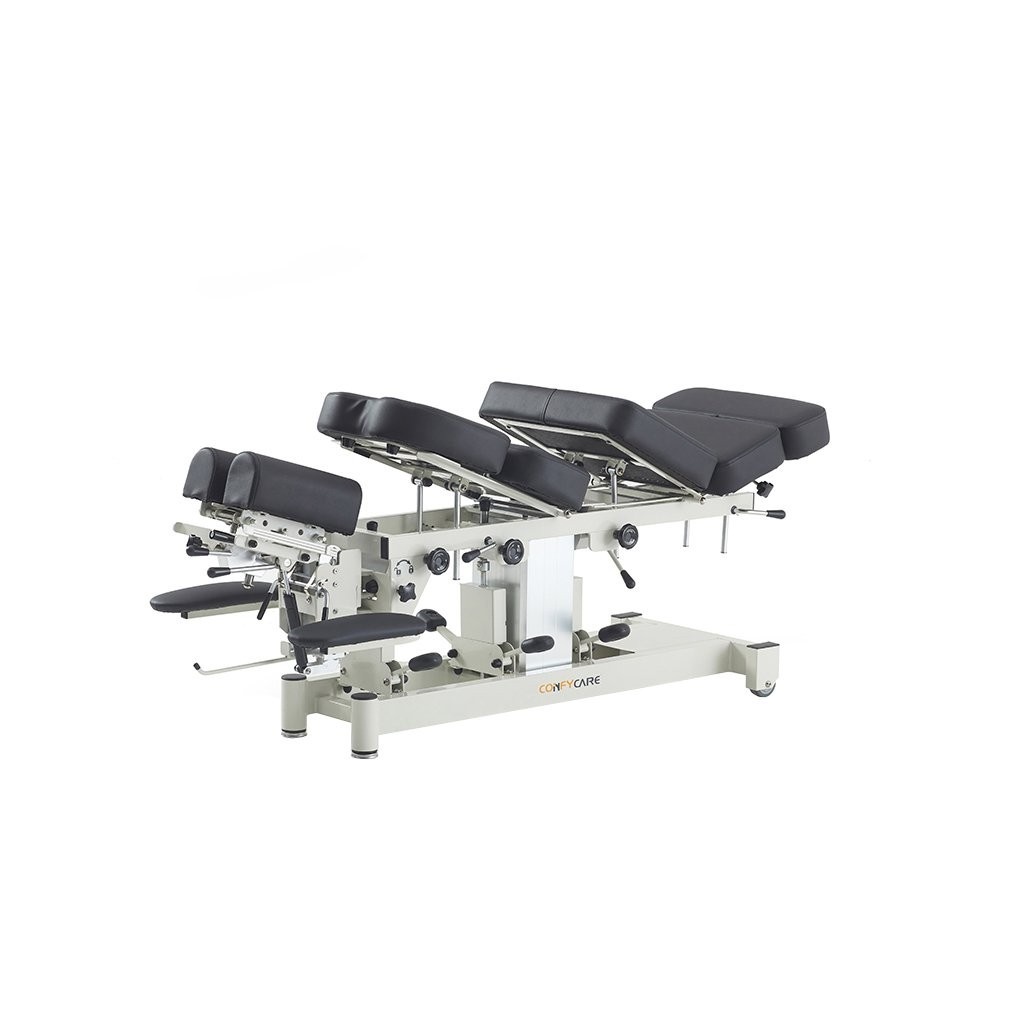

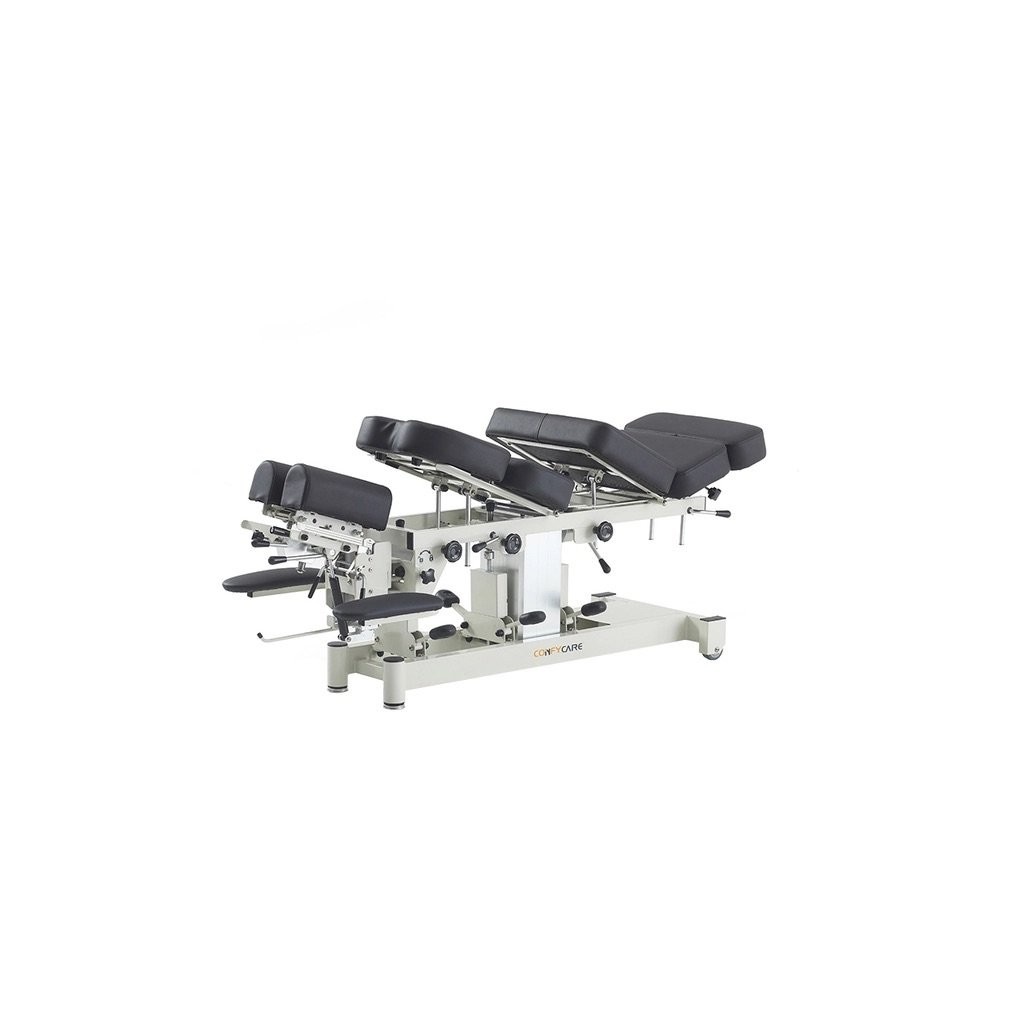

The APPA surface consists of six functional sections. The head section is adjustable in height and opening, while the footrest is extendable. The table includes four pedal-operated adjustable drops for the cervical, thoracic, lumbar and pelvic areas.

According to the technical drawing, the length is adjustable from 185 to 198 cm, while the stated surface width is 53 cm. The articulated sections allow different working inclinations to be configured.

Professional-use finishes

The 7 cm thick padding is made from foam with a density of 100 kg/m³. The vinyl upholstery is flame-retardant, antibacterial and resistant to wear. It is available in blue or dark grey.

The treatment table is fitted with two unidirectional wheels to facilitate movement within the treatment room. A paper roll holder is included.

Technical specifications

• Brand and model Coinfycare APPA
• Reference ELT08F.1.A66.WF
• Type Electric chiropractic treatment table
• Sections 6 sections
• Height adjustment Electric, via foot control
• Adjustable height 60 to 80 cm
• Adjustable length 185 to 198 cm
• Stated width 53 cm
• Drops 4 pedal-adjustable drops: cervical, thoracic, lumbar and pelvic
• Head section Adjustable in height and opening
• Footrest Extendable
• Motor TiMOTION column motor
• Lifting time 23 seconds
• Load capacity 250 kg
• Padding 7 cm thick
• Foam density 100 kg/m³
• Upholstery Flame-retardant, antibacterial and wear-resistant vinyl
• Upholstery colours Blue or dark grey
• Mobility Two unidirectional wheels
• Included accessory Paper roll holder
• Declared certifications CE, FDA and ISO 13485:2016
• Warranty 2 years for the frame, electrical components and upholstery, excluding misuse

Logistics information

• Packaging dimensions 201 × 73 × 82 cm
• Stated weight 152 kg
• Stated packaging volume 1.2 m³
