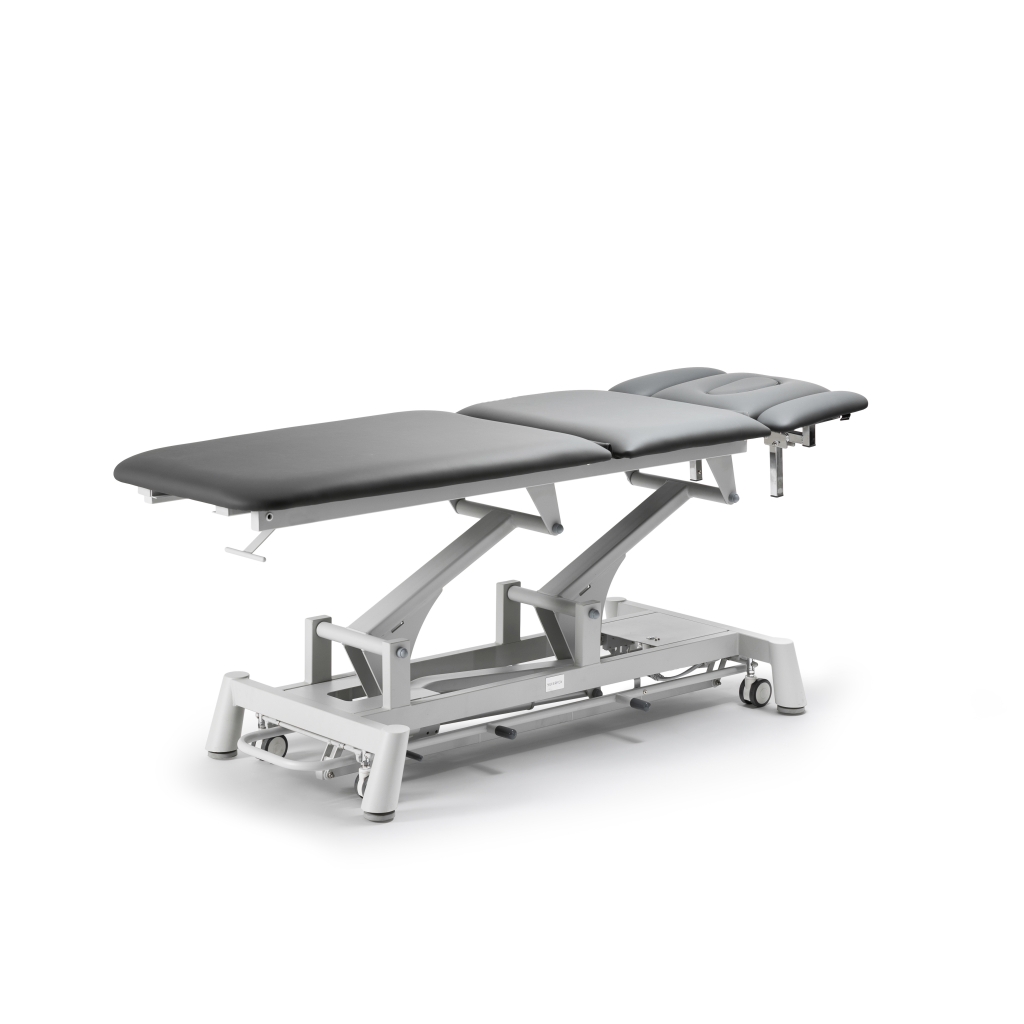

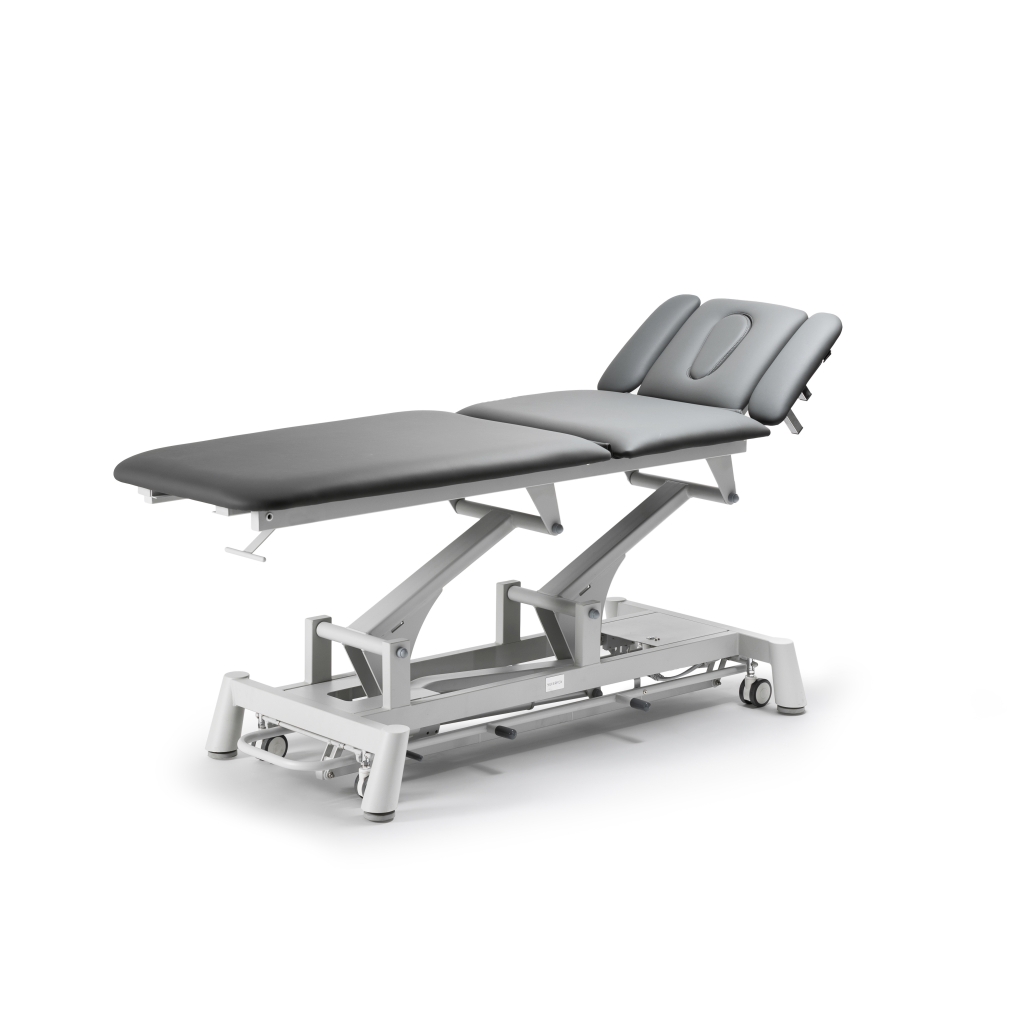

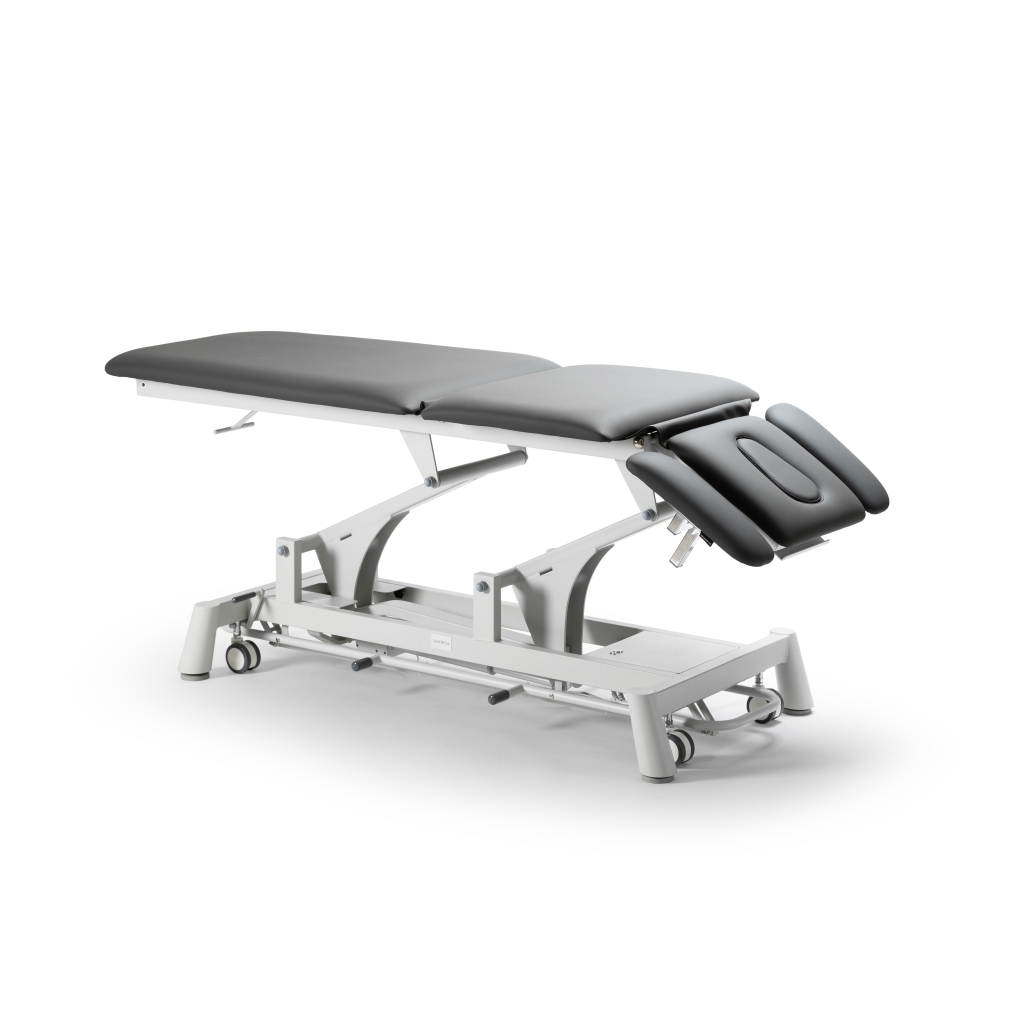

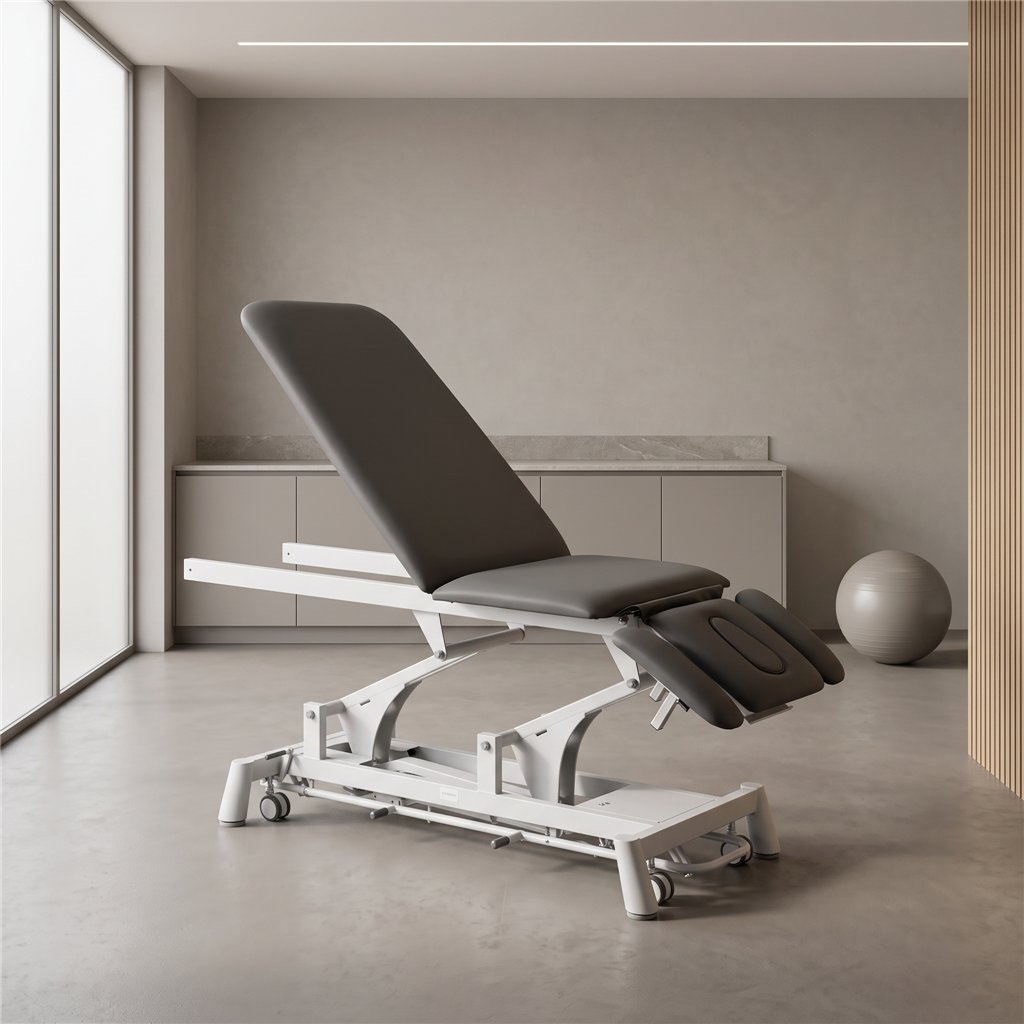

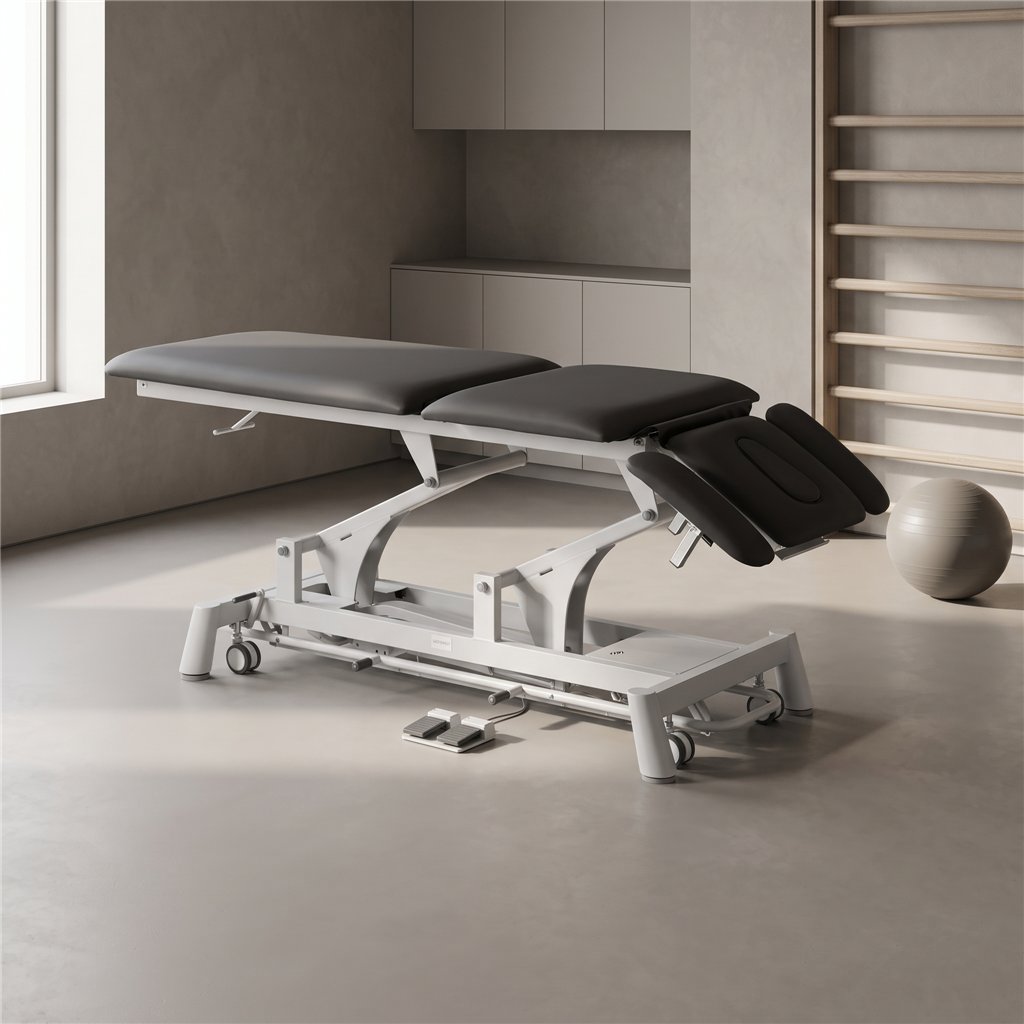

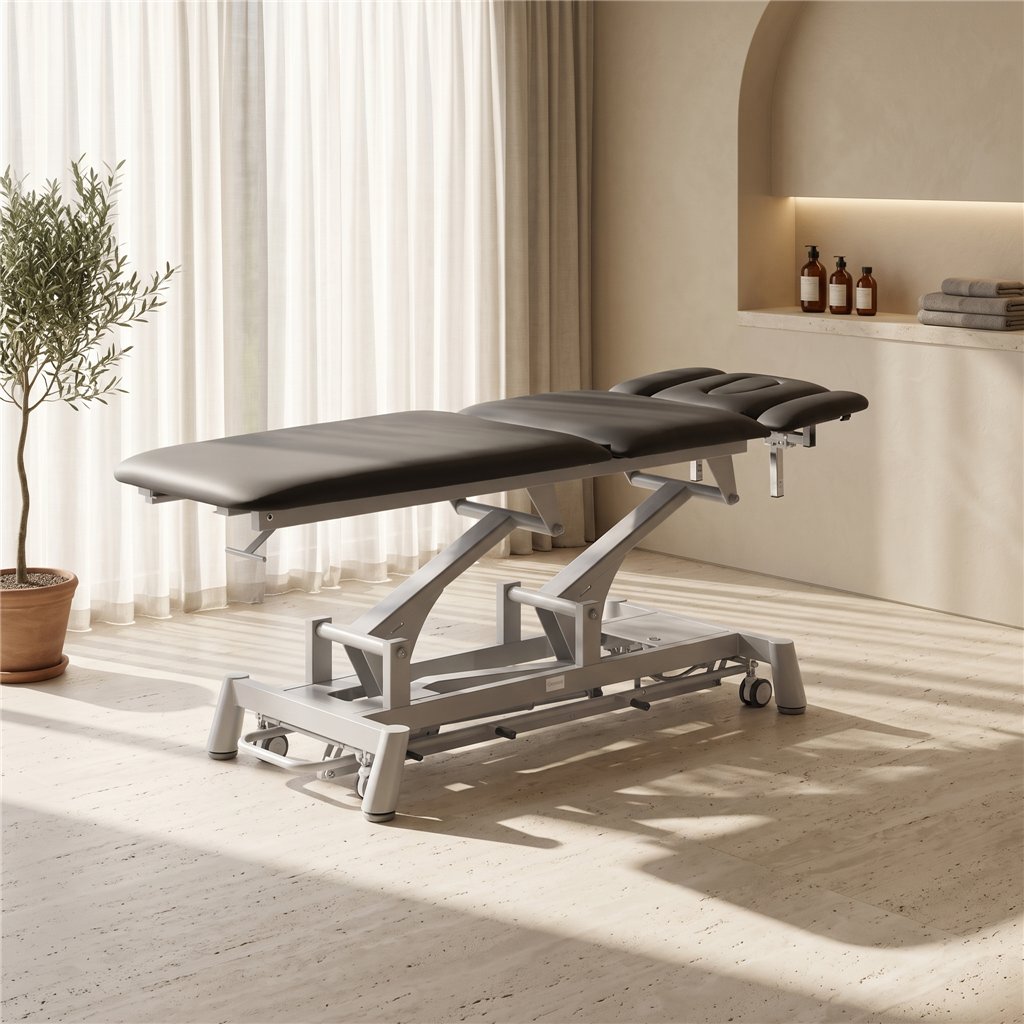

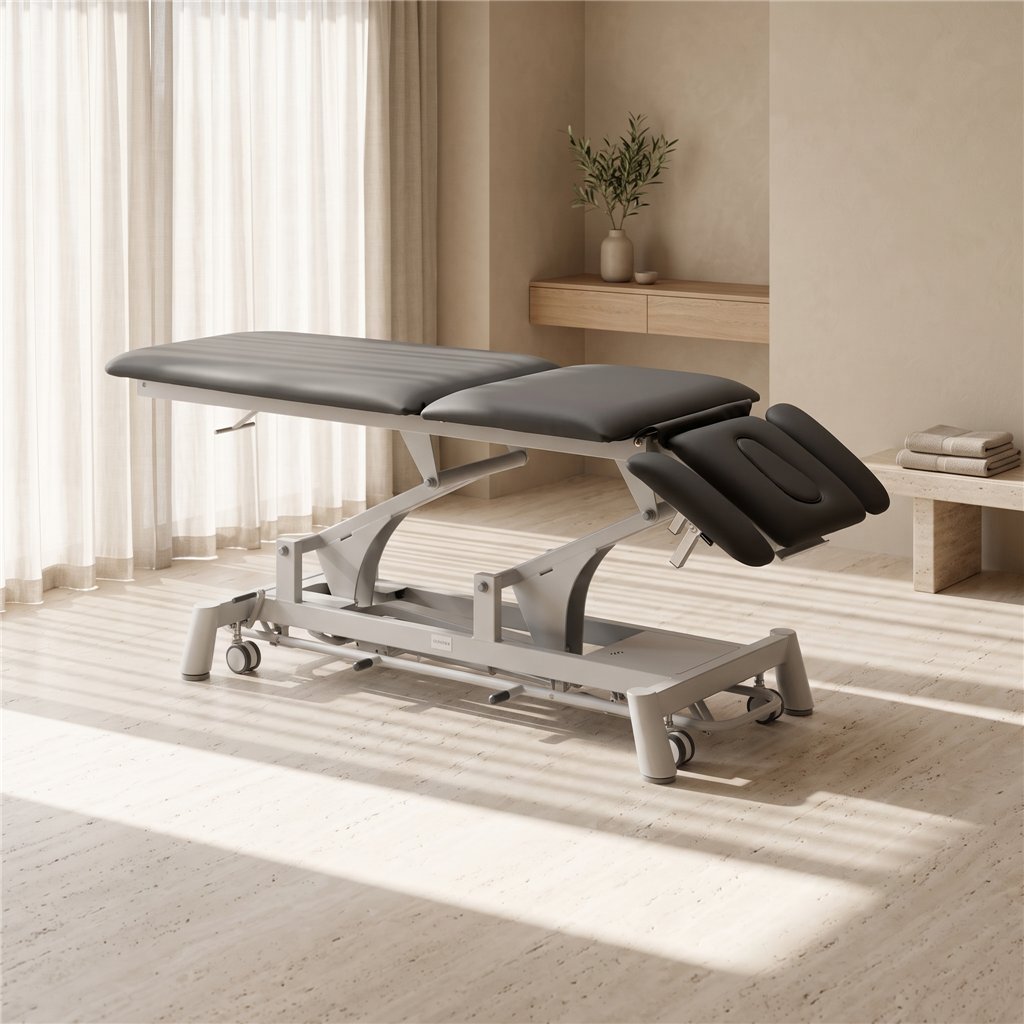

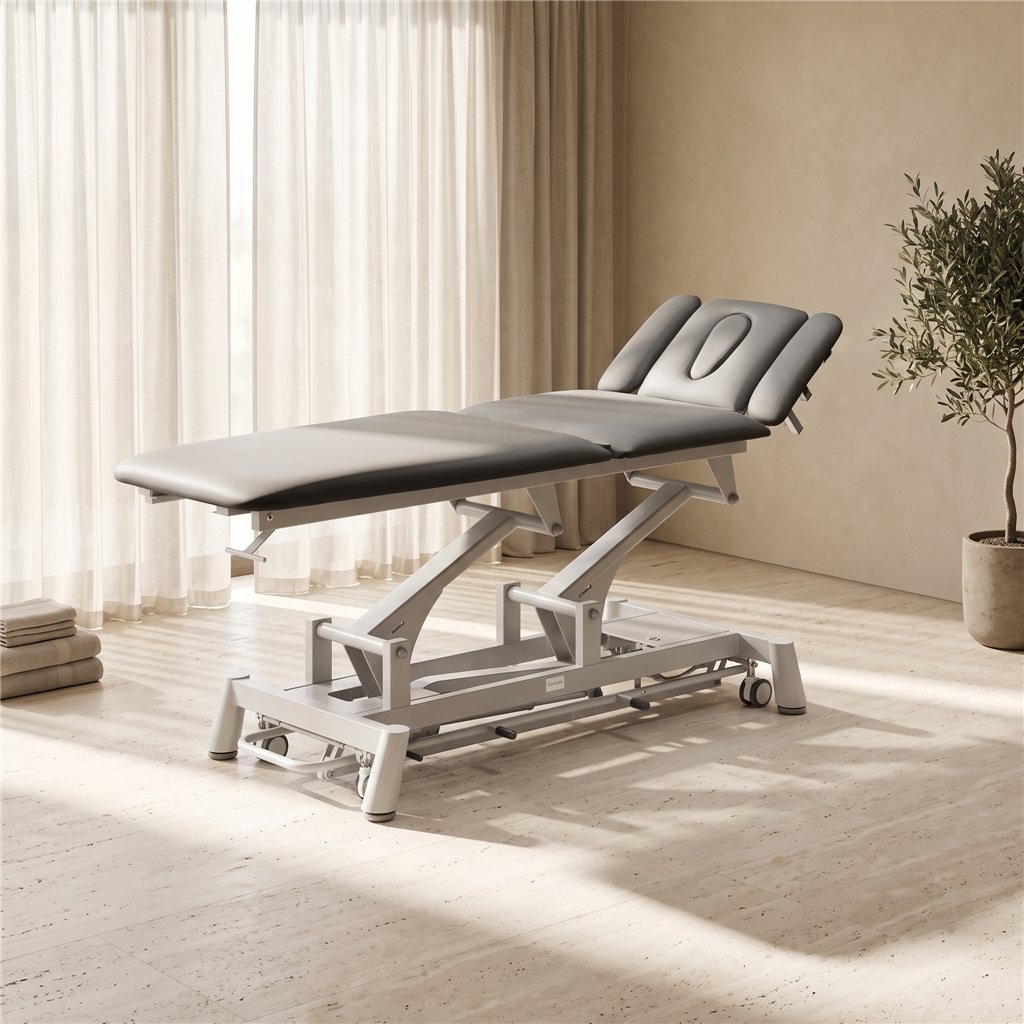

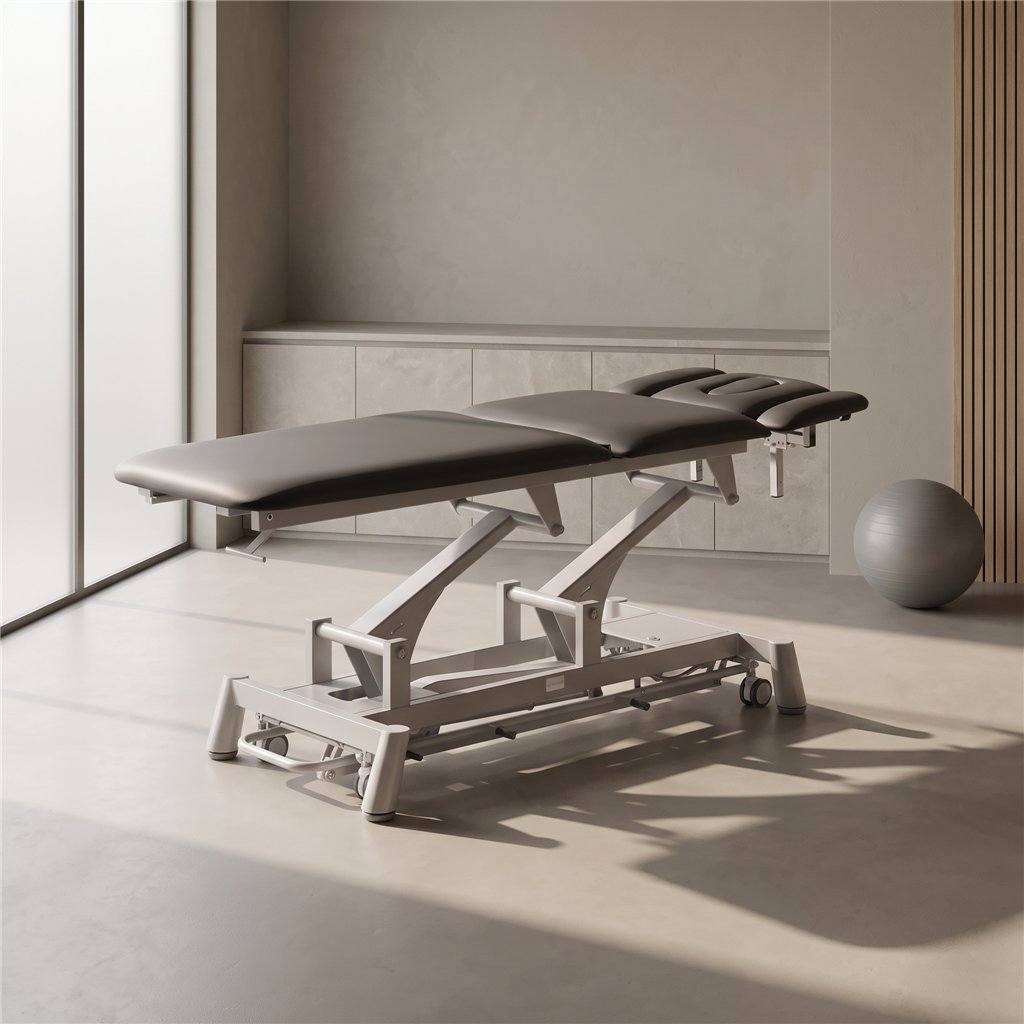

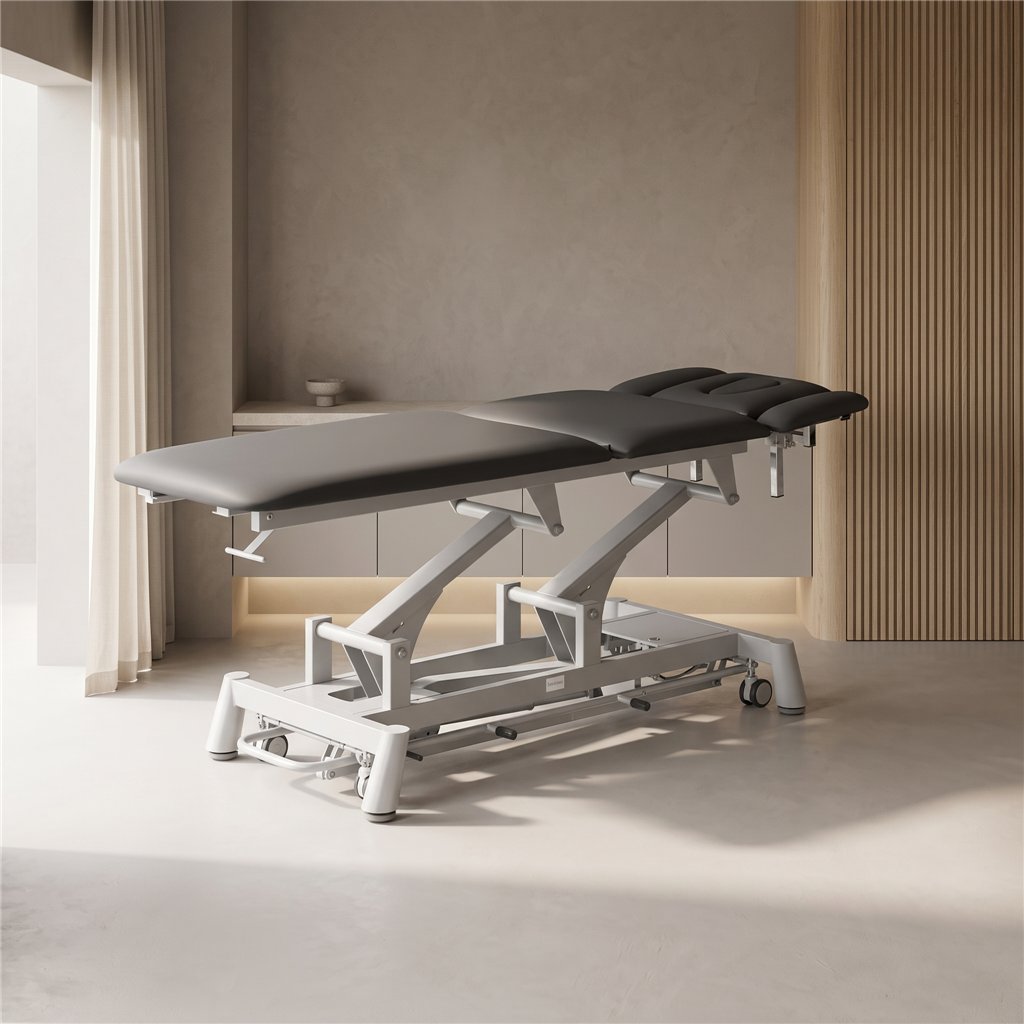

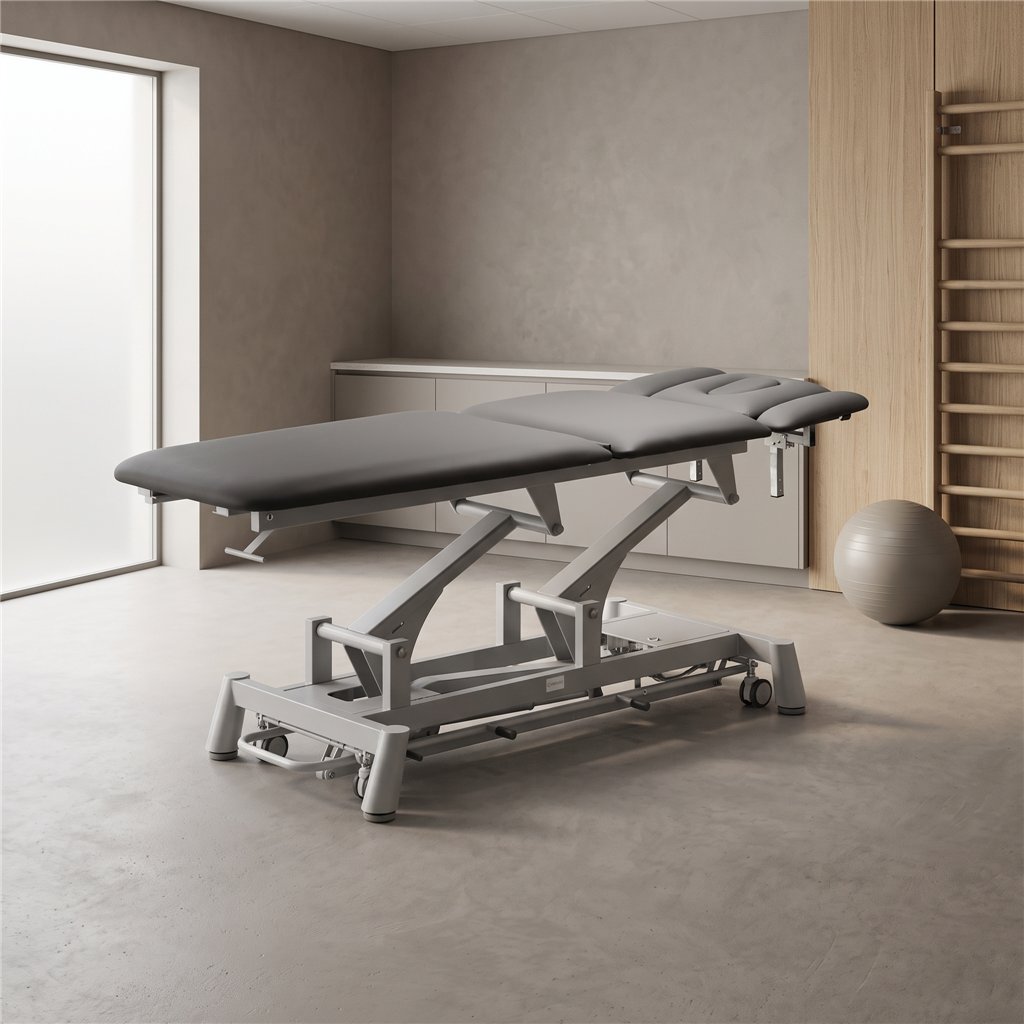

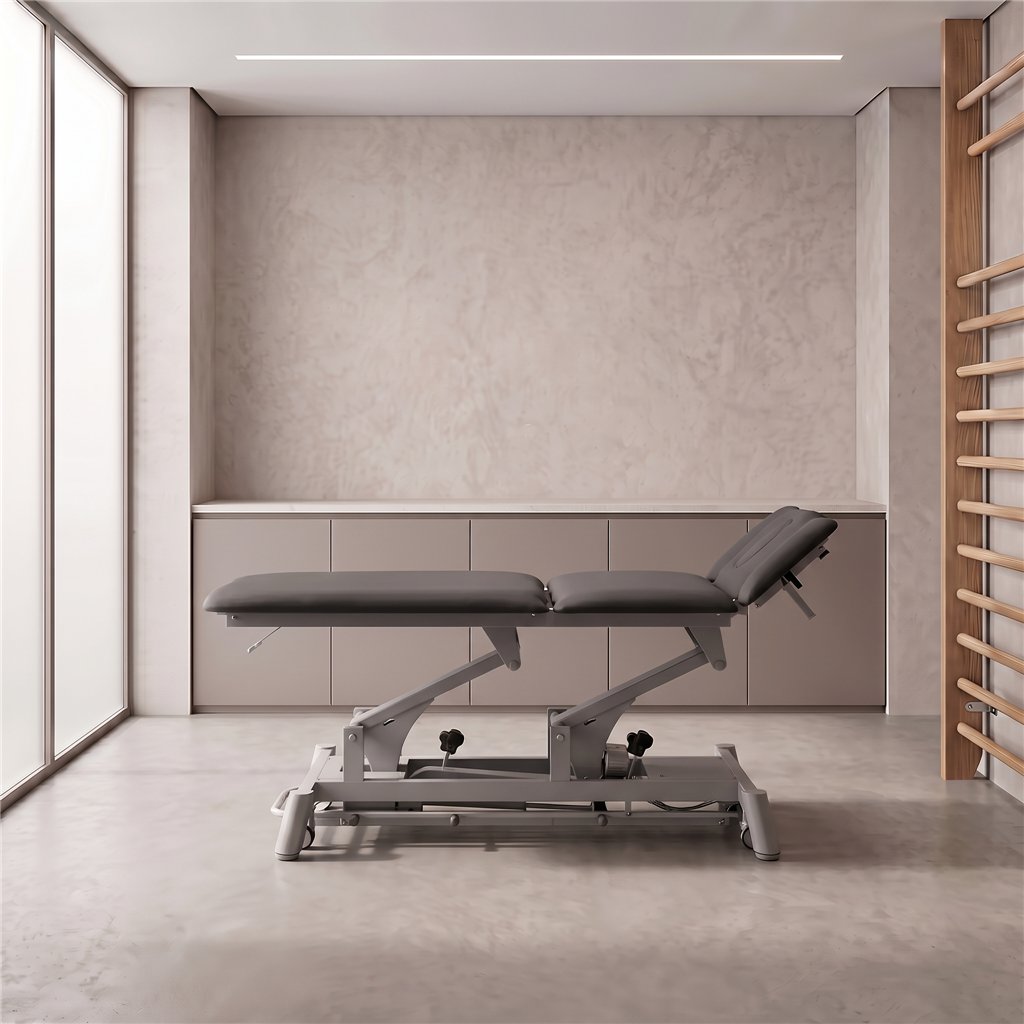

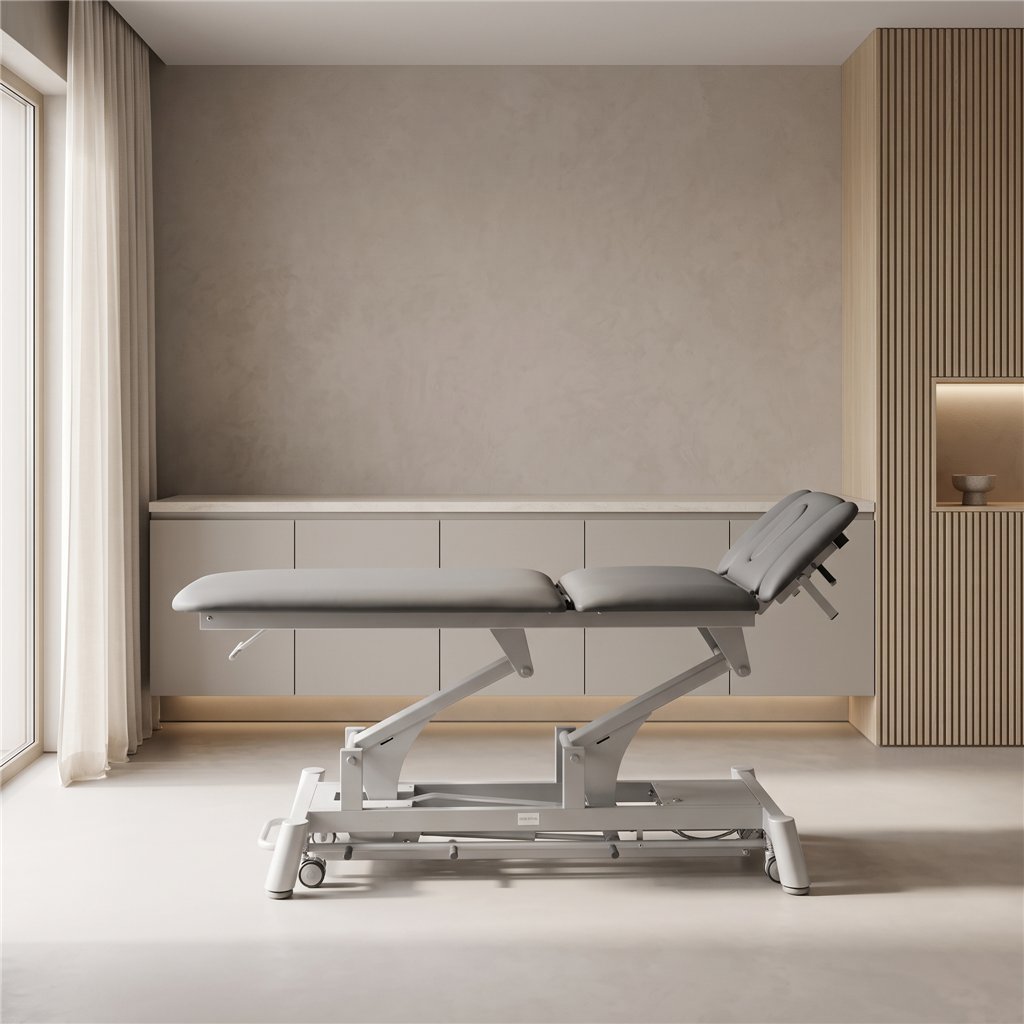

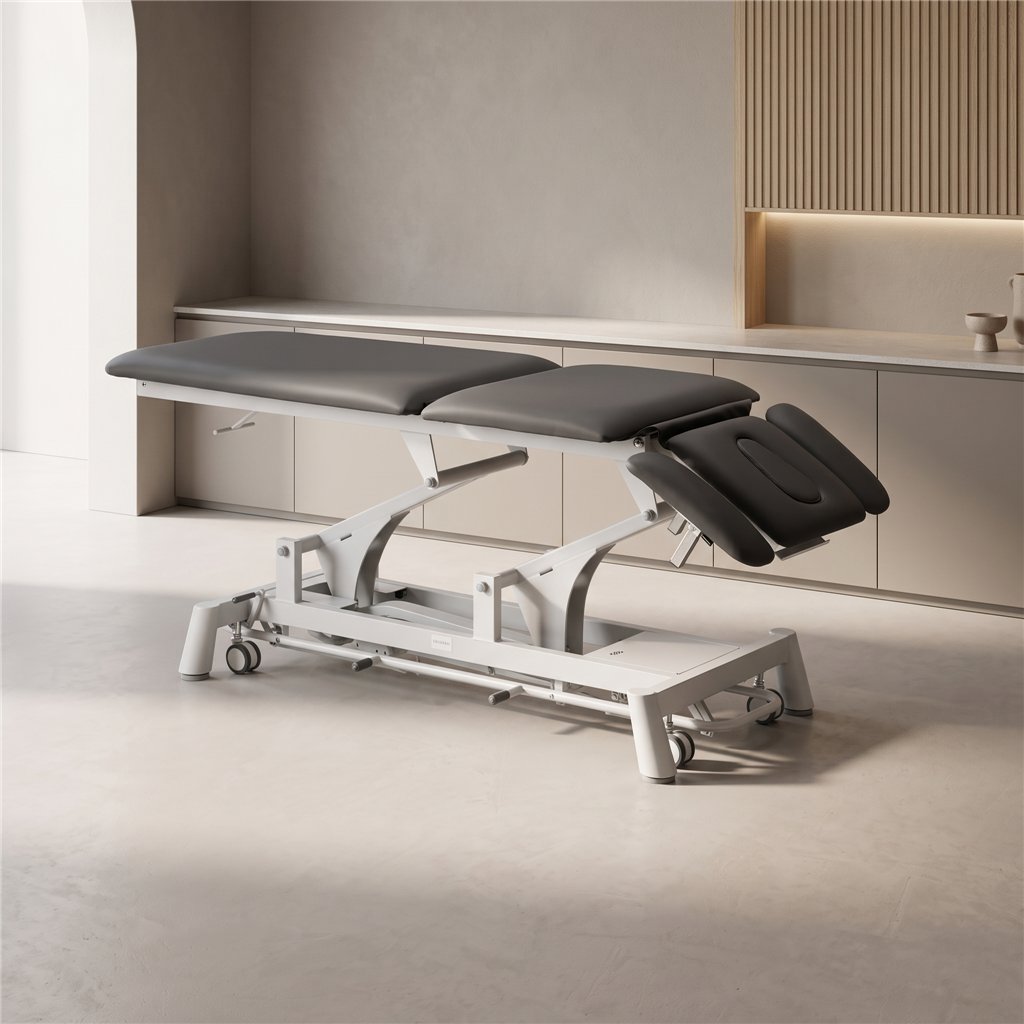

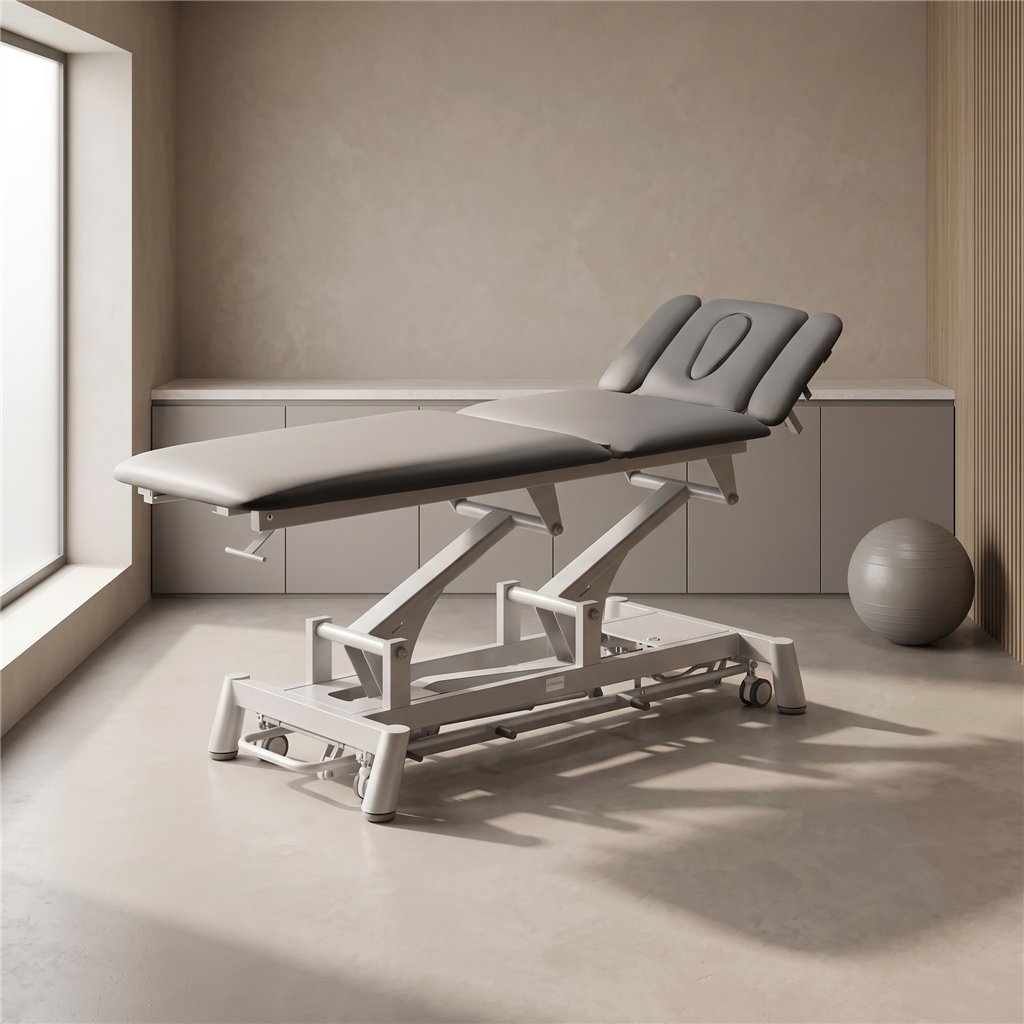

Electric Massage Table TITAN 304F – For professional physiotherapy

TITAN 304F Electric Massage Table – For professional physiotherapy

CE marked

Designed for physiotherapy, rehabilitation and wellness centres seeking a stable, precise and certified treatment table for medical use. Its five-section structure allows a wide range of positioning options, adapting to all types of manual and therapeutic treatments.

Key features

• Five-section electric treatment table with electric height adjustment via perimeter bar.
• Adjustable height from 46 to 96 cm in the flat position.

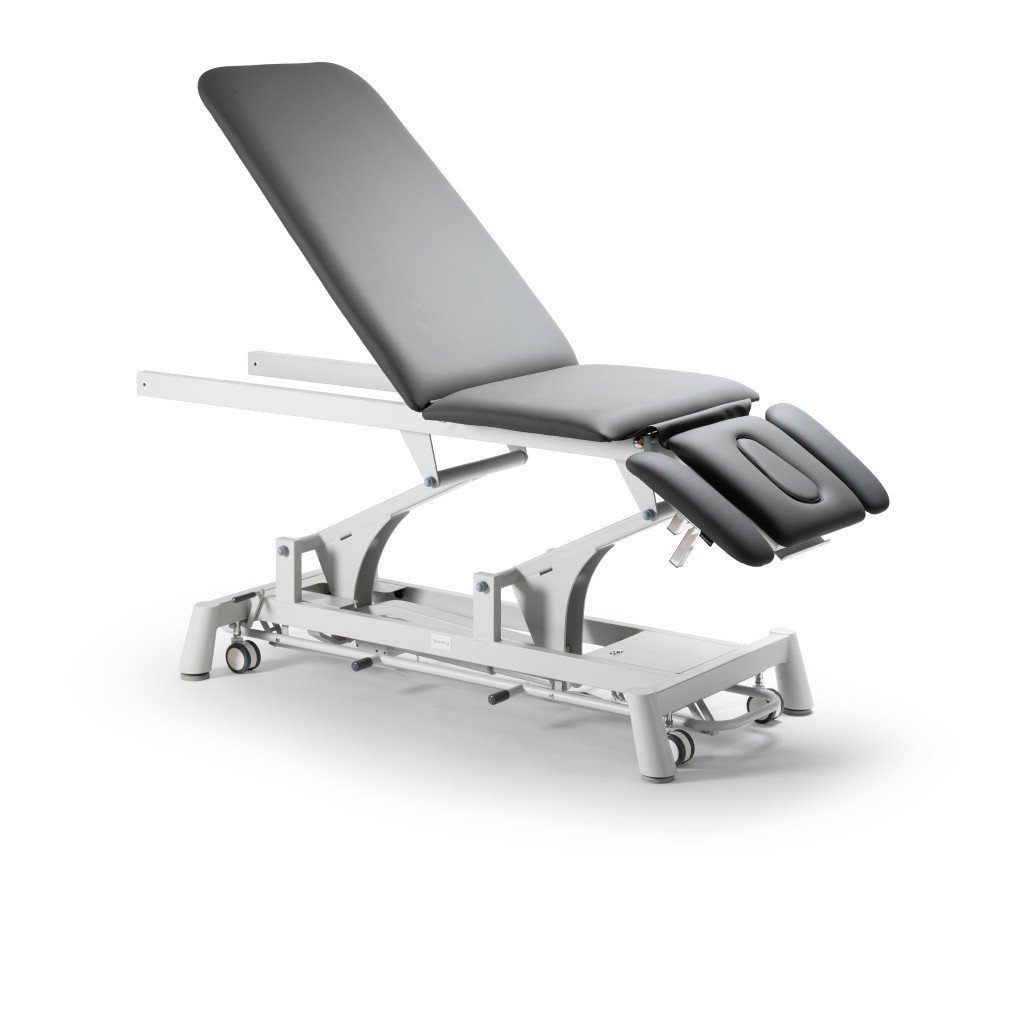

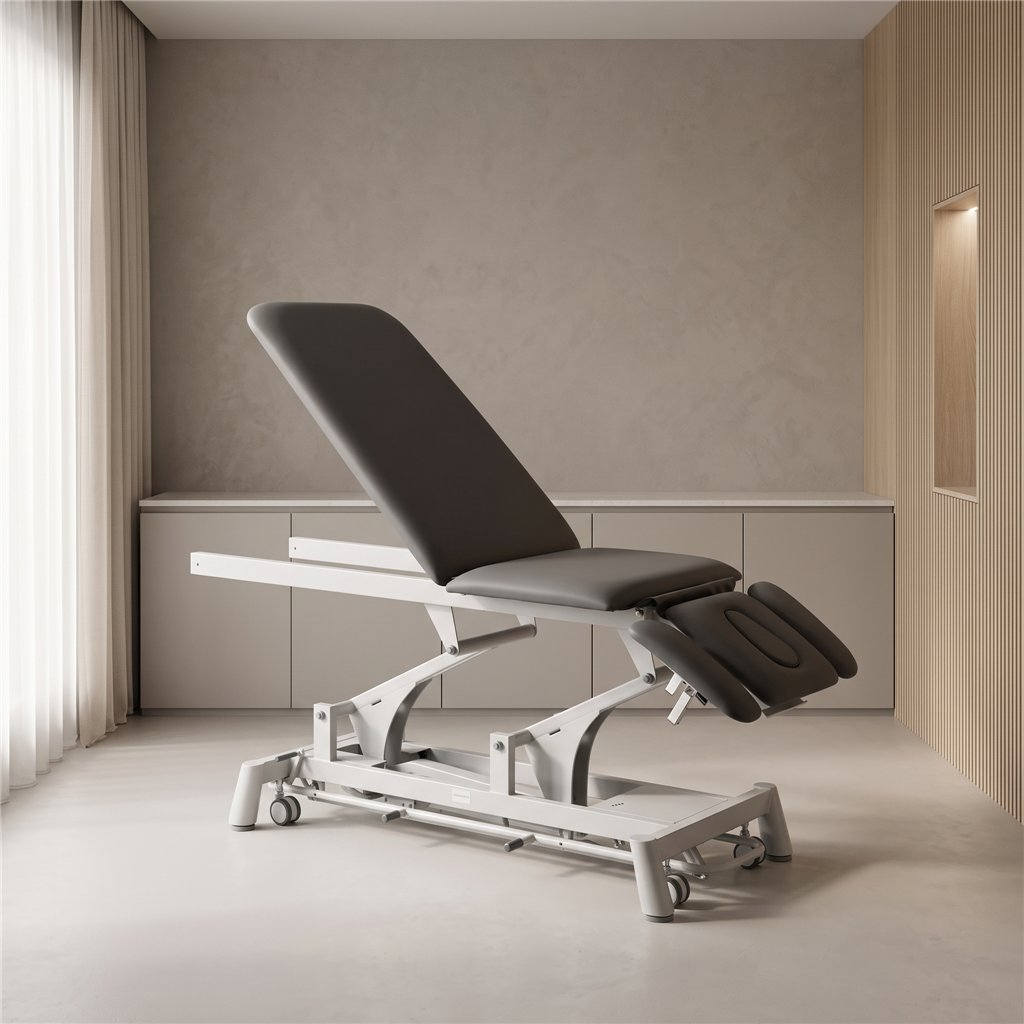

• Adjustable backrest with gas piston, with an incline from -30° to +70°.

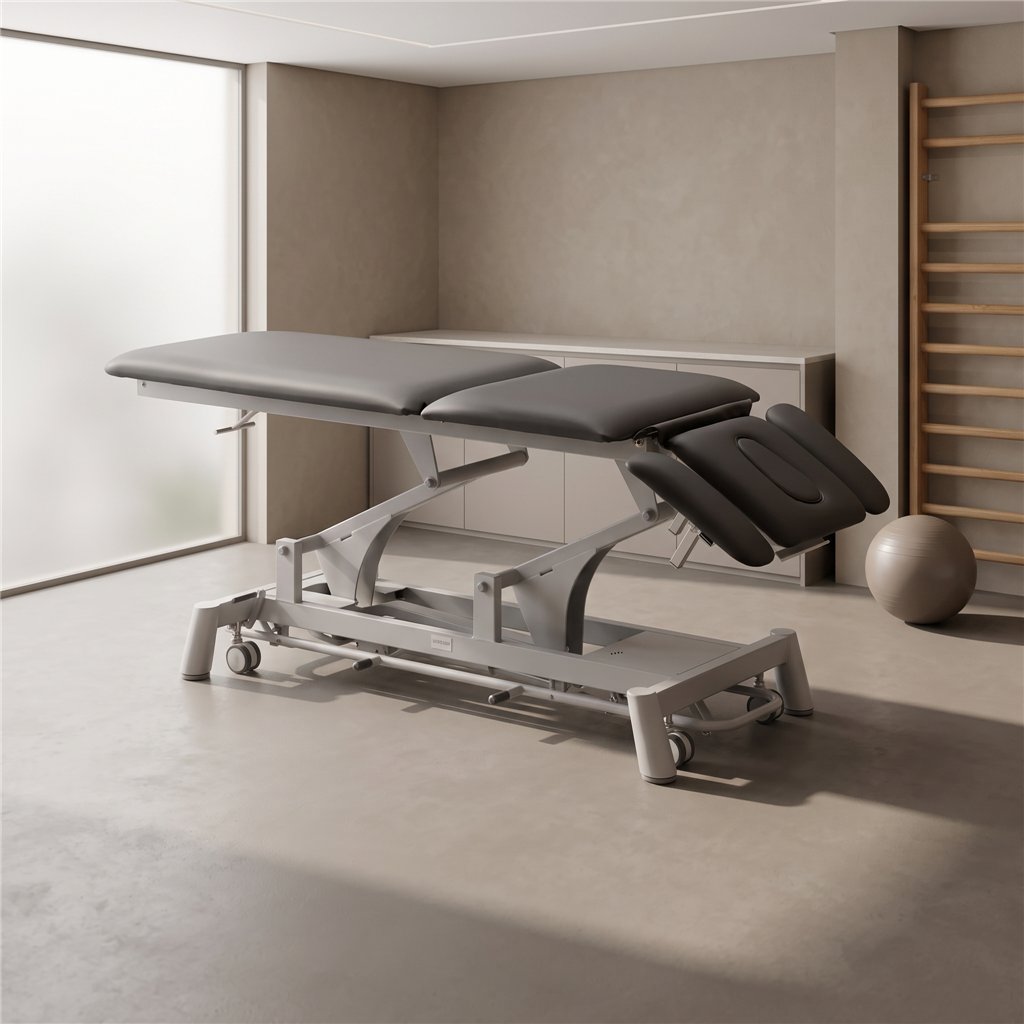

• Adjustable leg rest with gas piston (0°/+70°).
• Manually adjustable armrests and face hole with plug included.
• Medical-grade flame-retardant and antibacterial PVC upholstery.
• High-density foam (40 kg/m³) with a thickness of 5.5 cm.
• Reinforced metal frame with anti-corrosion baked epoxy coating.
• 1 electric motor (6000 N) for height adjustment.
• 4 retractable castors system for moving the table.
• Includes couch roll holder.

In-clinic use and type of treatments

Especially suitable for physiotherapy, therapeutic massage, osteopathy and rehabilitation treatments. Its five-section design provides a stable surface that allows multiple anatomical configurations for postural or muscular treatments. Ideal for clinics requiring reliability and easy cleaning in a medical environment.

Control and adjustments

The height is adjusted by means of a perimeter bar with continuous control, accessible from any point.

The backrest and leg rest are adjusted with gas pistons for smooth and safe movement.

The retractable castors, operated by pedal, make transport easier without affecting stability.

Materials and finish

• Structure treated steel with epoxy coating.
• Upholstery medical-grade PVC, flame-retardant, antibacterial and resistant to oils and disinfectants.
• Foam density 40 kg/m³ – thickness 5.5 cm.
• Colour medical grey, abrasion-resistant and easy to maintain.

Maintenance and cleaning

• Disconnect the equipment before cleaning.
• Use neutral soap and a soft cloth after each use.
• Disinfect with an alcohol-free bactericidal product and no solvents.
• Avoid excessive moisture on metal parts.

Technical specifications and electrical data

• Dimensions 196 × 68 cm
• Adjustable height 46–96 cm
• Weight 92 kg
• Maximum load 200 kg
• Motor 1 motor (6000 N)
• Input voltage AC 100–240V, 50/60Hz
• Output DC 24V, 8 A
• Duty cycle 2 min ON / 18 min OFF
• Upholstery flame-retardant medical-grade PVC
• Foam 5.5 cm – 40 kg/m³
• Certification Class I Medical Device – Regulation (EU) 2017/745
• Warranty 2 years

Certifications and compliance

Medical certification

CE marked

Complies with Regulation (EU) 2017/745 on medical devices and EN 60601 standards for electromedical equipment. Manufactured in accordance with ISO 13485:2016.
