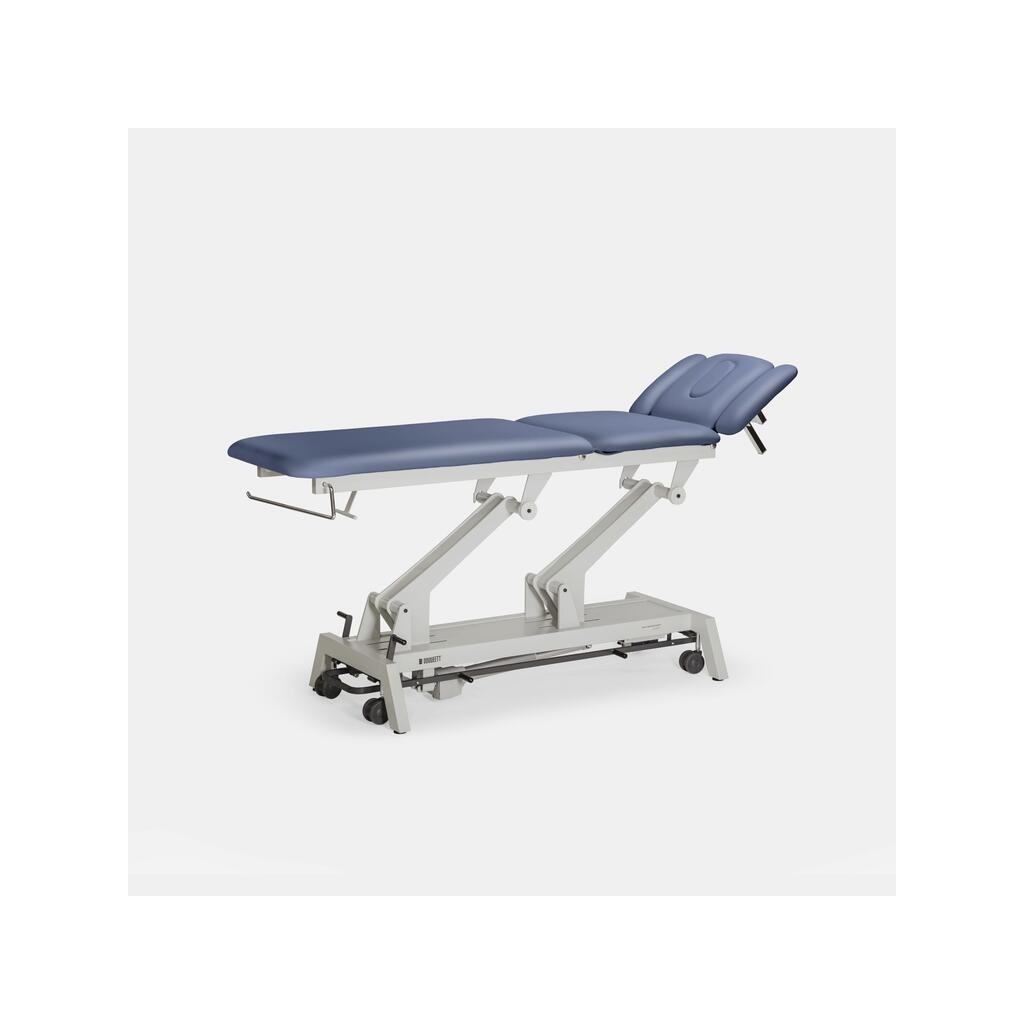

DDUUEETT AVANT 531 electric treatment table, grey base, Ocean upholstery

DDUUEETT AVANT 531 5-section electric treatment table

The DDUUEETT AVANT 531 is an electric treatment table designed for use in physiotherapy and manual therapies. Its 5-section configuration, including a 3-section headrest, allows the working surface to be adapted to the requirements of each session.

It features one motor for height adjustment and a foot-operated perimeter control bar. The height can be adjusted from 47 to 97 cm in the flat position. The grey frame is paired with Ocean Medical PVC upholstery.

Section adjustment

The headrest is adjusted by a gas spring and has an inclination range from -30° to +70°. The armrests are manually adjustable. The footrest is gas-spring operated and can be inclined from 0° to +80°.

A facial opening is integrated into the headrest. The treatment table also includes a paper roll holder.

• Model DDUUEETT AVANT 531
• Reference 11004340
• Sections 5, including a 3-section headrest
• Motors 1 motor for height adjustment
• Adjustable height 47 to 97 cm
• Height control Foot-operated perimeter control bar
• Headrest inclination -30° to +70°
• Footrest inclination 0° to +80°
• Armrests Manually adjustable

Mobility and working position

Its 4 retractable castors make it easier to move the table within the treatment area. Once positioned, the adjustable immobilisation system helps keep it stable during use.

The surface measures 201 x 68 cm and the table weighs 87 kg. It supports a maximum load of 250 kg.

• Dimensions 201 x 68 cm
• Weight 87 kg
• Maximum load 250 kg
• Castors 4 retractable castors
• Immobilisation system Adjustable
• Facial opening Included
• Paper roll holder Included
• Base Grey
• Upholstery Ocean, Medical PVC
• Foam 5.5 cm thick, density 40 kg/m³

Power supply and electrical specifications

The motor delivers 6000 N of force and operates at DC 24 V, 5.5 A and 132 W. Required mains supply is AC 220-240 V, 50/60 Hz. The duty cycle is 10%, with a maximum of 2 minutes of operation followed by 18 minutes off.

• Motor force 6000 N
• Motor supply DC 24 V, 5.5 A, 132 W
• Mains supply AC 220-240 V, 50/60 Hz
• Duty cycle 10%; maximum 2 min ON / 18 min OFF
• Protection IPX4, protected against splashing water or liquids
• Electrical classification Type B

Use, cleaning and maintenance

The AVANT 531 is intended to support the user during physiotherapy and manual therapy treatments. It is not intended for transporting patients. To help preserve the upholstery, cover the surface with a towel, disposable paper or a cover, replacing it between users.

Disconnect the table from the mains before cleaning. The upholstery can be cleaned with a well-wrung soft cloth, lukewarm water and mild detergent. Apply disinfectant to a cloth, never directly to the treatment table. Visually inspect the sections, mechanisms, castors, wiring and fastening elements monthly.

Conformity and contents

Class I medical device compliant with Regulation (EU) 2017/745. UDI-DI: 06976904610024.

• Contents 1 electric treatment table, 1 paper roll holder and 1 instruction manual
• Classification Class I medical device
• Regulation (EU) 2017/745
• Standards stated EN 60601-1:2006/A2:2021, EN 60601-1-6:2010/A2:2021 and EN 60601-1-2:2015
• UDI-DI 06976904610024
