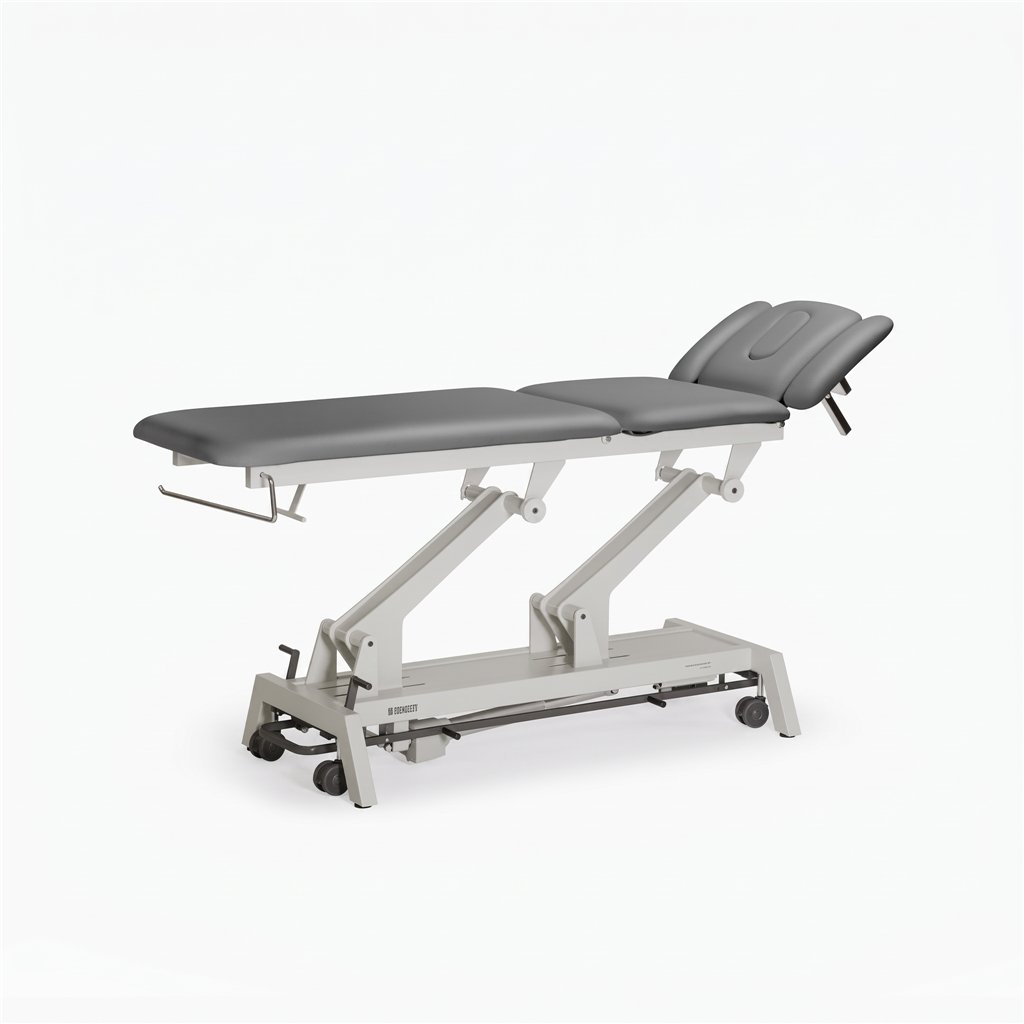

DDUUEETT AVANT 531 electric physiotherapy treatment table, anthracite grey

DDUUEETT AVANT 531 5-section electric treatment table

The DDUUEETT AVANT 531 is an electric treatment table for physiotherapy and manual therapies. Its five-section surface includes a three-part headrest with manually adjustable armrests. The frame is grey and the upholstery is anthracite grey.

Electric height adjustment is operated by a perimeter foot bar, accessible from either side of the table. The height can be adjusted from 47 to 97 cm in the flat position, allowing the working surface to be adapted to different techniques and practitioners.

Section configuration

The headrest is adjusted by a gas spring and offers an angle range of -30° to +70°. The armrests are manually adjustable. The footrest also uses a gas spring and can be adjusted from 0° to +80°.

• Sections 5 sections, including a 3-section headrest
• Height adjustment Electric, operated by a perimeter foot bar
• Height range 47-97 cm
• Headrest Gas spring adjustment, -30° to +70° inclination
• Armrests Manual adjustment
• Footrest Gas spring adjustment, 0° to +80° inclination

Mobility and included equipment

The AVANT 531 incorporates four retractable castors to facilitate movement within the treatment room. Once positioned for use, its adjustable locking system helps keep the table stationary during treatment.

The table includes a face hole and a paper roll holder. Supplied with one electric treatment table, one paper roll holder and an instruction manual.

• Castors 4 retractable castors
• Locking system Adjustable system for securing the table in its working position
• Face hole Included
• Paper roll holder Included
• Frame colour Grey
• Upholstery colour Anthracite grey

Upholstery and dimensions

The surface is upholstered in Medical PVC, with 5.5 cm padding and a density of 40 kg/m³. The table measures 201 x 68 cm, weighs 87 kg and has a stated maximum load of 250 kg.

• Dimensions 201 x 68 cm
• Weight 87 kg
• Maximum load 250 kg
• Upholstery Medical PVC
• Padding thickness 5.5 cm
• Padding density 40 kg/m³

Motor and power supply

The table incorporates a 6000 N motor for height adjustment. It operates with an AC 220-240 V, 50/60 Hz power supply; the motor operates at DC 24 V, 5.5 A and 132 W. It is designed for intermittent operation, with a maximum of 2 minutes of continuous use followed by 18 minutes of rest.

• Motors 1 height adjustment motor
• Motor force 6000 N
• Power supply AC 220-240 V, 50/60 Hz
• Motor rating DC 24 V, 5.5 A, 132 W
• Duty cycle Maximum 2 min on / 18 min off
• Protection rating IPX4 protection against water or liquid splashes

Use, cleaning and maintenance

This table is intended to support the user during physiotherapy and manual therapy treatments. To preserve the upholstery, cover it with a towel, disposable paper or a protective cover and replace it between users. After each use, the table can be cleaned with a soft, dry cloth; for the upholstery, use a well-wrung cloth with lukewarm water and mild detergent.

Disconnect the table from the mains before cleaning or carrying out maintenance. Periodic maintenance includes checking the sections, motor, gas springs, screws, friction components, wiring and castor system.

Classification and reference

The DDUUEETT AVANT 531 is classified as a Class I medical device in accordance with Regulation (EU) 2017/745. It has Type B electrical classification and UDI-DI 06976904610024.

• Brand DDUUEETT
• Model AVANT 531
• Reference 11004335
• Classification Class I medical device in accordance with Regulation (EU) 2017/745
• UDI-DI 06976904610024
• Specified standards EN 60601-1:2006/A2:2021; EN 60601-1-6:2010/A2:2021; EN 60601-1-2:2015
