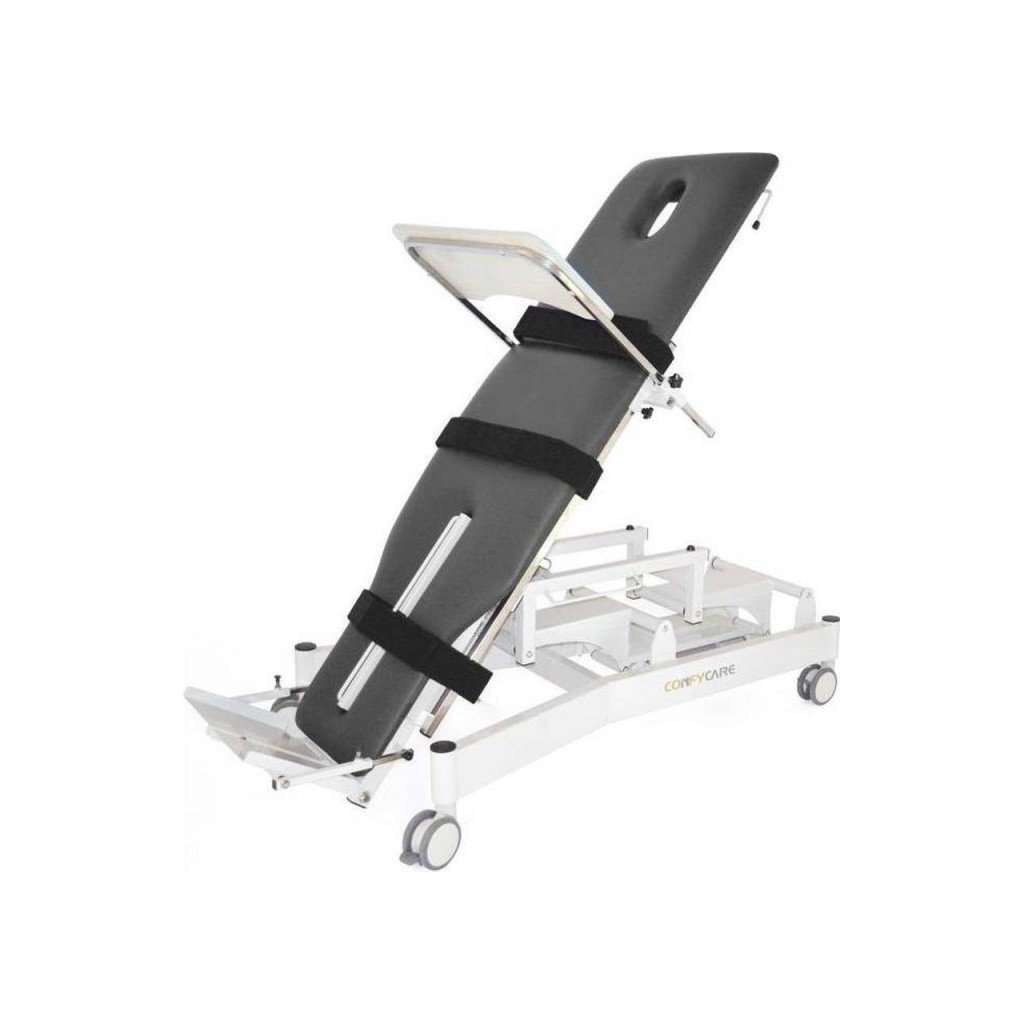

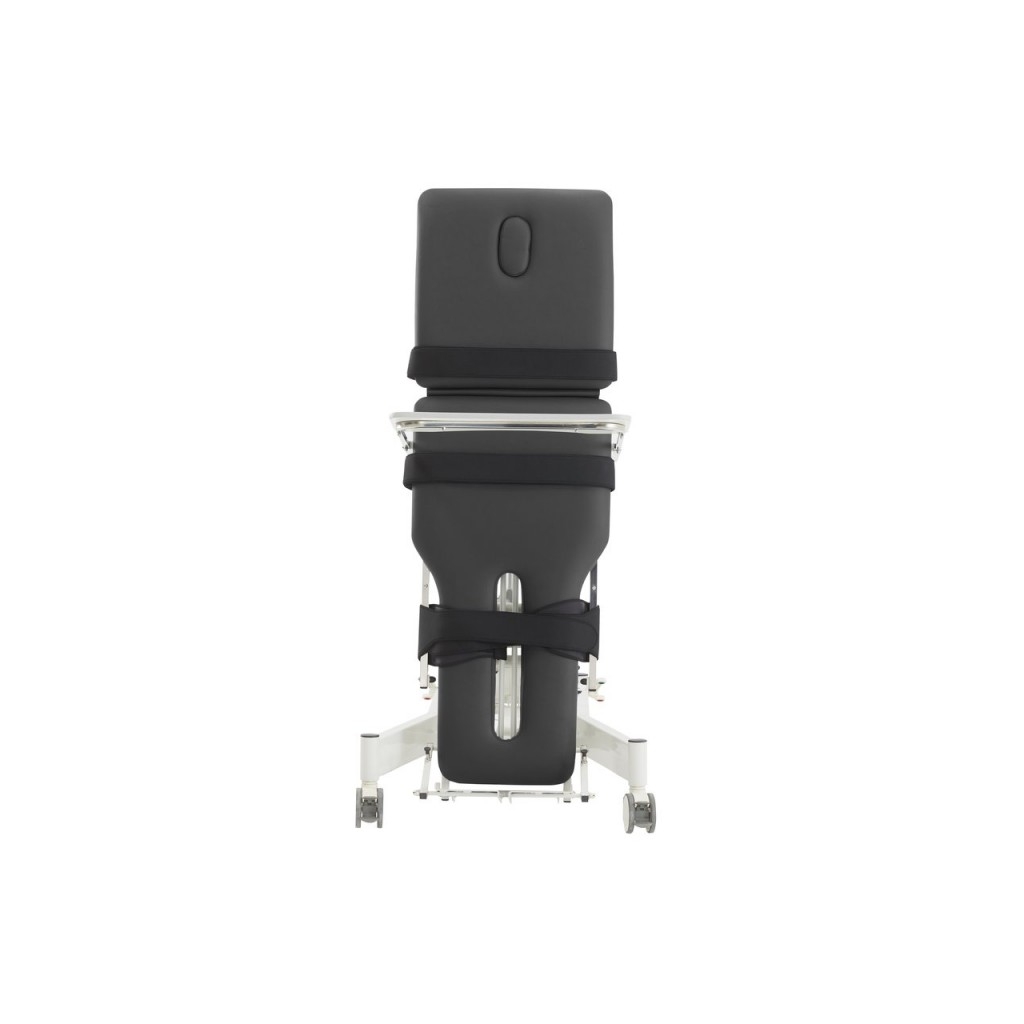

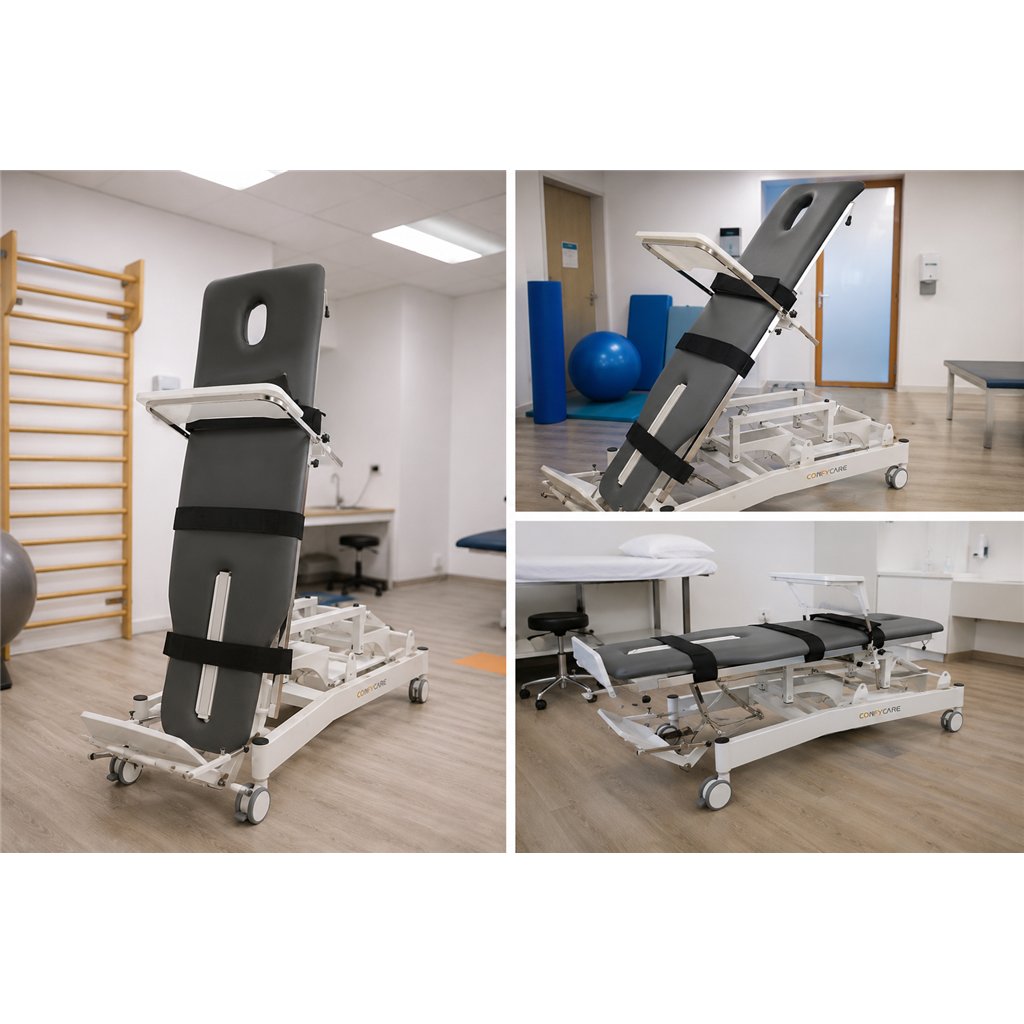

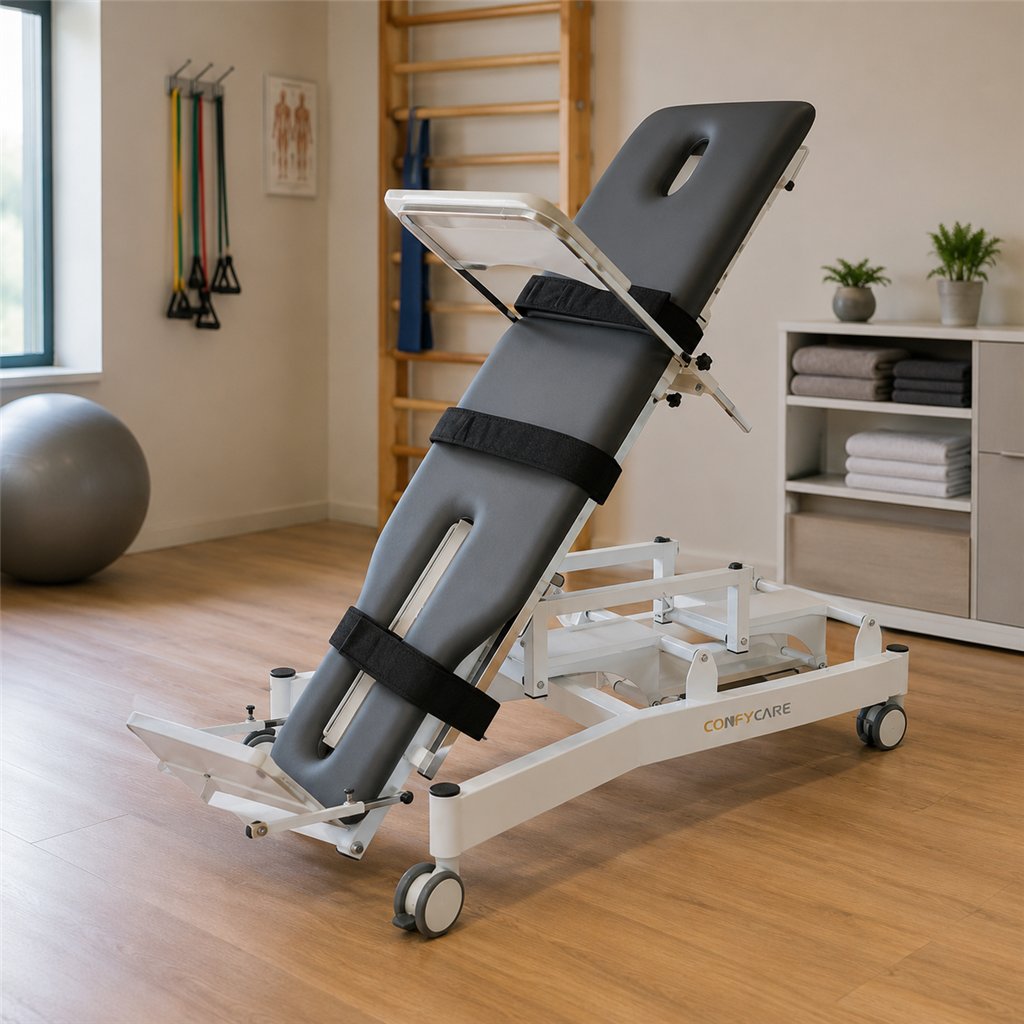

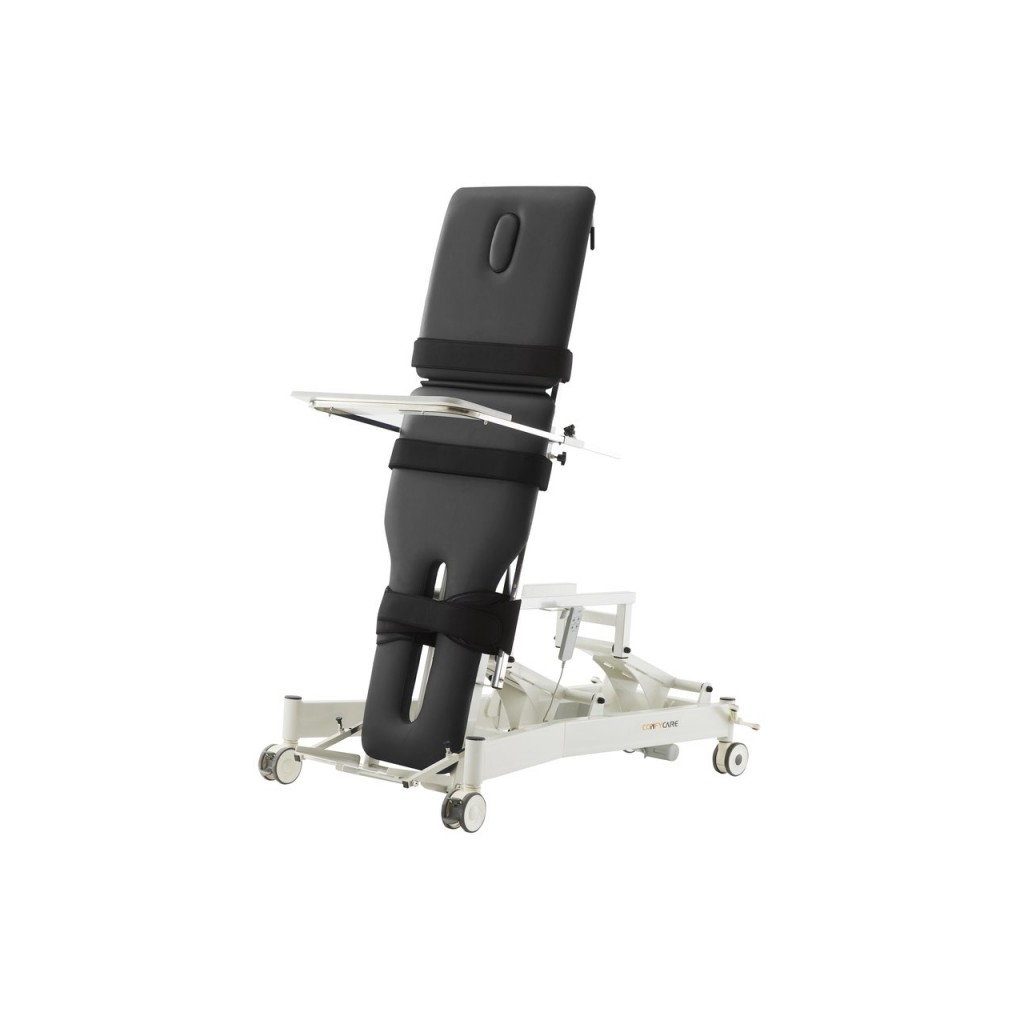

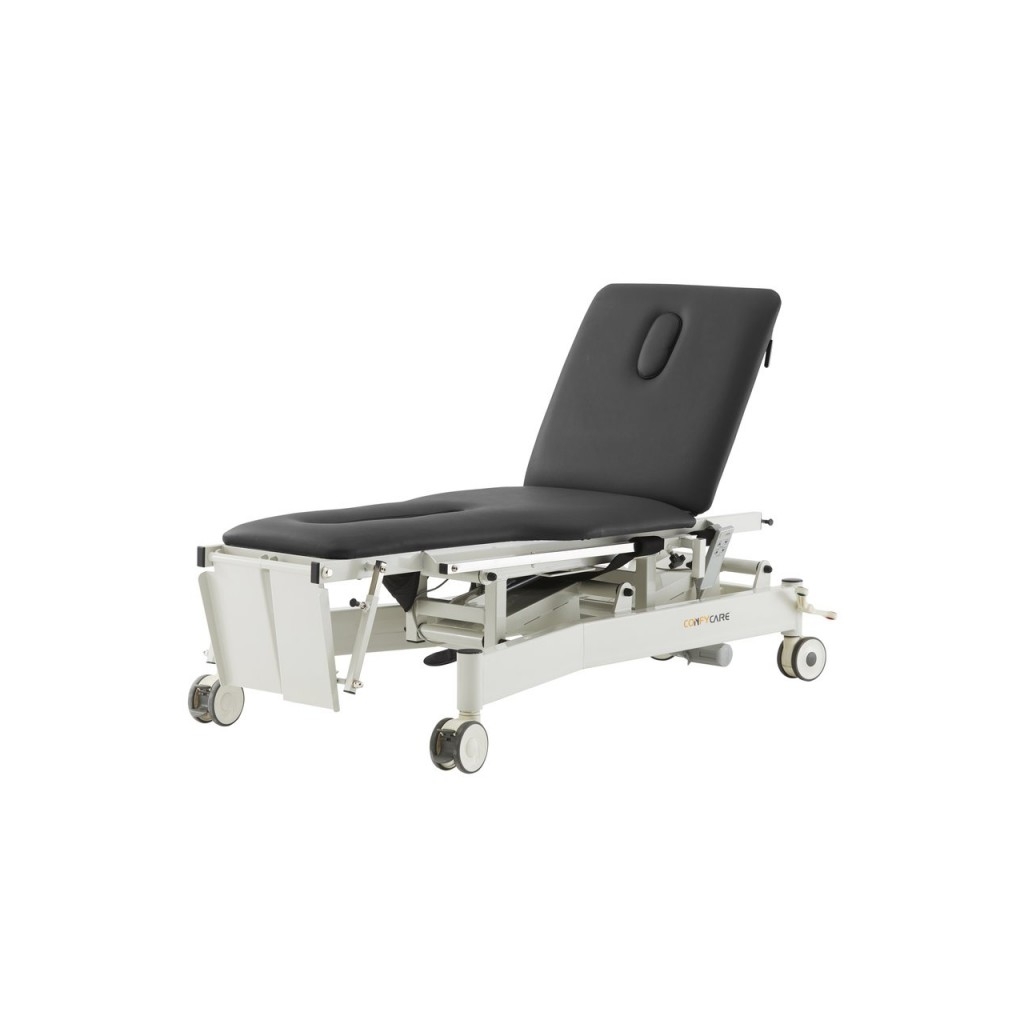

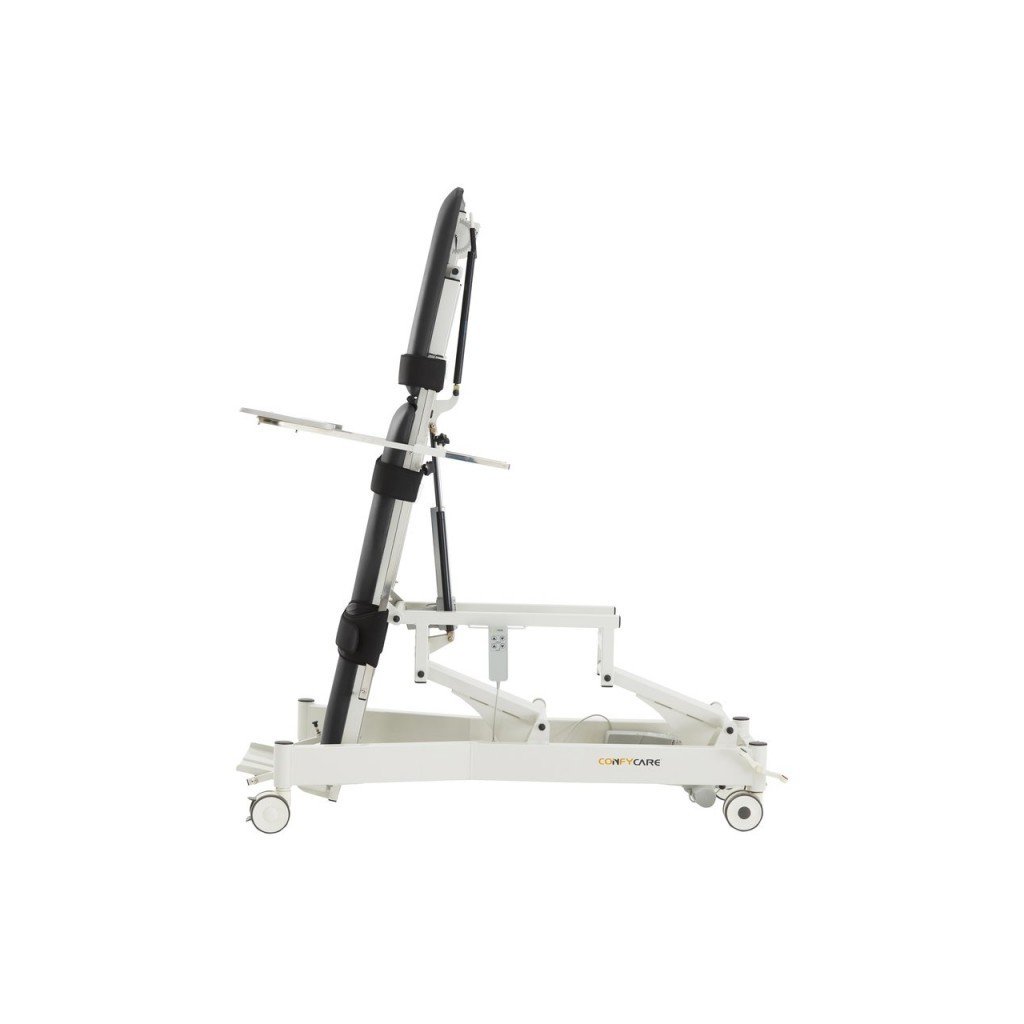

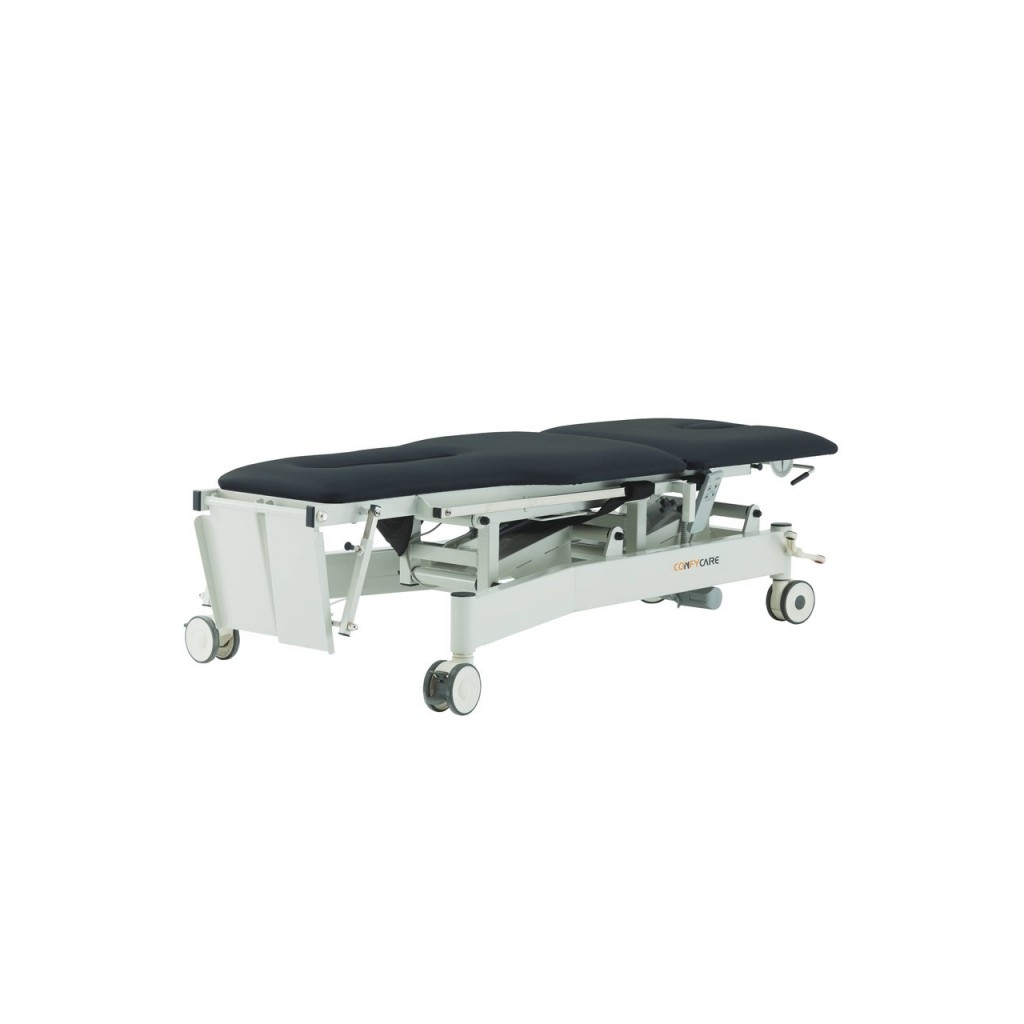

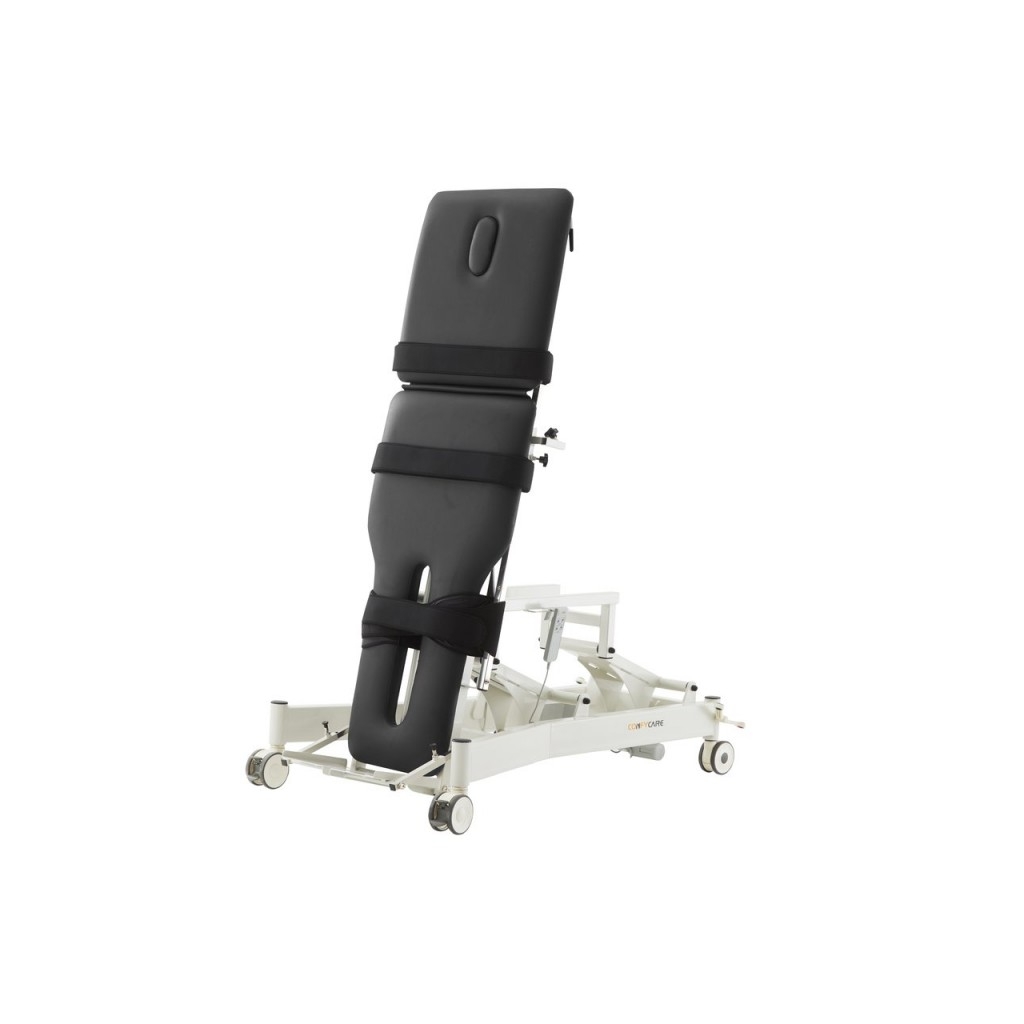

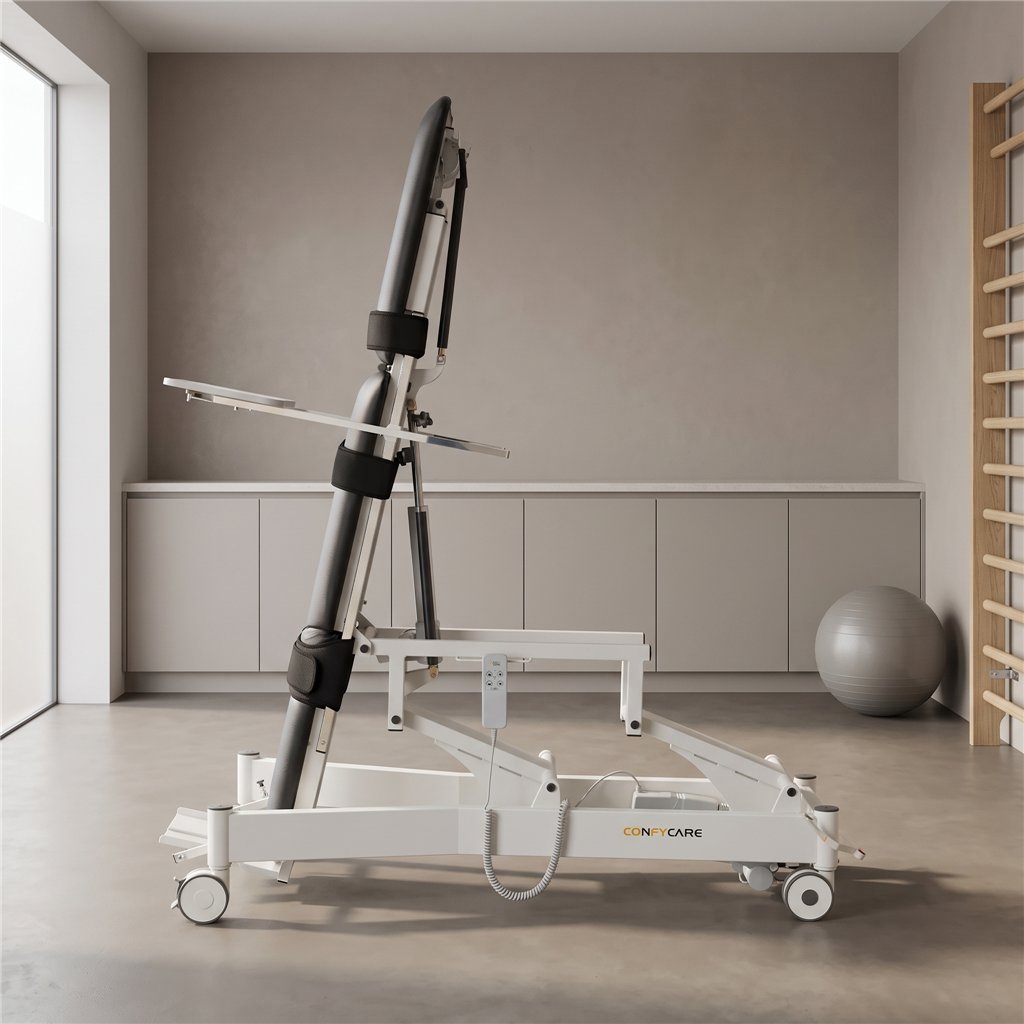

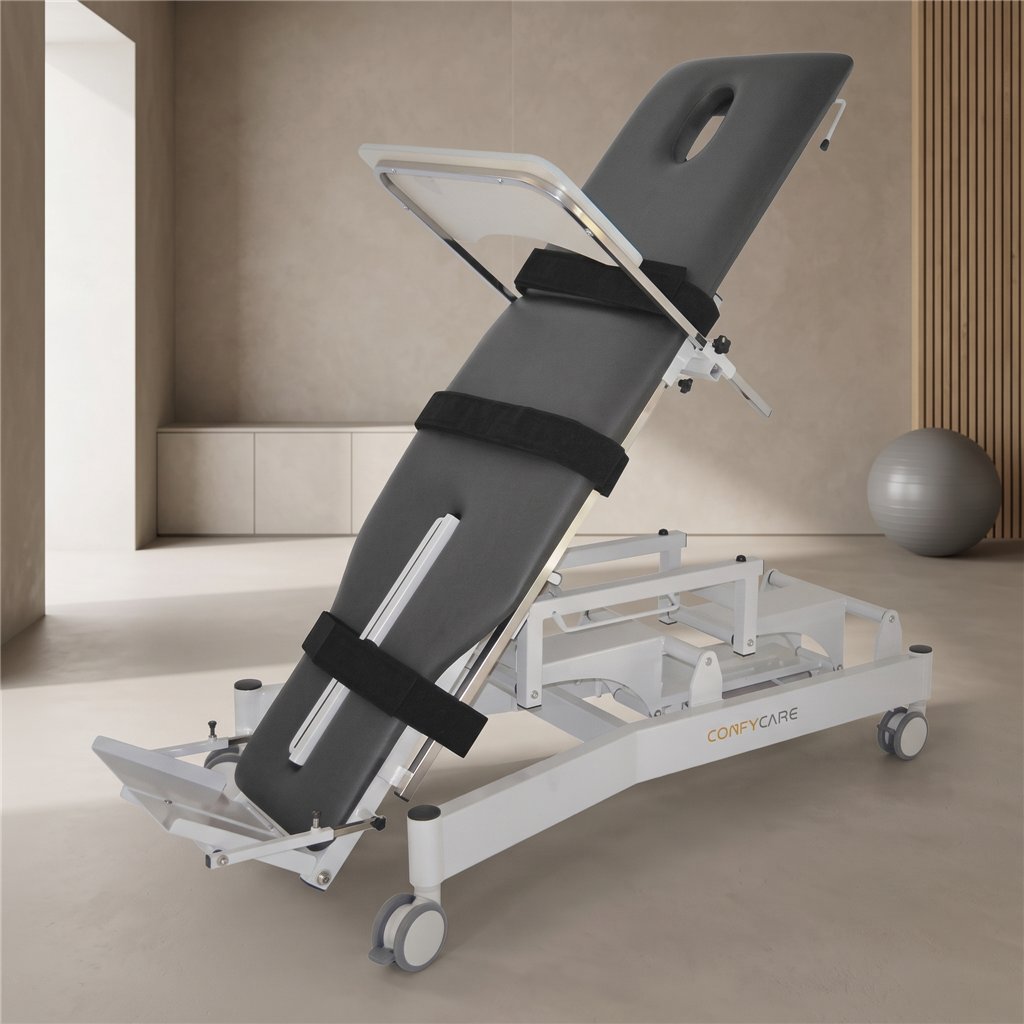

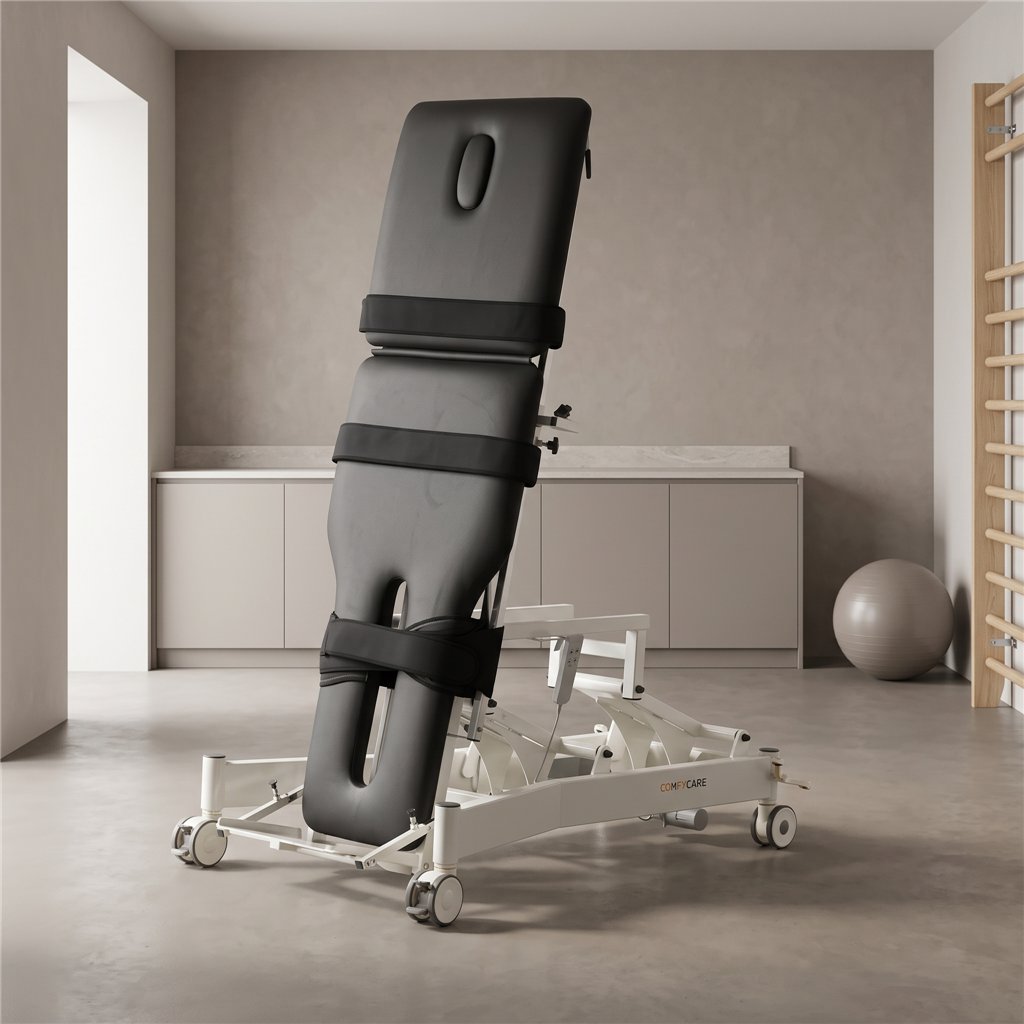

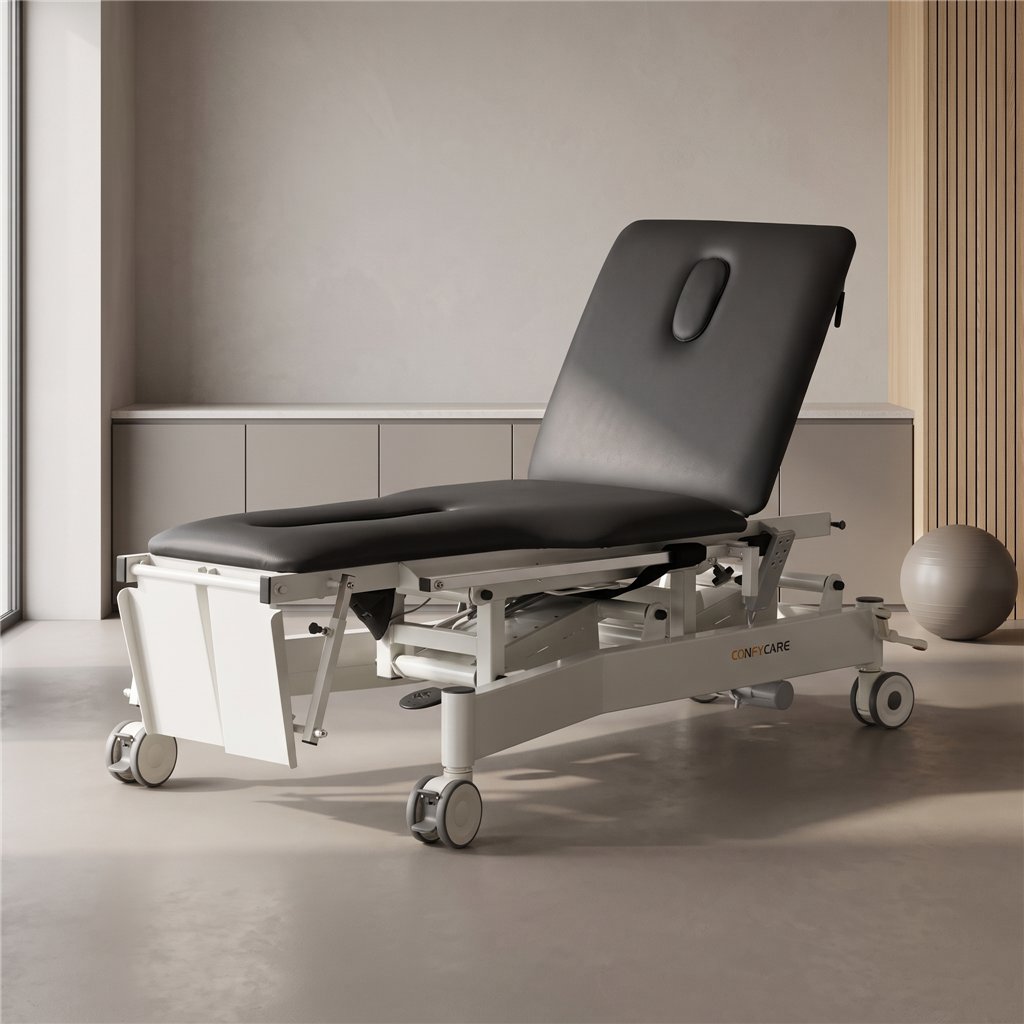

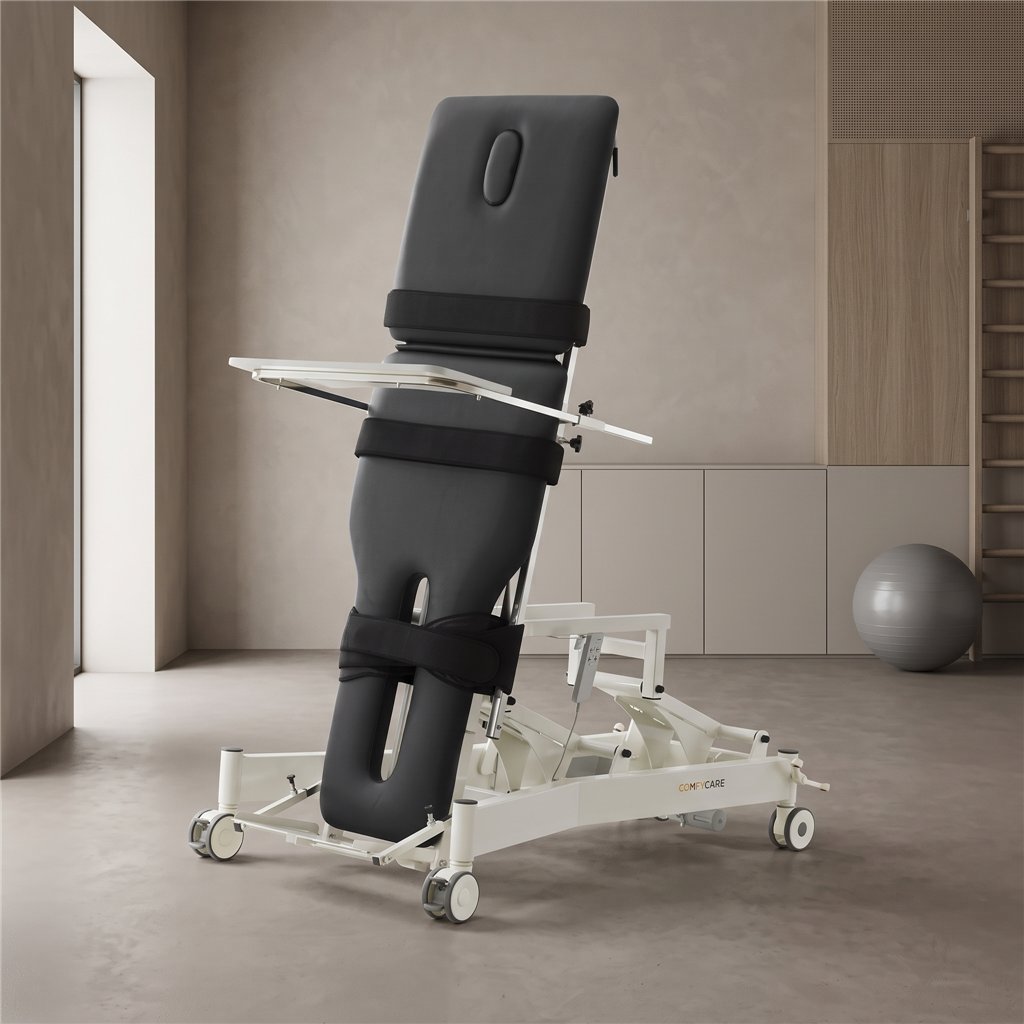

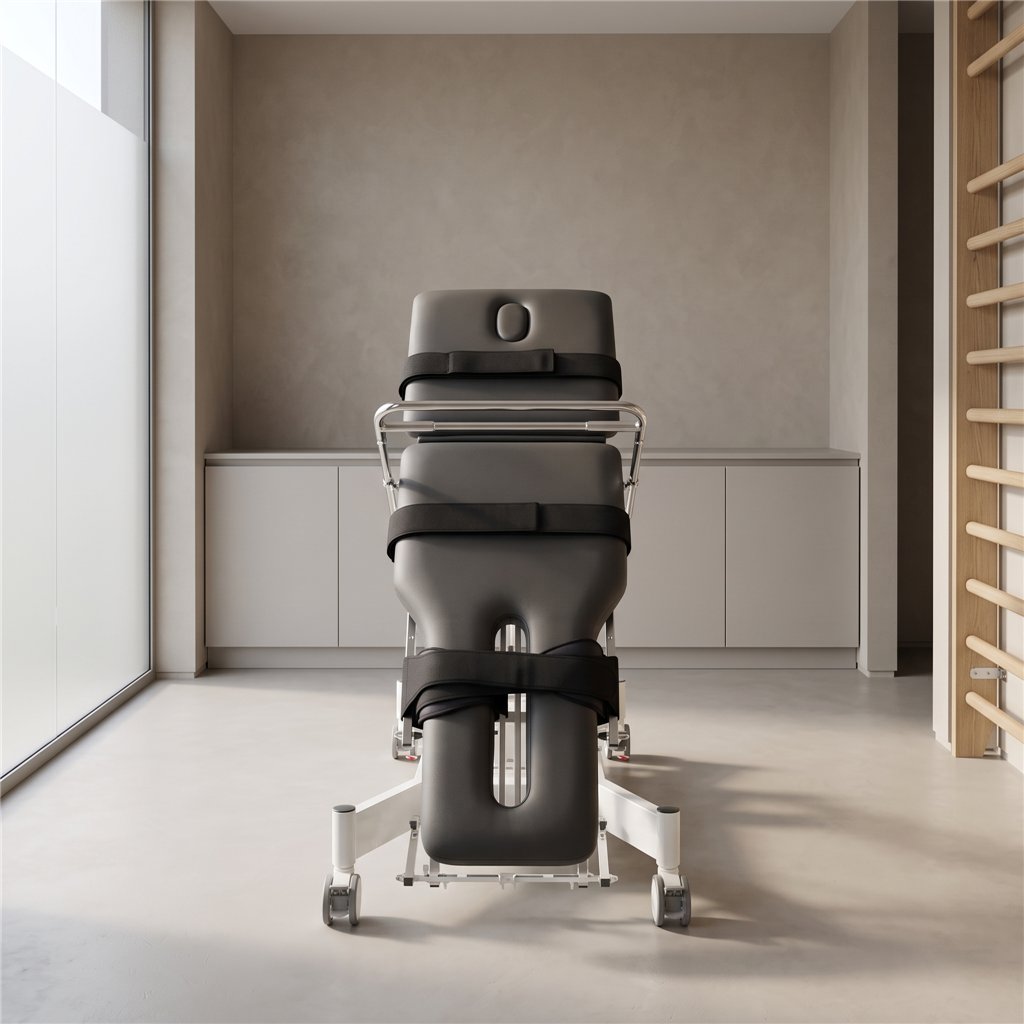

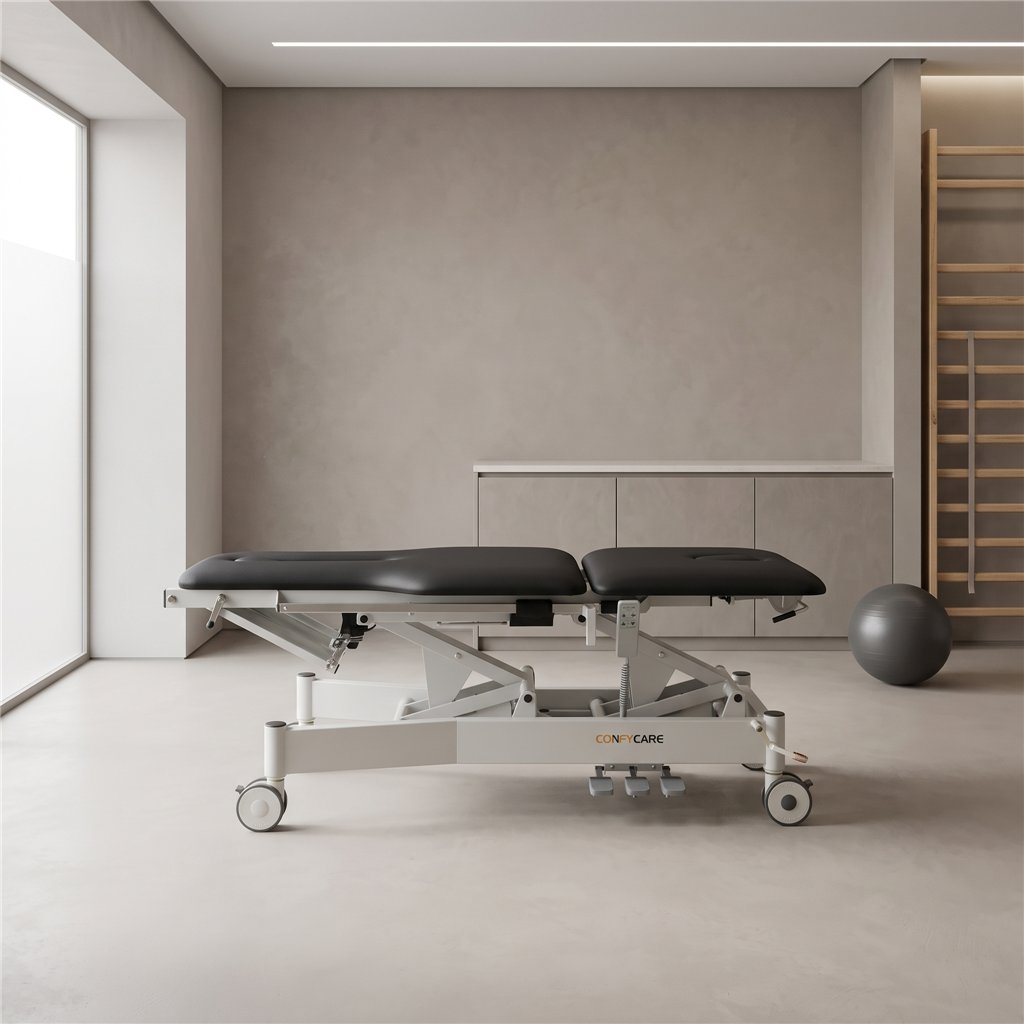

TILT standing therapy couch, 2 motors – white base, grey upholstery

TILT standing table with 2 motors – white base and grey upholstery

The TILT standing table is designed for neurorehabilitation and gait training. Manufactured by Coinfycare, it combines a white base with grey upholstery in highly durable flame-retardant vinyl.

Its 2 motors control the electric height adjustment and the vertical tilt, with an angle indicator for fast and safe positioning.

Key features

• 2 motors for height and tilt, with hand control.
• Tilt range from 0° to 90° for progressive verticalisation, with integrated angle indicator.
• Height adjustable approx. 57–104 cm to facilitate transfers and therapist working position.
• 3 padded support straps and floor brake for uneven surfaces.
• Retractable castors ø125 mm and rounded feet.
• 5 cm padding, 36 kg/m³ foam and face hole with plug.
• Auxiliary tray included.
• 250 kg load capacity.
• Usable dimensions approx. 194 x 64 cm; packaging 208 x 90 x 64 cm, 110 kg, 1.2 m³.
• Flame-retardant vinyl upholstery with high wear resistance.
• 1-year warranty (frame, electrical components and upholstery; excluding misuse).

Safe and progressive verticalisation

The TILT improves patient handling by allowing a controlled change from supine to standing. The angle indicator allows the tilt increase to be set progressively, while the three padded straps stabilise the trunk, pelvis and legs, providing confidence in the early stages of neurorehabilitation.

Electric height adjustment

With 57–104 cm adjustable height via hand control, the therapist can adjust the table without letting go of the patient. This adjustment facilitates transfers from a wheelchair and the positioning of technical aids, reducing unnecessary effort.

Comfort and materials

The 5 cm padding with 36 kg/m³ foam provides even support that reduces pressure points during longer sessions. The highly durable flame-retardant vinyl upholstery withstands frequent cleaning with neutral products and maintains an immaculate appearance in the treatment room.

The face hole with plug helps breathing when working in the prone position.

Stability, mobility and daily use

The structure with rounded feet improves safety around the table. The 125 mm retractable castors and the floor brake allow it to be moved for cleaning and fixed securely during exercise.

The 250 kg load capacity provides ample margin for users of different builds.

Included equipment

Includes auxiliary tray for standing exercises and functional tests. The white base + grey upholstery combination suits hospital environments, clinics and physiotherapy centres seeking safety and efficiency in verticalisation protocols.

Technical specifications

• Model TILT (Ref. EL12.2.A66.WF).
• Type standing table for neurorehabilitation.
• Motorisation 2 motors (height and tilt) with hand control.
• Tilt 0°–90° with angle indicator.
• Height approx. 57–104 cm.
• Mattress dimensions approx. 194 x 64 cm (head section 67 cm, body section 124 cm).
• Upholstery high-resistance flame-retardant vinyl, grey colour.
• Padding 5 cm | density 36 kg/m³.
• Safety 3 padded straps; floor brake.
• Mobility retractable castors ø125 mm; rounded feet.
• Accessories auxiliary tray; face hole with plug.
• Load capacity 250 kg.
• Transport (packaging) 208 x 90 x 64 cm | 110 kg | 1.2 m³.
• Warranty 1 year (frame, electrical components and upholstery; excluding misuse).
