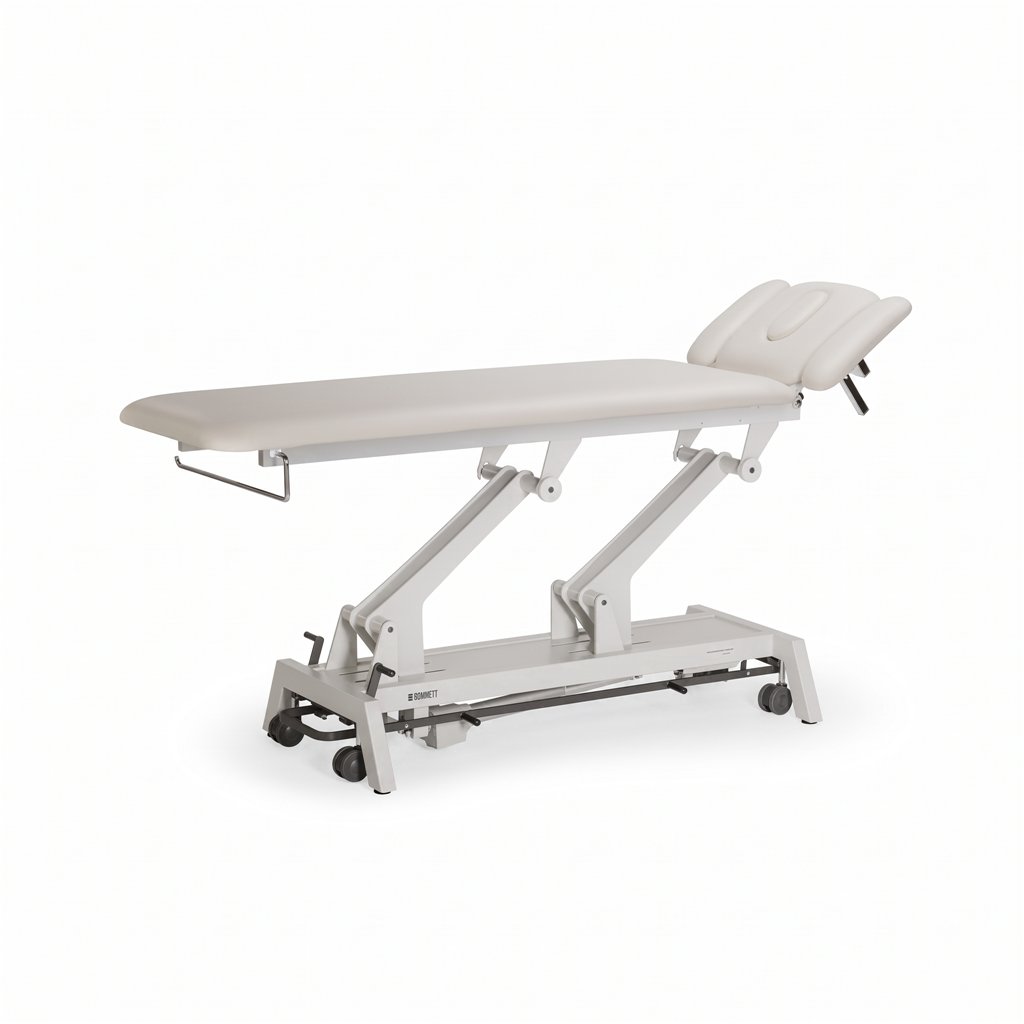

DDUUEETT AVANT 431 electric treatment table, grey base and pearl upholstery

DDUUEETT AVANT 431 4-section electric treatment table

The DDUUEETT AVANT 431 is an electric treatment table for physiotherapy and manual therapies. It has four sections, one motor for height adjustment and a three-section headrest assembly. Its configuration allows the working position to be adapted for each session.

Height is electrically adjustable from 47 to 97 cm in the flat position. It is operated by a perimeter control bar accessible from the sides of the table. The headrest is adjusted by a gas spring and offers an inclination range from -30° to +70°. The armrests are manually adjustable.

Configuration for professional use

The 201 x 68 cm surface provides a spacious working area. It includes a face cradle opening for prone positions and a paper roll holder for disposable paper. The grey base is paired with pearl Medical PVC upholstery, with 5.5 cm padding and a density of 40 kg/m³.

• Model DDUUEETT AVANT 431
• Reference 11003982
• Number of sections 4
• Headrest Three sections, adjustable by gas spring
• Headrest inclination -30° to +70°
• Armrests Manually adjustable
• Face cradle opening Included
• Paper roll holder Included
• Base colour Grey
• Upholstery colour Pearl

Electric adjustment and mobility

The AVANT 431 incorporates one 6,000 N motor for height adjustment. Four retractable castors facilitate repositioning within the workspace. Once positioned, its adjustable immobilisation system helps keep the table stable during use.

• Height adjustment Electric, via perimeter control bar
• Height range 47-97 cm
• Motors 1 height-adjustment motor
• Motor force 6,000 N
• Castors 4 retractable castors
• Immobilisation system Adjustable using foot levers
• Duty cycle Maximum 2 minutes on / 18 minutes off

Dimensions and technical data

• Dimensions 201 x 68 cm
• Height in flat position 47-97 cm
• Table weight 83 kg
• Maximum load 250 kg
• Upholstery Medical PVC
• Padding thickness 5.5 cm
• Padding density 40 kg/m³
• Mains supply AC 220-240 V, 50/60 Hz
• Motor supply DC 24 V, 5.5 A, 132 W
• Liquid ingress protection IPX4
• Electrical safety classification Type B

Use, cleaning and maintenance

This table is intended to support the user during physiotherapy and manual therapy treatments. It is not designed for patient transport. To maintain the upholstery, cover it with a towel, disposable paper or a cover, and replace it between users.

Clean the table after each use. For the upholstery, use lukewarm water with mild detergent applied with a well-wrung cloth. Apply disinfectant to a soft cloth, never directly onto the table. A monthly visual inspection of the sections, gas springs, castors, wiring and fastening elements is recommended.

Contents and conformity

Supplied with the electric treatment table, paper roll holder and instruction manual. The product is declared as a Class I medical device in accordance with Regulation (EU) 2017/745.

• Intended use Physiotherapy and manual therapies
• Contents Treatment table, paper roll holder and instruction manual
• Classification Class I medical device
• Applicable regulation Regulation (EU) 2017/745
• UDI-DI 06976904610024
