Coinfycare Batec electric cardiology table

Coinfycare Batec electric cardiology table

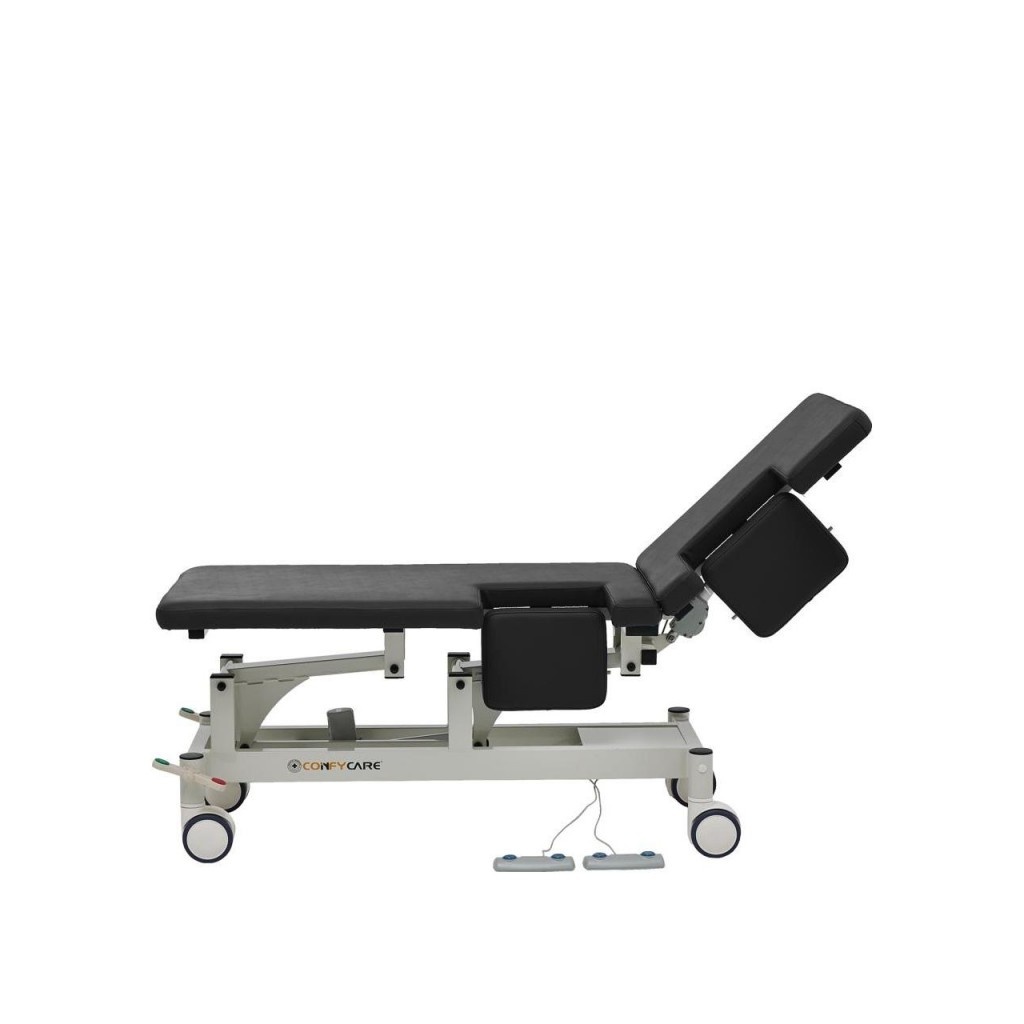

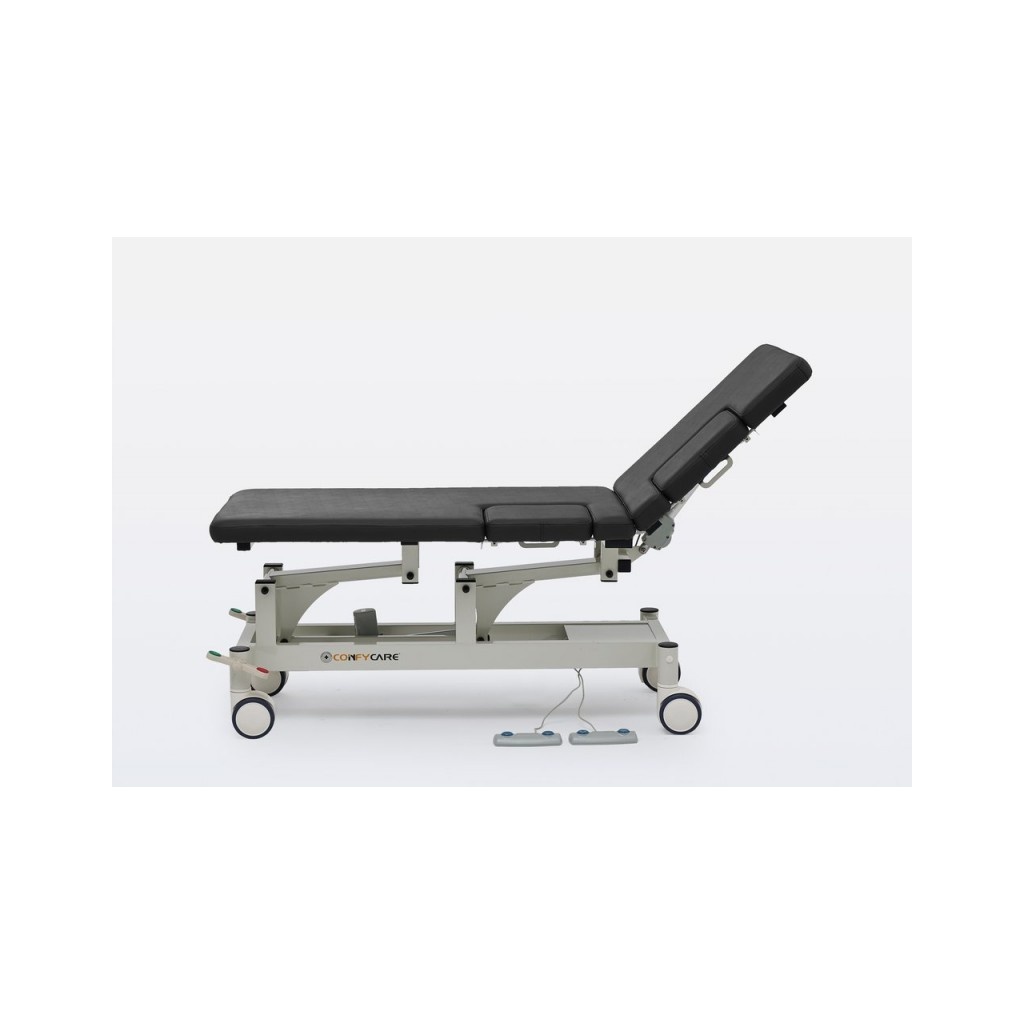

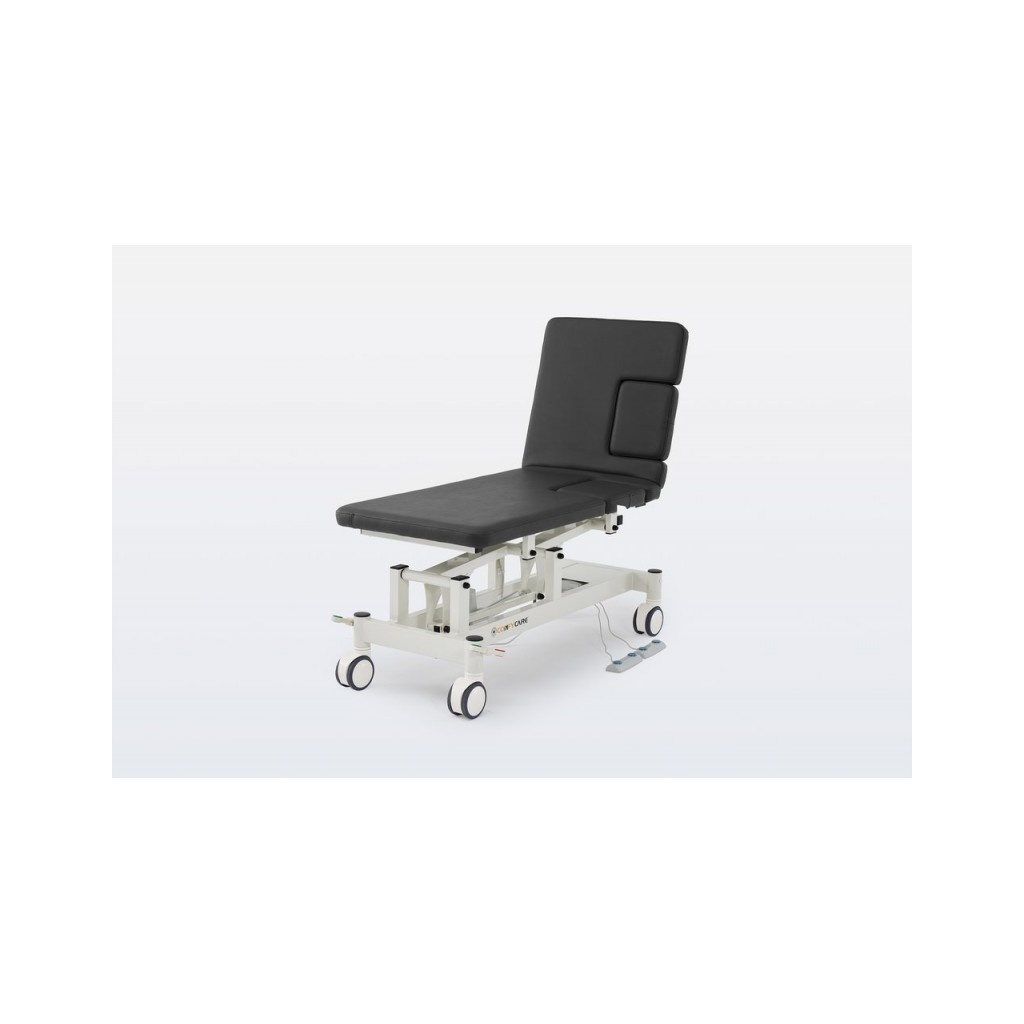

The Coinfycare Batec is a two-section cardiology table designed for medical environments. Its structure combines electric height adjustment, an electric backrest and two dedicated cut-outs in the surface to facilitate patient access during cardiology examinations.

The foot pedal control allows the Hi-Lo height and backrest position to be adjusted without interrupting the workflow. The table is supplied ready for use, with no assembly required.

Electric adjustment and functional access

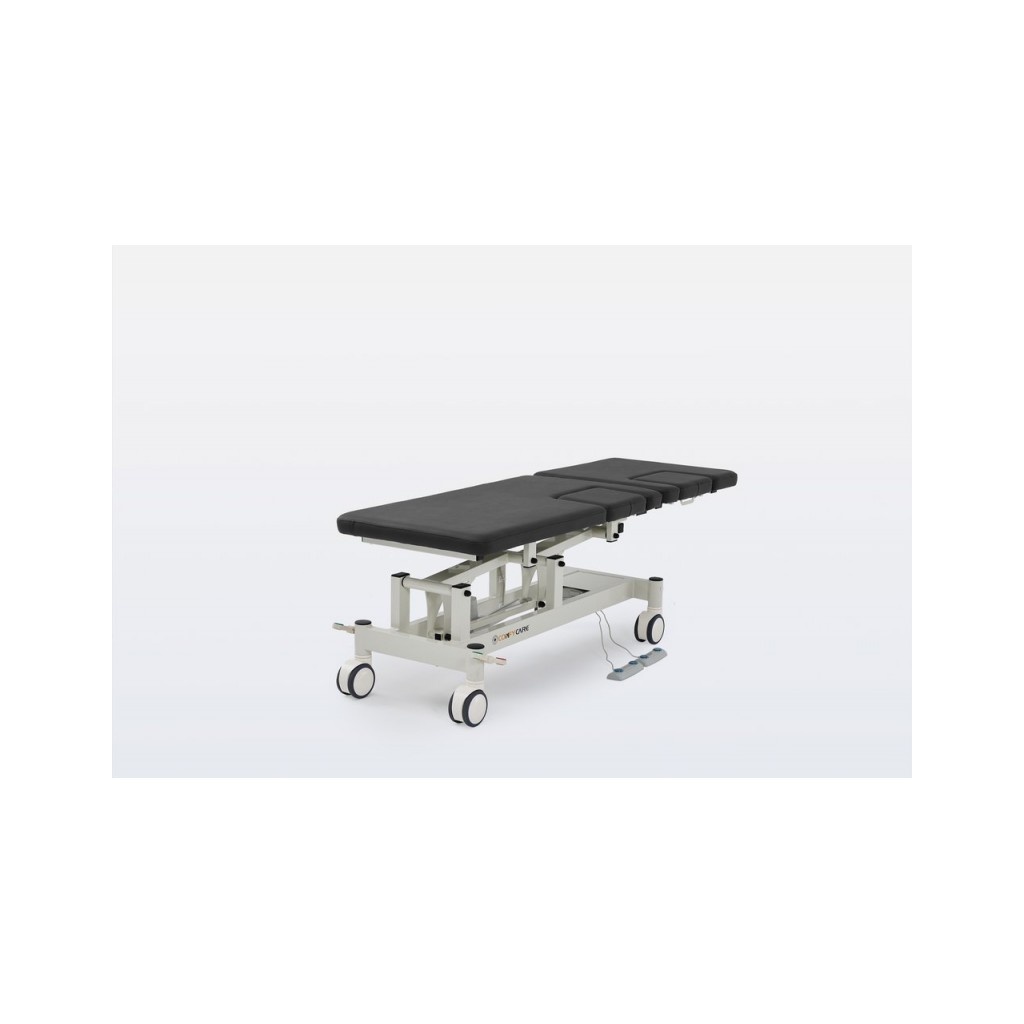

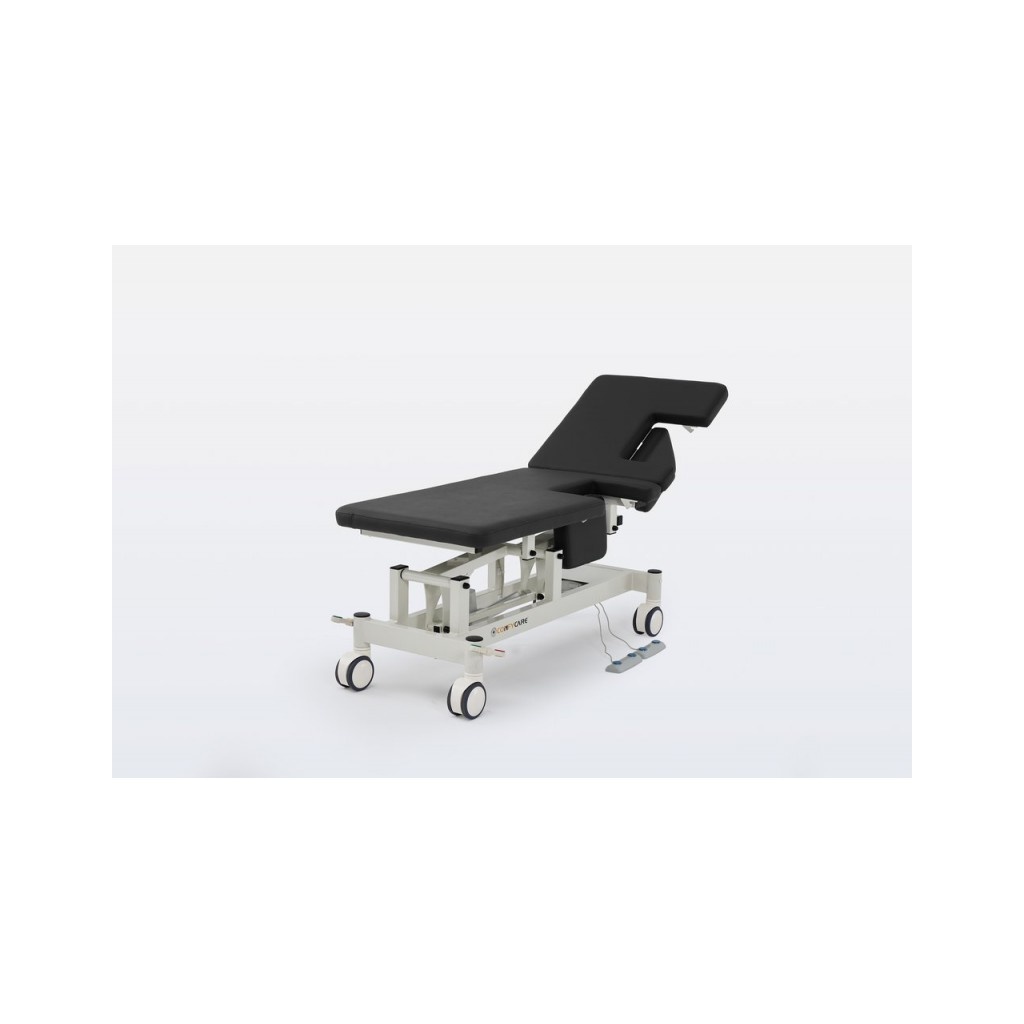

Height is electrically adjustable between 58 and 102 cm, with an approximate lifting time of 30 seconds. The electric backrest reaches a stated maximum angle of 75°. The table incorporates two 32 x 25 cm cut-outs designed to facilitate patient access.

• Type Two-section electric cardiology table
• Height adjustment Electric Hi-Lo adjustment via foot pedal
• Height range 58-102 cm
• Lifting time Approximately 30 seconds
• Backrest Electric, adjustable via foot pedal
• Maximum backrest angle 75°
• Motorisation 2 TiMOTION motors
• Control Foot pedal included
• Cardiology cut-outs 2 cut-outs measuring 32 x 25 cm

Mobility, stability and work surface

The work surface measures 195 x 70 cm and is divided into a 123 cm main section and a 68 cm backrest section. Its 125 mm castors with central locking support table movement and secure positioning during use. The frame incorporates rounded legs.

• Surface dimensions 195 x 70 cm
• Main section 123 cm
• Backrest section 68 cm
• Castors 125 mm with central locking
• Load capacity 250 kg
• Product weight 65 kg

Upholstery and padding

The 5 cm padding incorporates foam with a density of 36 kg/m³. The high-resistance PVC vinyl upholstery features stitched edges and is flame-retardant, as well as resistant to stains, mould, oil, water and wear.

• Upholstery High-resistance PVC vinyl with stitched edges
• Padding thickness 5 cm
• Foam density 36 kg/m³
• Upholstery resistance Stains, mould, oil, water and wear

Certifications, warranty and transport

The table has the stated CE, FDA and ISO 13485:2016 certifications. The stated warranty is one year for the frame, electrical components and upholstery, excluding misuse. Packaging dimensions are 199 x 75 x 61 cm.

• Stated certifications CE, FDA and ISO 13485:2016
• Stated warranty 1 year for the frame, electrical components and upholstery
• Packaging dimensions 199 x 75 x 61 cm
• Stated packaging volume 0.91 m³

Download technical data sheet (PDF)
