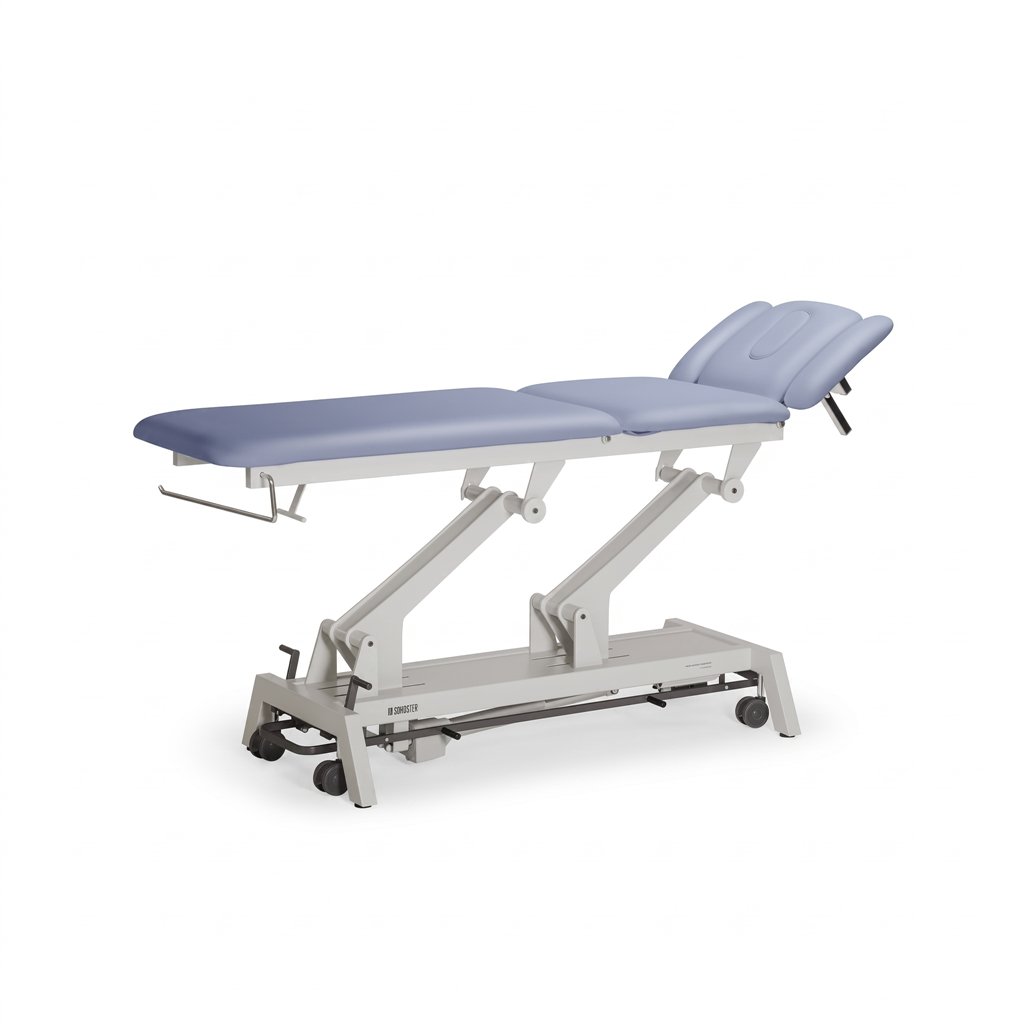

DDUUEETT AVANT 531 electric treatment table, blue

DDUUEETT AVANT 531 electric treatment table

The DDUUEETT AVANT 531 is a five-section electric treatment table intended for physiotherapy and manual therapies. Its configuration includes a three-section head section, an adjustable foot section and manually adjustable armrests.

It features a grey base and blue Medical PVC upholstery. Electric height adjustment is operated by a perimeter control bar, accessible from either side of the table. The working height ranges from 47 to 97 cm when flat.

Working position adjustments

The head section is adjusted by a gas spring and offers an angle range from -30° to +70°. The footrest also uses a gas spring and can be raised from 0° to +80°. These adjustments allow the support surface to be configured for different manual therapy techniques.

• Sections 5 sections with a 3-section head section
• Height adjustment Electric, operated by perimeter control bar
• Adjustable height 47 to 97 cm
• Head section Gas spring, -30° to +70° angle range
• Footrest Gas spring, 0° to +80° angle range
• Armrests Manually adjustable

Mobility and included equipment

The AVANT 531 is fitted with a system of 4 retractable castors for moving the table within the workspace. Once positioned, its adjustable immobilisation system keeps it stable during use.

It includes a face hole and a paper roll holder. The roll holder is fitted to the designated mounting points on the frame.

• Castors 4 retractable castors
• Mobility Adjustable immobilisation system
• Included accessories Face hole and paper roll holder
• Upholstery Medical PVC
• Foam thickness 5.5 cm
• Foam density 40 kg/m³
• Colour Grey base and blue upholstery

Dimensions and capacity

The table surface measures 201 x 68 cm. The equipment weighs 87 kg and has a stated maximum load of 250 kg.

• Dimensions 201 x 68 cm
• Weight 87 kg
• Maximum load 250 kg

Electrical data

The table incorporates one 6,000 N motor for height adjustment. It operates on an AC 220–240 V, 50/60 Hz power supply. Motor specifications are DC 24 V, 5.5 A and 132 W.

• Motors 1 x 6,000 N motor
• Power supply AC 220–240 V, 50/60 Hz
• Motor DC 24 V, 5.5 A, 132 W
• Duty cycle Maximum 2 minutes on / 18 minutes off
• Protection IPX4 against splashing water or liquids
• Electrical classification Type B

Use, cleaning and safety

The table is designed to support the user during physiotherapy and manual therapy treatments. It must be connected to a correctly installed, earthed power outlet. For maintenance, visually inspect the sections, castors, wiring, fixings and moving components every month.

Before each use, cover the upholstery with a towel, disposable paper or cover. Clean the upholstery with a well-wrung soft cloth, lukewarm water and mild detergent. Apply disinfectant products to the cloth, never directly to the table.

Classification and traceability

• Classification Class I medical device in accordance with Regulation (EU) 2017/745
• Declared standards EN 60601-1, EN 60601-1-6 and EN 60601-1-2
• UDI-DI 06976904610024
• Reference 11004339
