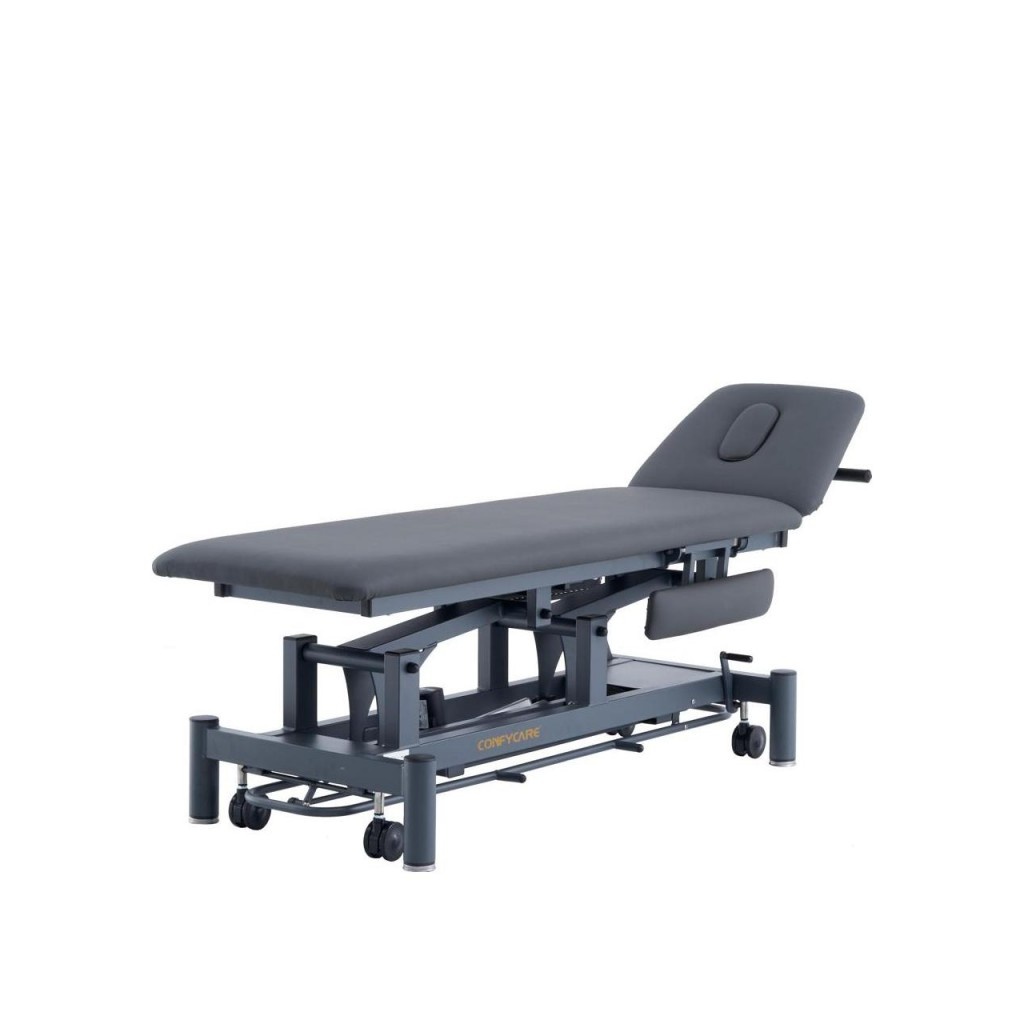

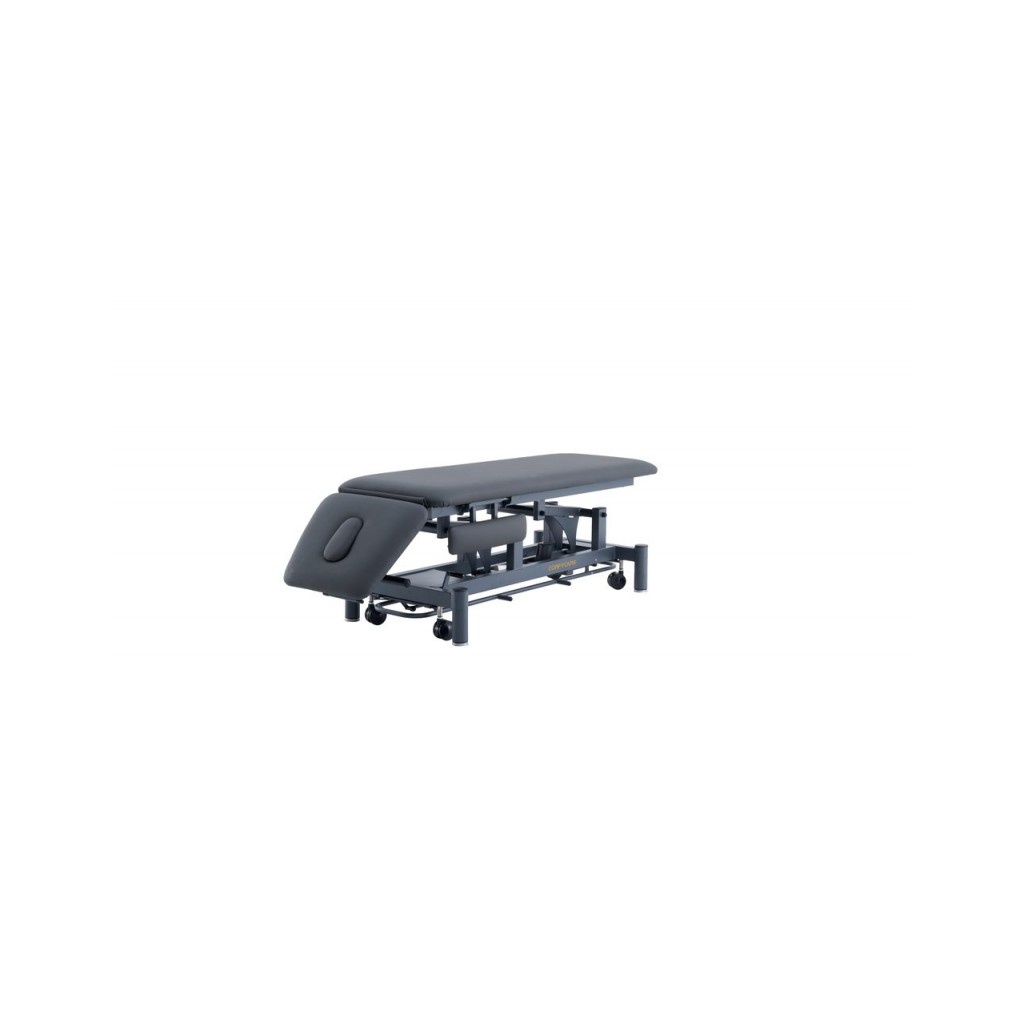

Coinfycare ROTH electric physiotherapy table for osteopathy

Coinfycare ROTH 2-section electric treatment table

The Coinfycare ROTH is a two-section electric treatment table designed for professional physiotherapy, massage and osteopathy work. Its configuration combines an articulated treatment surface, electric height adjustment and features intended to facilitate client positioning during each session.

The model includes a face hole with plug, a standard paper roll holder and folding side armrests on the main section. When unfolded, these armrests provide an indicated total width of 80 cm.

Adjustment for an adaptable working position

Height is electrically adjusted via a perimeter control, accessible around the frame for adjustment from different working positions. The lifting system uses a TiMOTION motor and completes its travel in approximately 30 seconds.

The head section is adjusted by a gas spring in both positive and negative angles. The technical diagram indicates an incline of up to 40° positive and 45° negative. The head area also includes adjustable armrests to complement the treatment position.

Frame, mobility and upholstery

The frame features rounded feet and levelling feet to adapt the table to uneven floors. Its Ø 75 mm retractable wheels allow the table to be moved when required while maintaining a stable base during use.

The padding is 5 cm thick and made from foam with a density of 70 kg/m³. The upholstery is fire-retardant, wear-resistant vinyl, suitable for continued professional use.

Technical specifications

• Brand and model Coinfycare ROTH
• Reference EL022AR.1.A66.GF
• Sections 2
• Intended use Physiotherapy, massage and osteopathy
• Height adjustment Electric, via perimeter control
• Height range 48 to 92 cm
• Motor TiMOTION
• Lifting time 30 s
• Head section Gas-spring adjustable, with positive and negative tilt
• Head section angle Up to 40° positive and 45° negative
• Face hole Included with plug
• Side armrests Folding; indicated total width of 80 cm
• Paper roll holder Included as standard
• Wheels Retractable, Ø 75 mm
• Main surface 195 x 55 cm
• Padding 5 cm thick
• Foam density 70 kg/m³
• Upholstery Fire-retardant, wear-resistant vinyl
• Load capacity 250 kg
• Weight 64 kg
• Certifications CE, FDA and ISO 13485:2016
• Warranty 1 year for the frame, electrical components and upholstery, excluding misuse

Packaging dimensions

• Indicated dimensions 199 x 70 x 51 cm
• Indicated volume 0.71 m³

Download technical data sheet (PDF)
