DDUUEETT AVANT 531 electric treatment table, grey base and cactus upholstery

DDUUEETT AVANT 531 electric treatment table for physiotherapy and manual therapies

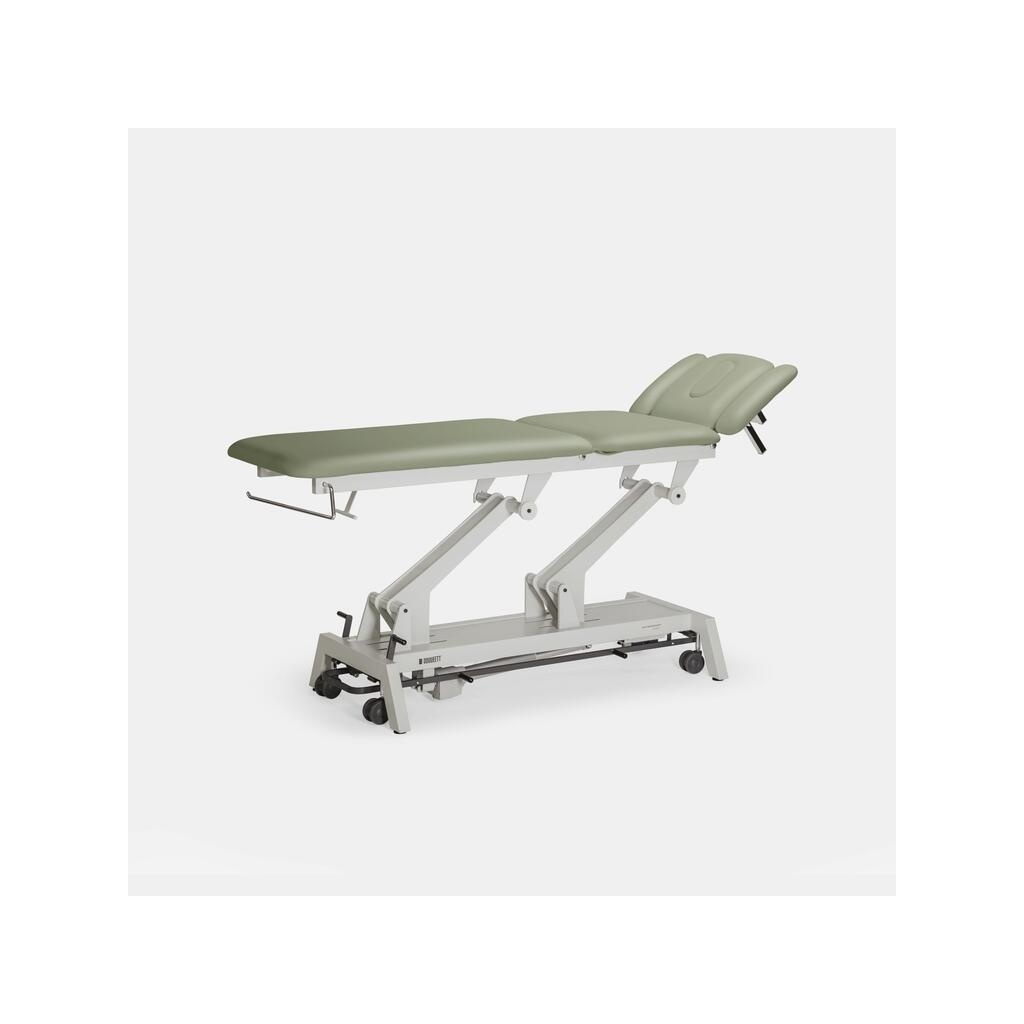

The DDUUEETT AVANT 531 is an electric treatment table with a 5-section configuration and one motor for height adjustment. It is designed for physiotherapy and manual therapies, providing an adjustable working surface to adapt the position during each session.

It features a grey frame and cactus-coloured upholstery. The table measures 201 x 68 cm and supports a maximum load of 250 kg. Height is electrically adjustable from 47 to 97 cm using a foot-operated perimeter bar.

Configuration and adjustments

The AVANT 531 includes a three-section headrest with gas-spring adjustment from -30° to +70°. Its armrests are manually adjustable. The footrest is also gas-spring adjustable, with a range from 0° to +80°.

It includes a facial hole and a roll holder installed on the frame. The four retractable wheels facilitate repositioning of the table. Once in the working area, the adjustable immobilisation system keeps it stable during use.

Technical specifications

• Brand DDUUEETT
• Model AVANT 531
• Reference 11004380
• Sections 5
• Headrest Three-section design, adjustable from -30° to +70°
• Armrests Manually adjustable
• Footrest Gas-spring adjustable, from 0° to +80°
• Height adjustment Electric via perimeter bar
• Adjustable height From 47 to 97 cm in the flat position
• Dimensions 201 x 68 cm
• Table weight 87 kg
• Maximum load 250 kg
• Motor 1 x 6,000 N motor
• Motor power supply DC 24 V, 5.5 A, 132 W
• Mains supply AC 220–240 V, 50/60 Hz
• Upholstery Medical PVC, 5.5 cm thick, density 40 kg/m³
• Mobility 4 retractable wheels with immobilisation system
• Included accessories Facial hole and roll holder
• Finish Grey frame and cactus upholstery

Use and operation

The table is intended to support the user during physiotherapy and manual therapy treatments. It is not intended for transporting patients. Before adjusting the height, keep the area underneath the table clear to prevent interference during movement.

Cleaning and maintenance

Disconnect the table from the mains before cleaning. Use a well-wrung soft cloth with lukewarm water and mild detergent for the upholstery. Apply disinfectant to a cloth, never directly onto the table. After each use, prevent moisture from accumulating on the moving parts of the frame.

Carry out a visual inspection at least once a month. Check the adjustment of the sections, motor operation, gas springs, screws, friction parts, wiring, mains socket and wheel immobilisation system.

Classification and protection

• Classification Class I medical device in accordance with Regulation (EU) 2017/745
• UDI-DI 06976904610024
• Protection IPX4 against splashing water or liquids
• Electrical classification Type B
• Standards cited EN 60601-1:2006/A2:2021, EN 60601-1-6:2010/A2:2021 and EN 60601-1-2:2015
