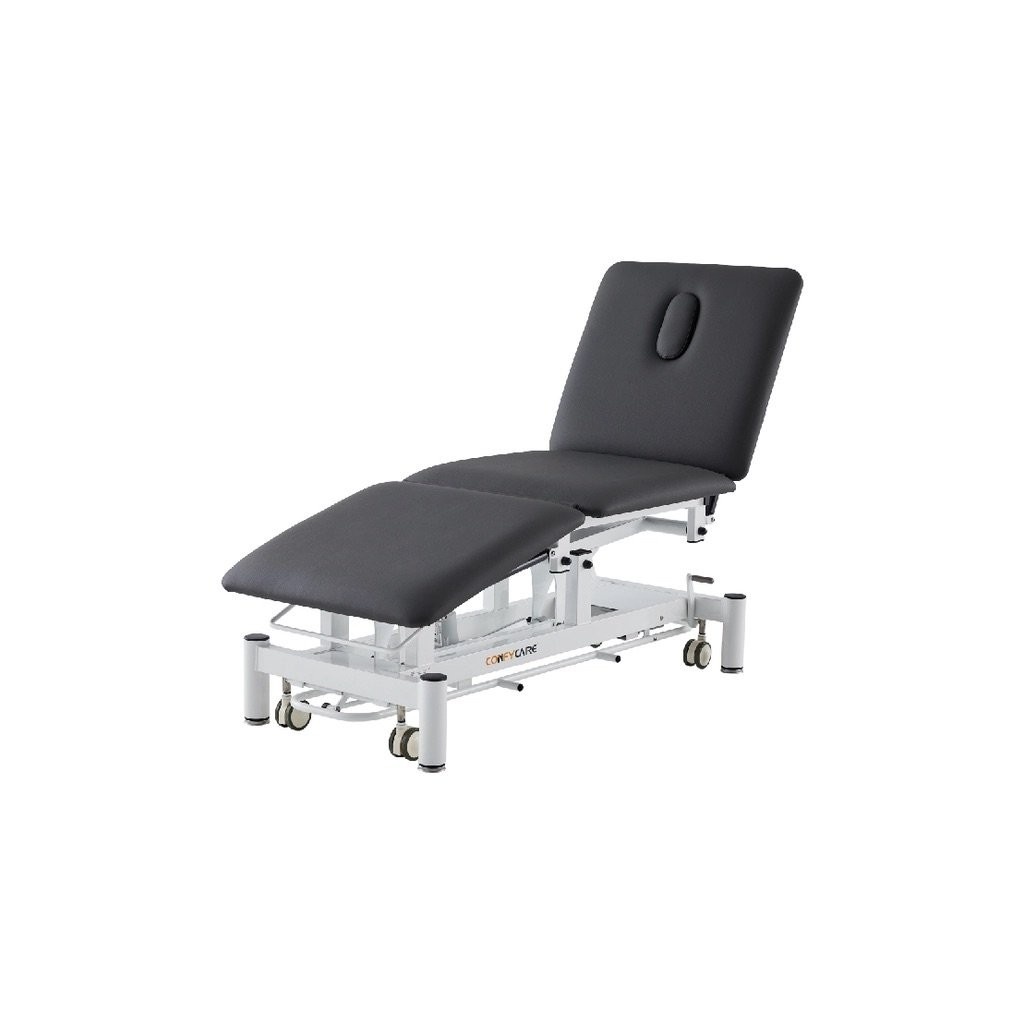

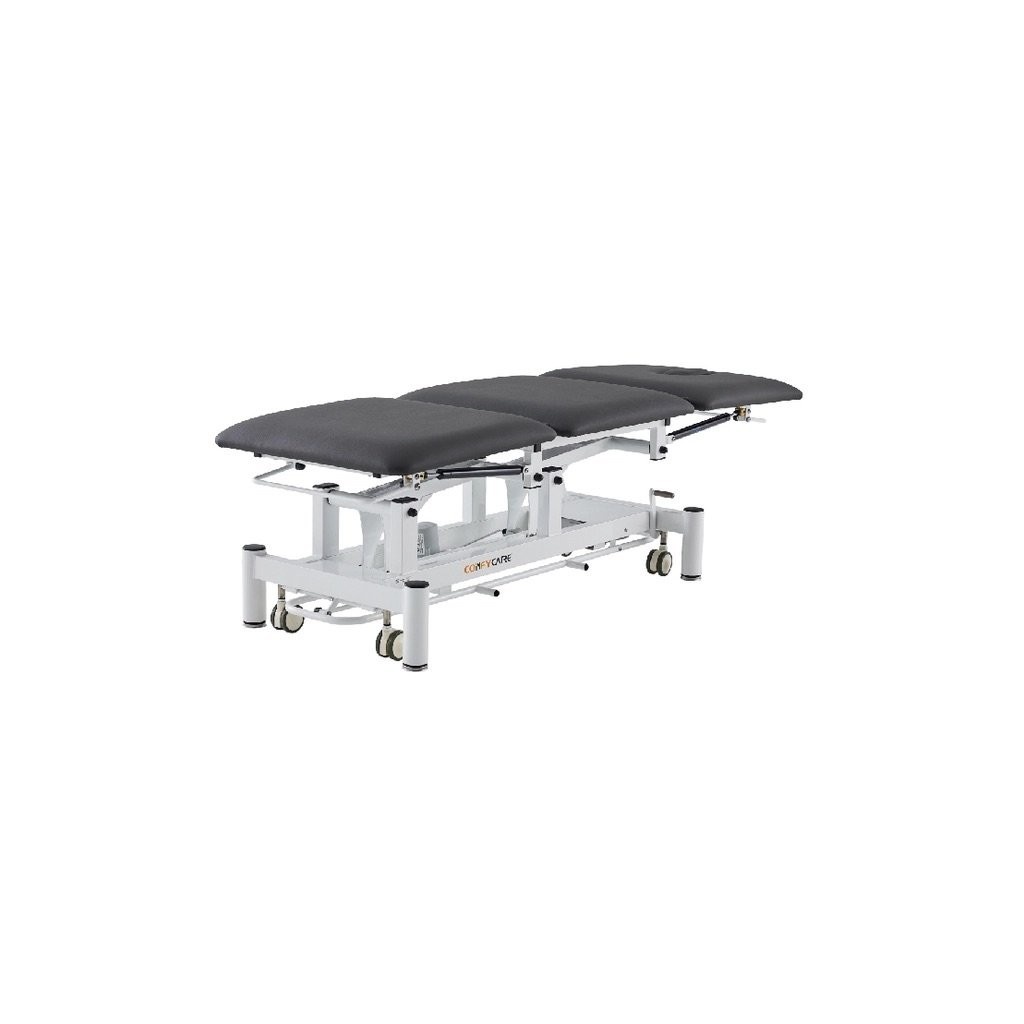

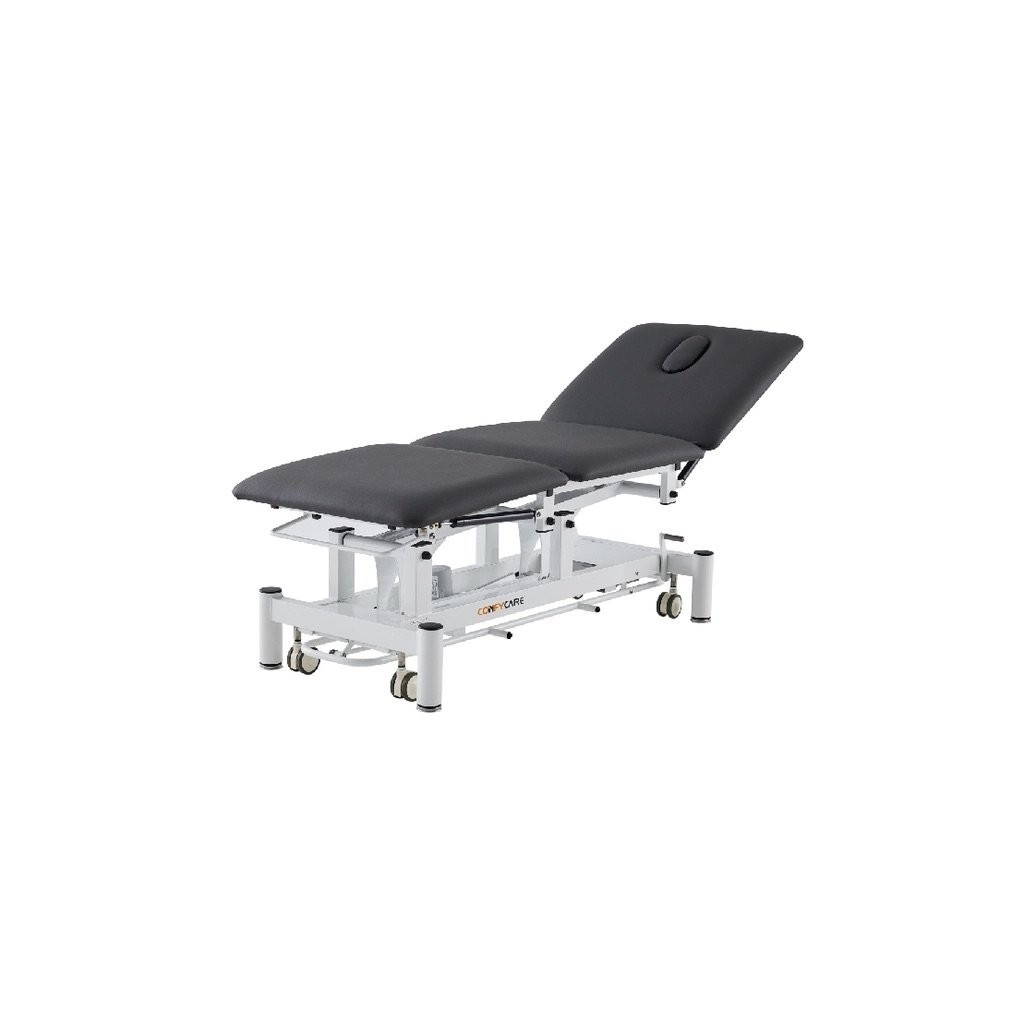

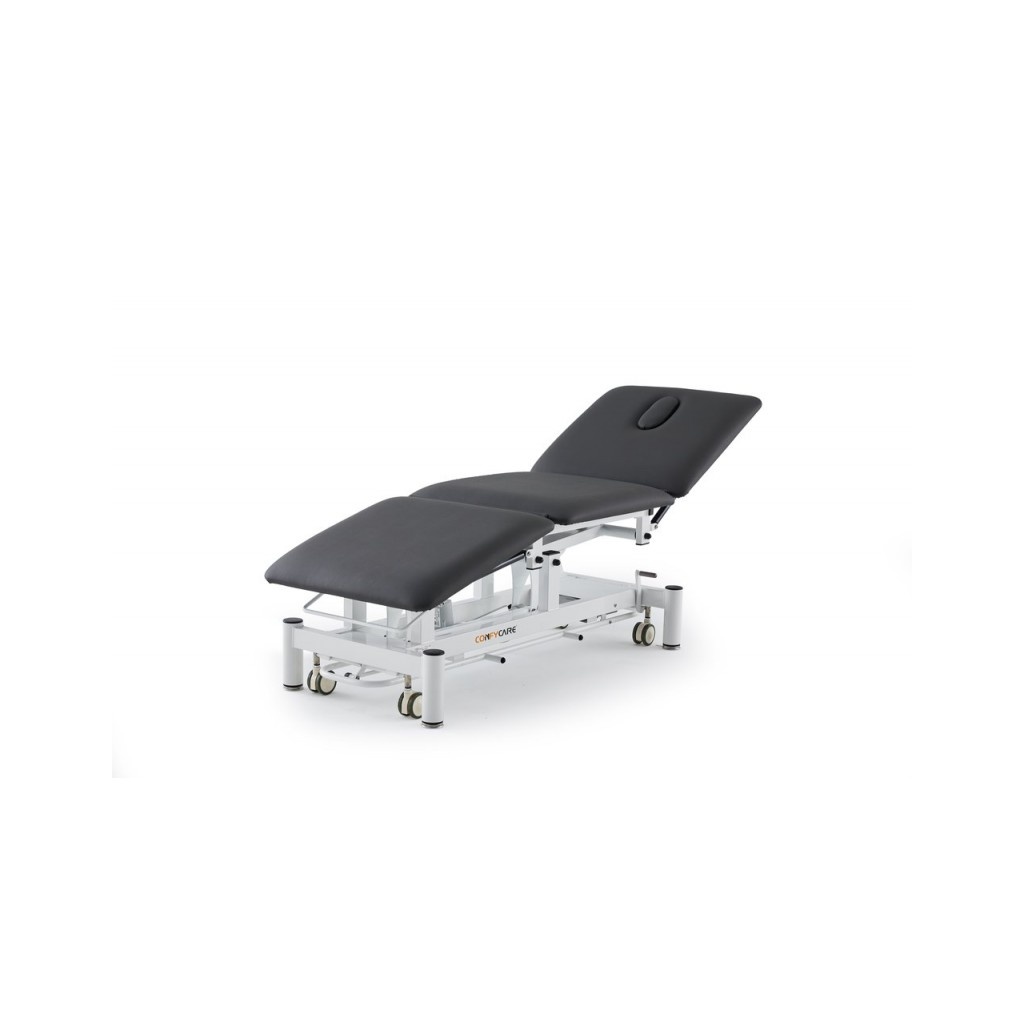

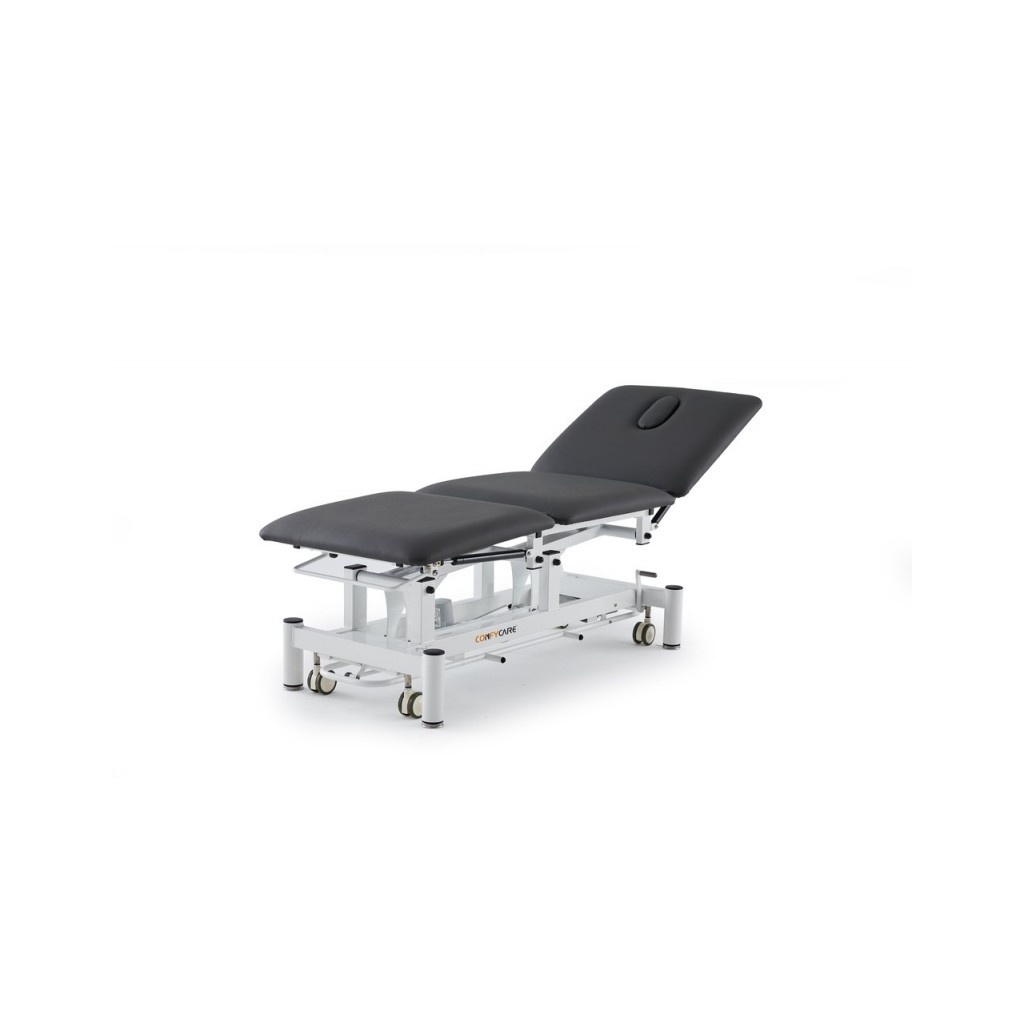

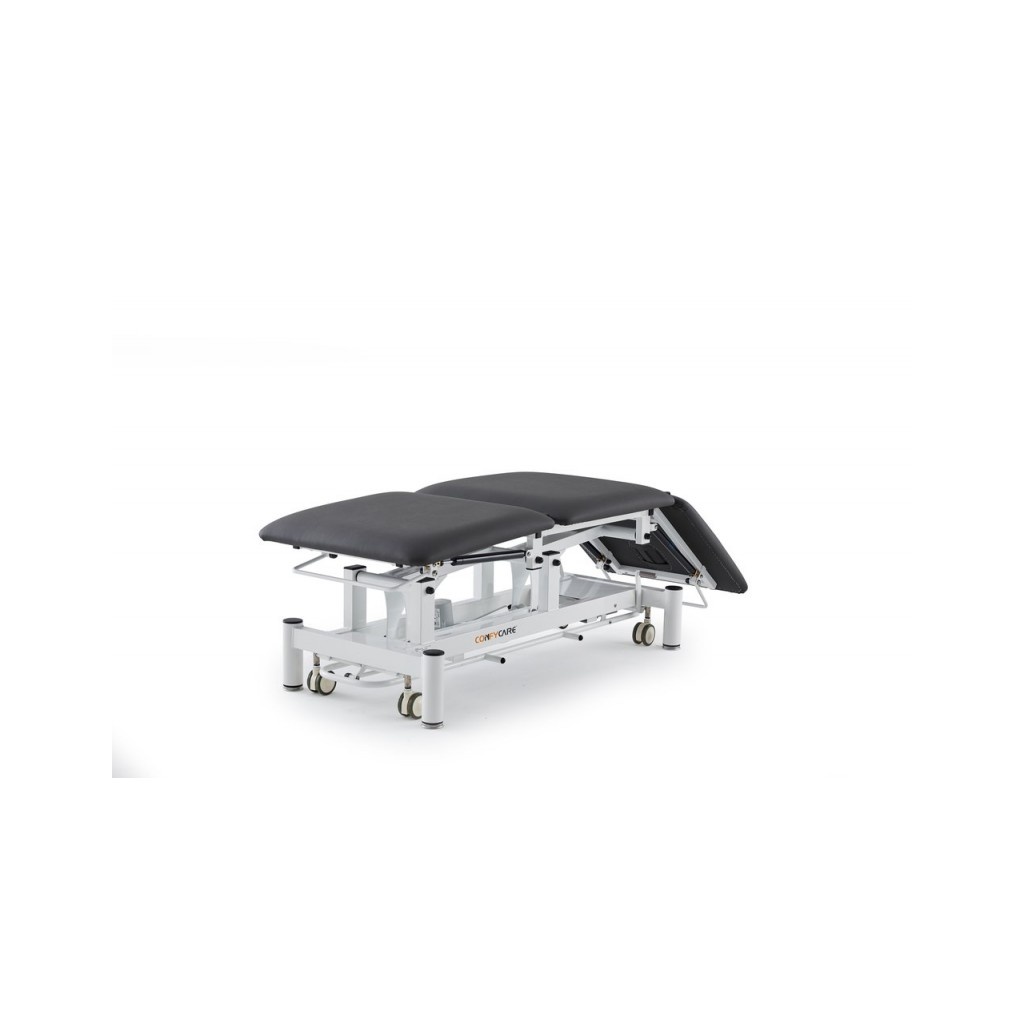

BROM 3-section electric physiotherapy treatment table

BROM 3-section electric physiotherapy treatment table

The Coinfycare BROM is a three-section treatment table for physiotherapy and massage settings. Its electric lifting system allows the height to be adjusted via the perimeter control, helping adapt the work surface throughout the session.

The backrest features a face hole with plug, while both the backrest and footrest are adjusted by gas springs. This configuration allows the table position to be adapted to the requirements of each treatment.

Adjustment and mobility

The table is fitted with a TiMOTION motor for height adjustment, with a stated lifting time of 30 seconds. Its height range is 48 to 92 cm. The perimeter control is accessible from different points around the frame.

For installation and movement within the room, it includes levelling feet for uneven floors and retractable castors with a 75 mm diameter. Rounded feet complete the base design.

Three-section surface

The work surface measures 195 × 66 cm and is divided into three sections of 40, 54 and 93 cm. The backrest can be inclined up to 80°. The technical diagram also indicates 40° and 45° angles for the leg section.

The padding is 5 cm thick and uses foam with a density of 36 kg/m³. The fire-retardant vinyl upholstery is wear-resistant. Available in blue or grey upholstery.

Included equipment

• Configuration 3-section treatment table
• Height adjustment Electric, via perimeter control
• Motor TiMOTION
• Lifting time 30 seconds
• Backrest Gas-spring adjustable, with face hole and plug
• Footrest Gas-spring adjustable
• Paper roll holder Included as standard
• Castors Retractable, Ø 75 mm
• Feet Levelling feet for uneven floors

Technical specifications

• Surface dimensions 195 × 66 cm
• Adjustable height 48–92 cm
• Sections 40 + 54 + 93 cm
• Backrest inclination Up to 80°
• Leg section angles 40° and 45°
• Padding thickness 5 cm
• Foam density 36 kg/m³
• Upholstery Wear-resistant fire-retardant vinyl
• Load capacity 250 kg
• Upholstery colours Blue or grey
• Stated weight 65 kg
• Certifications CE, FDA and ISO 13485:2016
• Warranty 1 year for the frame, electrical components and upholstery, except in cases of misuse

Transport information

• Stated dimensions 194 × 70 × 53 cm
• Stated volume 0.72 m³

Download technical data sheet (PDF)
