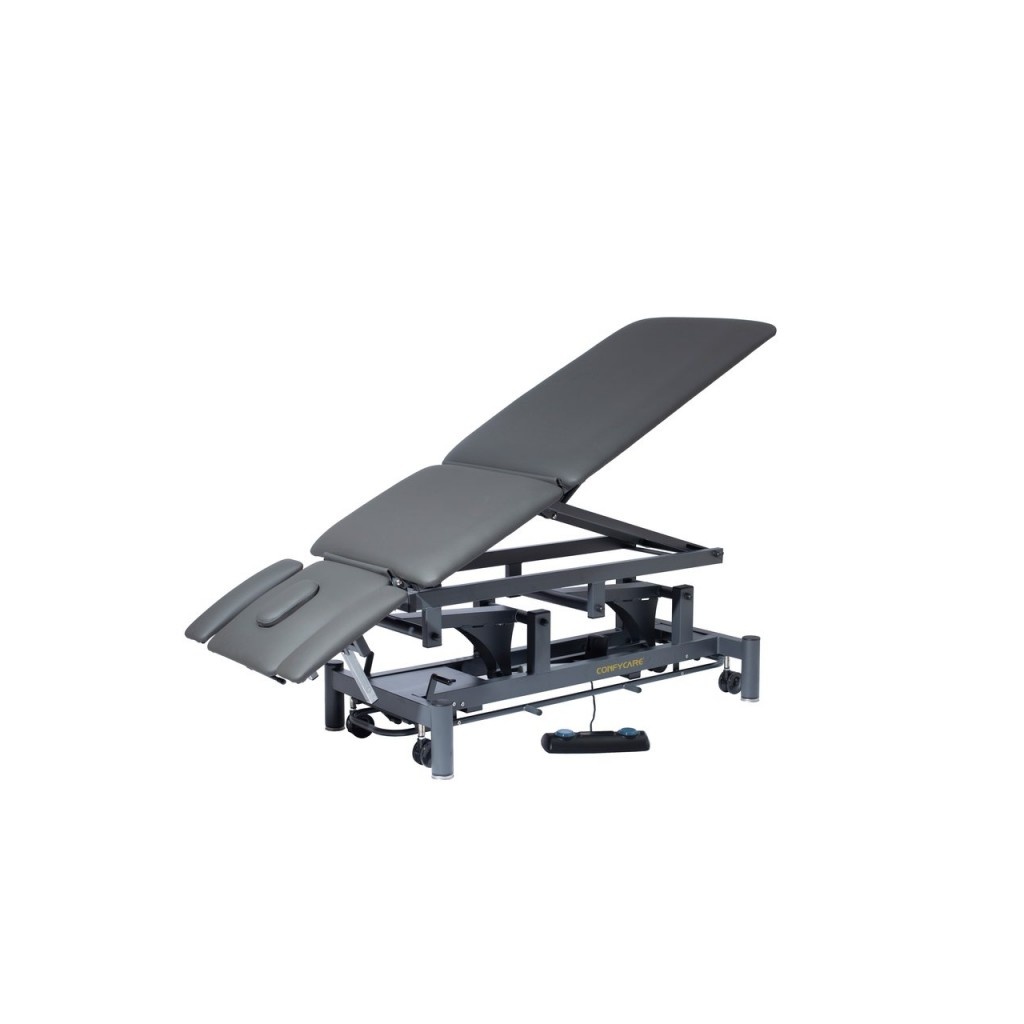

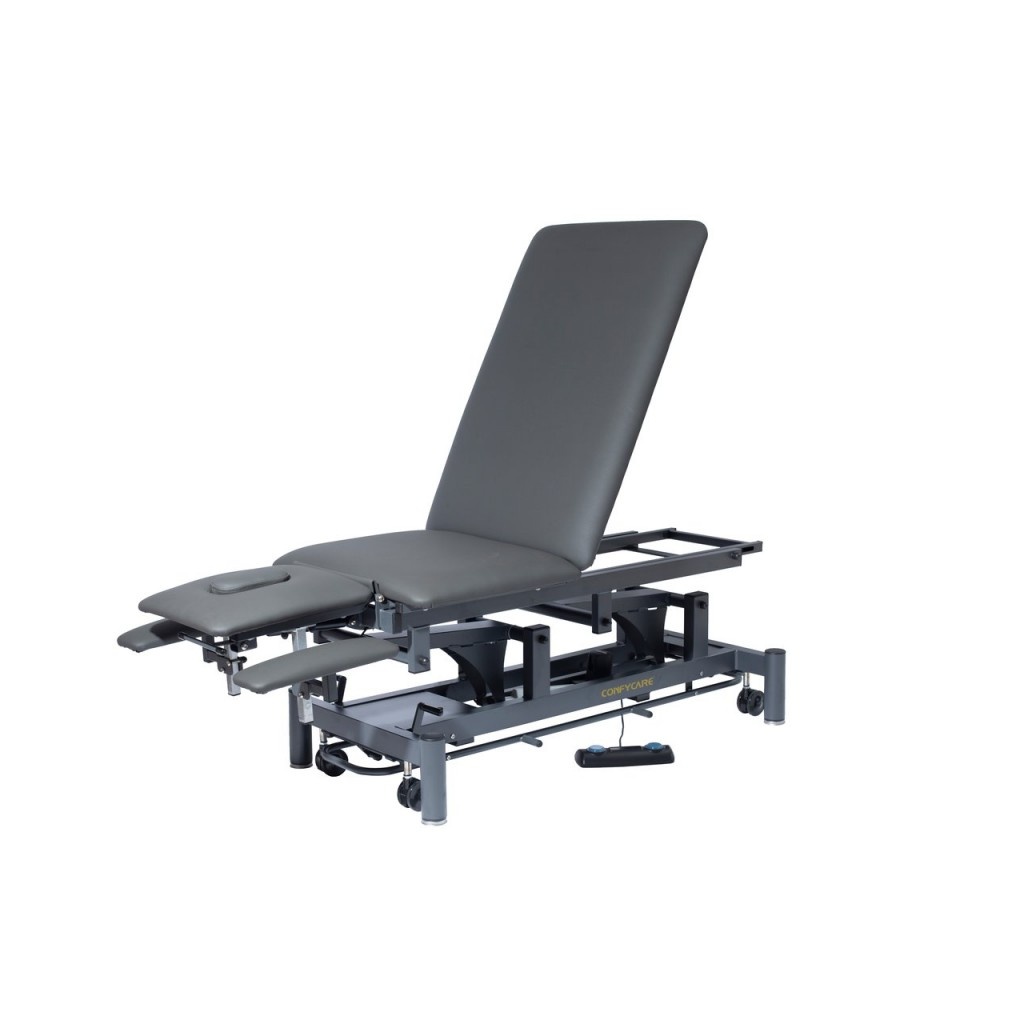

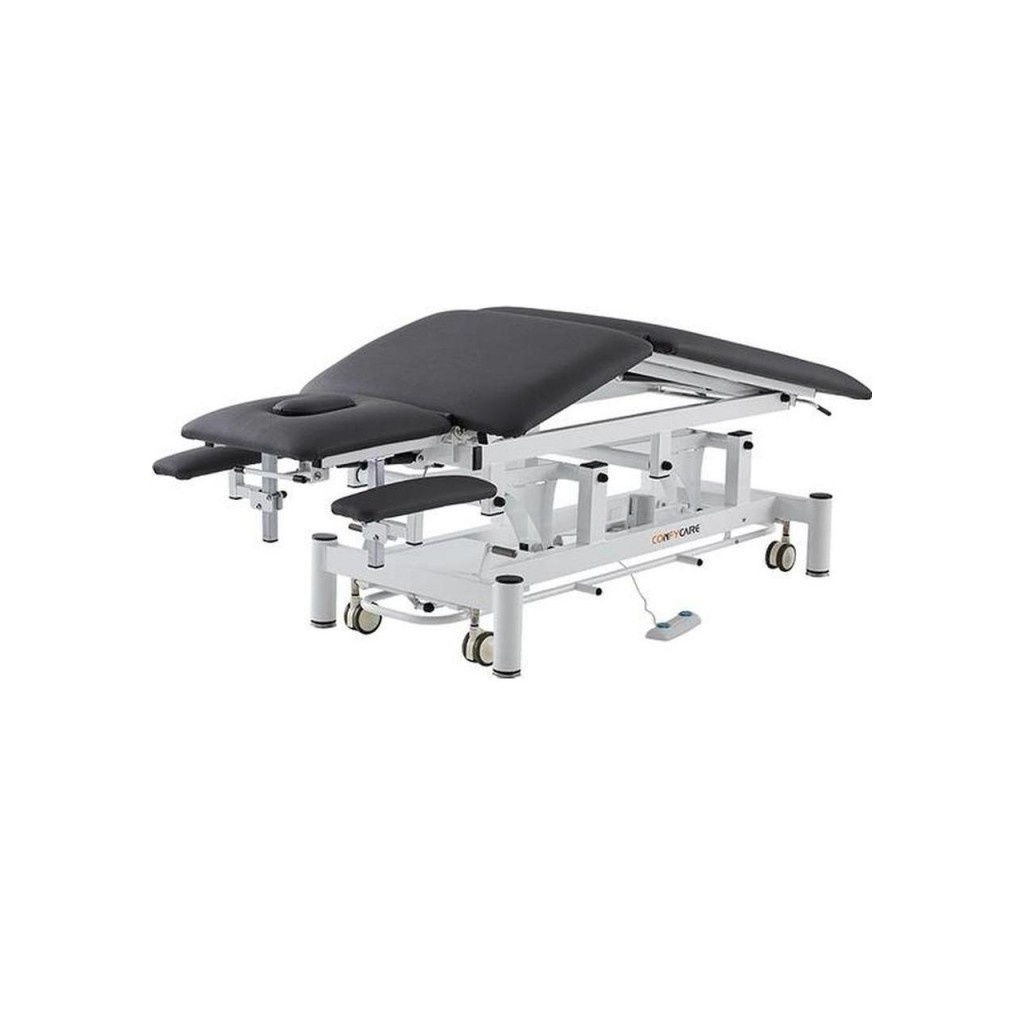

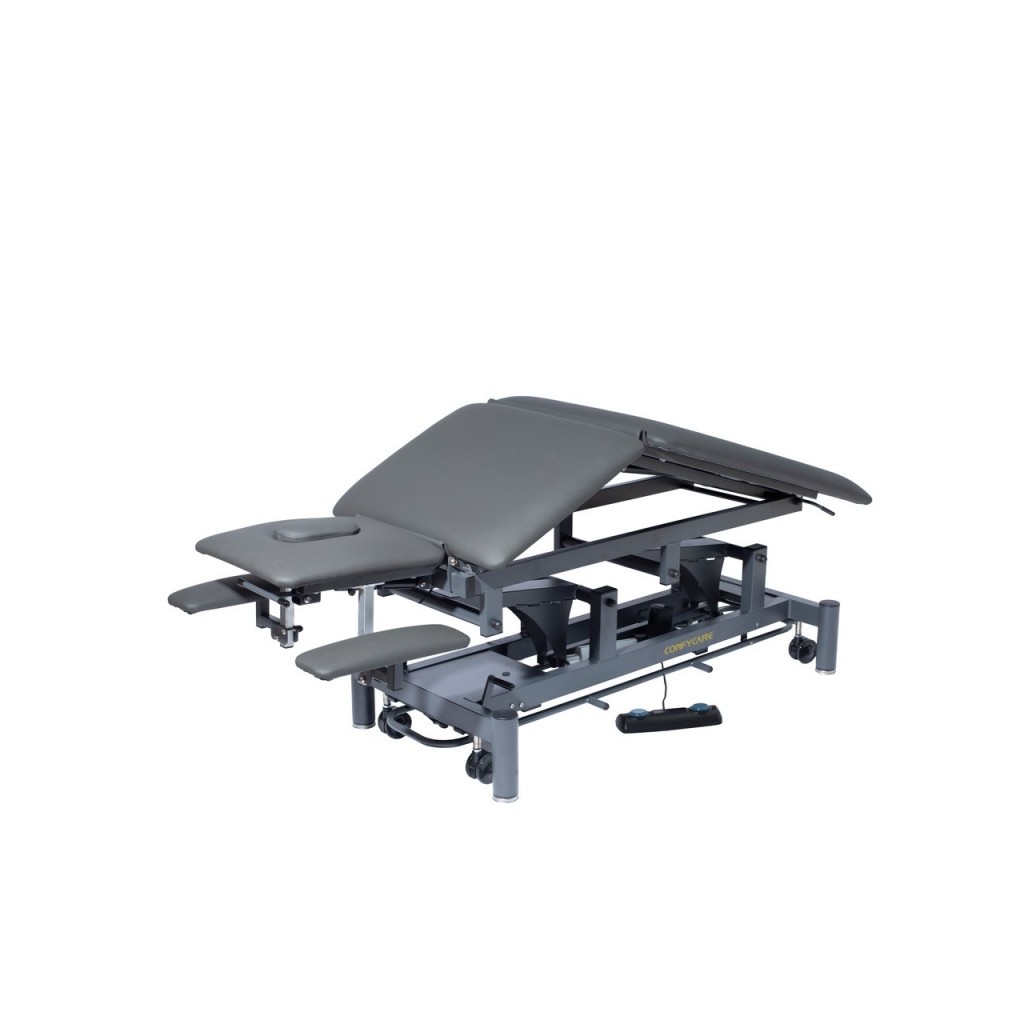

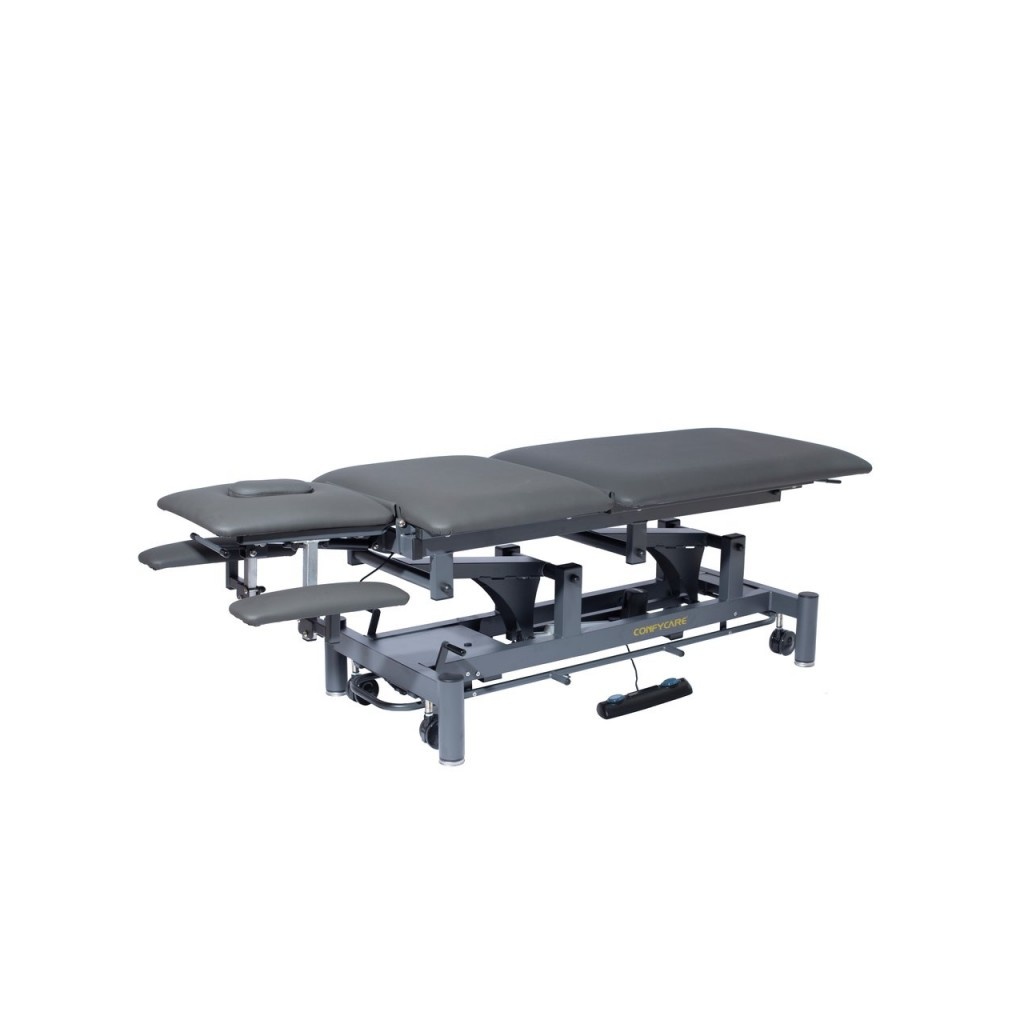

NOTT 5-section electric physiotherapy table

NOTT 5-section electric physiotherapy table

The NOTT is a 5-section physiotherapy table designed for a wide range of professional treatments. Its configuration includes two motors: one for electric height adjustment and another for electric articulation of the central section, with an electric kyphosis function.

The head section features height-adjustable armrests, allowing the support to be adapted for prone positioning. The backrest includes a face hole with plug, while a paper roll holder is supplied as standard to facilitate preparation between appointments.

Electric adjustment and mobility

Height adjustment is operated using a perimeter foot control, allowing the table to be controlled from different points around its frame. The system incorporates a TiMOTION motor and completes the lifting movement in approximately 30 seconds.

For repositioning within the treatment room, the table is fitted with retractable castors with a diameter of 75 mm. Levelling feet help stabilise the frame on uneven floors, while their rounded design complements the structure.

Comfort and finishes

The treatment surface measures 195 × 66 cm and offers a height range of 51 to 94 cm. Its 5 cm padding uses 36 kg/m³ density foam and is covered in wear-resistant, fire-retardant vinyl upholstery. The upholstery is available in blue or grey.

Technical features

• Model NOTT
• Reference EL05.2.A66.SH.WF
• Type 5-section electric physiotherapy table
• Motors 2: lifting and electric articulation of the central section
• Height control Perimeter foot control
• Height range 51–94 cm
• Surface dimensions 195 × 66 cm
• Armrests Height-adjustable on the head section
• Backrest With face hole and plug
• Paper roll holder Included as standard
• Castors Retractable, Ø 75 mm
• Feet Levelling feet for uneven surfaces
• Motor TiMOTION
• Lifting time 30 seconds
• Padding 5 cm
• Foam density 36 kg/m³
• Upholstery Wear-resistant, fire-retardant vinyl
• Upholstery colours Blue or grey
• Load capacity 250 kg
• Certifications CE, FDA, ISO 13485:2016
• Warranty 1 year for the frame, electrical components and upholstery, excluding misuse

Logistics information

• Stated dimensions 195 × 70 × 58 cm
• Stated weight 76 kg
• Stated volume 0.79 m³
