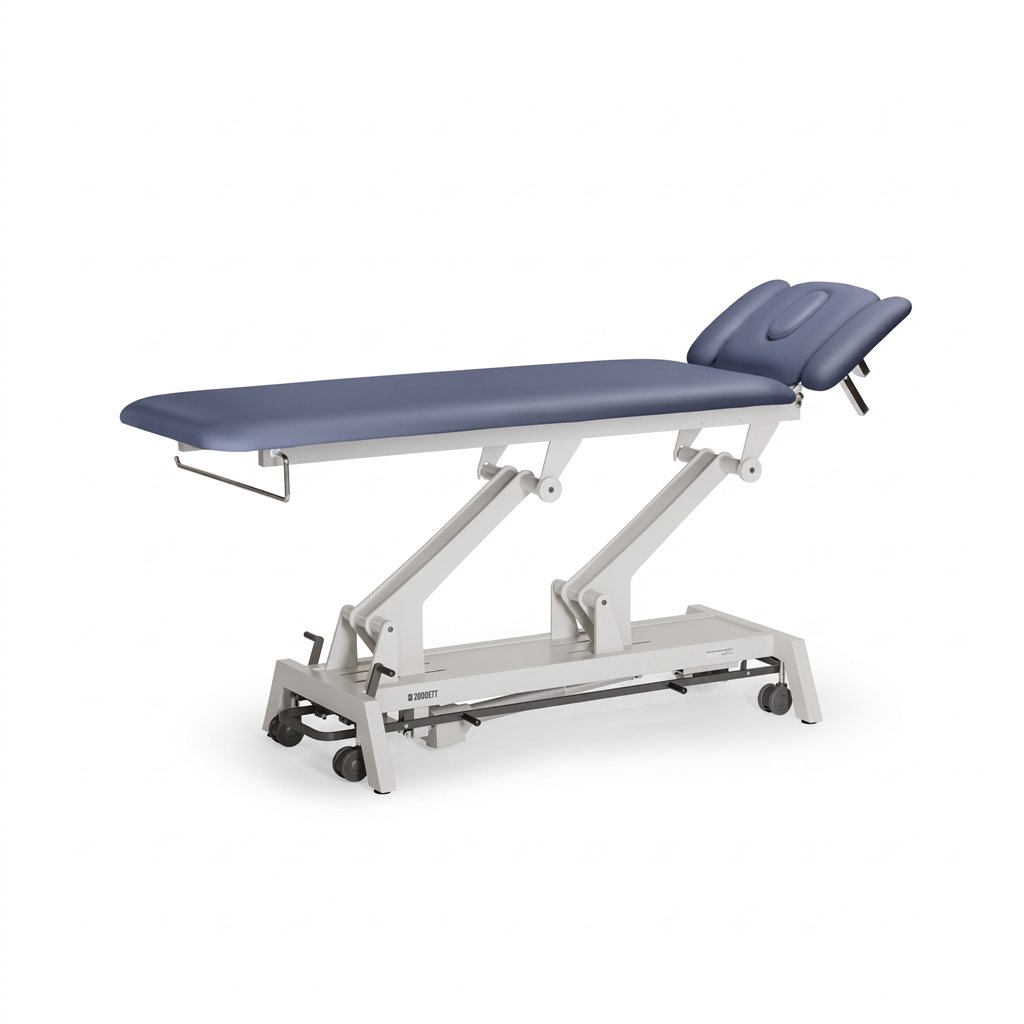

DDUUEETT AVANT 431 electric treatment table with grey base and Ocean upholstery
DDUUEETT AVANT 431 electric treatment table with 4 sections for physiotherapy and manual therapies. Height adjusts from 47 to 97 cm via a perimeter control bar. It features a gas-spring headrest, adjustable armrests, face hole, paper roll holder and 4 retractable wheels.
DDUUEETT AVANT 431 electric treatment table for physiotherapy and manual therapies
The DDUUEETT AVANT 431 is a 4-section electric treatment table designed for physiotherapy and manual therapies. This version combines a grey base with Ocean Medical PVC upholstery.
Its motor adjusts the height through a perimeter control bar accessible from the sides of the table. The height range, from 47 to 97 cm in the flat position, allows the working surface to be adapted for each session.
4-section configuration
The AVANT 431 features a 3-section headrest with a gas spring. Its angle can be adjusted from -30° to +70°. The armrests are manually adjustable to adapt the support during use.
The surface includes a face hole and is supplied with a paper roll holder. The Medical PVC upholstery has 5.5 cm padding with a density of 40 kg/m³.
Mobility and positioning
It is fitted with 4 retractable wheels to facilitate movement within the treatment area. Once positioned, an adjustable locking system helps keep the table stable during use.
Use and safety: this treatment table is intended to support the user during treatment. It must not be used to transport patients. Before adjusting the height, keep the space beneath the table clear.
Technical specifications
Brand and model DDUUEETT AVANT 431
Reference 11003940
Type Electric treatment table
Sections 4
Headrest 3 sections with gas spring
Headrest angle From -30° to +70°
Armrests Manually adjustable
Height adjustment Electric via perimeter control bar
Height From 47 to 97 cm in the flat position
Dimensions 201 x 68 cm
Table weight 83 kg
Maximum load 250 kg
Motor 1 motor, 6000 N
Motor data DC 24 V, 5.5 A, 132 W
Power supply AC 220-240 V, 50/60 Hz
Duty cycle Maximum 2 minutes on / 18 minutes off
Upholstery Medical PVC Ocean
Padding 5.5 cm, density 40 kg/m³
Structure Grey base
Mobility 4 retractable wheels with adjustable locking system
Includes Face hole, paper roll holder and instruction manual
Protection IPX4; Type B electrical safety classification
Classification Class I medical device in accordance with Regulation (EU) 2017/745
UDI-DI 06976904610024
Care and maintenance
Disconnect the treatment table from the mains before cleaning or carrying out maintenance. Clean the upholstery with lukewarm water and mild detergent applied using a well-wrung cloth. Disinfectant must be applied to a cloth, never directly onto the table.
A monthly visual inspection of the sections, motor, gas springs, screws, friction components, wiring and wheel locking system is recommended.
Technical data sheet
Material
Medical PVC; grosor 5,5 cm; densidad 40 kg/m³; color Ocean según la variante comercial indicada
