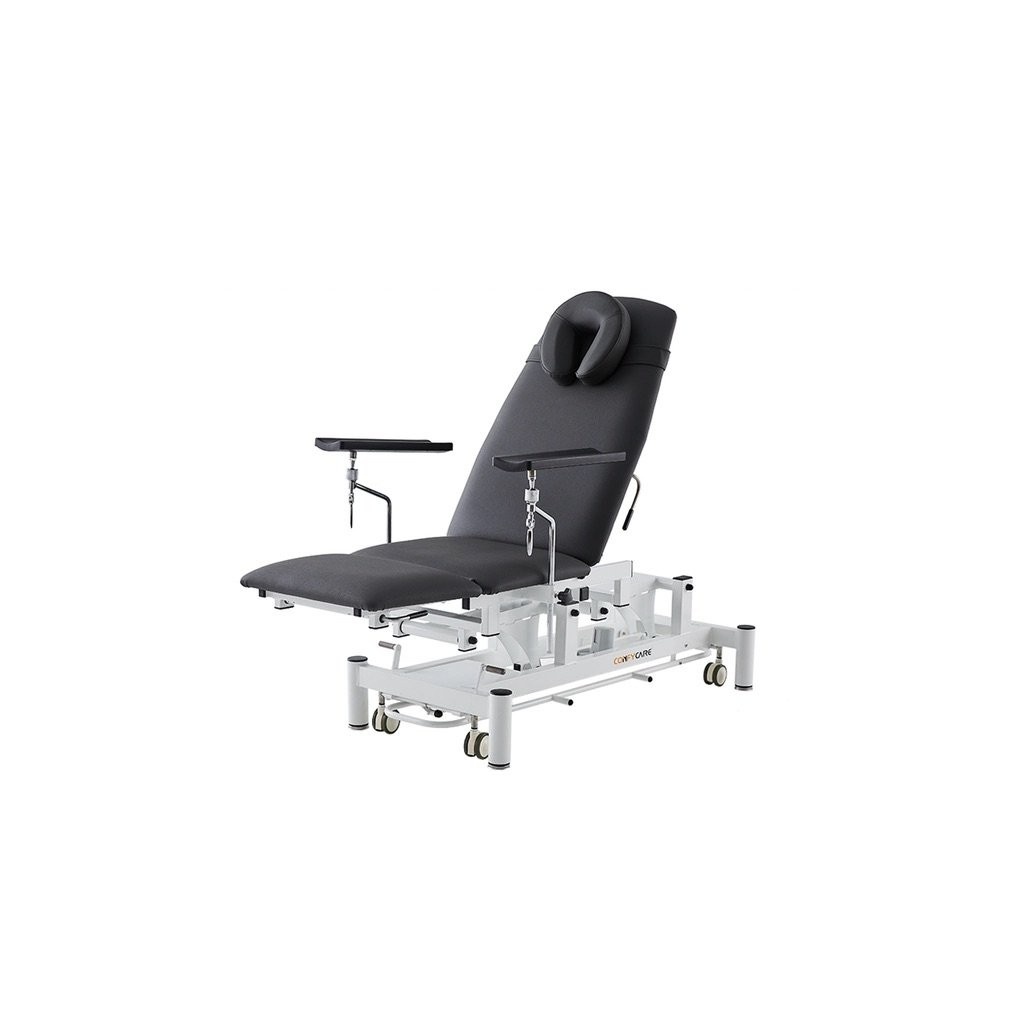

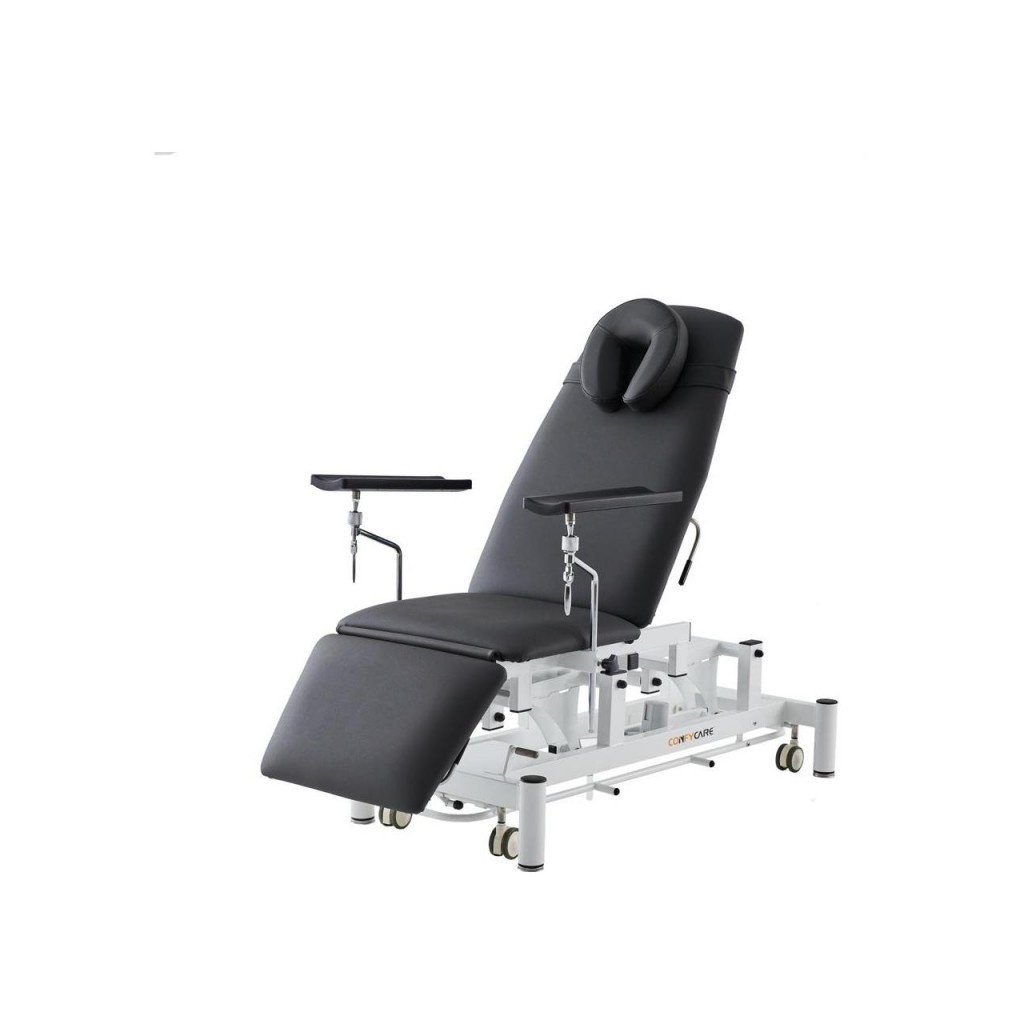

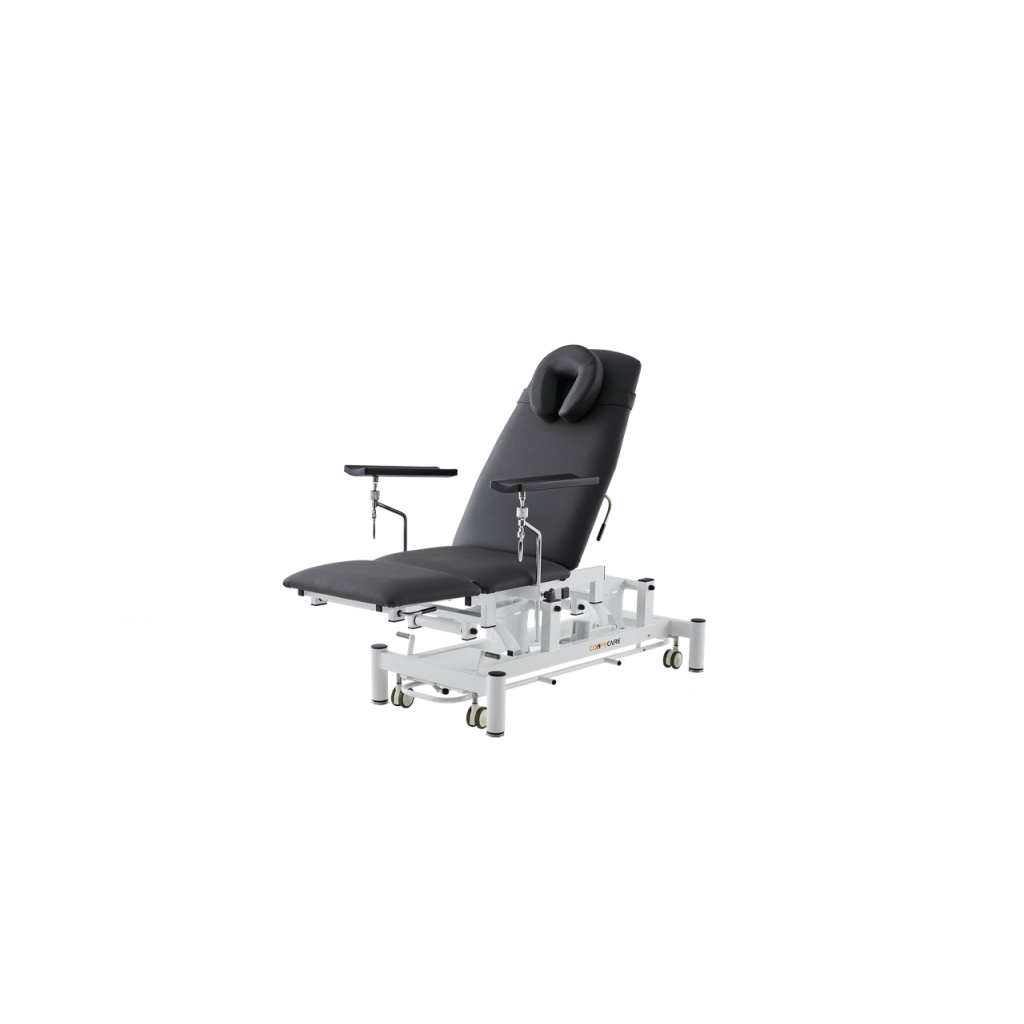

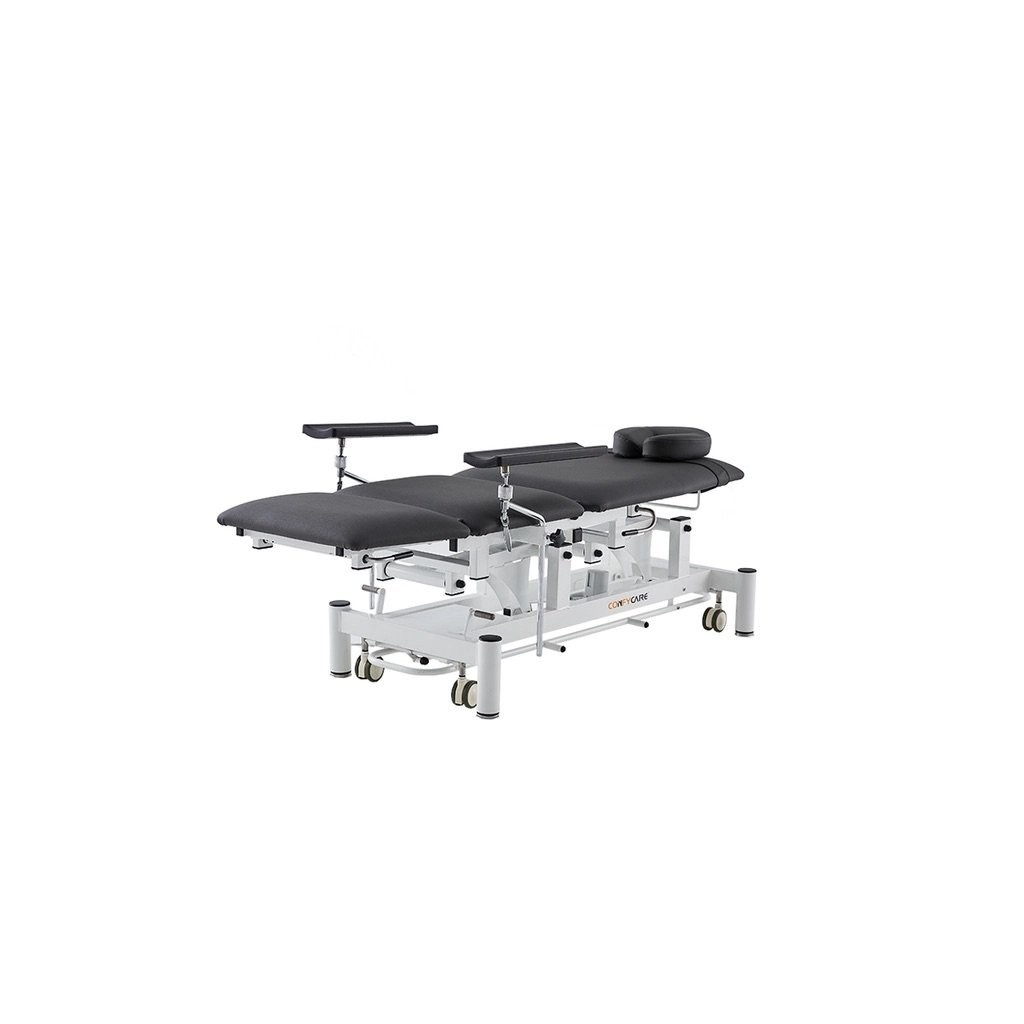

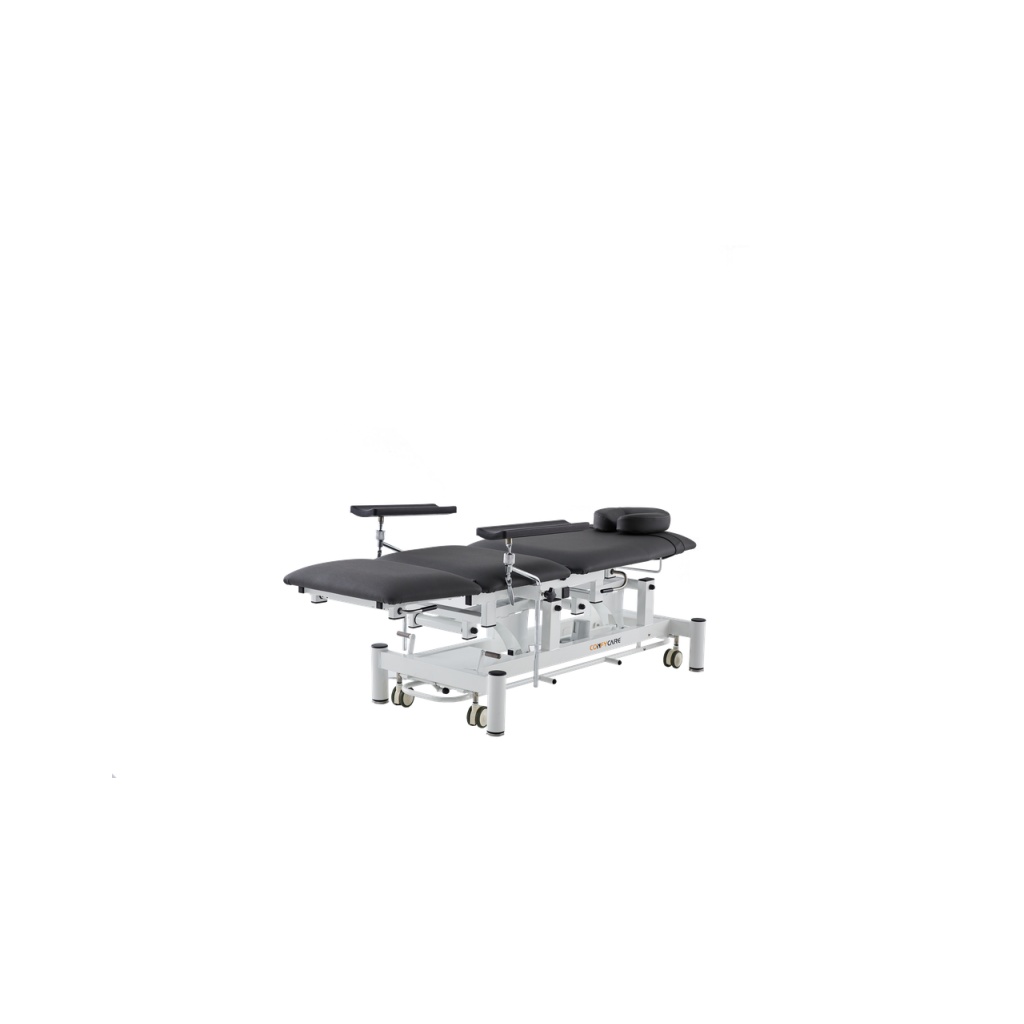

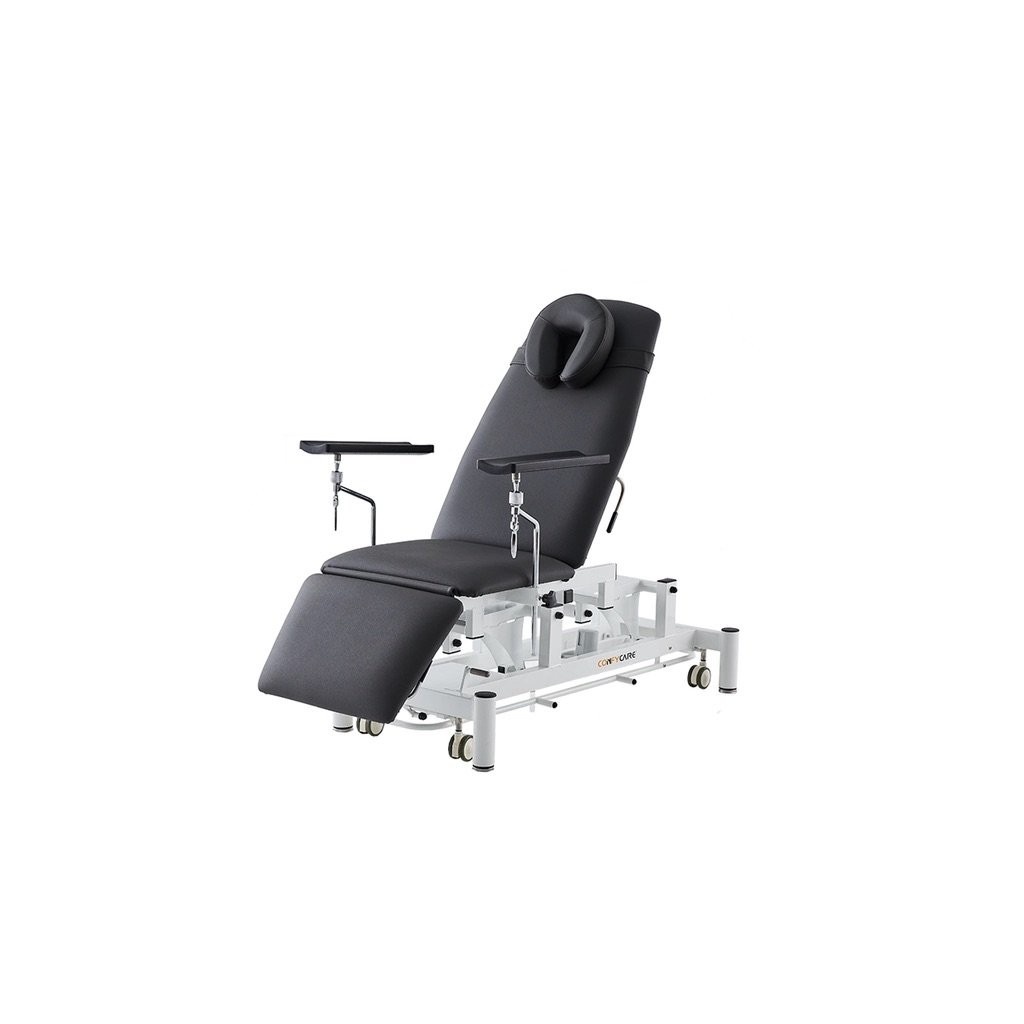

Coinfycare XTRACT electric blood collection bed

Coinfycare XTRACT electric bed for blood collection

The Coinfycare XTRACT, reference EL35B.1.A66, is an electric bed designed for blood collection and donation procedures. Its structure incorporates a Hi-Lo lifting system operated by a perimeter control bar, allowing the working height to be adjusted conveniently during donor preparation and care.

The design features rounded corners, lift-up armrests and a removable padded headrest. These elements help configure the support area according to the required position and facilitate lateral access to the bed.

Electric lifting and position adjustment

The XTRACT is equipped with a TiMOTION motor for electric height adjustment. Its working range is from 56 to 100 cm, with an approximate lifting time of 30 seconds. The perimeter control bar enables adjustment to be activated from different points around the structure.

The technical drawing indicates a length of 190 cm and a width of 60 cm. It also specifies an 80° backrest angle and an 85° leg section angle, allowing the bed to be adapted to different operating positions.

Comfort, mobility and stability

The 5 cm padding incorporates foam with a density of 36 kg/m³. The surface is upholstered in high-resistance PVC vinyl, specified as resistant to fire, stains, mould, oil, water and wear. Adjustable feet allow the bed to be levelled on uneven surfaces.

For movement within the facility, it is fitted with 75 mm retractable castors. When a stable working position is required, the castors can remain retracted.

Technical specifications

• Brand and model Coinfycare XTRACT
• Reference EL35B.1.A66
• Application Blood collection and donation
• Lifting system Electric Hi-Lo adjustment via perimeter control bar
• Motor TiMOTION
• Height range 56–100 cm
• Lifting time Approximately 30 seconds
• Length indicated in technical drawing 190 cm
• Width indicated in technical drawing 60 cm
• Specified backrest angle 80°
• Specified leg section angle 85°
• Armrests Lift-up
• Headrest Padded and removable
• Feet Adjustable for uneven surfaces
• Castors 75 mm retractable castors
• Padding 5 cm thick
• Foam density 36 kg/m³
• Upholstery High-resistance PVC vinyl
• Load capacity 250 kg
• Specified weight 76 kg
• Warranty 1 year
• Specified certifications CE, FDA and ISO 13485:2016

Use and installation

Install the bed on a firm, level surface, using the adjustable feet when required. For appropriate use, observe the stated load capacity and keep the area around the moving structure clear during electric height and position adjustments.
