Weelko WIND Podiatry Micromotor

Weelko WIND Podiatry Micromotor

The Weelko WIND is a micromotor for podiatry work. It includes a handpiece and a foot pedal for on/off control and speed adjustment.

Its rotation control allows clockwise or counter-clockwise operation. Speed is adjustable up to 35,000 rpm, while the unit delivers 2.8 N/cm torque.

Controls and operation

The main unit incorporates the speed control, rotation direction selector, motor connector and power connector. The foot pedal enables start and stop control during use.

• Maximum speed 35,000 rpm
• Rotation direction Clockwise and counter-clockwise
• Torque 2.8 N/cm
• Power 65 W
• Input voltage 110 / 220 V
• Maximum load current 2 A
• Power output 0–32 V

Included components

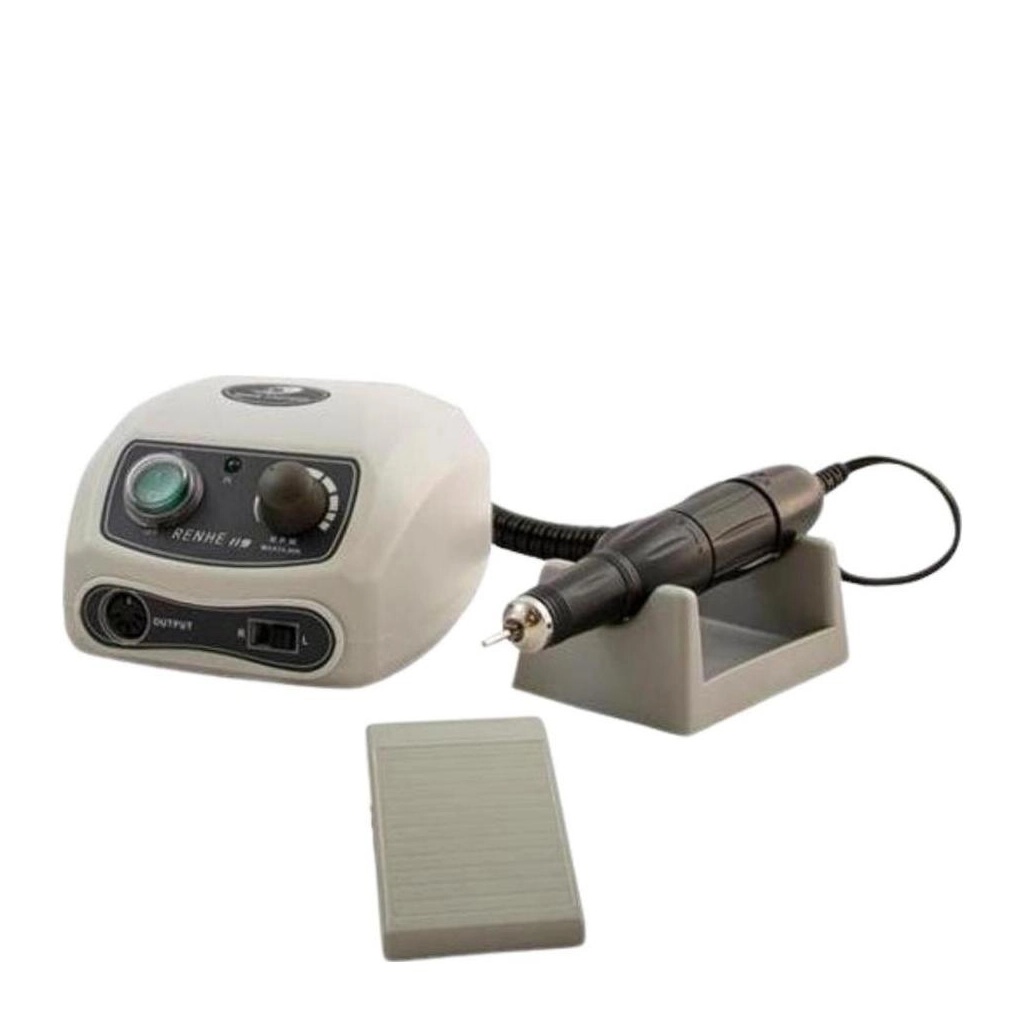

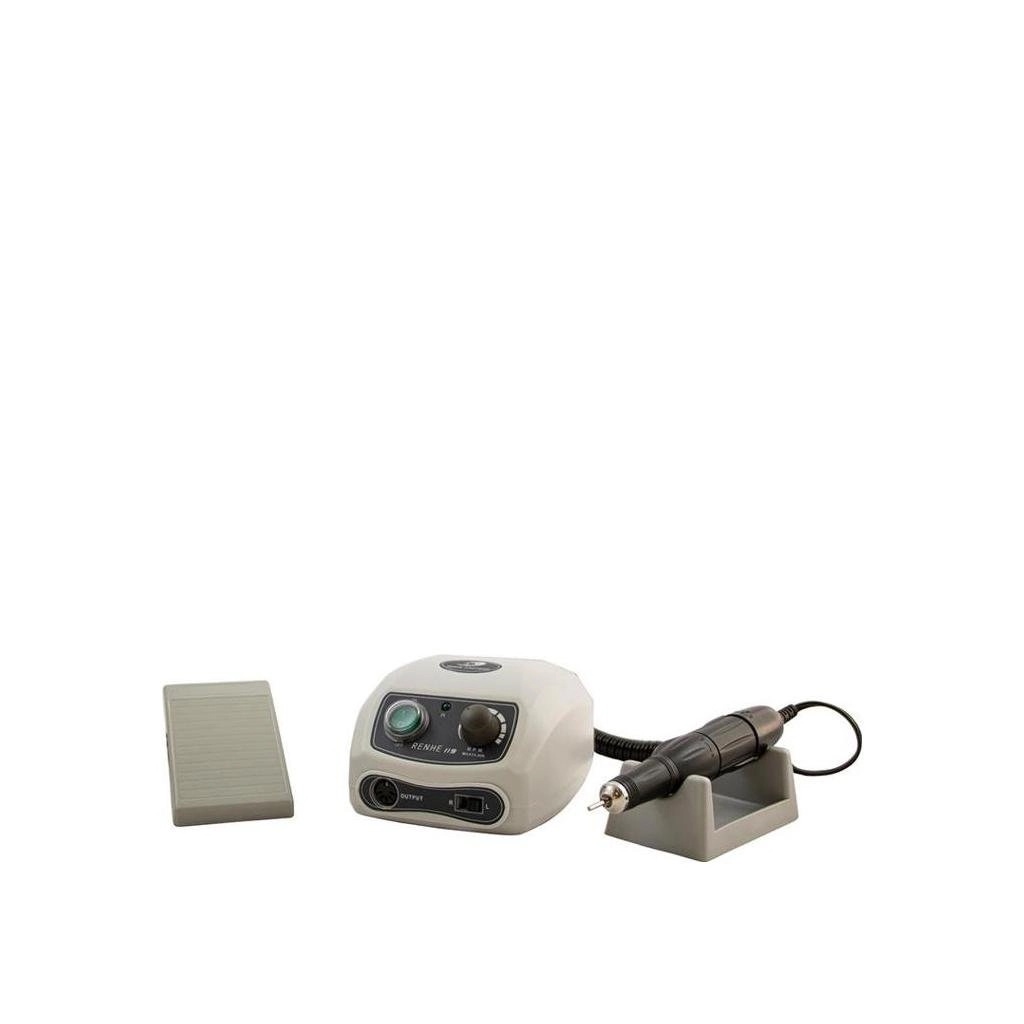

The set includes the main unit, handpiece, foot pedal and a burr set.

• Main unit With speed and rotation direction controls
• Handpiece For fitting the unit's burrs
• Foot pedal On/off and speed control
• Burr set Included

Dimensions and weight

• Main unit dimensions 13.5 × 11.5 × 8 cm
• Handpiece dimensions 16.5 × 3 cm
• Equipment weight 1.7 kg
• Handpiece weight 209 g
• Packaging dimensions 24 × 9 × 21 cm
• Gross packaging weight 2.3 kg
• Reference WKP006
