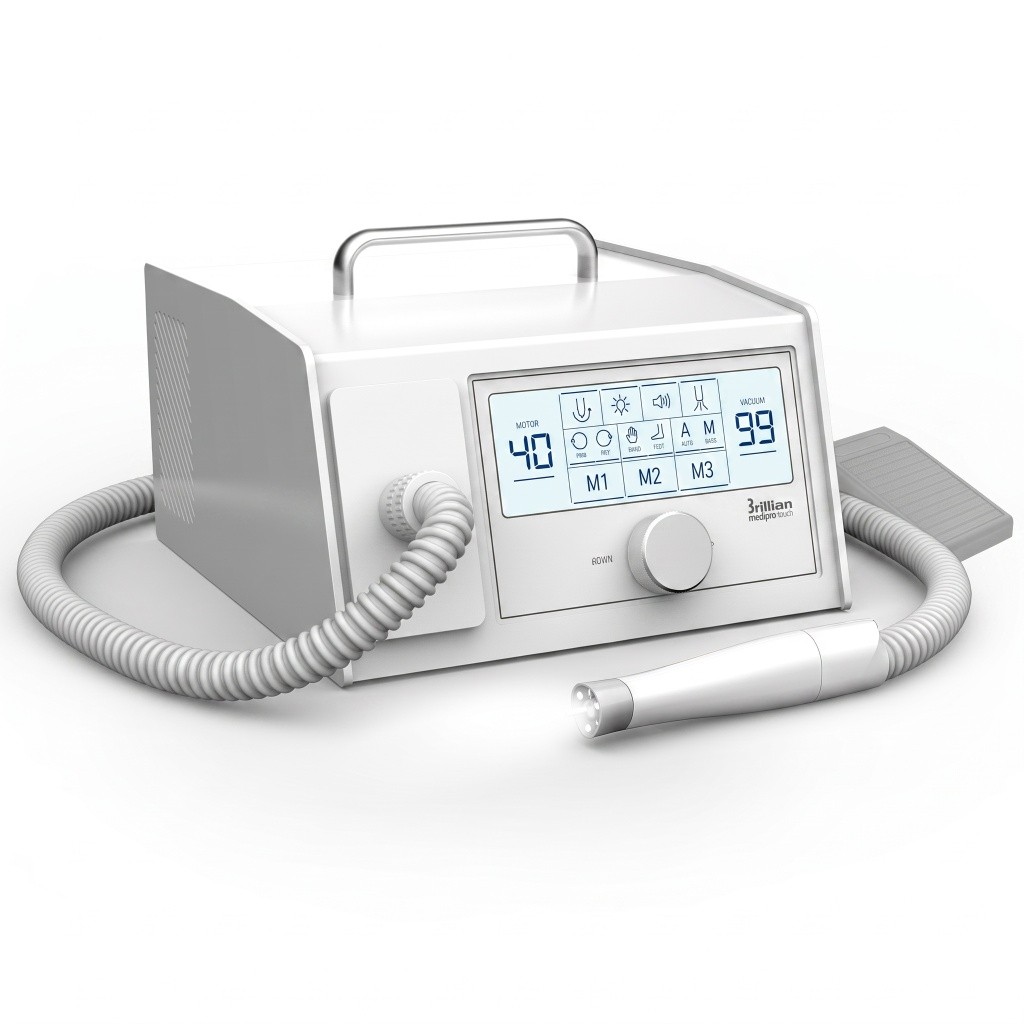

Weelko MEDIPRO TOUCH CMDV5 professional micromotor with integrated suction

Weelko MEDIPRO TOUCH CMDV5 professional micromotor with integrated suction

The Weelko MEDIPRO TOUCH CMDV5 is a professional micromotor with an integrated suction system, developed for technical work that requires precision, control and cleaner management of the dust generated during filing or milling. Its commercial reference is CMDV5.HMD04.

This device combines a brushless motor, digital control and a full touch screen in a compact tabletop format. It is intended for beauty centres, professional manicure and pedicure services, aesthetic podiatry cabins and environments where a stable tool is required for use with compatible burs of Ø 2.35 mm.

Digital control with touch screen

The MEDIPRO TOUCH CMDV5 control unit allows the micromotor operation to be managed through a complete touch interface. The digital system makes it easier to adjust the device during the service and provides a clear reading of the available working parameters.

The unit includes forward and reverse rotation, a practical function for adapting to different techniques, working areas and professional preferences. It also incorporates electrical overload protection, helping to protect the system during correct use of the device.

Brushless motor up to 40,000 RPM

The micromotor integrates a brushless motor, a technology appreciated in professional equipment for its stable response and for reducing wear associated with brushed motors. The stated maximum speed is 40,000 RPM, with a motor torque of 5.0 N·cm.

The handpiece weighs 78 g, supporting agile handling during extended work sessions. It also includes a light on the handpiece, a useful detail to improve visibility in precision applications.

Integrated suction with automatic or manual mode

The integrated suction system enables particle capture while milling. The device supports automatic or manual suction mode, allowing the professional to adjust its operation according to the procedure and working rhythm.

For correct operation, the device should be used with its suction system prepared and with the corresponding consumables installed when required. Using the unit without a dust bag is not recommended if it forms part of the suction system.

Technical features

• Brand Weelko
• Model MEDIPRO TOUCH CMDV5
• Reference CMDV5.HMD04
• Product type Professional micromotor with integrated suction
• Motor type Brushless
• Maximum speed 40,000 RPM
• Motor torque 5.0 N·cm
• Handpiece weight 78 g
• Compatible bur diameter Ø 2.35 mm
• Screen Full touch
• Control Digital
• Rotation direction Forward / reverse
• Suction system Yes
• Suction mode Automatic / manual
• Handpiece light Yes
• Electrical overload protection Yes
• Input voltage 220/240 V
• Input range stated in manual AC 100-120V / 220-240V
• Rated frequency 50/60 Hz
• Power consumption 85 W
• Fuse 5A / 2A
• Control unit protection class Class II appliance
• Foot controller protection class IPX1
• Device dimensions 28 x 15 x 17 cm
• Device weight 1.6 kg

Professional use and maintenance recommendations

The MEDIPRO TOUCH CMDV5 is designed for professional use in technical nail care, pedicure and aesthetic podiatry services. It should be used with burs in good condition and compatible with the stated diameter. The bur should only be replaced when the handpiece has fully stopped.

To keep the device in suitable condition, it is important to disconnect it from the power supply before any maintenance operation. Cleaning should be carried out without washing with water and while avoiding liquid entering the unit, the handpiece or the electrical connections.

Compact format for treatment rooms

With dimensions of 28 x 15 x 17 cm and a weight of 1.6 kg, the device offers a compact format for integration into work tables, auxiliary trolleys or technical beauty workstations. Its touch control, integrated suction and lightweight handpiece make it a practical option for professionals who need a precise micromotor with built-in dust capture.
