Navfram Micromotor N120 120W micromotor for manicure and pedicure

Micromotor Navfram N120 – Professional use

The Micromotor Navfram N120 – Professional use is a precision device for tasks requiring control, power and reliability in technical and laboratory environments. Thanks to its compact design and advanced electronic management, this micromotor is suitable for jewellery workshops, dental prosthetics laboratories, optical laboratories and micro-mechanics applications.

Main features

• 120 W power and up to 25,000 rpm for continuous operation.
• Electronic speed control with illuminated display.
• Quarter-turn collet opening, interchangeable collets Ø 0–3.2 mm (including Ø 2.35 mm).
• Front bearing with triple dust protection.
• Forward and reverse rotation capability.
• Automatic overload protection system.

Use in workshop and types of applications

This micromotor is suitable for work requiring maximum precision, such as polishing, milling, engraving and handling small components in dental laboratories, jewellery workshops and optical work. Its robustness and control enable continuous, safe operation.

Control and settings

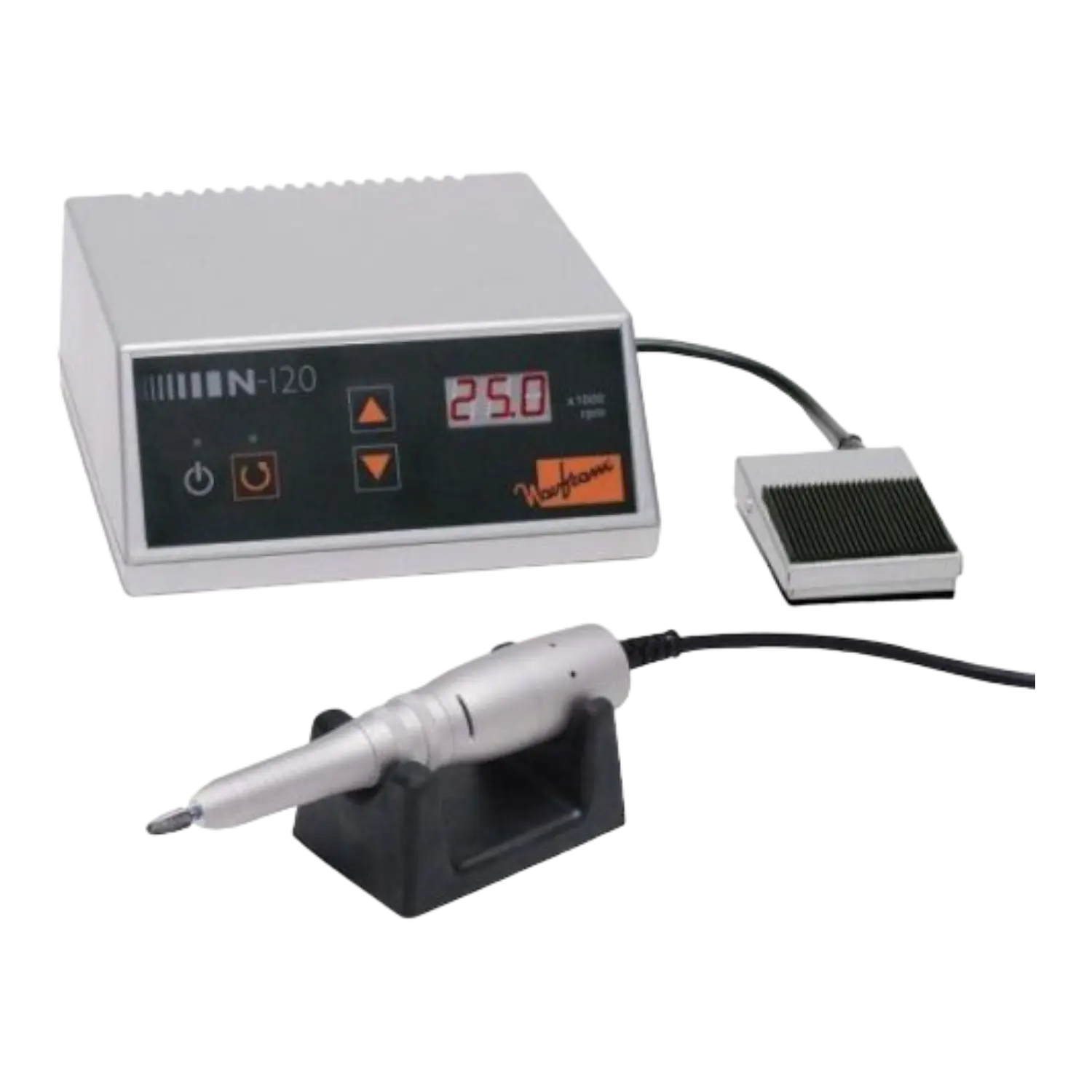

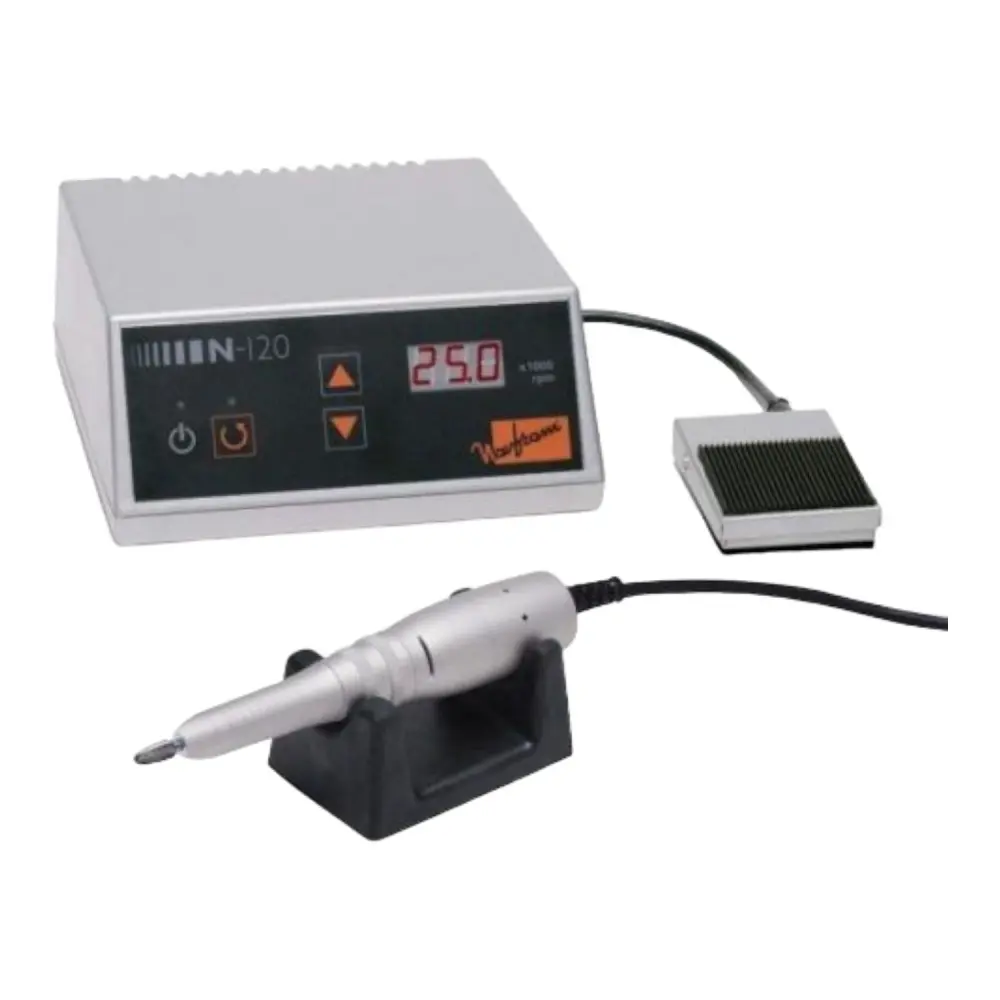

Supplied with an electronic control unit that allows precise speed adjustment via a high-brightness display. The start/stop foot pedal is essential for operation, enabling hands-free use. Rotation direction is easily selectable and the speed memory facilitates process repetition.

Materials and finish

Manufactured from durable, lightweight materials, it offers reduced weight and a design intended to minimise operator fatigue. The dust protection of the bearings increases service life and equipment performance.

Maintenance and cleaning

Maintenance is minimal. It is recommended to clean external dust with a cloth moistened with alcohol and to remove the collet to clear internal residues with a brush. Avoid contact with water and aggressive chemicals. Before storing the micromotor, disassemble the collet to prolong precision.

Technical specifications and electrical data

• Micromotor power: 120 W
• Maximum speed: 25,000 rpm
• Control unit input voltage: 220/230 V ~ 60 Hz
• Maximum current: 2 A
• Control unit dimensions: 200 x 190 x 83 mm
• Control unit weight: 2.35 kg
• Micromotor weight: 0.25 kg
• Torque: 5.9 N·cm
• Micromotor supply: 24 V DC
• Fuse: 2 A

Certifications and conformity

CE Marking. Complies with Directive 2006/42/EC on machinery, Directive 95/2006/EC on electrical equipment and applicable UNE-EN standards for the safety of portable electrically driven equipment.
