Weelko MEDIPOWER CMDV3 professional micromotor with suction

Weelko MEDIPOWER CMDV3 professional micromotor with suction

The Weelko MEDIPOWER CMDV3 is a professional micromotor with an integrated suction system, developed for technical manicure, pedicure and beauty services that require precision, control and dust collection during use. Its commercial reference is CMDV3.HMD02.

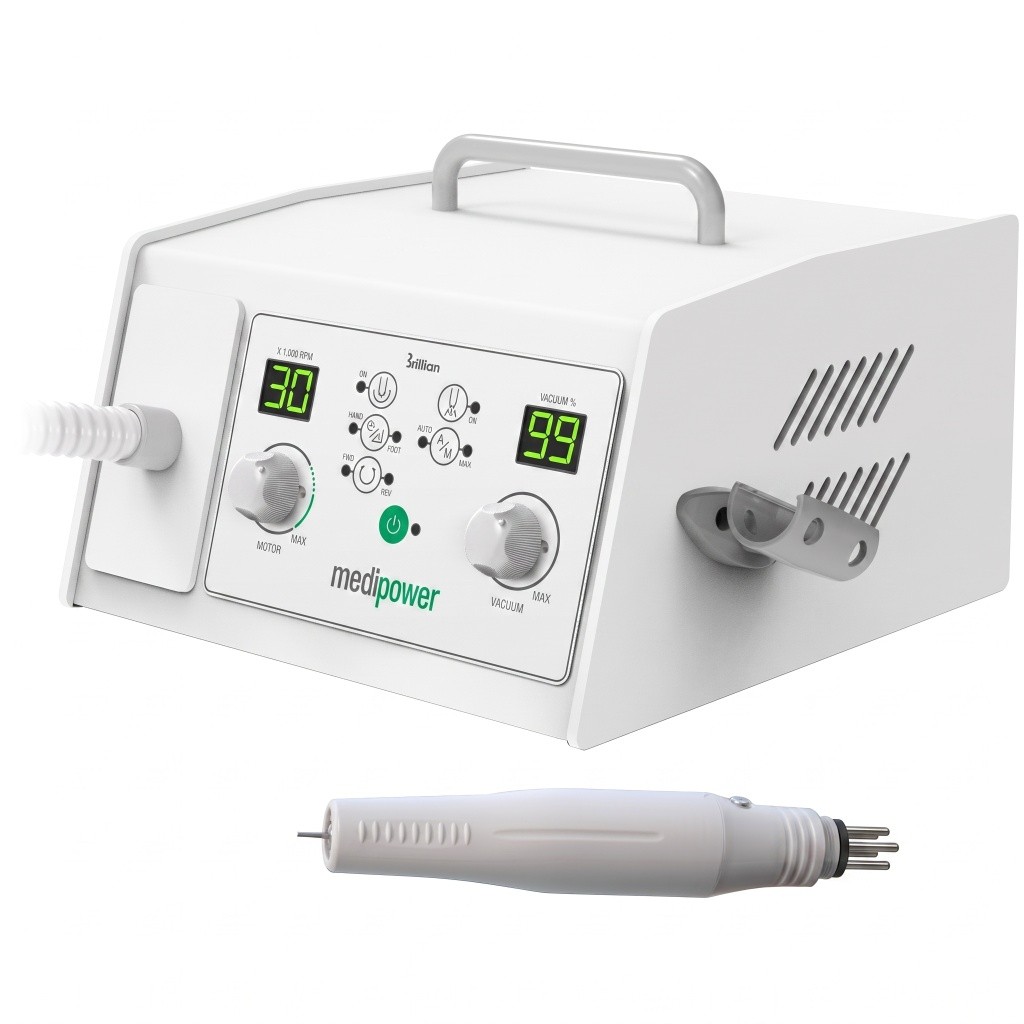

This device combines a brushed motor of up to 30,000 RPM, a lightweight handpiece and a control unit with a digital display. The built-in suction helps keep the workstation more orderly, reducing the dispersion of particles generated during professional filing or polishing.

Professional control for manicure, pedicure and beauty services

MEDIPOWER CMDV3 allows the professional to adjust the work according to the technique being used and personal working preferences. The device features bidirectional rotation, with forward/reverse selection, making it suitable for different working methods and for both right-handed and left-handed professionals.

The suction system offers AUTO / MANUAL modes. In manual mode, rotation speed and suction level can be controlled independently. In automatic mode, both parameters are managed simultaneously, providing a more agile operation when a coordinated response between filing and suction is required.

Lightweight handpiece and comfortable handling

The handpiece weighs 169 g, supporting more comfortable use during longer services. It includes an on/off switch on the handpiece itself, allowing the professional to start or stop operation directly without relying only on the main panel.

The micromotor works with standard 2.35 mm diameter burs. For proper operation, burs must be in good condition, correctly secured and compatible with the working speeds recommended by each bur manufacturer.

Integrated suction and device protection

The integrated suction system is designed to accompany professional filing and polishing work, with a stated suction power of 400 W. The device also includes electrical overload protection, an important feature for continuous technical use in a cabin, nail station or pedicure area.

Its compact control unit, measuring 28 x 15 x 17 cm and weighing 1.6 kg, makes it easy to place on a table or auxiliary trolley while keeping the controls and parameter display within easy reach.

Main features

• Brand Weelko
• Model MEDIPOWER CMDV3
• Reference CMDV3.HMD02
• Product type Professional micromotor with suction
• Motor Brushed
• Maximum speed 30,000 RPM
• Torque 3.0 N·cm
• Suction system Yes
• Suction modes AUTO / MANUAL
• Display Digital
• Control Manual
• Rotation direction Bidirectional
• Rotation selection Forward / Reverse
• Handpiece switch On/off
• Handpiece weight 169 g
• Compatible bur diameter 2.35 mm

Electrical and technical data

• Input voltage 220/240 V
• Rated frequency 50/60 Hz
• Power consumption 330 W
• Suction power 400 W
• Fuse 2 A
• Foot controller protection IPX1
• Electrical overload protection Yes
• Device dimensions 28 x 15 x 17 cm
• Device weight 1.6 kg

Use and working recommendations

Before using the micromotor, check that the power cable, handpiece, foot controller and accessories are properly connected. The rotation direction should only be changed when the motor is completely stopped, and burs should only be replaced when the handpiece is not running.

To help preserve the device’s performance, use burs in good condition, follow the speed limits indicated by each bur manufacturer and avoid using consumables or accessories that are not recommended. The dust bag must be fitted while the motor is in use and replaced according to the needs of each service.

Basic maintenance

Regular maintenance helps preserve suction efficiency and micromotor performance. It is important to switch off the device at the end of the work session, check the dust bag, clean the area around the handpiece and periodically make sure that all connections remain secure.

The device should not be installed in humid areas or exposed to rain or splashes. When cleaning, avoid direct contact with water on electrical parts and always follow safe-use guidelines for professional equipment.
