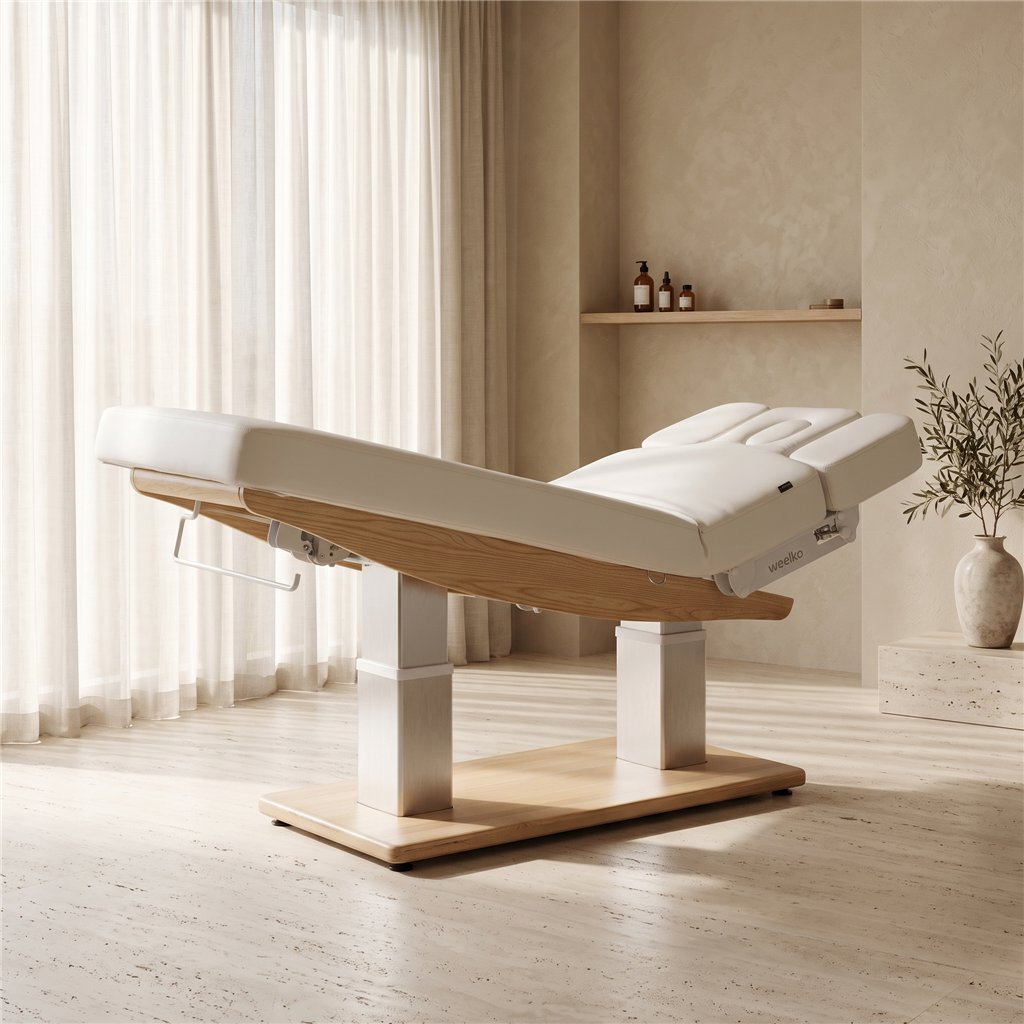

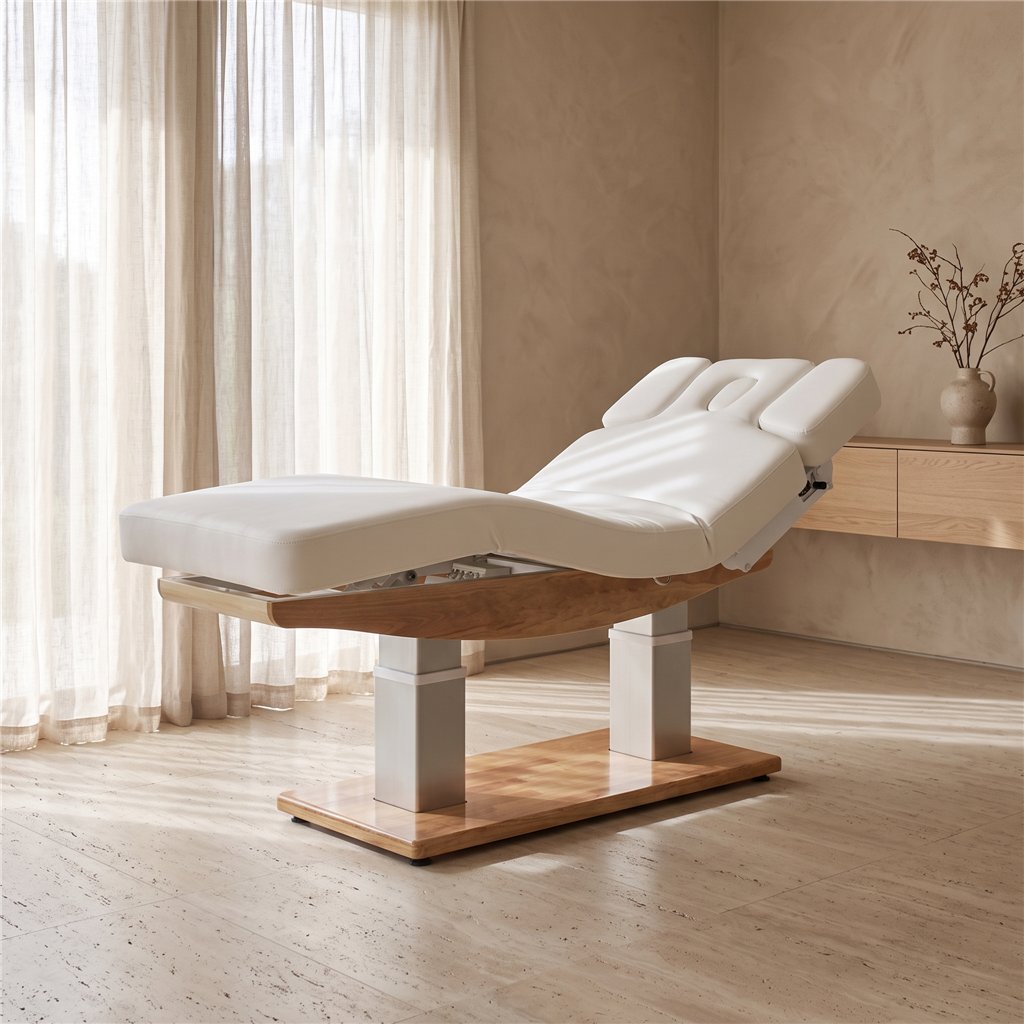

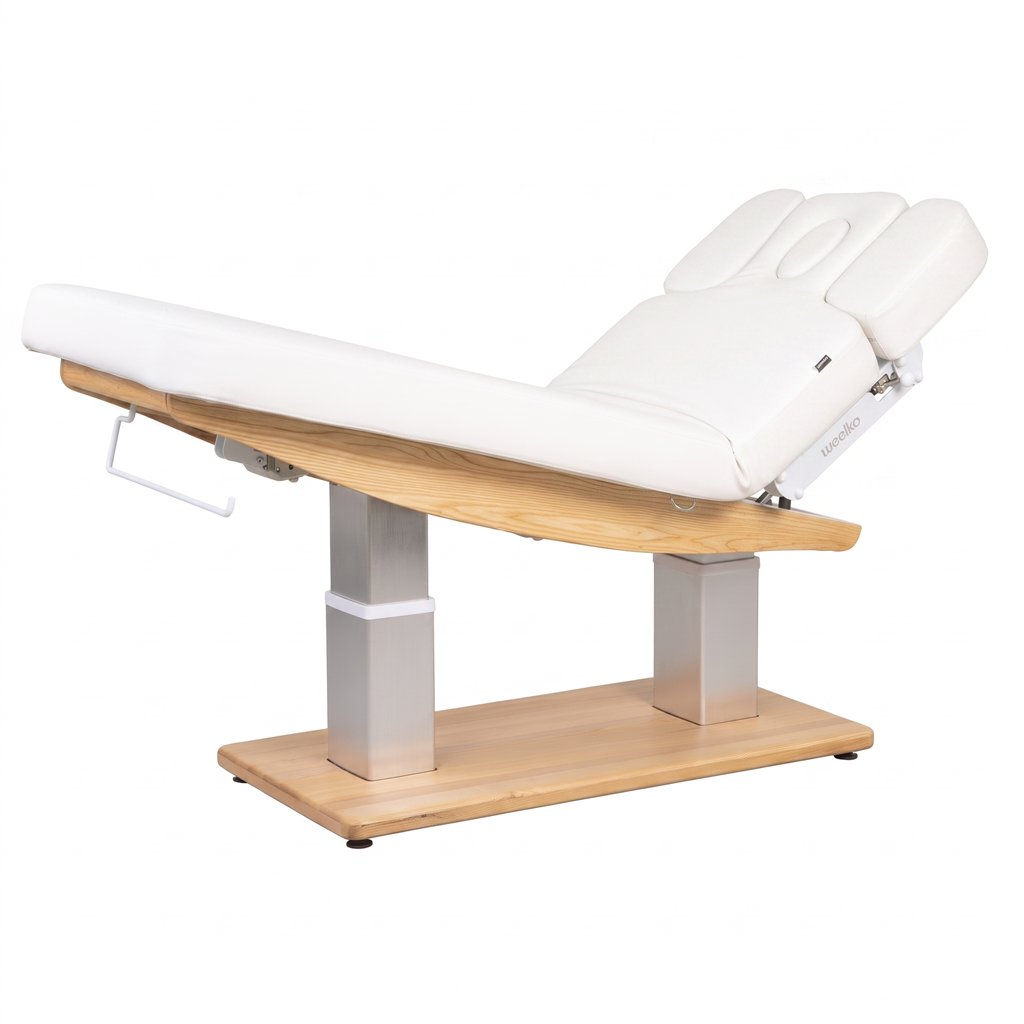

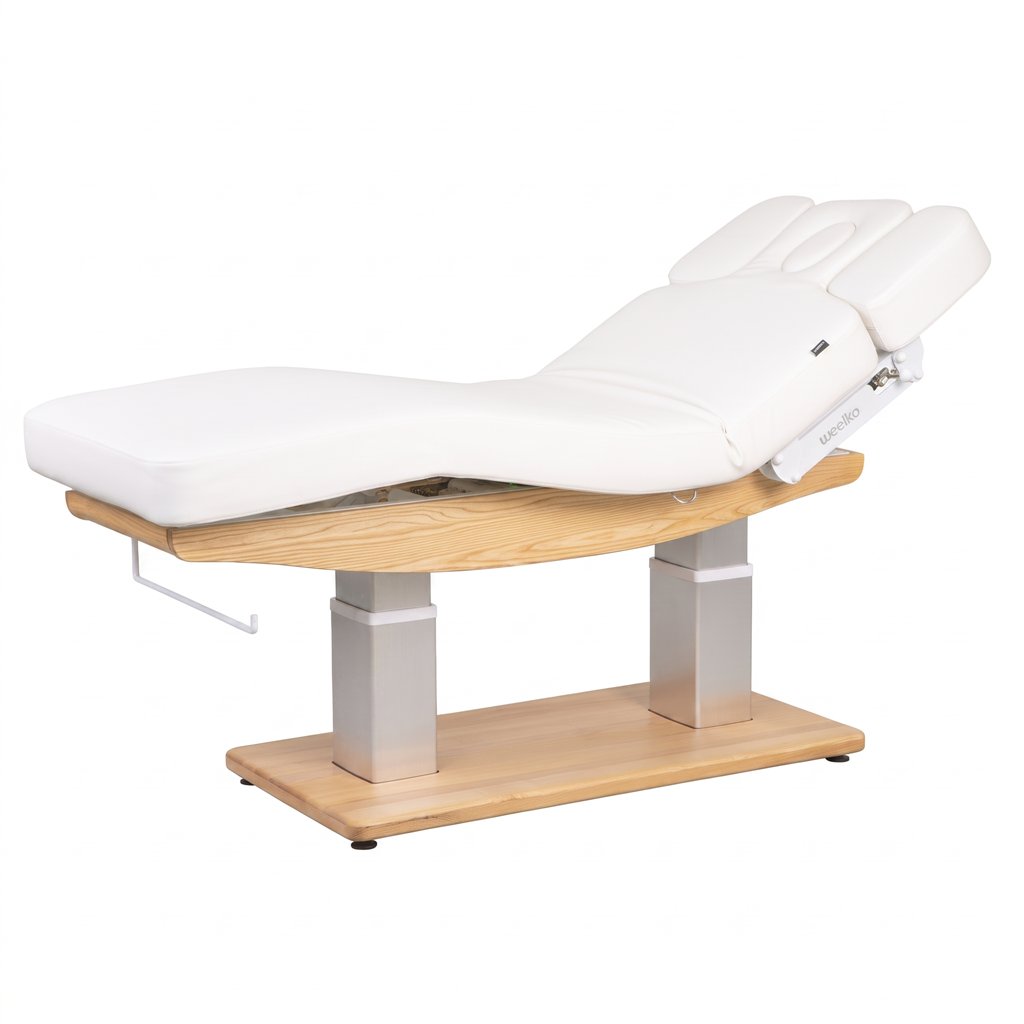

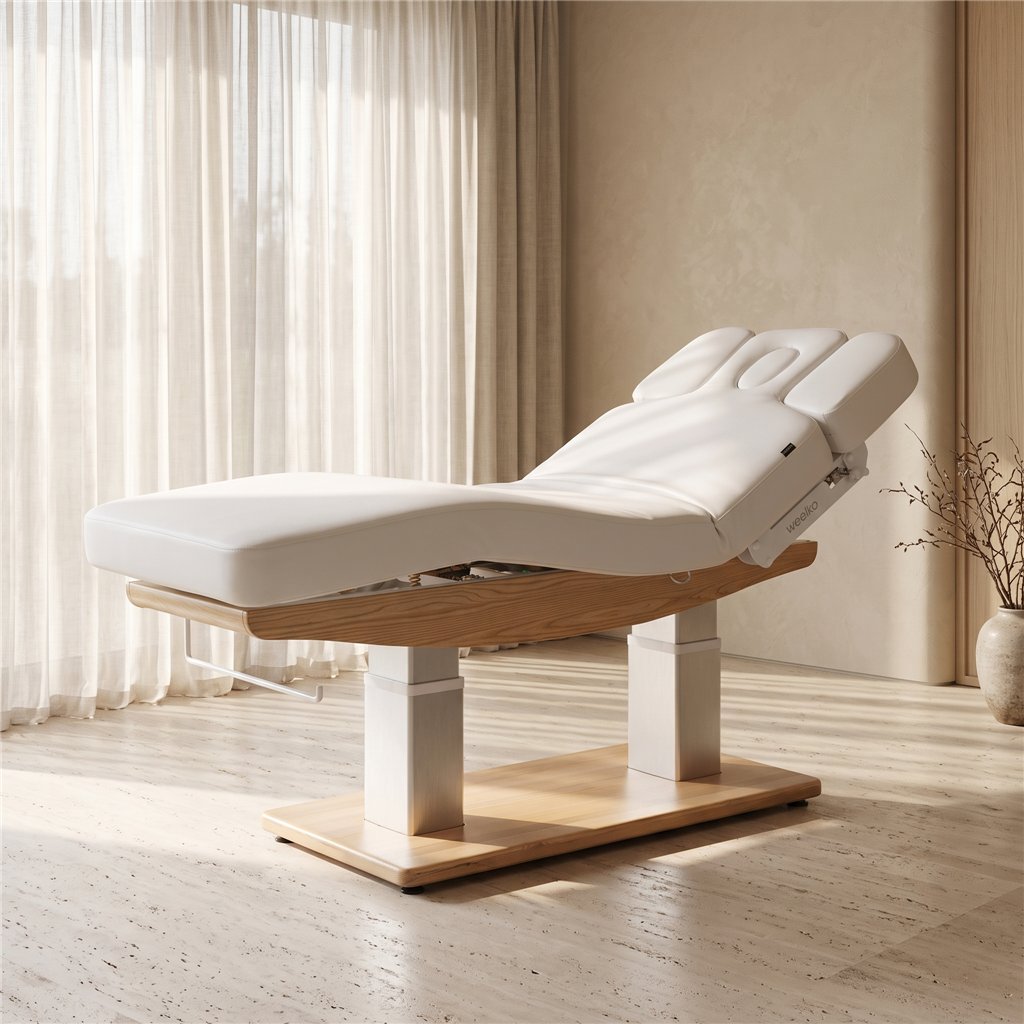

Weelko Troch Smart electric spa bed

Weelko Troch Smart electric spa bed for professional beauty and massage treatments

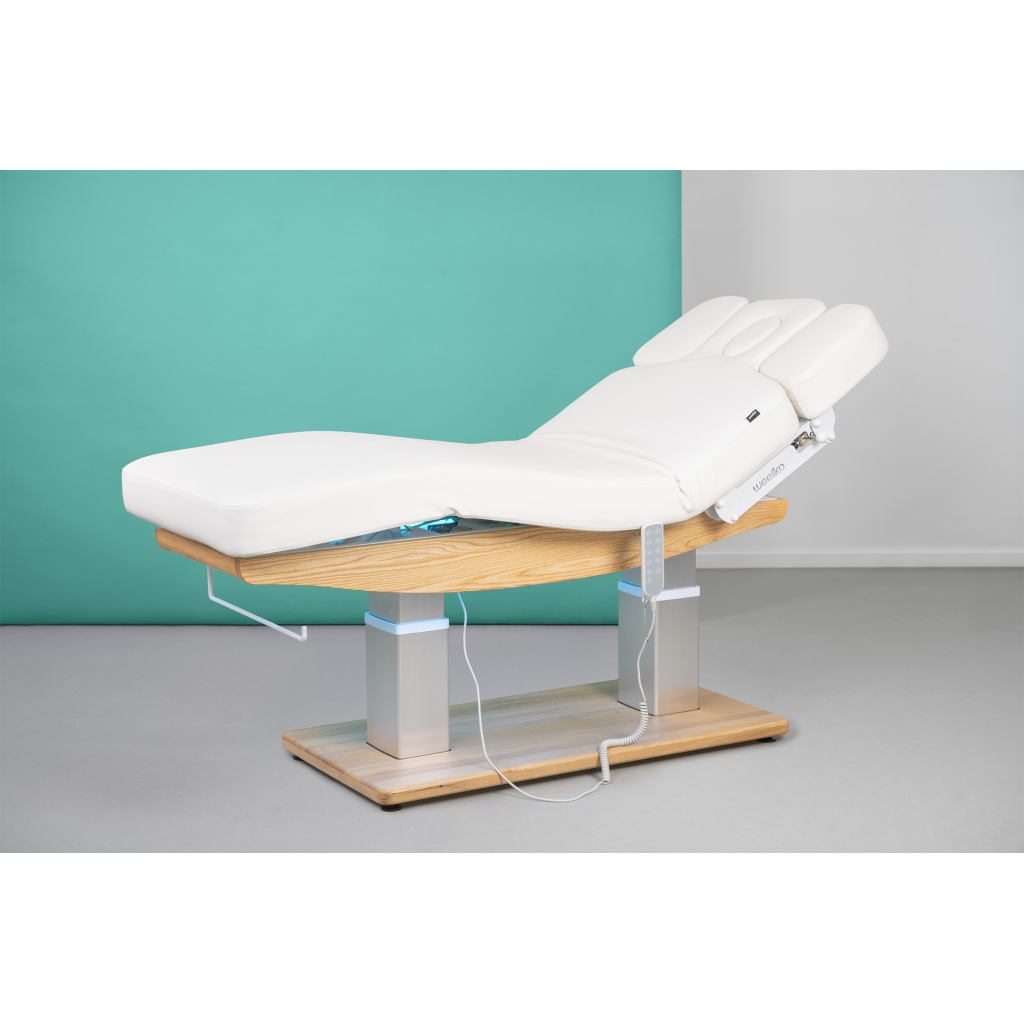

The Weelko Troch Smart is an electric spa bed designed for beauty centres, massage rooms and wellness spaces that require a wide, adjustable work surface prepared for professional treatments. Its reference is WKS029+.4.A26.HT and it is identified as Electric Spa Bed.

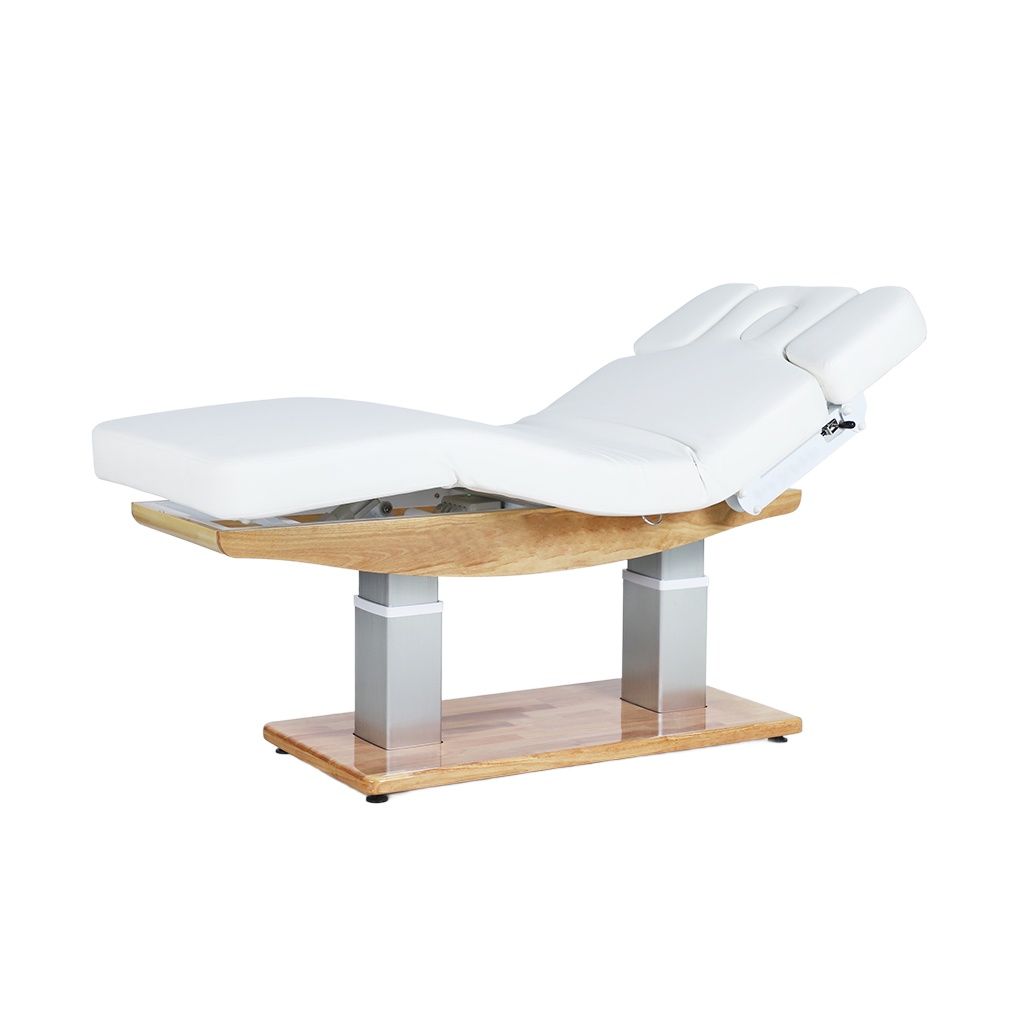

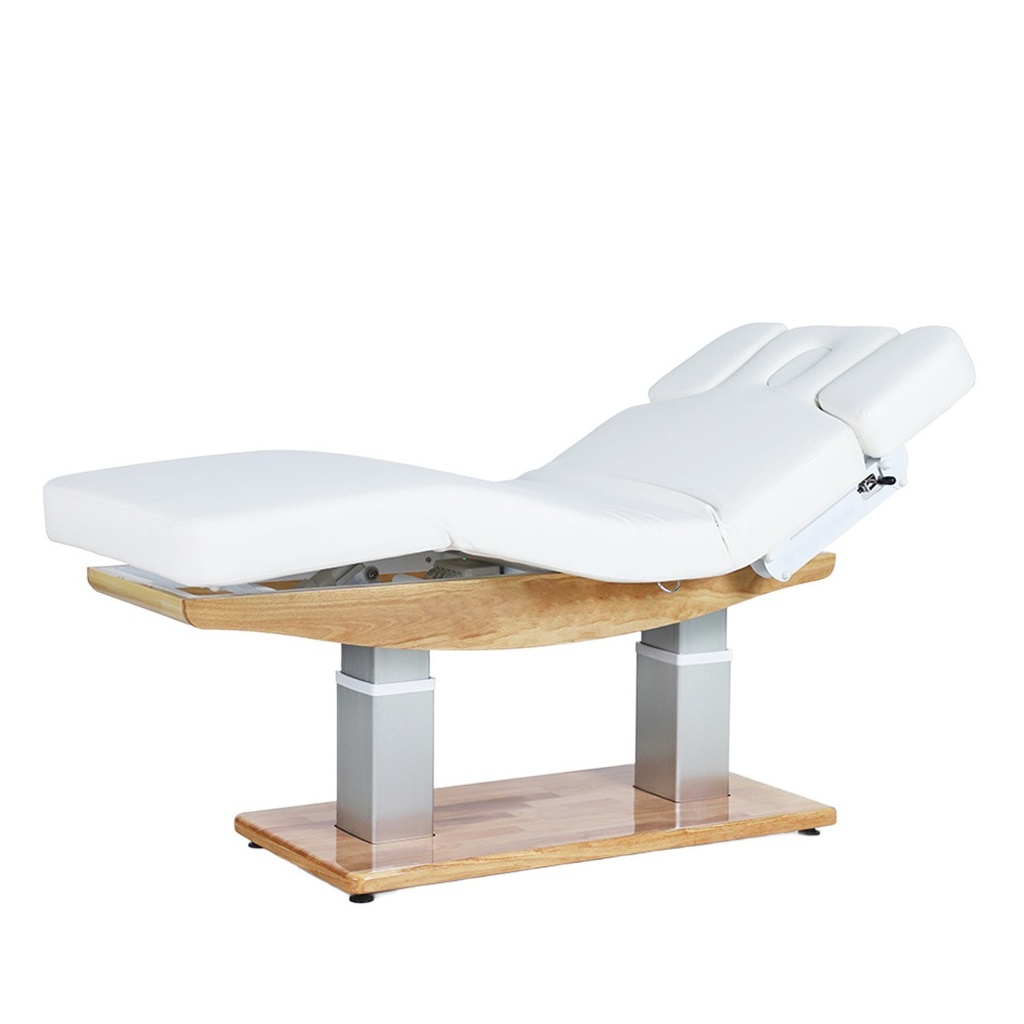

Its structure allows the client’s position and the professional’s working height to be adapted through a motorised system. The bed combines backrest adjustment, footrest adjustment, height elevation and whole-bed tilt, offering a versatile base for beauty and massage protocols.

Electric adjustment with three motors

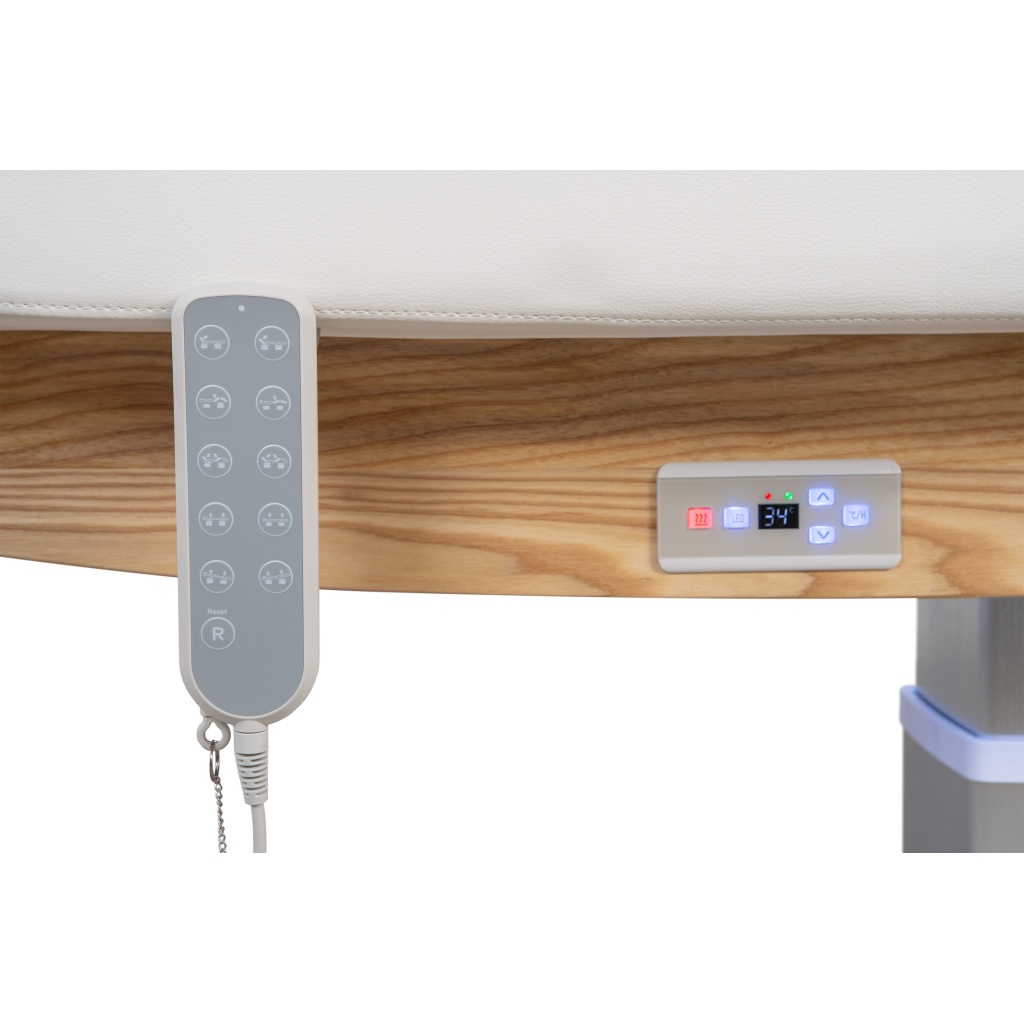

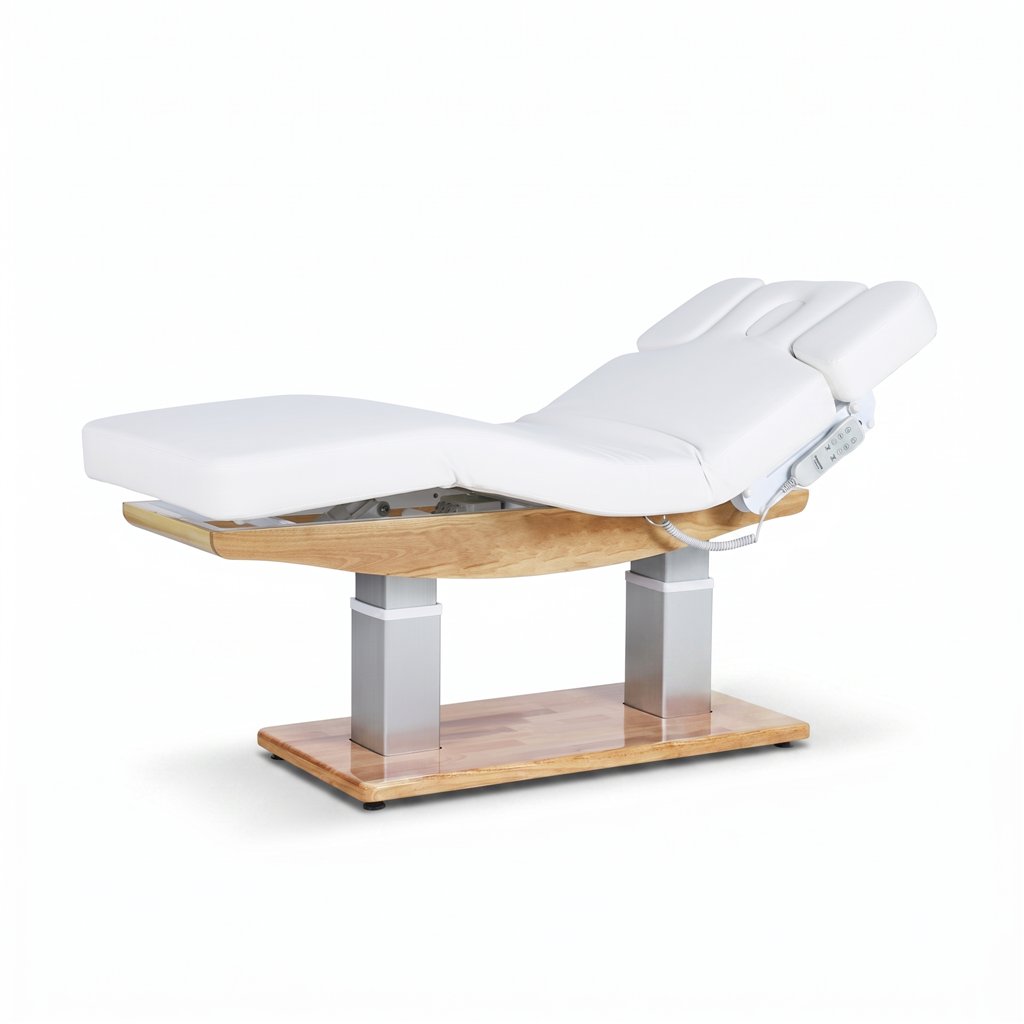

Troch Smart integrates three motors for the movement of the backrest, the whole bed and the footrest. These movements are managed by a three-control program controller, making adjustments easier during the service and helping the professional work in a more comfortable posture across different treatment types.

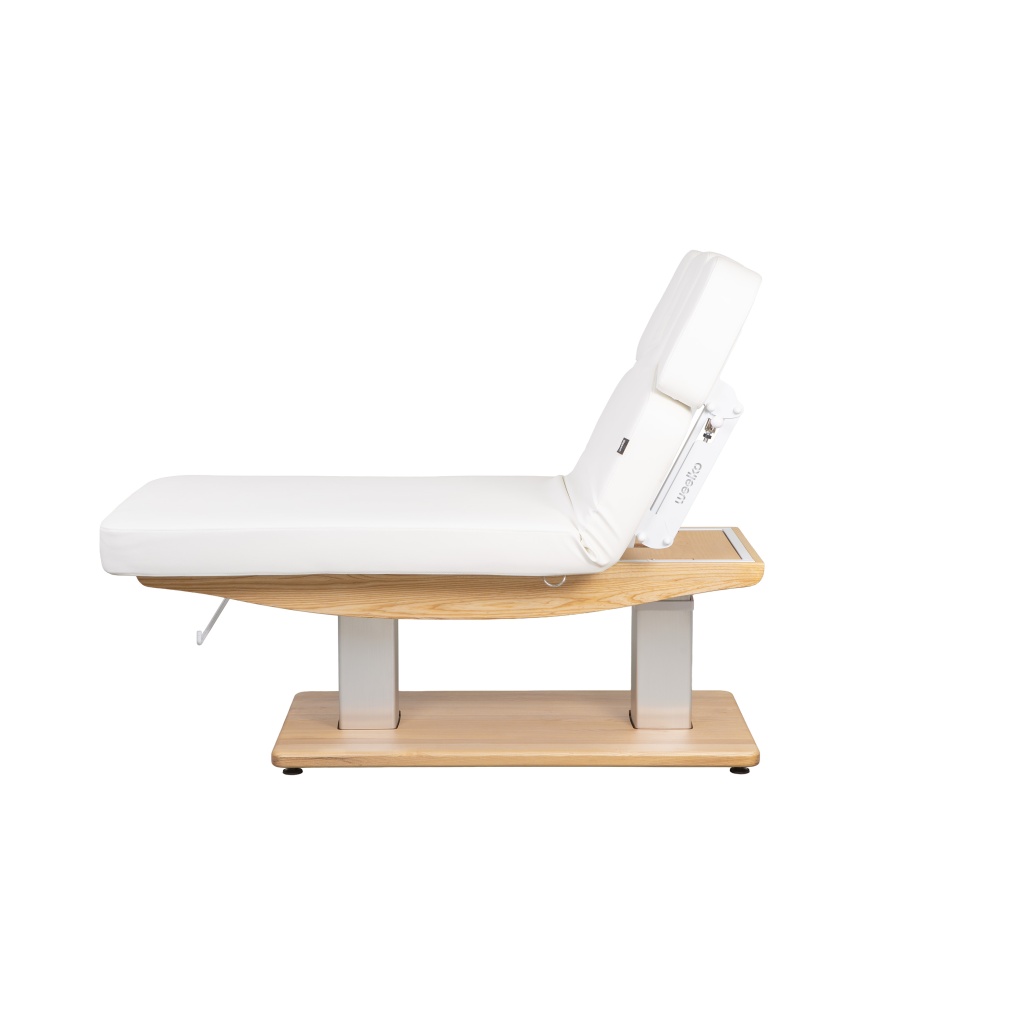

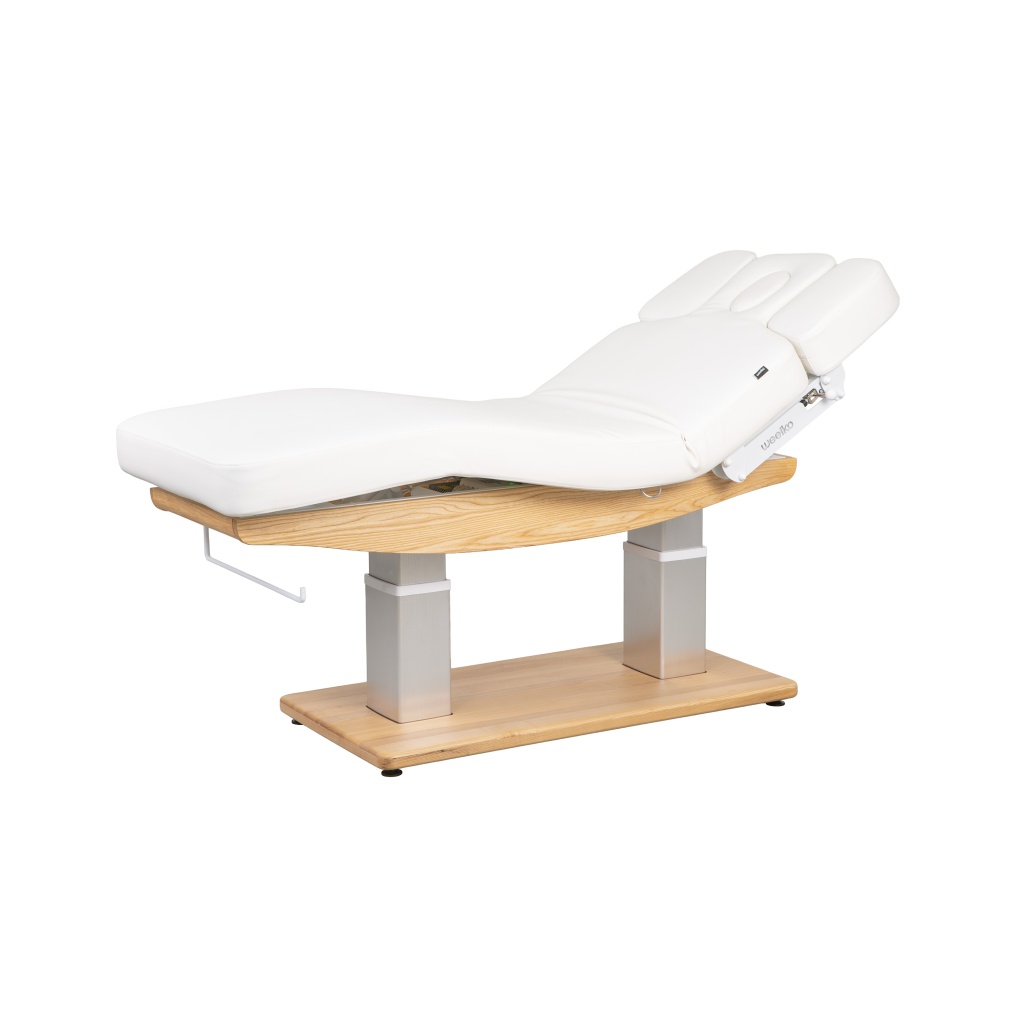

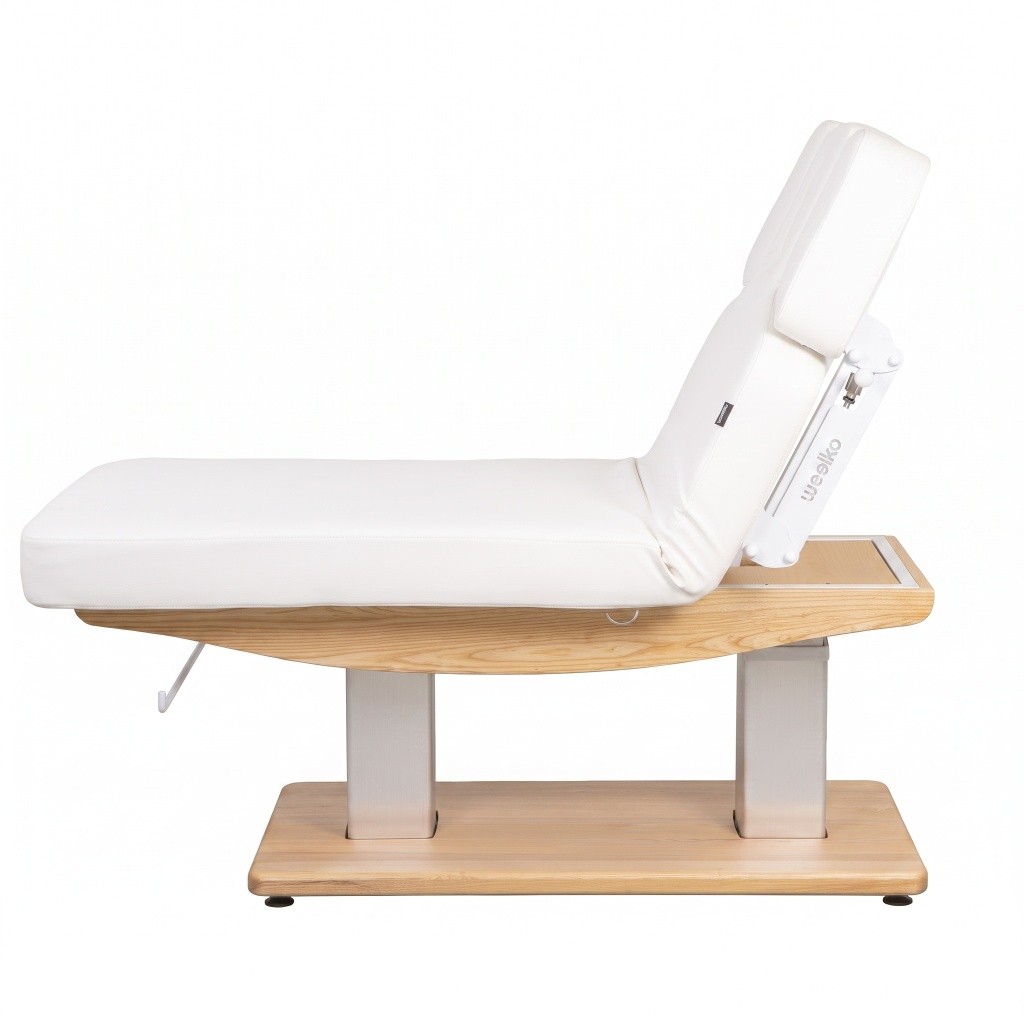

• Adjustable backrest Adjustment range from 0 to +64°.
• Adjustable footrest Adjustment range from -25 to 0°.

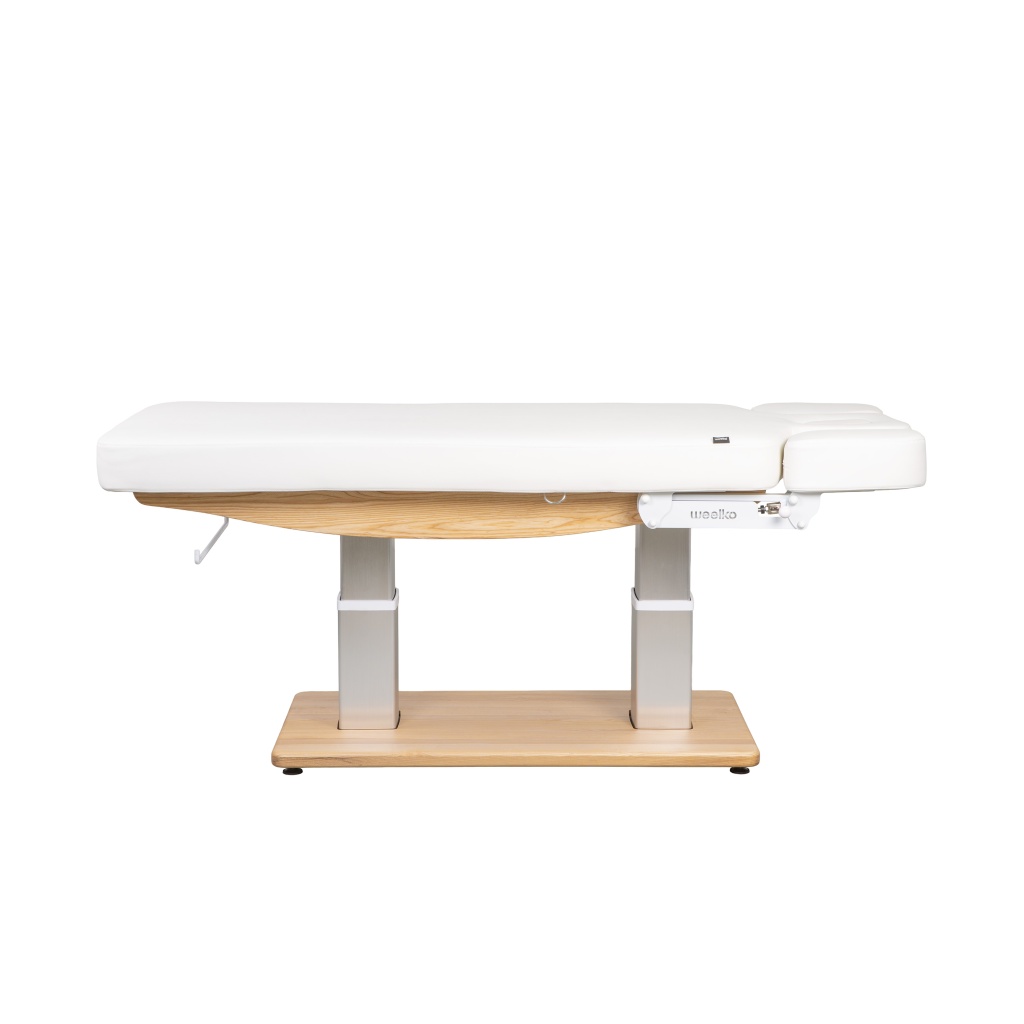

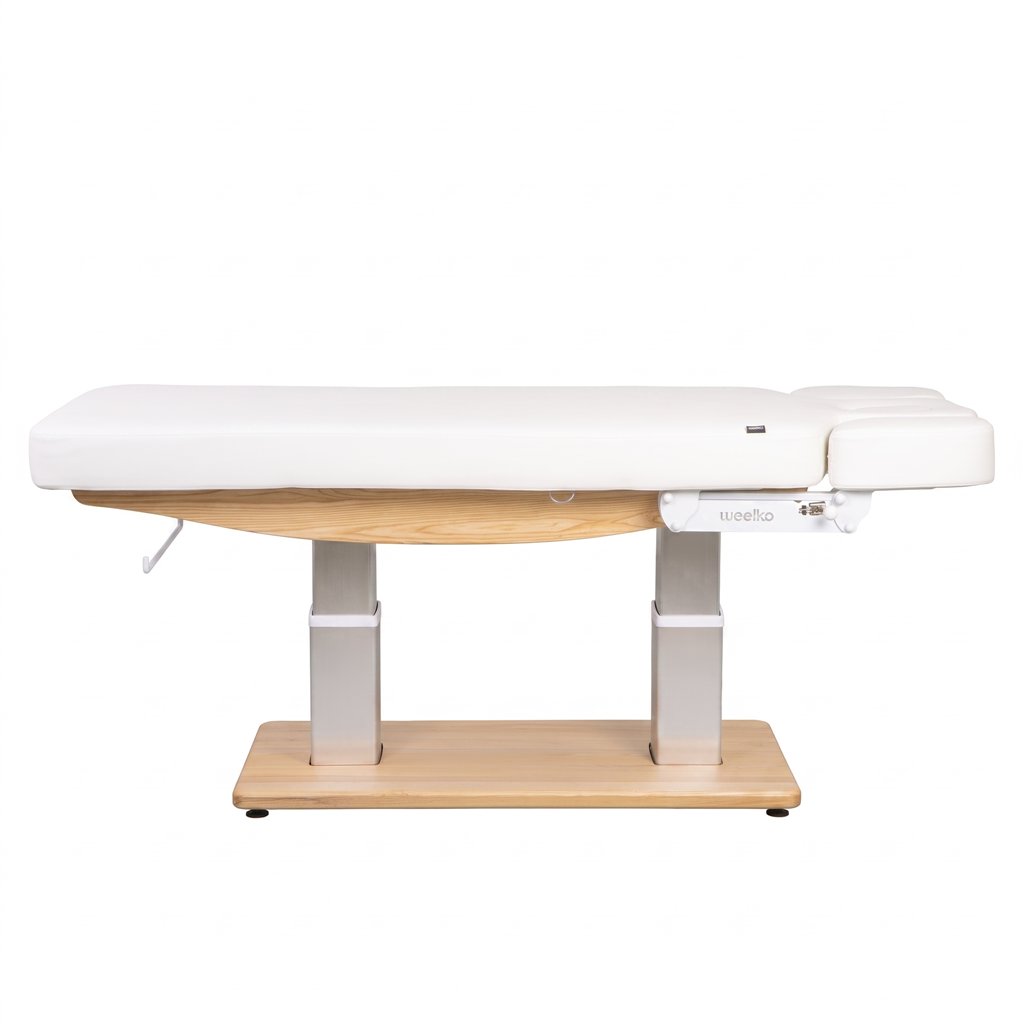

• Electric height Minimum height of 650 mm and maximum height of 850 mm.

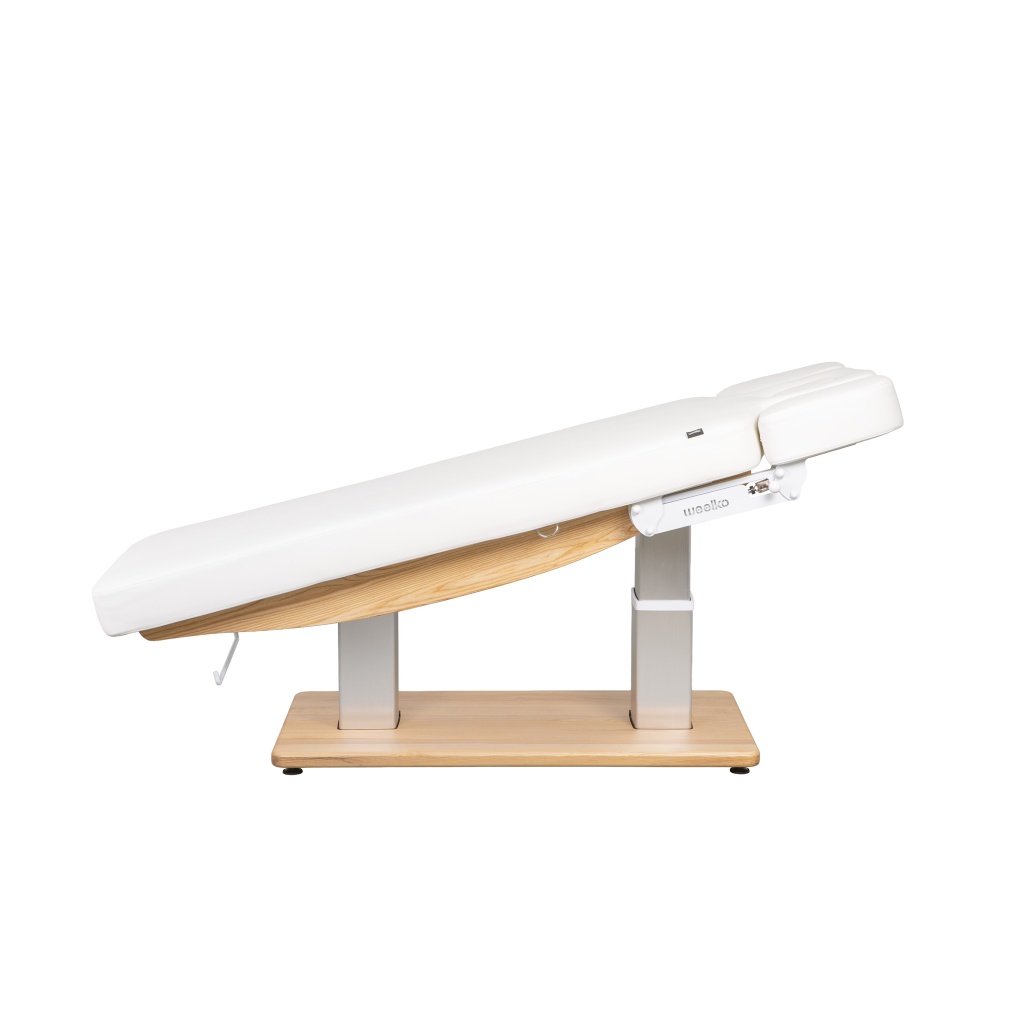

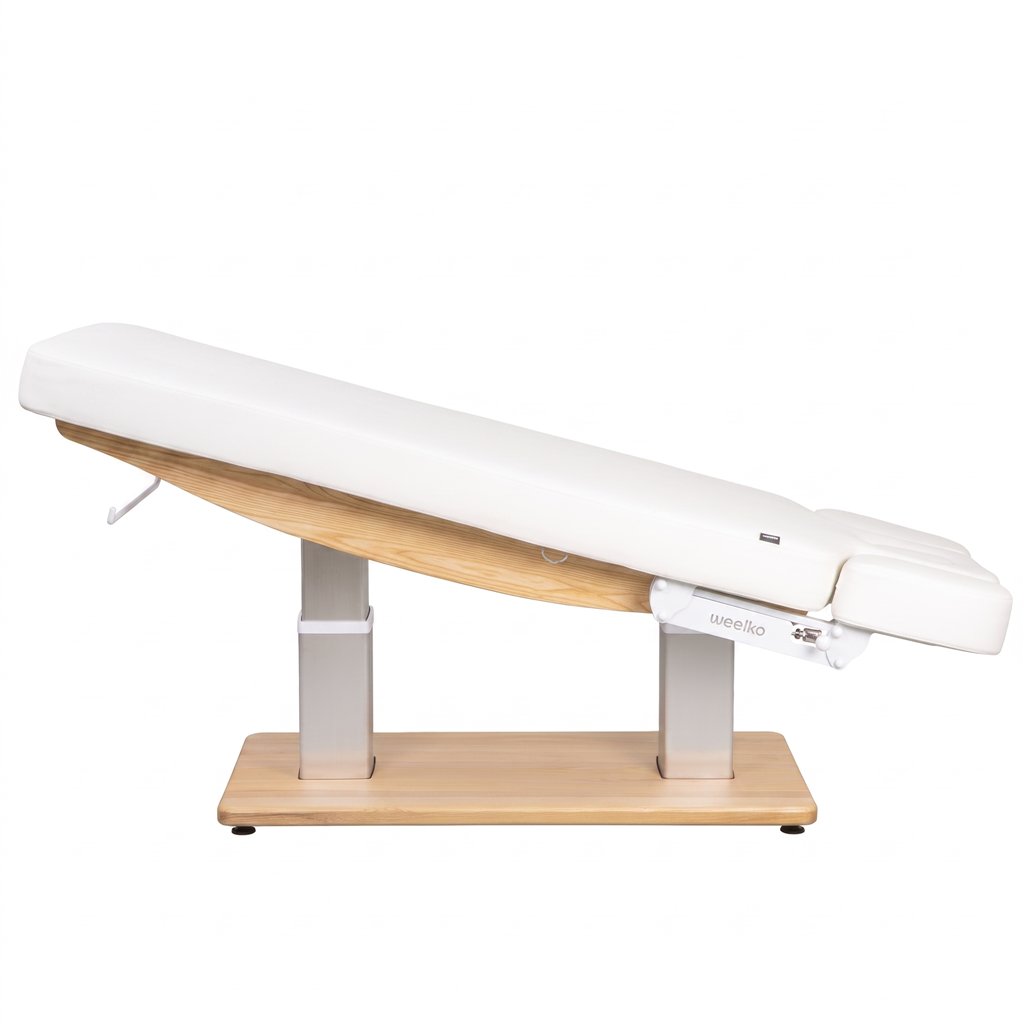

• Whole-bed tilt 15° tilt adjustment.
• CPR return Return function to flat position and minimum height.

Spa bed for beauty and massage rooms

The bed design is intended for beauty and massage treatments. Its 1980 × 770 mm dimensions provide a wide support surface for comfortable work in professional treatment rooms. The option to adjust the height between 650 and 850 mm allows the working position to be adapted to the technique, the client’s build and the ergonomic needs of the professional.

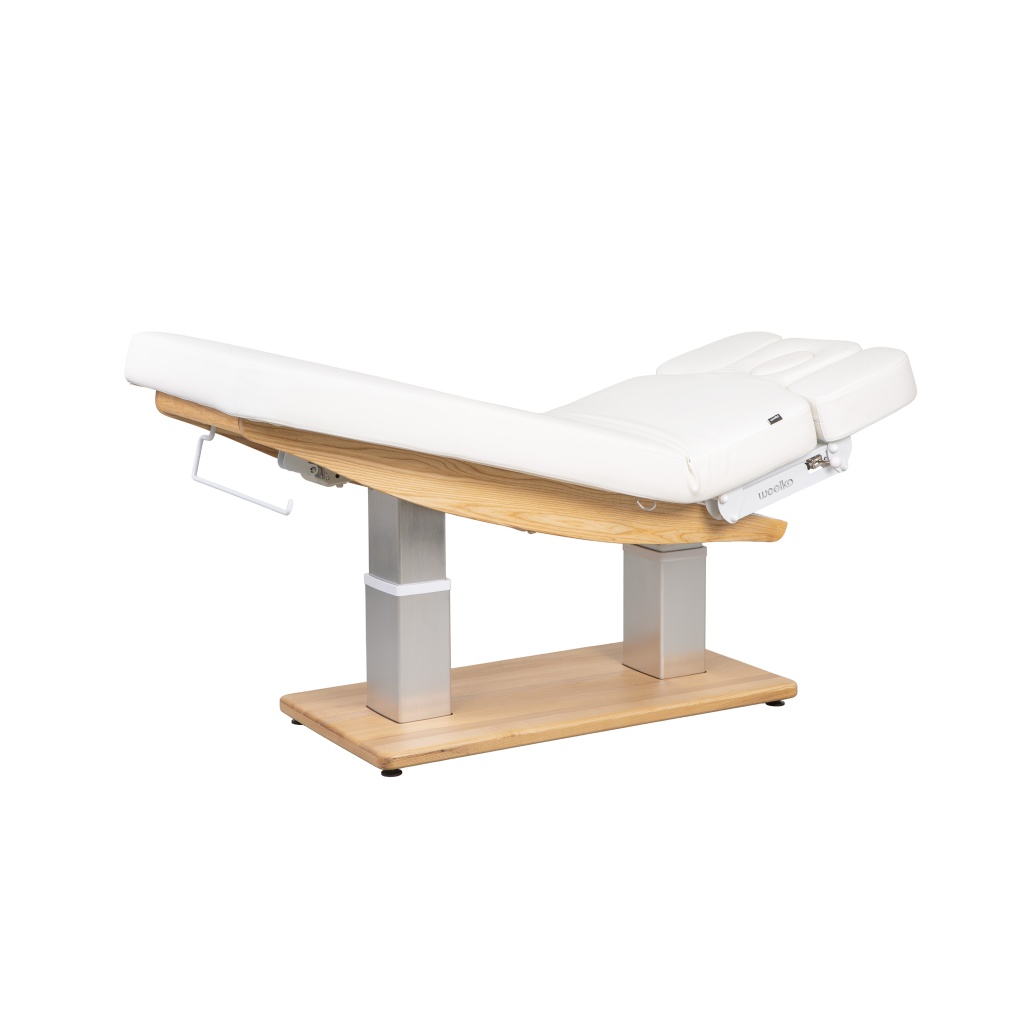

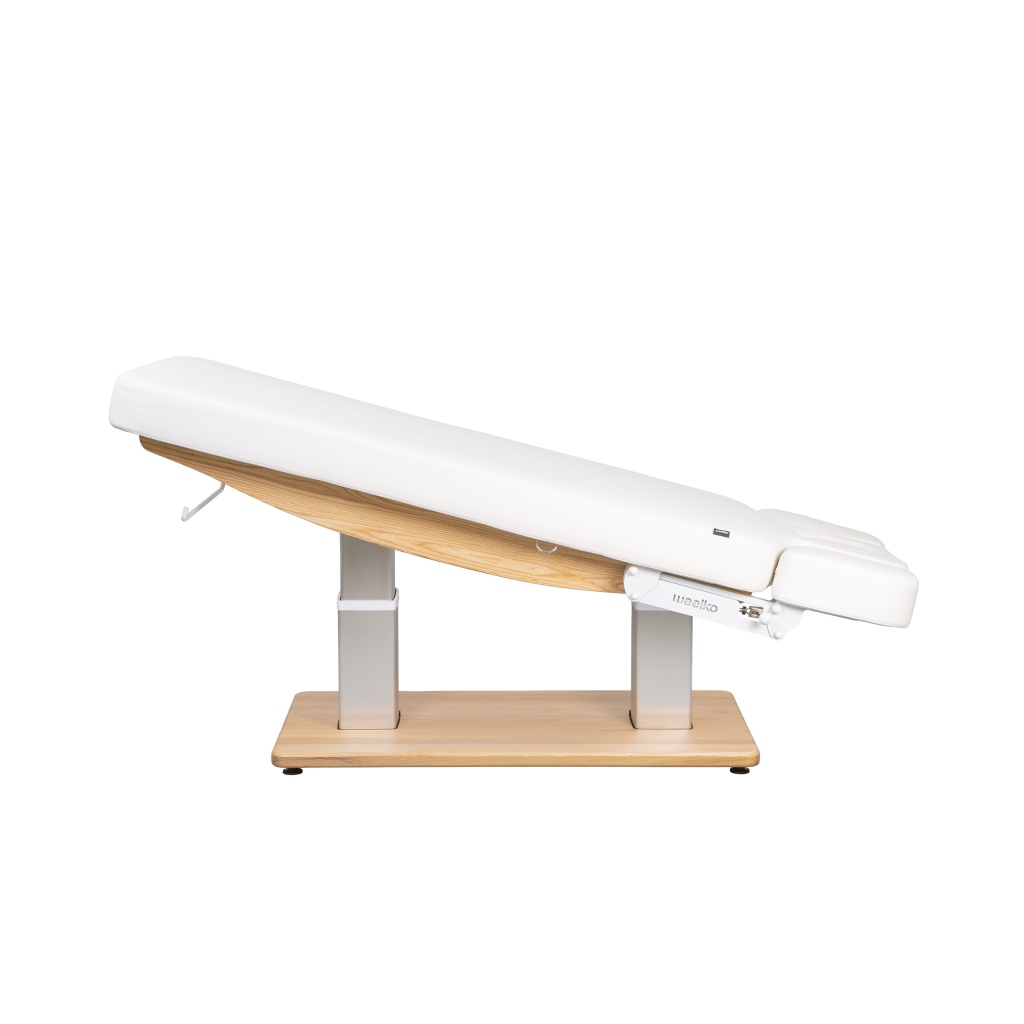

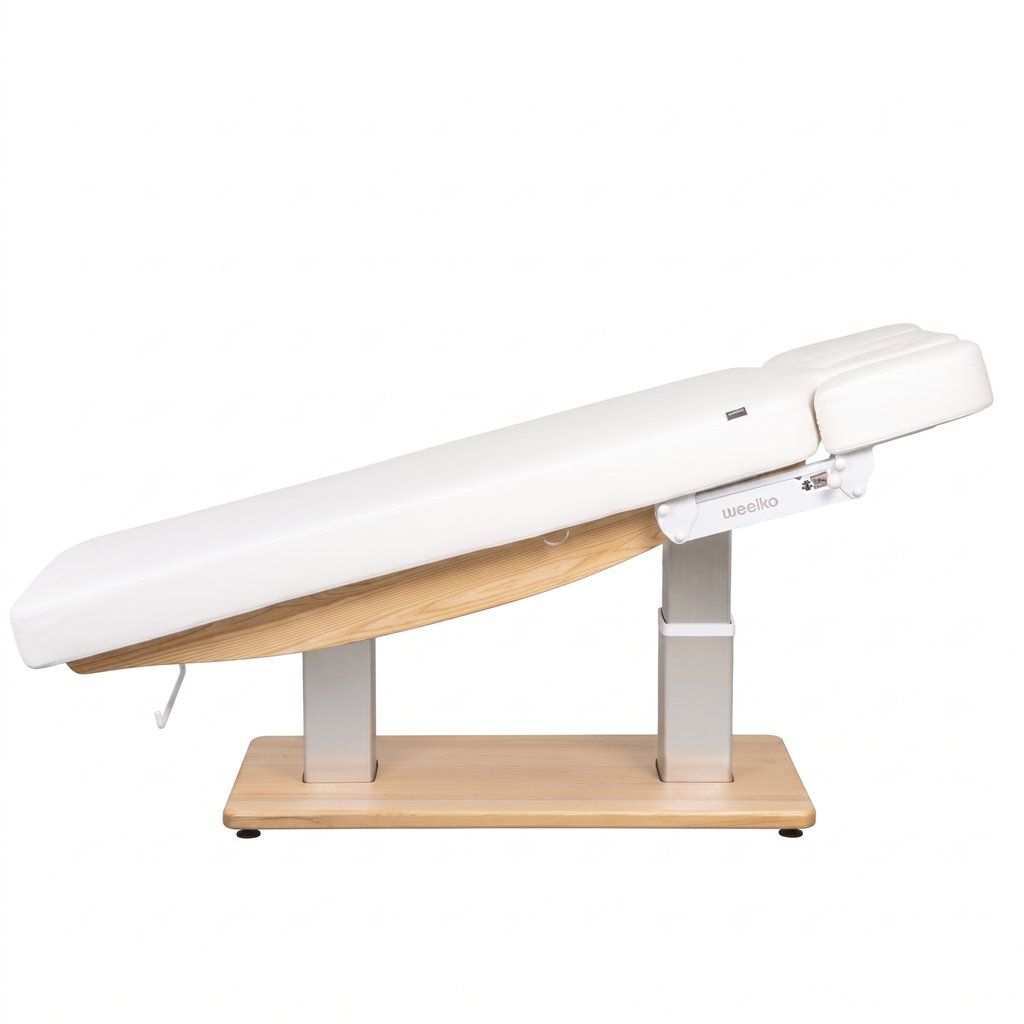

The forward and backward tilt of the whole bed provides an additional positioning option, especially useful when the work plane needs to be adapted without adjusting each section independently.

Materials and construction

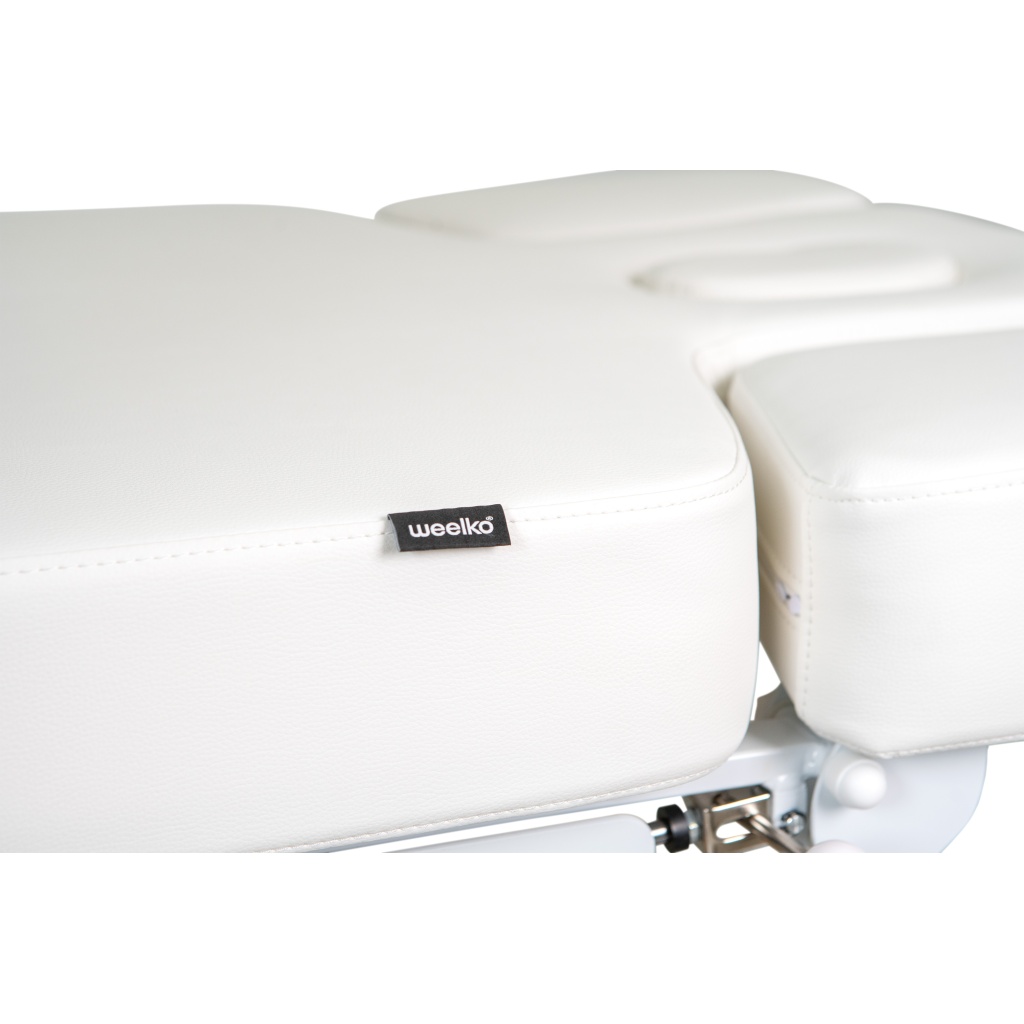

The Weelko Troch Smart is made with hardware, plastic parts and PU leather upholstery. This combination meets the usual needs of professional treatment-room furniture: a comfortable use surface, a functional structure and components suitable for beauty and wellness environments.

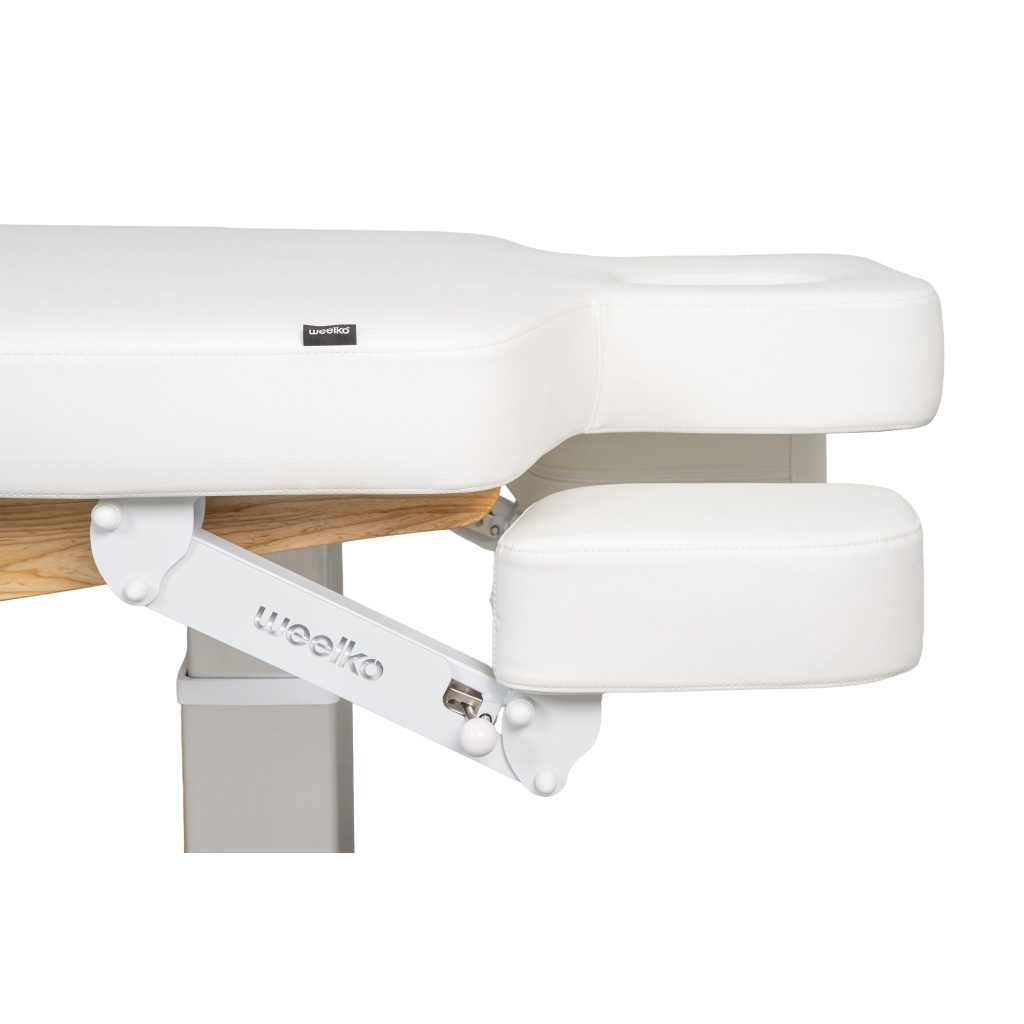

The armrest has an indicated adjustment height of 165 mm, a relevant detail for adapting support during treatments. The lifting rated load is 200 kg, according to the available technical specification for the lifting system.

Main technical features

• Brand Weelko
• Model Troch Smart
• Reference WKS029+.4.A26.HT
• Type Electric spa bed
• Suitable use Beauty and massage treatments
• Product size 1980 × 770 × 650 mm
• Adjustable height From 650 to 850 mm
• Net weight 132 kg
• Lifting rated load 200 kg
• Power supply AC 100–120 / 220–240 V
• Power frequency 50/60 Hz
• Motors Three motors for backrest, whole bed and footrest
• Materials Hardware, plastic parts and PU leather upholstery

Measurements and logistics

The bed has product dimensions of 1980 mm long, 770 mm wide and 650 mm high in its indicated minimum-height configuration. For space planning and equipment reception, the declared packaging size is 2020 × 820 × 680 mm, with a gross weight of 145 kg.

• Packaging size 2020 × 820 × 680 mm
• Gross weight 145 kg
• Product size tolerance ±2 %
• Height tolerance ±10 mm
• Weight tolerance ±2 kg

Professional use and adjustment during the service

The electric adjustment of the Troch Smart allows the bed position to be modified during preparation or while carrying out the treatment, always within the established technical ranges. Backrest adjustment is useful for facial and body treatments or for stages where a semi-upright position is required. The adjustable footrest and whole-bed tilt extend the positioning possibilities.

The CPR return to flat position and minimum height function allows the bed to be returned to a low horizontal configuration using the system provided for this purpose. This function must be used in accordance with the equipment instructions and within a suitable professional environment.

Installation and use recommendations

Due to its weight and dimensions, this bed should be placed on a stable area with enough surrounding space to allow movement of the adjustable sections and access for the professional. The electrical connection must comply with the indicated voltage and frequency: AC 100–120 / 220–240 V, 50/60 Hz.

To keep the upholstery and mechanisms in good condition, cleaning and maintenance should be carried out following the manufacturer’s instructions, and the bed should only be used for its intended purposes: beauty and massage treatments in a professional treatment room.
