Coinfycare BROM PRO 3-section electric treatment table

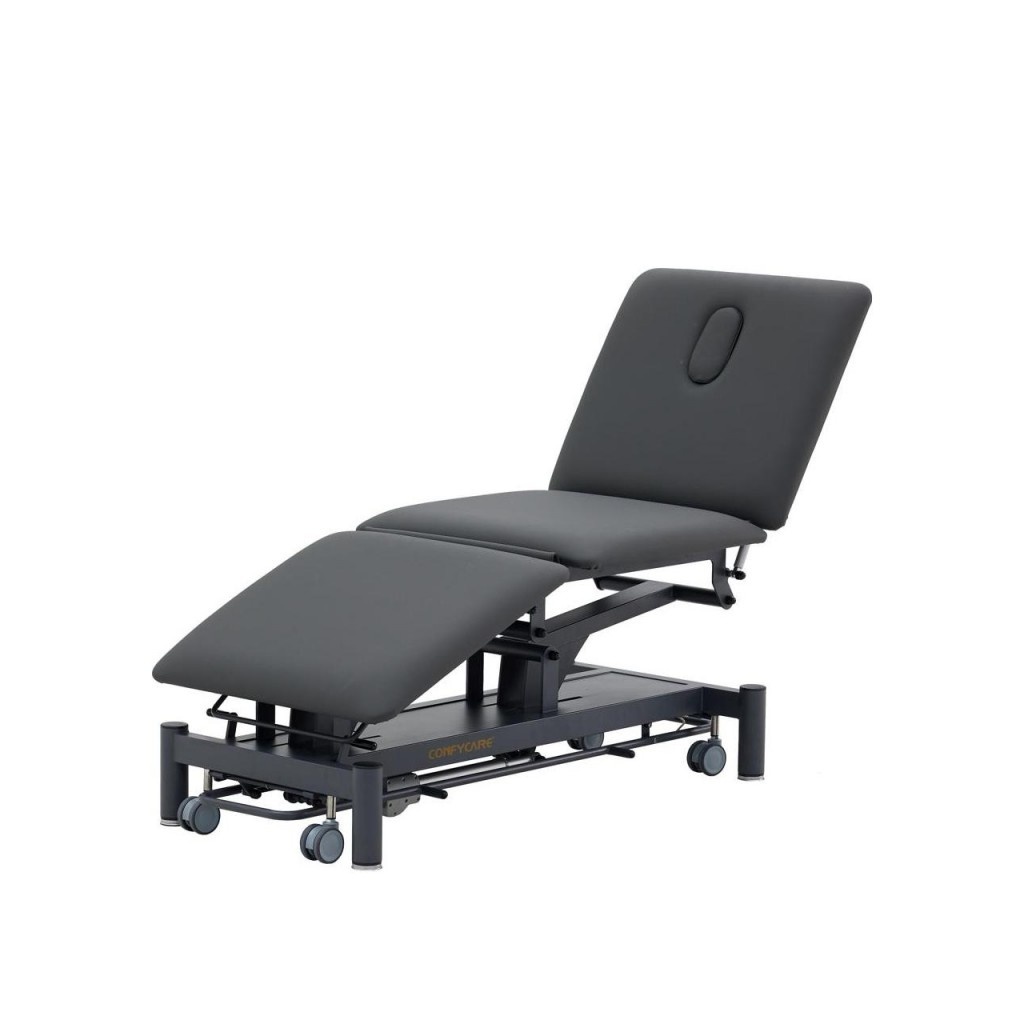

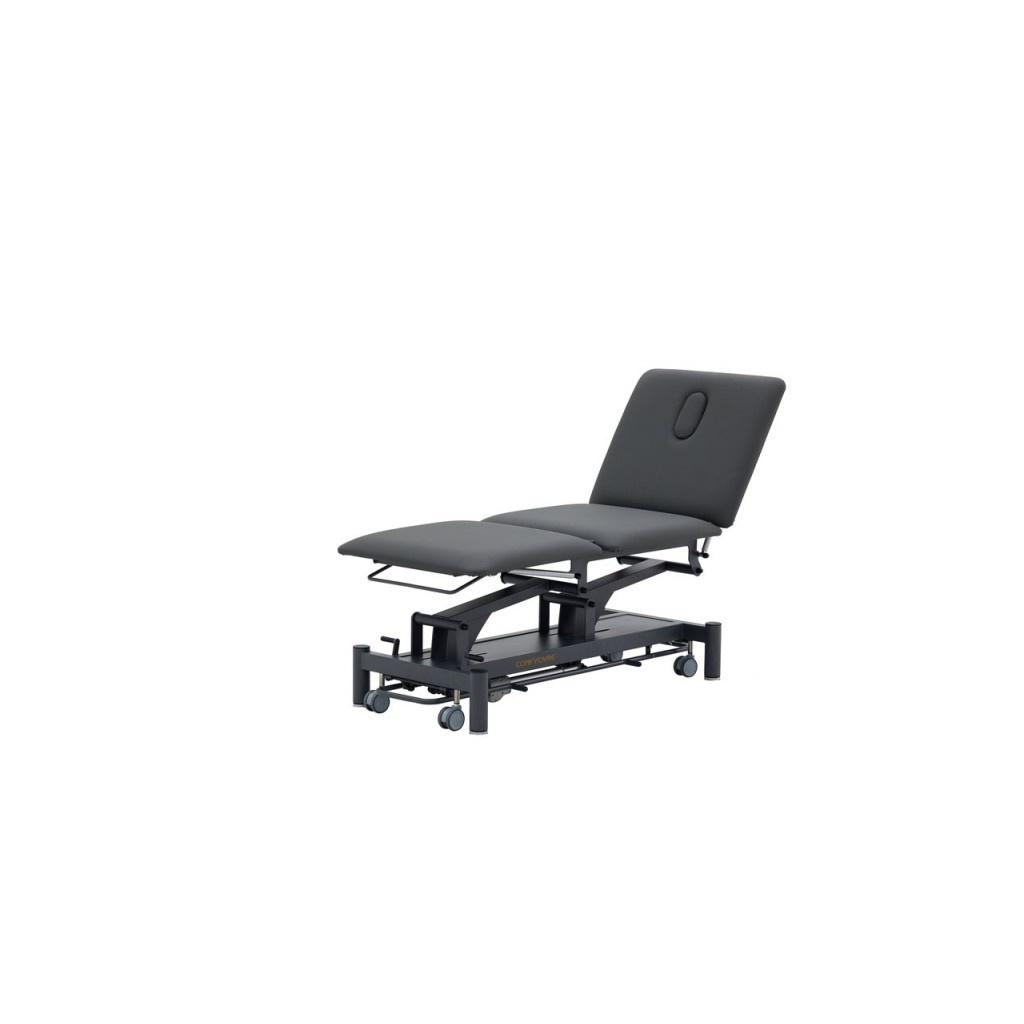

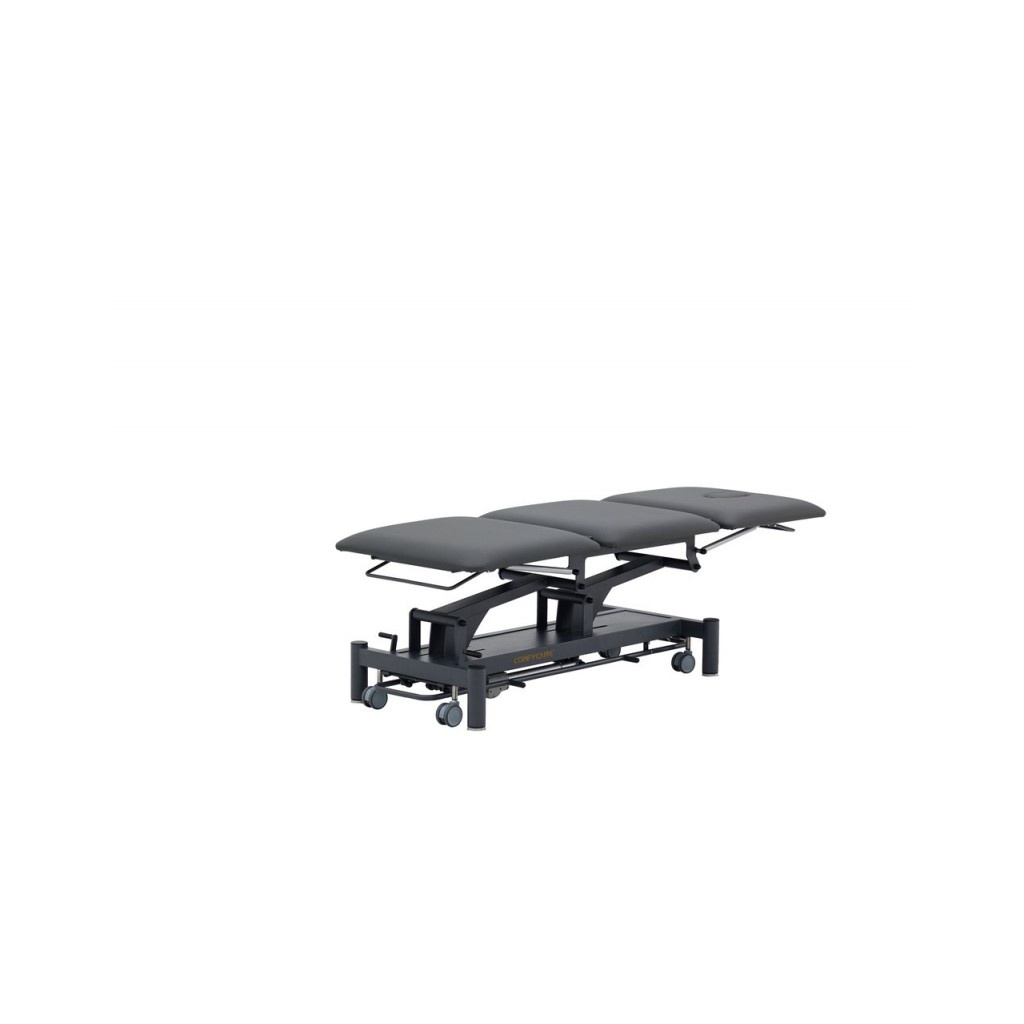

BROM PRO 3-section electric treatment table

The Coinfycare BROM PRO is a three-section treatment table designed for physiotherapy, massage and medical settings. Its structure incorporates a TiMOTION motor for electric height adjustment via a perimeter control system, allowing the table to be operated from different points around its frame.

The treatment surface is divided into three 63 cm sections, with an overall length of 195 cm and a width of 70 cm. The backrest and footrest are adjusted by gas springs to adapt the table position to the requirements of each service. The backrest incorporates a face hole with plug, and the table is supplied with a paper roll holder.

Electric adjustment and articulated sections

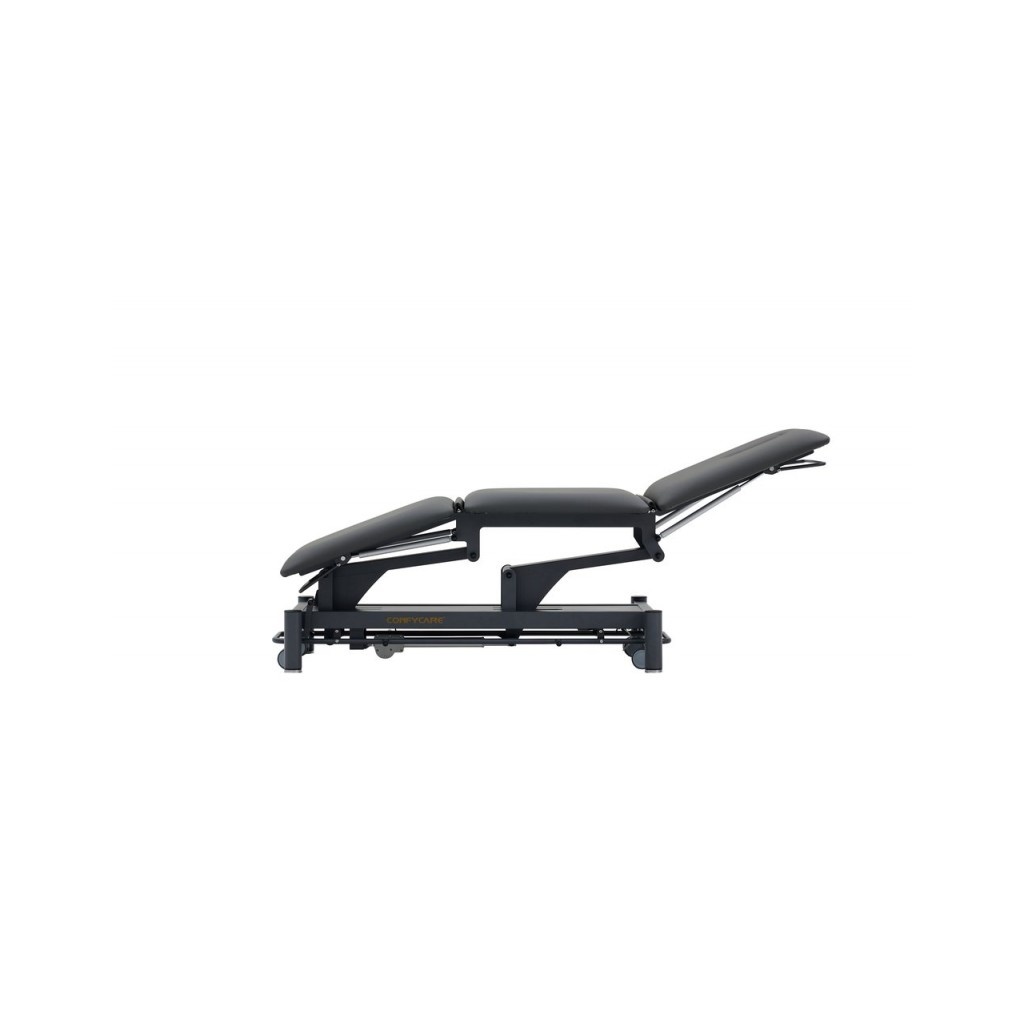

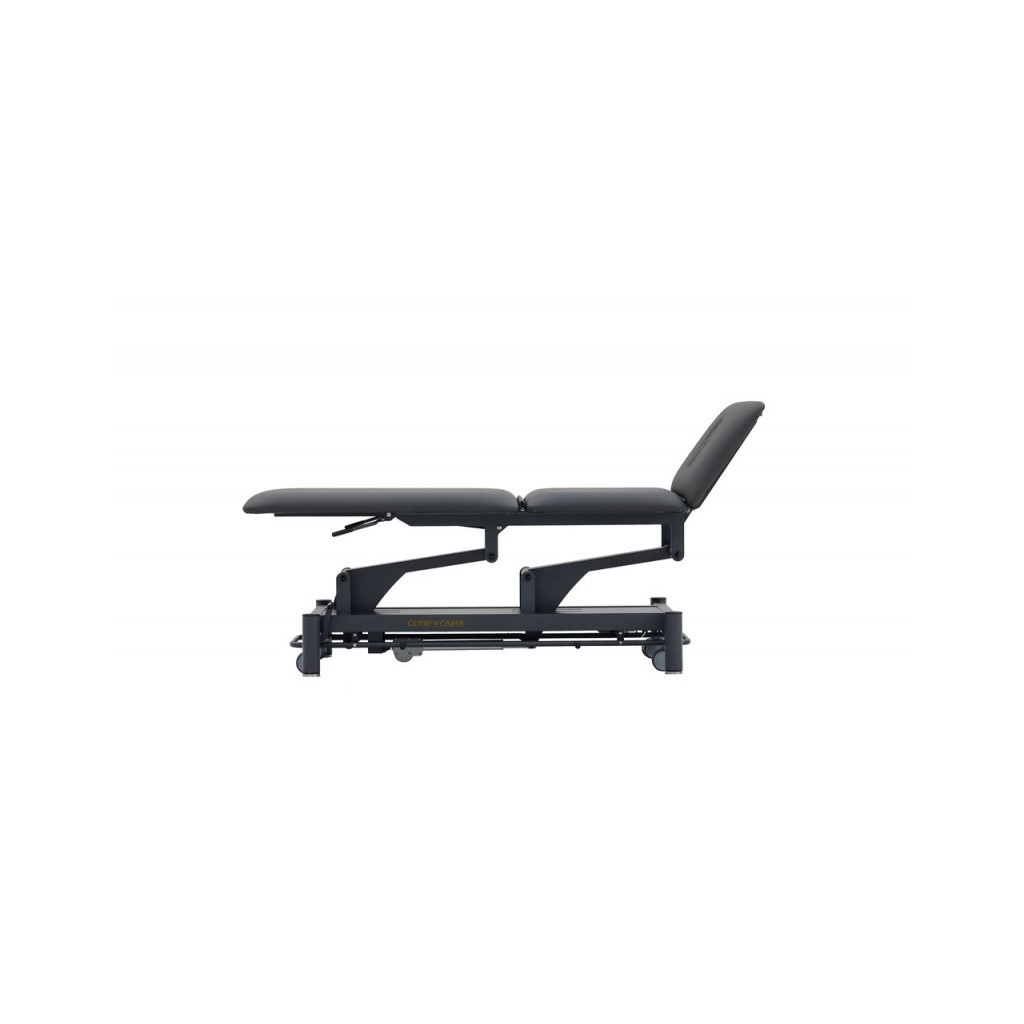

The electric system adjusts the BROM PRO height from 45 to 95 cm, with a stated lifting time of 30 seconds. Its articulated sections allow the treatment surface to be configured in different positions; the model diagram shows inclination ranges of up to +65° and down to -40°.

The base is fitted with levelling feet to compensate for minor unevenness in the floor, as well as retractable 75 mm diameter castors. When the table needs to be moved within the room, the castors facilitate mobility; in the working position, the structure rests on its levelling feet.

Upholstery and standard equipment

The 5 cm padding combines 36 kg/m³ density foam with fire-retardant, wear-resistant vinyl upholstery. The design includes rounded feet and is available with blue or grey upholstery, depending on the option selected.

The stated load capacity is 250 kg. The table has the stated CE, FDA and ISO 13485:2016 certifications. The stated warranty is one year for the frame, electrical components and upholstery, except in cases of improper use.

Technical specifications

• Brand and model Coinfycare BROM PRO
• Reference EL03EPRO23SL.1.A66.GF
• Type 3-section electric treatment table
• Treatment surface dimensions 195 x 70 cm
• Section layout 63 + 63 + 63 cm
• Adjustable height 45 to 95 cm
• Height adjustment Electric, via perimeter control
• Motor TiMOTION
• Lifting time 30 seconds
• Section adjustment Gas-spring adjustable backrest and footrest
• Indicated inclination ranges Up to +65° and down to -40°
• Face hole Integrated into the backrest, with plug
• Paper roll holder Included as standard
• Mobility Retractable Ø 75 mm castors
• Stability Levelling feet for uneven floors
• Padding thickness 5 cm
• Foam density 36 kg/m³
• Upholstery Fire-retardant, wear-resistant vinyl
• Upholstery colours Blue or grey
• Load capacity 250 kg
• Stated certifications CE, FDA, ISO 13485:2016
• Stated warranty 1 year for frame, electrical components and upholstery, except in cases of improper use
