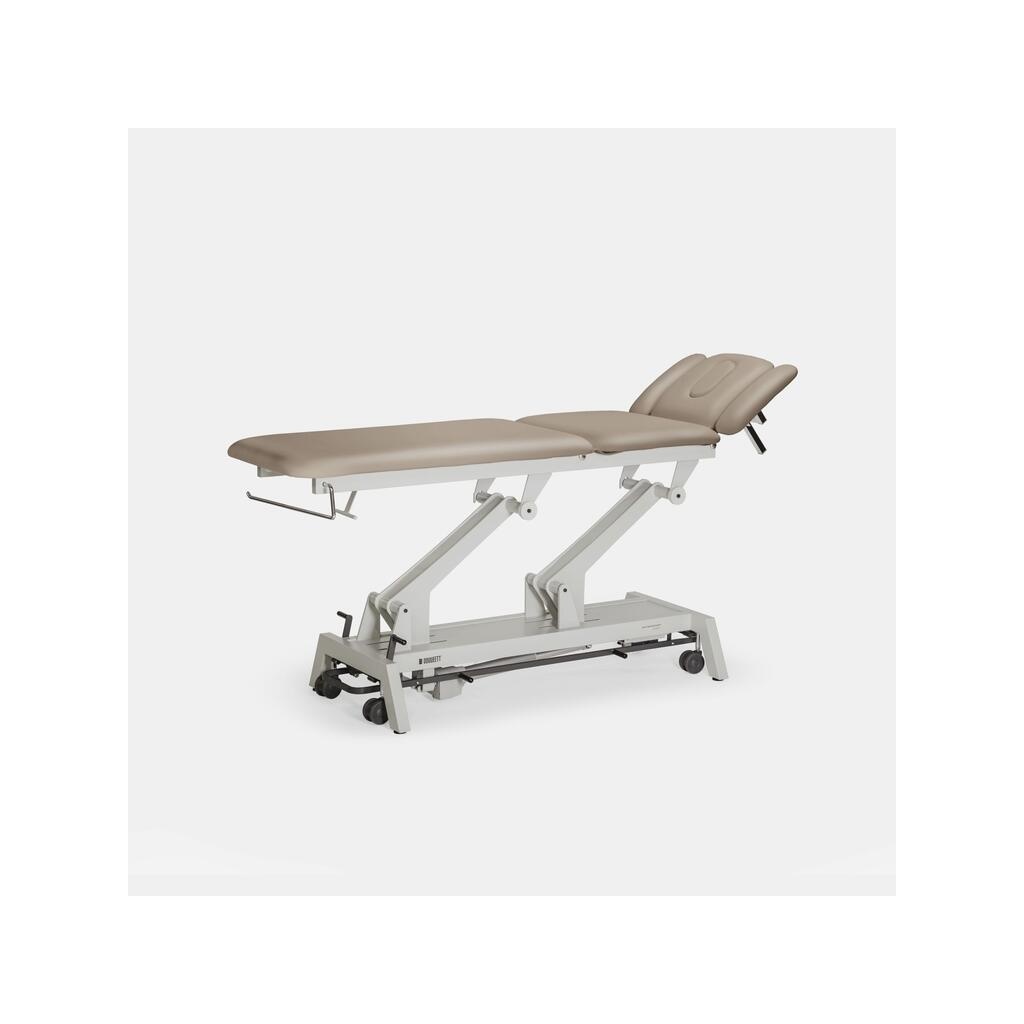

DDUUEETT AVANT 531 electric treatment table, grey and taupe

DDUUEETT AVANT 531 electric treatment table

The DDUUEETT AVANT 531 is a 5-section electric treatment table designed for physiotherapy and manual therapy. This version features a grey frame and taupe medical PVC upholstery.

Its electric system adjusts the height from 47 to 97 cm using a foot-operated perimeter bar. The 201 × 68 cm surface includes a three-section headrest, manually adjustable armrests and a gas-lift adjustable footrest.

Section configuration

The headrest can be tilted from -30° to +70° using a gas spring. The armrests are manually adjustable. The footrest is adjusted by a gas spring from 0° to +80°, allowing the working position to be adapted for each session.

• Sections 5 sections
• Headrest 3 sections with -30° to +70° tilt
• Armrests Manually adjustable
• Footrest Gas-lift adjustable from 0° to +80°
• Facial hole Included

Electric adjustment and mobility

The AVANT 531 is fitted with 1 x 6,000 N motor for electric height adjustment. The perimeter bar enables foot operation from the sides of the table. Its four retractable wheels facilitate repositioning, while the adjustable immobilisation system helps keep the table stable once in place.

• Height control Foot-operated perimeter bar
• Height range 47-97 cm
• Motor 1 motor, 6,000 N
• Motor data DC 24 V, 5.5 A, 132 W
• Wheels 4 retractable wheels with adjustable immobilisation system

Dimensions and upholstery

The table measures 201 × 68 cm, weighs 87 kg and has a maximum load capacity of 250 kg. Its padding is 5.5 cm thick with a density of 40 kg/m³. The medical PVC upholstery is finished in taupe, complemented by a grey frame.

• Dimensions 201 × 68 cm
• Weight 87 kg
• Maximum load 250 kg
• Upholstery Medical PVC, taupe
• Padding 5.5 cm; 40 kg/m³
• Frame Grey

Equipment and electrical data

A paper roll holder and facial hole are included. The table operates on AC 220-240 V, 50/60 Hz power. It has IPX4 protection against splashing water or liquids and is classified as a Class I medical device under Regulation (EU) 2017/745.

• Power supply AC 220-240 V, 50/60 Hz
• Duty cycle Maximum 2 min ON / 18 min OFF
• Protection rating IPX4
• Classification Class I medical device
• UDI-DI 06976904610024
• Reference 11004376

Use and maintenance

This table is intended to support users during physiotherapy and manual therapy treatments; it must not be used for patient transport. Before cleaning the upholstery, disconnect the table from the mains. Use a well-wrung soft cloth with lukewarm water and mild detergent. Apply disinfectant products to the cloth, never directly onto the table.
