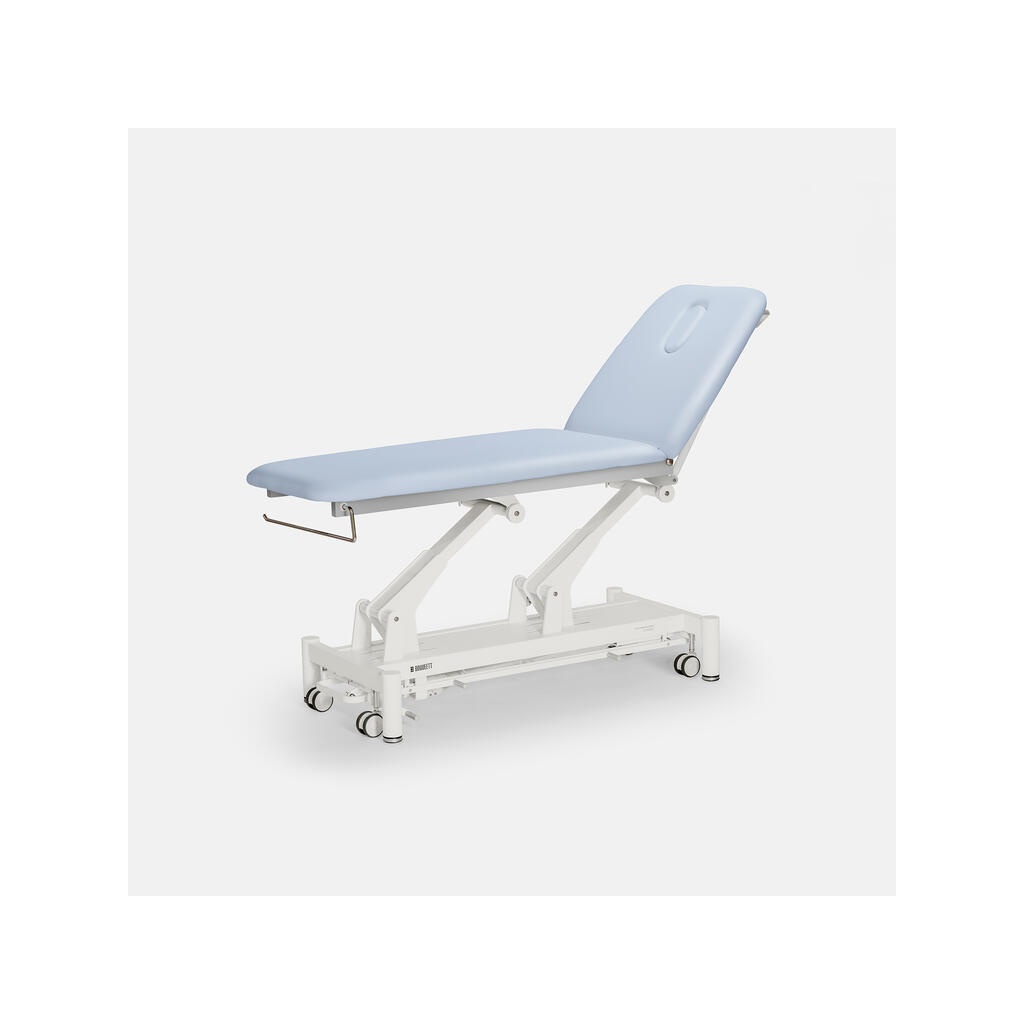

DDUUEETT CLASSIC 201 electric treatment table, white and blue
DDUUEETT CLASSIC 201 2-section electric treatment table for physiotherapy and manual therapies. Its single motor adjusts the height via a foot-operated peripheral bar, while the backrest is controlled by a gas spring. It includes a face hole, paper roll holder and lockable castors, with a maximum load capacity of 250 kg.
The DDUUEETT CLASSIC 201 is a two-section electric treatment table for physiotherapy and manual therapies. Its white base and blue upholstery are combined with a single motor that adjusts the height through a foot-operated peripheral bar.
The backrest section is adjusted by a gas spring and offers an angle range from +80° to -30°. An integrated face hole supports positioning during treatments carried out in the prone position.
Configuration for daily practice
Height can be adjusted from 43 to 93 cm to suit the working position. The table is fitted with four castors for repositioning and an adjustable immobilisation system to help keep it stable once in place.
Model DDUUEETT CLASSIC 201
Reference 11003823
Sections 2
Motors 1 motor for height adjustment
Height control Foot-operated peripheral bar
Backrest Gas spring adjustment
Backrest angle From +80° to -30°
Face hole Included
Paper roll holder Included
Castors 4 castors with adjustable immobilisation system
Dimensions and upholstery
The working surface measures 201 x 68 cm. It features MED PVC upholstery with 5.5 cm thick padding and a density of 40 kg/m³. The stated maximum load capacity is 250 kg.
Length 201 cm
Width 68 cm
Adjustable height From 43 to 93 cm
Table weight 77 kg
Maximum load 250 kg
Upholstery MED PVC
Padding thickness 5.5 cm
Padding density 40 kg/m³
Colour White base and blue upholstery
Use and operation
The table is intended to support the user during physiotherapy and manual therapy treatments. It must not be used for transporting patients. The motor operates intermittently, with a maximum of 2 minutes of operation followed by 18 minutes of rest.
Use precaution: before adjusting the height, keep the space beneath the table clear. Distribute weight across the surface and do not sit on the head or foot sections.
Cleaning and maintenance
Disconnect the treatment table from the mains before cleaning. Clean the upholstery with a well-wrung soft cloth, lukewarm water and mild detergent. Apply disinfectant products to a cloth, never directly to the table. A monthly visual inspection of the sections, castor system, gas springs, screws and electrical wiring is recommended.
Protection against splashing water IPX4
Electrical safety classification Type B
Intended use Physiotherapy and manual therapies
Warranty 2 years against manufacturing defects
Classification Class I medical device under Regulation (EU) 2017/745
Technical data sheet
Material
MED PVC; grosor 5,5 cm; densidad 40 kg/m³
Color
Base blanca y tapizado azul
Dimensions
201 x 68
Manufacturer
Wiseton Industries Limited, No. 9, Jiahe Road, Jiashan County, Jiaxing City, Zhejiang Province, P.R. China.
Warranty
2 años desde la fecha de factura
Voltage
AC 220-240 V 50/60 Hz
Uso previsto
Fisioterapia y terapias manuales; no debe utilizarse para transportar pacientes
