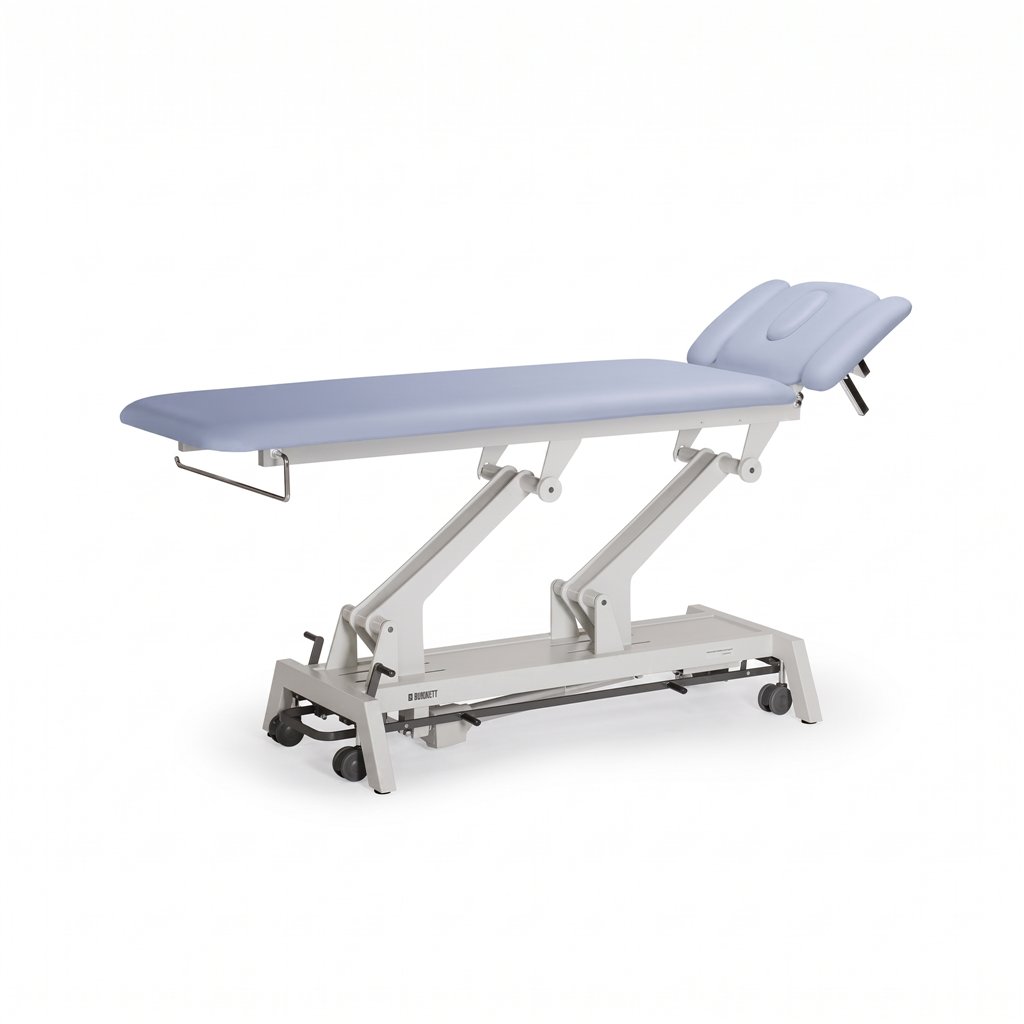

DDUUEETT AVANT 431 electric treatment table, grey and blue

DDUUEETT AVANT 431 electric treatment table

The DDUUEETT AVANT 431 is an electric treatment table for use in physiotherapy and manual therapies. Its 201 x 68 cm surface is divided into four sections and includes a three-section headrest with manually adjustable armrests.

Height is electrically adjustable from 47 to 97 cm using a foot-operated perimeter bar. This configuration helps adapt the working position throughout the session without interrupting attention to the user.

Treatment configuration

The headrest assembly is adjusted by a gas spring and offers an inclination range from -30° to +70°. The table incorporates a facial hole and is supplied with a paper roll holder, providing practical features for preparing the treatment surface.

• Sections 4 sections with a 3-section headrest
• Headrest Gas-spring adjustable, from -30° to +70°
• Armrests Manually adjustable
• Facial hole Included
• Paper roll holder Included

Electric adjustment and mobility

Equipped with one 6,000 N motor for height adjustment, the AVANT 431 is operated by a perimeter control bar. Its four retractable wheels allow the table to be moved into position, while the adjustable immobilisation system helps keep it stable during use.

• Motor 1 motor for height adjustment
• Motor force 6,000 N
• Height control Foot-operated perimeter bar
• Wheels 4 retractable wheels
• Immobilisation system Adjustable

Dimensions, load capacity and upholstery

The treatment table weighs 83 kg and supports a maximum load of 250 kg. It features a grey frame and blue medical PVC upholstery, with 5.5 cm padding and a density of 40 kg/m³.

• Dimensions 201 x 68 cm
• Adjustable height 47 - 97 cm
• Table weight 83 kg
• Maximum load 250 kg
• Upholstery Medical PVC
• Padding 5.5 cm thick, 40 kg/m³ density
• Frame colour Grey
• Upholstery colour Blue

Electrical data and use

The AVANT 431 operates on AC 220-240 V, 50/60 Hz. The motor operates at DC 24 V, 5.5 A and 132 W. It is designed for intermittent operation, with a maximum of two minutes of operation followed by eighteen minutes of rest.

• Power supply AC 220-240 V, 50/60 Hz
• Motor specifications DC 24 V, 5.5 A, 132 W
• Duty cycle Maximum 2 min on / 18 min off
• Protection rating IPX4
• Electrical classification Type B
• Medical device Class I, in accordance with Regulation (EU) 2017/745
• UDI-DI 06976904610024
• Reference 11003939

Cleaning and maintenance

Disconnect the treatment table from the power supply before cleaning or carrying out maintenance. Clean the upholstery with a soft, well-wrung cloth, warm water and mild detergent. Apply disinfectant to a cloth rather than directly onto the table. A monthly visual inspection of the sections, motor, gas springs, screws, wiring and wheel system is recommended.
