Naggura Rooms IKON Hygiene L hygiene module with stainless steel sink and quartz worktop

IKON Hygiene L hygiene module with stainless steel sink

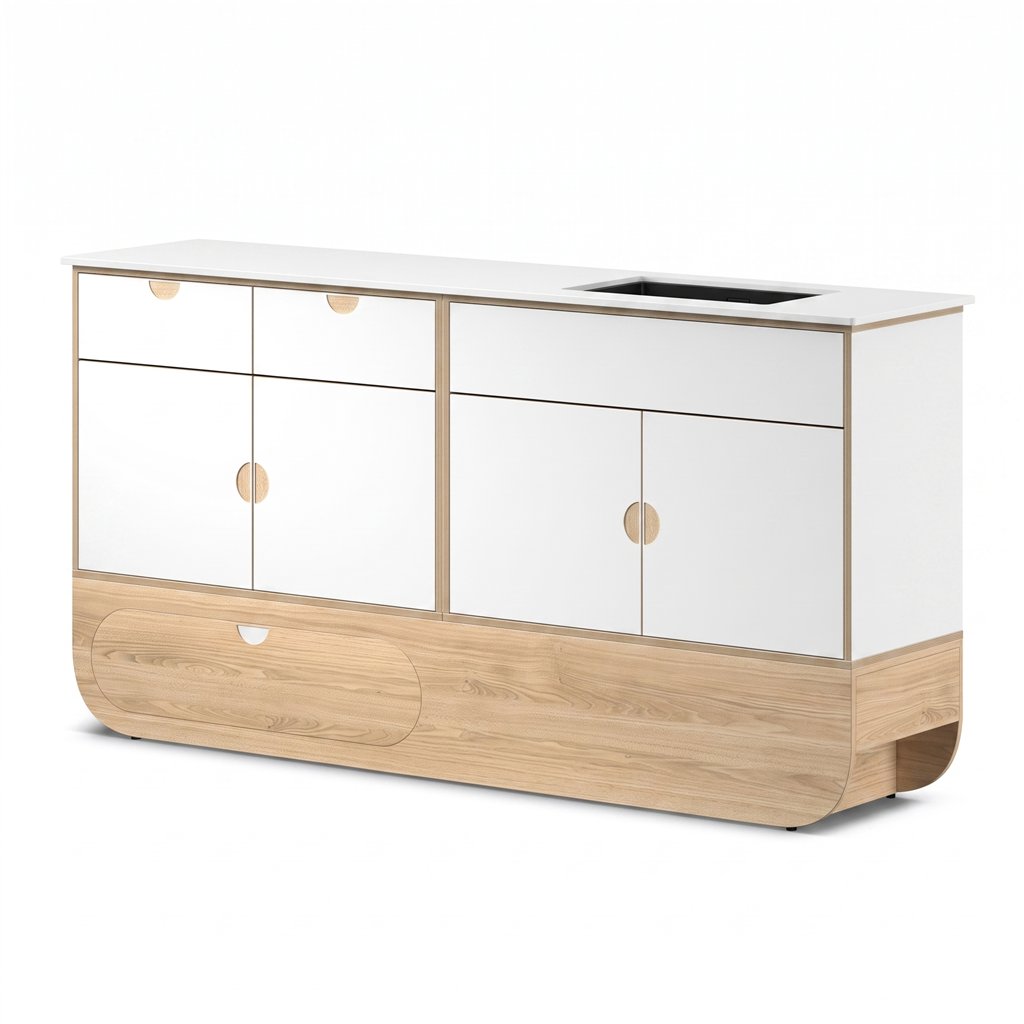

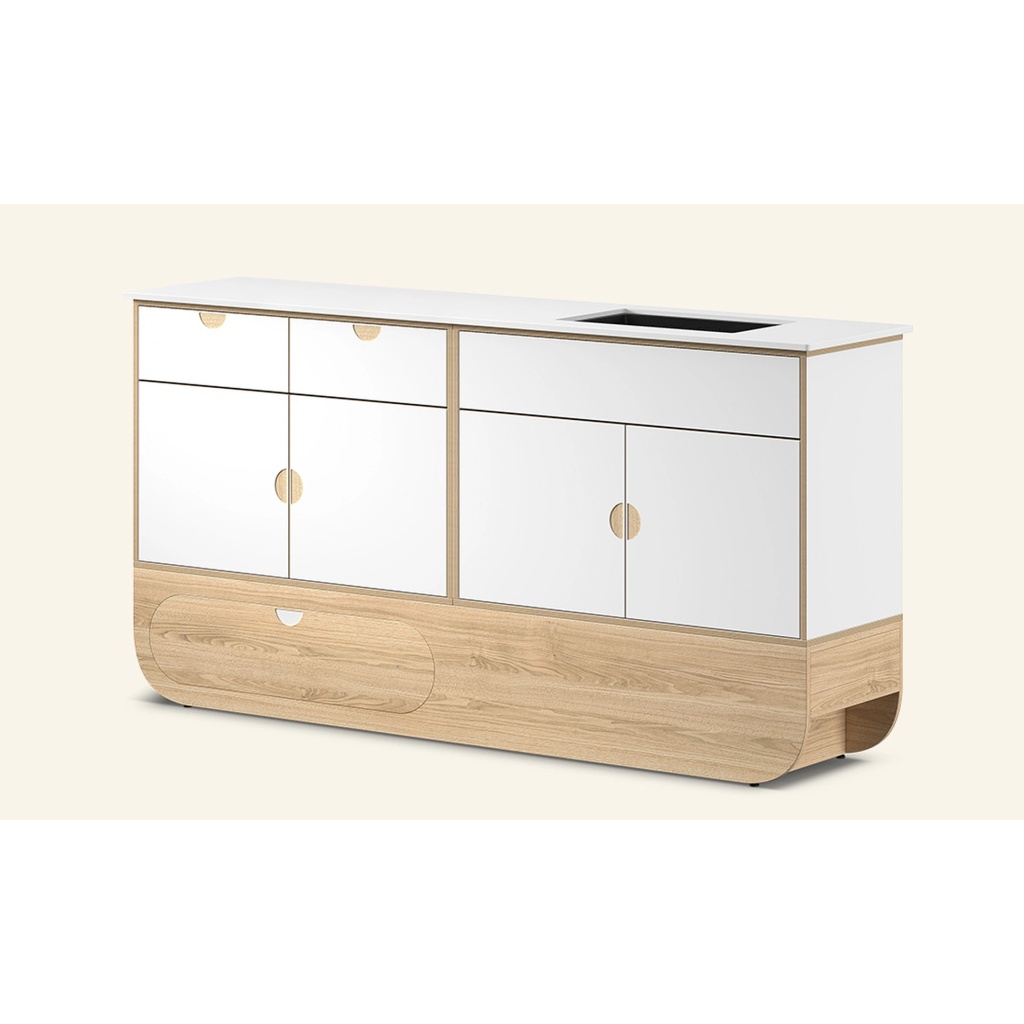

The Naggura Rooms IKON Hygiene L is a hygiene module for creating a water area in professional bathrooms, kitchens or treatment rooms. Its configuration combines a large oak-finish base, two storage units, a quartz worktop and a stainless steel sink.

The unit provides a 184 cm-wide work surface and organised storage through four doors, three drawers and two adjustable internal shelves. It is intended for indoor professional spaces requiring an integrated washing and work area within the furniture.

Configuration and storage

The configuration includes two cabinets: one with 2 doors and 1 internal shelf, and a second with 2 doors, 1 internal shelf and 2 drawers. The base also incorporates a large drawer. A decorative panel for the base drawer is included.

• Doors 4 units
• Door opening Push to Open
• Drawers 3 units: 1 in the base and 2 in the module
• Drawer opening Push to Open
• Drawer closing Soft-close
• Internal shelves 2 adjustable units
• Decorative panel Included

Materials and water area

The structure is made from plywood with a white technical melamine finish. The base has an oak finish, while the unit is completed with quartz and stainless steel. The stainless steel sink includes an overflow, drain and pipes for this configuration.

• Main material Plywood with white technical melamine
• Other materials Quartz and stainless steel
• Base finish Oak
• Worktop Quartz
• Sink Stainless steel
• Stainless steel sink drain Ø32 mm
• Diameters indicated for installation Ø25 mm, Ø44 mm and Ø85 mm
• Wood certification FSC 100%

Dimensions and load capacity

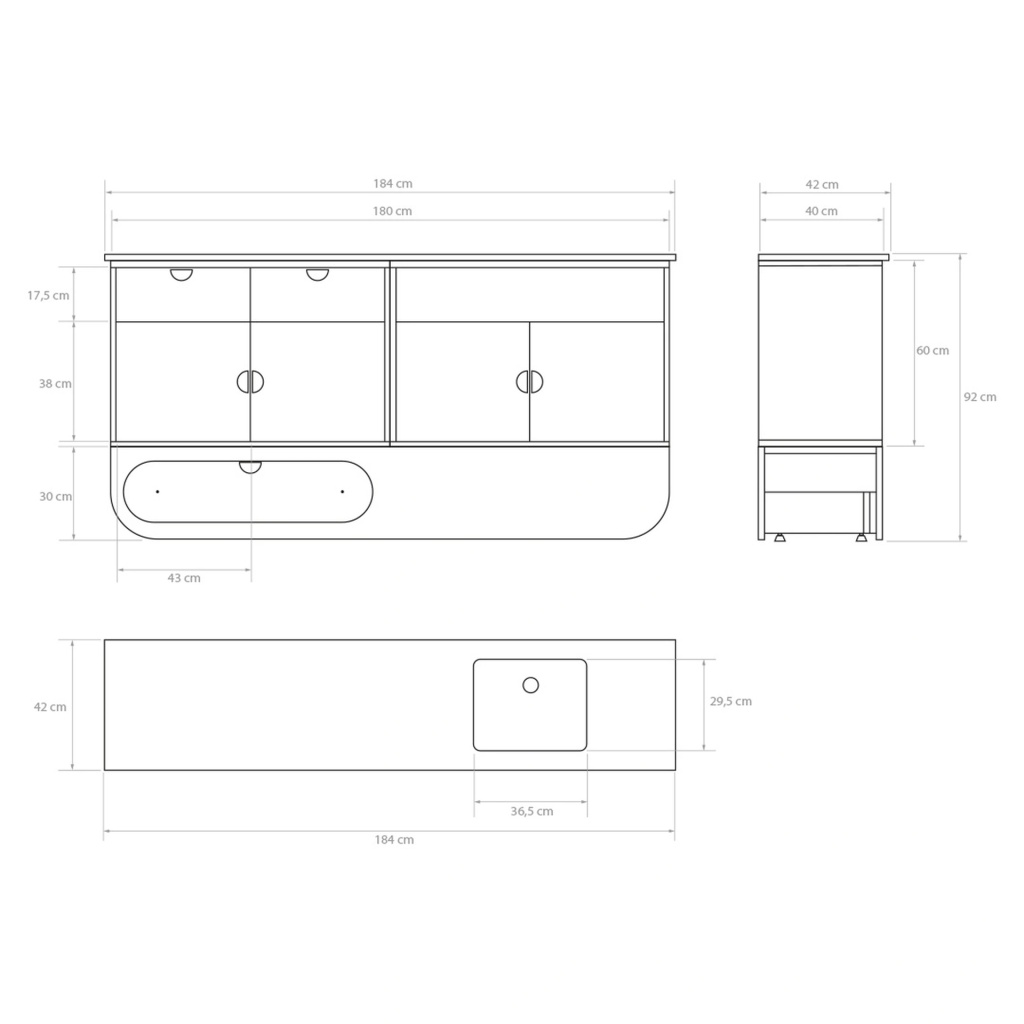

The module measures 184 × 42 × 92 cm. The base and storage elements have separate load capacities for organising professional-use supplies.

• Overall dimensions 184 × 42 × 92 cm
• Product weight 140.2 kg
• Base load capacity 150 kg
• Base drawer load capacity 35 kg
• Module drawer load capacity 25 kg
• Shelf load capacity 25 kg
• Base drawer 20 × 80 × 30 cm
• Module drawers 10 × 37.5 × 32 cm
• Internal shelves 19.5 × 86 × 36 cm
• Wood thickness 1.8 cm

Assembly and installation

Manual assembly is required. The estimated assembly time is approximately 3 hours with 2 people. Assembly on a soft surface is recommended. The worktop and sink are installed by sealing and securing them with silicone; connecting the drain and pipes is part of the water-area installation.

The base features 7 mm self-adjusting metric threaded feet and non-slip rubber pads. To reinforce the connection between the base and the modules, assembly includes M4 × 30 mm screws fitted from the underside of the structure.

• Use Indoor
• Assembly Manual
• Estimated assembly time 3 hours
• Recommended number of people for assembly 2
• Number of packages 5
• Warranty 2 years for professional use
• Reference HYGIENIC.L.INOX.OAK

Package contents

• Package 1 17 × 44 × 188 cm · 40 kg
• Package 2 18 × 66 × 98 cm · 49.3 kg
• Package 3 23 × 51 × 98 cm · 28.7 kg
• Package 4 23 × 42 × 184 cm · 36 kg
• Package 5 30 × 44 × 50 cm · 4.5 kg
