Weelko HIGHTECH AIR WKB001 professional pressotherapy device with touchscreen

Weelko HIGHTECH AIR WKB001 – Professional 10-Channel, 20-Chamber Pressotherapy Machine

Professional 10 channels 20 chambers 4 programmes

The Weelko HIGHTECH AIR WKB001 is a professional pressotherapy machine developed for beauty salons seeking to perform body treatment protocols using sequential pneumatic compression on different areas of the body.

Its system operates through 10 channels and 20 air chambers distributed across the foot, leg, abdomen, waist and arm garments. The professional can select one of four operating programmes, adjust the intensity across three levels and set the session duration using a touchscreen.

In addition to programme-based operation, the HIGHTECH AIR allows specific areas of the suit to be selected and their intensity adjusted, making it easier to adapt the machine to different aesthetic treatment protocols and each client's tolerance.

HIGHTECH AIR WKB001 at a glance

• 10 channels Pneumatic system
• 20 chambers Distributed throughout the full-body set
• 4 programmes Pressotherapy sequences
• 3 levels Inflation intensity
• 0–40 L/min Airflow
• 0–0.4 kg/cm² Air pressure
• 0–15 s Pressure cycle
• 30 minutes Default time
• Touchscreen Digital control
• 50 W Rated power
• 16.5 kg Stated weight
• Full-body suit Feet, legs, waist and arms

Professional 10-channel pressotherapy

The pneumatic system of the Weelko WKB001 uses 10 air channels to control the different areas distributed throughout the full-body suit.

These channels manage the inflation and deflation of the chambers according to the selected programme. The pressure pattern therefore changes depending on the sequence selected from the MODE menu.

• Air channels 10
• Air chambers 20
• Programmes 4
• Intensity levels 3
• Area-specific control Yes

20 air chambers distributed across the body

The full-body set includes a total of 20 pneumatic chambers integrated into the different garments.

The configuration can be used to treat:

• Feet.
• Legs.
• Abdomen.
• Waist.
• Arms.

The professional can use several areas together or select only specific areas according to the treatment room protocol.

4 pressotherapy programmes

The HIGHTECH AIR WKB001 features four operating programmes. Each programme changes the sequence in which the different areas inflate and deflate.

Programme A – Progressive sequence

Programme A begins inflation in area 0 and progresses through to area 9.

When a new area is activated, the previous area deflates. Once the sequence is complete, all areas inflate simultaneously before the sequence begins again.

Programme B – Alternating sequence

Programme B uses an alternating inflation and deflation sequence across the different areas.

The pattern continues until the sequence is complete and ends with simultaneous inflation before a new cycle begins.

Programme C – Progressive cumulative inflation

In Programme C, the areas are progressively added to the inflation process, keeping the previous areas active as the next area begins to inflate.

This produces a cumulative compression pattern until the sequence is complete.

Programme D – Simultaneous treatment of large areas

Programme D simultaneously activates the three main body areas:

• Legs.
• Abdomen and waist.
• Arms.

The sequence progresses from the distal areas towards the upper areas according to the machine's programming.

Comparison of the 4 programmes

• Programme A Progressive area-by-area sequence
• Programme B Alternating sequence
• Programme C Progressive cumulative inflation
• Programme D Simultaneous treatment of large areas

3 intensity levels

In addition to the programme, the machine allows users to select from three inflation intensity levels.

The setting should be adjusted progressively to suit the client's sensitivity and tolerance.

• Available levels 3
• Selection Via LEVEL
• Adjustment According to protocol and tolerance

Independent area treatment

The WKB001 does not require a full-body programme to be used for every session. The interface can be used to select specific areas of the suit and configure its operation according to the areas being treated.

• Individual area selection.
• Activation of only the required areas.
• Inflation level adjustment.
• Protocol adaptation according to the body area.

Touchscreen session control

The main unit features a touchscreen providing access to the machine's main functions.

The professional can manage:

• Programme selection via MODE.
• Level adjustment via LEVEL.
• Time setting via TIME.
• Area selection.
• Session start.
• Operation pause.

30-minute default setting

The machine has a default time of 30 minutes, although the duration can be configured via the screen.

• Default time 30 minutes
• Adjustable time Yes
• Control Via TIME

The final duration should be set according to the protocol performed and the conditions of each session.

Airflow of up to 40 L/min

The pneumatic system has a stated airflow range of 0 to 40 litres per minute.

• Airflow 0–40 L/min
• Air pressure 0–0.4 kg/cm²
• Pressure cycle 0–15 s

Air pressure up to 0.4 kg/cm²

The stated maximum system pressure is 0.4 kg/cm².

The operating setting should always be selected according to the programme used and the client's tolerance.

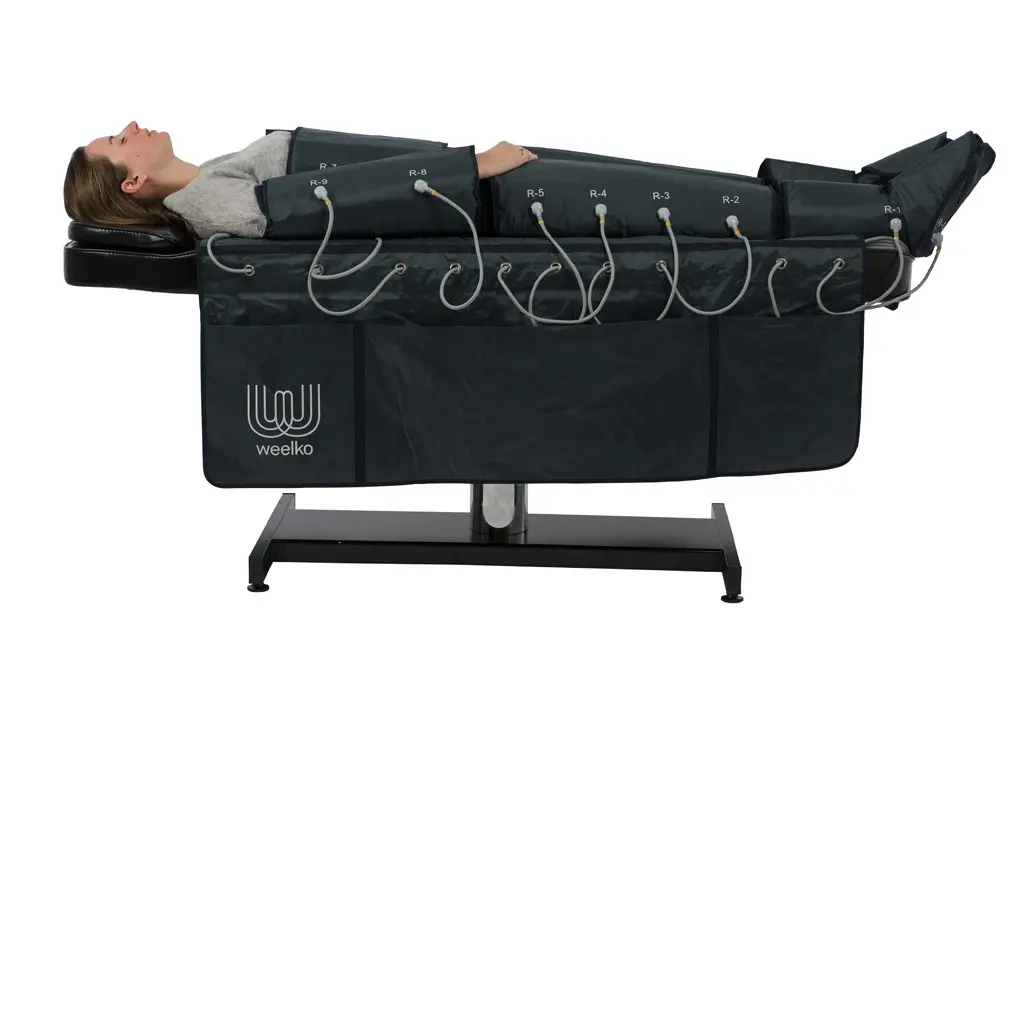

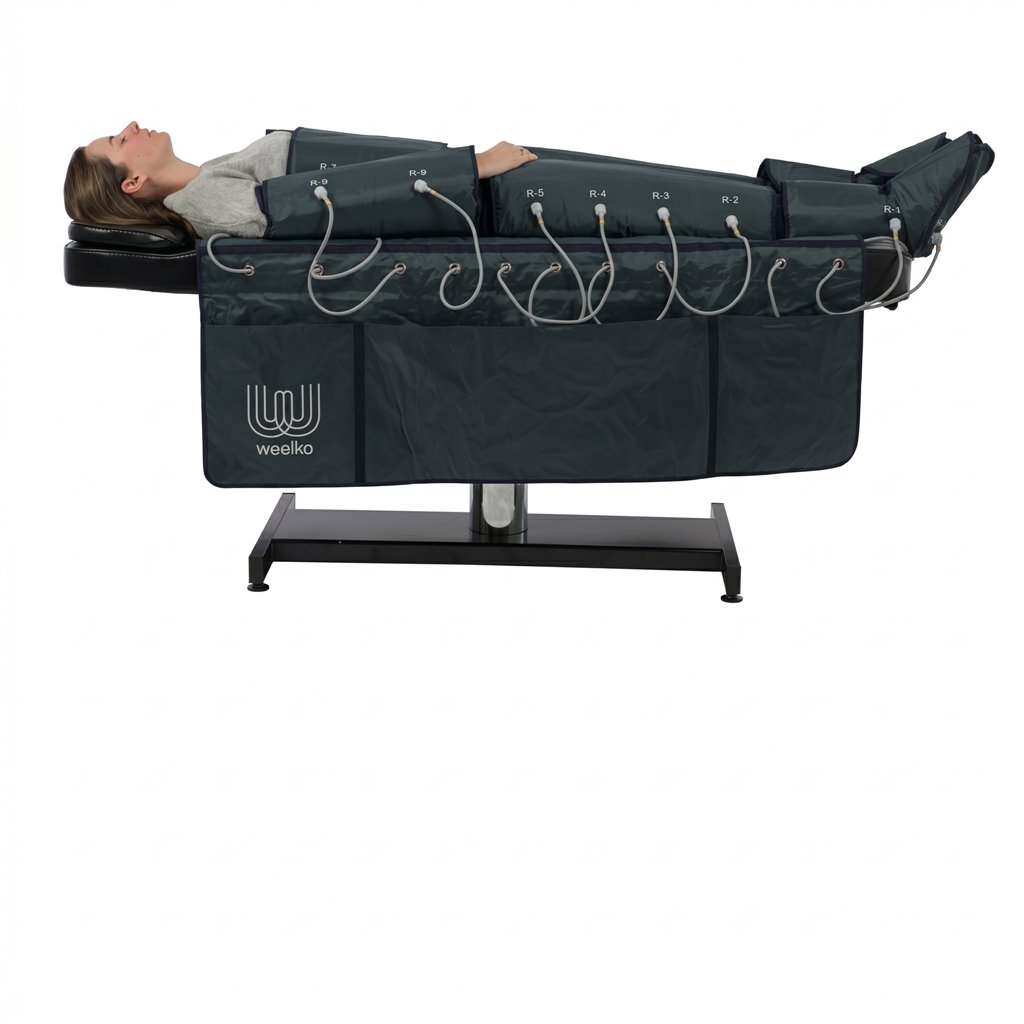

Full-body suit

The HIGHTECH AIR is supplied with a set of garments designed to cover the main body areas used in professional pressotherapy protocols.

• Right foot.
• Left foot.
• Right leg.
• Left leg.
• Right arm.
• Left arm.
• Abdomen and waist.

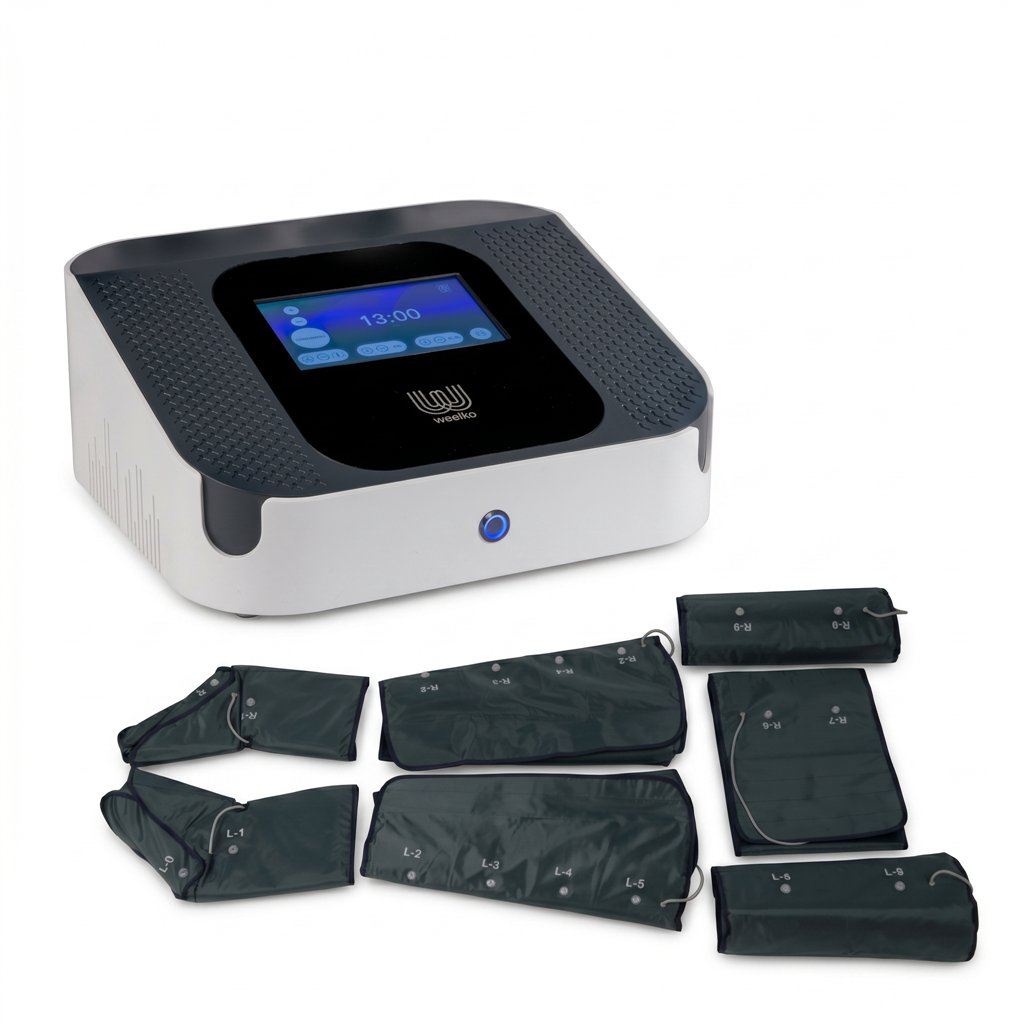

What is included with the Weelko WKB001

• 1 main unit.
• 1 right leg garment.
• 1 left leg garment.
• 1 right arm garment.
• 1 left arm garment.
• 1 right foot garment.
• 1 left foot garment.
• 1 abdomen and waist belt.
• 1 mat for organising and storing cables.
• 1 set of tubes.
• 1 power cable.

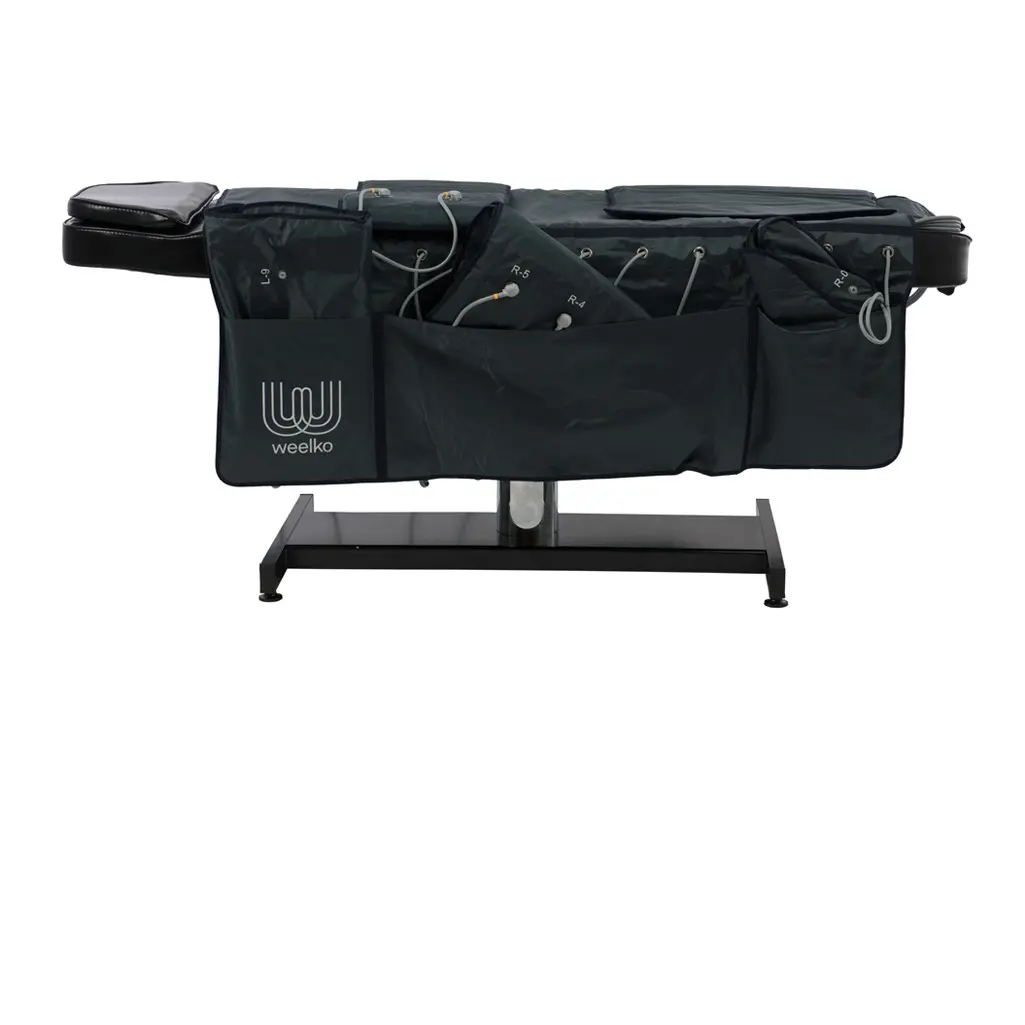

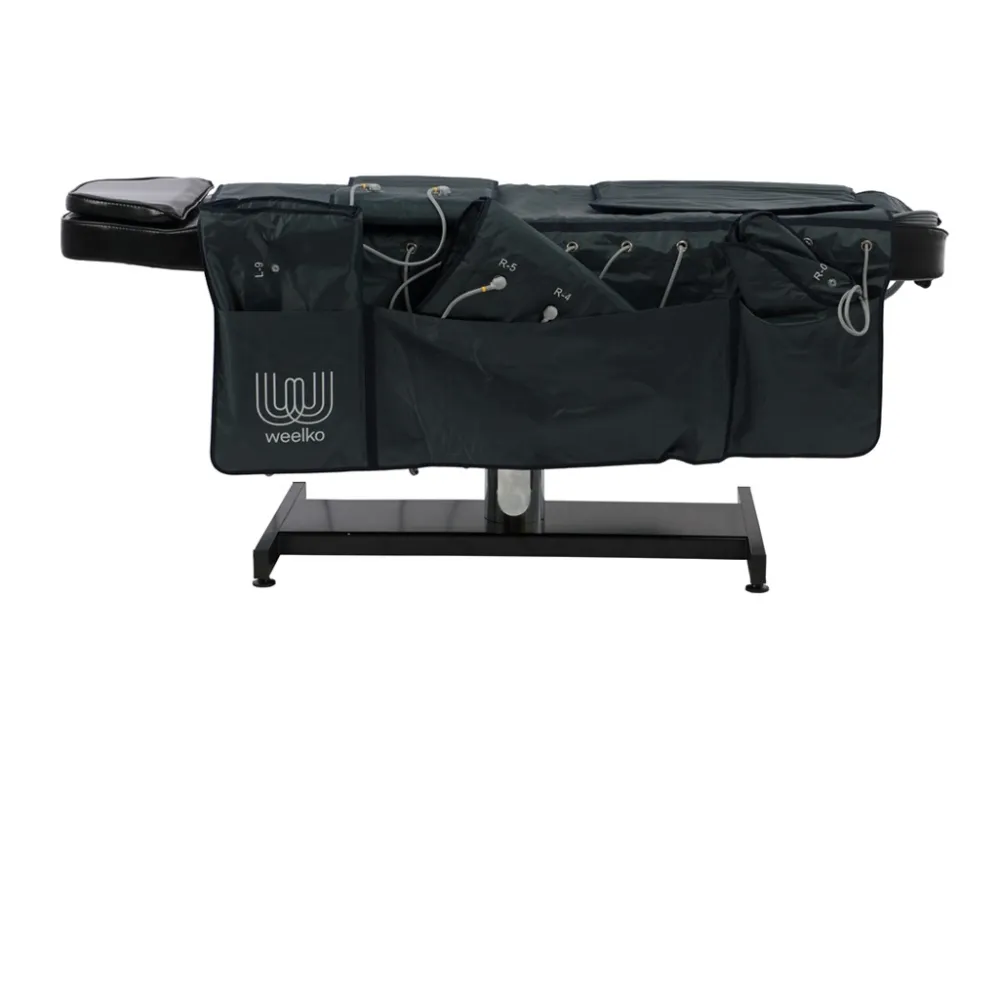

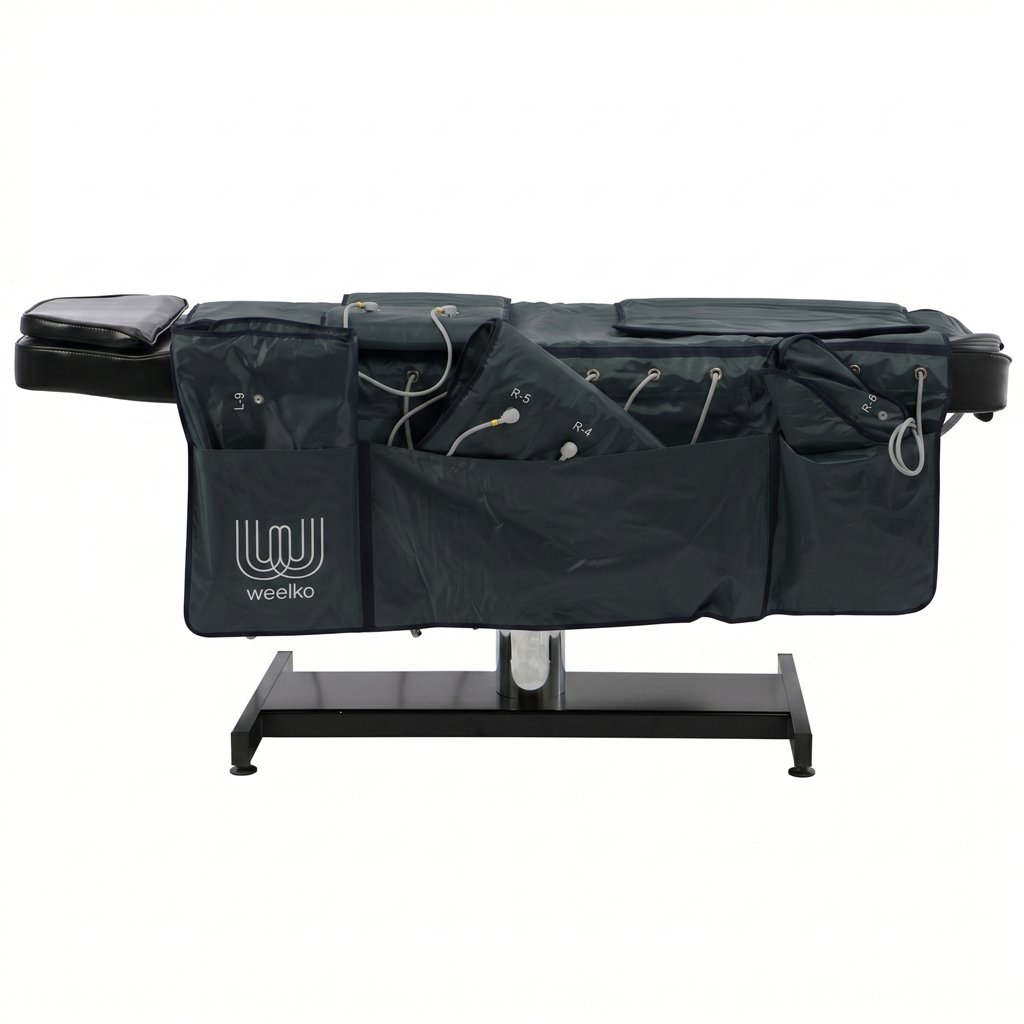

135 × 172 cm mat for organising cables

The set includes a mat designed to keep the cabling organised and make treatment room preparation easier.

Its stated dimensions are approximately 135 × 172 cm.

Approximate garment measurements

• Long upper section Approximately 60 cm
• Short upper section Approximately 45 cm
• Central panel Approximately 33 cm
• Central panel height Approximately 31.5 / 58 cm
• Long lower section Approximately 58.5 cm
• Foot section Approximately 40 cm
• Foot width Approximately 30 cm
• Foot height Approximately 26 cm

50 W rated power

The HIGHTECH AIR WKB001 operates at a rated power of 50 W.

• Operating power 50 W
• Rated power 50 W
• Rated voltage 220–240 V
• Frequency 50 / 60 Hz

Dimensions and weight

• Console dimensions 34 × 38 × 15 cm
• Stated weight 16.5 kg
• Mat dimensions 135 × 172 cm
• Gross weight 18.5 kg
• Stated packaging dimensions 66 × 46 × 38 cm
• Packaging dimensions according to another technical reference 66 × 45 × 40 cm

Complete technical specifications

• Brand Weelko
• Range HIGHTECH AIR
• Model WKB001
• Equipment type Professional pressotherapy machine
• Use Professional
• Control Touchscreen
• Programmes 4
• Intensity levels 3
• Air channels 10
• Air chambers 20
• Airflow 0–40 L/min
• Air pressure 0–0.4 kg/cm²
• Pressure cycle 0–15 s
• Default time 30 minutes
• Adjustable time Yes
• Operating power 50 W
• Rated power 50 W
• Rated voltage 220–240 V
• Frequency 50 / 60 Hz
• Weight 16.5 kg
• Console dimensions 34 × 38 × 15 cm
• Mat dimensions 135 × 172 cm
• Gross weight 18.5 kg
• Packaging 66 × 46 × 38 cm
• Alternative packaging reference 66 × 45 × 40 cm
• Cable mat Included

HIGHTECH AIR WKB001 compared with a thermotherapy machine

The HIGHTECH AIR WKB001 is a pressotherapy machine dedicated exclusively to pneumatic compression.

This distinguishes it from systems that also include heating or thermotherapy. Its configuration focuses on providing control over:

• Pressure sequence.
• Intensity.
• Time.
• Body areas.

For beauty salons specifically seeking pressotherapy without adding heat to their protocols, the WKB001 provides a configuration focused on pneumatic treatment.

Applications in professional beauty treatments

The WKB001 can be integrated into professional protocols focused on:

• Body wellness.
• Comfort during the session.
• Cosmetic body care.
• Aesthetic leg treatments.
• Abdomen and waist protocols.
• Aesthetic arm treatments.
• Protocols designed to improve the visible appearance of the skin.
• Professional sequential pneumatic compression sessions.

How to prepare a session

1. Place the mat and connections on a suitable surface.
2. Protect the surface with disposable hygiene material.
3. Select the required garments.
4. Check that the tubes are connected correctly.
5. Place suitable hygienic protection over the client.
6. Adjust the garments without applying excessive compression to the body.
7. Connect the power cable.
8. Switch on the unit.
9. Access the touchscreen menu.
10. Select the programme using MODE.
11. Adjust the intensity using LEVEL.
12. Select the time using TIME.
13. Check the client's comfort.
14. Press PLAY/PAUSE to begin.

Treatment using independent areas

When a full programme is not required, specific areas can be selected directly from the screen.

1. Select the desired area.
2. Check that the corresponding garment is connected.
3. Set the inflation level.
4. Select the time.
5. Check that the garment is positioned correctly on the client.
6. Start operation.

Supervision during the session

Professional use of pressotherapy requires the machine's operation and the client's comfort to be supervised.

• Check that the garments are not excessively tight.
• Ensure that the pressure feels comfortable.
• Check that all tubes remain correctly connected.
• Monitor for any unusual discomfort.
• Adjust the intensity when necessary.
• Pause operation if any issue occurs.

Hygiene between clients

The full-body set is reusable, so an appropriate hygiene procedure must be followed after every session.

We recommend using suitable disposable leg liners, disposable garments or cellulose protective covers between the skin and the suit.

Cleaning and maintenance

• Switch off the machine after each use.
• Connect and disconnect the tubes carefully.
• Do not pull directly on the hoses.
• Clean the garments with a damp cloth after each session.
• Do not immerse the main unit in water.
• Do not open or inspect internal components.
• Do not use the machine in damp environments.
• Do not use the machine outdoors.
• Keep the connections properly organised.
• Check the condition of the power cable regularly.

Precautions for use

• Do not fasten the garments too tightly around the body.
• Check all connections before starting.
• Begin at a moderate intensity.
• Do not select a pressure level that causes pain or discomfort.
• Supervise the client while the machine is operating.
• Use suitable hygienic protection under the garments.
• Do not use the machine if the power cable is damaged.
• Do not use in damp environments or outdoors.

Compliance and directives

• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility 2014/30/EU

Contraindications and exclusions for use

• Pregnancy.
• Pacemakers.
• Other cardiac rhythm management devices where incompatibility exists.
• Epilepsy.
• Active skin infections.
• Situations in which the application of pressure is contraindicated.

For professional use only

The Weelko HIGHTECH AIR WKB001 is intended for beauty salons and other professional establishments.

The operator must have a proper understanding of:

• How to fit the suit.
• How to connect the hoses.
• The four available programmes.
• Intensity adjustment.
• Independent area selection.
• Contraindications.
• Cleaning procedures.
• Safety measures.

Exclusively for aesthetic purposes

Why choose the Weelko HIGHTECH AIR WKB001?

• Professional pressotherapy dedicated exclusively to pneumatic compression.
• 10 air channels.
• 20 chambers distributed throughout the full-body set.
• 4 programmes with different sequences.
• 3 intensity levels.
• Independent area selection.
• Touchscreen.
• Full suit for the feet, legs, waist and arms.
• Mat for organising the connections.
• 50 W rated power.

HIGHTECH AIR WKB001 at a glance

Frequently asked questions about the Weelko HIGHTECH AIR WKB001

How many channels does it have?

The HIGHTECH AIR WKB001 features 10 air channels.

How many chambers does it include?

The set features 20 pneumatic chambers.

How many programmes does it have?

It features 4 programmes: A, B, C and D.

Which programme does Weelko recommend for getting started?

The manufacturer recommends beginning with Programme C and then making any necessary adjustments.

How many intensity levels does it have?

It features 3 intensity levels.

Can individual areas be treated?

Yes. The screen allows specific areas to be selected without always having to use a full-body programme.

Which areas does the suit include?

It includes accessories for the feet, legs, abdomen, waist and arms.

Does it have a touchscreen?

Yes. Programmes, intensity, time and areas are managed via a touchscreen.

What is the default time?

The stated default setting is 30 minutes.

Can the time be adjusted?

Yes. The duration can be adjusted using the TIME control.

What is the stated maximum pressure?

The documentation specifies up to 0.4 kg/cm².

What is the airflow?

The stated range is 0 to 40 L/min.

What is its power rating?

The rated power is 50 W.

How much does it weigh?

The stated weight of the machine is 16.5 kg, with a gross weight of approximately 18.5 kg.

Does it include a cable mat?

Yes. It includes a mat measuring approximately 135 × 172 cm for organising the connections.

Is it professional equipment?

Yes. It is intended for beauty salons and professional use.

Can it be used during pregnancy?

No. Pregnancy is listed among the stated exclusions for use.

Can it be used by people with pacemakers?

It must not be used by people with pacemakers or other incompatible cardiac rhythm management devices.

Is this an infrared pressotherapy machine?

No. The WKB001 HIGHTECH AIR is a pneumatic pressotherapy machine. The thermotherapy function is included in other models in the range, such as the HIGHTECH SAUNA AIR.

Can it be used to treat lymphoedema or circulatory diseases?

It must not be presented or used as a treatment for lymphoedema, circulatory diseases, lymphatic disorders or other medical conditions. It is intended for aesthetic and wellness purposes.

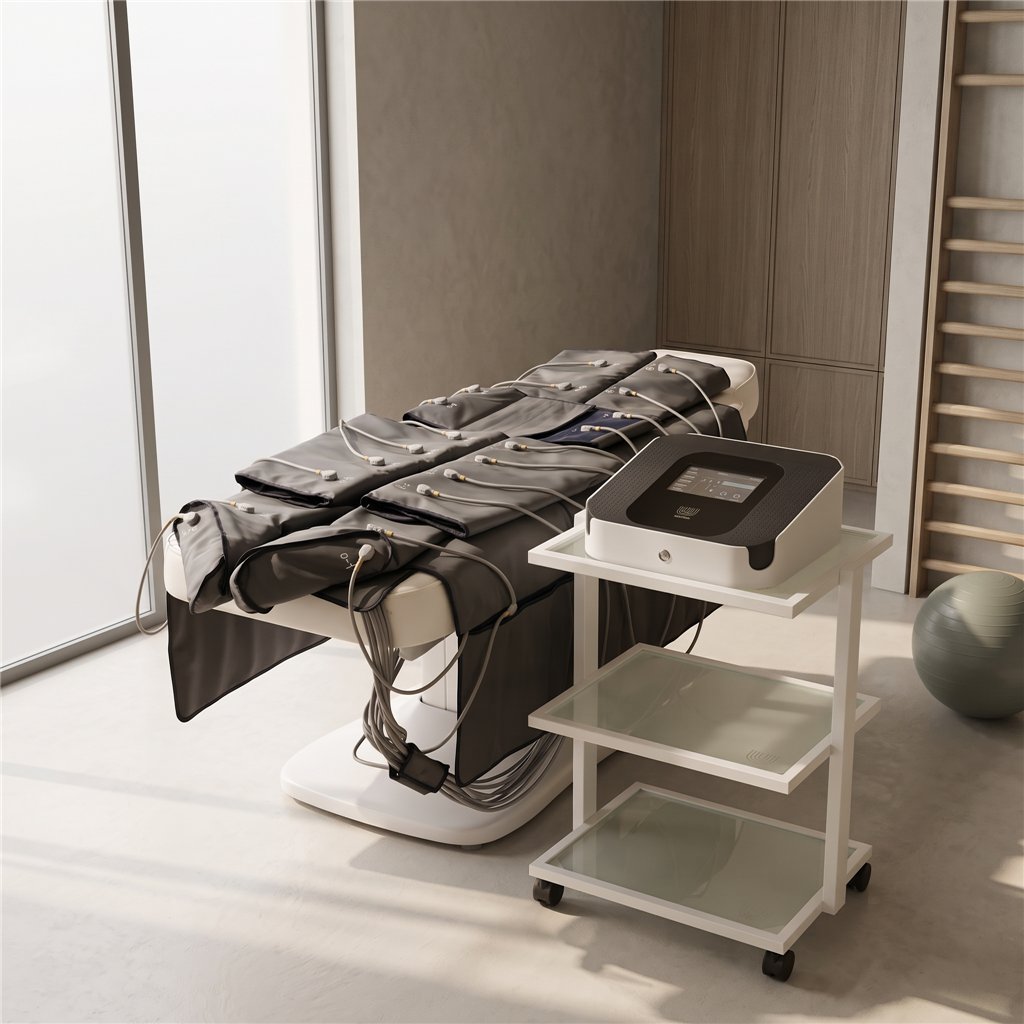

Weelko HIGHTECH AIR WKB001: professional pressotherapy with touchscreen control

The Weelko HIGHTECH AIR WKB001 combines a 10-channel, 20-chamber pneumatic system with four programmes, three intensity levels and independent area selection.

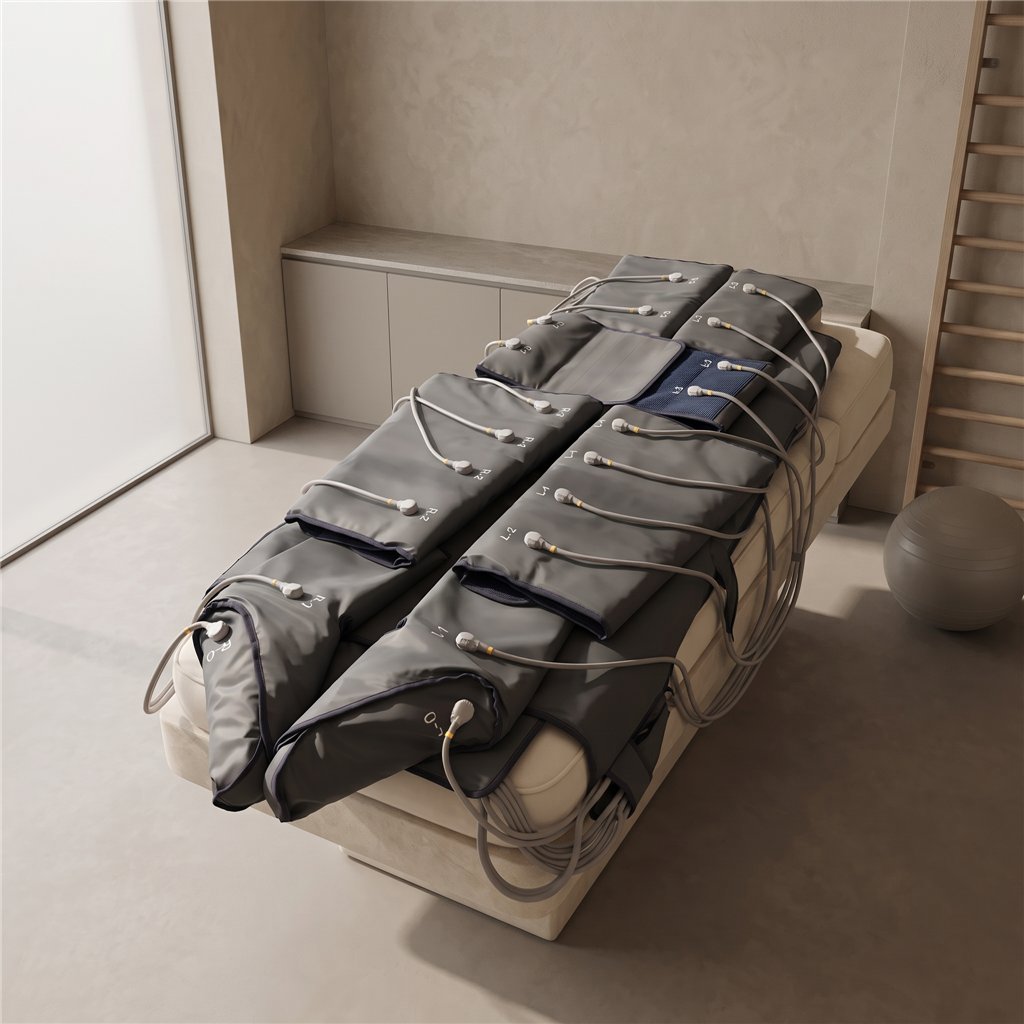

Its complete suit allows the feet, legs, abdomen, waist and arms to be treated, while the touchscreen makes it easy to manage the programme, intensity and duration from a single interface.

With a rated power of 50 W, the WKB001 focuses exclusively on pressotherapy, making it a particularly attractive option for beauty salons seeking a professional pneumatic compression system without thermotherapy.
