I-Medstetic Digital 3-in-1 pressotherapy

Premium Digital 3-in-1 Pressotherapy Machine with Infrared Sauna and EMS Electrical Muscle Stimulation

Professional CE Marked 3-in-1 20 chambers

The Premium Digital 3-in-1 Pressotherapy Machine is a professional body treatment machine combining pneumatic compression pressotherapy, infrared sauna and EMS electrical muscle stimulation in a single digital platform.

Its configuration is specifically designed for beauty salons seeking to provide comprehensive body treatment protocols combining pressure, heat and aesthetic muscle stimulation, with the option to use each technology individually or together, depending on the selected protocol.

The machine includes a modular suit comprising separate sections for the arms, abdomen, legs and feet. This configuration allows only the required sections to be fitted for each session, simplifying treatment room preparation and avoiding the use of garments that are not required for the protocol.

The entire system is controlled from a digital touchscreen, where operating modes, time, pressure, temperature and EMS intensity can be selected.

20 chambers 4 pressotherapy modes 10 EMS electrodes Touchscreen

Premium Digital at a glance

• 3 technologies Pressotherapy + infrared sauna + EMS
• 20 chambers Pressotherapy system
• 4 modes Pressotherapy programmes
• 4 EMS modes 10 / 20 / 30 / 40 Hz
• 10 electrodes EMS electrical muscle stimulation
• Modular suit Arms, abdomen, legs and feet
• Display Digital touchscreen
• 350 W Power
• 50 / 60 Hz Electrical frequency
• CE marked EMC + LVD + RoHS

Pressotherapy, infrared heat and EMS in one session

One of the main advantages of this machine is the ability to use three different body treatment technologies without requiring three separate units.

The professional operator can select the required functions according to the protocol:

• Pressotherapy Compression using air chambers
• Infrared sauna Application of dry radiant heat
• EMS Low-frequency aesthetic electrical muscle stimulation

The functions can be used individually or combined when permitted by the configuration and professional treatment protocol.

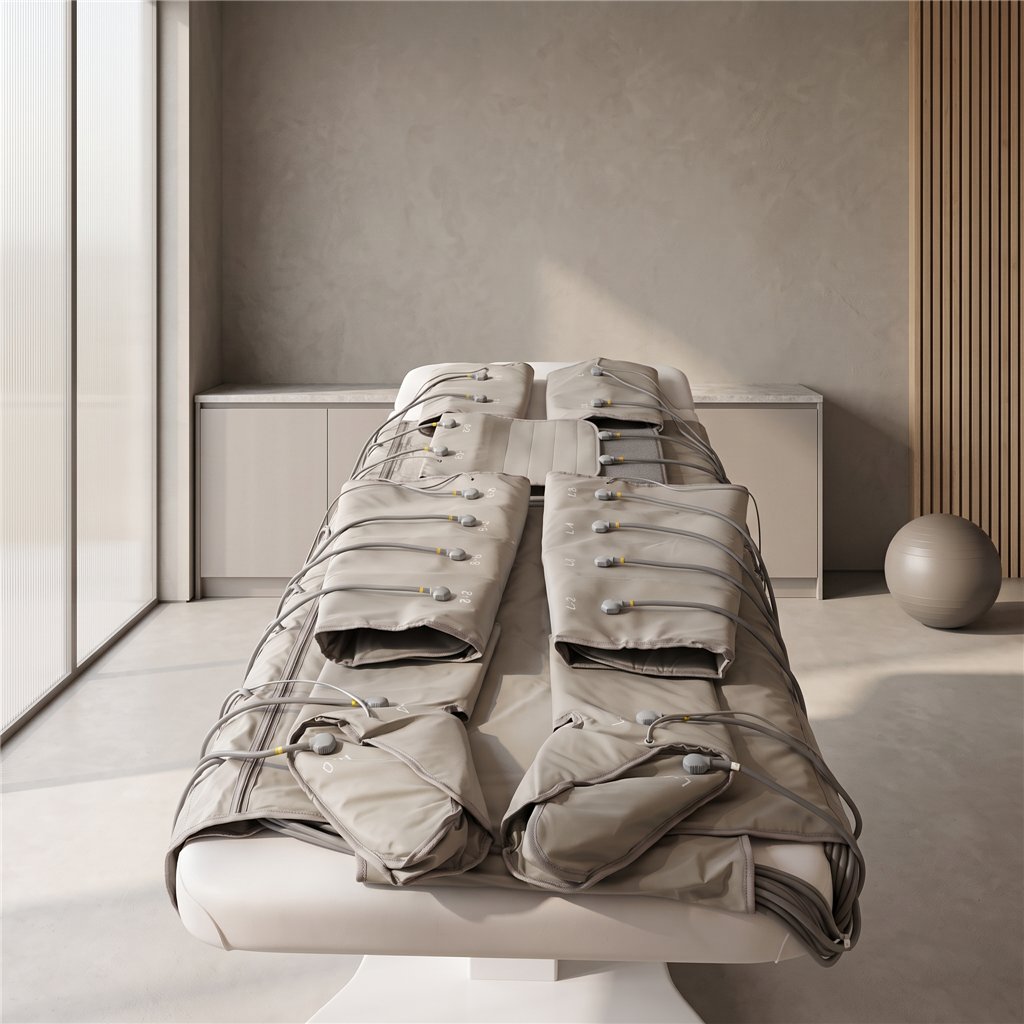

Modular suit: use only the required treatment areas

Unlike one-piece body treatment systems, this Premium Digital Pressotherapy Machine uses a modular set comprising separate accessories.

The professional operator can prepare only the required areas, facilitating comprehensive or targeted body treatment protocols.

• Arms 2 separate sections
• Abdomen 1 abdominal belt
• Legs 2 separate sections
• Feet 2 separate sections

Why is a modular suit practical?

The modular system offers several advantages for daily treatment room use:

• Only the required treatment areas need to be used.
• Facilitates progressive fitting of the suit.
• Simplifies assembly and removal.
• Allows accessories to be organised more effectively.
• Provides easy access to each section during cleaning.
• Allows the set to be adapted to different body treatment protocols.

Canvas-style plastic material

The suit garments are manufactured from a canvas-style plastic material, selected to combine flexibility, durability and ease of maintenance for routine treatment room use.

The organiser pouch used for the cable and tube system is made from the same type of material.

• Suit material Canvas-style plastic
• Organiser pouch material Canvas-style plastic
• Configuration Modular
• Cleaning Accessible surfaces between sessions

Professional 20-chamber pressotherapy

The pressotherapy function uses 20 air chambers distributed across the different body sections.

The system delivers air in a controlled manner, generating different compression patterns according to the mode selected on the display.

The modular configuration allows sessions to be performed on several body areas or with only selected sections.

• Number of chambers 20
• Pressotherapy modes 4
• Areas Arms, abdomen, legs and feet
• Control Digital
• Operation Inflation and deflation cycles

4 pressotherapy modes

The system includes four pneumatic operating modes with different compression patterns.

Mode A – Gentle massage and warm-up

A configuration intended to begin the protocol with more gradual, lower-intensity operation.

Mode B – Deep massage

Mode B uses a different operating configuration designed to provide a more pronounced compression sensation.

Mode C – Targeted intensive treatment

Mode C is configured for higher-intensity operation and is specifically associated in the machine documentation with the abdomen and thighs.

Mode D – Relaxation

A programme configured to deliver a comfort-focused sequence within aesthetic body treatment and wellness protocols.

Quick comparison of the 4 modes

• Mode A Gentle massage and preparation
• Mode B Higher-intensity massage
• Mode C Targeted treatment of the abdomen and thighs
• Mode D Relaxation and comfort

Pressure selection via the digital system

The machine documentation identifies different pressure levels for adapting pressotherapy operation.

• Specified values 20 / 80 / 120 mmHg
• Specified values in bar 0.10 / 0.22 / 0.32 bar
• Control Via the digital interface

Infrared sauna integrated into the suit

The machine's second technology is the infrared sauna, integrated into the modular set to provide dry radiant heat to the selected areas.

It can be used independently or as a thermal addition to protocols combining other machine functions.

Heat application must always remain within an aesthetic approach focused on thermal comfort and body wellness.

Temperature control by area

The touchscreen interface allows thermal operation to be managed according to the activated areas.

This makes it easier to adapt heat to the body areas being treated without having to use every section simultaneously.

• Thermal technology Infrared
• Heat type Dry radiant heat
• Configuration By active area
• Control Digital touchscreen
• Timer Configurable from the display

Low-frequency EMS electrical muscle stimulation

The EMS electrical muscle stimulation function uses low-frequency electrical impulses applied through electrodes to selected muscle areas.

The machine includes 10 electrodes or pads and allows different frequencies to be selected from its digital interface.

4 EMS frequencies: 10, 20, 30 and 40 Hz

The system features four EMS modes with different frequencies.

• Mode A 10 Hz
• Mode B 20 Hz
• Mode C 30 Hz
• Mode D 40 Hz

This allows the electrical muscle stimulation pattern to be adjusted by selecting different operating frequencies directly from the machine.

EMS at 10 Hz – Mode A

Mode A operates at a frequency of 10 Hz, the lowest of the four available frequency settings.

EMS at 20 Hz – Mode B

Mode B increases the frequency to 20 Hz, providing a different stimulation pattern from the previous setting.

EMS at 30 Hz – Mode C

The third programme operates at 30 Hz.

EMS at 40 Hz – Mode D

Mode D reaches a frequency of 40 Hz, the highest of the four specified modes.

Conductive gel for electrical muscle stimulation

To use the EMS function, applying conductive gel between the electrodes and the skin is recommended.

The gel promotes consistent electrical contact and must be applied in accordance with the electrode operating recommendations.

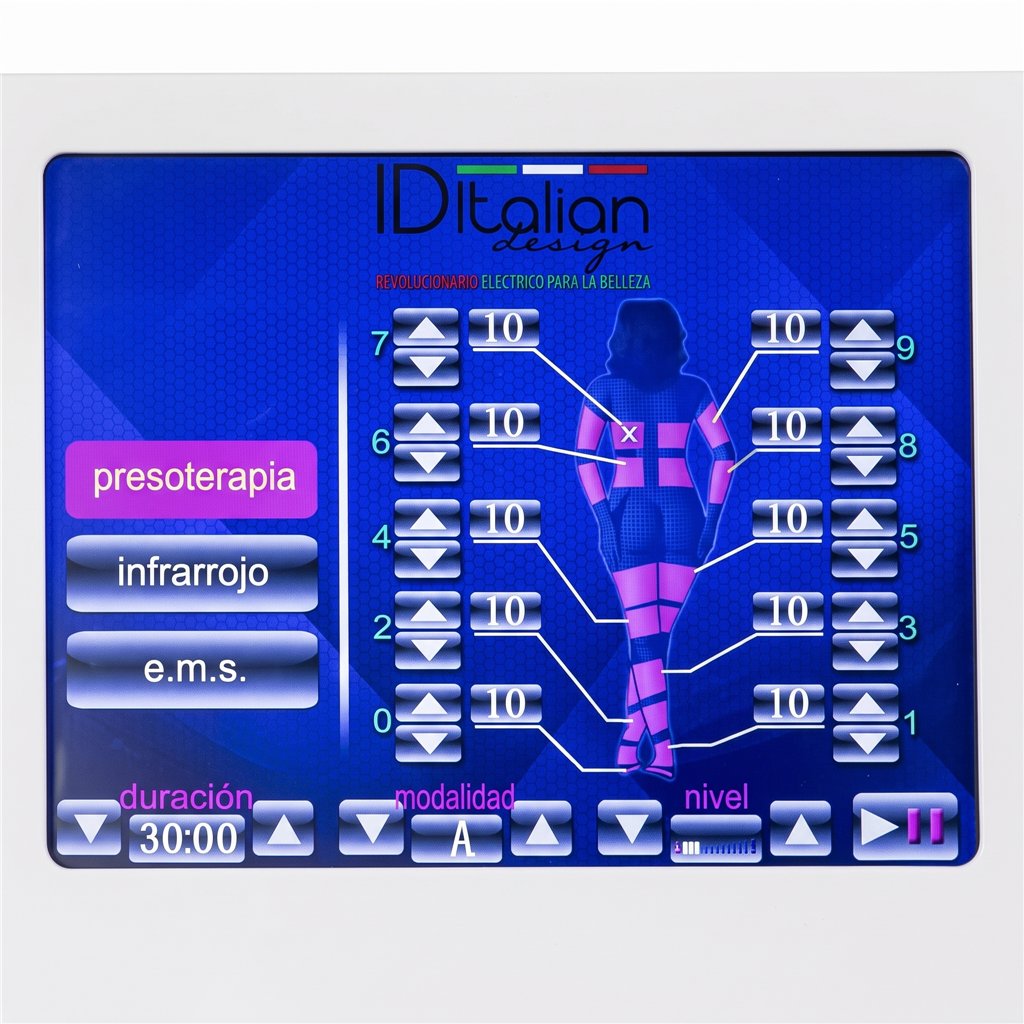

Digital touchscreen

All three technologies are managed from a digital touchscreen interface that centralises the machine's main parameters.

The display can be used to manage:

• Function selection.
• Operating time.
• Pressotherapy programme.
• Pressure intensity.
• Thermal area control.
• Infrared temperature.
• EMS mode.
• EMS output intensity.
• Start operation.
• Pause the session.

Full-body or targeted treatment

Thanks to its modular suit and separate electrodes, the machine allows different body treatment configurations to be prepared.

It can be used on:

• Arms.
• Abdomen.
• Waist.
• Buttocks through correct EMS placement.
• Thighs.
• Legs.
• Feet.
• Targeted muscle areas using EMS.

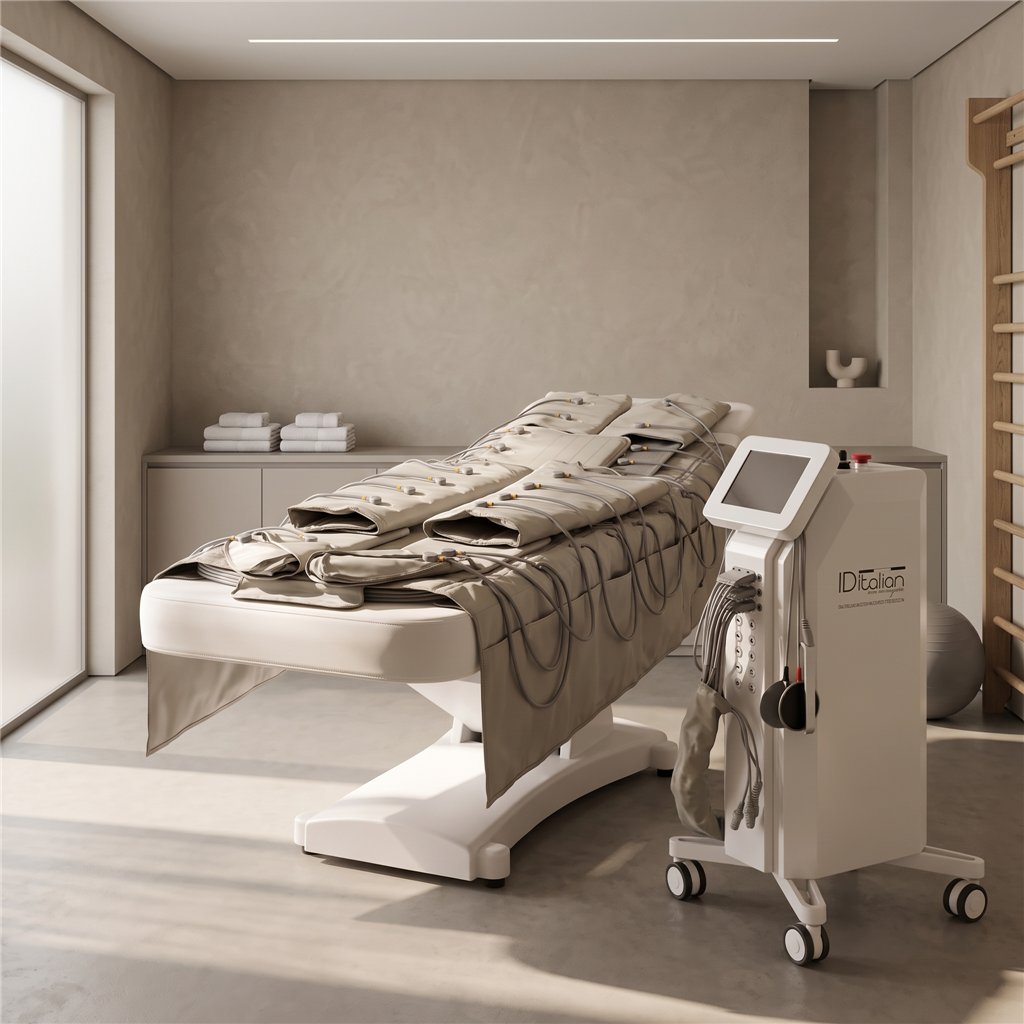

A system designed for professional treatment rooms

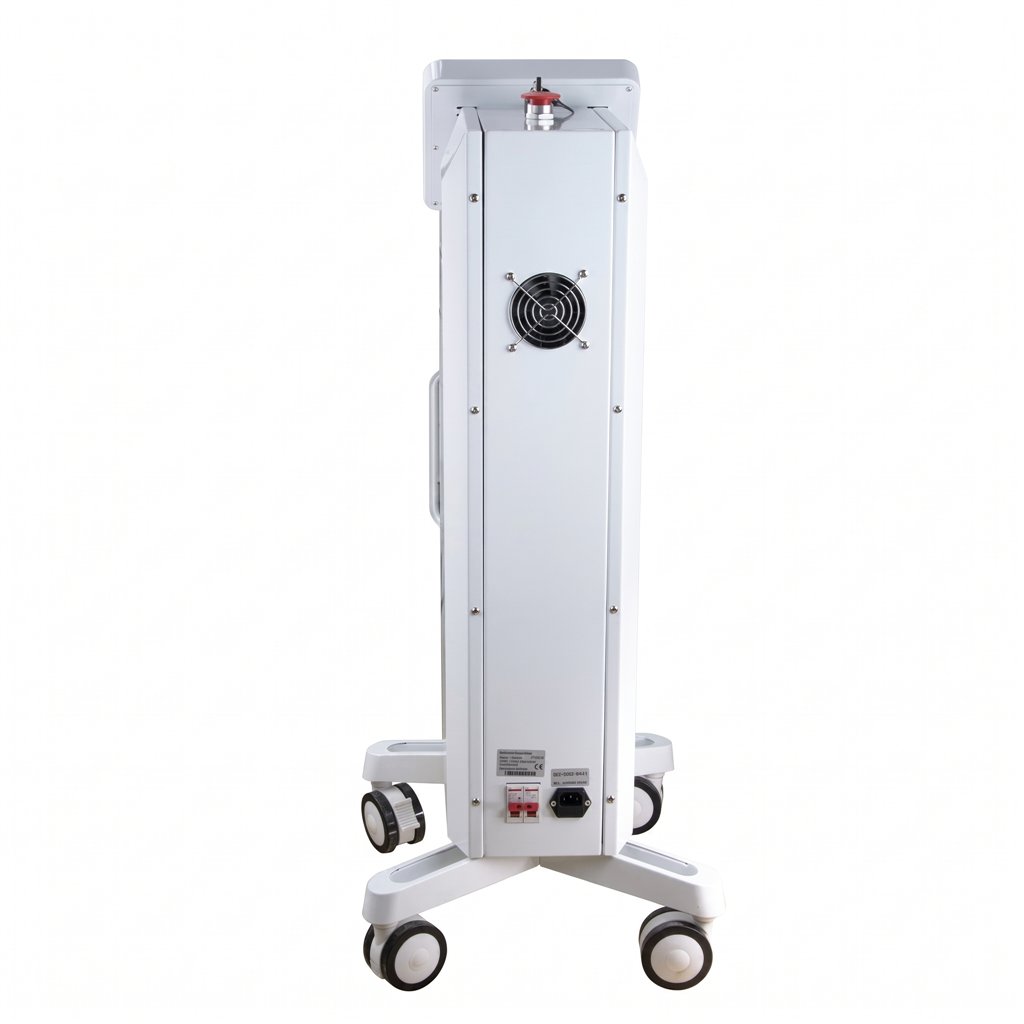

The machine's vertical format houses the electronics and controls in a structure designed for use in beauty salons.

The addition of castors makes it easier to move the unit when it is used in different treatment rooms or needs to be temporarily removed from the treatment area.

Organiser pouch for tubes and cables

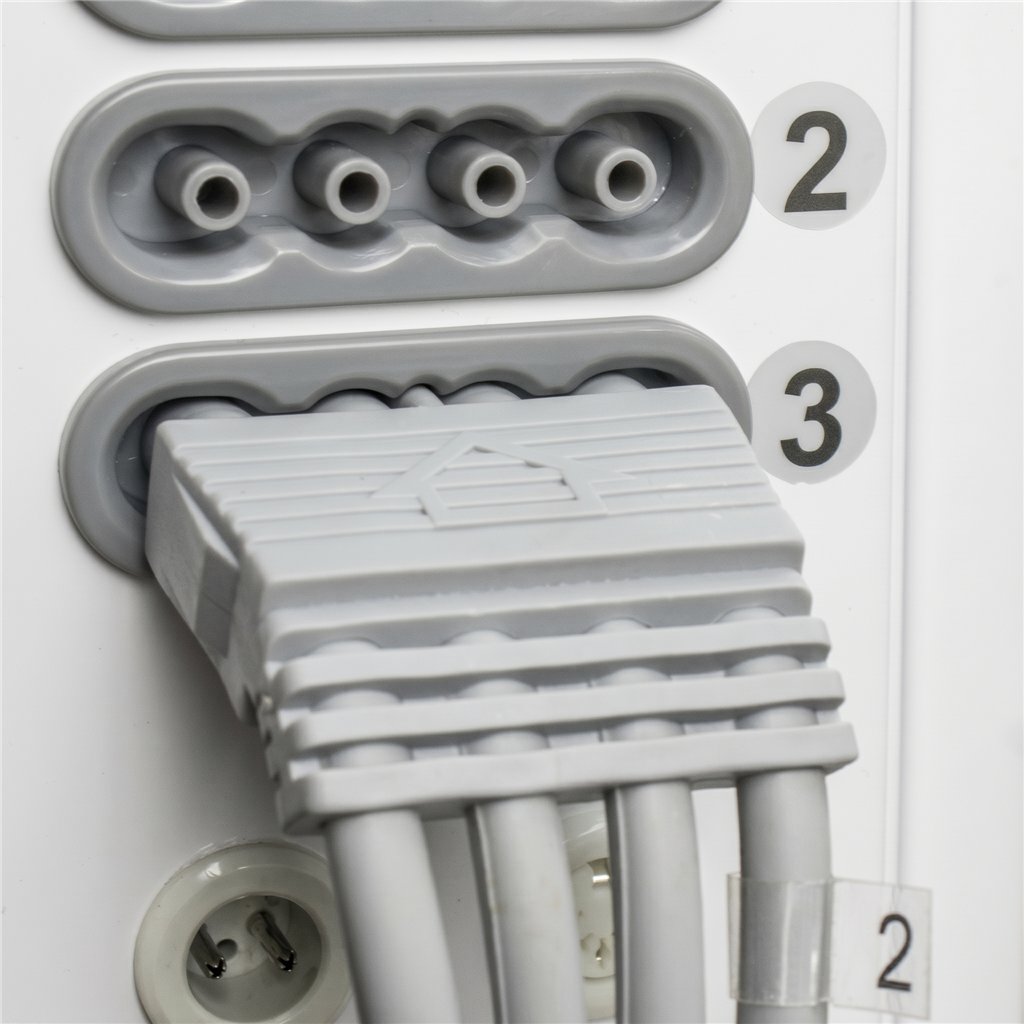

The large number of connections required to combine pressotherapy, infrared heat and EMS makes organised cabling particularly important.

The set includes a dedicated organiser pouch for routing and organising tubes and cables, manufactured from canvas-style plastic.

• Organiser pouch Included
• Material Canvas-style plastic
• Purpose Cable and tube organisation

What the Premium Digital Pressotherapy Machine includes

• 1 digital main unit.
• 2 arm sections.
• 1 abdominal belt.
• 2 leg sections.
• 2 foot sections.
• 1 protective blanket for the treatment table.
• 1 cable organiser pouch.
• 10 EMS electrodes or pads.

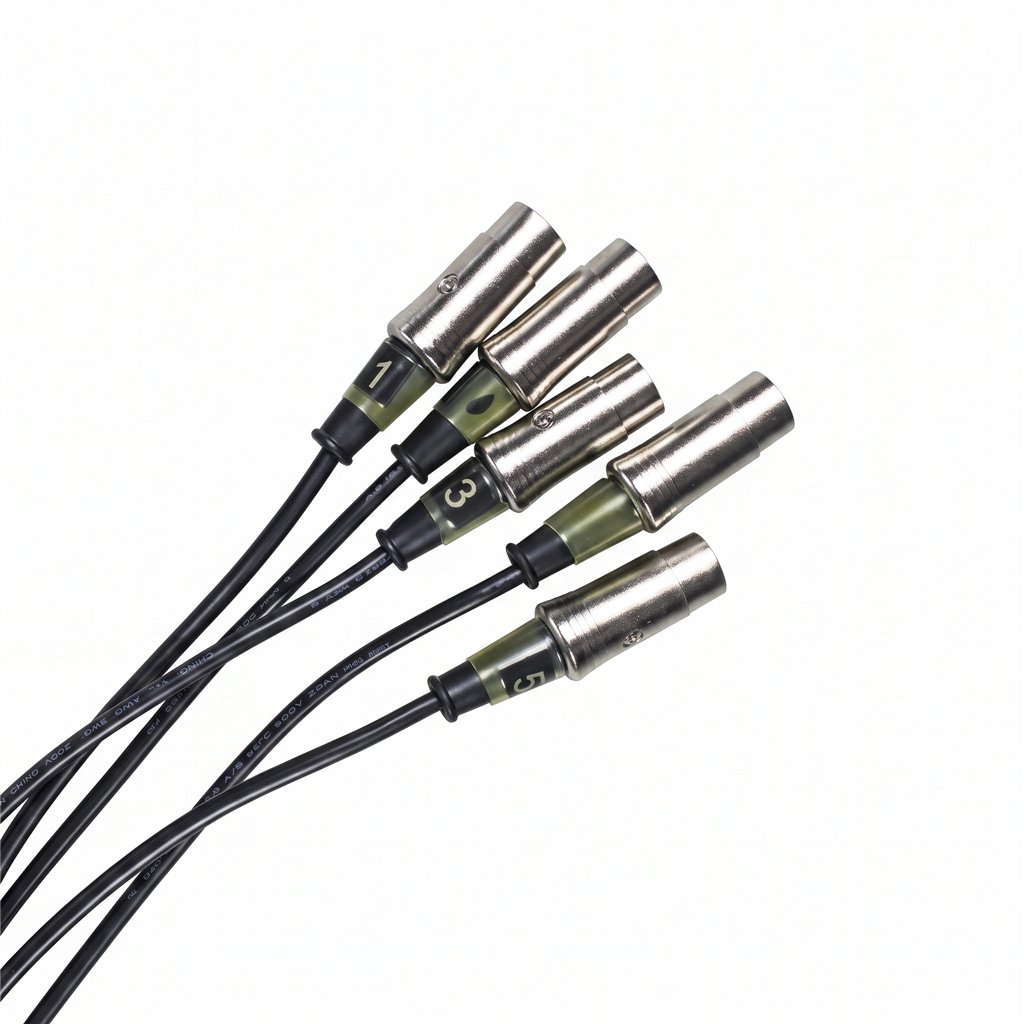

• Electrical muscle stimulation cables.

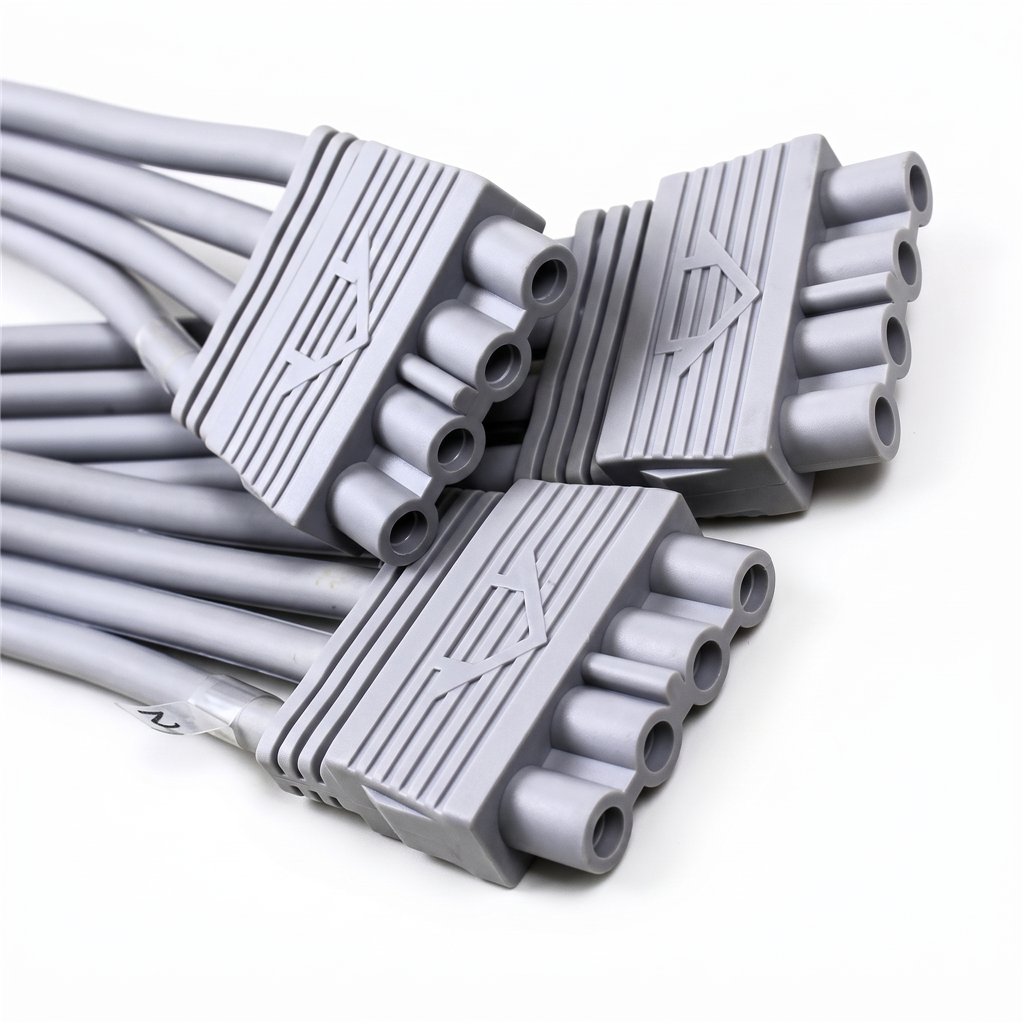

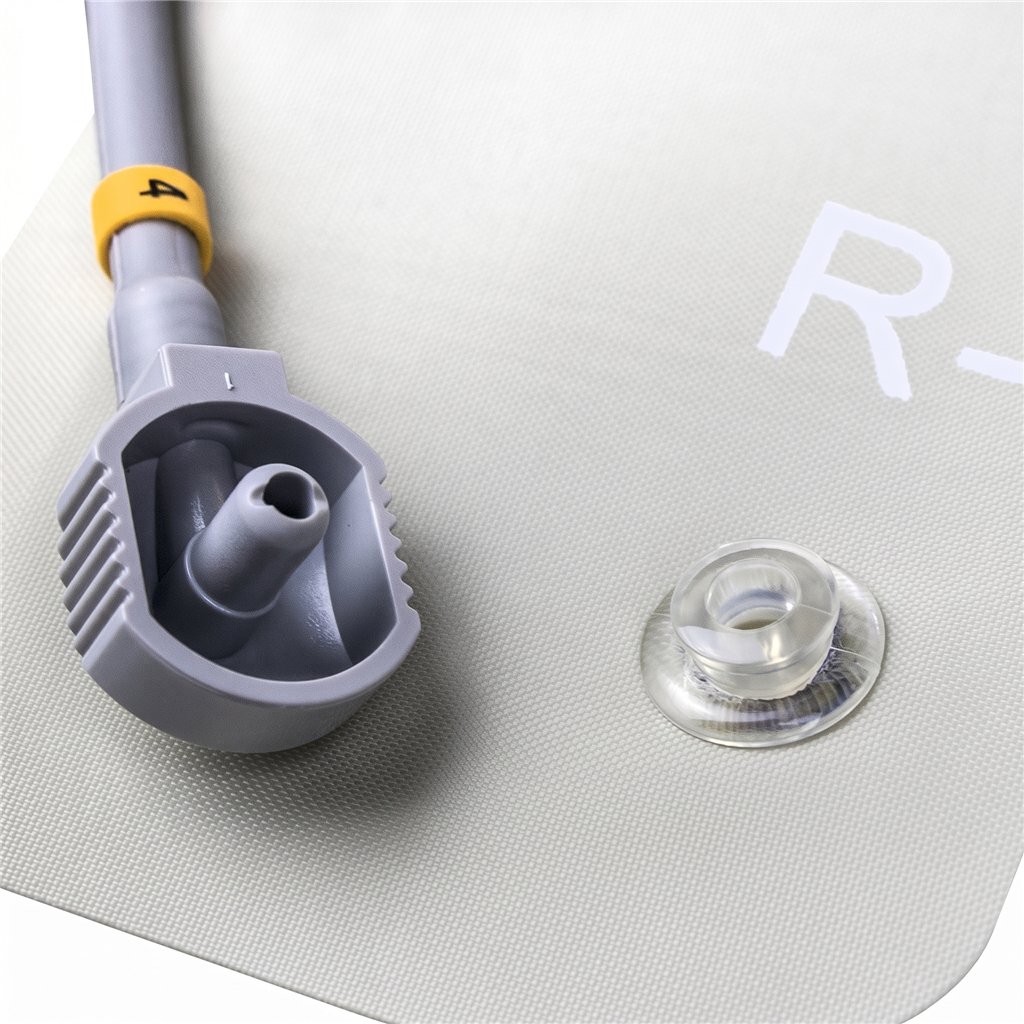

• Pressotherapy tubes and connectors.
• Cables for the infrared system.
• Spanish-language manual.

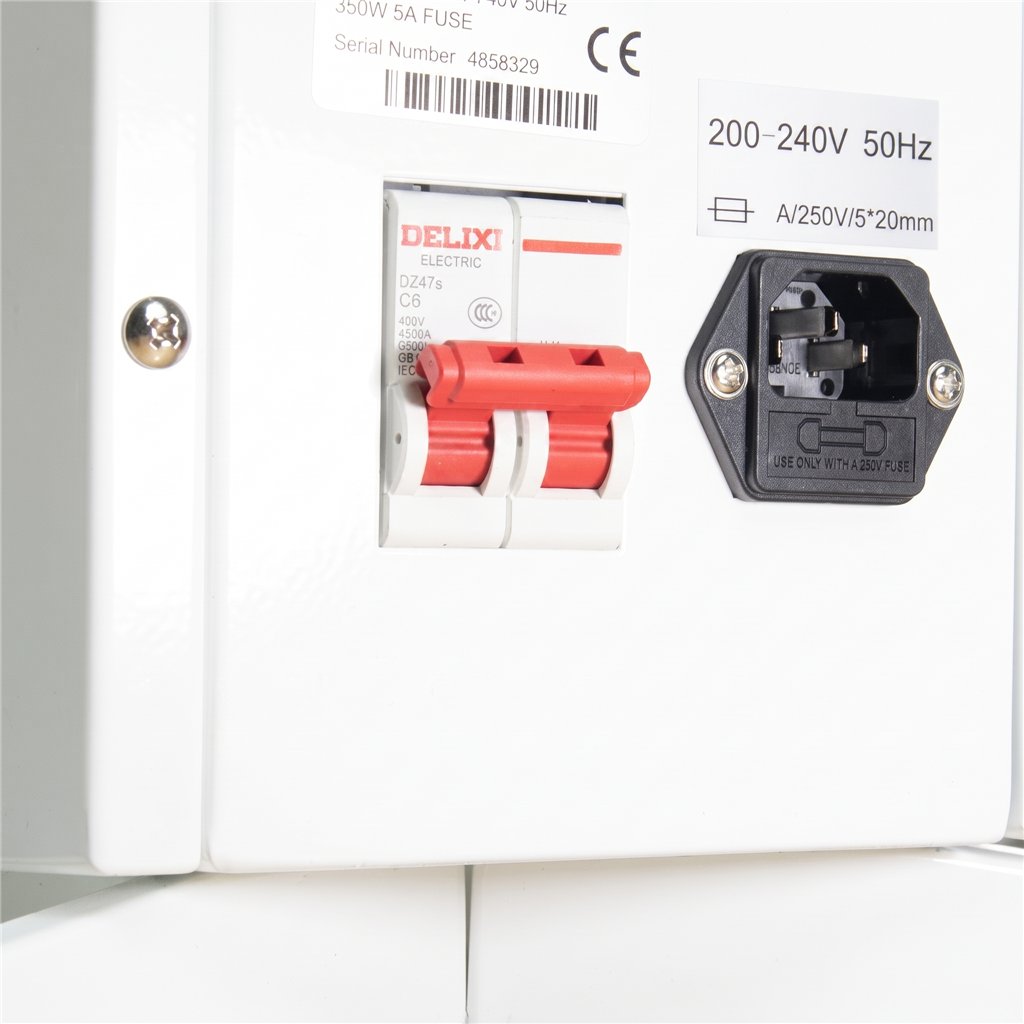

350 W power

The unit has a specified power rating of 350 W and, according to the supplied documentation, is designed for different electrical configurations.

• Power 350 W
• Specified voltage 240 / 110 V
• Frequency 50 / 60 Hz

Full technical specifications

• Machine type Professional 3-in-1 pressotherapy machine
• Technologies Pressotherapy + infrared sauna + EMS
• Certified model IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219
• Use Professional
• Power 350 W
• Specified voltage 240 / 110 V
• Frequency 50 / 60 Hz
• Number of chambers 20
• Pressotherapy modes 4
• Specified pressure values 20 / 80 / 120 mmHg
• Specified values in bar 0.10 / 0.22 / 0.32 bar
• EMS Mode A 10 Hz
• EMS Mode B 20 Hz
• EMS Mode C 30 Hz
• EMS Mode D 40 Hz
• EMS electrodes 10
• Suit type Modular
• Suit areas Arms, abdomen, legs and feet
• Suit material Canvas-style plastic
• Organiser pouch material Canvas-style plastic
• Display Digital touchscreen
• Format Vertical with castors

Certified model

The declaration of conformity documentation identifies the machine using the following reference:

Conformity and directives

• CE – EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• CE – LVD Directive 2014/35/EU

How to prepare a session

1. Position the unit on a stable surface.
2. Check that the machine is connected correctly.
3. Prepare the treatment table with the protective blanket.
4. Select the sections corresponding to the areas to be treated.

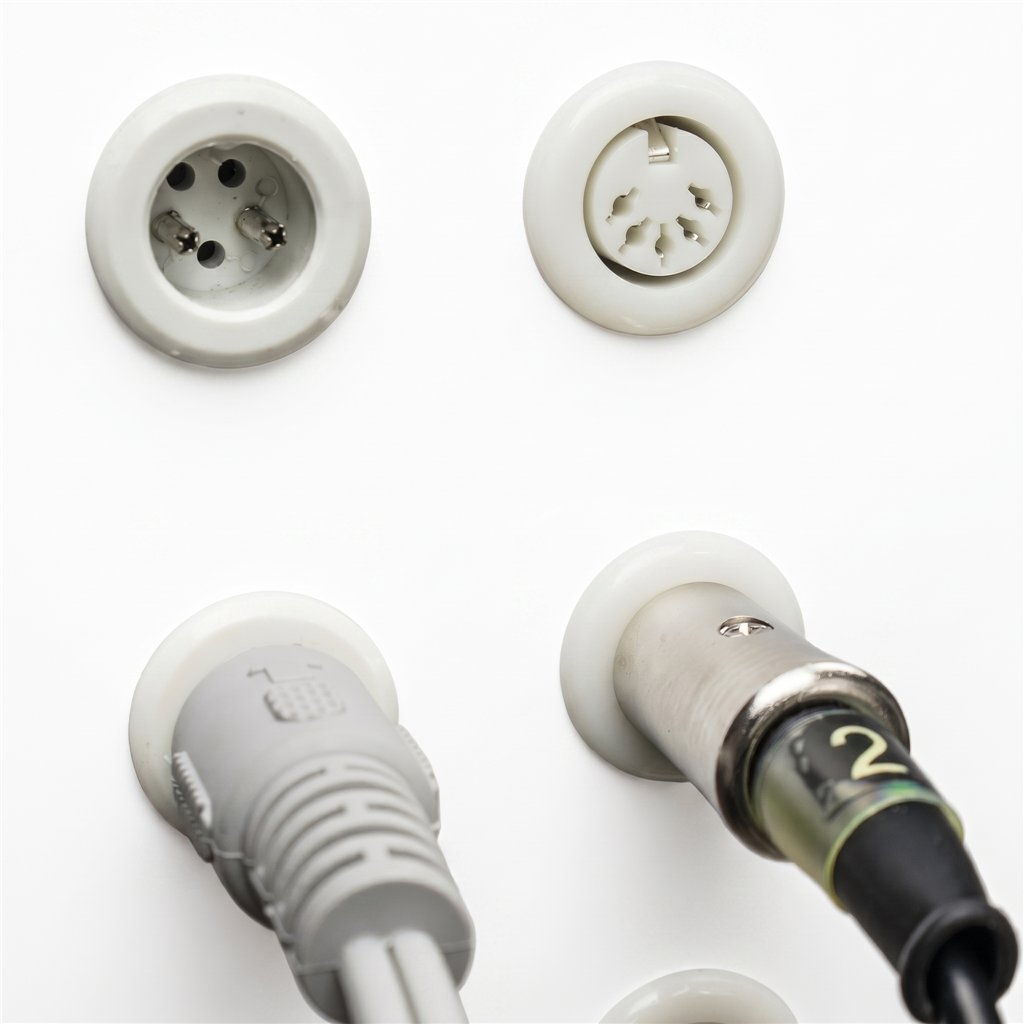

5. Correctly connect the tubes, infrared cables and required accessories.
6. Place suitable hygienic protection over the client.
7. Fit the sections without applying excessive pressure.
8. Prepare the EMS electrodes if electrical muscle stimulation is to be used.
9. Apply conductive gel to the electrodes.
10. Access the digital display.
11. Select the required functions.
12. Configure the pressotherapy mode.
13. Adjust the pressure.
14. Configure the temperature and thermal areas when required.
15. Select the EMS frequency and intensity when used.
16. Set the session time.
17. Check the client's comfort.
18. Start operation.

Supervision during the session

Professional use of a system combining pressure, heat and electrical muscle stimulation requires supervision throughout the entire session.

The operator must pay particular attention to:

• The client's overall comfort.
• Appropriate pressure in the sections.
• Absence of discomfort during compression.
• Comfortable temperature.
• Correct electrode contact.
• Tolerable EMS intensity.
• Condition of the tubes and connections.

Hygiene between clients

The modular configuration provides individual access to each section for maintenance after every use.

We recommend using disposable protective covers or garments between the skin and reusable accessories.

Cleaning and maintenance

• Switch off the machine after each session.
• Disconnect the functions used.
• Clean and disinfect reusable sections correctly.
• Do not immerse electrical accessories in water.
• Do not leave the thermal sections heating without a user.
• Open the garments after using the infrared function to allow heat to dissipate.
• Do not pull directly on cables or connectors.
• Avoid sharp bends in the air tubes.
• Organise the tubes and cables using the organiser pouch.
• Store the machine in a clean, dry environment.
• Check the condition of the connections regularly.

Do not leave empty garments heating

For professional use only

This machine is intended for beauty salons and professional establishments. The operator must understand how all three technologies work and know how to select the correct applicable parameters.

Exclusively for aesthetic purposes

All three technologies must be used within aesthetic and wellness protocols.

Professional beauty treatment applications

Within its aesthetic purpose, the machine can be incorporated into protocols designed for:

• Body wellness and comfort.
• Aesthetic leg treatments.
• Body treatment protocols for the abdomen.
• Aesthetic arm treatments.
• Aesthetic muscle toning protocols using EMS.
• Application of body heat within cosmetic treatment protocols.
• Visible improvement in the appearance of the skin.
• Combined pressure, heat and electrical muscle stimulation protocols.
• Customised sessions by body area.

Contraindications and exclusions for use

According to the information supplied for the machine, it must not be used in the following cases:

• Pregnancy.
• Pacemaker.
• Other implanted electronic devices.
• Epilepsy.
• Active infections in the treatment area.
• Significant sensory impairment in the application area.
• Bleeding.
• Recent wounds.
• Fever.
• EMS application to damaged or impaired skin without prior assessment.

EMS: specific precautions

Electrical muscle stimulation requires particular attention to both electrode placement and the user's condition.

• Do not use on damaged skin.
• Do not place electrodes over areas with an active infection.
• Do not use on individuals with a pacemaker or other implanted electronic devices.
• Do not use during pregnancy.
• Do not use on individuals with epilepsy.
• Always use a suitable conductive gel.
• Begin with a low intensity.
• Increase gradually according to tolerance.

Infrared sauna: specific precautions

• Do not apply to areas with reduced heat sensitivity.
• Check the temperature regularly.
• Do not leave the garments heating without a client.
• Do not use over wounds or active infections.
• Stop the function if the heat sensation becomes excessive or unpleasant.

Pressotherapy: specific precautions

• Do not overtighten the sections.
• Begin with moderate pressure.
• Monitor comfort during operation.
• Do not use over areas with recent wounds or active infections.
• Stop the session immediately in the event of pain or unusual discomfort.

Premium Digital at a glance

Frequently asked questions about the Premium Digital 3-in-1 Pressotherapy Machine

What functions does it include?

It combines air compression pressotherapy, infrared sauna and EMS electrical muscle stimulation.

Can the technologies be used separately?

Yes. The configuration allows the required functions to be selected according to the treatment protocol.

Does it have a touchscreen?

Yes. The machine includes a digital touchscreen for managing the main parameters.

How many pressotherapy chambers does it have?

It has 20 air chambers.

How many pressotherapy modes does it have?

It has 4 operating modes: A, B, C and D.

Which areas does the suit cover?

The modular set includes accessories for the arms, abdomen, legs and feet.

Is the suit made in one piece?

No. It is a modular system, allowing only the required garments to be used.

What material are the garments made from?

The supplied information specifies a canvas-style plastic material.

How many EMS electrodes are included?

It includes 10 electrodes or pads.

Which frequencies does the EMS use?

It has four modes: 10 Hz, 20 Hz, 30 Hz and 40 Hz.

Is conductive gel required?

Yes. The use of a suitable conductive gel during EMS electrical muscle stimulation is recommended.

Can the heat function be used without pressotherapy?

Yes. The infrared sauna can be used as a standalone function when included in the professional treatment protocol.

Can pressotherapy be combined with infrared heat?

Yes. The technologies can be combined within the same session when permitted by the protocol and the user's condition.

What is the machine's power rating?

The specified power rating is 350 W.

Is it CE marked?

The supplied documentation identifies conformity with EMC Directive 2014/30/EU, LVD Directive 2014/35/EU and RoHS Directive 2011/65/EU for the specified certified model.

What is the certified model?

The specified model is IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219.

Is this professional equipment?

Yes. It is intended exclusively for professional use in beauty salons.

Can it be used during pregnancy?

No. Pregnancy is expressly included among the specified exclusions for use.

Can it be used by someone with a pacemaker?

No. It must also not be used by individuals with other implanted electronic devices.

Can EMS be used on any area?

No. The permitted application areas, the user's condition and electrical muscle stimulation contraindications must be observed.

Does this machine treat circulatory or muscular conditions?

No. The machine's functions must be used exclusively within aesthetic and wellness protocols. It is not intended to diagnose or treat medical conditions.

Premium Digital Pressotherapy: three technologies and a modular system

The Premium Digital 3-in-1 Pressotherapy Machine combines a 20-air-chamber system with an integrated infrared sauna and EMS electrical muscle stimulation using 10 electrodes.

Its modular suit allows the arms, abdomen, legs or feet to be selected according to the session, while the touchscreen centralises control of programmes, intensity, temperature, EMS frequencies and time.

This configuration makes the machine an especially comprehensive platform for beauty salons seeking to perform different body treatment protocols from a single professional unit.

Video course

Supporting video explaining the machine's general operation, accessory placement and start-up procedure within a professional treatment room.

Contraindications and exclusions for use

• Do not use during pregnancy.
• Do not use on individuals with a pacemaker or other implanted electronic devices.
• Do not use on individuals with epilepsy.
• Do not use on areas with active infections.
• Do not use on individuals with sensory impairment in the treatment area.
• Do not use over areas with bleeding or recent wounds.
• Do not use on individuals with a fever.
• Do not use EMS on damaged or impaired skin without prior assessment.
