i-Medstetic 3-in-1 Digital Pressotherapy

Professional 3-in-1 Pressotherapy Machine with Far Infrared, EMS and Modular Suit

Professional CE marked 3 technologies 20 chambers

The Professional 3-in-1 Pressotherapy Machine combines pneumatic compression pressotherapy, far-infrared heat therapy and EMS electrical muscle stimulation in a single platform. It is designed for beauty centres seeking to perform complete professional body treatment protocols and tailor each session to different areas of the body.

Its main feature is the modular body suit, comprising separate sections for the arms, abdomen, legs and feet. The professional can fit only the accessories required for the selected areas, making both set-up and treatment room organisation easier.

The system features 20 air chambers, 10 pneumatic connections numbered from 0 to 9, 5 connections for far infrared and EMS electrical muscle stimulation through 10 electrode pads with four operating frequencies: 10, 20, 30 and 40 Hz.

All functions are managed from a digital touchscreen, allowing the parameters of each technology to be configured, including time, programme, pressure, inflation time, temperature, EMS intensity and activation of different areas.

Key equipment figures

• 3 technologies Pressotherapy + far infrared + EMS
• 20 chambers Pneumatic compression system
• 10 outlets Pneumatic connections 0–9
• 5 outlets Far-infrared connections 1–5
• 4 programmes Pressotherapy A, B, C and D
• 4 EMS programmes 10 / 20 / 30 / 40 Hz
• 10 EMS electrode pads Targeted electrical muscle stimulation
• 350 W Power
• Touchscreen Digital control
• Modular suit Arms, abdomen, legs and feet
• Upright design With castors

Pressotherapy, far infrared and EMS from a single unit

The equipment provides three different body treatment technologies without requiring three separate machines.

• Pressotherapy Pneumatic compression using air chambers
• Far infrared Application of dry radiant heat
• EMS Aesthetic muscle stimulation using low-frequency electrical impulses

The functions can be configured independently or combined when permitted by the professional protocol and the client's condition.

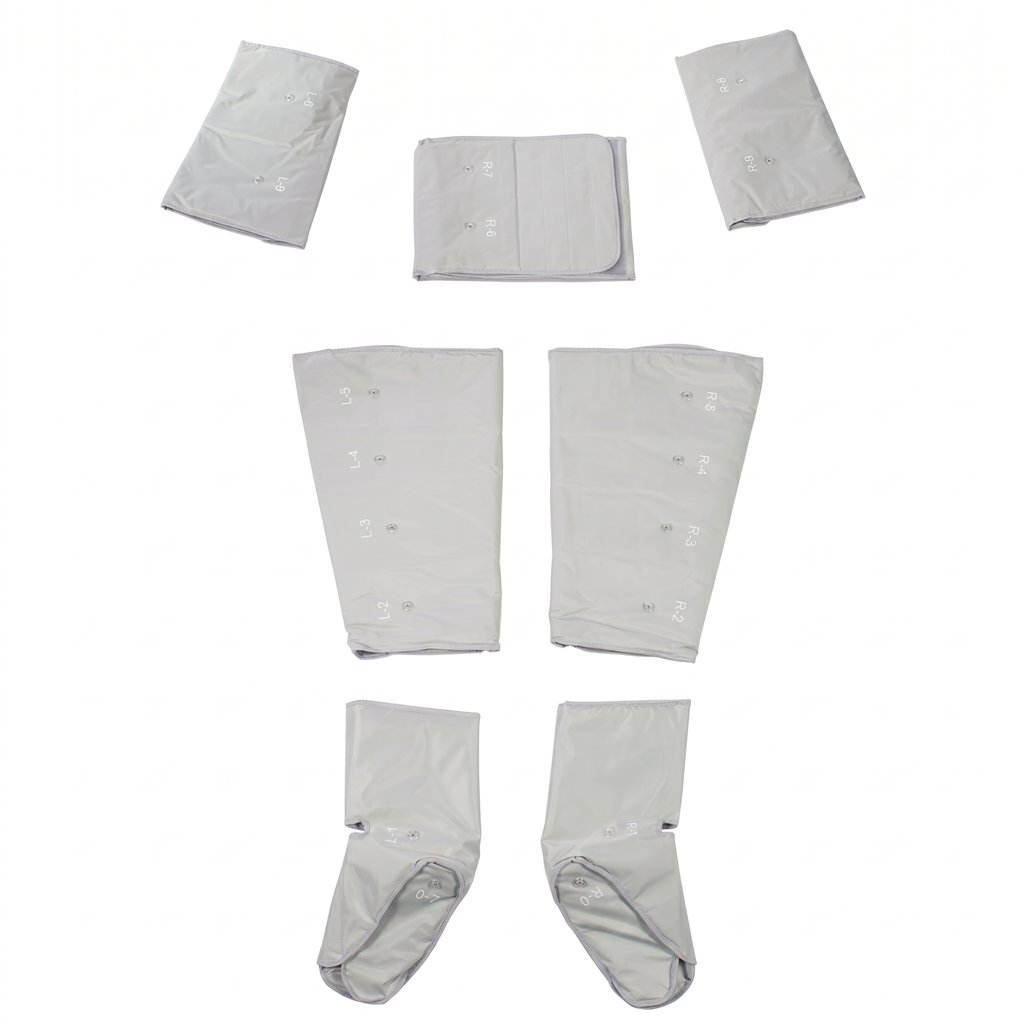

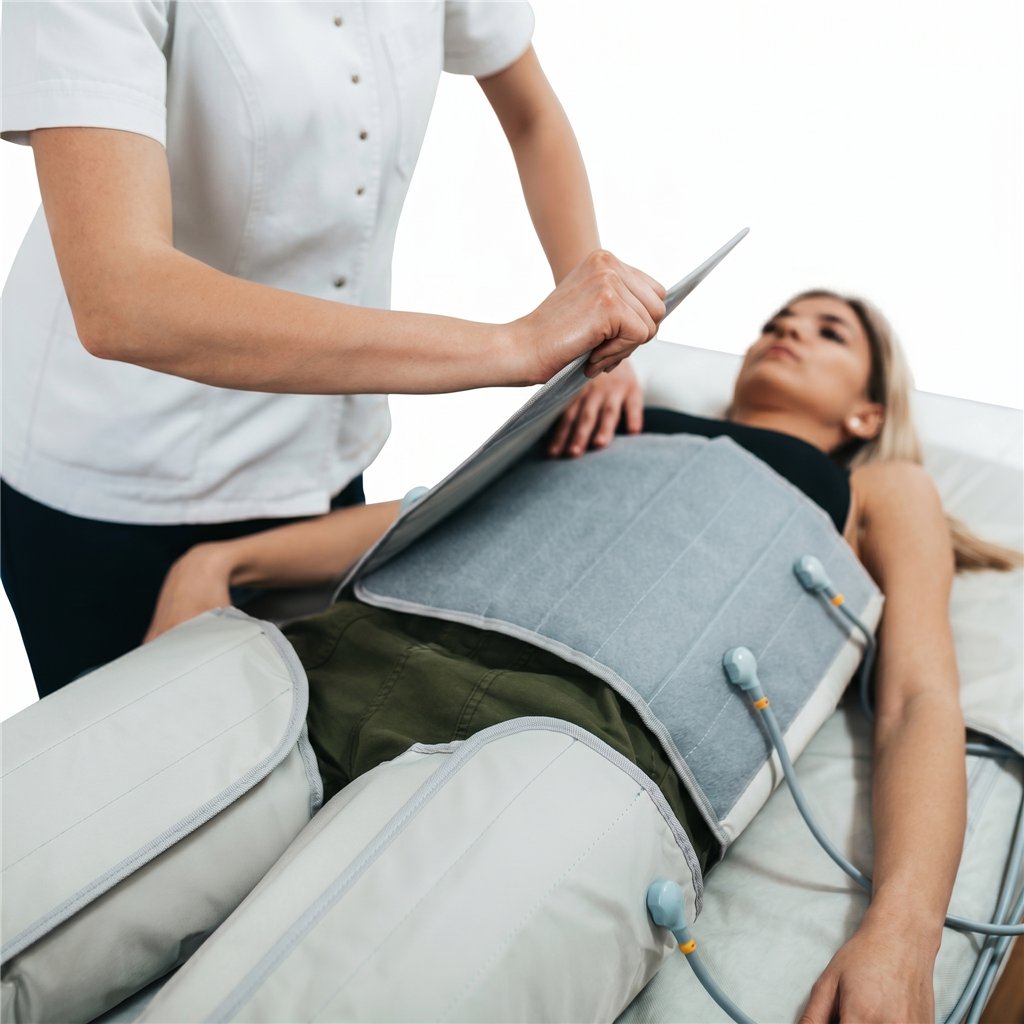

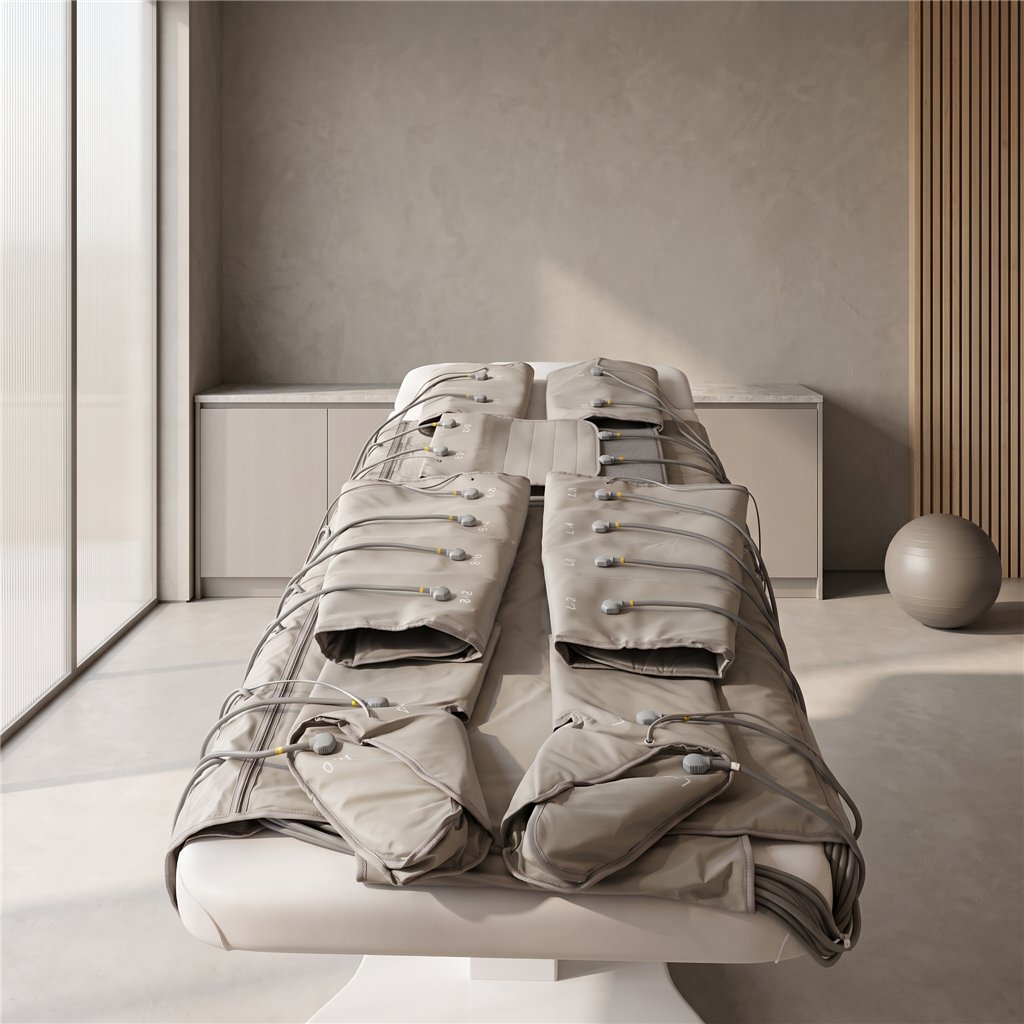

Modular body suit: use only the areas required

The set does not use a single-piece enclosed body suit. Instead, it features separate modules that can be fitted according to the areas selected for each session.

• Right arm Separate module
• Left arm Separate module

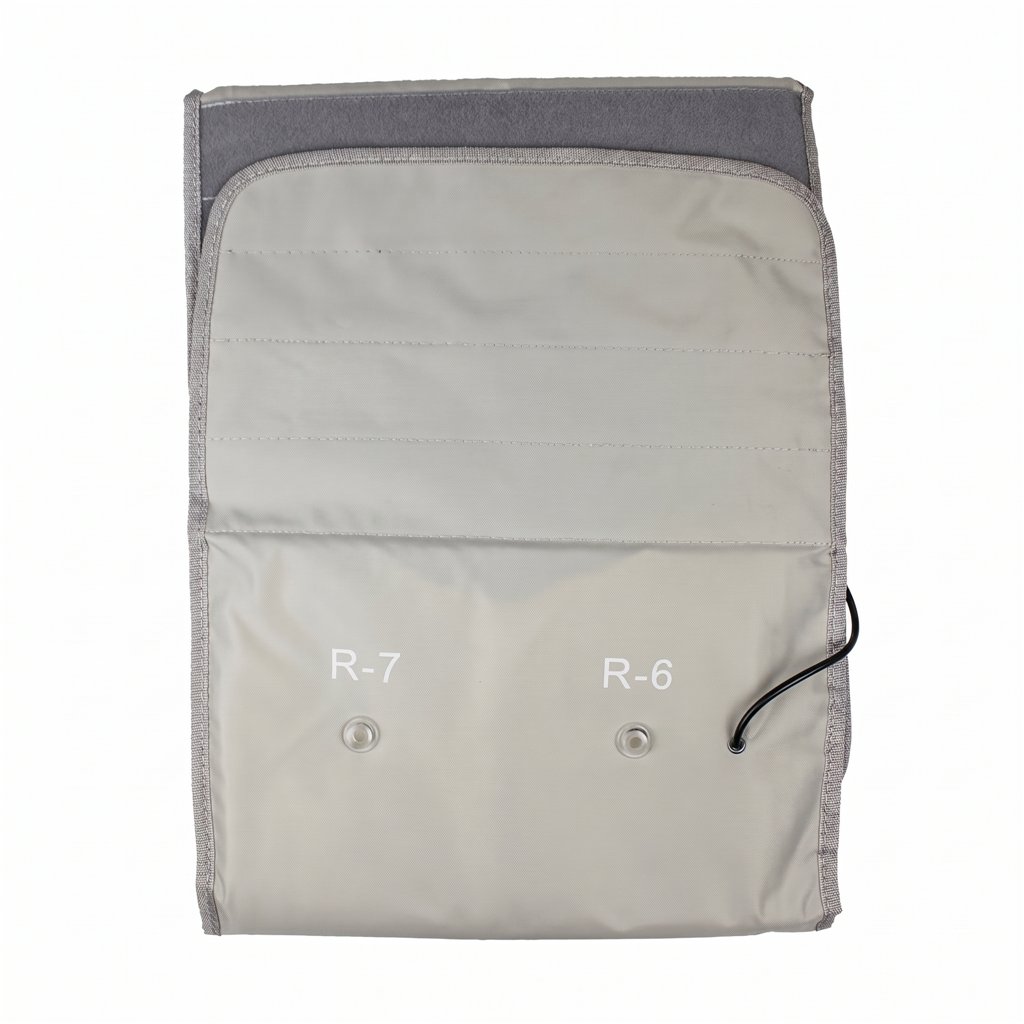

• Abdomen Modular wrap

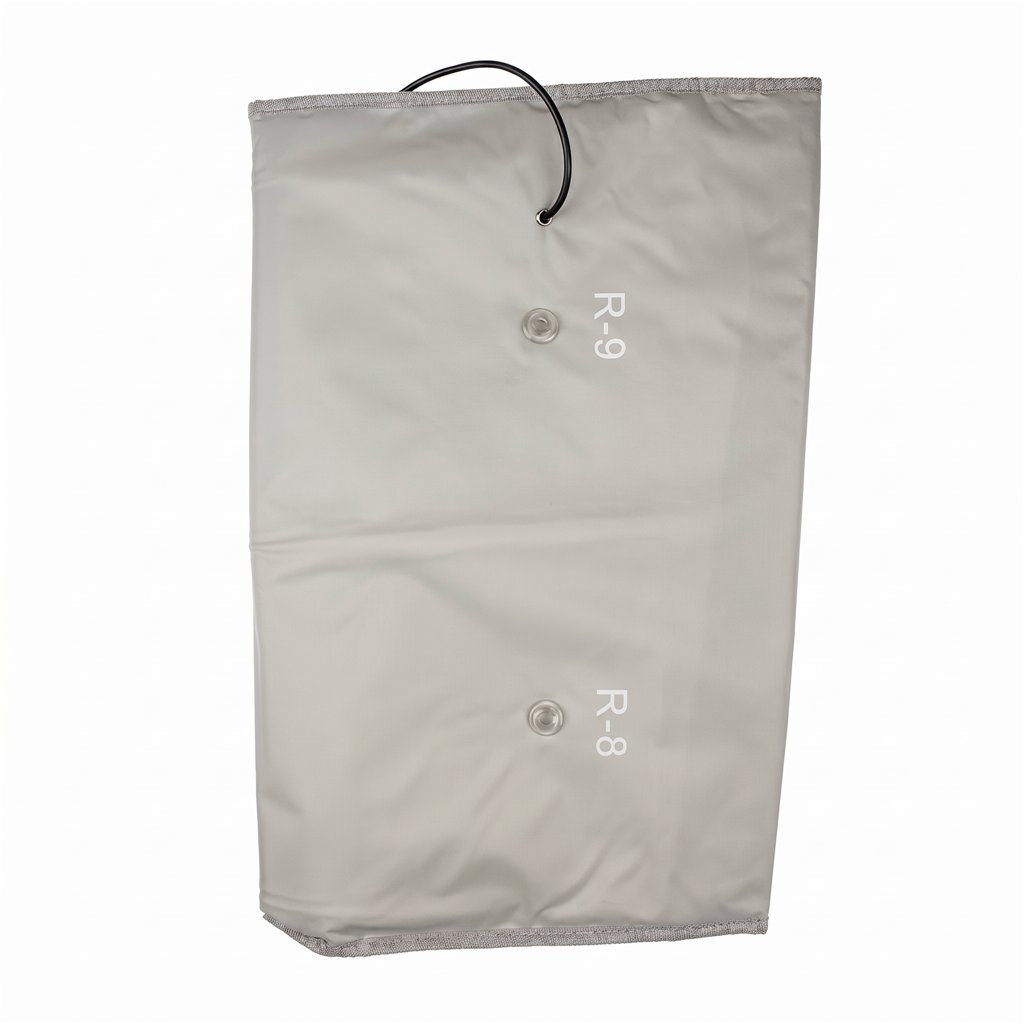

• Right leg Separate module

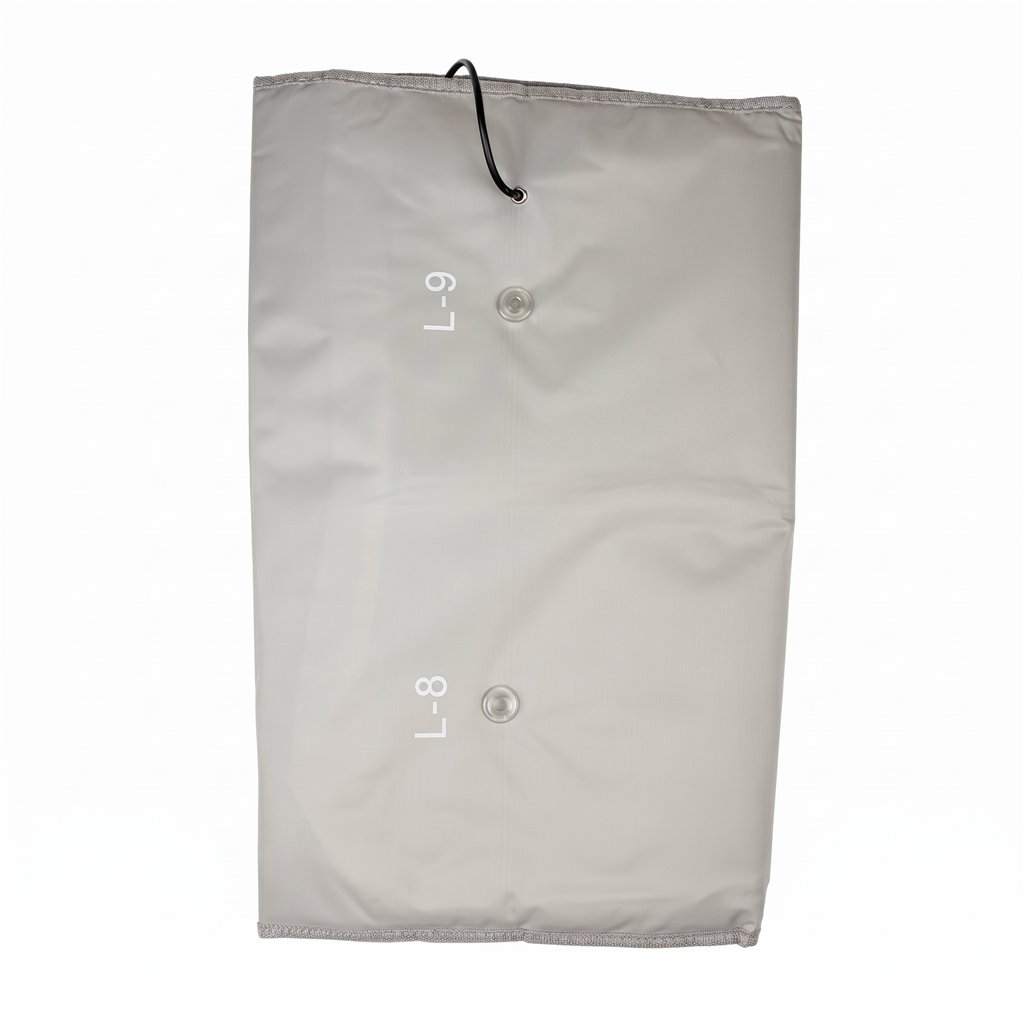

• Left leg Separate module

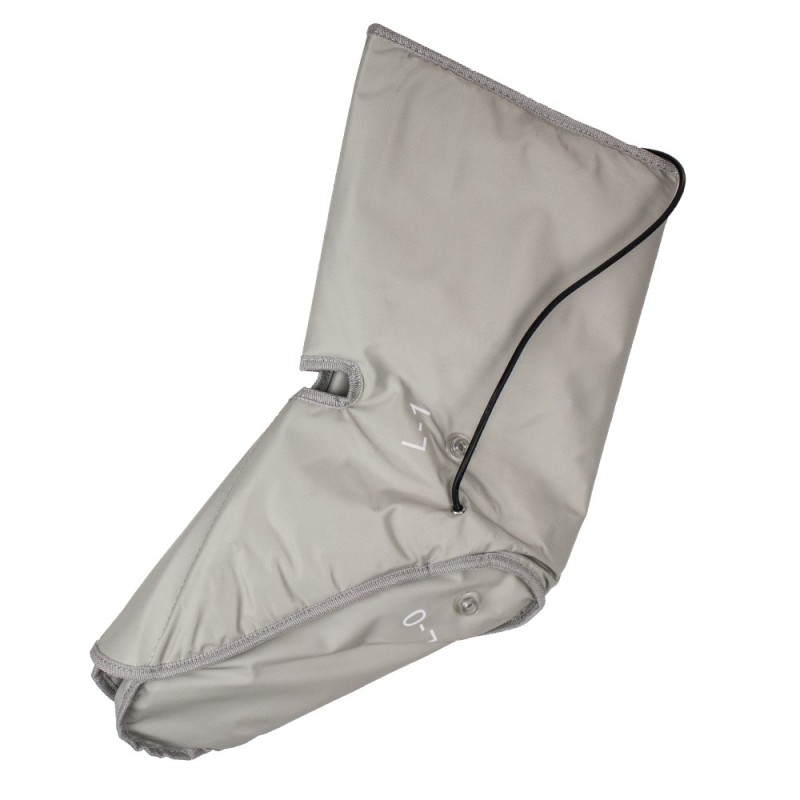

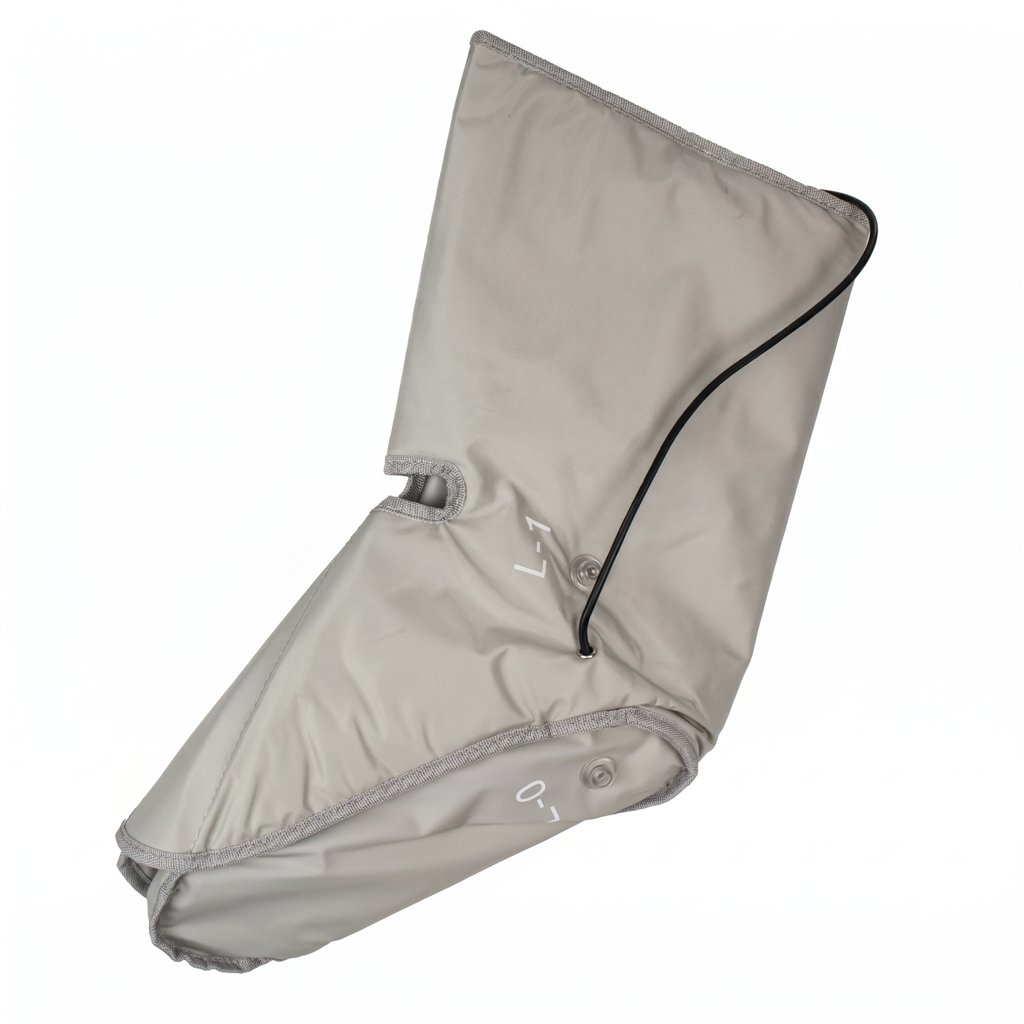

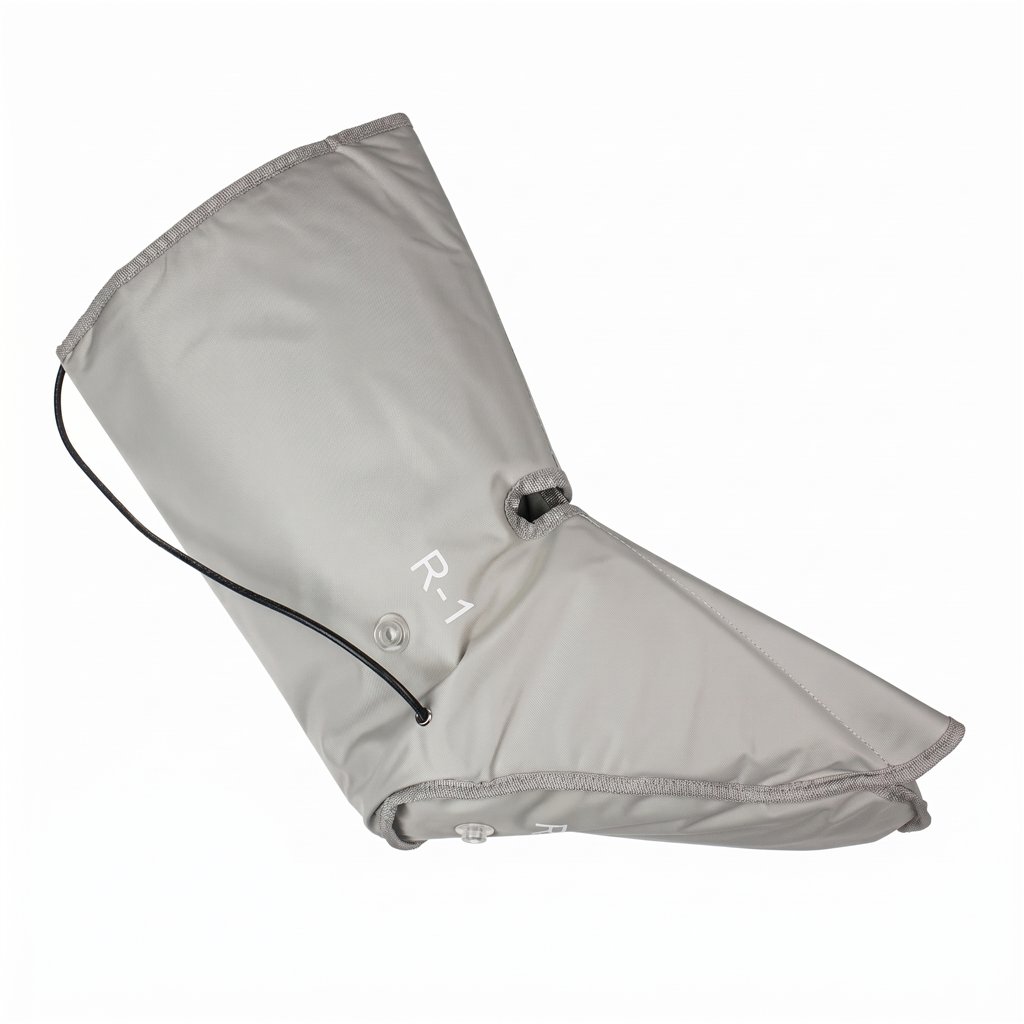

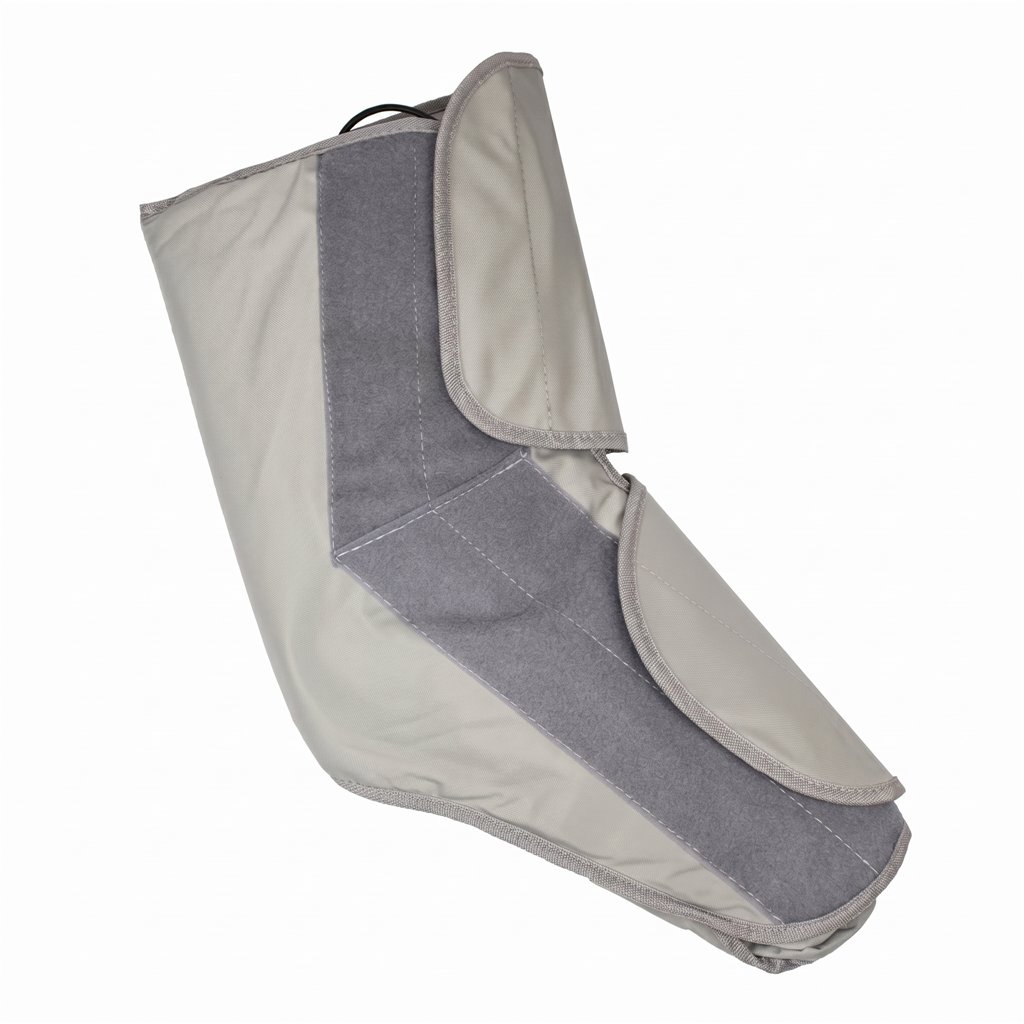

• Right foot Separate module
• Left foot Separate module

What does a modular system offer in a treatment room?

The sectional configuration makes it easier to adapt equipment preparation to different professional body treatment protocols.

• Allows only the required areas to be used.
• Makes progressive fitting onto the client easier.
• Reduces the number of accessories fitted during a targeted protocol.
• Allows each section to be removed separately.
• Allows each module to be cleaned separately.
• Helps keep the connections organised.
• Makes it easier to combine different areas according to the protocol.

Canvas-style plastic material

The modular suit is made from canvas-style plastic material, designed for regular treatment room use and to facilitate cleaning between clients.

The organiser pouch used to route tubes and connections is made from the same type of material.

• Suit material Canvas-style plastic
• Organiser pouch material Canvas-style plastic
• Configuration Modular
• Use Professional

Integrated organiser pouch for managing connections

As the equipment combines pressotherapy, far infrared and EMS, it requires different tubes and electrical connections. The cable organiser pouch groups and routes some of this cabling to maintain a tidier presentation during the session.

This allows the pneumatic tubes and thermal connections to be routed from the modules to the main unit, reducing the number of loose cables around the treatment table.

Professional 20-chamber pressotherapy

The pressotherapy function uses 20 air chambers distributed across the different suit modules.

The system introduces air in a controlled manner through different inflation and deflation sequences. Its operation changes according to the programme selected on the touchscreen.

• Air chambers 20
• Pneumatic connections 10
• Numbering 0–9
• Programmes 4
• Operation Cyclic or simultaneous
• Control Digital touchscreen

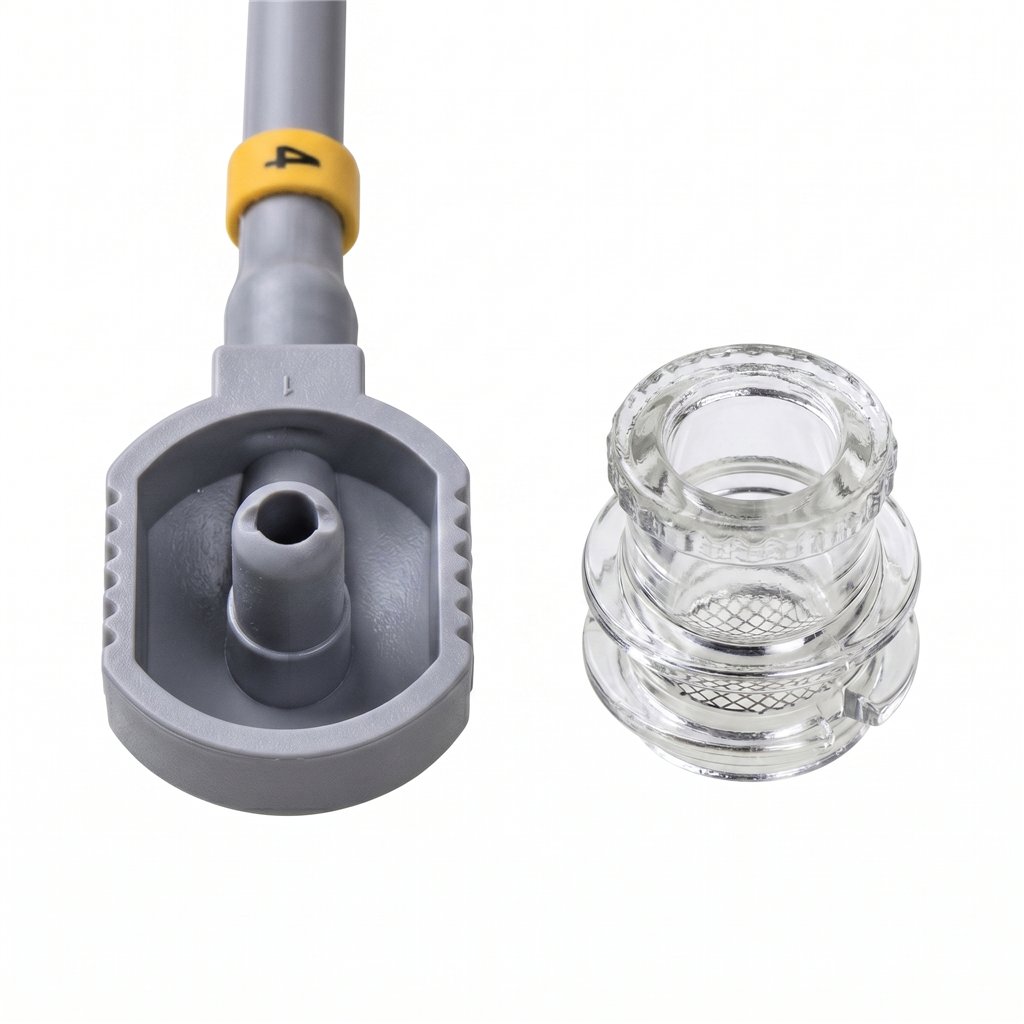

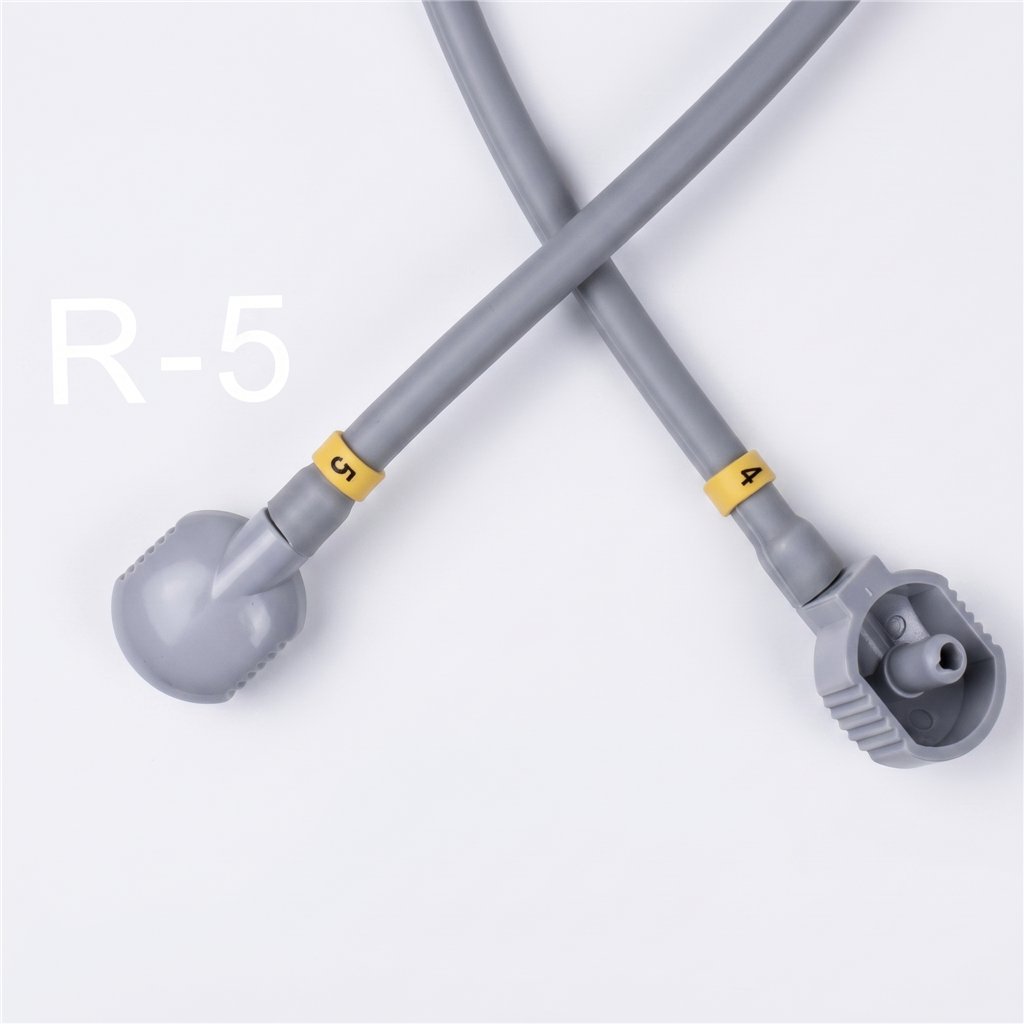

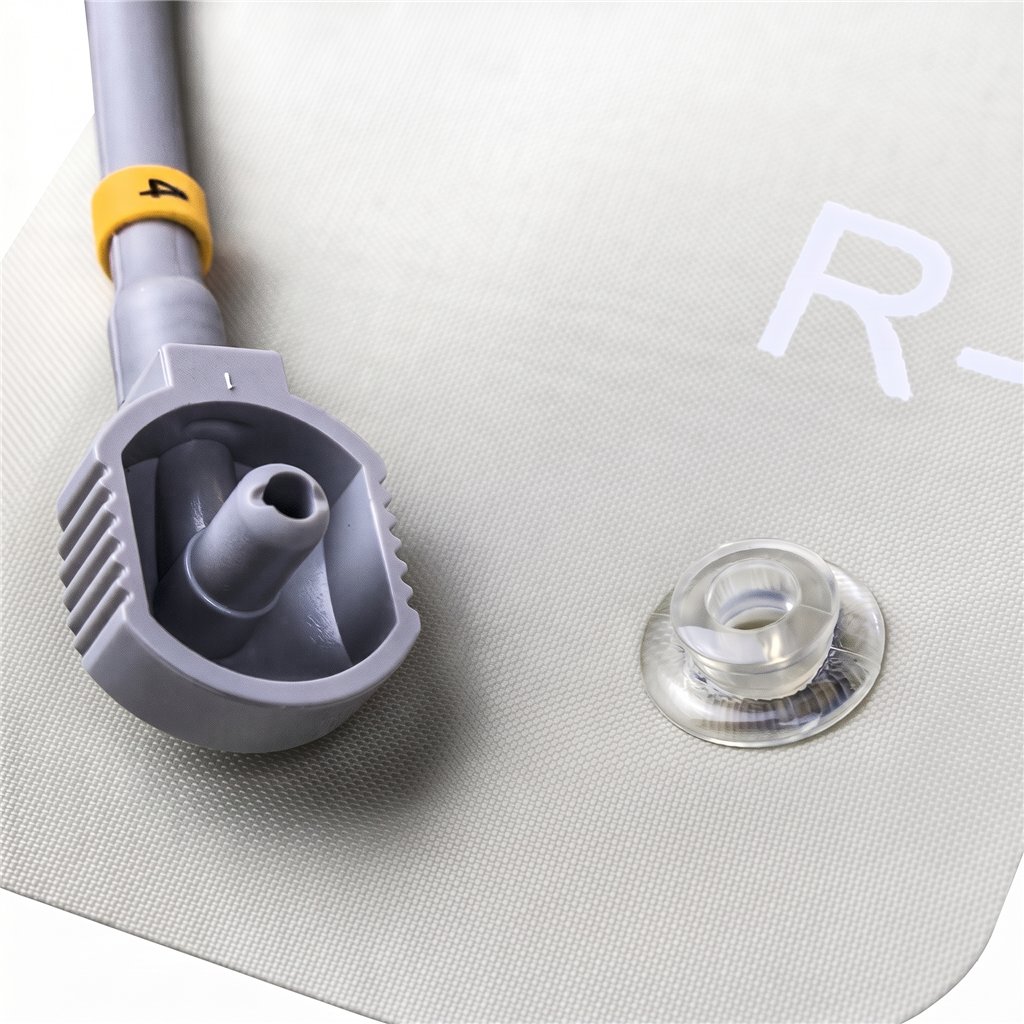

10 pneumatic outlets numbered from 0 to 9

The set's air connections are identified by numbers from 0 to 9.

This layout makes it easier to identify the correct position of the tubes during set-up.

4 pressotherapy programmes

The equipment features four pneumatic operating modes. Each programme changes the behaviour of the chambers and the compression sequence.

Mode A – Gentle, progressive sequence

This programme is designed for a progressive compression sequence and protocols where a more moderate operating mode is required at the start.

Technically, the system progresses through the pneumatic connections and, at the end of the sequence, inflates them simultaneously before beginning a new cycle.

Mode B – More pronounced compression

Mode B changes the inflation and deflation pattern to provide a different and more pronounced operating sensation than the first programme.

Mode C – Cumulative sequence

Mode C performs progressive, cumulative compression. As the sequence progresses, certain previous areas remain active while the next area is added.

In the commercial description, it is particularly associated with work on the abdomen and thighs.

Mode D – Combined sequence

Mode D uses different inflation sequences simultaneously to create a combined compression pattern.

Within the commercial configuration, it is associated with comfort-focused protocols.

Quick programme comparison

• Mode A Progressive sequence
• Mode B Alternating sequence and more pronounced compression
• Mode C Progressive cumulative compression
• Mode D Simultaneous combined pattern

Three pressure settings

The available documentation identifies three pressure settings for pressotherapy.

• Pressure level 1 20 mmHg / documented reference 0.10 bar
• Pressure level 2 80 mmHg / documented reference 0.22 bar
• Pressure level 3 120 mmHg / documented reference 0.32 bar

Cyclic operation or simultaneous compression

Depending on the selected programme, the chambers can operate through progressive inflation sequences or through patterns involving several areas simultaneously.

This variety allows the operating sensation to be changed without replacing the garments or physically modifying the pneumatic system.

Far infrared for dry heat application

The second integrated technology is far-infrared heat therapy.

The modules feature heating elements that provide dry radiant heat to the selected areas. This function is intended to provide thermal comfort within professional body treatment protocols.

It can be used independently or combined with pressotherapy and EMS when included in the protocol.

5 far-infrared connections

The modular set uses five thermal connections identified by the numbers 1 to 5.

• Far-infrared connections 5
• Numbering 1–5
• Technology Far infrared
• Heat type Dry radiant heat
• Control By area

Independent temperature and time settings by area

The time and temperature of the activated sections can be configured from the touchscreen.

Different thermal outputs can also be activated or deactivated depending on the areas included in the protocol.

Safe use of far infrared

The client's thermal comfort must be checked regularly during heat application.

• Start with a moderate temperature setting.
• Check the client's comfort throughout the session.
• Do not use on areas with impaired heat sensitivity.
• Do not apply over wounds or active infections.
• Do not leave the garments heating without a user.
• Open the accessories after the session to help dissipate heat.

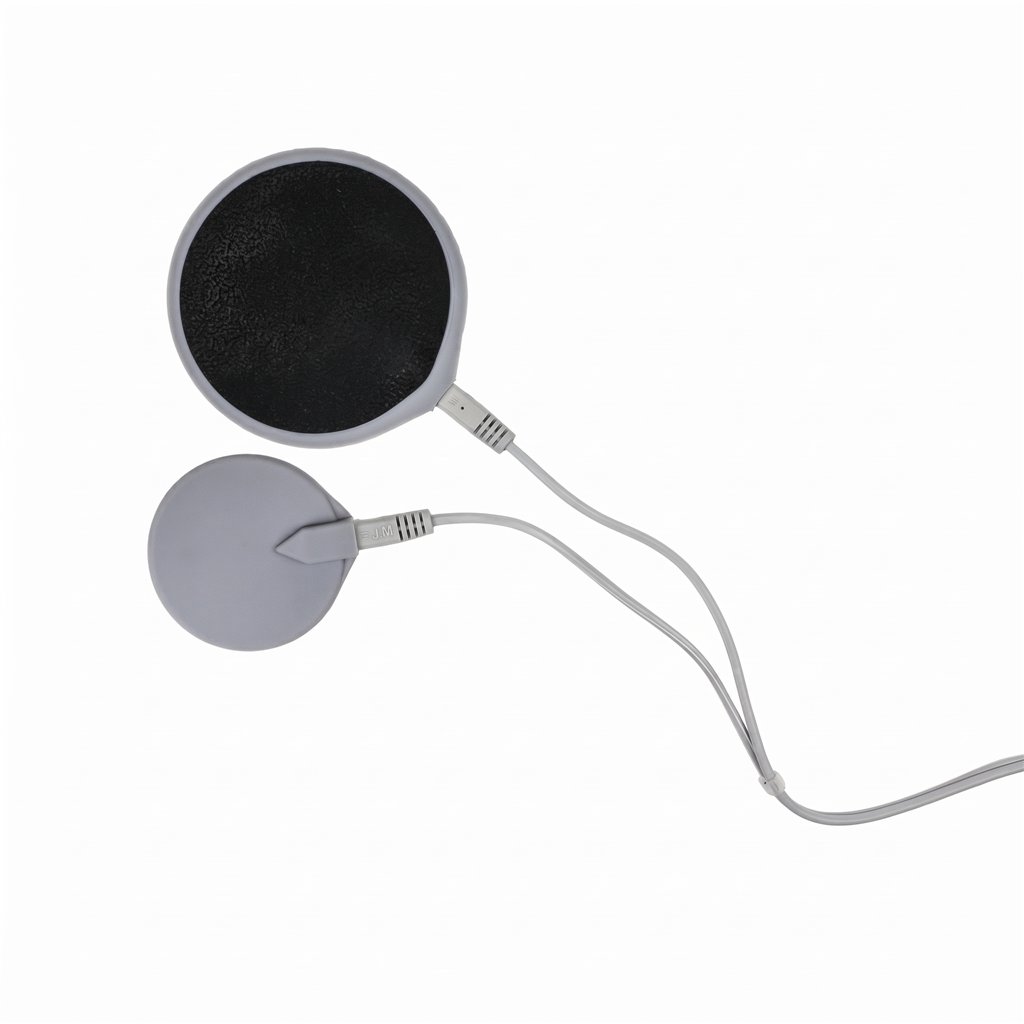

EMS electrical muscle stimulation with 10 electrode pads

The third technology is a low-frequency EMS electrical muscle stimulation system.

The set includes 10 pads or electrodes that can be positioned over different muscle areas in accordance with the equipment's instructions for use.

Intensity is controlled from the digital interface, and the outputs can be activated or deactivated according to the areas being treated.

• EMS electrodes 10
• EMS programmes 4
• Minimum frequency 10 Hz
• Maximum frequency 40 Hz
• Connection Via dedicated cables
• Conductive gel Recommended

4 EMS programmes from 10 to 40 Hz

The system features four frequency settings to modify electrical muscle stimulation operation.

• Mode A 10 Hz
• Mode B 20 Hz
• Mode C 30 Hz
• Mode D 40 Hz

EMS Mode A – 10 Hz

This is the lowest available frequency and provides a more moderate electrical muscle stimulation setting within the device's range.

EMS Mode B – 20 Hz

Increases the frequency to 20 Hz, providing an intermediate operating pattern.

EMS Mode C – 30 Hz

Operates at 30 Hz, increasing the stimulation rate compared with the previous programmes.

EMS Mode D – 40 Hz

Uses a frequency of 40 Hz, the highest setting of the four available programmes.

Conductive gel for electrical muscle stimulation

During EMS application, the use of a suitable conductive gel between the pads and the skin is recommended.

The gel promotes even electrode contact with the body surface and helps maintain the correct transmission of impulses.

Where can EMS be used?

Within exclusively aesthetic protocols, electrical muscle stimulation can be used on specific muscle areas in accordance with the relevant instructions and exclusions.

• Abdomen.
• Waist.
• Buttocks.
• Thighs.
• Legs.
• Arms.
• Other muscle areas compatible with the system and electrode placement.

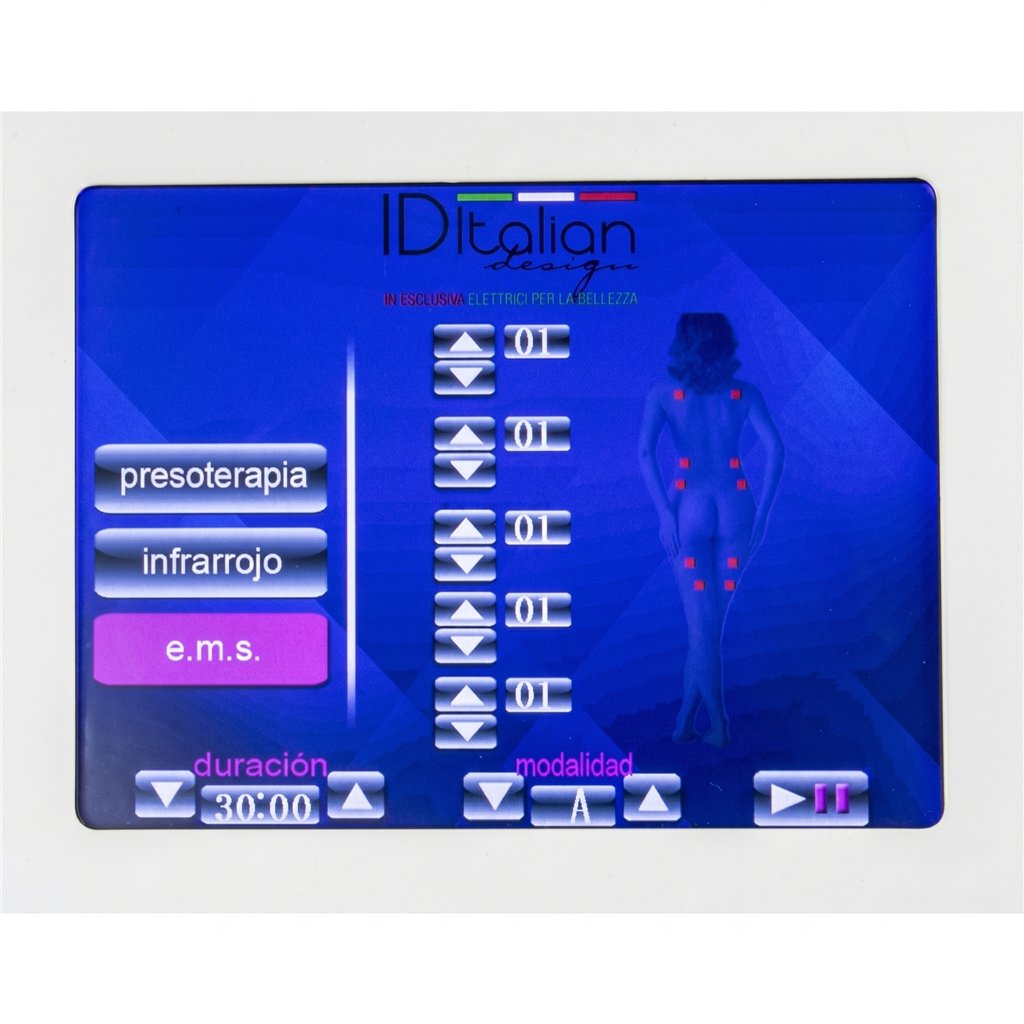

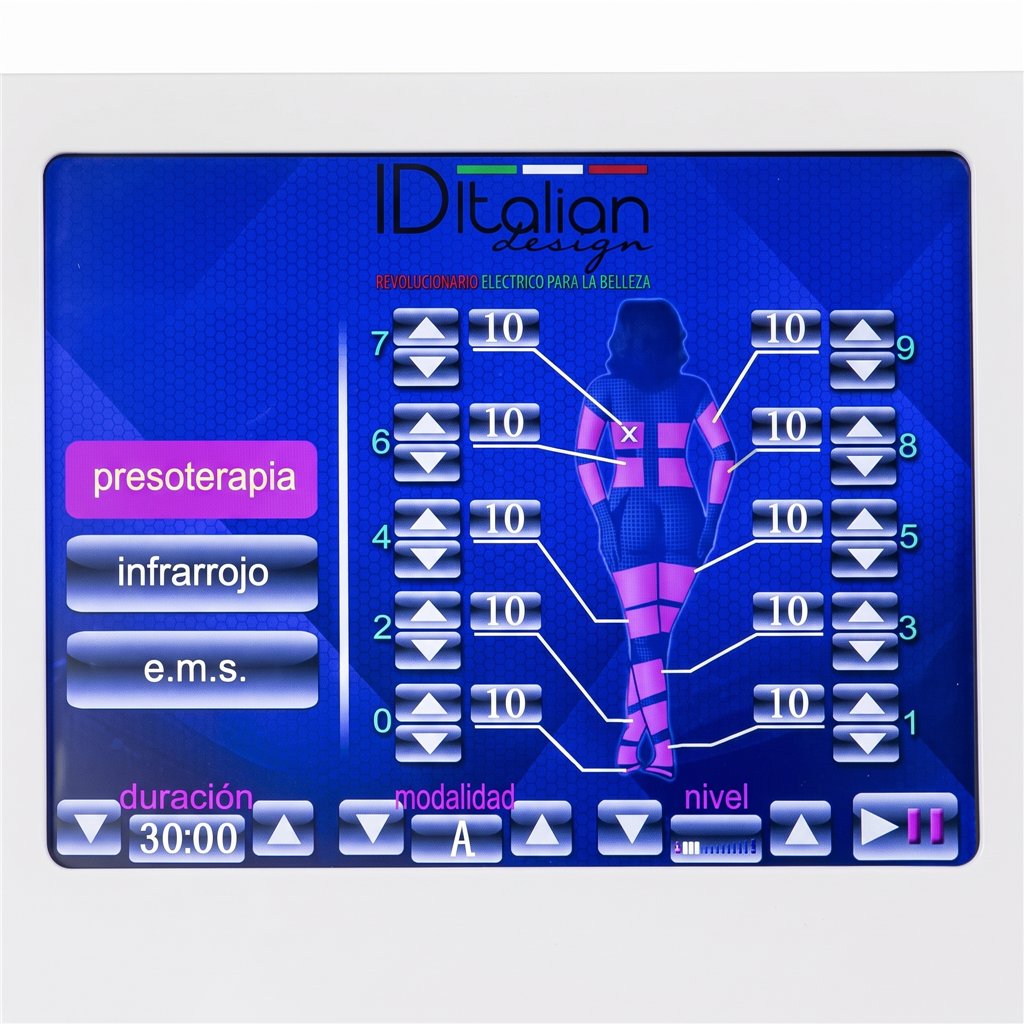

Digital touchscreen for all three functions

The main unit uses a touchscreen that provides independent access to pressotherapy, far-infrared and EMS controls.

The separate parameters make it possible to adjust one technology without necessarily altering the settings of the others.

Pressotherapy controls

• Time display.
• Time adjustment.
• Programme selection.
• Pressure intensity adjustment.
• Inflation time adjustment by section.
• Output activation or deactivation.
• Start and pause.

Far-infrared controls

• Time display.
• Time adjustment.
• Temperature adjustment by area.
• Output activation or deactivation.
• Start and pause.

EMS controls

• Time display.
• Time adjustment.
• Frequency mode selection.
• Intensity adjustment by output.
• Output activation or deactivation.
• Start and pause.

Customise the session using different parameters

The professional can adapt equipment operation by adjusting different elements:

• Active functions.
• Body areas.
• Pressotherapy programme.
• Pressure.
• Inflation time.
• Pneumatic outputs used.
• Thermal areas.
• Temperature.
• EMS frequency.
• EMS intensity.
• Electrodes used.
• Session duration.

Full-body or targeted treatments

The combination of a modular suit and independent output control allows sessions to be prepared for different areas.

• Arms.
• Abdomen.
• Waist.
• Thighs.
• Legs.
• Feet.
• Specific muscle areas using EMS.

Professional beauty treatment applications

For exclusively aesthetic and wellness purposes, the equipment can be incorporated into:

• Wellness body treatment protocols.
• Sessions focused on body comfort.
• Cosmetic protocols designed to improve the visual appearance of the skin.
• Aesthetic treatments for the abdomen and waist.
• Leg and thigh protocols.
• Body treatments for the arms.
• Aesthetic muscle toning using EMS.
• Protocols involving the application of body heat.
• Combined compression, heat and electrical muscle stimulation sessions.
• Customised protocols by area.

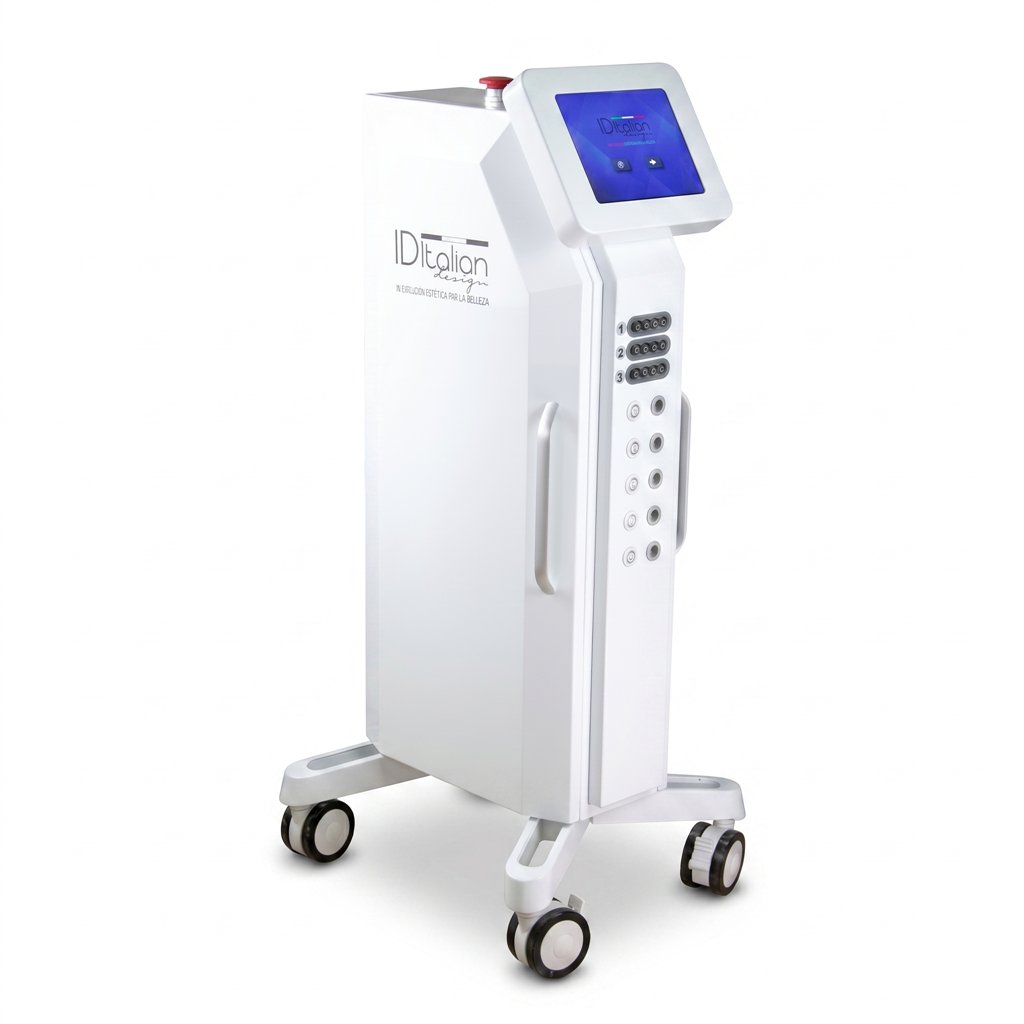

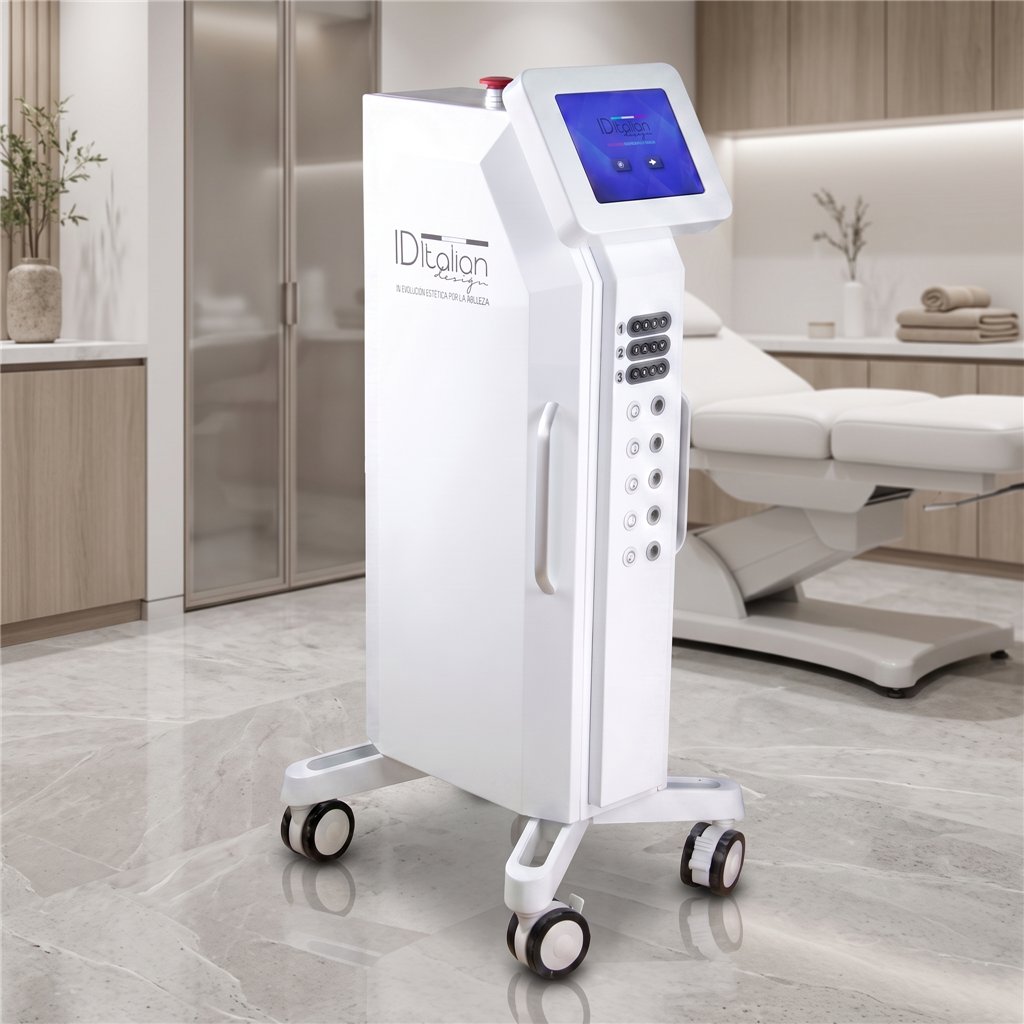

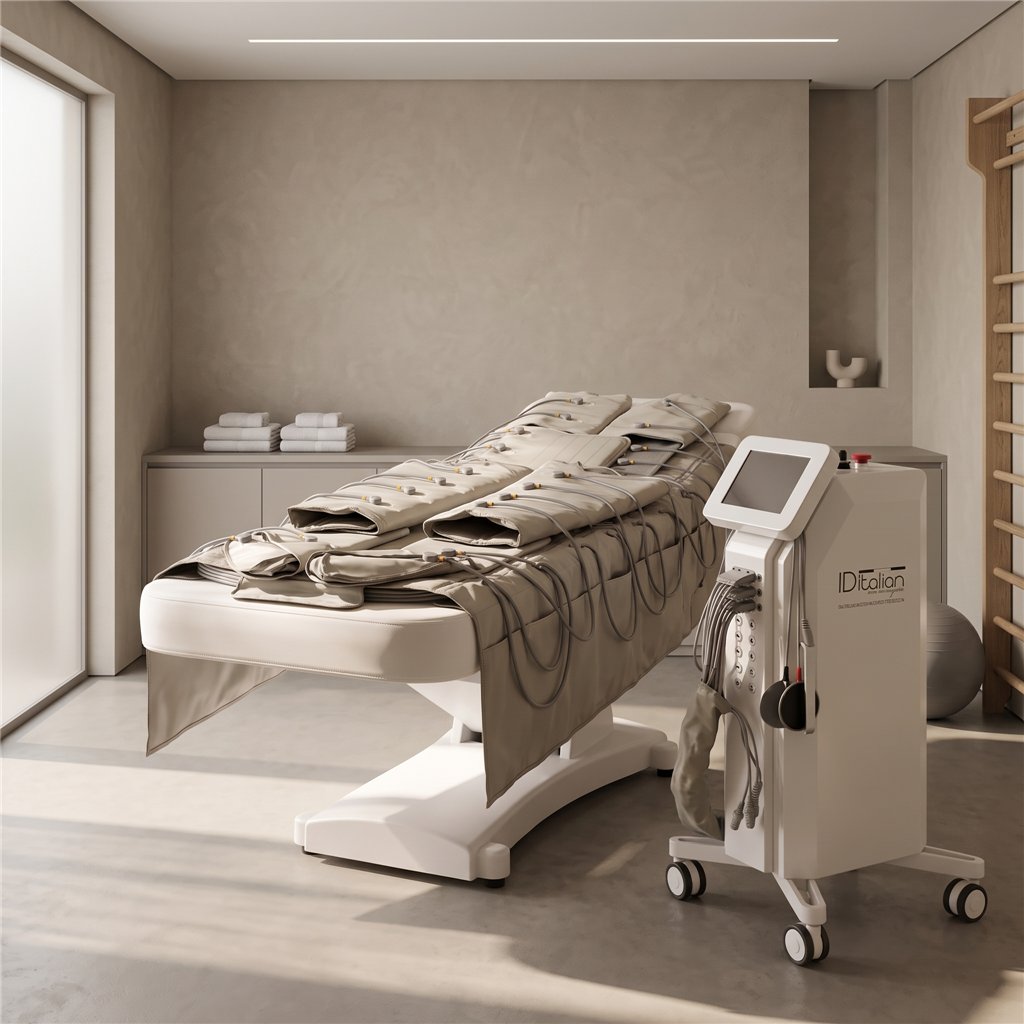

Upright design with castors

The main unit features an upright design with castors, making it easier to move around the premises.

This configuration is practical when the equipment is used in different treatment rooms or needs to be moved aside at the end of the working day.

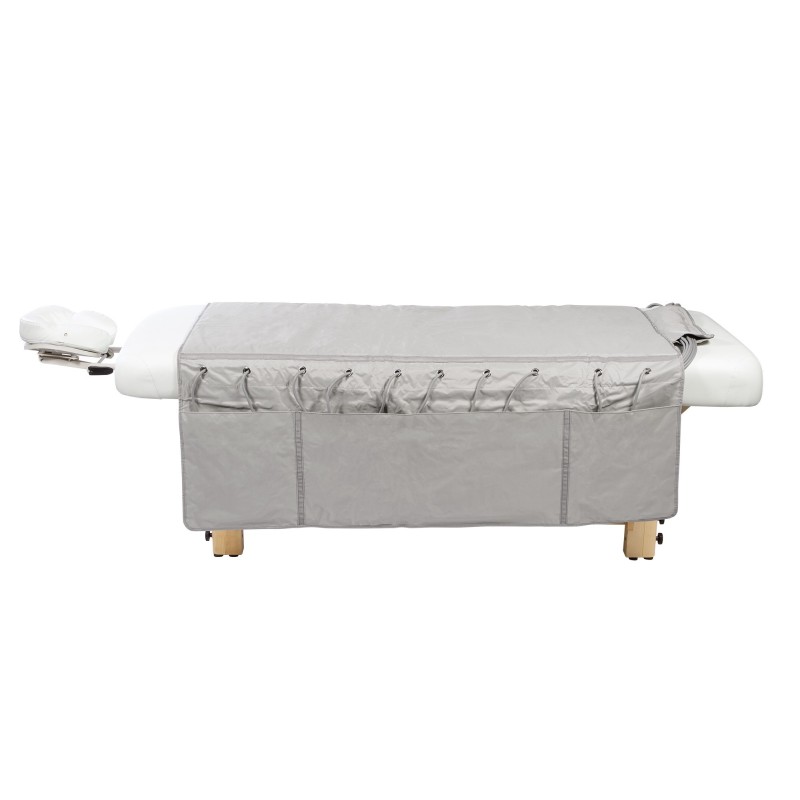

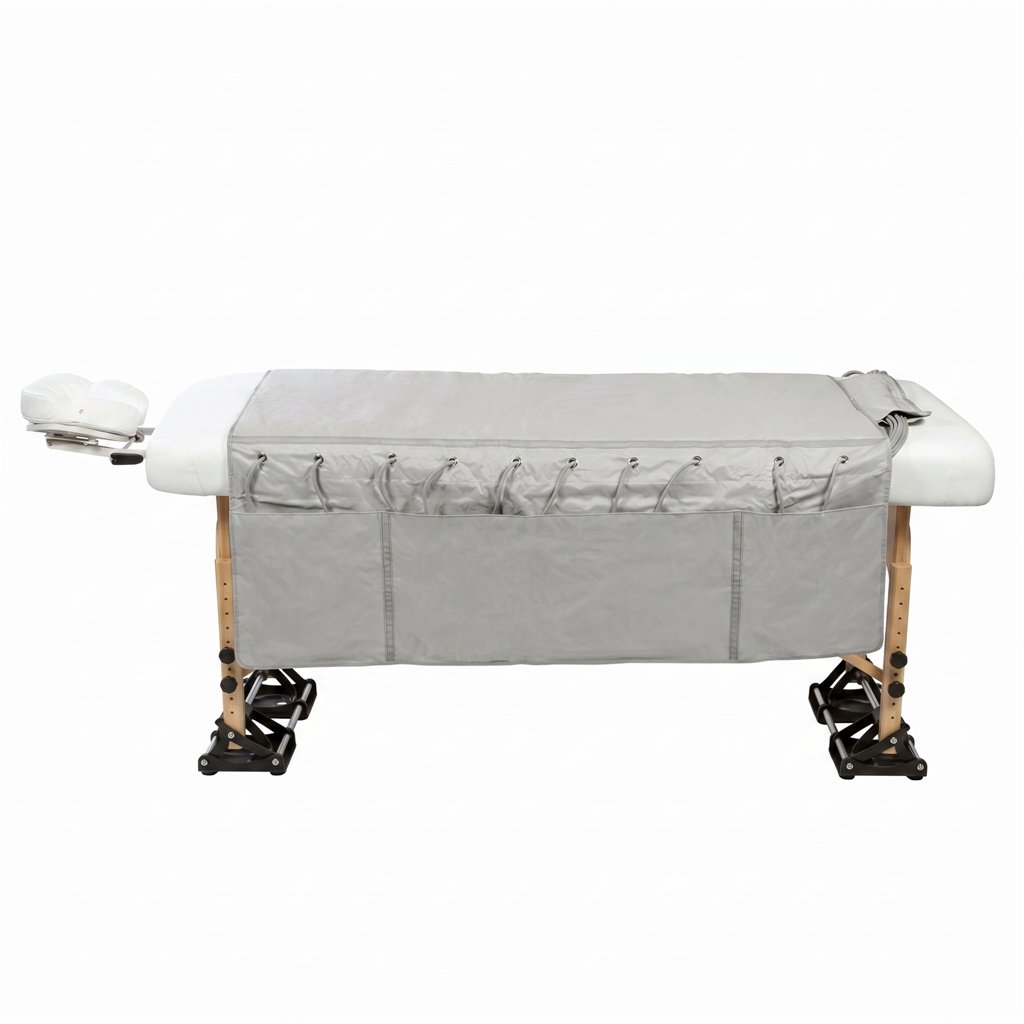

Protective cover for the treatment table

The set includes a protective cover for preparing the surface on which the client lies and facilitating the organisation of the different accessories.

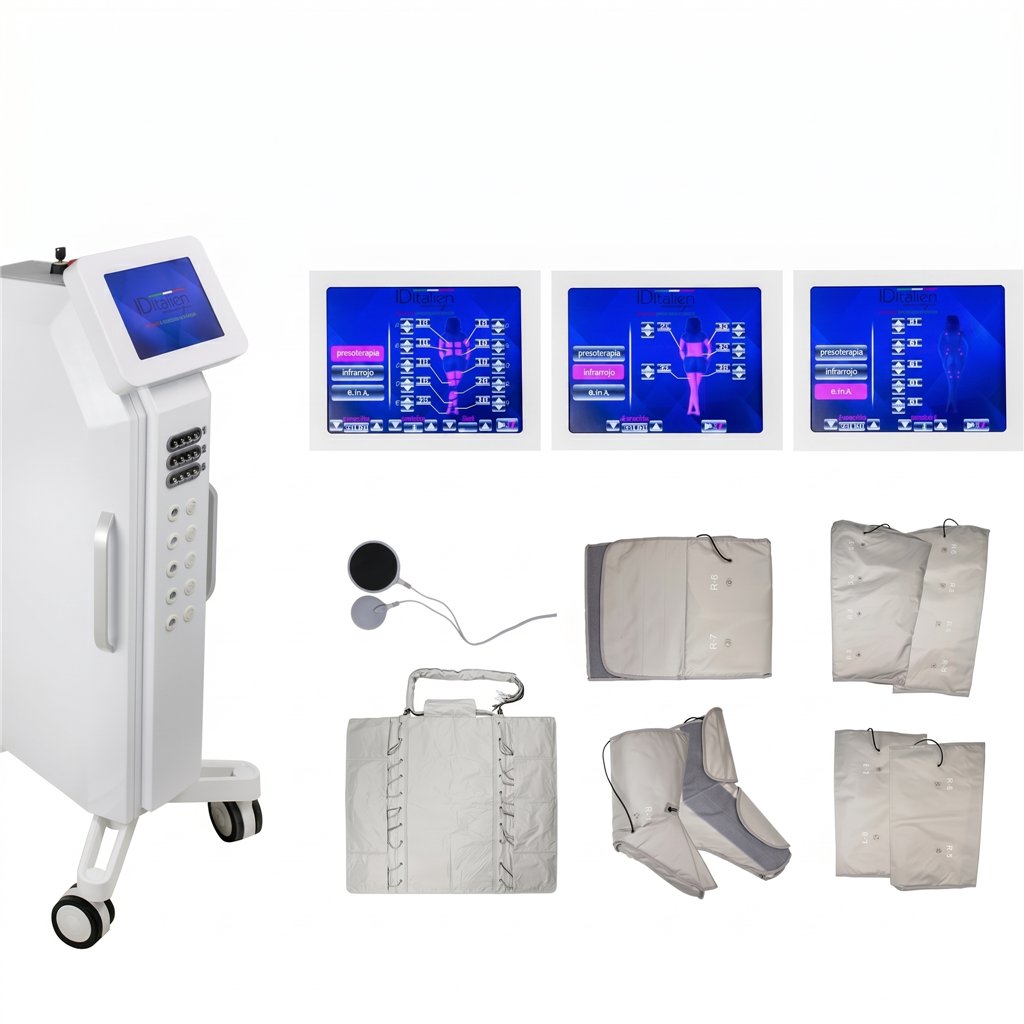

What is included

• 1 digital main unit.
• 1 right-arm module.
• 1 left-arm module.
• 1 abdominal wrap.
• 1 right-leg module.
• 1 left-leg module.
• 1 right-foot module.
• 1 left-foot module.
• 1 treatment table protective cover.
• 1 cable organiser pouch.
• 10 EMS pads or electrodes.
• EMS cables.
• Pressotherapy tubes and connectors.
• Far-infrared cables.
• Spanish-language manual.

Suit connections

• Pressotherapy Connections 0–9
• Far infrared Connections 1–5
• EMS Separate connection on the unit

Main unit connection layout

• Main power switch Yes
• Fuse Yes
• Power socket Yes
• Pressotherapy connector Yes
• EMS connector Yes
• Far-infrared connector Yes

350 W power

The stated power rating of the unit is 350 W.

• Power 350 W
• Frequency 50 / 60 Hz
• Voltage stated in the specifications 240 / 110 V

Full technical specifications

• Equipment type Professional 3-in-1 body pressotherapy machine
• Technologies Pressotherapy + far infrared + EMS
• Certified model IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219
• Use Professional
• Power 350 W
• Stated voltage 240 / 110 V
• Frequency 50 / 60 Hz
• Air chambers 20
• Pneumatic connections 10
• Pneumatic numbering 0–9
• Pressotherapy programmes 4
• Pressotherapy programme A Progressive sequence
• Pressotherapy programme B Alternating sequence
• Pressotherapy programme C Cumulative sequence
• Pressotherapy programme D Combined sequence
• Stated pressure 1 20 mmHg / documented reference 0.10 bar
• Stated pressure 2 80 mmHg / documented reference 0.22 bar
• Stated pressure 3 120 mmHg / documented reference 0.32 bar
• Far-infrared connectors 5
• Far-infrared numbering 1–5
• Heat type Dry radiant heat using far infrared
• EMS electrodes 10
• EMS programmes 4
• EMS Mode A 10 Hz
• EMS Mode B 20 Hz
• EMS Mode C 30 Hz
• EMS Mode D 40 Hz
• Suit type Modular
• Areas Arms, abdomen, legs and feet
• Suit material Canvas-style plastic
• Organiser pouch material Canvas-style plastic
• Display Digital touchscreen
• Design Upright with castors
• Manual Spanish

Certified model

Compliance and certification

• CE – EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• CE – LVD Directive 2014/35/EU

How to prepare a professional session

1. Position the unit in a stable area of the treatment room.
2. Prepare the treatment table correctly.
3. Place the protective cover on the treatment table.
4. Carry out the necessary hygiene procedure before fitting the garments.
5. Use disposable body protection when appropriate.
6. Select only the required modules.
7. Connect the pneumatic tubes according to the numbering from 0 to 9.
8. Check that the arrow on the air connectors is pointing upwards.
9. Connect the required thermal outputs from 1 to 5.
10. Prepare the EMS cables when electrical muscle stimulation is being used.
11. Apply conductive gel to the electrode contact areas.
12. Position the modules correctly on the client.
13. Switch on the main unit.
14. Select the technology or technologies to be used.
15. Configure the time, programme and intensity.
16. Check the client's comfort.
17. Start the session.

Supervision throughout the session

The operator must regularly check the condition of both the client and the equipment during operation.

• Check that the pressure is comfortable.
• Ensure that the garments are not excessively tight.
• Monitor the temperature of the heated areas.
• Check the contact of the EMS pads.
• Adjust the EMS intensity when necessary.
• Ensure that the tubes are not kinked.
• Check that the cables remain properly organised.

Hygiene between clients

The reusable modules must be cleaned correctly after each session.

We recommend using disposable covers or body wrap between the skin and the garments when appropriate for the protocol.

Cleaning and maintenance

• Switch off the equipment correctly after use.
• Disconnect the modules used.
• Clean and disinfect reusable surfaces.
• Do not immerse electrical components.
• Do not leave the thermal garments closed while they are still warm.
• Open the modules after using far infrared.
• Do not pull directly on cables or tubes.
• Do not bend the hoses excessively.
• Inspect connectors and electrodes regularly.
• Use the organiser pouch to manage the cabling.
• Store the equipment in a clean, dry environment.

Contraindications and exclusions for use

The exclusions stated for this equipment include:

• Pregnancy.
• Pacemakers.
• Other implanted electronic devices.
• Epilepsy.
• Active infections.
• Damaged or compromised skin for EMS without prior assessment.
• Haemorrhage.
• Recent wounds.
• Fever.
• Significant sensory impairment in the application area.

Specific pressotherapy precautions

• Start with low pressure.
• Increase gradually according to tolerance.
• Do not overtighten the garments.
• Do not use over recent wounds.
• Do not use over active infections.
• Stop the session if pain or unusual discomfort occurs.

Specific far-infrared precautions

• Check heat sensitivity beforehand.
• Do not use on areas with impaired sensitivity.
• Monitor the temperature continuously.
• Do not use over wounds or infections.
• Do not leave the garments heating without a user.
• Stop the function if the heat sensation becomes excessive.

Specific EMS precautions

• Do not use during pregnancy.
• Do not use on people with pacemakers.
• Do not use with other implanted electronic devices.
• Do not use on people with epilepsy.
• Do not place over damaged skin.
• Do not use over active infections.
• Apply a suitable conductive gel.
• Start at a low intensity.
• Increase gradually according to tolerance.

For professional use only

This equipment is intended for beauty centres and professional establishments.

The operator must have a thorough understanding of:

• Modular suit assembly.
• Connecting pneumatic tubes.
• Connecting far infrared.
• EMS electrode placement.
• Pressotherapy programmes.
• Pressure adjustment.
• Temperature control.
• EMS frequencies and intensity.
• Contraindications.
• Cleaning and maintenance.

Exclusively aesthetic purpose

Why this 3-in-1 Pressotherapy Machine stands out

• Combines three technologies in a single unit.
• Features 20 pressotherapy chambers.
• Offers four different pneumatic sequences.
• Allows only the required modules to be selected.
• Integrates far-infrared heat.
• Features 5 thermal connections.
• Includes 10 EMS electrodes.
• Allows frequencies from 10 to 40 Hz to be selected.
• Centralises configuration through a touchscreen.
• The organiser pouch helps manage the cabling.
• Its upright design with castors makes it easy to move within the centre.

Equipment at a glance

Frequently asked questions

Which technologies does it feature?

It combines pressotherapy, far-infrared heat therapy and EMS electrical muscle stimulation.

Can the technologies be used separately?

Yes. The different functions can be activated according to the requirements of the professional protocol.

How many chambers does it have?

It features 20 air chambers.

How many pressotherapy outlets does it use?

The set has 10 pneumatic connections numbered from 0 to 9.

How many pressotherapy programmes does it have?

It features 4 programmes: A, B, C and D.

How does Mode A work?

It uses a progressive compression sequence, followed by simultaneous inflation before repeating the cycle.

How does Mode B work?

It uses an alternating inflation and deflation sequence.

How does Mode C work?

It uses a cumulative sequence in which new areas are progressively added while certain previous areas remain active.

How does Mode D work?

It uses different sequences simultaneously to generate a combined compression pattern.

Is the suit a single piece?

No. It is a modular suit made up of separate sections.

Which areas are included?

It includes modules for the arms, abdomen, legs and feet.

What material is it made from?

The suit and organiser pouch are made from canvas-style plastic material.

How many far-infrared connections does it have?

It features 5 thermal connections numbered from 1 to 5.

Can the temperature be adjusted by area?

Yes. The touchscreen allows the temperature of the active sections to be adjusted and the outputs in use to be selected.

How many EMS electrodes are included?

It includes 10 electrodes or pads.

Which EMS frequencies does it have?

It features 10, 20, 30 and 40 Hz.

Is conductive gel required?

Yes. The use of a suitable conductive gel is recommended during EMS electrical muscle stimulation.

Does it have a touchscreen?

Yes. It features a digital touchscreen with independent controls for all three functions.

What is its power rating?

The stated power rating is 350 W.

What is the certified model?

The model identified in the documentation is IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219.

Is it CE marked?

The documentation identifies compliance with EMC 2014/30/EU, LVD 2014/35/EU and RoHS 2011/65/EU.

Can it be used during pregnancy?

No. Pregnancy is listed among the exclusions for use of this equipment.

Can it be used on people with pacemakers?

No. It must also not be used on people with other implanted electronic devices.

Can it be used on people with epilepsy?

No. Epilepsy is listed among the exclusions for use.

Can it be used over active infections?

No. It must not be used on areas with active infections.

Is it a medical device?

It must not be presented as equipment intended for the diagnosis or treatment of disease. Its use must remain within the professional beauty and wellness field.

A modular platform for professional body treatment protocols

The Professional 3-in-1 Pressotherapy Machine combines 20 air chambers, four pressotherapy programmes, far-infrared heat therapy and electrical muscle stimulation through 10 pads and four frequencies ranging from 10 to 40 Hz.

Its modular configuration allows the arms, abdomen, legs and feet to be selected independently, while the 10 pneumatic connections and 5 thermal connections distribute the different functions across the body suit.

The touchscreen centralises the configuration of the main parameters, while the organiser pouch helps keep tubes and cables organised during professional use.

Video course

Support video covering the general operation of the equipment, fitting the modular suit, connecting the accessories and starting the machine in a professional treatment room.
