i-Medstetic Multifunctional 3-in-1 Pressotherapy Device with Heat and Passive Gymnastics

Professional 3-in-1 pressotherapy with EMS, infrared heat and complete body accessories

Professional CE marking

The professional 3-in-1 pressotherapy system with EMS and infrared heat is a multifunctional body equipment unit for treatment rooms that combines pneumatic compression, thermal stimulation and electrical muscle stimulation in a single device. It is designed for professional beauty body treatment protocols focused on comfort, toning and improving the visible appearance of the skin.

Its structure includes a digital panel with LED displays, timer, programme selection and intensity adjustment. The textile set includes separate pieces for arms, abdomen and buttocks, legs and feet, together with a base blanket and electrical muscle stimulation accessories to perform more complete body treatment sessions.

Equipment functions

• Air-pressure pressotherapy.
• EMS electrical muscle stimulation or passive exercise.
• Infrared thermal stimulation with a body heat effect.

Key features

• 3-in-1 equipment for professional beauty use.
• Digital panel with LED screens and central timer.
• Body accessories for arms, waist, legs and feet.

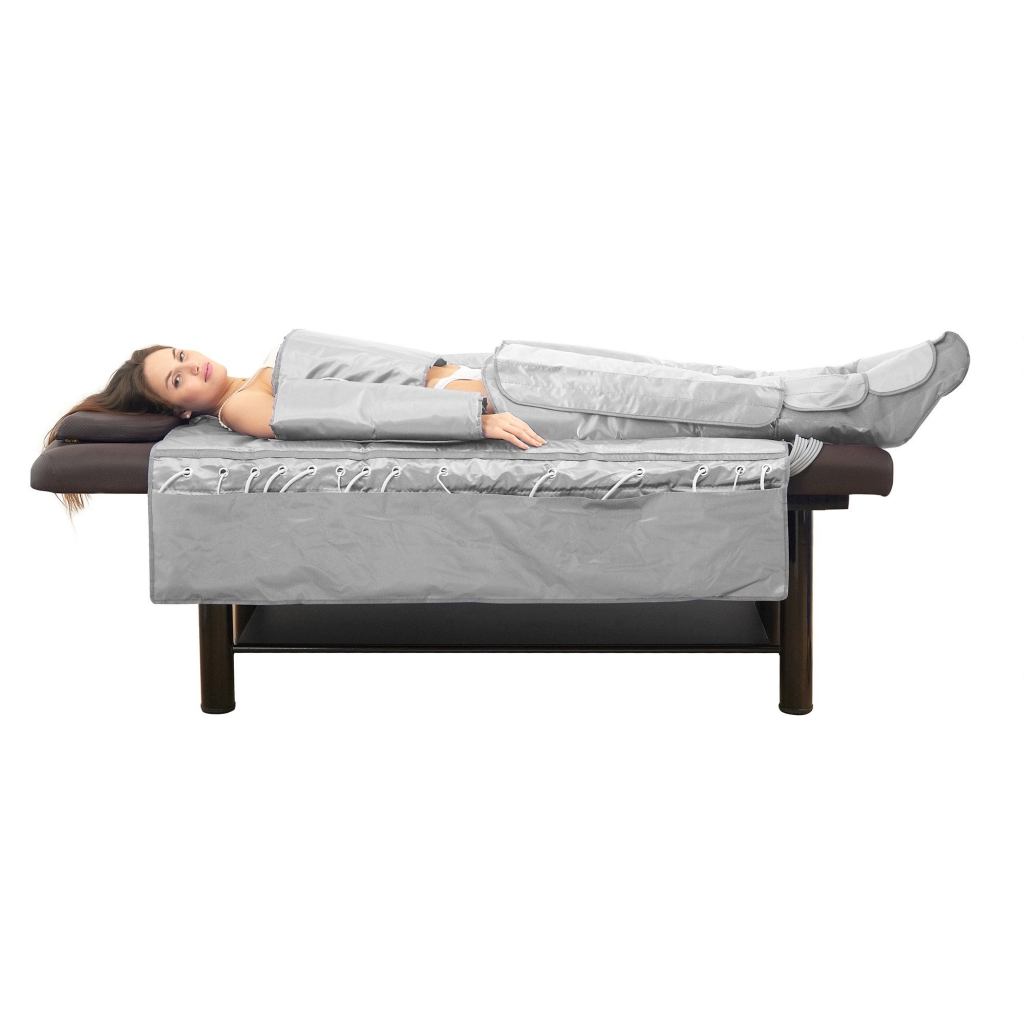

• Base blanket to support the client during the session.
• Protective hose organiser bag.

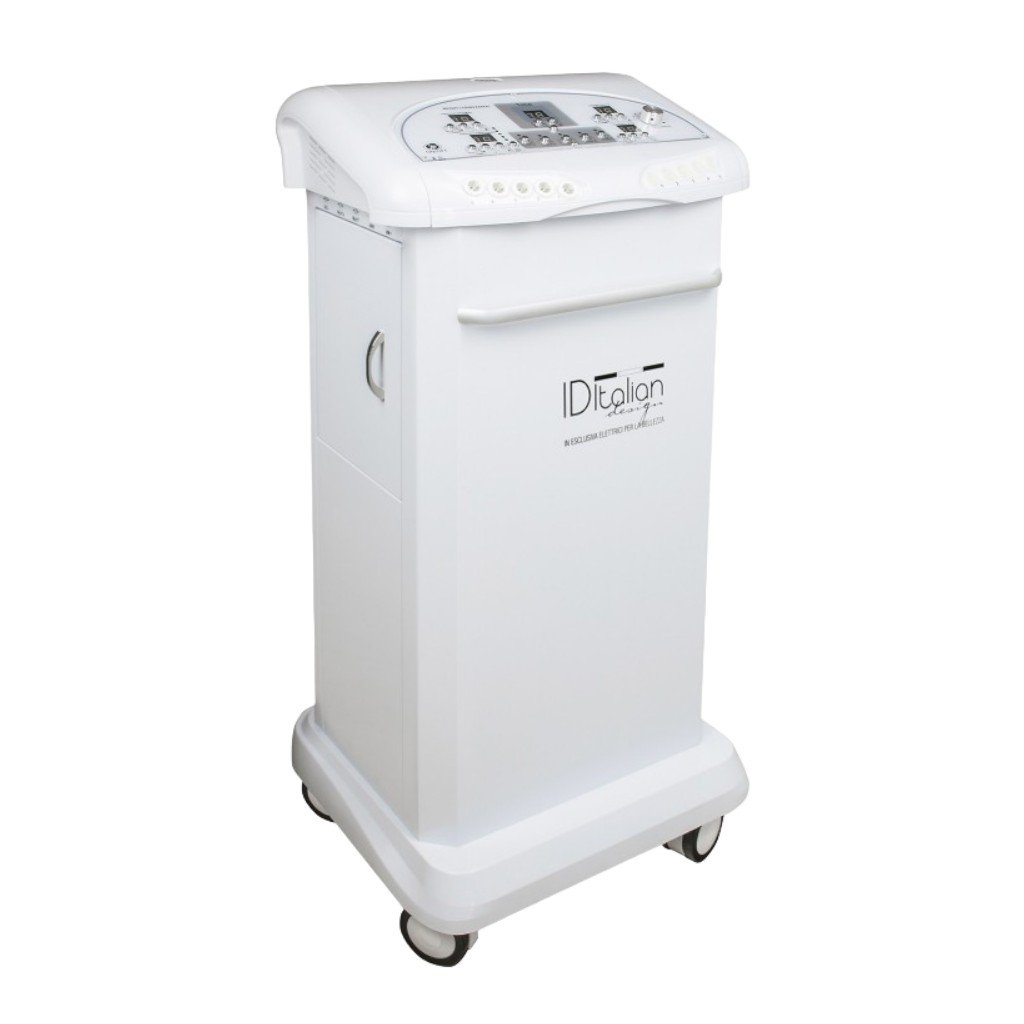

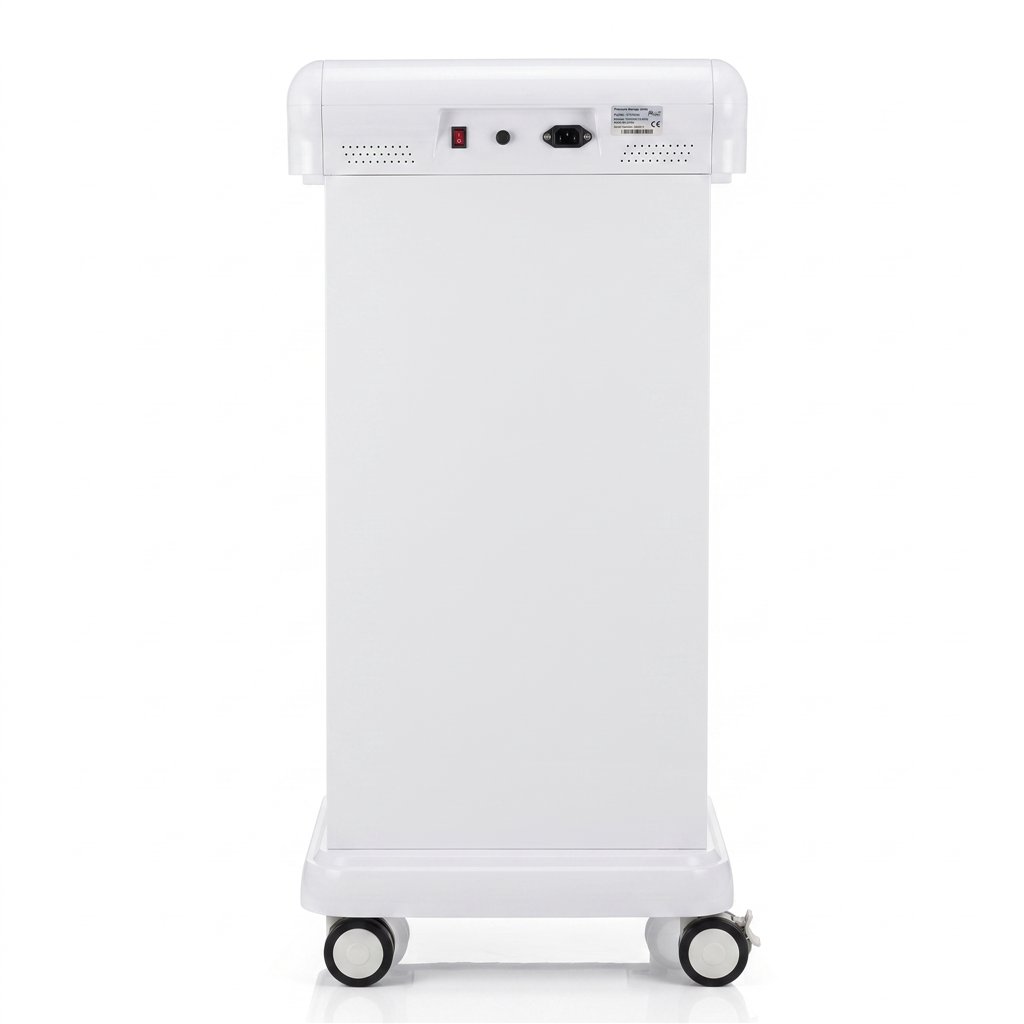

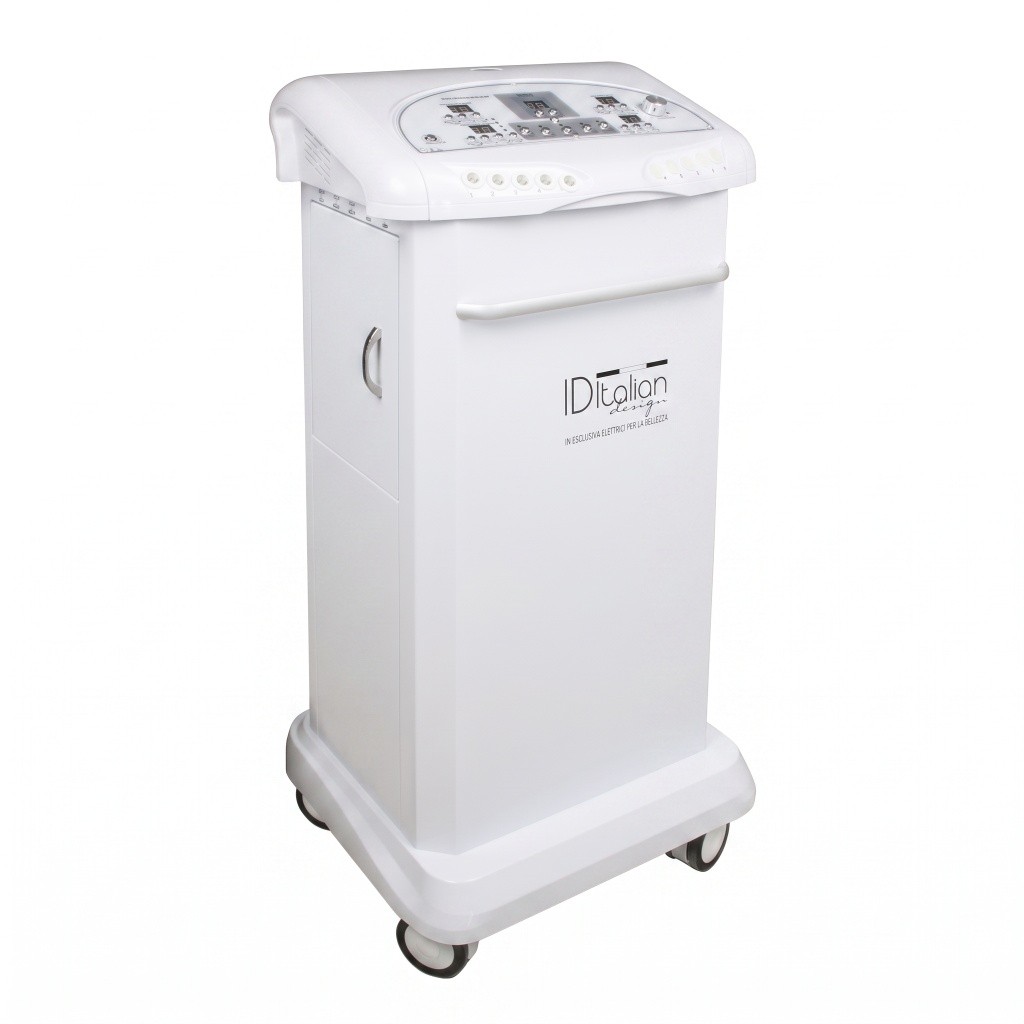

• Trolley with castors for easier movement.
• Option to work by zones and activate only the required sections.
• Independent or combined use of different functions according to the protocol.

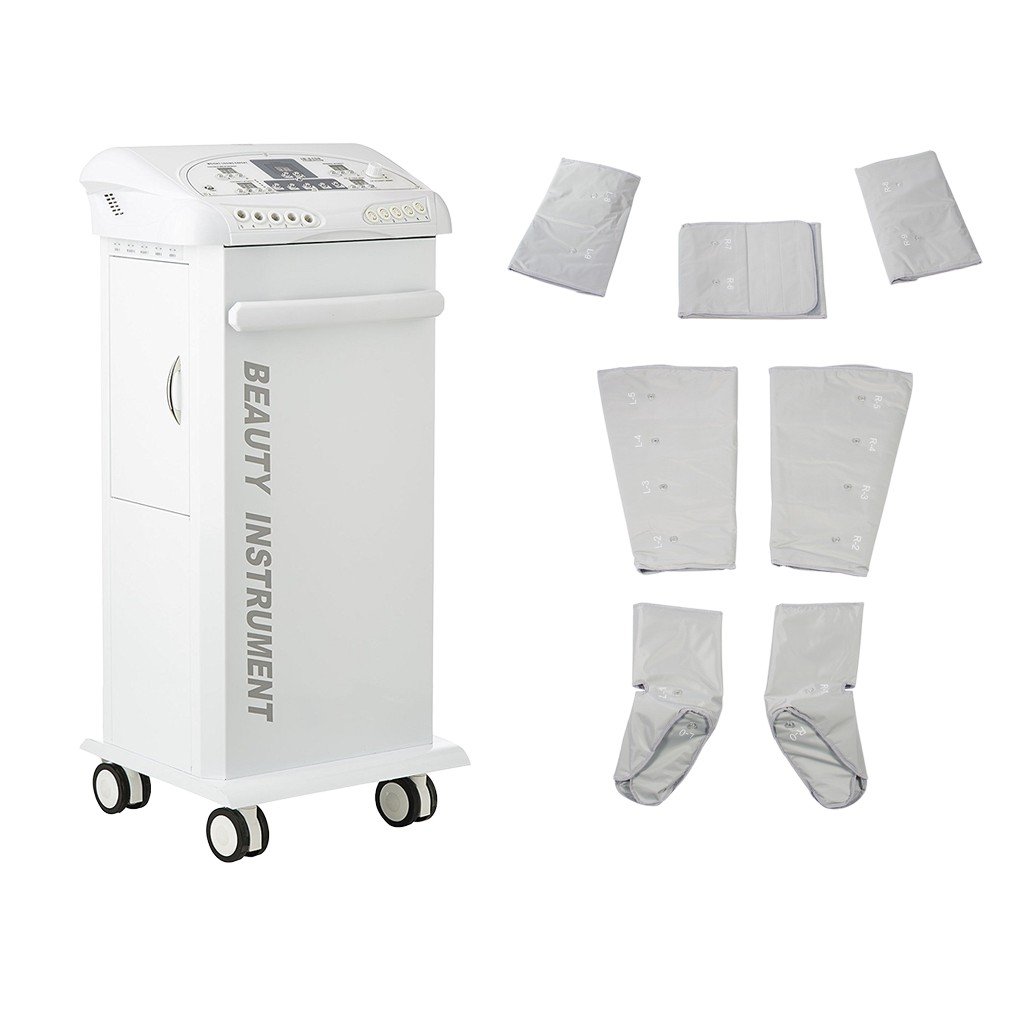

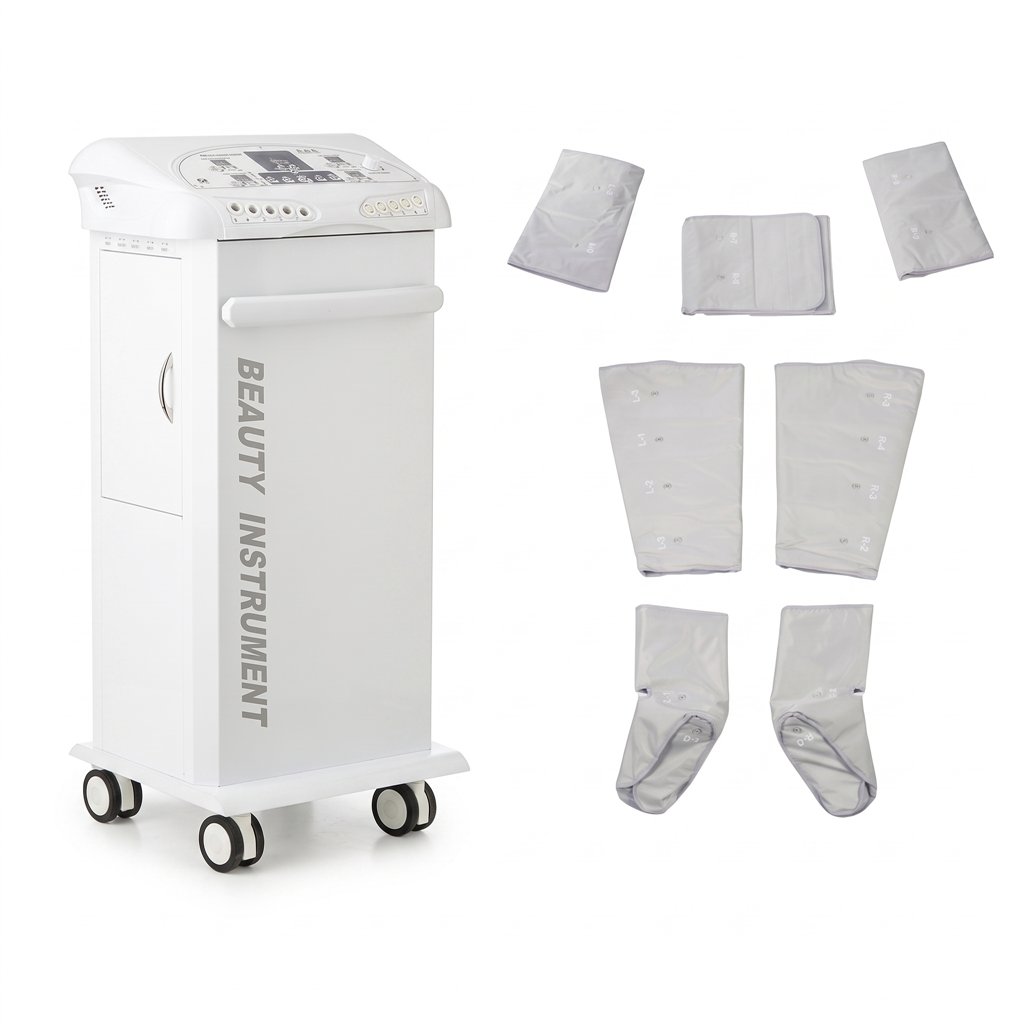

Accessories included

• 1 main device body.
• 1 slimming garment or textile working set.

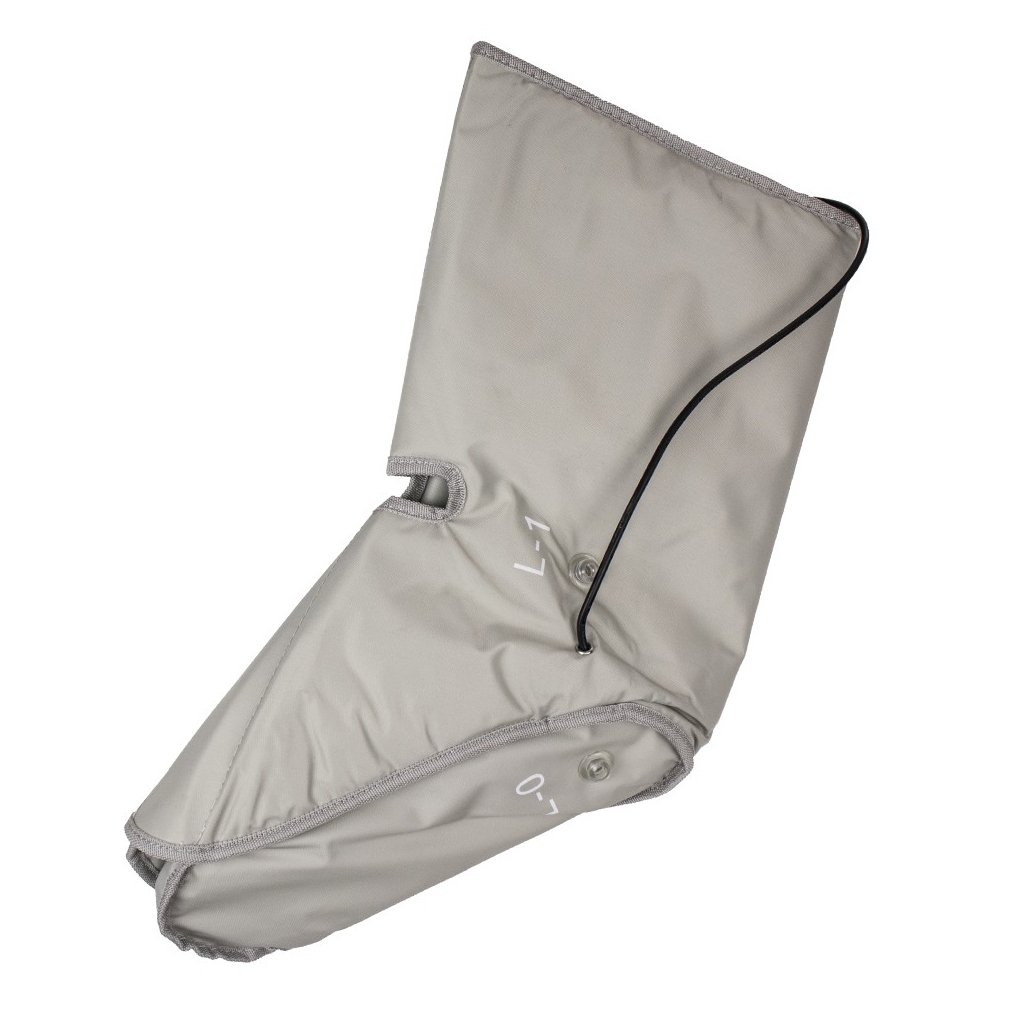

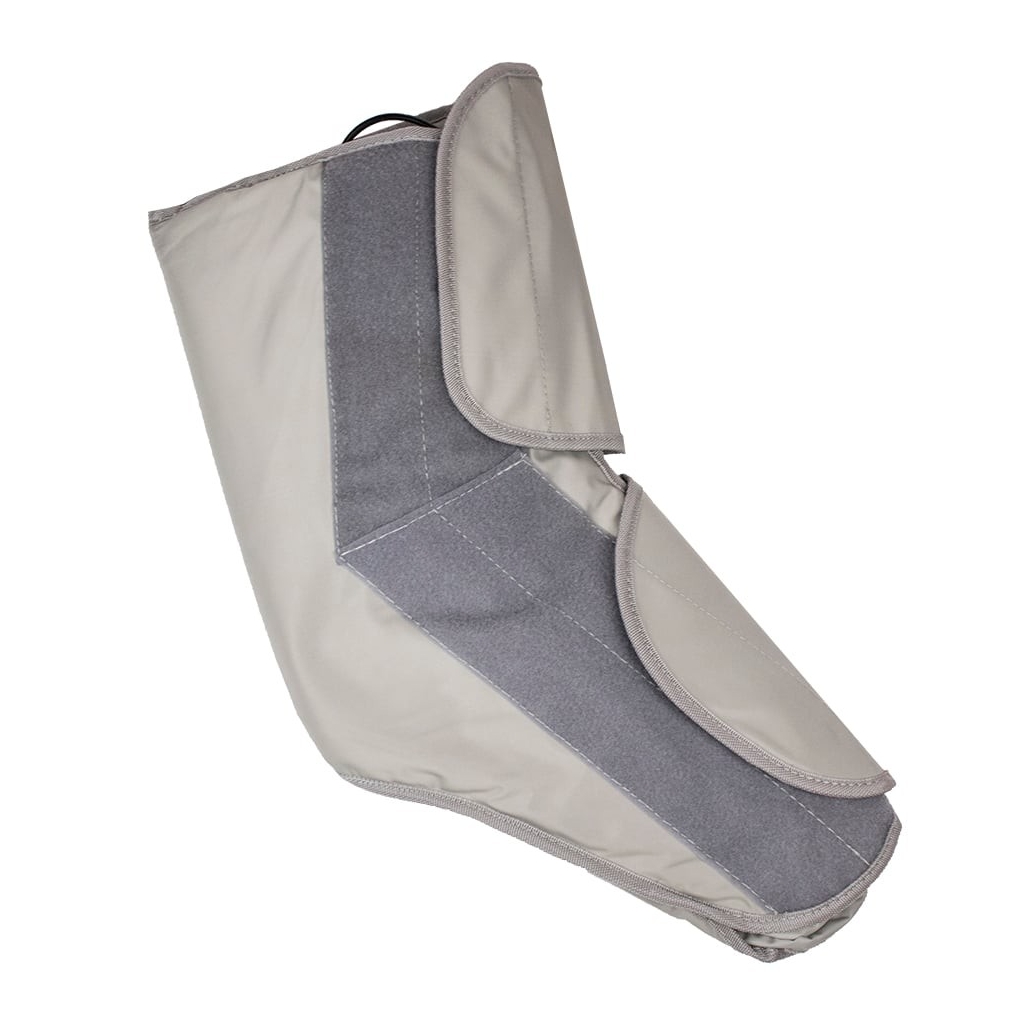

• 2 foot boots.
• 2 adjustable leg pieces.
• 2 arm cuffs.

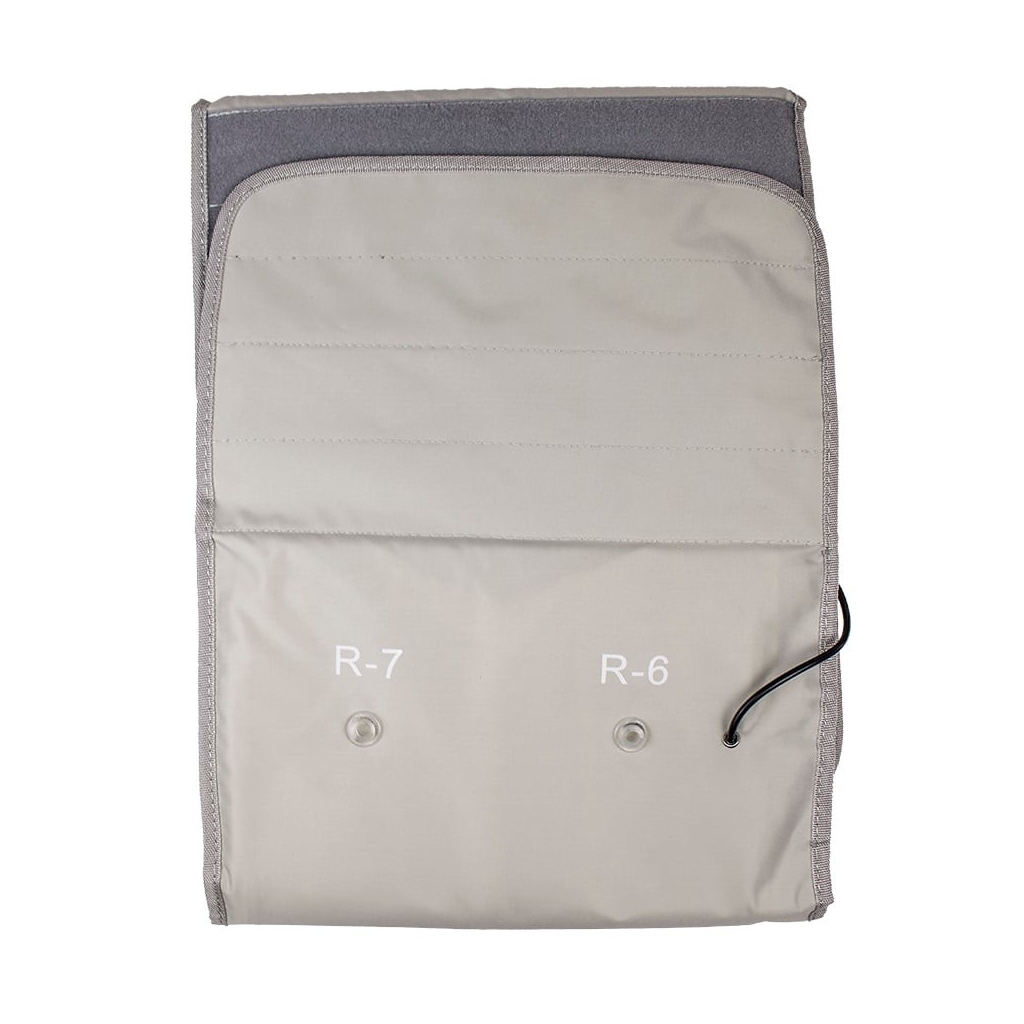

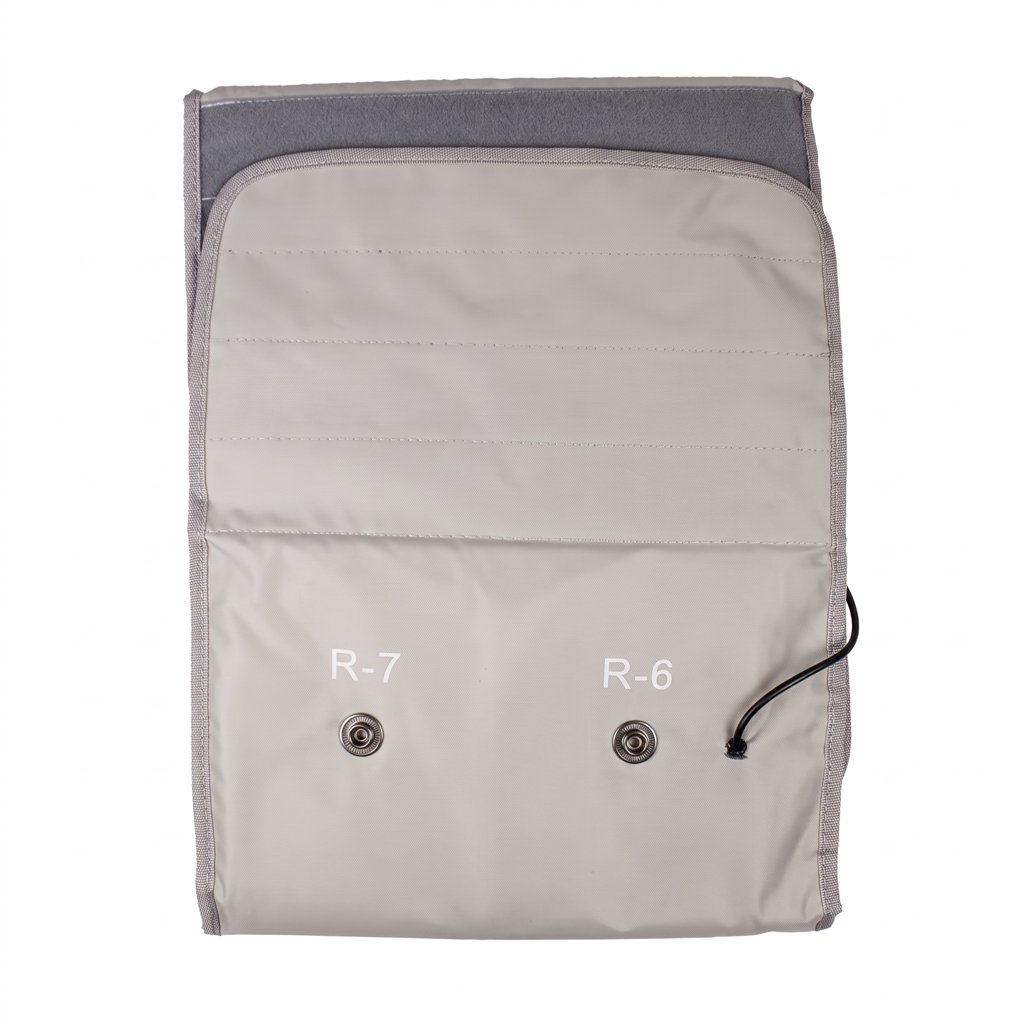

• 1 waist belt/girdle for abdomen and buttocks.
• 1 base blanket.
• 1 protective hose organiser bag.

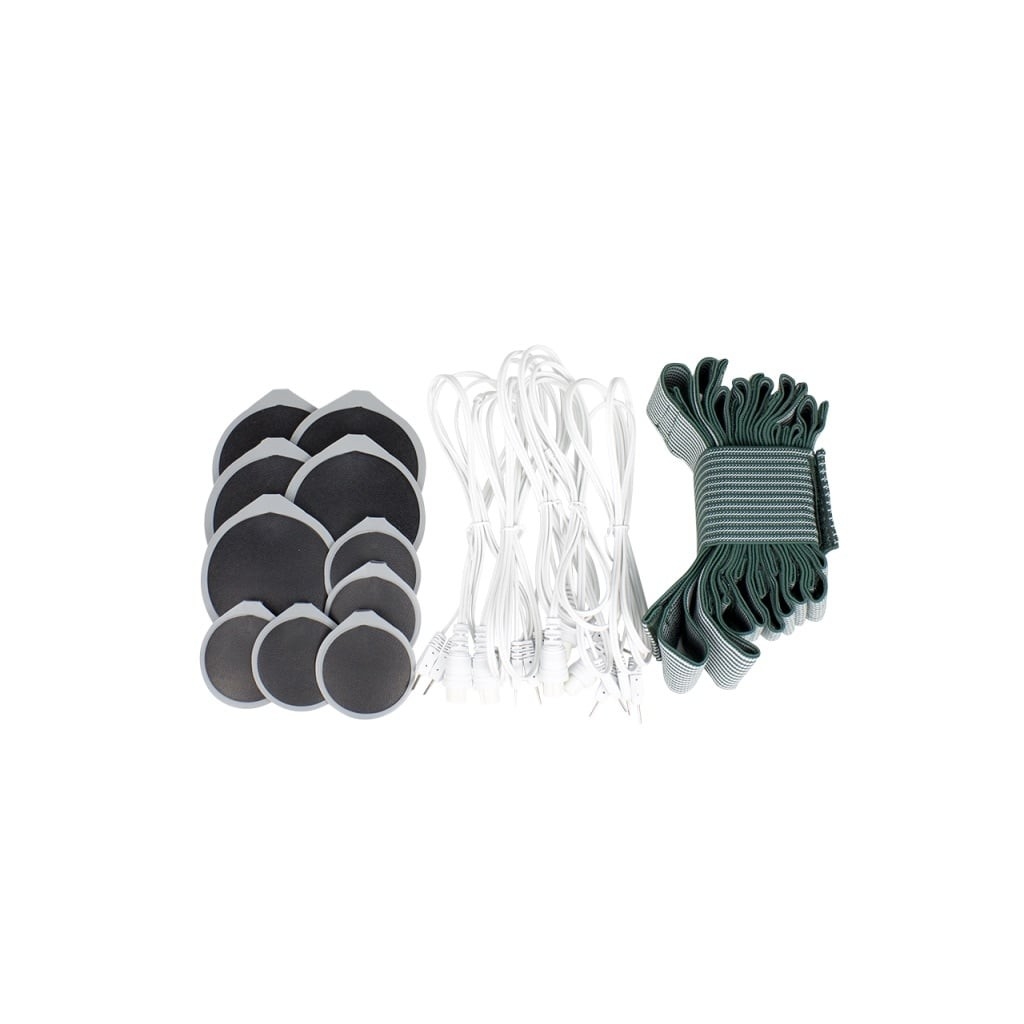

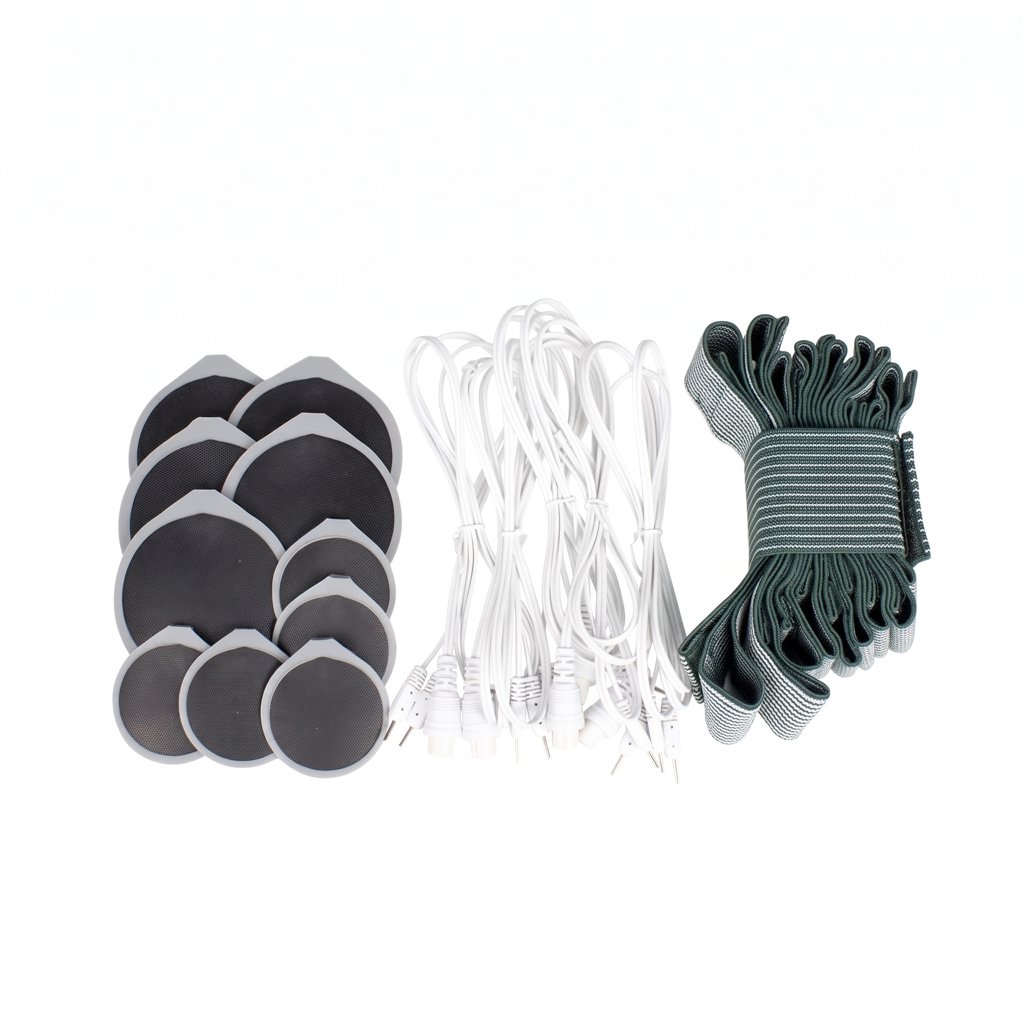

• 5 patch cables for electrical muscle stimulation.
• 10 large patches or electrodes.
• 6 small electrodes.
• 1 set of elastic bands.
• 1 power cable.
• 2 fuses.
• 1 manual in Spanish.

Main technical data

• Certified model IDMRTSE4 TERMO SLIM BODY SHAPER EXCELLENS 8432729013696
• Power 350 W
• Power supply 220 V
• Commercial voltage 220V-230V
• Power supply compatibility AC 110V / 220V / 230V / 240V
• Frequency 50-60 Hz
• Air pressure 0-150 mmHg (+-10%)
• Pressure stated in manual 20 / 80 / 120 mmHg
• Pressure stated in bar 0.10 / 0.22 / 0.32 bar
• Total chambers 20
• Abdomen chambers 4
• Leg chambers 4 x 2
• Arm chambers 4 x 2
• Foot chambers 2 x 2
• Pressure sectors 10
• Pressure programmes 3
• EMS programmes 5
• Pressurisation speed 5 levels
• EMS intensity 1 to 8
• Infrared intensity 1 to 8
• Session time 1 to 60 minutes
• Commercial sheet dimensions 99 x 43 x 38 cm
• Main machine dimensions in manual 103 x 55 x 46 cm
• Blanket dimensions 91 x 46 x 12 cm
• Gross weight 36 kg
• Main machine weight 29 kg
• Blanket weight 6.6 kg
• Energy efficiency class C

Zone and outlet layout

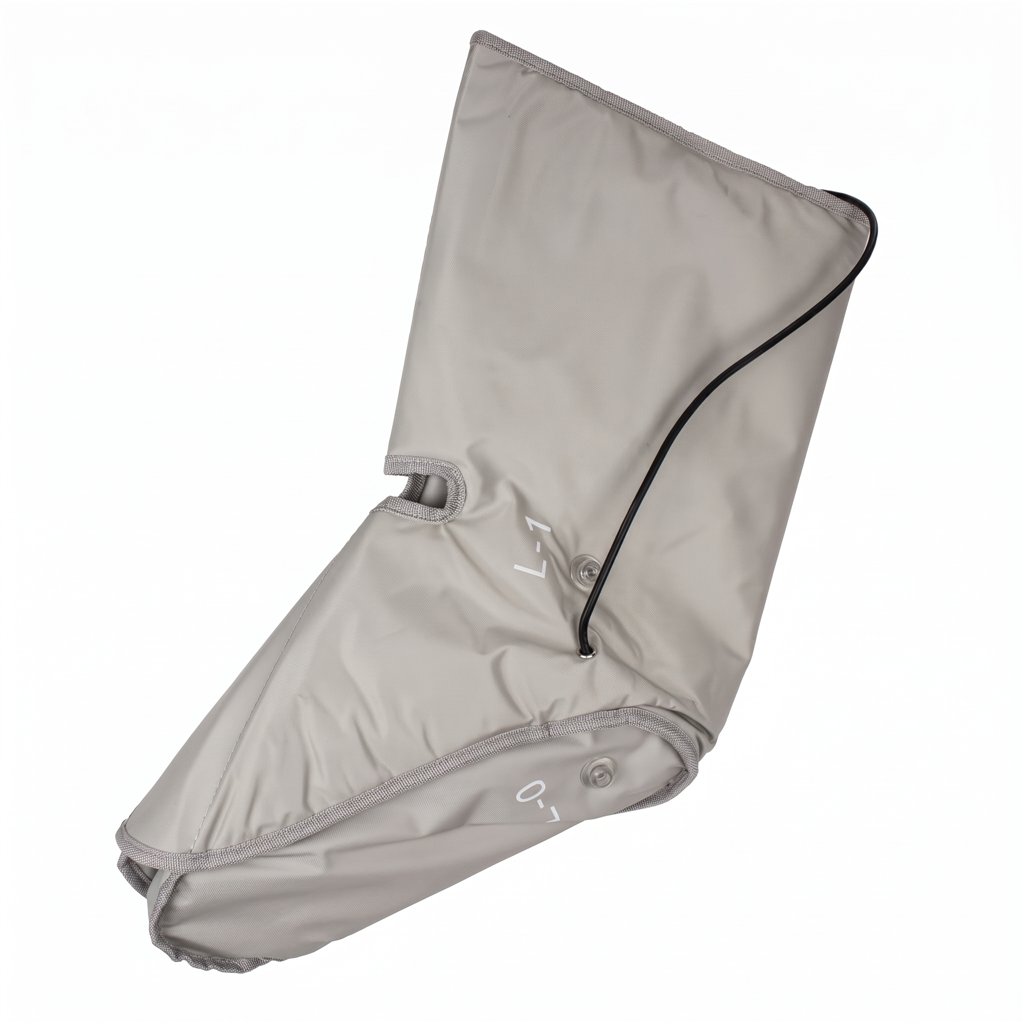

• Feet Pressure outlets foot 0 and foot 1

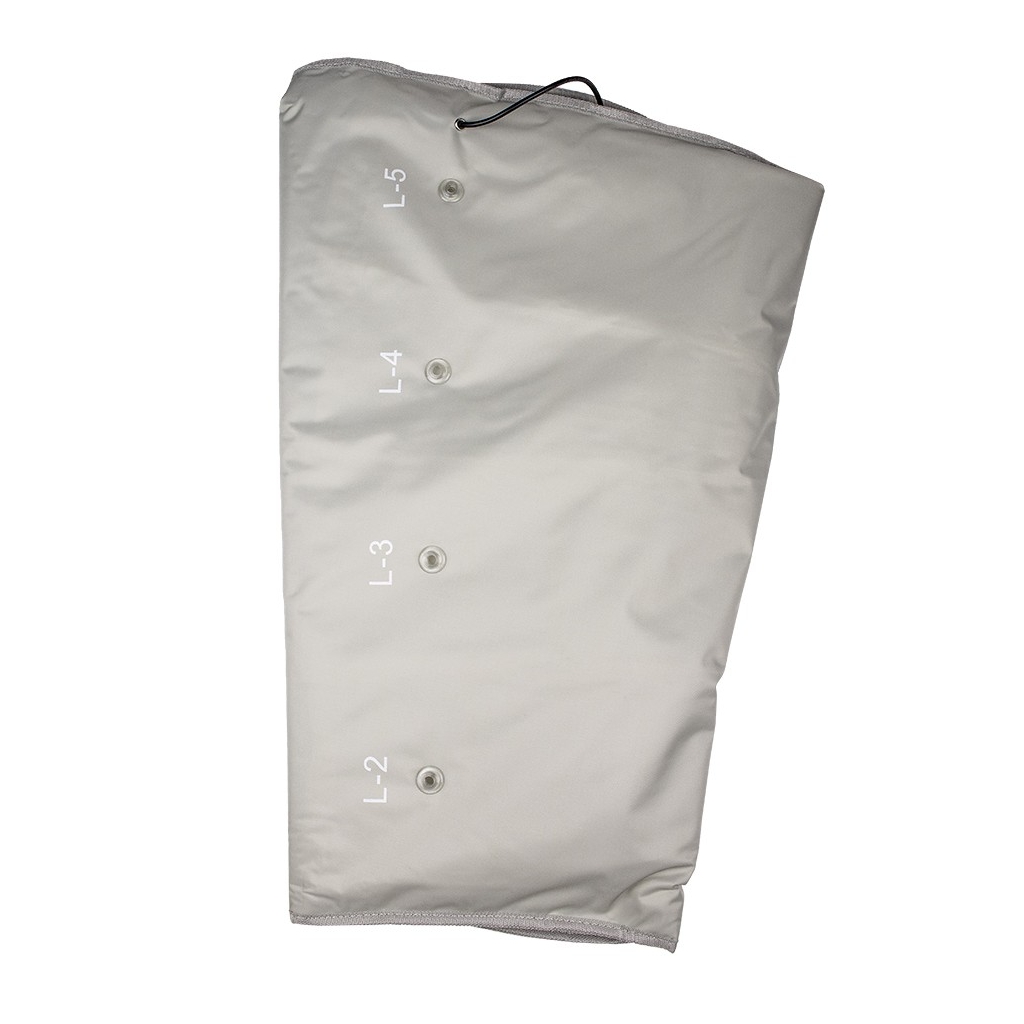

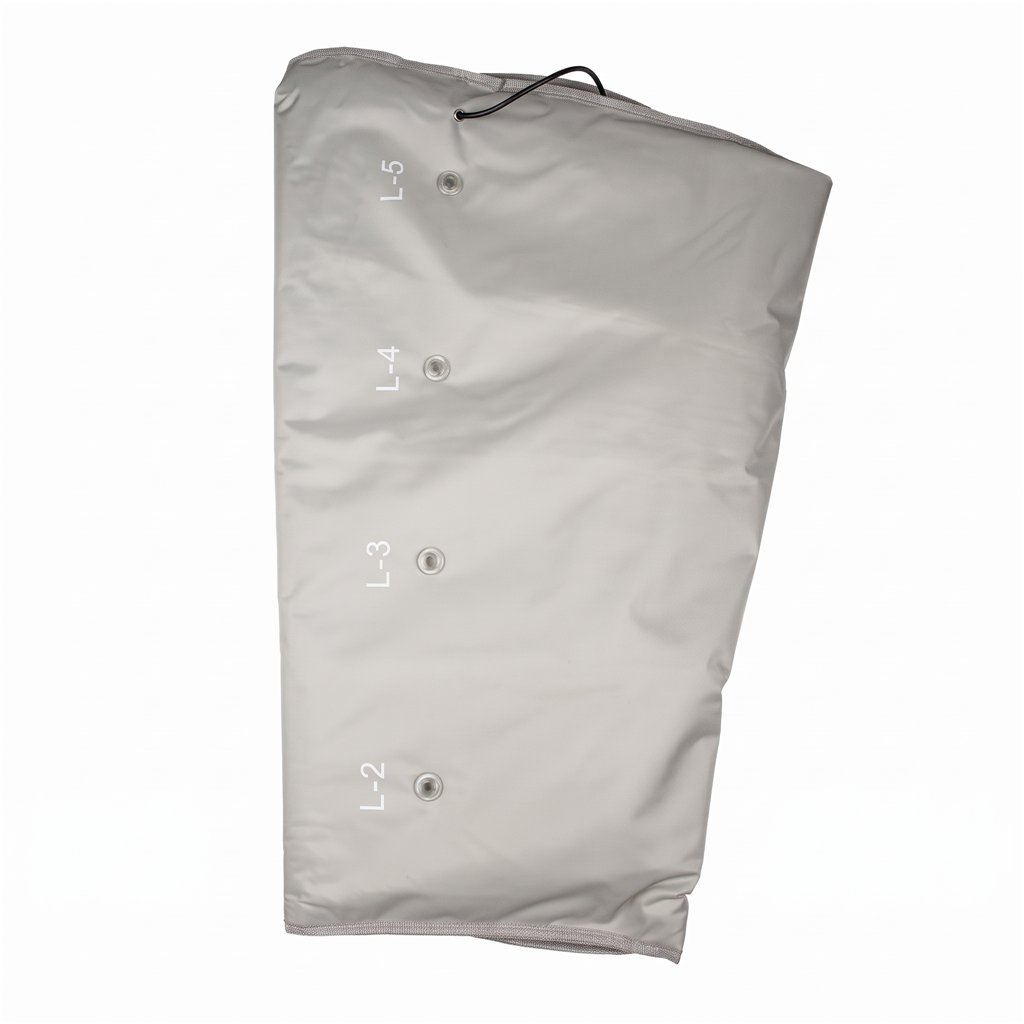

• Legs Pressure outlets leg 2, leg 3, leg 4 and leg 5
• Waist Pressure outlets waist 6 and waist 7
• Arms Pressure outlets arm 8 and arm 9
• Arm infrared Outlets 1 and 2
• Waist infrared Outlet 3
• Leg infrared Outlets 4 and 5

Sequential pressotherapy

The pressotherapy function works by inflating and deflating pneumatic chambers distributed throughout the suit. This compression is adjusted from the digital panel and allows the operator to select the working mode, pressurisation speed and active zones connected to the client.

In the treatment room, it is used as support in professional beauty body treatment protocols aimed at comfort, the sensation of tired legs and improving the visible appearance of the skin, always from a non-medical approach.

Air pressure programmes

• Mode 1 Works from the ends of the limbs towards the centre of the body.
• Mode 2 Works from the centre of the body towards the ends of the limbs.
• Mode 3 Uniform inflation and deflation across all activated zones.

Inflation and deflation speed

• Level 1: very fast.
• Level 2: fast.
• Level 3: medium.
• Level 4: slow.
• Level 5: very slow.

Electrical muscle stimulation

Electrical muscle stimulation works with low-frequency current applied through electrodes. The equipment allows manual or automatic mode selection, the choice of one of its five programmes and independent adjustment of the intensity of each output.

It is recommended to always use conductive gel to optimise contact between the electrode and the skin. Each channel can be adjusted according to the client’s sensitivity and the working protocol on the abdomen, waist, buttocks, arms or legs.

Electrical muscle stimulation programmes

• Programme 1 Weight loss.
• Programme 2 Centralised weight loss.
• Programme 3 Anti-cellulite.
• Programme 4 Lymphatic activation.
• Programme 5 Relaxation.

• Working channels 5
• Electrodes included 10 large and 6 small
• Intensity range 1 to 8
• Control Manual or automatic

Infrared thermal stimulation

Thermal stimulation is performed using heating elements integrated into the textile set, which emit dry radiant heat. This function can be used on its own or together with pressotherapy to create more complete and comfortable professional beauty body treatment protocols.

The heat intensity and total session time are adjusted from the panel. The manual places the intensity between 1 and 8, with a common usage reference of level 6 according to the professional’s judgement.

• Heat intensity 1 to 8
• Recommended intensity 6
• Maximum time at high setting Do not exceed 20 minutes at high temperature
• Recommended time for complex protocols Up to 45 minutes
• Recommended time for mild reshaping 30 minutes

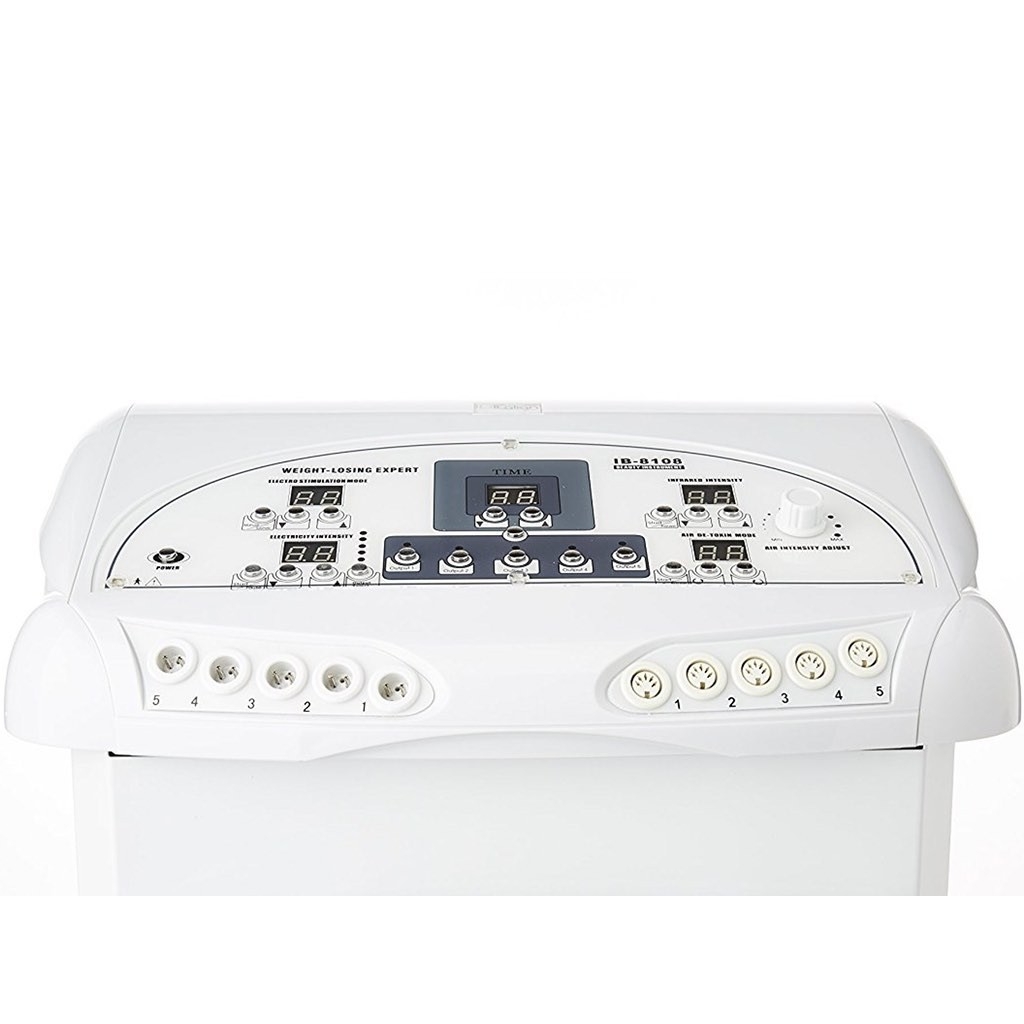

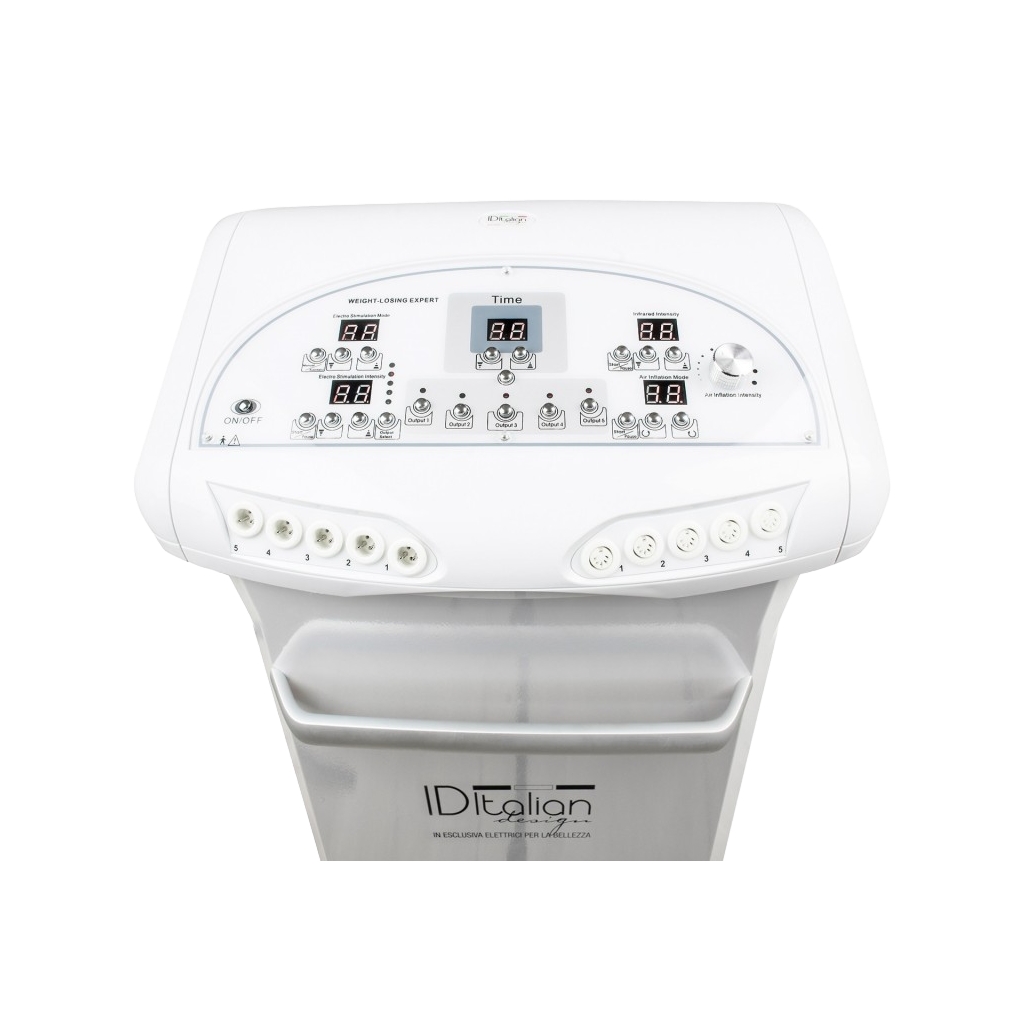

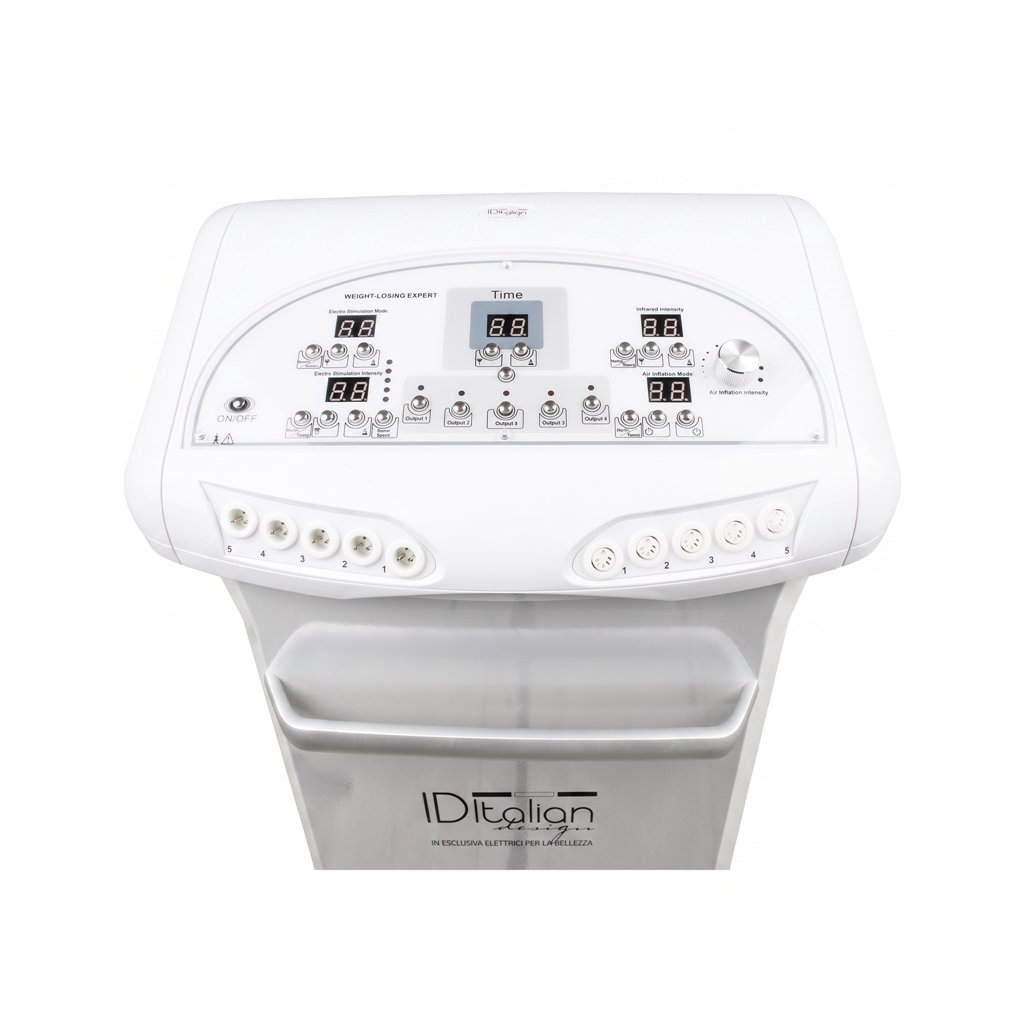

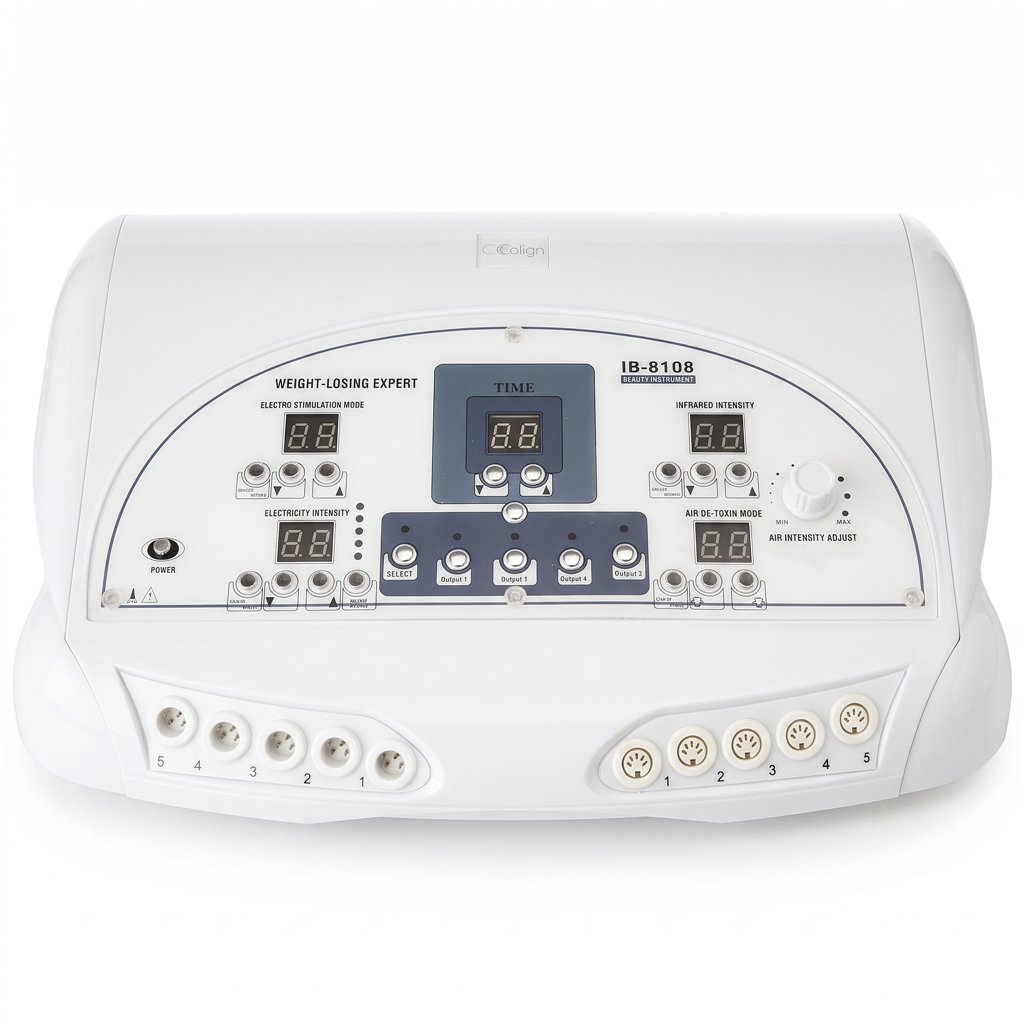

Digital panel and controls

• Central display for the total session time.
• EMS screens for waveform and intensity.
• Upper right screen for infrared heat.
• Lower right screen for air pressure mode and intensity.
• Independent start and stop buttons for each function.
• Pressure outlet selection for arms, waist, legs and feet.
• Intensity selection by EMS channel.

Session preparation

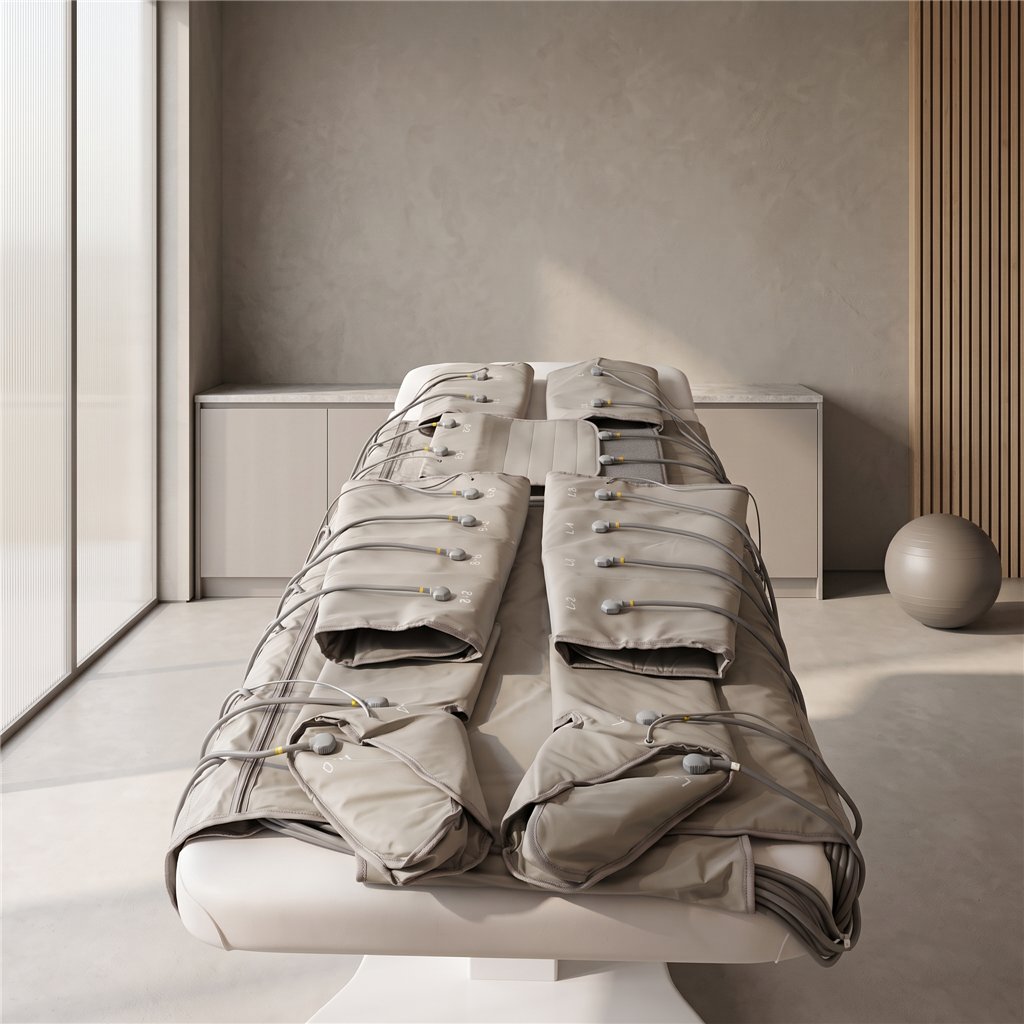

• Use a beauty treatment table that allows the client to remain fully lying down.
• Prior body hygiene is recommended and, if the protocol requires it, body peeling.
• Osmotic film or a disposable garment may be used to protect the suit.
• Good hydration is recommended before and after the treatment.
• Wait at least one hour after eating before starting the session.
• For pressotherapy, start with low pressure and increase gradually.
• The recommended frequency stated is 2 or 3 sessions per week on alternate days.

Assembly and connection

• Connect the tubing to the correct outlet number.
• Connect only the parts of the suit that are going to be used.
• The infrared cables must go to their specific ports.
• The EMS patches are connected in positive-negative pairs.
• The black cable acts as the negative in electrical muscle stimulation.

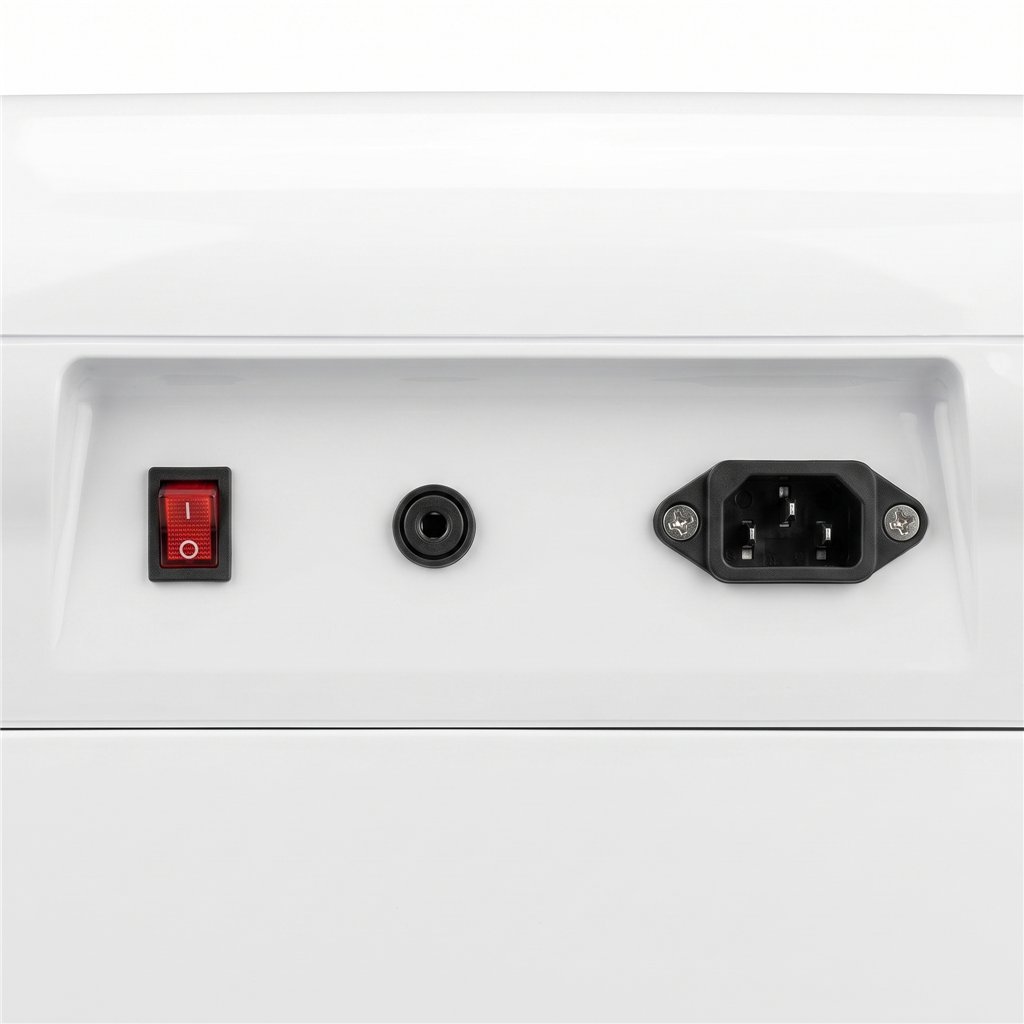

• The rear part includes a mains socket, fuse and main switch.

Maintenance

• Clean the device dry or with a slightly damp cloth.
• Do not use abrasive cleaners.
• Do not open the equipment.
• Disconnect the device after use.
• Keep the suit away from sharp or pointed surfaces.
• Store the hoses rolled up to protect the ducts.
• Use the equipment in environments with stable humidity and temperature.

Video course

Support video to better understand the general operation of the equipment, accessory assembly and start-up in the treatment room.

Compliance and certification

• Certified model IDMRTSE4 TERMO SLIM BODY SHAPER EXCELLENS 8432729013696
• CE – EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• CE – LVD Directive 2014/35/EU

Contraindications and usage exclusions

• Do not use during pregnancy.
• Do not use on people with pacemakers or other implanted electronic devices.
• Do not use on people with epilepsy.
• Do not use on people with thrombosis, thrombophlebitis or significant varicose veins.
• Do not use on people with severe blood pressure disorders.
• Do not use on people with heart conditions or respiratory insufficiency.
• Do not use on areas with active skin infections.
• Do not use on damaged skin, areas with bleeding, recent wounds or low sensitivity to heat.
• Do not use on people with feverish conditions.
• Do not use on people with abdominal hernia, neoplasms or severe psychiatric disorders.
• Do not use EMS on children.
