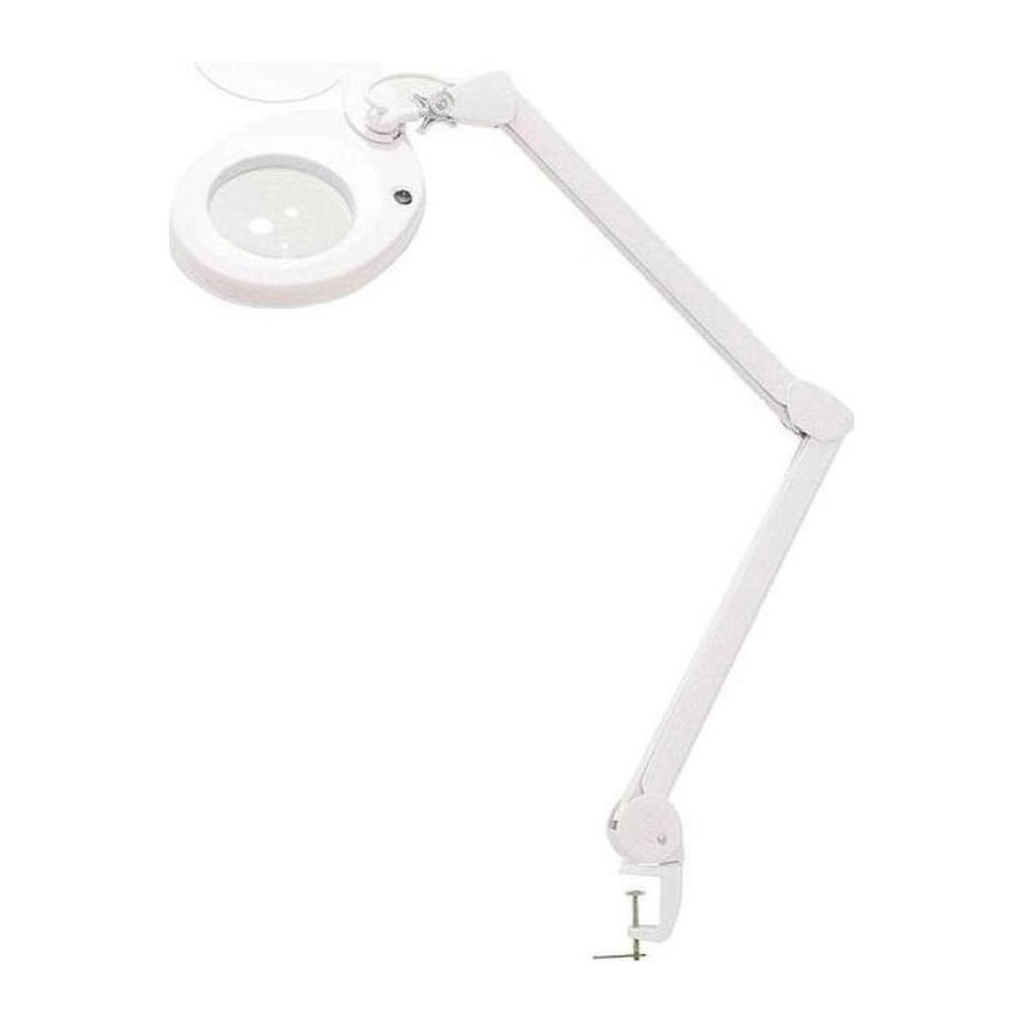

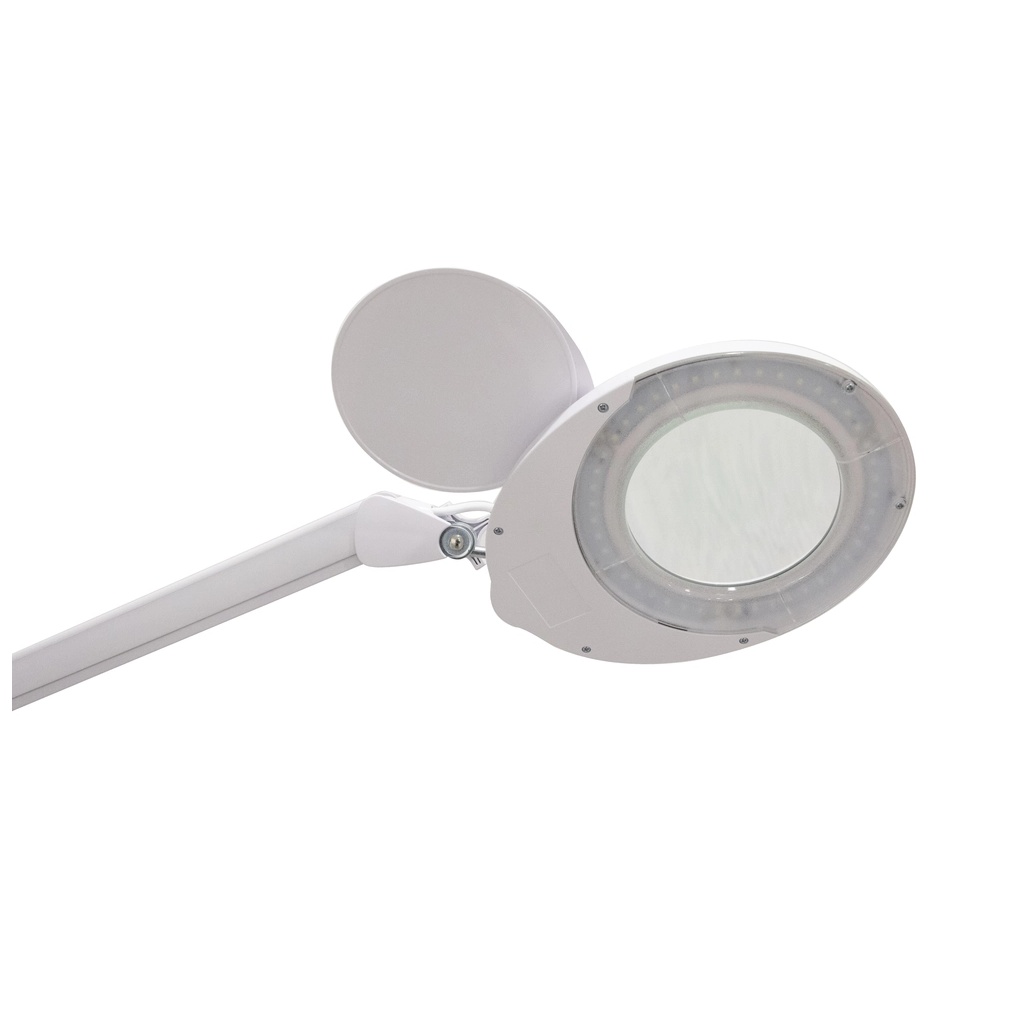

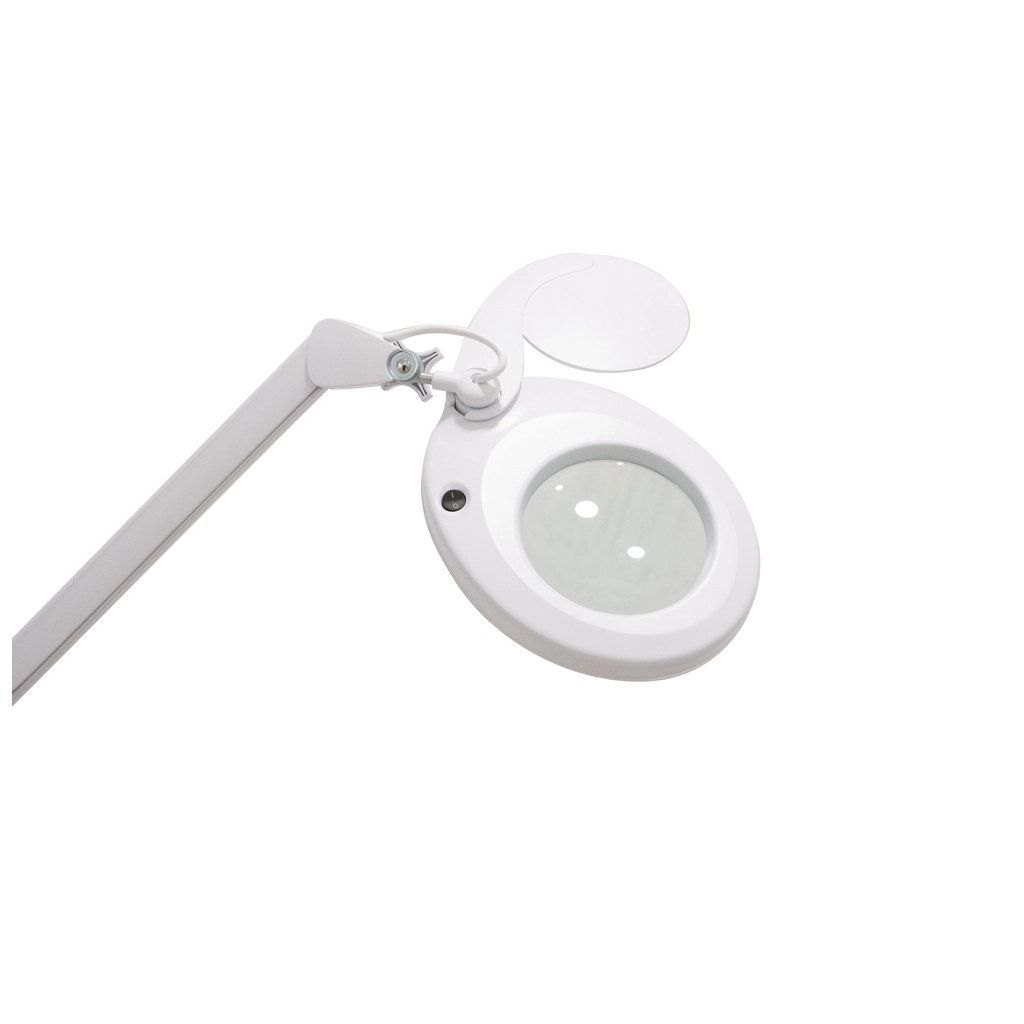

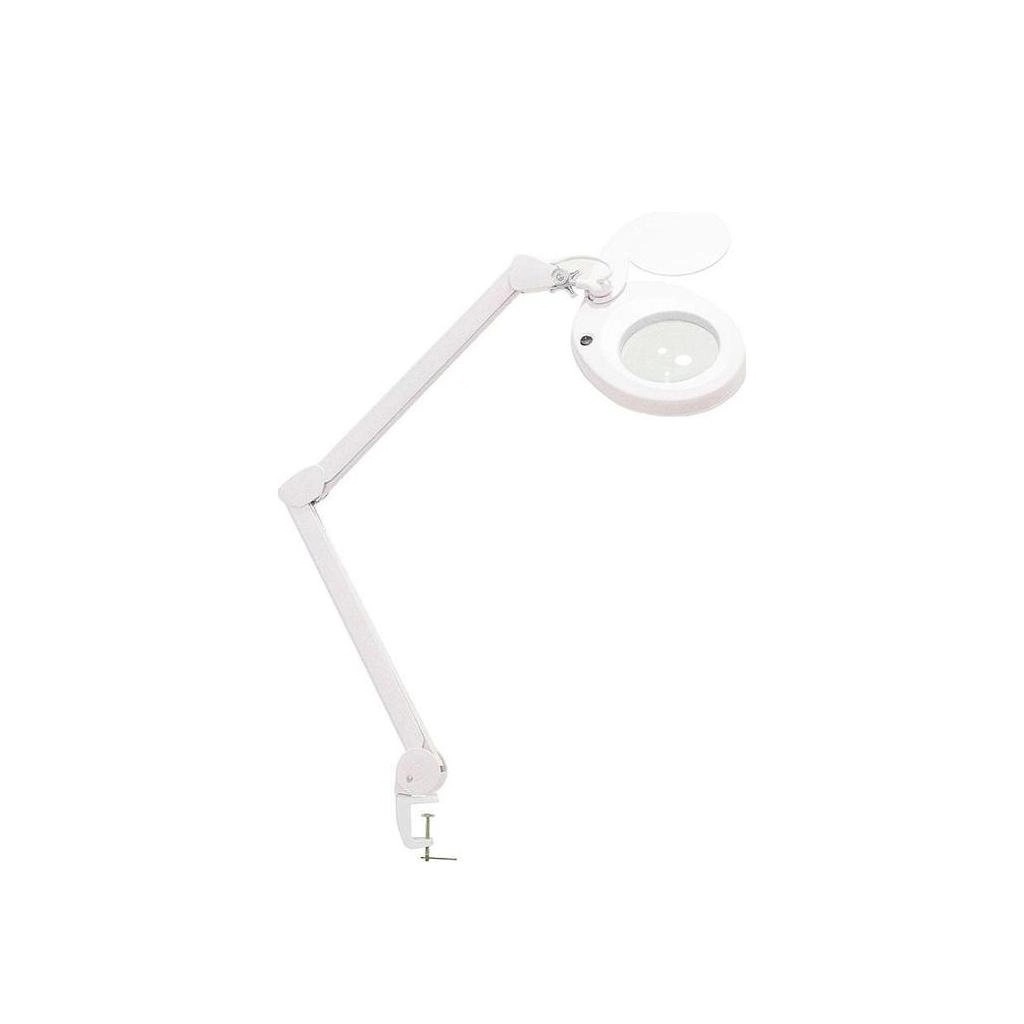

Weelko MAGNI LED magnifying lamp, 5 dioptres

Weelko MAGNI LED magnifying lamp, 5 dioptres

The Weelko MAGNI is a table-mounted LED magnifying lamp for precision work in the treatment room. It combines a 5-dioptre lens, equivalent to 5x magnification, with cold LED lighting for an enlarged view of the work area.

Its structure includes an articulated arm and mounting clamp. The lamp can be installed on a worktable or beauty trolley, while the head can be positioned according to the service setup. The head is adjustable and includes a cover to protect the lens when not in use.

Lighting and magnification for detailed work

The MAGNI incorporates 45 SMD LEDs and provides a luminous flux of 610 lm. Its 6000 to 6500 K colour temperature delivers cold light suitable for close observation, visual skin analysis and other beauty services requiring attention to detail.

The 5-dioptre lens brings the work area visually closer. The adjustable head and articulated arm help adapt the lamp position and working distance to each workstation.

• Lens 5 dioptres / 5x magnification
• Luminous flux 610 lm
• LEDs 45 SMD LEDs
• Colour temperature 6000-6500 K
• Rated service life 20,000 h
• Rated power 8 W

Table or trolley mounting

The clamp allows the lamp to be secured to a stable work surface. Once fitted, the arm is inserted into the clamp and the head can be positioned over the work area. The power cable has a stated length of 1.5 m.

A wall-mounting system is also available as an option, allowing the installation to be adapted to the treatment room layout.

• Included mounting Clamp for worktable or beauty trolley
• Arm Articulated
• Head Adjustable
• Lens protection Cover included
• Power supply 220-240 V
• Frequency 50 Hz
• Cable length 1.5 m

Stated dimensions

The lamp diagram indicates a maximum overall width of 65 cm and a height of 82 cm. The head measures 25 x 19 cm. The two main sections of the articulated arm measure 46 cm and 40 cm.

• Maximum overall dimensions 65 x 82 cm
• Head dimensions 25 x 19 cm
• Arm sections 46 cm and 40 cm
• Reference WKL004T

Use and maintenance

Secure the clamp to the table or trolley, insert the lamp arm and tighten the fixing. Connect the power supply, switch the unit on using the POWER button, then adjust the head and its distance from the work area.

To care for the lens, remove dust with soft paper designed for glass or with a lens cloth. Keep the protective cover in place whenever the lamp is not in use.

The product complies with Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU.
