I-Medstetic 3-in-1 digital pressotherapy with touchscreen

Professional 3-in-1 Pressotherapy System with EMS, Far Infrared and Modular Suit

Professional CE marked 3 technologies 20 chambers

The professional 3-in-1 pressotherapy system combines pneumatic compression pressotherapy, far-infrared heat therapy and EMS electrical muscle stimulation in a single platform. It is designed for beauty salons seeking to perform targeted body treatment protocols using different technologies from one unit.

Its modular body suit features separate sections for the arms, abdomen, legs and feet, allowing only the areas required for each session to be prepared. This configuration makes it easier to set up and clean the individual garments and adapt the equipment to different body treatment protocols.

The system features 20 air chambers, 10 pneumatic connections, 5 far-infrared connections and 10 EMS electrode pads. Operation is managed from a digital touchscreen, where programmes, pressure, inflation time, temperature, EMS frequency, intensity and active areas can be configured.

Main features

• 3 technologies Pressotherapy + far infrared + EMS
• 20 chambers Pneumatic body system
• 10 air connections Outputs 0 – 9
• 5 heat connections Outputs 1 – 5
• 4 programmes Pressotherapy A, B, C and D
• 4 EMS modes 10 / 20 / 30 / 40 Hz
• 10 EMS electrode pads Targeted electrical muscle stimulation
• 350 W Total power
• Touchscreen Digital control
• Modular suit Arms, abdomen, legs and feet
• Upright design With castors
• Use Professional beauty treatments

Three body treatment technologies in one platform

The system enables professionals to work with three different technologies without having to prepare three separate units.

• Pressotherapy Pneumatic compression using air chambers
• Far infrared Application of dry radiant heat
• EMS Aesthetic muscle stimulation using low-frequency electrical impulses

The functions can be used independently or combined when permitted by the professional protocol and the client’s condition.

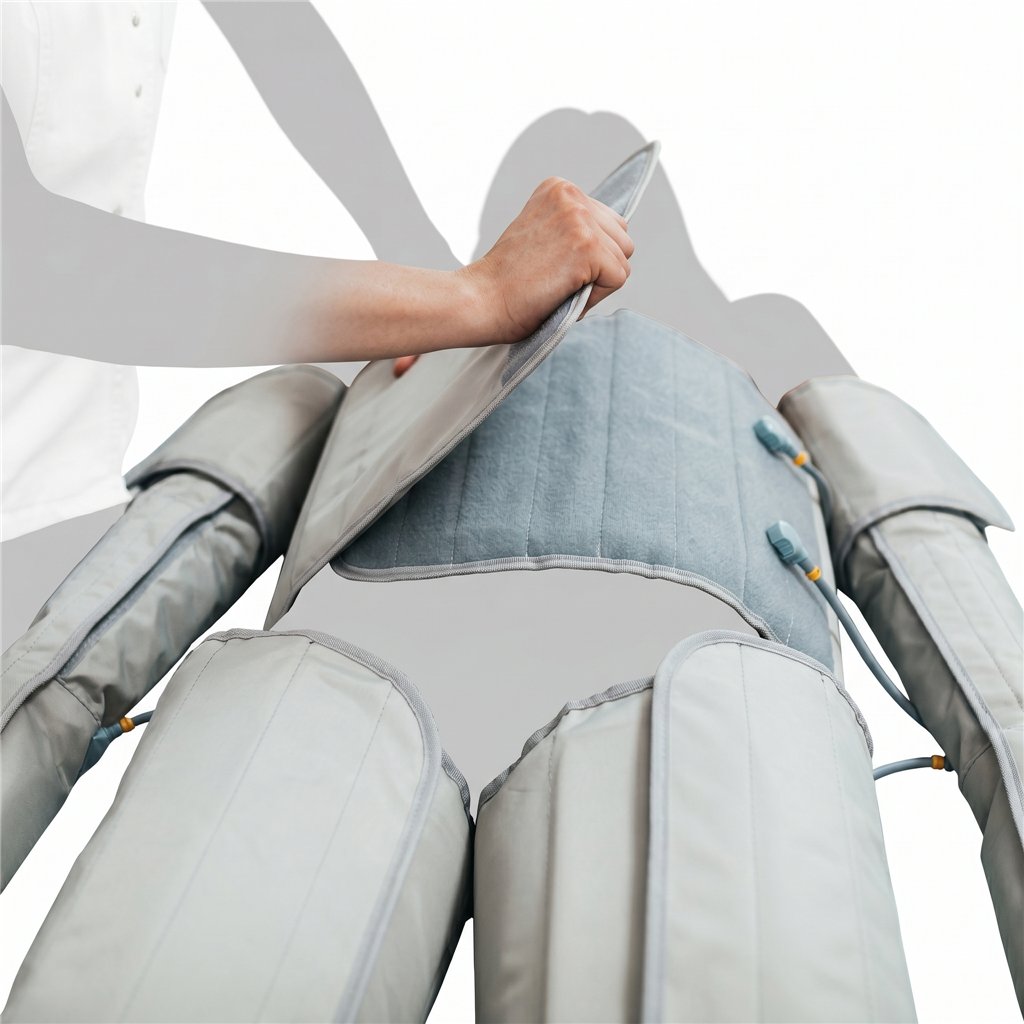

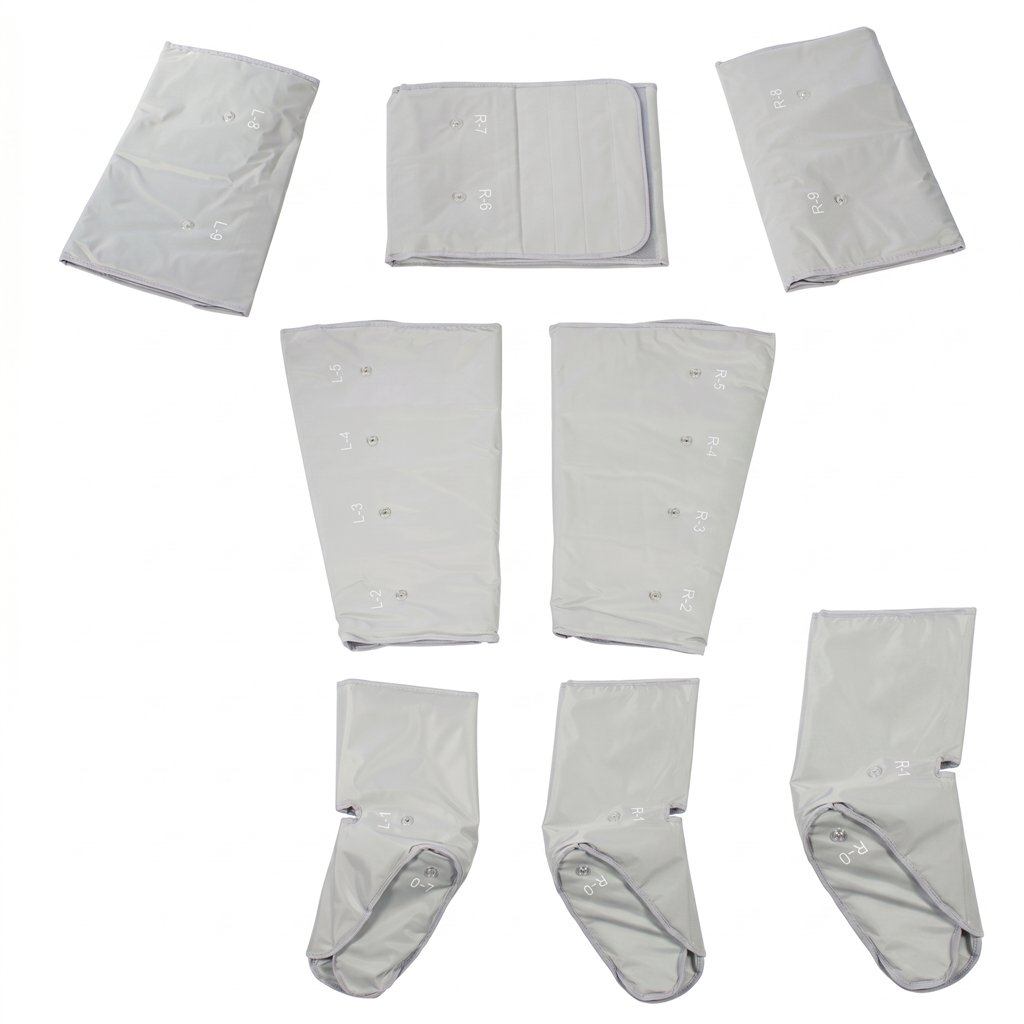

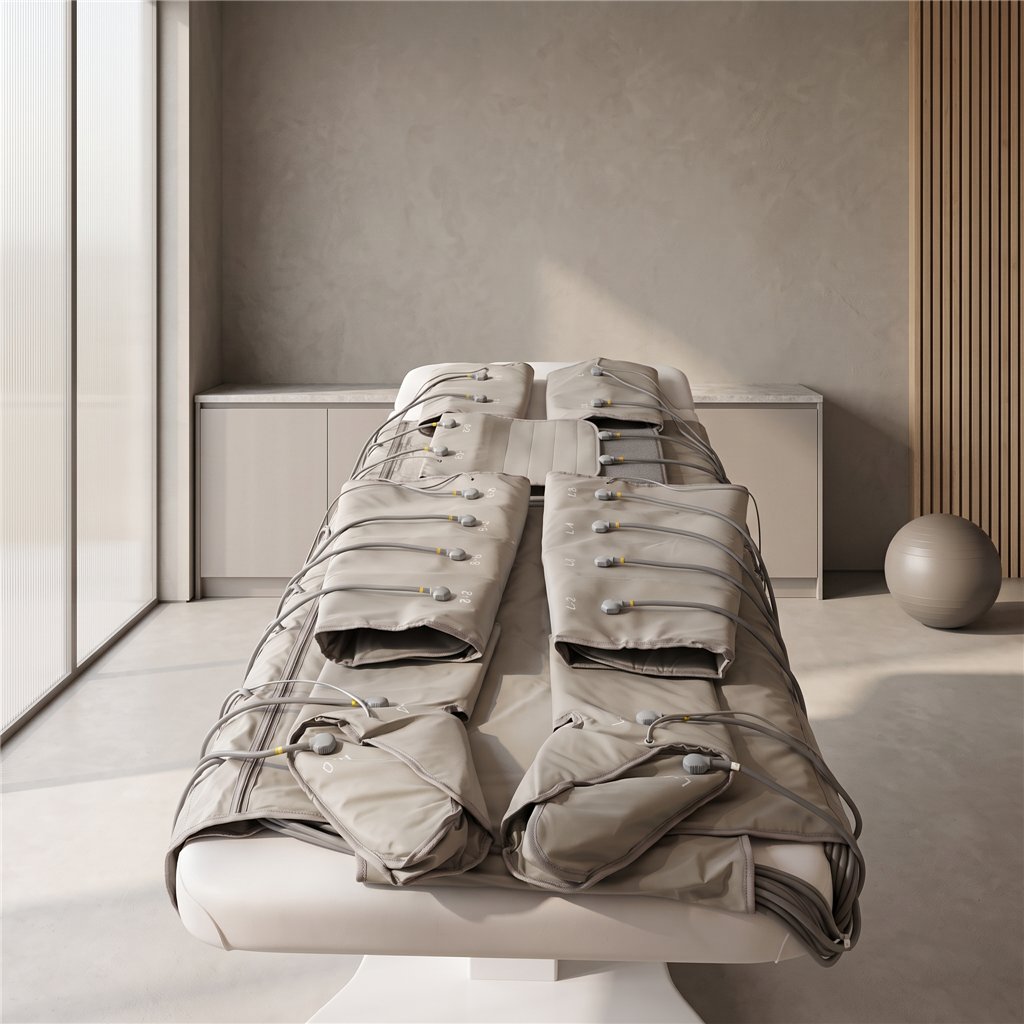

Fully modular body suit

One of the equipment’s main advantages is the configuration of its suit. Instead of using a single enclosed body garment, it features separate modules for each area.

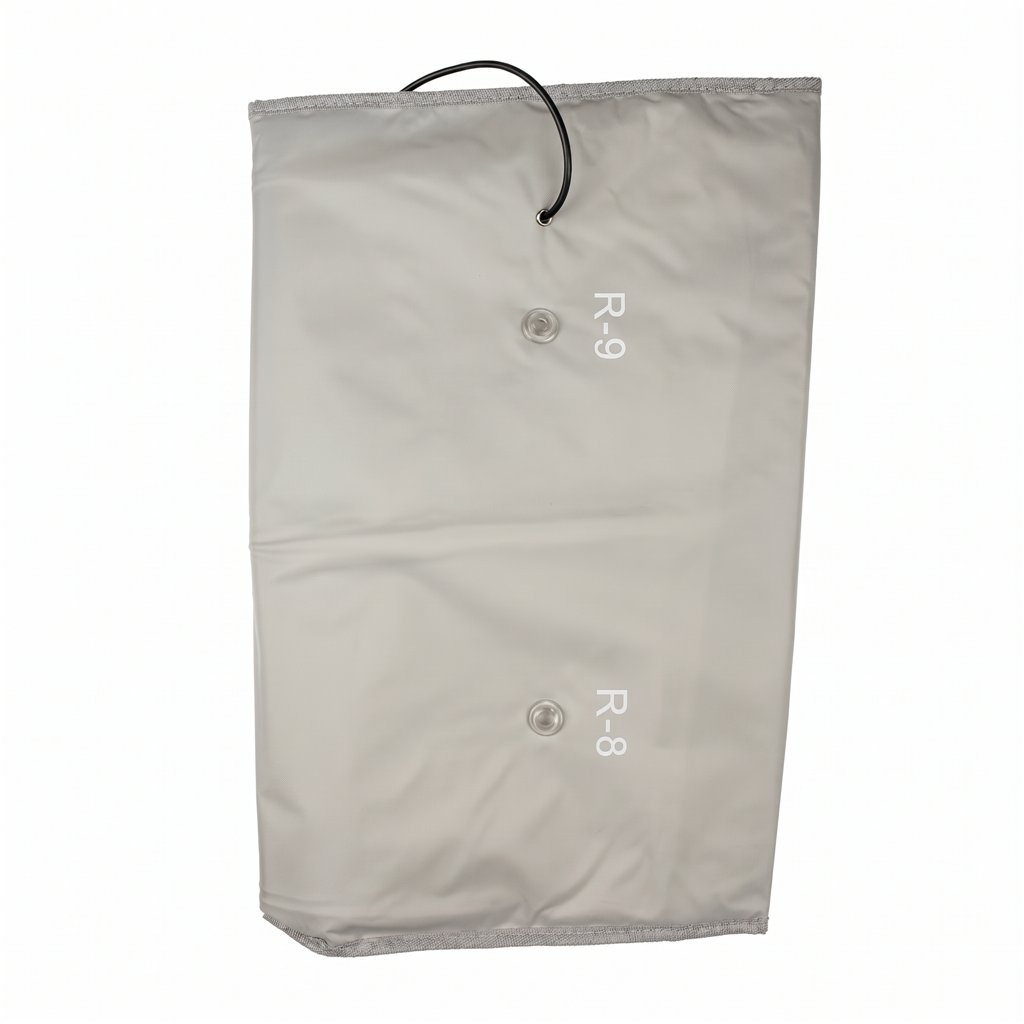

• Right arm Separate module

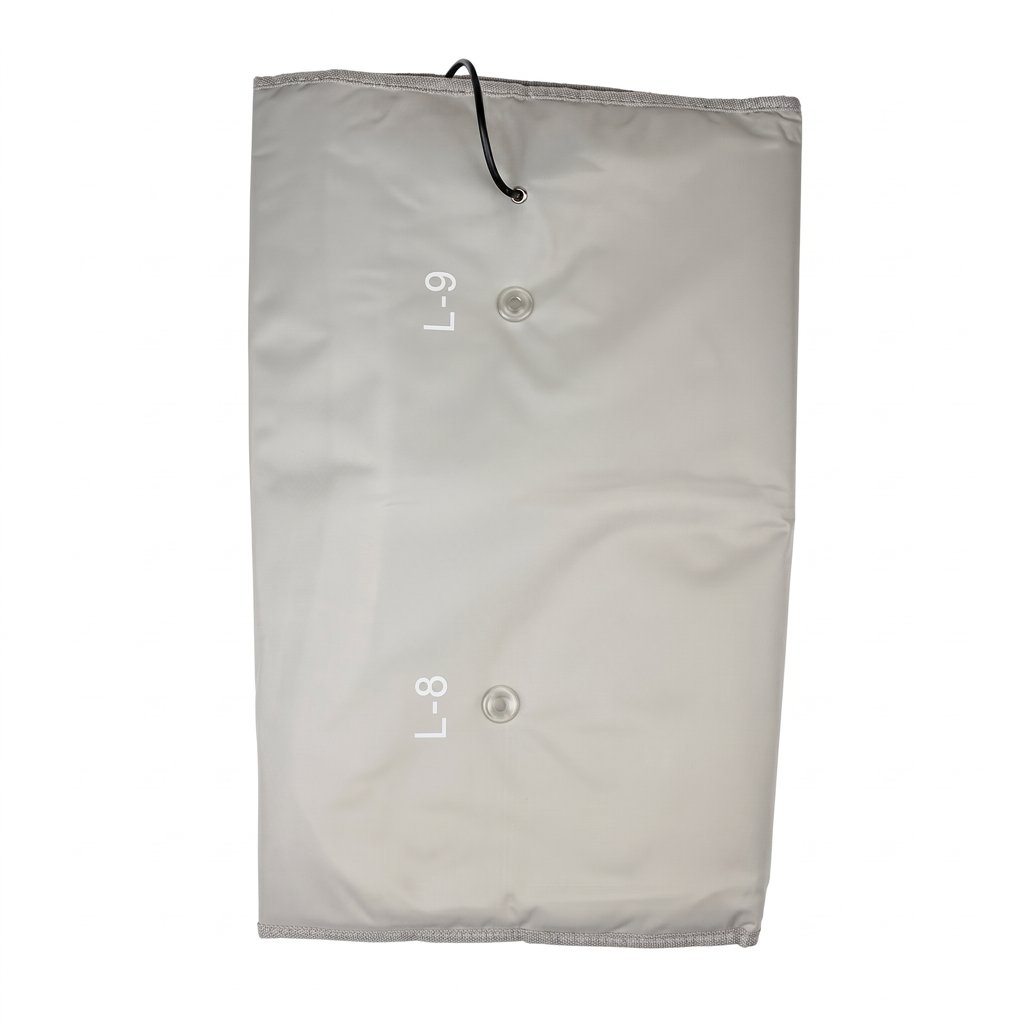

• Left arm Separate module

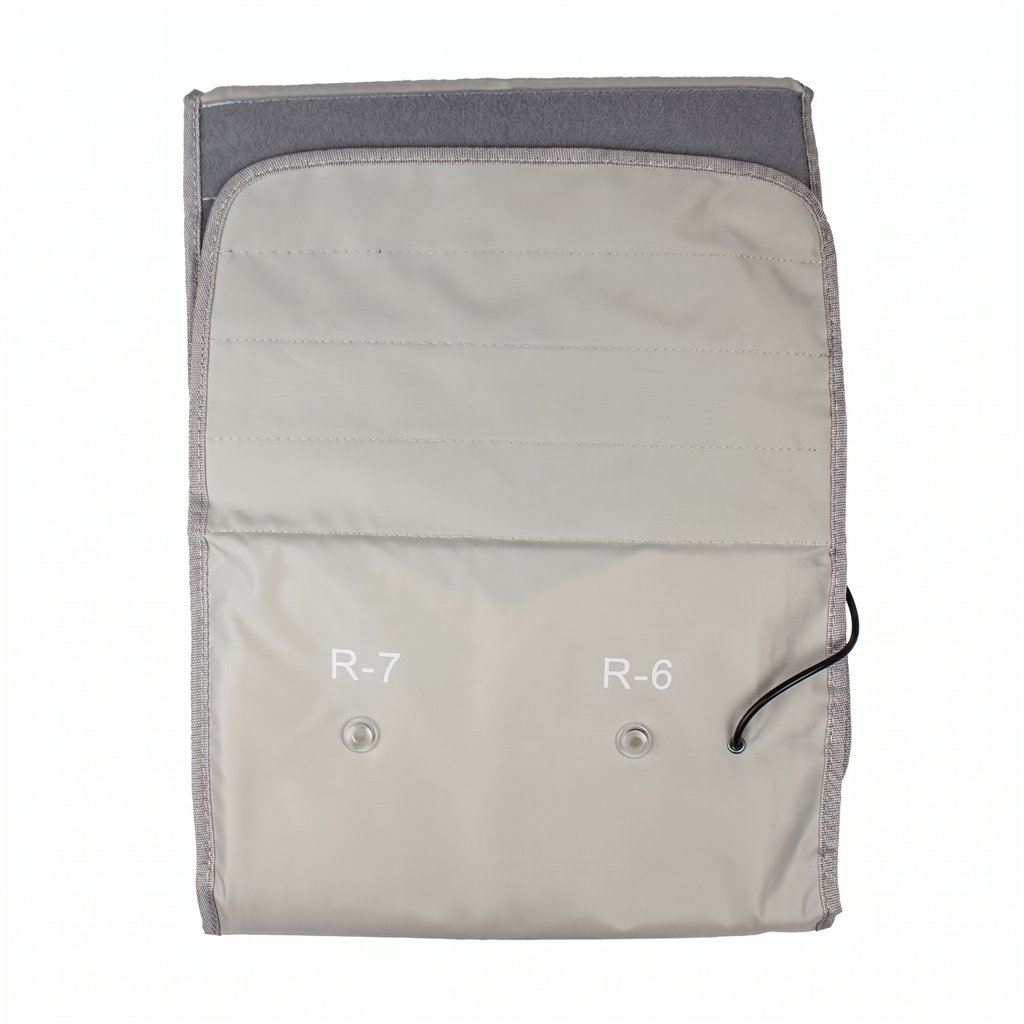

• Abdomen Modular wrap
• Right leg Separate module
• Left leg Separate module

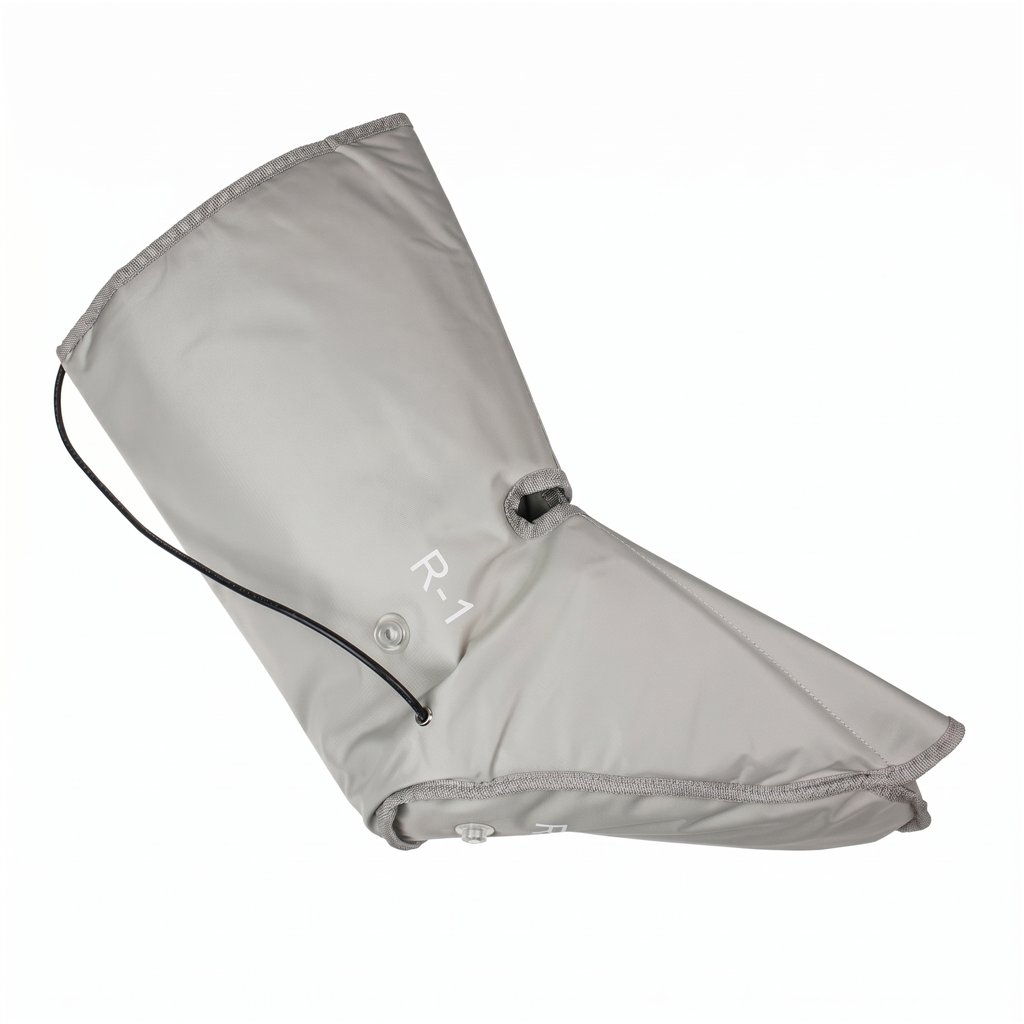

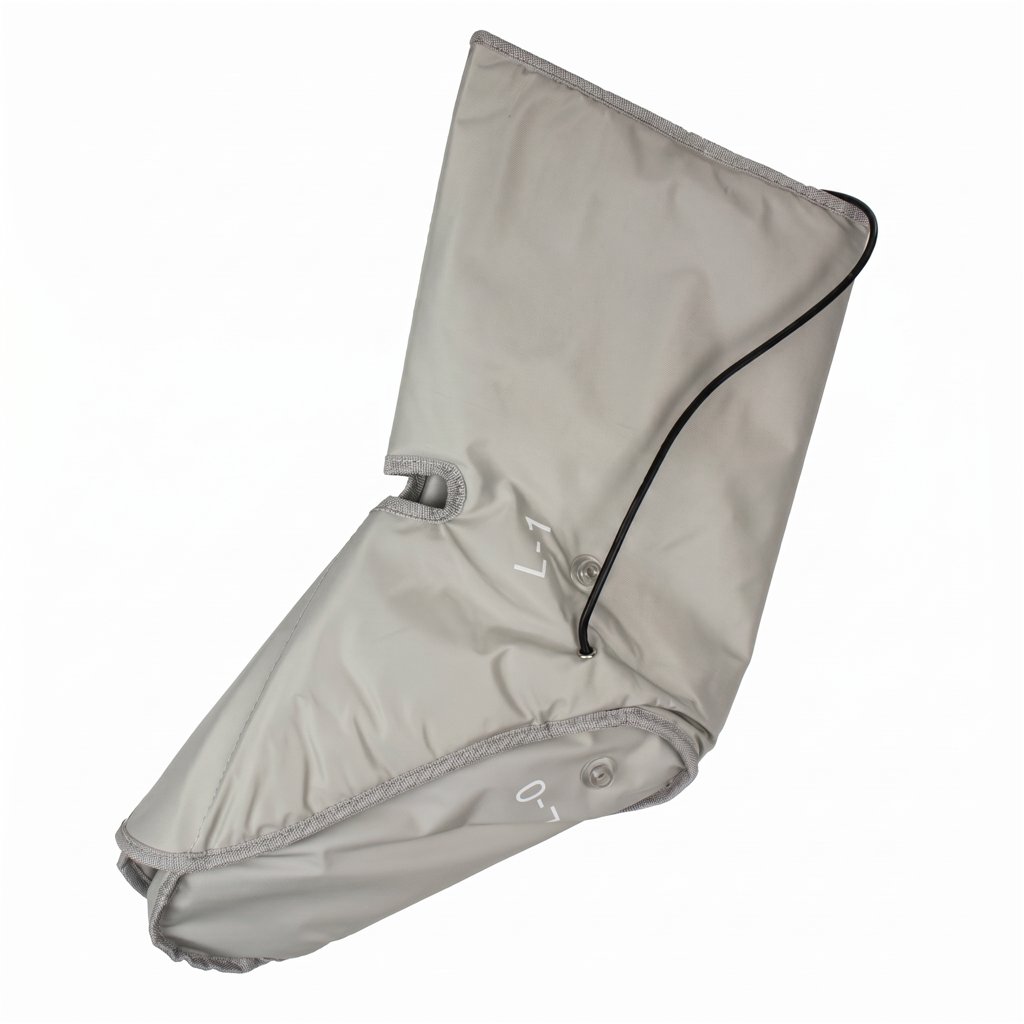

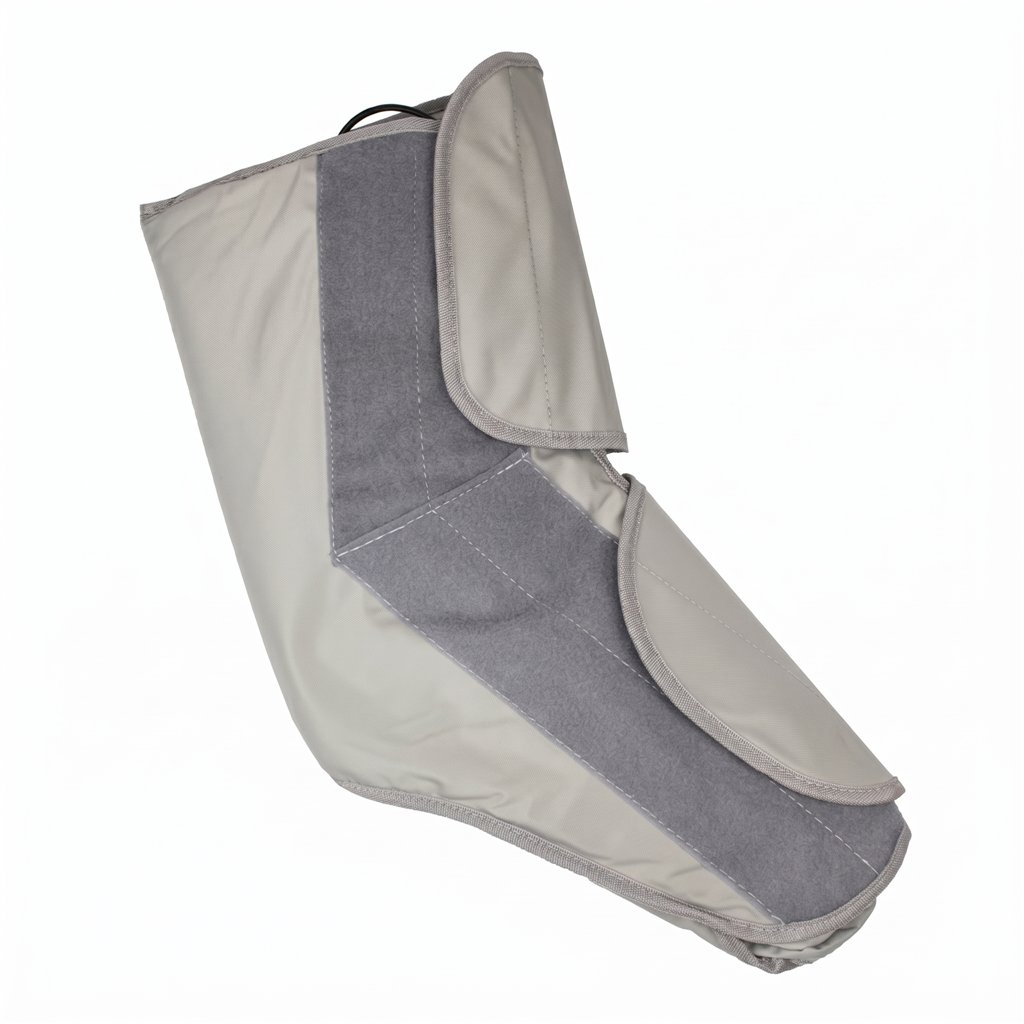

• Right foot Separate module
• Left foot Separate module

This means that a leg-only session does not require the arm, abdomen or foot modules to be fitted if they are not part of the protocol.

Advantages of the modular suit in a professional treatment room

• Allows only the required areas to be selected.
• Makes it easier to fit the garments progressively.
• Reduces the number of accessories fitted for targeted protocols.
• Allows each module to be removed separately.
• Allows the individual sections to be cleaned separately.
• Simplifies connection management.
• Makes it easier to combine different body areas.
• Allows the set-up to be adapted to the salon’s protocol.

Canvas-style plastic material

The modular set is made from canvas-style plastic material, suitable for equipment intended for regular use in a professional treatment room and designed to facilitate surface maintenance.

The organiser used to arrange the cables and tubes is made from the same material.

• Suit material Canvas-style plastic
• Organiser material Canvas-style plastic
• Configuration Modular
• Areas Arms, abdomen, legs and feet

Organiser for routing tubes and cables

A 3-in-1 machine requires several pneumatic and electrical connections. The set therefore includes an organiser designed to arrange and route the cables.

The pressotherapy tubes and heat connections can be grouped together before reaching the main unit, reducing the number of loose items around the beauty treatment table.

Professional pressotherapy with 20 air chambers

The pressotherapy function uses 20 pneumatic chambers distributed throughout the different garments in the set.

The main unit pumps air into the chambers according to different inflation and deflation sequences. System operation depends on the programme selected from the touchscreen.

The complete set can be used, or professionals can work only with the sections connected and selected for the session.

• Air chambers 20
• Pneumatic outputs 10
• Numbering 0 – 9
• Programmes 4
• Operation Cyclic or combined
• Control Digital touchscreen control

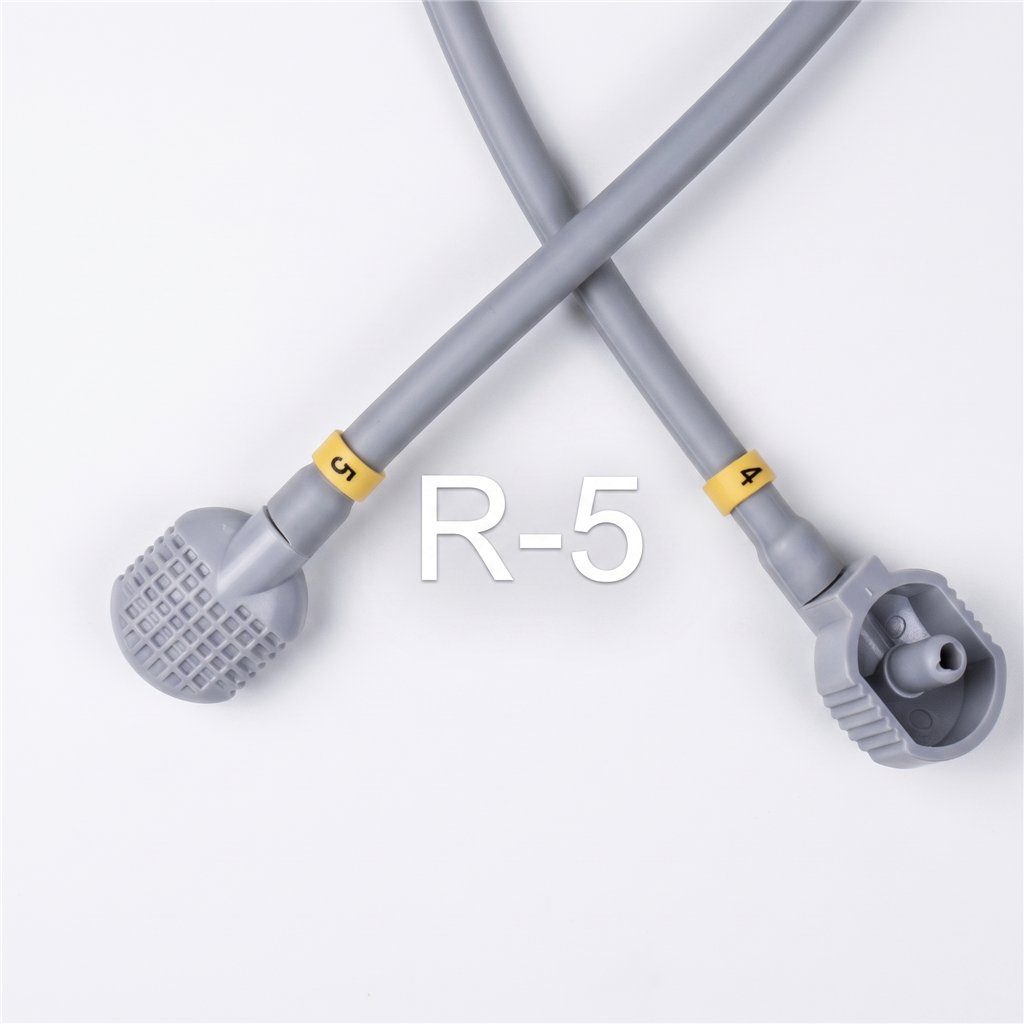

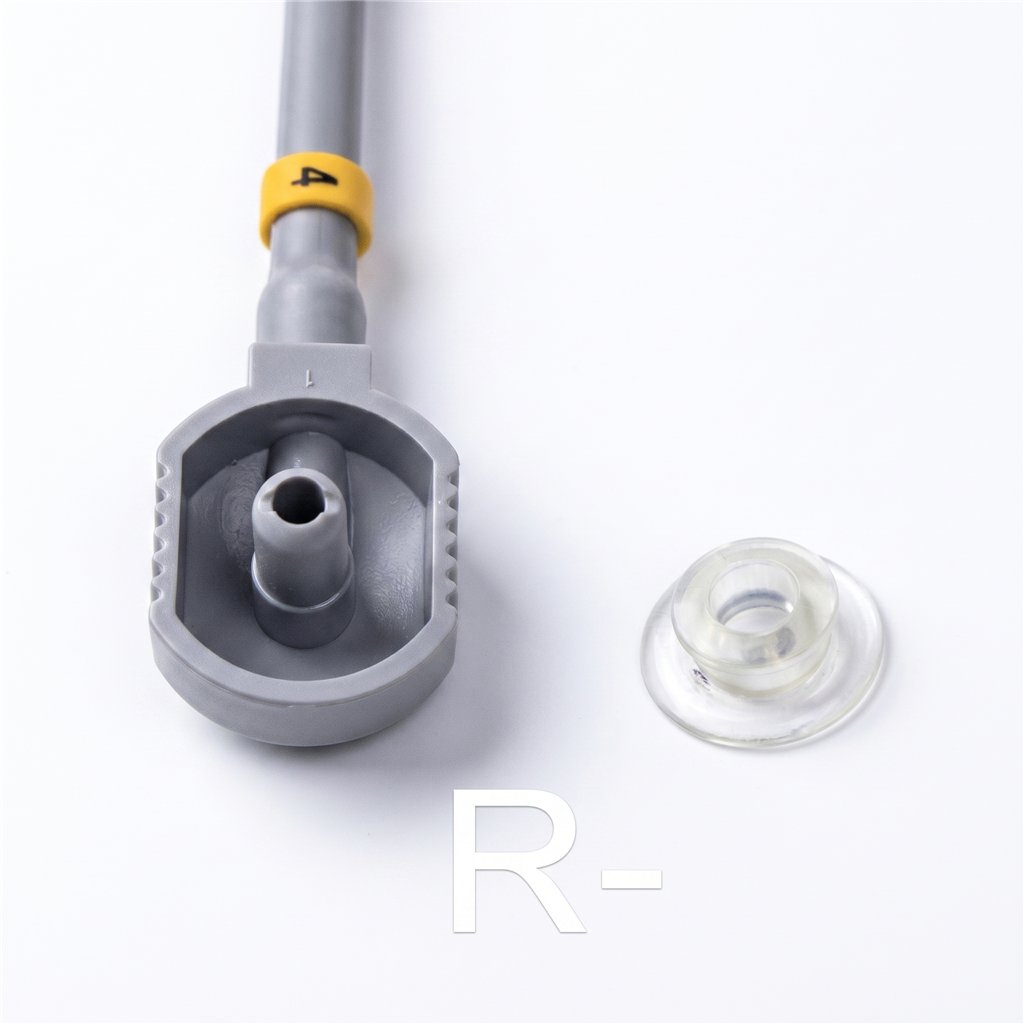

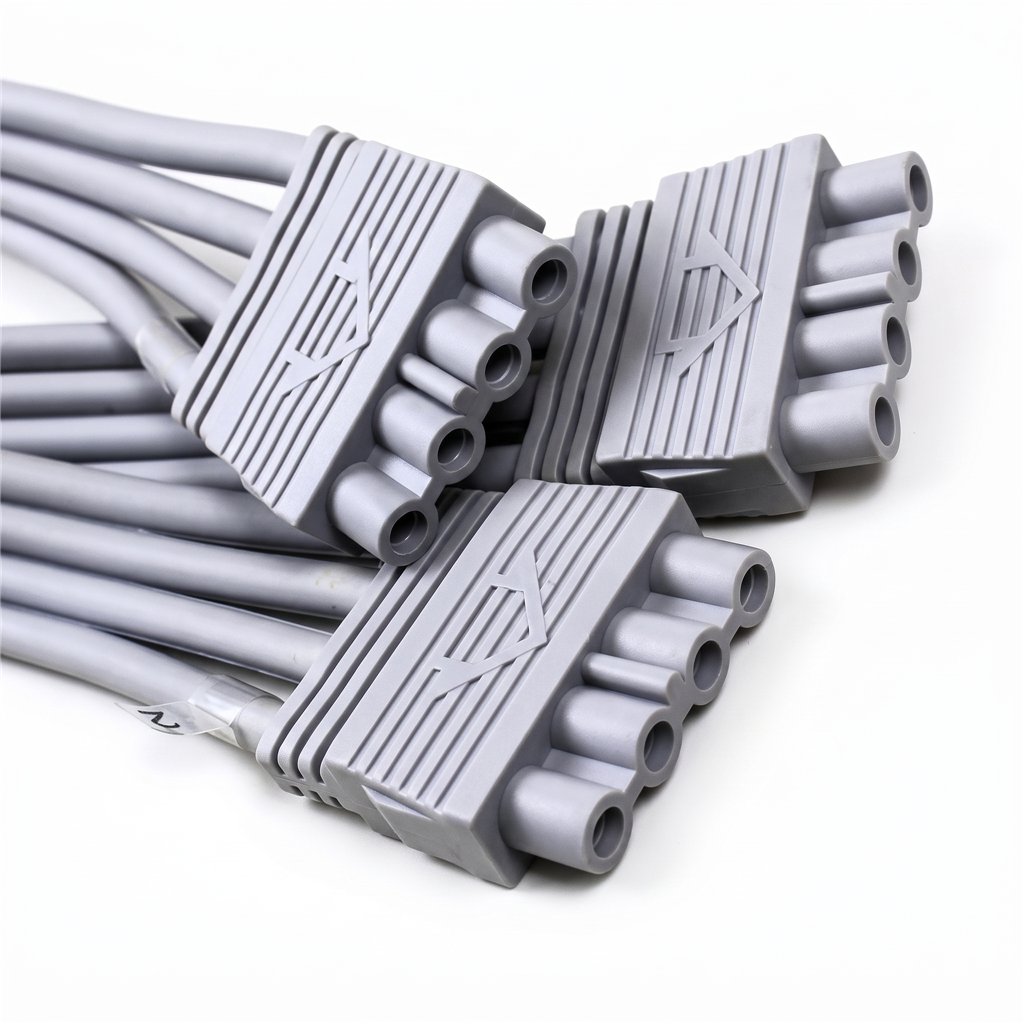

10 pneumatic connections numbered 0 to 9

The air connections for the garment set are numbered from 0 to 9. This identification helps ensure that the tubes are fitted correctly when preparing the session.

4 pressotherapy programmes

The system includes four pneumatic operating programmes. Each mode changes the sequence in which the different outputs operate.

Mode A – Gentle progressive sequence

Mode A uses a progressive compression sequence.

The system advances through the different pneumatic outputs and completes the cycle with simultaneous activation before restarting the sequence.

Mode B – More pronounced compression

Mode B changes the inflation and deflation sequence to create a different pattern from the previous programme.

Its commercial designation identifies it as a higher-intensity massage mode.

Mode C – Progressive cumulative compression

Mode C uses a sequence in which new areas are progressively added while certain previous chambers remain active.

The documentation associates this programme particularly with treatments targeting the abdomen and thighs.

Mode D – Combined sequence

Mode D uses different simultaneous sequences to create a combined compression pattern.

It is associated with a setting designed to provide an overall feeling of comfort.

Comparison of the 4 pressotherapy programmes

• Mode A Progressive sequence
• Mode B Alternating sequence and more pronounced compression
• Mode C Progressive cumulative sequence
• Mode D Combined sequence

Three pressure settings

The documentation provides three groups of values for configuring the pneumatic system pressure.

• Pressure 1 20 mmHg / documented reference 0.10 bar
• Pressure 2 80 mmHg / documented reference 0.22 bar
• Pressure 3 120 mmHg / documented reference 0.32 bar

Full-body or targeted pressotherapy

The combination of the modular system and output control enables different areas to be treated without having to fit the complete set.

Available areas include:

• Arms.
• Abdomen.
• Waist.
• Thighs.
• Legs.
• Feet.

Far-infrared heat therapy

The equipment’s second technology uses far infrared to provide dry radiant heat inside the selected modules.

Heat therapy is integrated into the body set itself, so there is no need to prepare a separate second unit to add heat to the protocol.

It can be used individually or combined with the other functions when included in the professional protocol.

5 far-infrared connections

The garment set features 5 dedicated far-infrared connections, identified by the numbers 1 to 5.

• Heat connections 5
• Numbering 1 – 5
• Technology Far infrared
• Heat type Dry radiant heat
• Control By area from the touchscreen

Temperature control by area

The touchscreen controls the time and temperature of the different active sections.

Outputs can also be activated or deactivated according to the heat modules used during the protocol.

Using the far-infrared function

The heat function must always be used with due consideration for individual sensitivity to heat.

• Begin with a moderate temperature.
• Check the client’s comfort regularly.
• Do not use on areas with impaired heat sensitivity.
• Do not use over wounds.
• Do not use over active infections.
• Do not leave the accessories heating without a user.
• Open the modules after use to help dissipate heat.

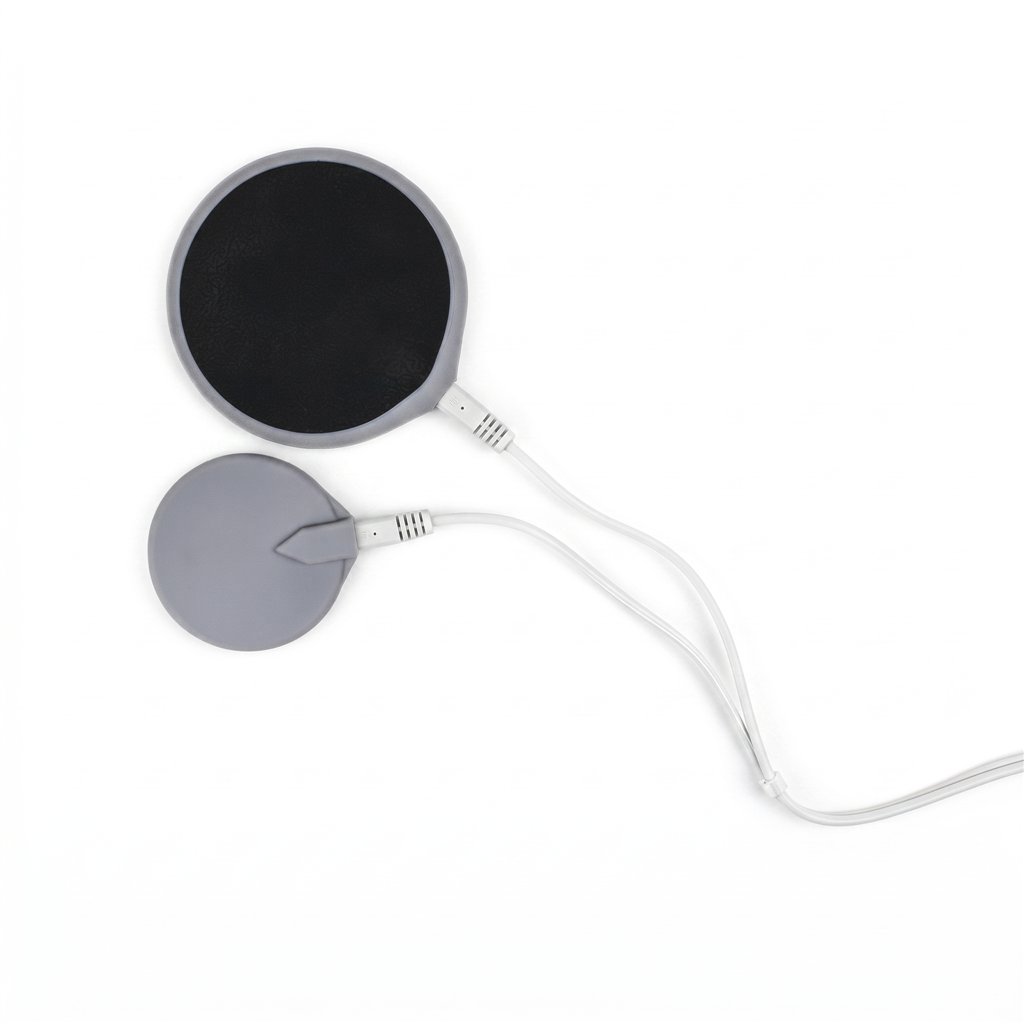

EMS electrical muscle stimulation with 10 electrode pads

The third integrated technology is an EMS electrical muscle stimulation system using low-frequency electrical impulses.

The equipment includes 10 pads or electrodes for selecting different muscle areas within aesthetic treatment protocols.

• EMS electrodes 10
• EMS programmes 4
• Minimum frequency 10 Hz
• Maximum frequency 40 Hz
• Connection Dedicated cables
• Conductive gel Recommended

4 EMS modes: 10, 20, 30 and 40 Hz

• Mode A 10 Hz
• Mode B 20 Hz
• Mode C 30 Hz
• Mode D 40 Hz

EMS Mode A – 10 Hz

Mode A uses 10 Hz, the lowest frequency available across the four programmes.

EMS Mode B – 20 Hz

The second programme increases the frequency to 20 Hz.

EMS Mode C – 30 Hz

Mode C operates at a frequency of 30 Hz.

EMS Mode D – 40 Hz

Mode D uses 40 Hz, the highest frequency of the four available programmes.

Conductive gel for EMS

When using electrical muscle stimulation, the application of a suitable conductive gel between the electrodes and the skin is recommended.

This helps maintain uniform contact between the pads and the skin during operation.

Targeted aesthetic muscle treatment

For exclusively aesthetic use, the EMS electrode pads allow specific muscle areas to be selected in accordance with the operating instructions and precautions.

• Abdomen.
• Waist.
• Buttocks.
• Thighs.
• Legs.
• Arms.

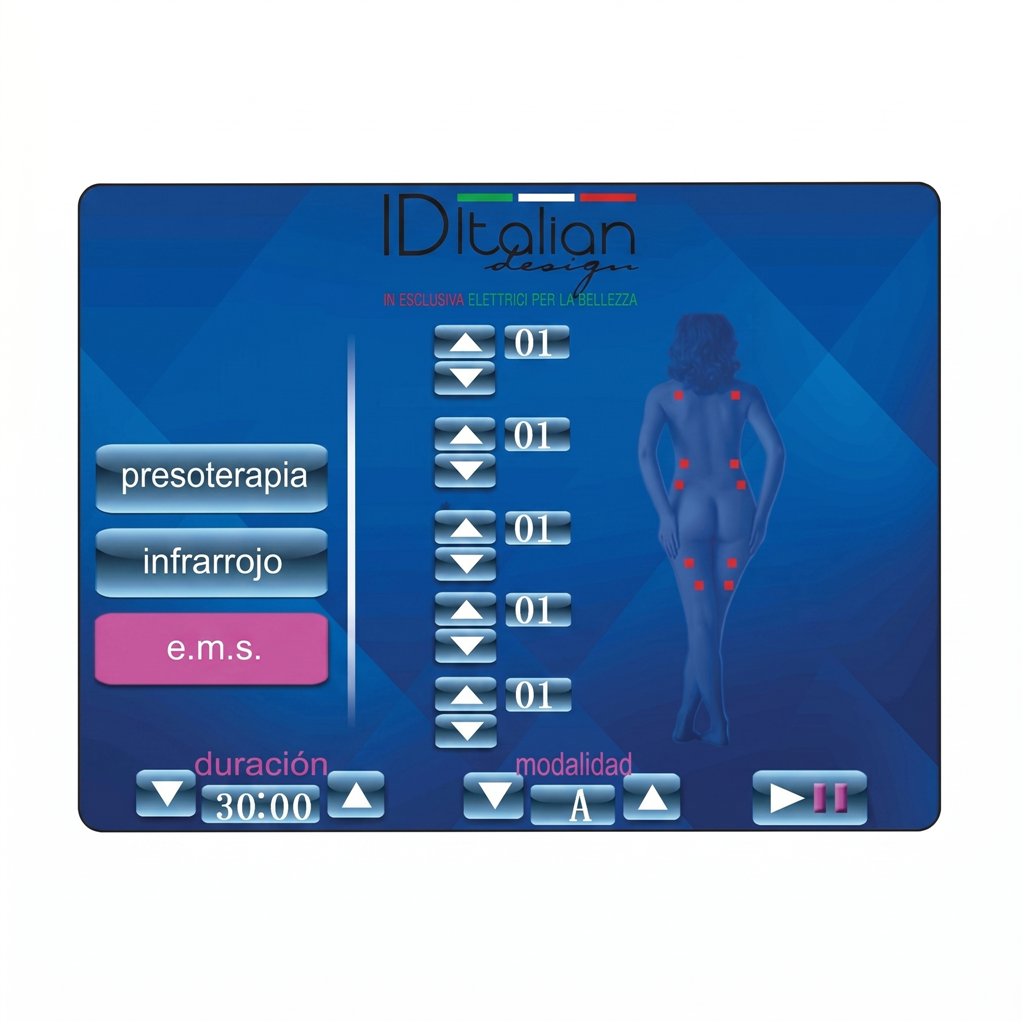

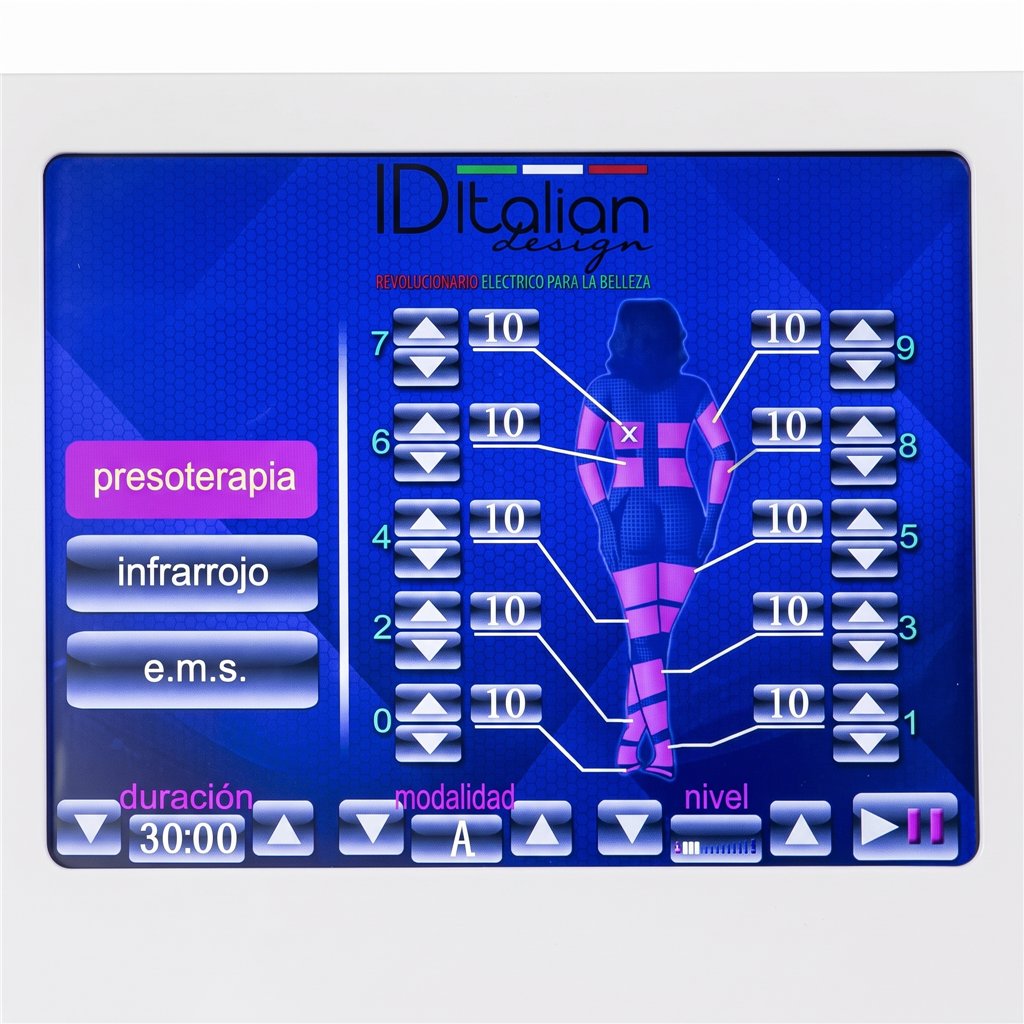

Digital touchscreen

The equipment centralises control of all three technologies through a touchscreen with specific settings for each function.

Pressotherapy controls

• Time adjustment.
• Programme selection.
• Pressure intensity adjustment.
• Inflation time setting for each section.
• Area activation and deactivation.
• Start and pause.

Far-infrared controls

• Time adjustment.
• Temperature adjustment by area.
• Heat output activation or deactivation.
• Start and pause.

EMS controls

• Time adjustment.
• Mode selection.
• Intensity adjustment by output.
• Area activation and deactivation.
• Start and pause.

Configure each session according to the protocol

The combination of touchscreen, modular suit and output control allows different settings to be adjusted.

• Technology used.
• Body areas.
• Pressotherapy programme.
• Pressure level.
• Inflation time.
• Heat areas.
• Temperature.
• EMS frequency.
• EMS intensity.
• Active electrodes.
• Duration of each function.

Professional beauty treatment applications

For exclusively aesthetic and wellness purposes, this system can be incorporated into:

• Body wellness and comfort protocols.
• Cosmetic body care protocols.
• Aesthetic treatments targeting the abdomen and waist.
• Arm treatment protocols.
• Aesthetic treatments targeting the legs and thighs.
• Aesthetic muscle toning using EMS.
• Protocols involving heat application.
• Sessions designed to improve the visible appearance of the skin.
• Combined compression, heat and EMS protocols.
• Personalised body sessions targeting selected areas.

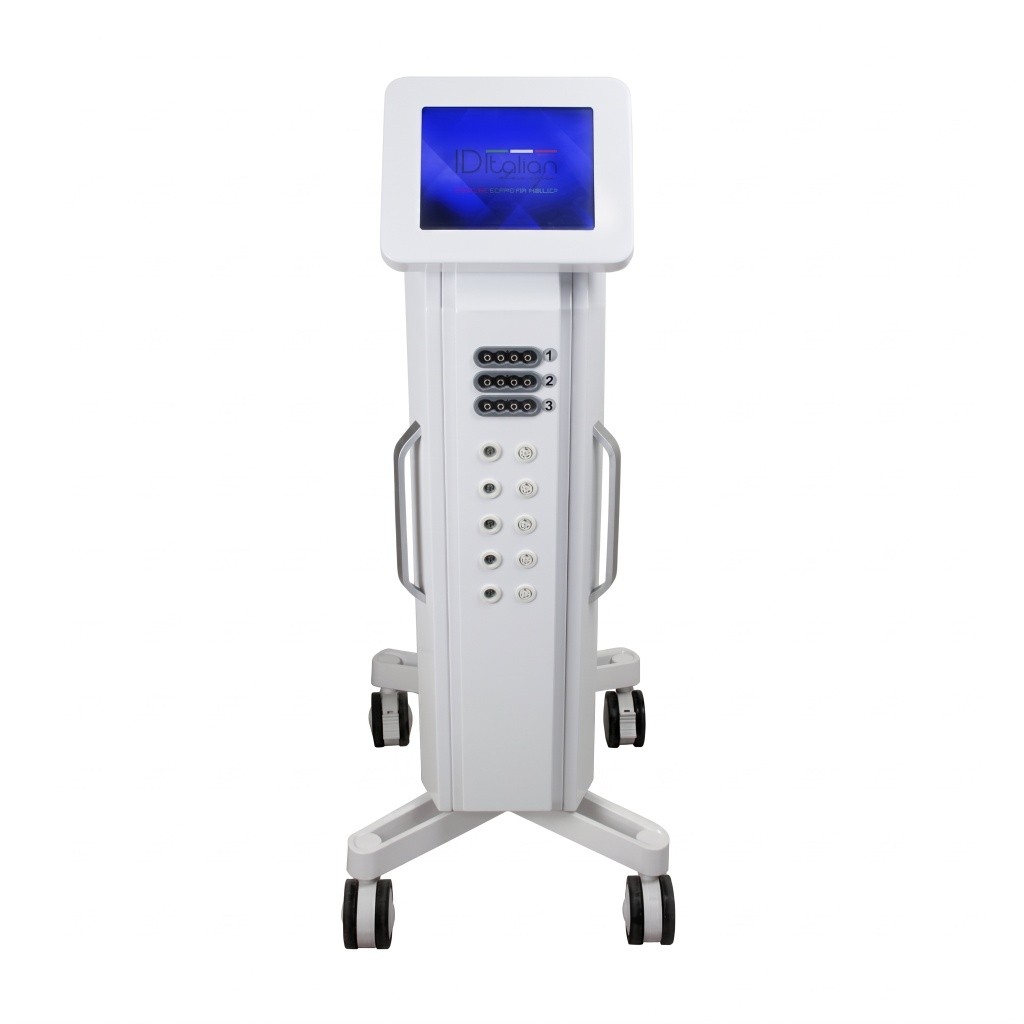

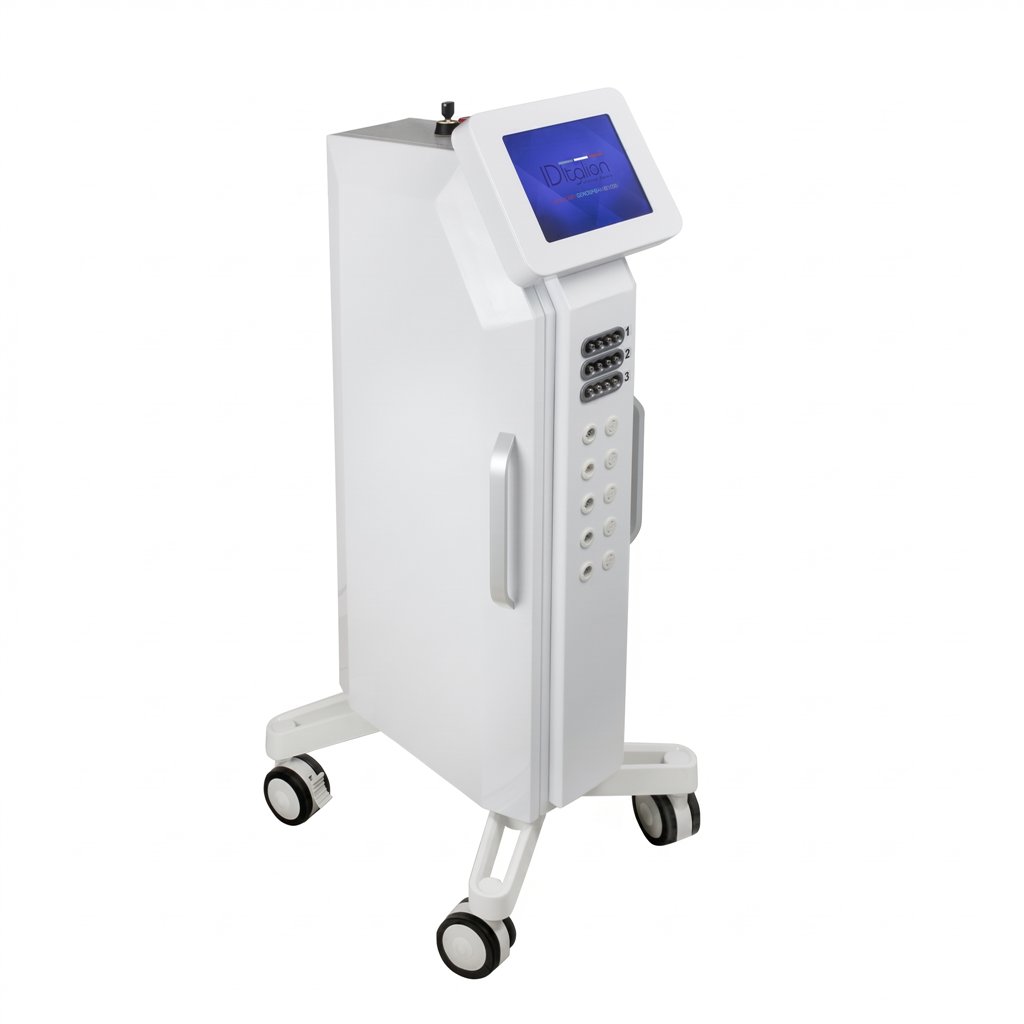

Upright design with castors

The main unit has an upright design with castors, making it easier to move the equipment around the premises when used in different treatment rooms.

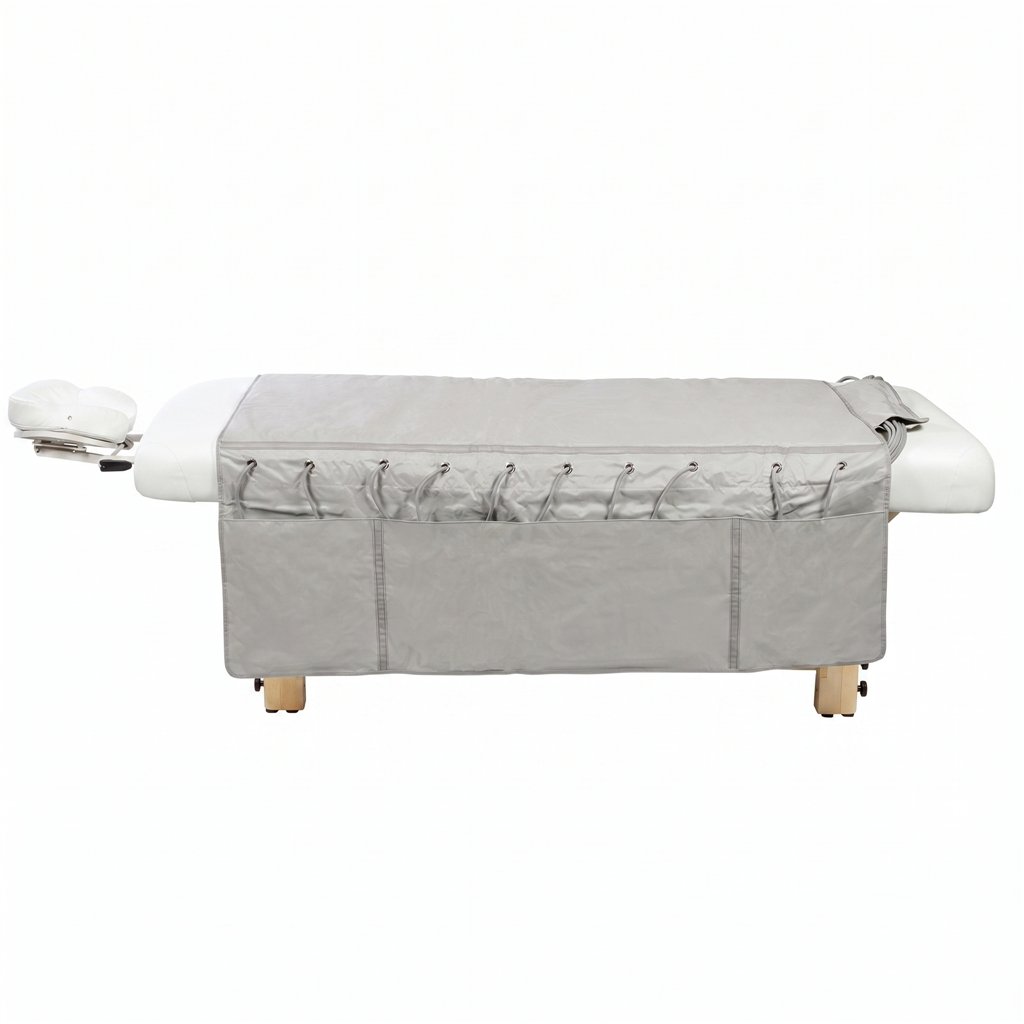

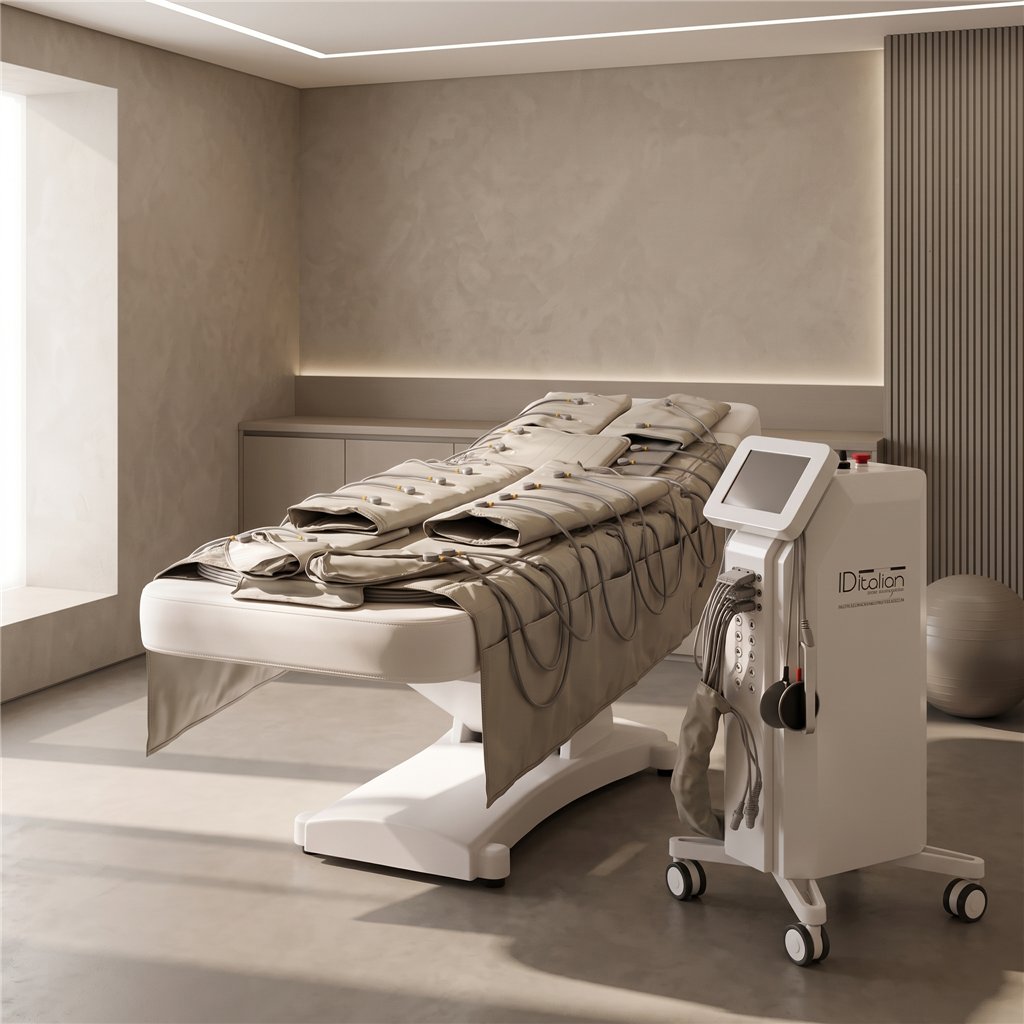

Protective cover for the beauty treatment table

The set includes a protective cover for the beauty treatment table with compartments designed to organise connections.

This item makes it easier to prepare the work surface before placing the different modules on the client.

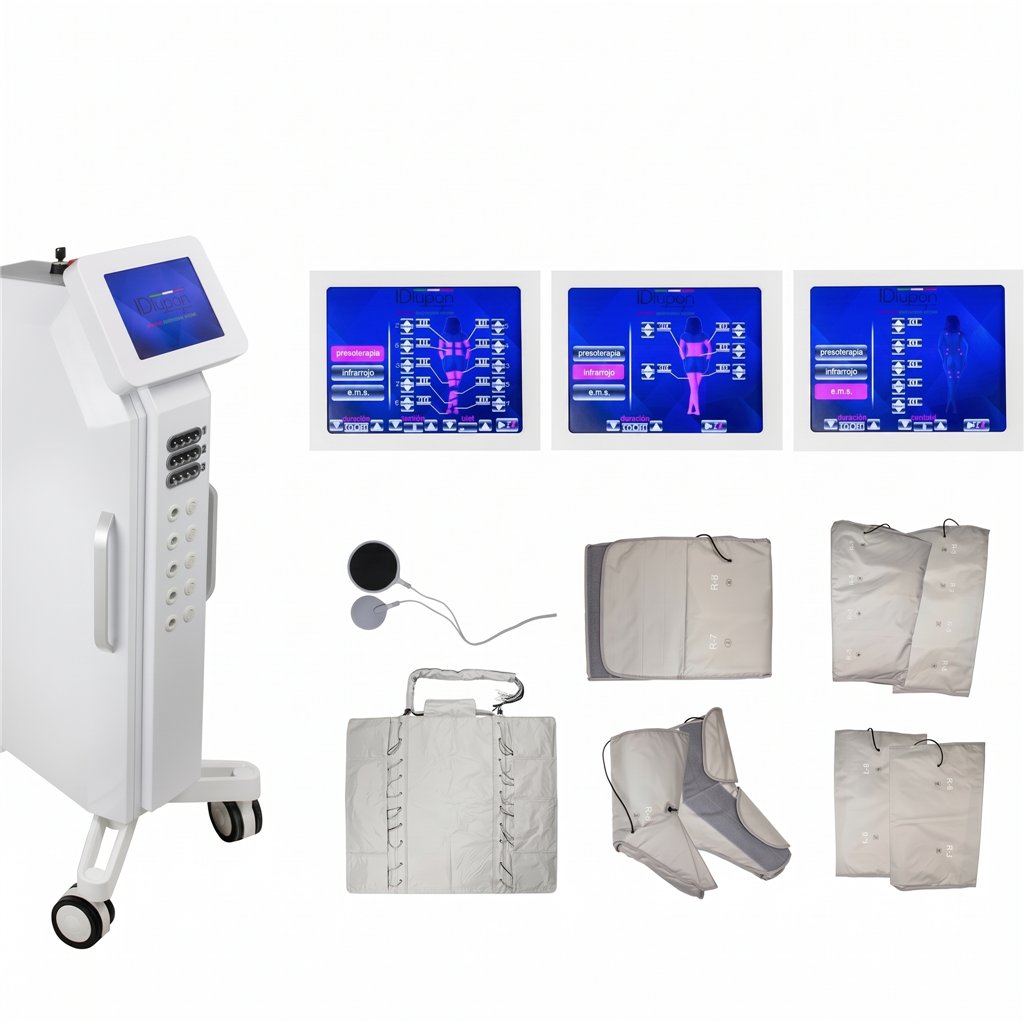

Equipment contents

• 1 digital main unit.
• 1 right arm module.
• 1 left arm module.
• 1 abdominal wrap.
• 1 right leg module.
• 1 left leg module.
• 1 right foot module.
• 1 left foot module.
• 1 protective cover for the beauty treatment table.
• 1 cable organiser.
• 10 EMS pads or electrodes.
• EMS cables.
• Pressotherapy tubes and connectors.
• Far-infrared cables.
• Spanish-language manual.

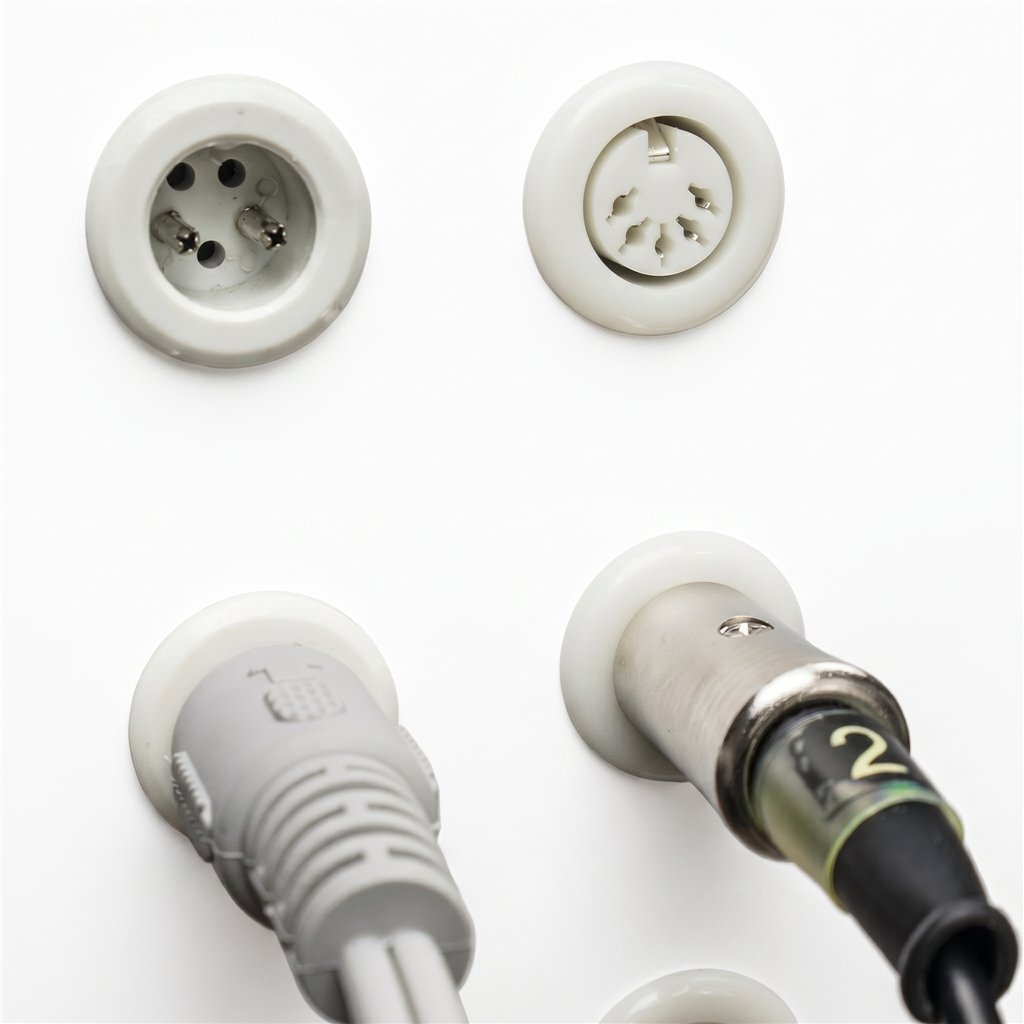

System connections

• Pressotherapy Connectors 0 – 9
• Far infrared Connectors 1 – 5
• EMS Dedicated connection on the main unit
• Main power switch Yes
• Fuse Yes
• Power socket Yes

350 W power

The stated power rating for the equipment is 350 W.

• Total power 350 W
• Stated voltage 240 / 110 V
• Electrical frequency 50 / 60 Hz

Complete technical specifications

• Equipment type Professional 3-in-1 pressotherapy system
• Technologies Pressotherapy + far infrared + EMS
• Certified model IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219
• Use Professional
• Power 350 W
• Stated voltage 240 / 110 V
• Electrical frequency 50 / 60 Hz
• Air chambers 20
• Pneumatic connections 10
• Pneumatic numbering 0 – 9
• Pressotherapy programmes 4
• Pressotherapy Mode A Progressive sequence
• Pressotherapy Mode B Alternating sequence
• Pressotherapy Mode C Progressive cumulative sequence
• Pressotherapy Mode D Combined sequence
• Pressure 1 20 mmHg / documented reference 0.10 bar
• Pressure 2 80 mmHg / documented reference 0.22 bar
• Pressure 3 120 mmHg / documented reference 0.32 bar
• Far-infrared connections 5
• Far-infrared numbering 1 – 5
• Heat type Dry radiant heat
• EMS electrodes 10
• EMS programmes 4
• EMS Mode A 10 Hz
• EMS Mode B 20 Hz
• EMS Mode C 30 Hz
• EMS Mode D 40 Hz
• Suit type Modular
• Areas Arms, abdomen, legs and feet
• Suit material Canvas-style plastic
• Organiser material Canvas-style plastic
• Display Digital touchscreen
• Design Upright with castors
• Manual Spanish-language

Certified model

Compliance and certification

• CE – EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• CE – LVD Directive 2014/35/EU

How to prepare a session

1. Place the unit on a stable surface.
2. Prepare the beauty treatment table correctly.
3. Fit the protective cover.
4. Carry out the necessary hygiene procedure before fitting the modules.
5. Use disposable body protection where appropriate.
6. Select the required garments.
7. Connect the pneumatic tubes according to the numbering 0 – 9.
8. Check the orientation of the connectors.
9. Connect the required heat outputs from 1 to 5.
10. Prepare the EMS cables if electrical muscle stimulation is to be used.
11. Apply conductive gel to the electrode pad contact areas.
12. Position the modules correctly on the client.
13. Switch on the unit.
14. Select the required functions.
15. Configure the programme and settings.
16. Check the client’s comfort.
17. Start the session.

Professional supervision during the session

Operation must be supervised throughout the session, especially when several technologies are used simultaneously.

• Check that the pressure is comfortable.
• Ensure that the modules are not excessively tight.
• Monitor the temperature of the heated areas.
• Check the contact of the EMS electrodes.
• Adjust the EMS intensity when necessary.
• Check that the tubes are not kinked.
• Ensure that the connections remain correctly positioned.

Hygiene between clients

The individual modules must be cleaned correctly after every use.

We recommend using disposable body protection or wraps when permitted by the protocol to reduce direct contact between the skin, cosmetic products and the inside of the garments.

Cleaning and maintenance

• Switch off the unit correctly after the session.
• Disconnect the accessories used.
• Clean and disinfect reusable components.
• Do not immerse electrical components.
• Do not leave heated garments closed while they retain heat.
• Open the modules after using the far-infrared function.
• Do not pull directly on tubes or cables.
• Do not create sharp bends in the hoses.
• Inspect electrodes and connections regularly.
• Use the organiser to keep cables tidy.
• Store the equipment in a clean, dry environment.

Contraindications and exclusions for use

Stated exclusions for this equipment include:

• Pregnancy.
• Pacemakers.
• Other implanted electronic devices.
• Epilepsy.
• Active infections.
• Damaged or compromised skin for EMS without prior assessment.
• Bleeding.
• Recent wounds.
• Fever.
• Significant sensory impairment in the application area.

Pressotherapy precautions

• Begin with low pressure.
• Increase progressively according to tolerance.
• Do not fit the garments excessively tightly.
• Do not use over recent wounds.
• Do not use over areas with active infections.
• Stop the function if pain or abnormal discomfort occurs.

Far-infrared precautions

• Check heat sensitivity beforehand.
• Do not use on areas with impaired sensitivity.
• Monitor the temperature regularly.
• Do not use over wounds or active infections.
• Do not leave the modules heating without a user.
• Stop the function if the heat sensation becomes excessive.

EMS precautions

• Do not use during pregnancy.
• Do not use on people with pacemakers.
• Do not use with other implanted electronic devices.
• Do not use on people with epilepsy.
• Do not place the electrodes on damaged skin.
• Do not use over active infections.
• Apply conductive gel.
• Begin at low intensity.
• Increase progressively according to tolerance.

For professional use only

This system is intended for beauty salons and professional establishments.

The operator must have a thorough understanding of:

• Positioning the modular suit.
• Connecting the pneumatic tubes.
• Installing the far-infrared cables.
• Positioning the EMS electrodes.
• The pressotherapy programmes.
• Pressure adjustment.
• Temperature control.
• EMS frequencies and intensity.
• Contraindications.
• Cleaning and maintenance procedures.

Exclusively aesthetic purpose

Why choose a 3-in-1 pressotherapy system

• Combines three technologies in one platform.
• Features 20 air chambers.
• Includes four pressotherapy sequences.
• Allows only the required garments to be selected.
• Integrates far-infrared heat.
• Features 5 heat connections.
• Includes 10 EMS electrodes.
• Allows frequencies from 10 to 40 Hz to be selected.
• Centralises settings through a touchscreen.
• Includes an organiser for arranging tubes and cables.
• Its upright structure with castors makes it easy to move around the salon.

3-in-1 system at a glance

Frequently asked questions

What functions does this equipment include?

It combines pneumatic compression pressotherapy, far-infrared heat therapy and EMS electrical muscle stimulation.

Can the three technologies be used separately?

Yes. The functions have independent controls and can be selected according to the professional protocol.

How many air chambers does it have?

The system features 20 chambers.

How many pressotherapy connections does it have?

It uses 10 pneumatic connections numbered from 0 to 9.

How many pressotherapy programmes does it include?

It features 4 programmes: A, B, C and D.

What is the difference between the programmes?

They use different compression patterns: progressive, alternating, cumulative and combined.

Is the suit a single piece?

No. It is a modular suit made up of separate accessories.

Which areas are included?

It includes modules for the arms, abdomen, legs and feet.

What material is it made from?

The suit and organiser are made from canvas-style plastic material.

How many far-infrared connections does it have?

It features 5 heat connections numbered from 1 to 5.

Can the temperature be adjusted by area?

Yes. The touchscreen allows the temperature and heat outputs to be configured according to the active sections.

How many EMS electrode pads are included?

It includes 10 EMS pads or electrodes.

Which EMS frequencies does it use?

It features four modes: 10, 20, 30 and 40 Hz.

Is conductive gel required?

Yes. The use of suitable conductive gel is recommended to maintain uniform contact with the EMS electrode pads.

Does it have a touchscreen?

Yes. It features a digital touchscreen for controlling the different functions.

What is the power rating?

The stated power rating is 350 W.

What is the certified model?

IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219.

Is it CE marked?

The documentation identifies compliance with EMC Directive 2014/30/EU and LVD Directive 2014/35/EU, as well as RoHS Directive 2011/65/EU.

Can it be used during pregnancy?

No. Pregnancy is listed as an exclusion for use.

Can it be used with a pacemaker?

No. It must also not be used on people with other implanted electronic devices.

Can it be used on people with epilepsy?

No. Epilepsy is listed as an exclusion for use.

Can it be used over an active infection?

No. The functions must not be applied to areas with active infections.

Is it medical equipment?

It must not be presented as equipment intended for the diagnosis, prevention or treatment of disease. It is intended for professional use within the beauty and wellness sector.

Professional 3-in-1 pressotherapy: modular design and zoned control

This professional 3-in-1 system combines 20 pressotherapy chambers, four pneumatic programmes, far-infrared heat therapy and EMS electrical muscle stimulation using 10 electrode pads and four frequencies from 10 to 40 Hz.

Its modular configuration allows the arms, abdomen, legs and feet to be selected independently, while the 10 pneumatic connections and 5 heat connections distribute the different functions throughout the body set.

The touchscreen centralises the main settings, while the organiser helps keep tubes and cables tidy during daily use in the professional treatment room.

Video course

Support video covering the equipment’s general operation, assembly of the modular suit, connection of the different accessories and set-up in the professional treatment room.
