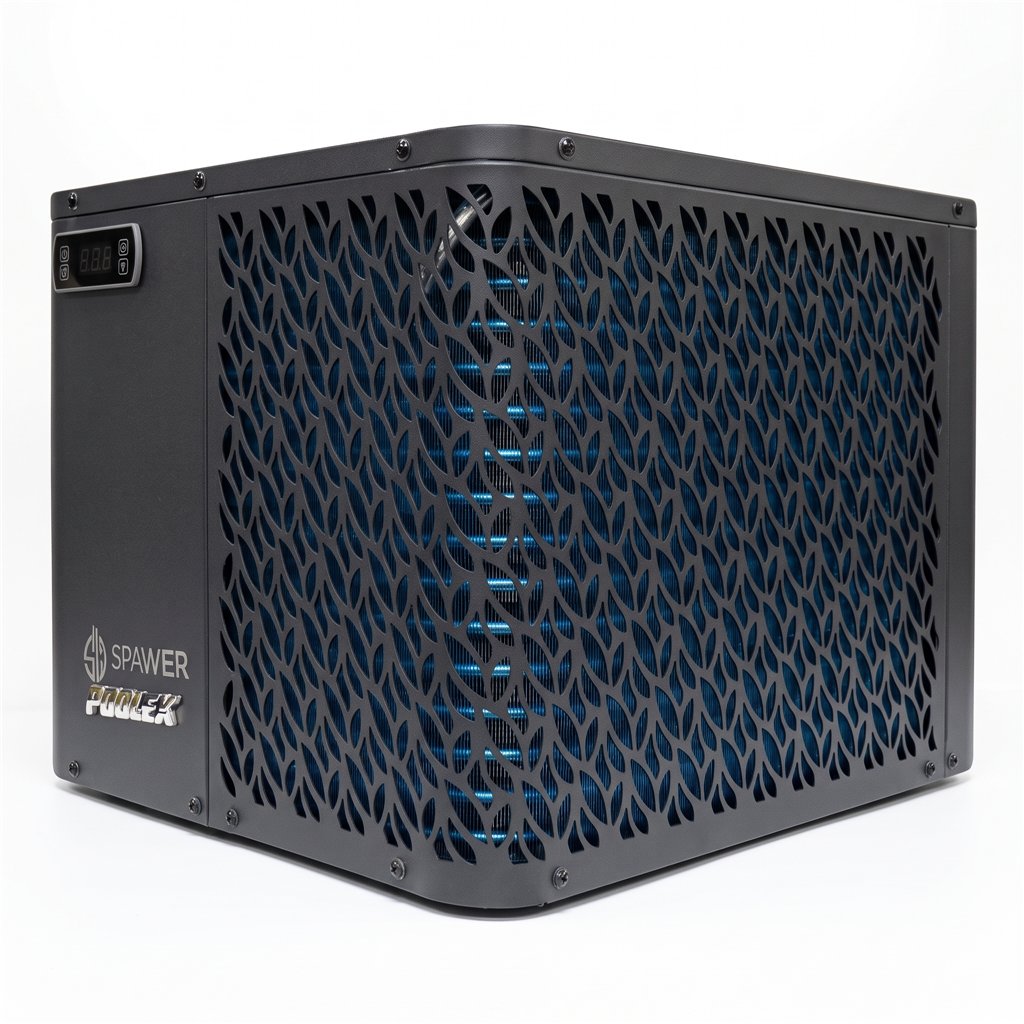

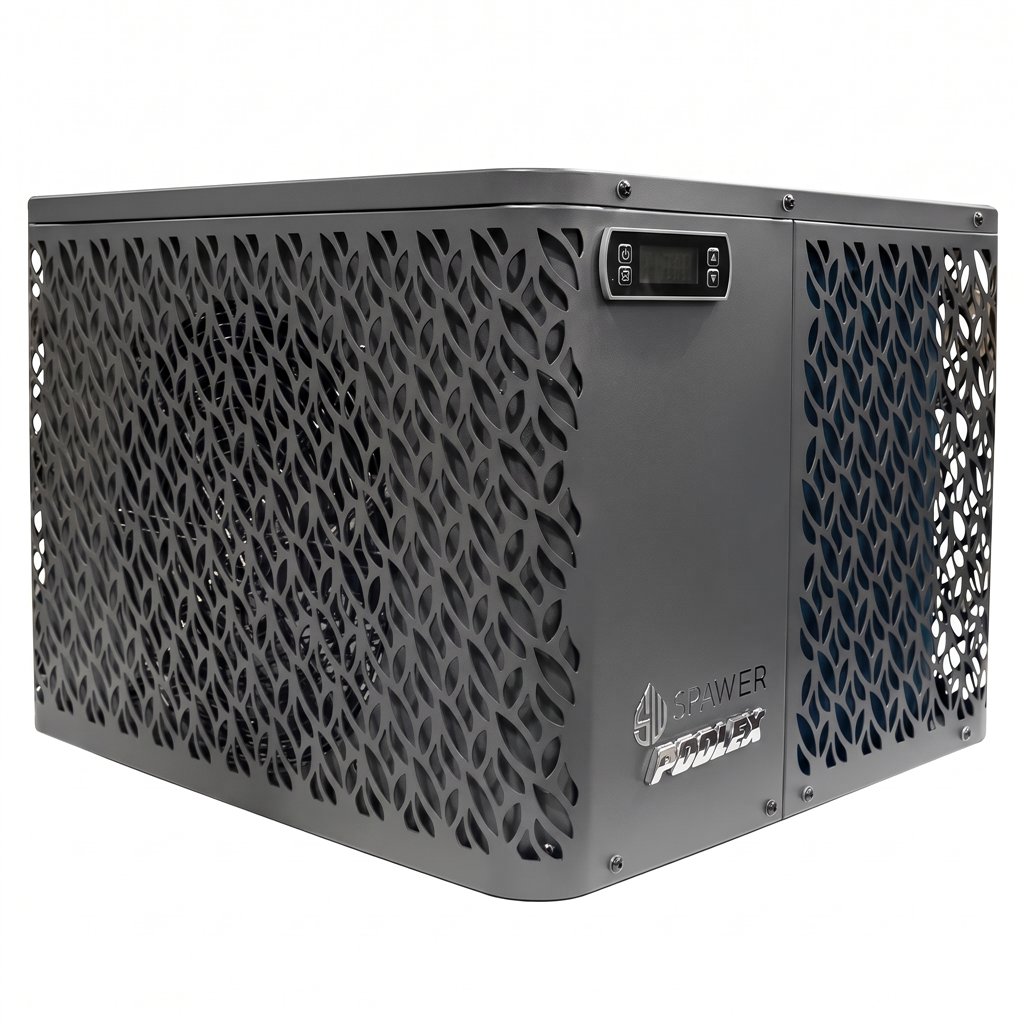

Poolex O'SPA Flow 5 kW Spa Heat Pump with Integrated Circulation

Poolex O'SPA Flow 5 kW Spa Heat Pump with Integrated Circulation

The Poolex O'SPA Flow 5 kW is a heat pump designed for spas, Nordic hot tubs and small pools. It combines heating, chiller cooling and an integrated circulation pump in one unit, simplifying the hydraulic connection by removing the need for a bypass.

Its constant 2.15 m³/h flow rate is suited to spa requirements and directs water through the Twisted Tech© titanium heat exchanger. The unit heats water from 10 to 40 °C or cools it from 2 to 30 °C, making it a practical option for maintaining the desired spa temperature or preparing a cold-water bathing installation.

The 5 kW version, reference PC-OSPA55P, features Wi-Fi connectivity for remote adjustment of temperature and operating modes via the Poolex mobile app. It also includes an integrated relay to control the spa's electric heater when required.

A more direct hydraulic installation

Unlike a configuration requiring an external circulation pump and bypass, the O'SPA Flow incorporates its own circulation pump. This integration enables the unit to be connected directly to the spa through a single connection, maintaining a stable flow to the heat exchanger.

• Circulation pump Integrated
• Water flow rate 2.15 m³/h

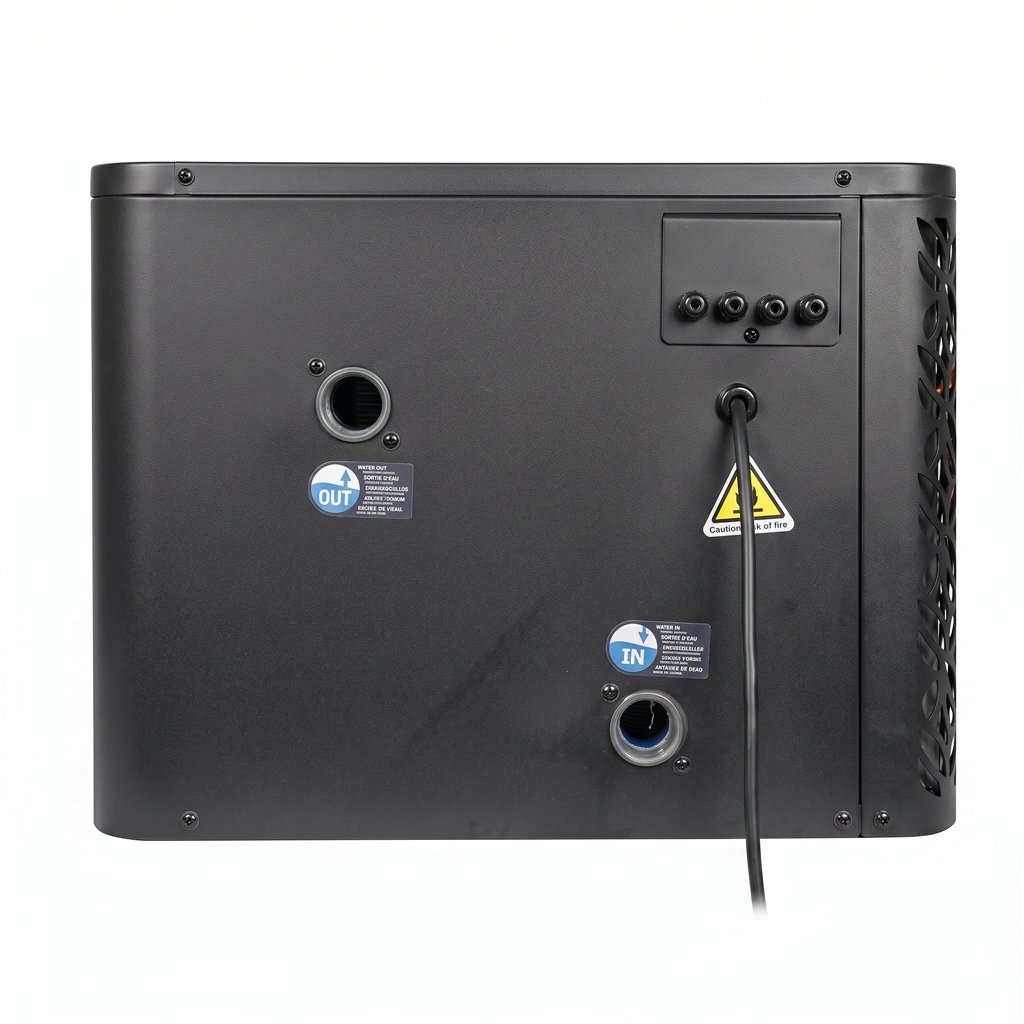

• Hydraulic connections 32 / 38 mm
• Pressure loss 2.5 mH₂O
• Heat exchanger Twisted Tech© titanium
• Coil protection Corrosion-resistant titanium

Heating, cooling and Auto mode

The O'SPA Flow combines three operating modes to suit spa use throughout the year: heating, chiller cooling and Auto mode. Its heating range is 10 to 40 °C, while its cooling range is 2 to 30 °C.

According to the manufacturer, the unit can operate in heating mode down to -7 °C. The integrated control relay can manage the spa's electric heater to maintain heating when required.

• Functions Heating, chiller cooling, Auto mode and relay control of spa heating
• Heating range 10 to 40 °C
• Cooling range 2 to 30 °C
• Heating operation Down to -7 °C
• Compressor type Rotary
• Refrigerant R32, 0.40 kg charge

Performance of the 5 kW version

Thermal performance figures are stated under specific ambient and water conditions. In heating mode, the O'SPA Flow 5 kW delivers a 5.06 kW capacity at 26 °C air, 26 °C water and 80% relative humidity, with a COP of 5.30. At 15 °C air, 38 °C water and 70% relative humidity, the stated capacity is 3.25 kW with a COP of 3.00.

In cooling mode, it provides a capacity of 2.75 kW at 35 °C air, 27 °C water and 70% relative humidity. Under conditions of 15 °C air, 5 °C water and 70% relative humidity, the stated cooling capacity is 2.00 kW.

• Heating capacity at 26 °C air / 26 °C water 5.06 kW
• Power consumption in heating at 26 °C air / 26 °C water 0.95 kW
• COP at 26 °C air / 26 °C water 5.30
• Heating capacity at 15 °C air / 38 °C water 3.25 kW
• Power consumption in heating at 15 °C air / 38 °C water 1.08 kW
• COP at 15 °C air / 38 °C water 3.00
• Cooling capacity at 35 °C air / 27 °C water 2.75 kW
• EER at 35 °C air / 27 °C water 2.00
• Cooling capacity at 15 °C air / 5 °C water 2.00 kW
• EER at 15 °C air / 5 °C water 2.55

Connected control via the Poolex app

The integrated Wi-Fi allows remote control of the set temperature and operating modes through the Poolex mobile app. This connectivity makes day-to-day management more convenient without requiring physical access to the unit for every adjustment.

• Connectivity Integrated Wi-Fi
• Remote control Poolex mobile app
• Spa heater control Integrated relay
• Declared compatibility Compatible with all water treatments

Compact design and electrical data

With dimensions of 620 × 490 × 420 mm, this 5 kW version has a compact format for installation close to the spa. Its stated sound level is below 50 dB(A) at 1 m and 30 dB(A) at 10 m.

• Power supply Single-phase 220–240 V ~ 50 Hz
• Maximum power 1.80 kW
• Dimensions 620 × 490 × 420 mm
• Net / gross weight 38 / 43 kg
• Noise at 1 m < 50 dB(A)
• Noise at 10 m < 30 dB(A)
• Reference PC-OSPA55P

Included and optional accessories

The Poolex O'SPA Flow 5 kW is supplied with the components specified by the manufacturer for connection and control. The removable touchscreen and hydraulic connection kit are available as optional accessories.

• Included Control relay
• Included RCD plug with 5 m cable
• Included Hydraulic connectors, 2 sets
• Included Clamps, 2 sets
• Included Netspa kit connectors
• Optional Removable touchscreen
• Optional Hydraulic connection kit

Manufacturer-stated warranties

• Heat pump 2 years
• Compressor 5 years
• Corrosion-resistant titanium coil 10 years
