Holl's Symbioz Hybrid 3-person hybrid sauna with infrared and steam

Holl's Symbioz Hybrid sauna for 3 people

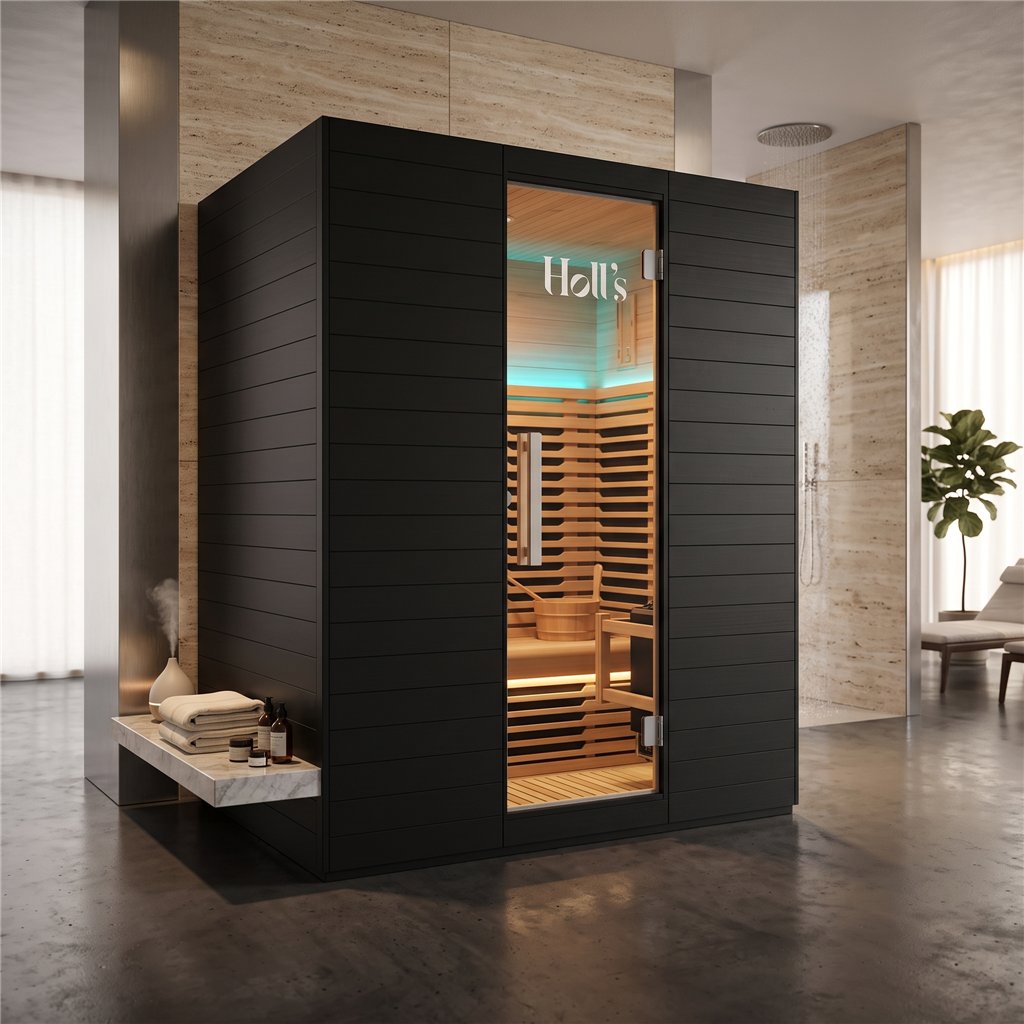

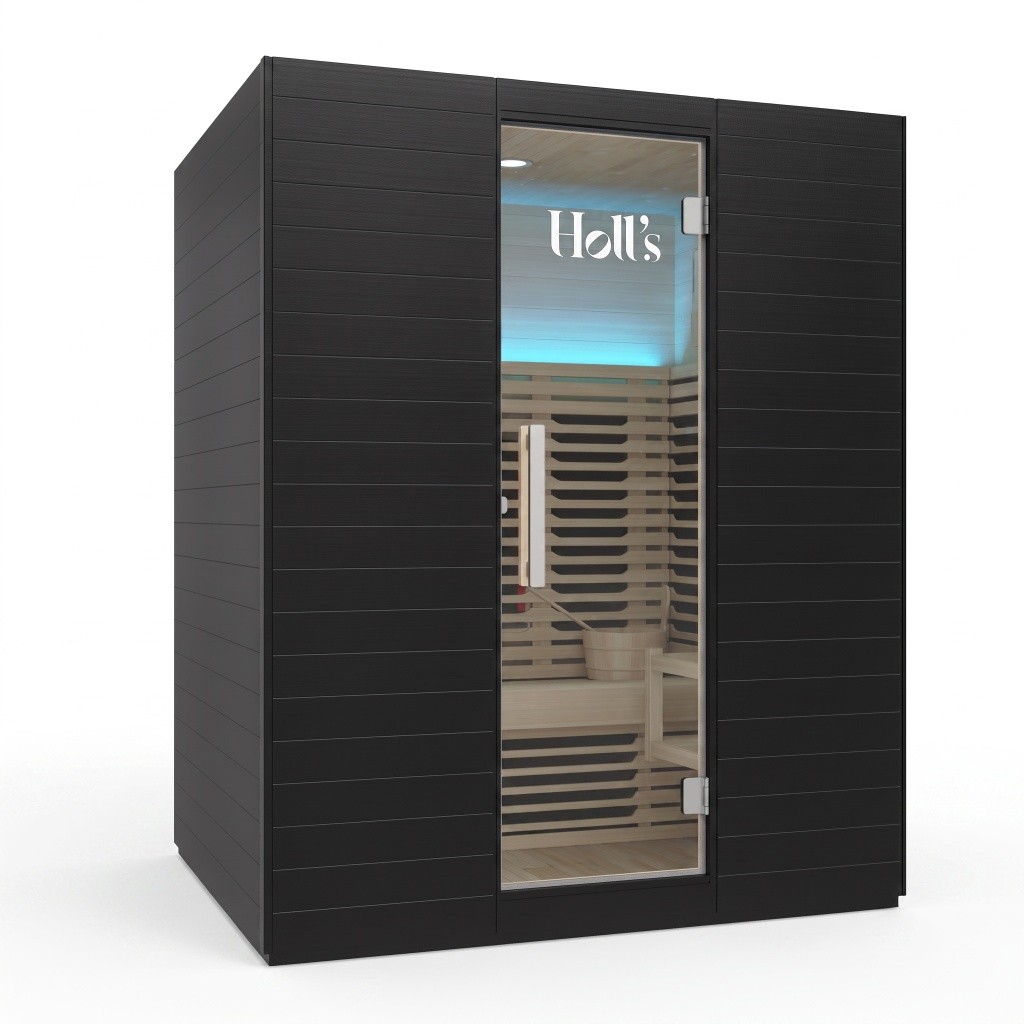

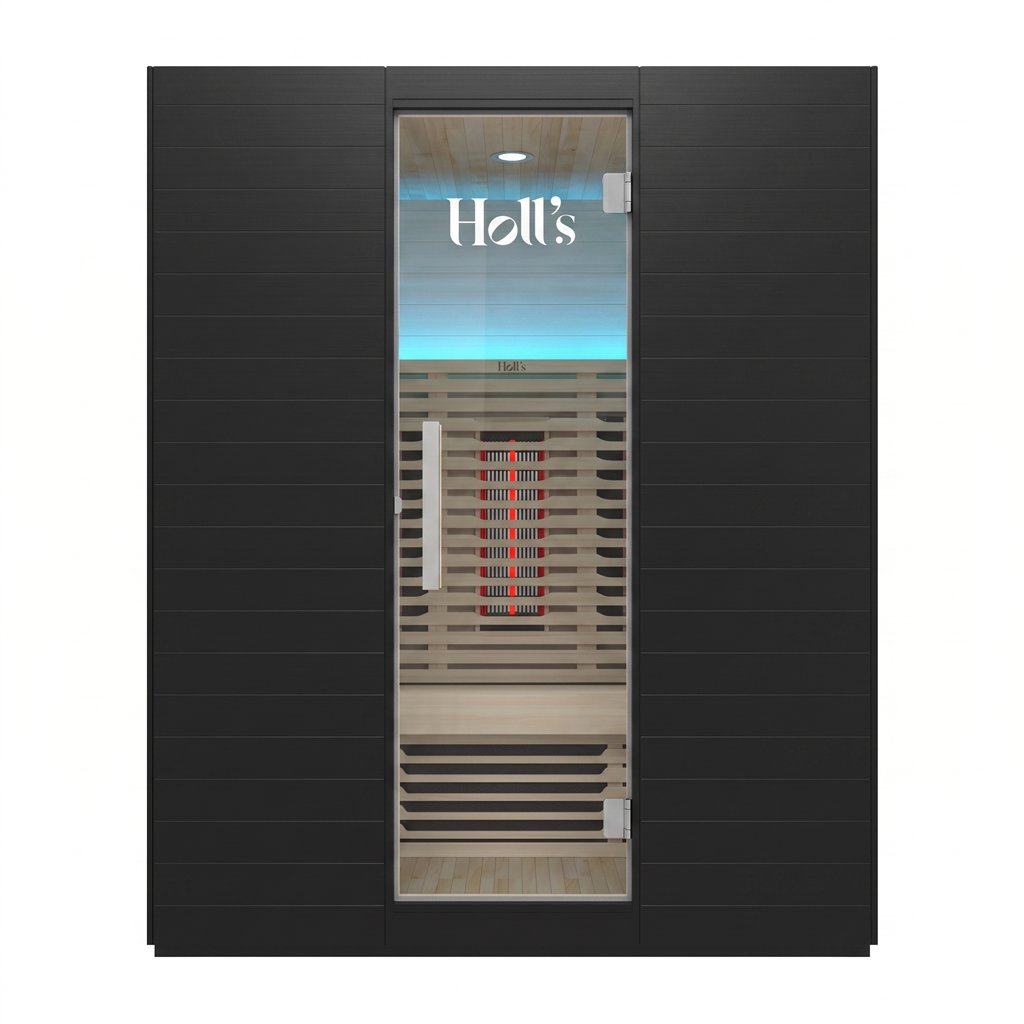

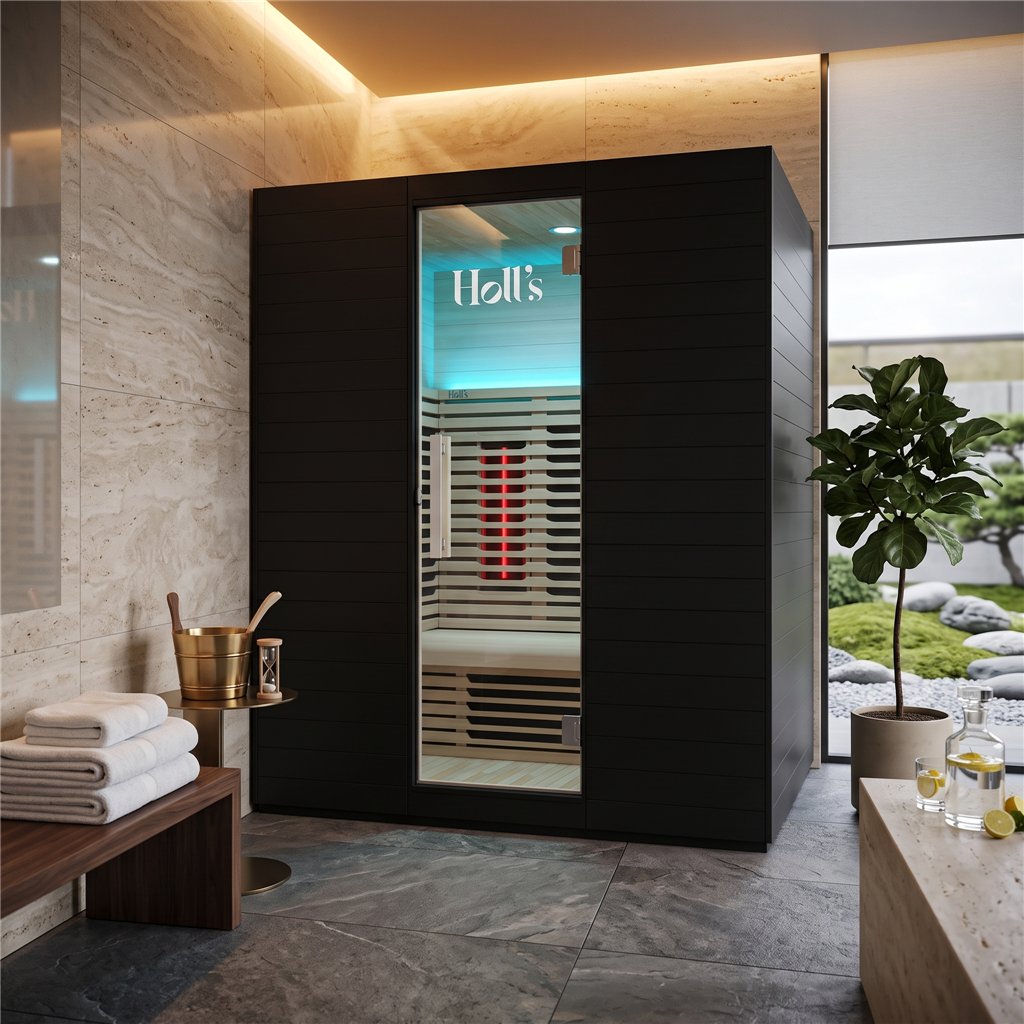

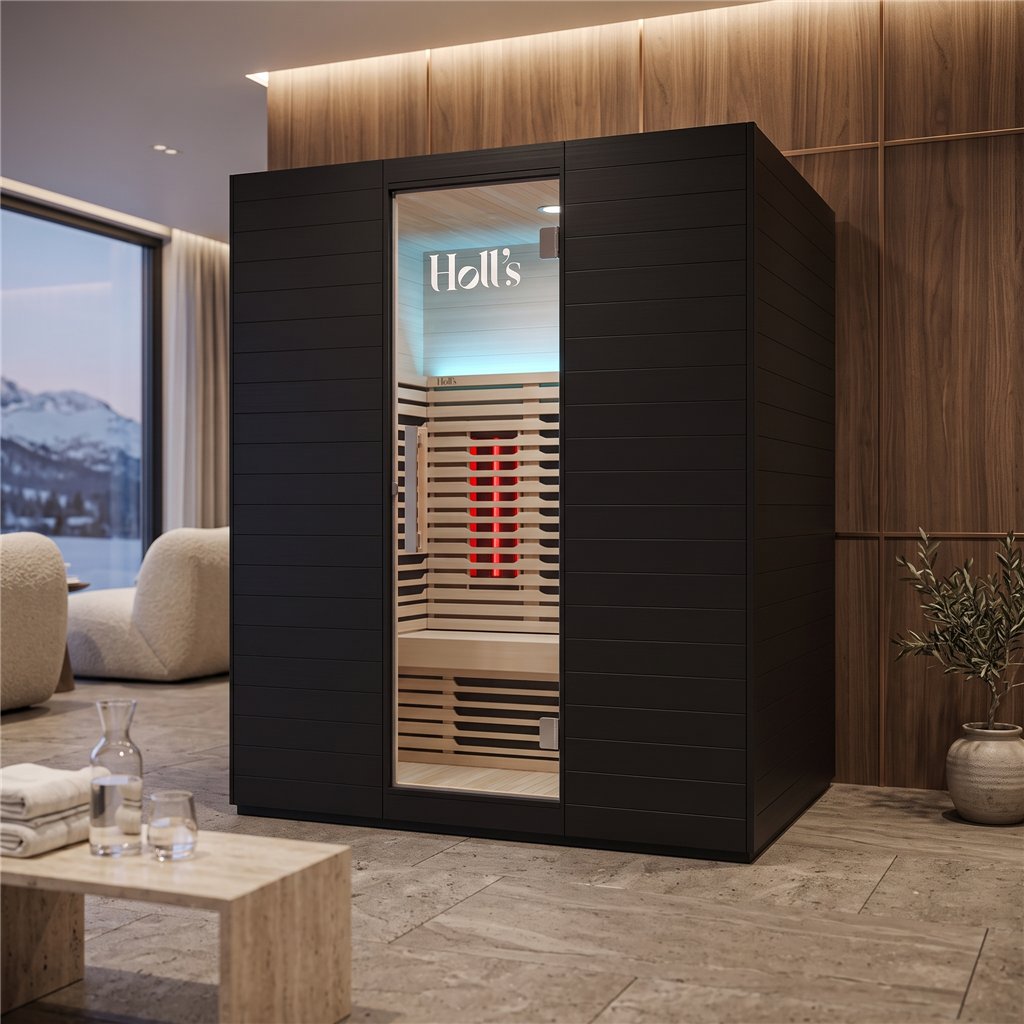

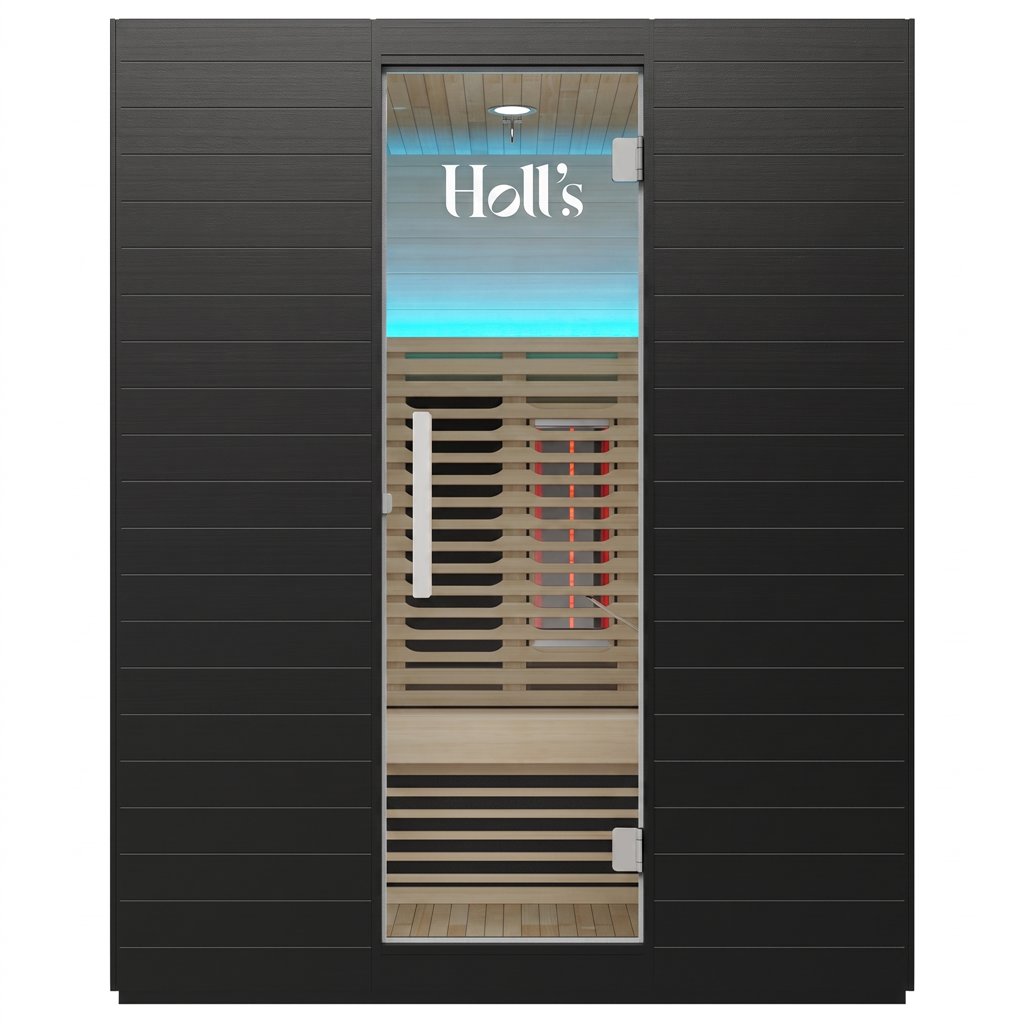

The Holl's Symbioz Hybrid is a compact sauna cabin with a distinctive black design, created for wellness spaces that want to combine the experience of a traditional steam sauna with quartz and carbon infrared heaters in a single installation.

With capacity for 3 seated people and dimensions of 160 x 130 x 195 cm, this model can be integrated into wellness centres, spas, hotels, relaxation areas or high-end private facilities, always with responsible use and in accordance with the equipment instructions.

Hybrid technology: traditional steam and infrared

Hybrid Technology combines three heat sources: traditional steam sauna, quartz heaters and carbon heaters. This configuration provides flexibility to adapt each session to the desired type of use, alternating the classic sauna atmosphere with infrared heating.

The cabin includes a total output of 2555 W in infrared heaters, distributed across 2 quartz heaters and 6 carbon heaters. The model’s technical specification also includes the Vulkano Black electric heater with 4.5 kW output, a double-wall heater construction and heater power supply at 220/240 V or 380/400 V, depending on the installation configuration.

Control, lighting and user experience

The control panel allows the infrared session to be programmed, the lighting to be managed and the system to connect to Bluetooth audio. The cabin also includes LED chromotherapy, a common feature in wellness environments for creating a pleasant visual atmosphere during the session.

The lighting power supply is 220/240 V and the lighting cable length is specified as 4 m. These details are useful when planning the position of the cabin and preparing the electrical installation with qualified personnel.

Design and construction safety

The Symbioz Hybrid stands out for its bold black aesthetic, suitable for contemporary wellness projects where design is part of the spatial experience. The door is made from 8 mm tempered safety glass, providing a clean-looking and resistant entrance.

The wooden structure has a stated warranty of 10 years, while the electrical components have a stated warranty of 2 years. The exact wood species is not included in the available product data, so it is not listed as a publishable feature.

Included sauna kit

The cabin is supplied with an essential accessory kit for traditional sauna use:

• Bucket Included
• Ladle Included
• Thermometer Included
• Hygrometer Included
• Sand timer Included

Technical features

• Brand Holl's
• Model Symbioz Hybrid
• Reference HL-SYMB160PK
• Type Hybrid sauna cabin with traditional steam sauna and infrared sauna
• Capacity 3 seated people
• Dimensions W 160 x D 130 x H 195 cm
• Technology Hybrid Technology: traditional steam sauna + quartz + carbon
• Total infrared heater power 2555 W
• Infrared heaters 2 quartz + 6 carbon
• Electric heater Vulkano Black
• Electric heater power 4.5 kW
• Heater type Double-wall heater
• Heater power supply 220/240 V or 380/400 V
• Lighting power supply 220/240 V
• Lighting cable length 4 m
• Door 8 mm tempered safety glass
• Chromotherapy LED included
• Audio Bluetooth connection from the control panel
• Wood structure warranty 10 years
• Electrical components warranty 2 years

Installation and professional use

Due to its electrical characteristics and hybrid configuration, installation should be planned taking into account the heater power supply, cabin location, lighting connection and the conditions of the space where it will be installed. The electrical connection should be carried out by qualified personnel and in accordance with applicable regulations.

The Symbioz Hybrid is a complete option for wellness projects that require a 3-person sauna, with a distinctive aesthetic and combined heat technologies in a single cabin.
