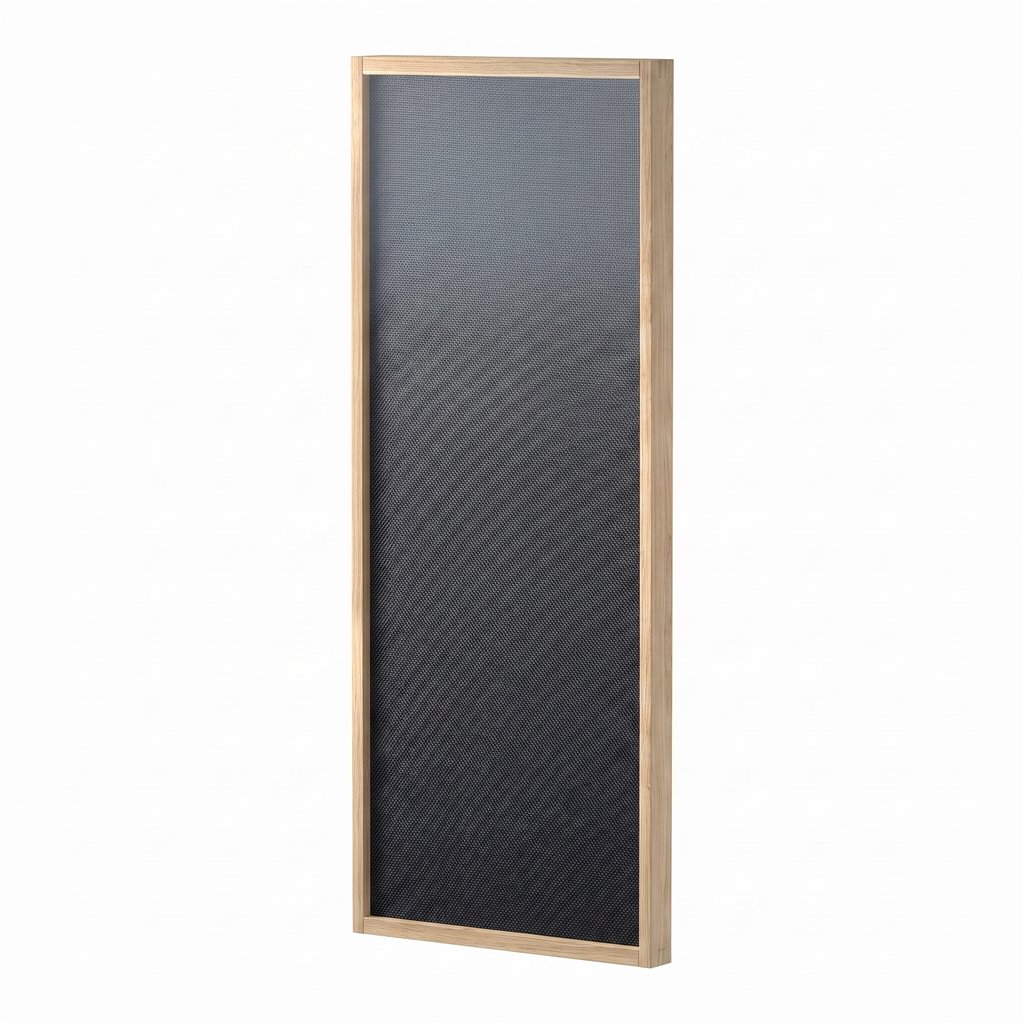

Naggura Rooms IKON acoustic wall panel with LED in graphite blue

Naggura Rooms IKON acoustic panel with LED lighting

The Naggura Rooms IKON Acoustic Wall is a large-format acoustic wall panel for indoor spaces. It combines a compact-fibre panel covered in graphite blue acoustic fabric with a plywood frame featuring an oak melamine finish.

Its vertical format helps provide acoustic conditioning in beauty, wellness, physiotherapy, massage, spa and reception areas, as well as other professional settings. The LED light integrated into the upper frame adds ambient lighting to the wall composition.

Integrated acoustics and lighting

The panel has a compact-fibre core with a density of 64 kg/m³ and polyester acoustic fabric. According to values measured under ISO 354:2003, it offers 7% absorption at 125 Hz, 78% at 500 Hz and 99% at 2000 Hz.

The 10 W LED light is integrated into the upper section of the frame. A 60 W transformer is included. One transformer can connect up to six frames, although connecting a maximum of four is recommended due to cable-length limitations.

• Colour Graphite blue
• Intended use Indoor
• Mounting location Wall
• Lighting LED integrated into the upper frame
• LED power 10 W
• Transformer 60 W included
• LED-to-transformer cable 2 m
• Transformer-to-power-outlet cable 1 m
• LED-to-transformer extension cable 2 m

Materials and performance

The panel features 100% polyester acoustic fabric and a plywood frame made with 100% FSC-certified wood. The frame has an oak melamine finish.

• Main material Compact fibres
• Panel density 64 kg/m³
• Acoustic fabric 100% polyester
• Frame Plywood with oak melamine finish
• Wood certification 100% FSC
• Fire resistance BS 476
• Formaldehyde emissions 0.006 mg/m³ in accordance with EN 717-1:2004
• Acoustic absorption at 125 Hz 7%
• Acoustic absorption at 500 Hz 78%
• Acoustic absorption at 2000 Hz 99%
• Acoustic absorption standard ISO 354:2003

Dimensions

• Height 243.8 cm
• Width 88.6 cm
• Depth 9 cm
• Side wood thickness 3.4 cm
• Top and bottom wood thickness 4.5 cm
• Product weight 28.5 kg
• Quantity per kit 1 unit

Contents and assembly

The set includes the wooden frame, acoustic panel, metal brackets, metal beams, LED lighting, 60 W frame transformer and wall-fixing components. Wall installation is carried out using the supplied plugs and screws.

Manual assembly is required. Assembly by two people is recommended on a soft surface, with an estimated installation time of approximately 30 minutes.

• Assembly type Manual
• Assembly difficulty Medium
• Estimated assembly time 30 minutes
• Recommended number of people 2
• Number of packages 7
• Warranty 2 years for professional use
