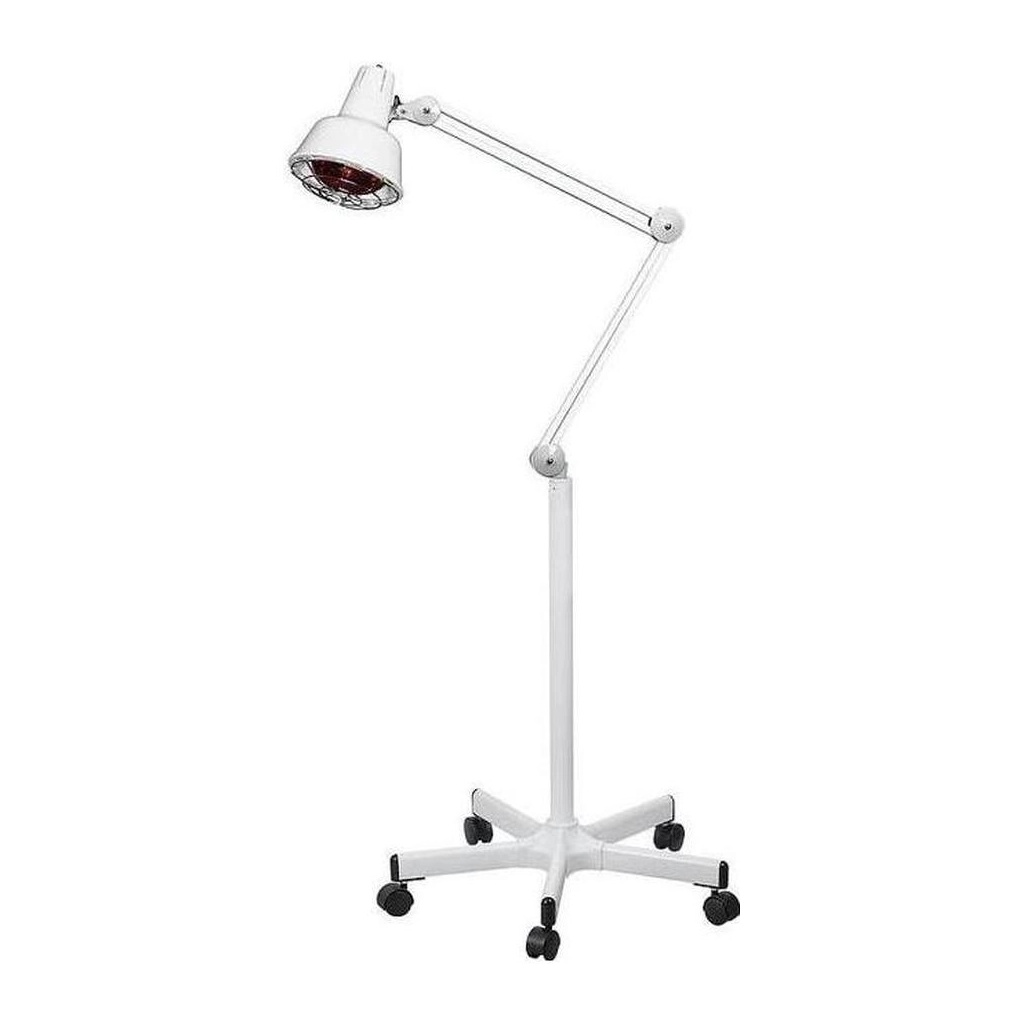

The Weelko THERAP+ infrared lamp is designed for thermotherapy treatments. It features a 275 W bulb, adjustable light intensity and an emission range of 780–860 nm. Its articulated arm allows precise head positioning, while the five-wheel base makes it easy to move around the treatment room.
The Weelko THERAP+ is an infrared lamp fitted with a 275 W bulb for thermotherapy treatments. It operates within a 780–860 nm wavelength range, while a control dial allows the light intensity to be adjusted.
The unit features an articulated arm for moving, positioning and securing the lamp head during use. Its mobile five-wheel base makes the lamp easy to reposition within the treatment area.
Positioning and intensity control
The arm has two articulated sections measuring 53 cm and 52.5 cm. This configuration allows the lamp head to be positioned according to the treatment area and the operating distance to be adjusted. Light intensity is regulated with the rotary control during the session.
Model THERAP+
Reference 1003
Emission type Infrared
Operating power 275 W
Adjustment Adjustable light intensity
Arm Articulated
Base 5 wheels
Wavelength 780–860 nm
Colour temperature 2300 K
Rated service life 5,000 hours
Operation and handling
Assemble the base, fit the lamp and connect the unit to the power supply. Switch it on and adjust the intensity using the appropriate control. Position the lamp head with the articulated arm and set the distance between the lamp and the skin according to the intended use.
After use, reduce the intensity to the minimum setting before switching off the unit. Keep the lamp clean and use it only with a stable electrical power supply.
Electrical data
Input voltage 220–240 Vac
Frequency 50/60 Hz
Rated power 275 W
Power cord length 150 cm
Dimensions and logistics
Column height 77 cm
Articulated arm section lengths 53 cm and 52.5 cm
Base diameter 60 cm
Lamp head diameter 20 cm
Lamp head length 23 cm
Net weight 7.8 kg
Gross weight 9 kg
Packaging dimensions 77 × 30 × 25 cm
Conformity
This unit complies with the requirements of the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU.
Usage precautions
Do not touch the bulb while the lamp is operating or until 30 minutes after it has been switched off.
Do not use the unit in humid or poorly ventilated environments, or outdoors.
Do not open or inspect internal components. For any intervention, contact the supplier or qualified technical personnel.
If the power cord is damaged, it must be replaced by a qualified professional.
