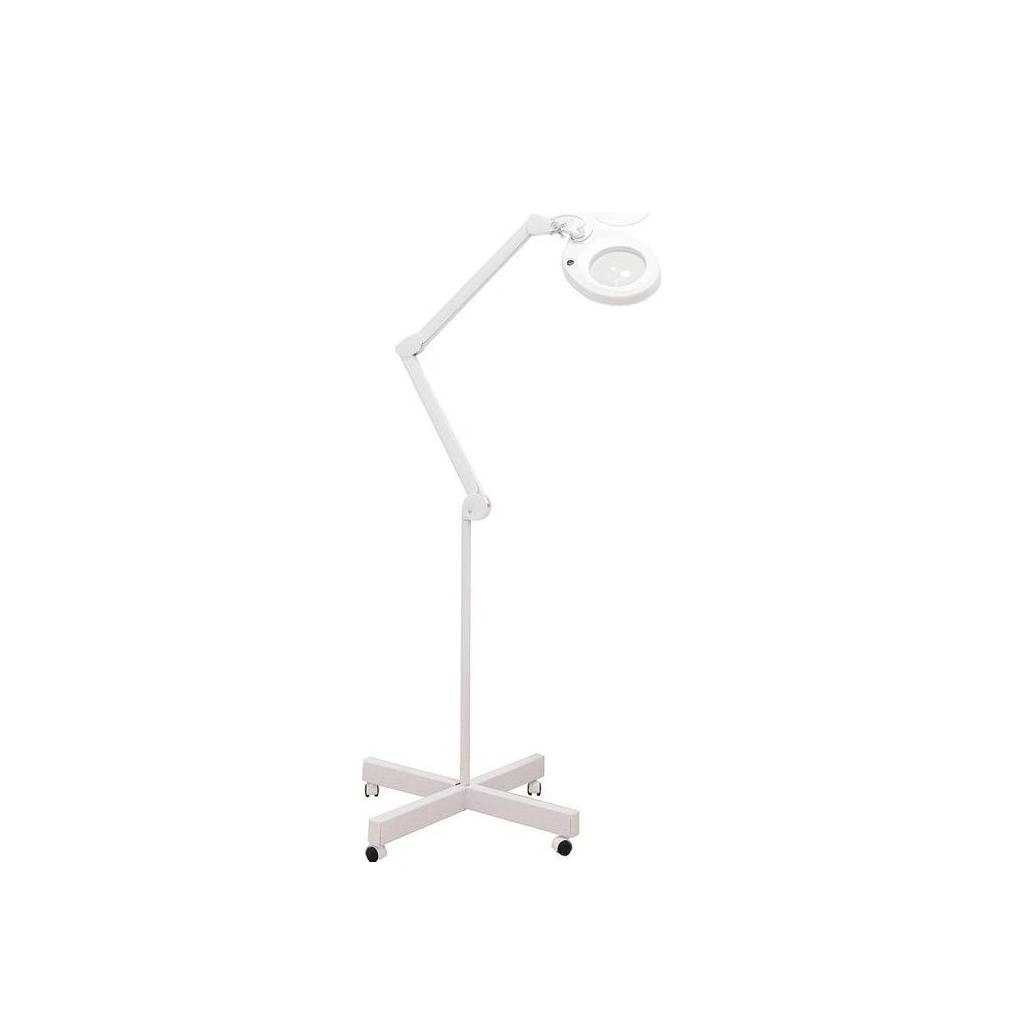

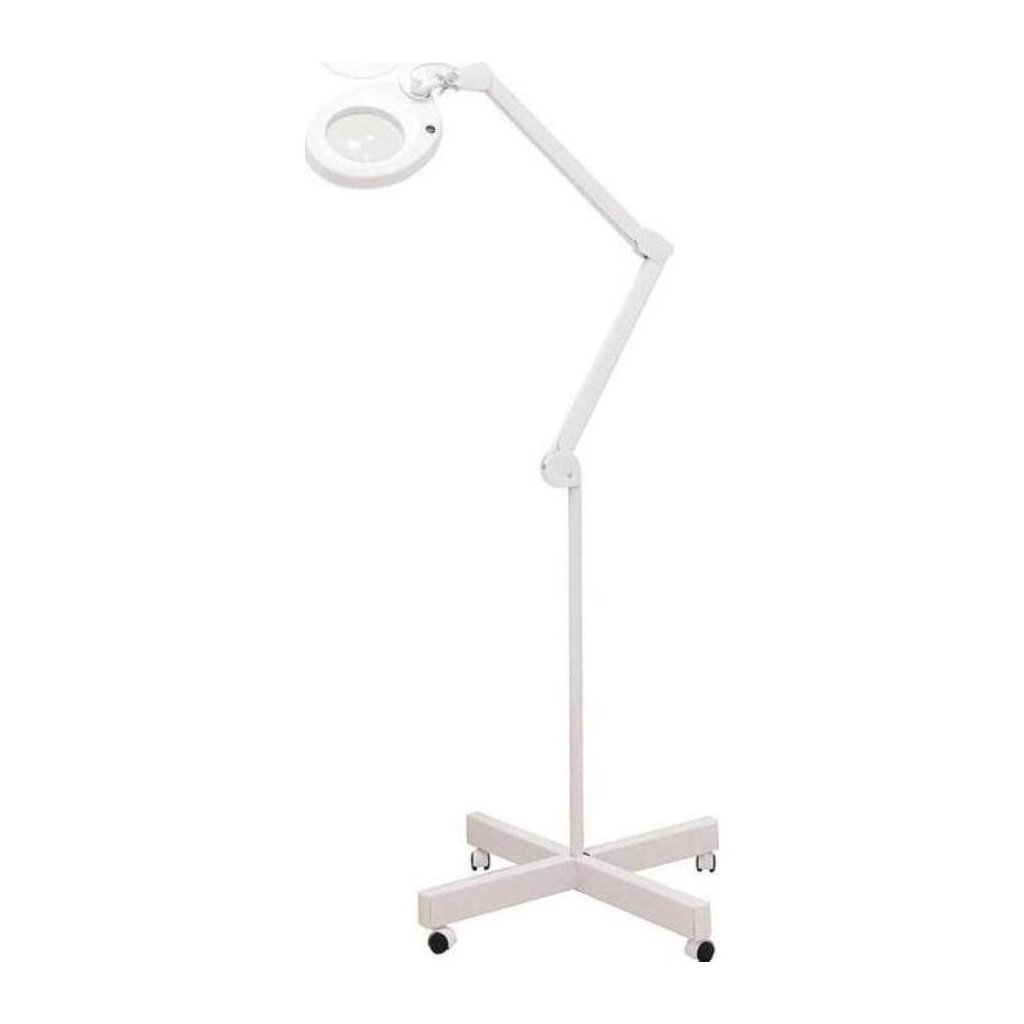

Weelko MAGNI+ 5-dioptre LED magnifying lamp with wheeled base

Weelko MAGNI+ LED magnifying lamp with wheeled base

The Weelko MAGNI+, reference WKL004, is a cold-light LED magnifying lamp with a 5-dioptre magnifying lens. It is designed for precision work in beauty and wellness settings, as well as visual observation of the skin during treatment room services.

Its articulated arm allows the light and lens to be positioned over the working area. The structure features a 4-wheel base for moving it around the treatment room, together with a clamp for attachment to tables or beauty trolleys. A cover is included to protect the lens when not in use.

Lighting and magnification

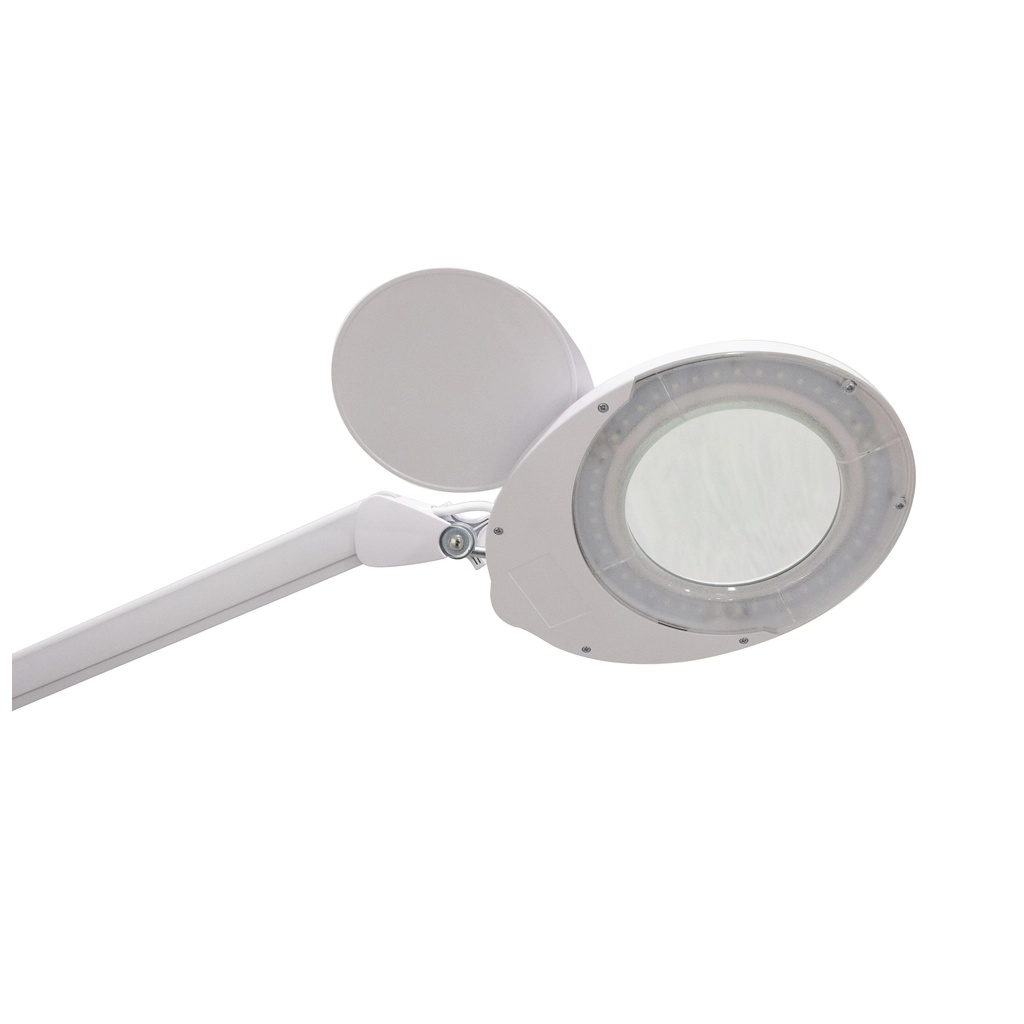

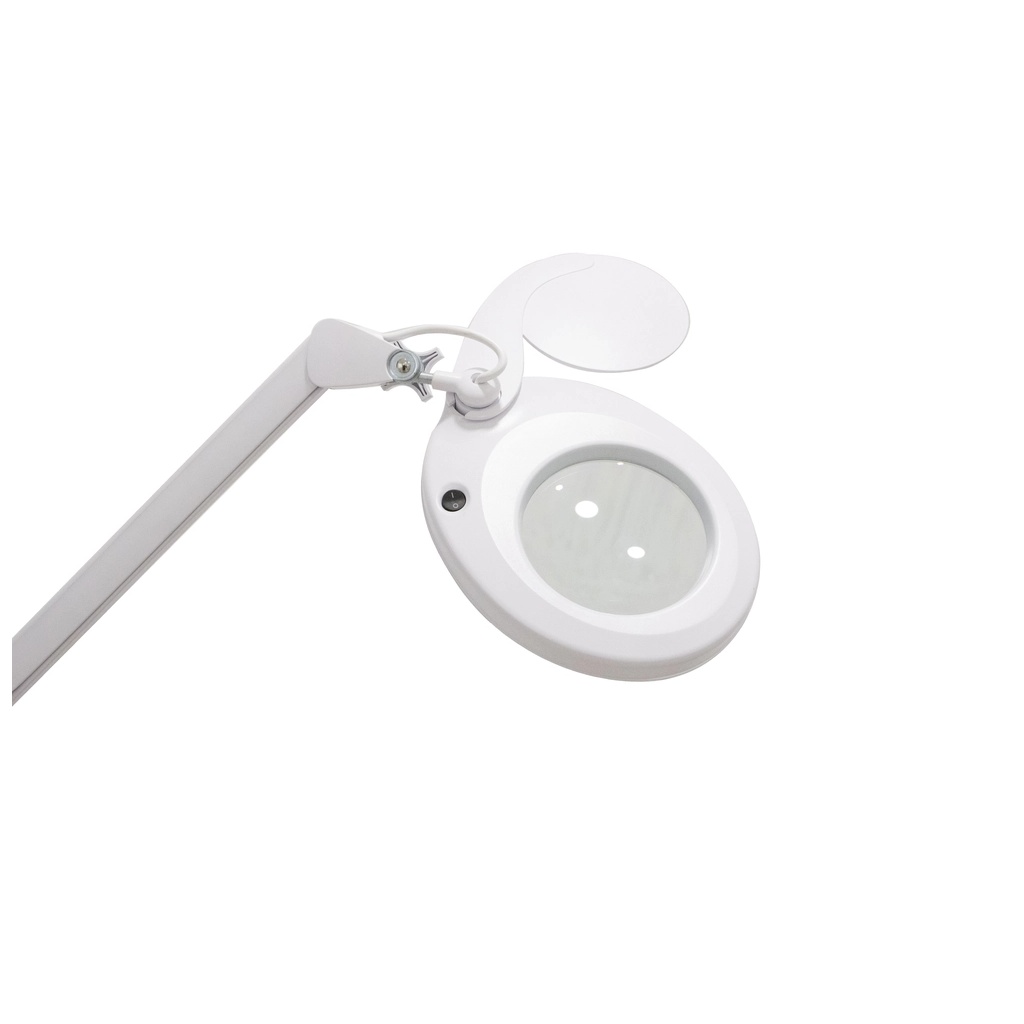

The 5-dioptre lens is combined with cold-light LED illumination. The head can be positioned at the appropriate distance from the work area using the articulated arm.

• Magnification 5 dioptres
• Luminous flux 610 lm
• LED type SMD LED
• Number of LEDs 45 units
• Colour temperature 6000/6500 K
• LED service life 20,000 h

Treatment room configuration

The MAGNI+ is supplied with a mobile four-wheel base. Its arm has two articulated sections for bringing the head closer to and positioning it according to the working position. It also includes a mounting clamp for tables or beauty trolleys. A wall-mounting system is available as an option.

• Base Mobile base with 4 wheels
• Arm Articulated, with indicated sections of 46 and 40 cm
• Head 25 × 19 cm according to diagram
• Lens Ø 12 cm according to diagram
• Base dimensions 45 × 62 cm according to diagram
• Support 75 cm according to diagram
• Lens protection Cover included
• Wall mounting Available as an option

Electrical data

• Rated voltage 220–240 V
• Frequency 50/60 Hz
• Rated power 8 W
• Power cable length 1.5 m
• Listed directives Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU

Assembly and use

Assemble the base, insert the lamp and connect the power supply. Press the POWER button, position the head over the working area and adjust the distance between the lens and the skin before starting the service.

To clean, remove dust from the lens or glass using soft paper specifically intended for glass, or a dedicated lens cloth. Do not use materials that could damage it.

Weight and packaging

• Net weight 9 kg
• Gross weight 10 kg
• Packaging Pack 1: 75 × 23 × 8 cm; Pack 2: 68 × 19 × 8 cm
