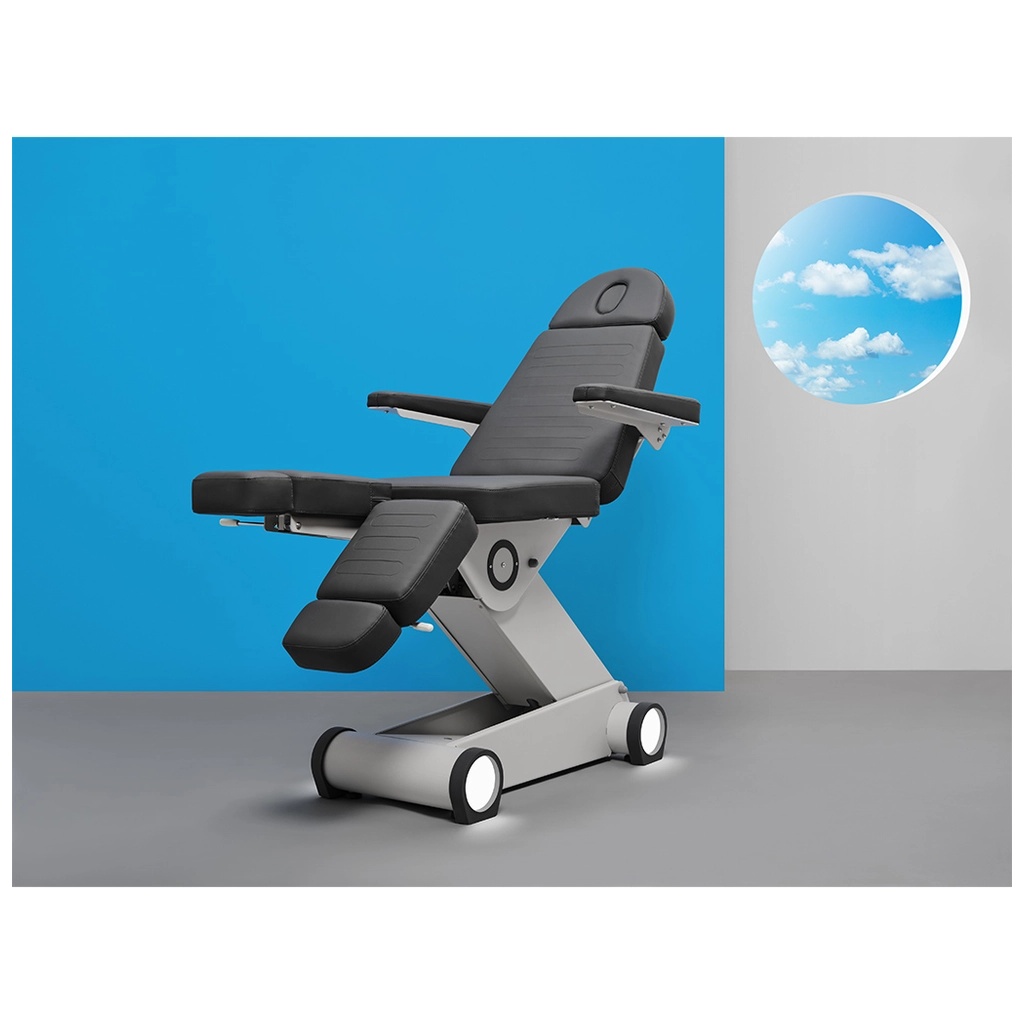

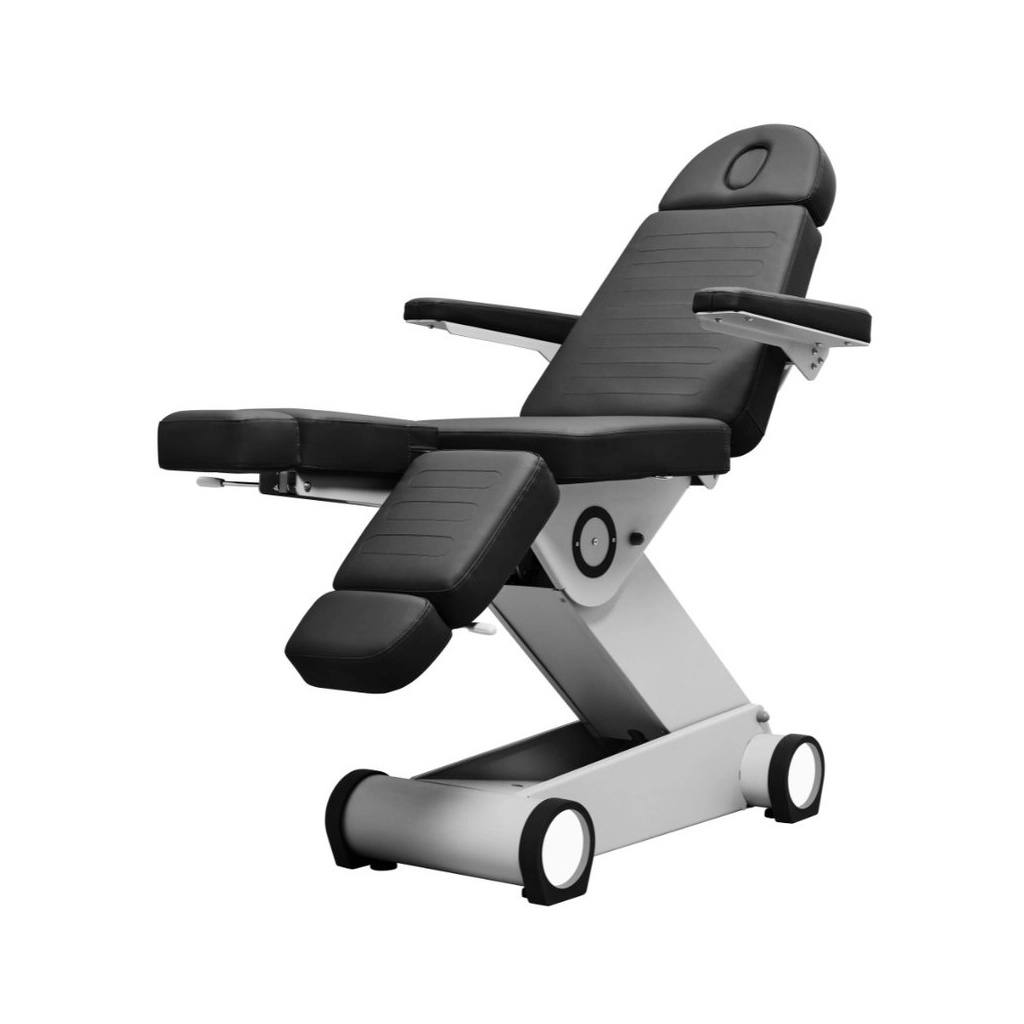

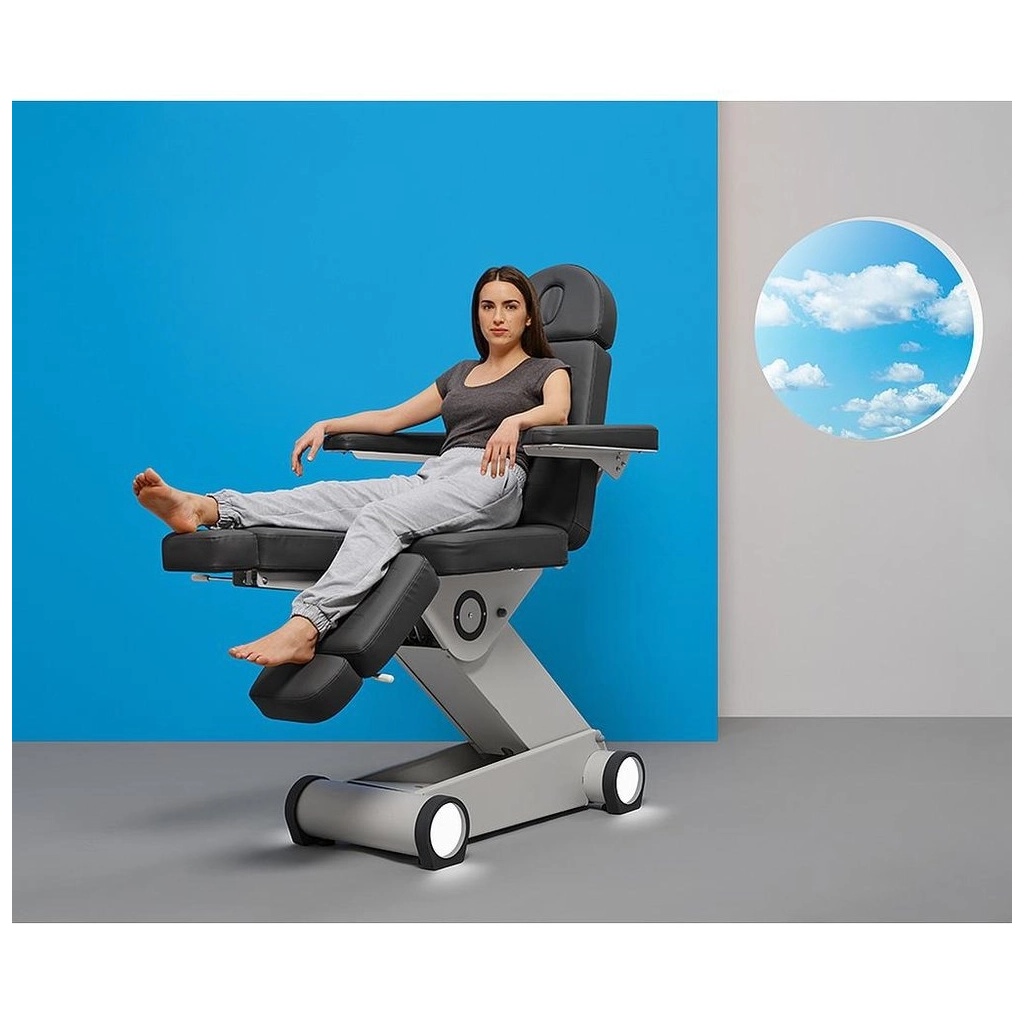

Weelko B-LIGHT 503 electric podiatry chair with LED light

Weelko B-LIGHT 503 electric podiatry chair

The Weelko B-LIGHT 503 is an electric podiatry and pedicure chair designed for professional treatment rooms. Its 3 motors adjust the height, backrest tilt and seat tilt using the included hand control.

Its configuration allows the working position to be adapted for each service. The backrest reclines from 0° to 80°, while the chair provides a Trendelenburg position of up to 22°. The two legrests can be adjusted independently using gas springs and raised to a horizontal position.

Electric adjustment and structure

The chair features a steel structure and a base with integrated white LED lighting. The light can be switched on and off using the hand control. Its height range extends from 58 to 94 cm, supporting access and preparation of the working position.

The backrest, armrests and headrest are fold-down and removable. The headrest includes a face hole with a plug. Extendable footrests allow the support length to be adjusted.

• Motors 3 electric motors
• Motorised movements Height, backrest tilt and seat tilt
• Adjustable height 58–94 cm
• Backrest Tilt from 0° to 80°
• Trendelenburg From 0° to 22°
• Legrests 2 units, individually adjustable by gas spring, up to 90°
• Lighting White LED integrated into the base
• Control Hand control included

Upholstery and dimensions

The padding is 10 cm thick and finished in PU upholstery. Without armrests, the B-LIGHT 503 measures 178 × 56 × 58/94 cm. With the armrests fitted, its dimensions are 178 × 83 × 58/94 cm.

The chair reaches a maximum height of 121 cm in the Trendelenburg position. It supports a maximum load of 175 kg. Power supply is AC 100–240 V, 50/60 Hz, with a maximum power rating of 300 W.

• Upholstery PU
• Padding thickness 10 cm
• Face hole 13.5 × 9 cm, with plug
• Dimensions without armrests 178 × 56 × 58/94 cm
• Dimensions with armrests 178 × 83 × 58/94 cm
• Length with movement 178 ± 26 cm
• Stated weight 93 kg
• Load capacity 175 kg
• Power supply AC 100–240 V, 50/60 Hz
• Maximum power 300 W
• Packaging dimensions 127 × 62 × 61 cm
• Gross weight 108 kg

Optional accessories

The B-LIGHT 503 is compatible with specific accessories to complete the treatment room configuration. The optional foot control allows all three electric movements to be operated by foot.

• Cover Ref. COVER.PODO
• Foot control Ref. FC003.SWOP.UP
• Paper roll holder Ref. 50080.1

Use and maintenance

This chair is intended for trained professionals in podiatry, pedicure, beauty, dermatology and aesthetic medicine. Install the chair on a stable, level surface, leaving clear access from all four sides.

To clean the upholstery, use a solution of water and pH-neutral liquid soap. Remove residue with a clean, damp cloth and dry the surface. Use a soft cloth or alcohol-free wipes for the structure. Do not use solvents, acetone, abrasive products or alcohol-based cleaners.
