Weelko High Tech Air Flow WKB020 professional pressotherapy device

Weelko High Tech Air Flow WKB020 professional pressotherapy device

The Weelko High Tech Air Flow WKB020 is a professional tabletop pressotherapy device developed for beauty cabins, wellness centres and professional spaces offering pneumatic compression body treatments. Its system applies sequential inflation programmes through 12 pressotherapy channels, with different operating modes to adapt each session to the area being treated and to the protocol selected by the professional.

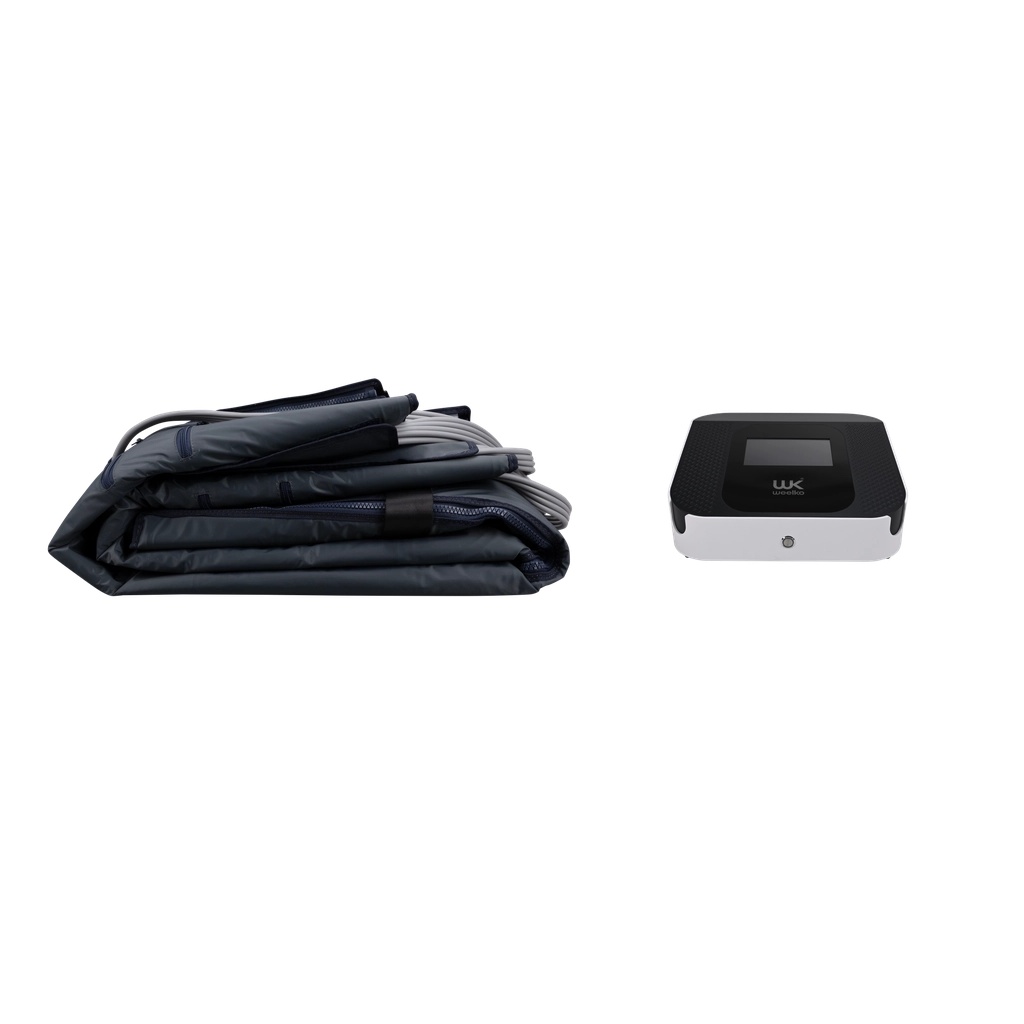

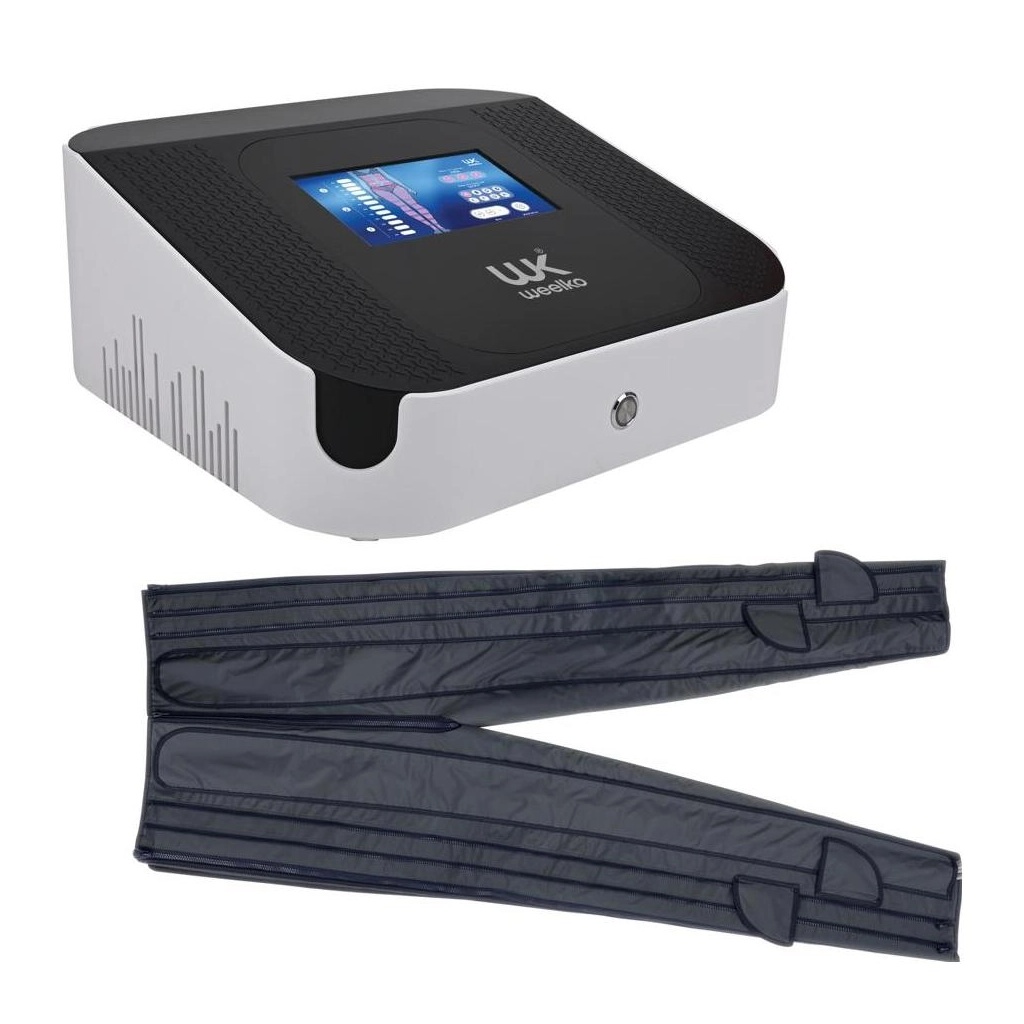

The device is supplied with the main unit, High Tech Air Flow suit and power cord. The suit includes air bags distributed on both sides of the body and works with configurable inflation channels, allowing compression in cycles or jointly depending on the selected mode. Its tabletop design makes it easy to integrate into professional cabins without requiring complex installation.

12-channel pressotherapy system

High Tech Air Flow works through an air compression system that can activate different areas of the suit sequentially or simultaneously. The device has 12 pressotherapy channels and an indicated maximum pressure of 250 mmHg, with inflation time adjustment per channel from 3 to 21 seconds in 3-second steps.

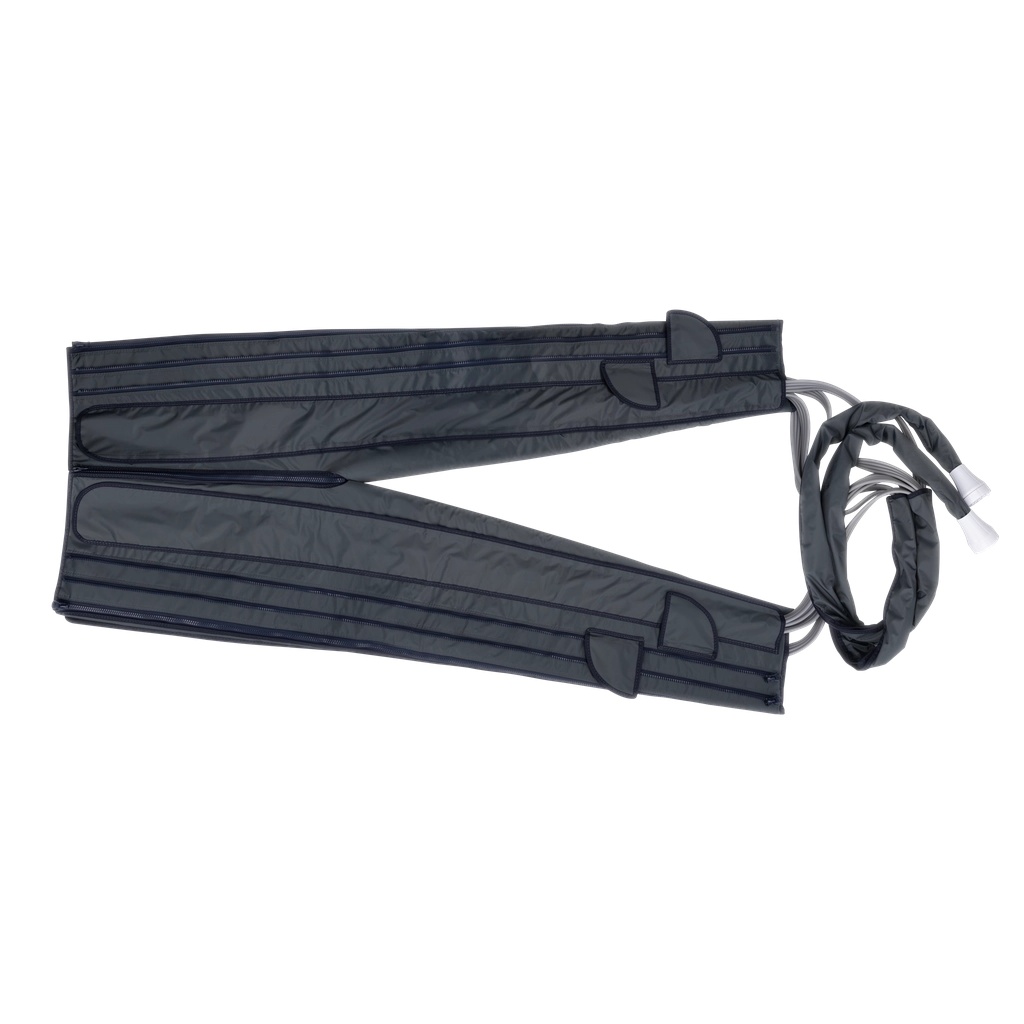

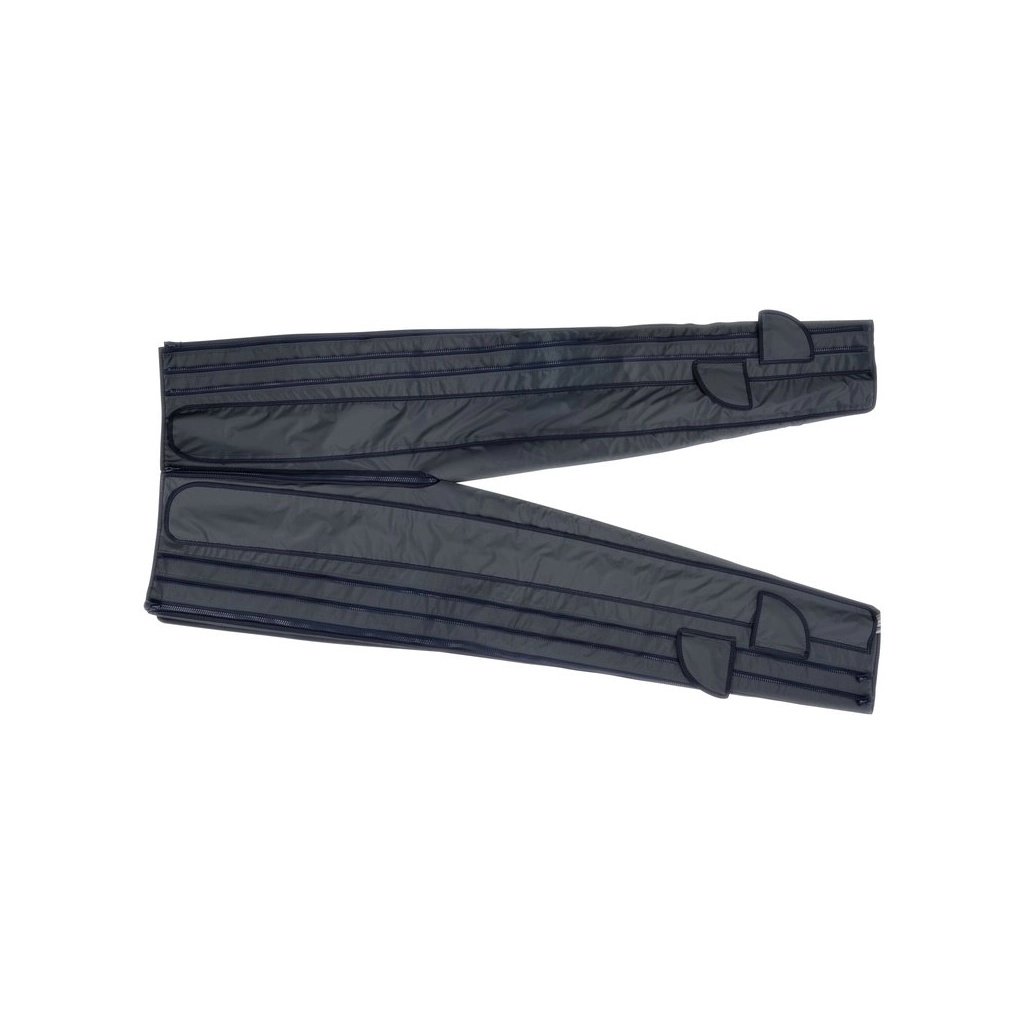

The included suit is designed to wrap several body areas and apply controlled pressure through its air chambers. The partially overlapping air bag configuration helps pressure to be distributed progressively during operation, within the parameters set by the operator.

8 operating modes for professional protocols

The control panel allows different inflation modes to be selected. The device includes 8 pressotherapy modes: one automatic mode that combines the available modes and seven independent modes with differentiated inflation sequences. This range allows professionals to work with gentler, sequential, intensive or simultaneous compression programmes, always within professional beauty use.

• Mode A Automatic programme combining modes B to H in working sequences.
• Mode B Channel-by-channel inflation, from 1 to 12, with sequential repetition.
• Mode C Progressive inflation using combinations of consecutive channels.
• Mode D Cumulative and progressive sequence by channel groups.
• Mode E Cumulative inflation from channel 1 until all 12 channels are completed.
• Mode F Simultaneous work through channel combinations.
• Mode G Sequence by alternating and progressive groups.
• Mode H Joint inflation of all channels and simultaneous deflation.

Zone control and session settings

The device interface allows the inflation time to be adjusted, the session to be started or stopped, and channels to be activated or deactivated directly. It also includes quick access for working by divided zones, making it easier to adapt the device settings to the session planned in the cabin.

The channel-based working format helps professionals organise body pressotherapy treatments with a clear structure, selecting the most suitable inflation mode and managing zone activation from the device panel.

Tabletop design for beauty cabins

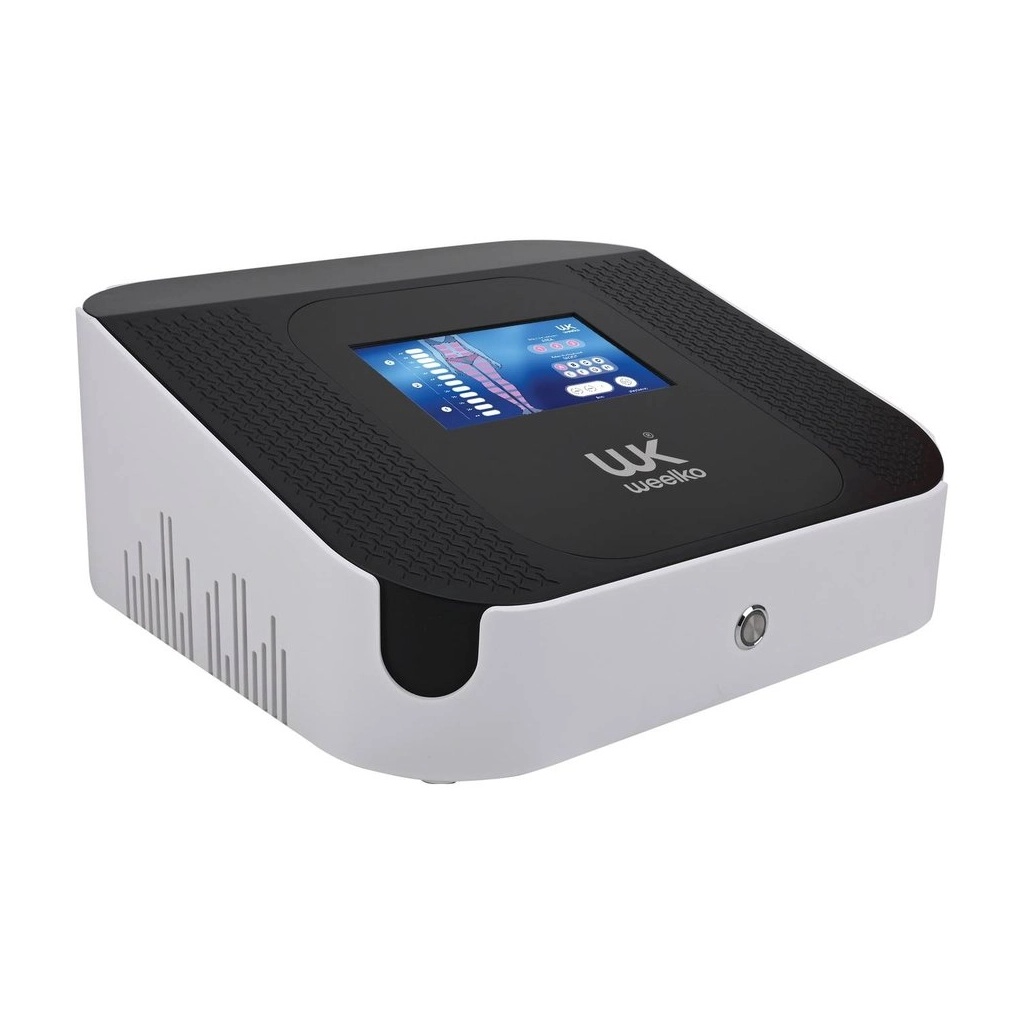

High Tech Air Flow is designed as a tabletop device, with a net weight of 13.5 kg and an indicated noise level of 45 dB. Its size and format allow it to be placed in a professional cabin, on a stable surface and with enough space around it to support device ventilation.

For correct use, the device must be connected to an earthed socket and operated by trained personnel. It is recommended to keep ventilation areas clear, avoid environments with high humidity, direct sunlight, vibration, tilted surfaces or the presence of corrosive substances, and disconnect the device before moving it.

Included contents

• Main unit 1 unit
• High Tech Air Flow suit 1 unit
• Power cord 1 unit

Technical specifications

• Brand Weelko
• Model High Tech Air Flow
• Reference WKB020
• Equipment type Professional tabletop pressotherapy device
• Pressotherapy channels 12 channels
• Air chambers 12 chambers
• Suit air bags 32 air bags, 16 on each side of the body
• Pressotherapy modes 8 modes
• Programme configuration 7 independent zone modes plus 1 automatic mode
• Inflation pressure 0.33 bar
• Pressotherapy power Max. 250 mmHg
• Air pressure pulse 3-21 s
• Inflation adjustment From 3 to 21 s, in 3 s steps
• Intensity range 150-250
• Protection class Class I
• Input voltage AC 220-240 V
• Frequency 50/60 Hz
• Power 60 W
• Noise level 45 dB
• Net weight 13.5 kg
• Gross weight 14.5 kg
• Packaging dimensions 54 x 41 x 40 cm

Basic use and maintenance

After each session, the suit should be cleaned with a towel and stored in a dry place. It is recommended to avoid bending the tubes in order to maintain a proper connection between the suit and the main unit. The device should remain on a stable surface with at least 5 cm of free space around it to help heat dissipation.

It must always be used by qualified operators, following the device connection, configuration and safety procedures. If any abnormal operation is observed, use should be stopped with the power switch and the condition of the device should be checked before continuing.
