GALE beauty Mirplay full-body pressotherapy equipment

GALE beauty Mirplay: full-body pressotherapy for professional cabins

GALE beauty is a full-body pressotherapy unit by Mirplay, designed for beauty salons, wellness centres and professionals who need a work solution with clear control, zone-based configuration and accessories for different body areas.

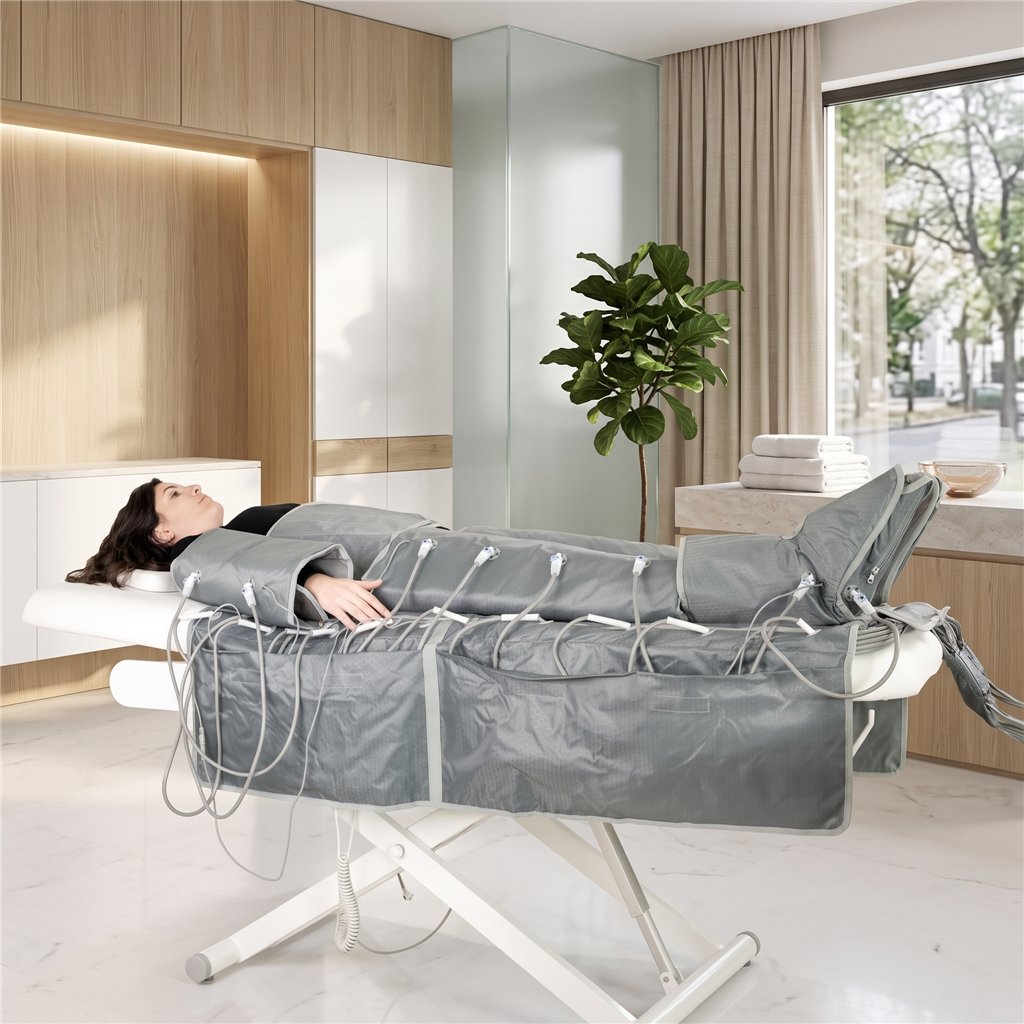

The system operates through air pressure and is designed to cover the legs, arms, feet and abdomen. Its 20-chamber configuration supports body treatments with precise management from the unit’s control panel, keeping operation straightforward in the treatment room.

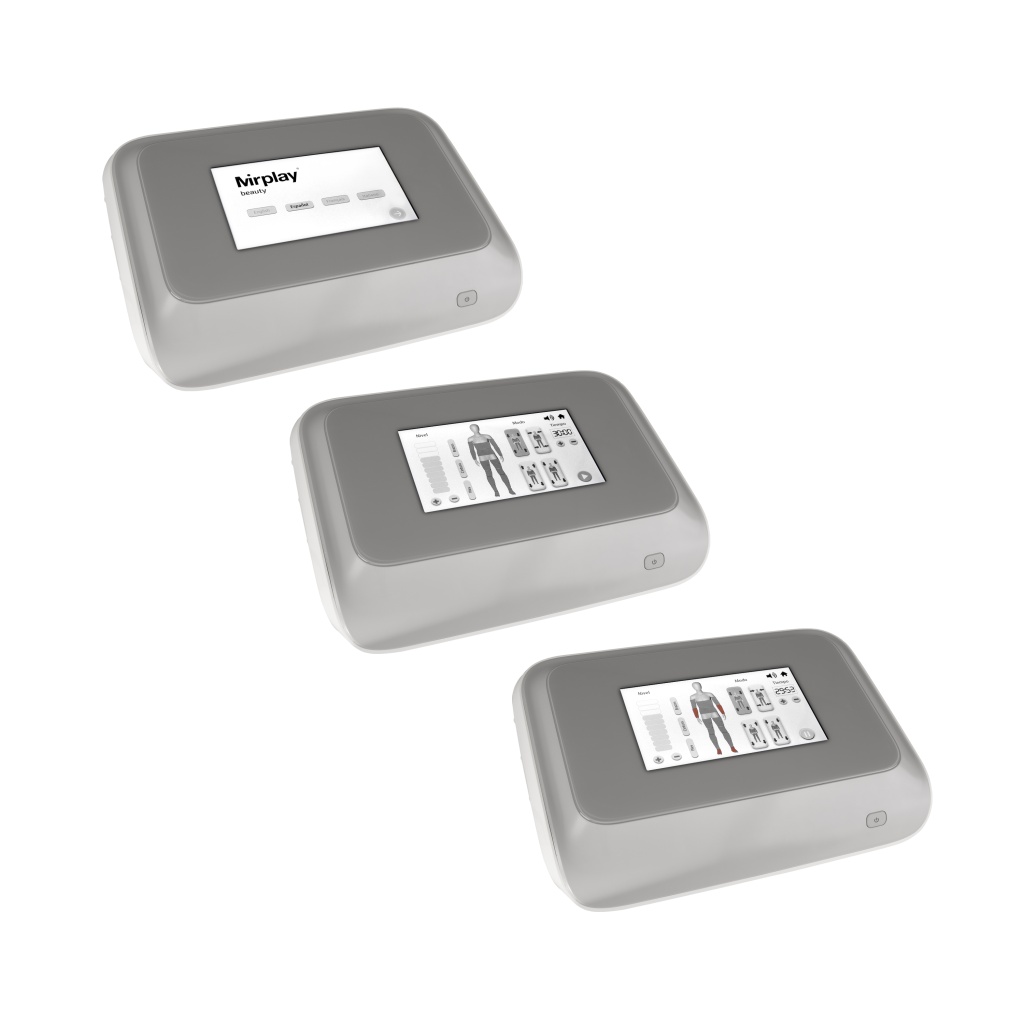

Touchscreen control and session adjustment

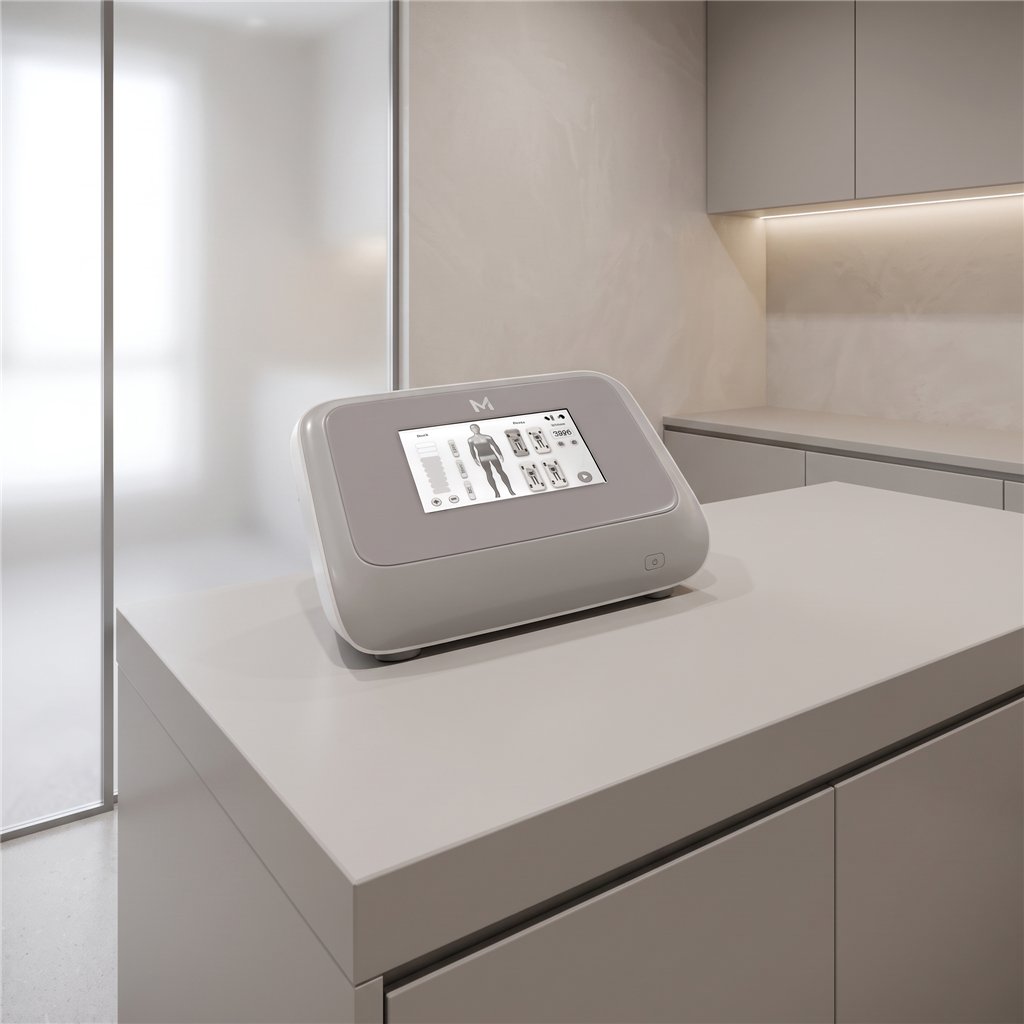

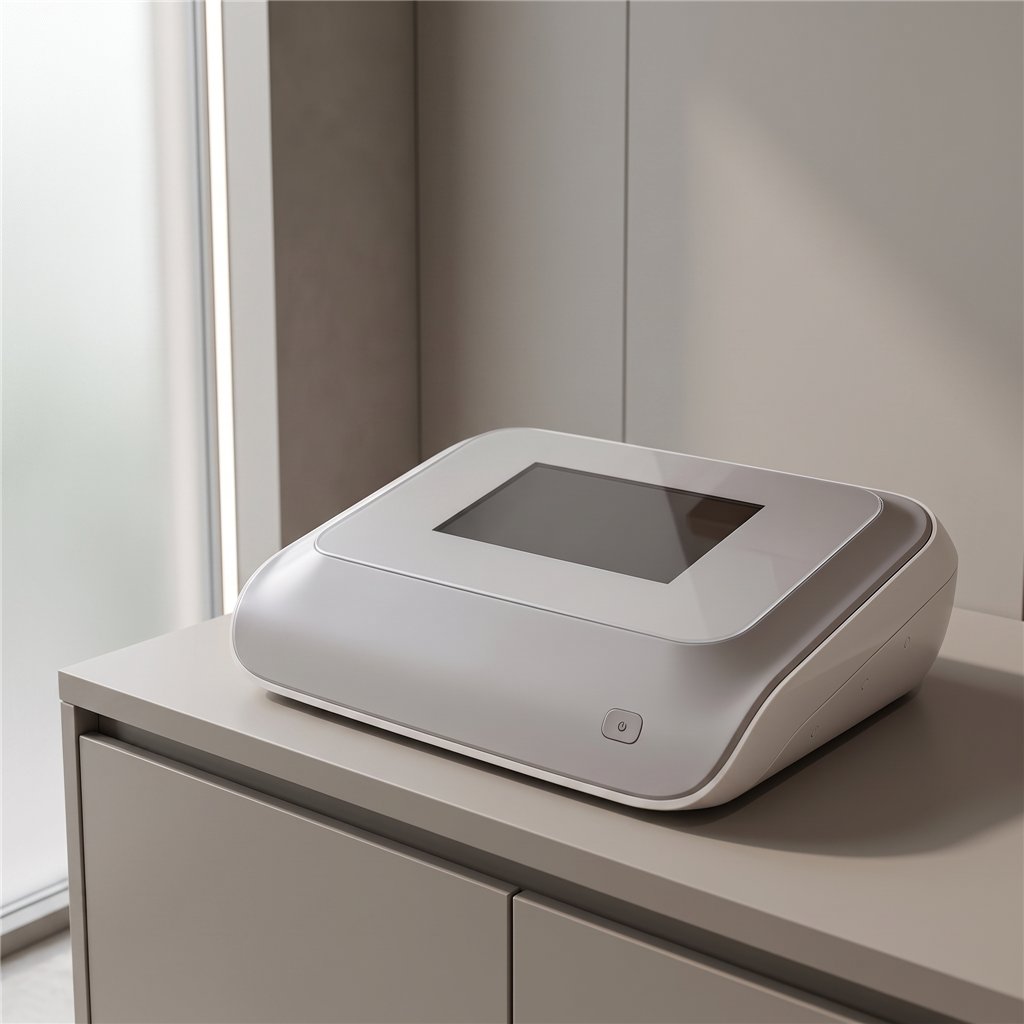

GALE beauty includes a touchscreen display panel used to start and stop operation, select the working mode and adjust air pressure and time parameters. The unit has a preset time of 30 minutes and supports air pressure massage sessions from 15 to 30 minutes.

The panel allows body zones to be selected in order to adapt each session to the treatment room’s working needs. The indicated zones include arms, waist, legs and feet, in addition to the abdomen accessory included in the set configuration.

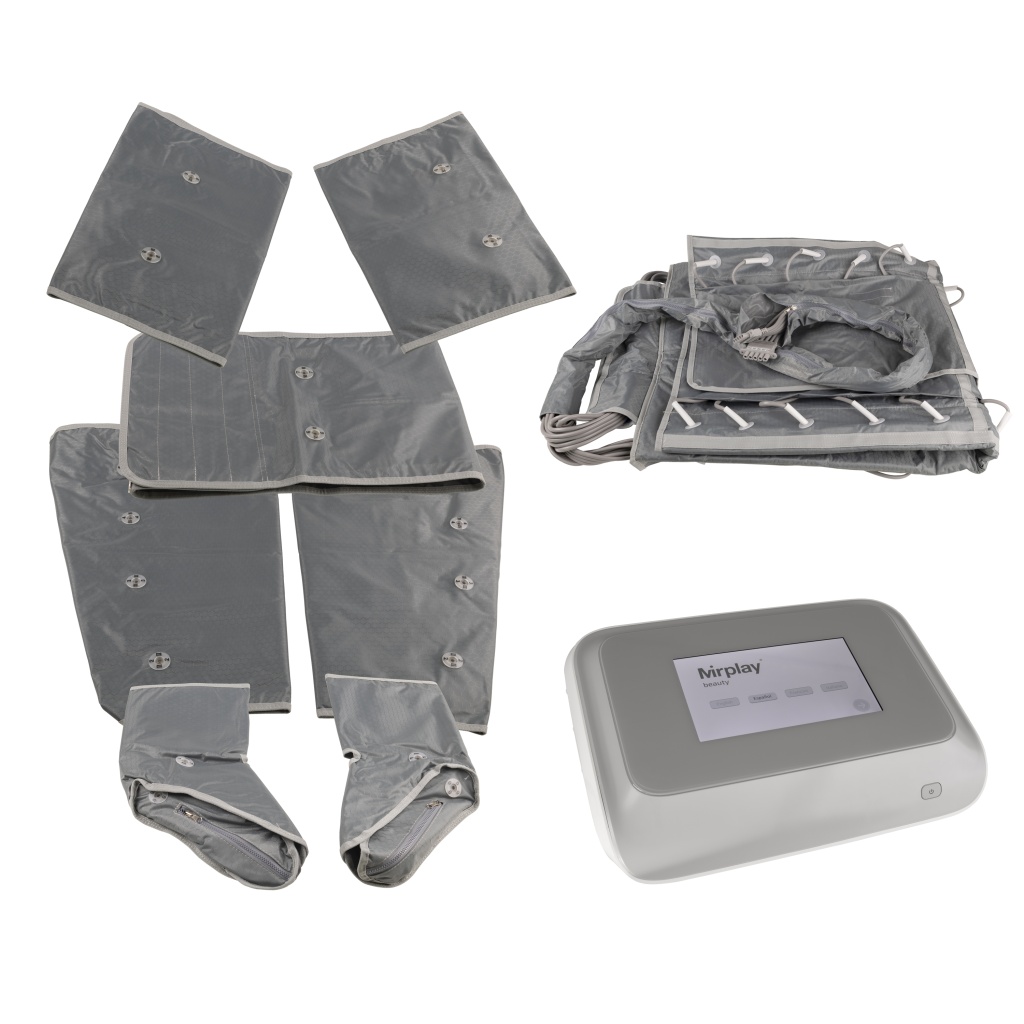

Included working zones

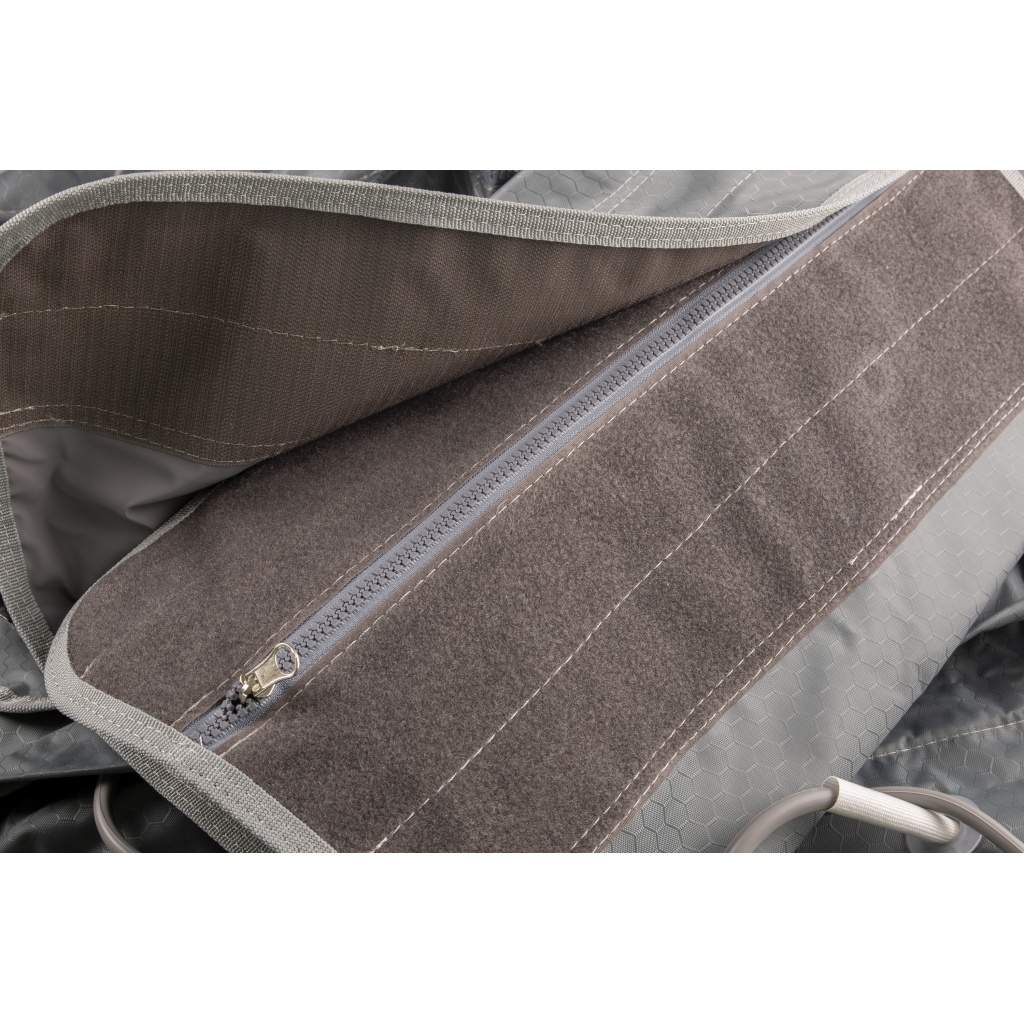

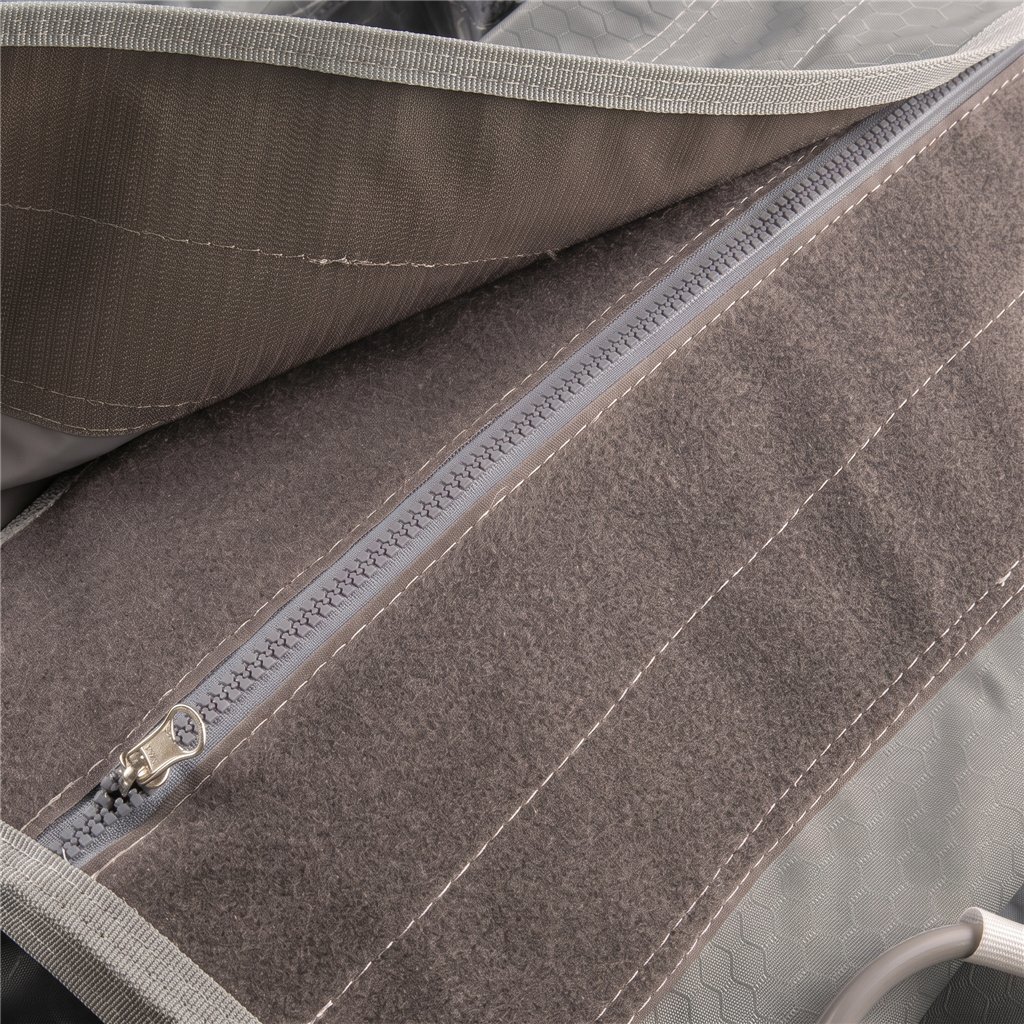

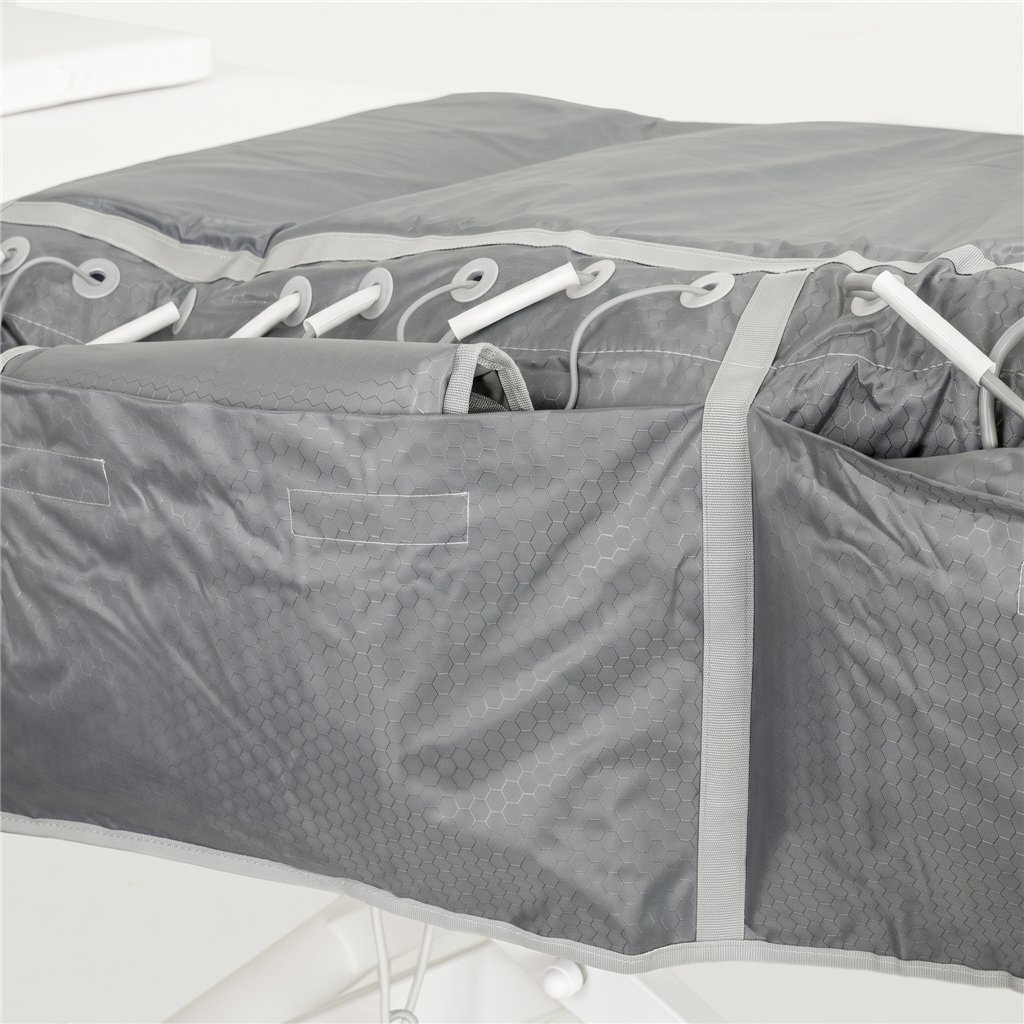

The set is prepared for full-body work, with accessories intended for different areas. The indicated equipment includes 2 legs, 2 arms, 2 feet and 1 abdomen, helping organise aesthetic body protocols with a single pressotherapy unit.

• Equipment type Full-body pressotherapy
• Included zones 2 legs + 2 arms + 2 feet + 1 abdomen
• Number of chambers 20
• Control Touchscreen display panel
• Recommended profile Professional / advanced

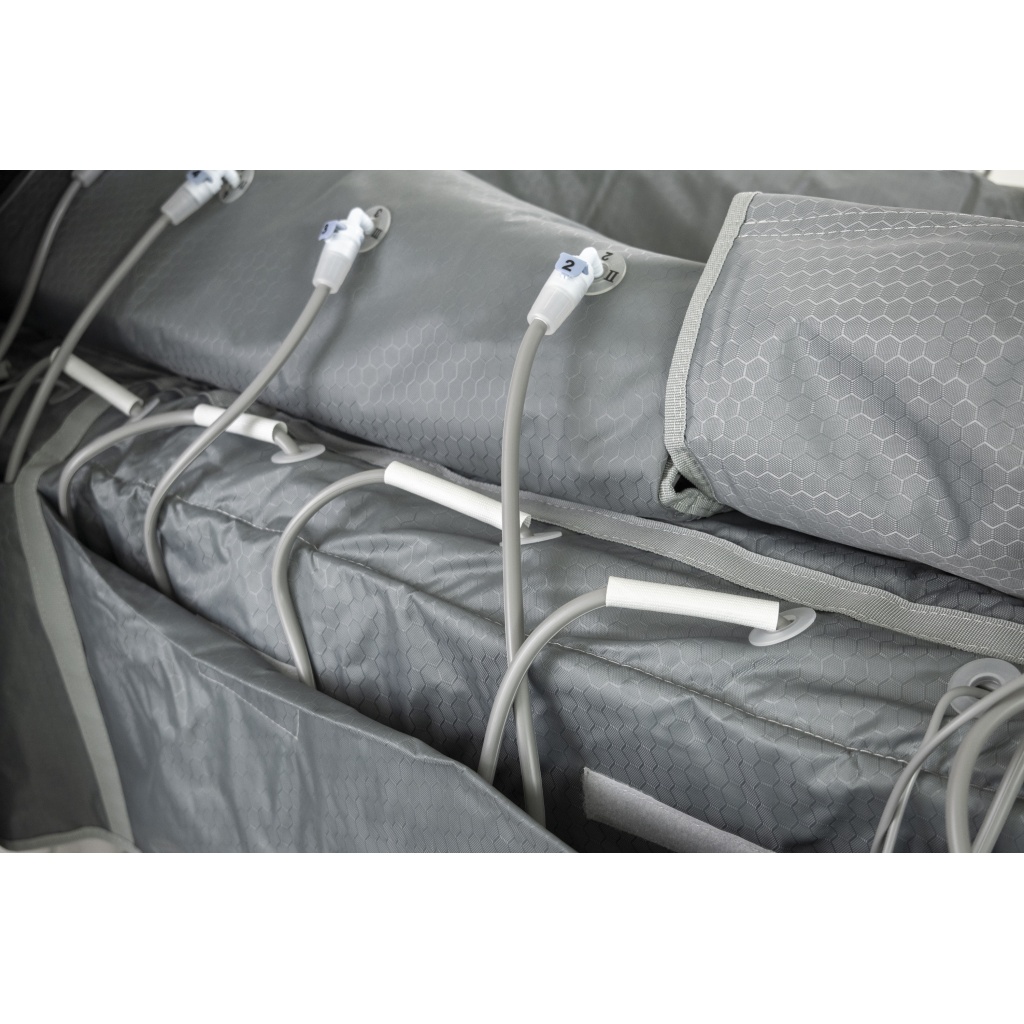

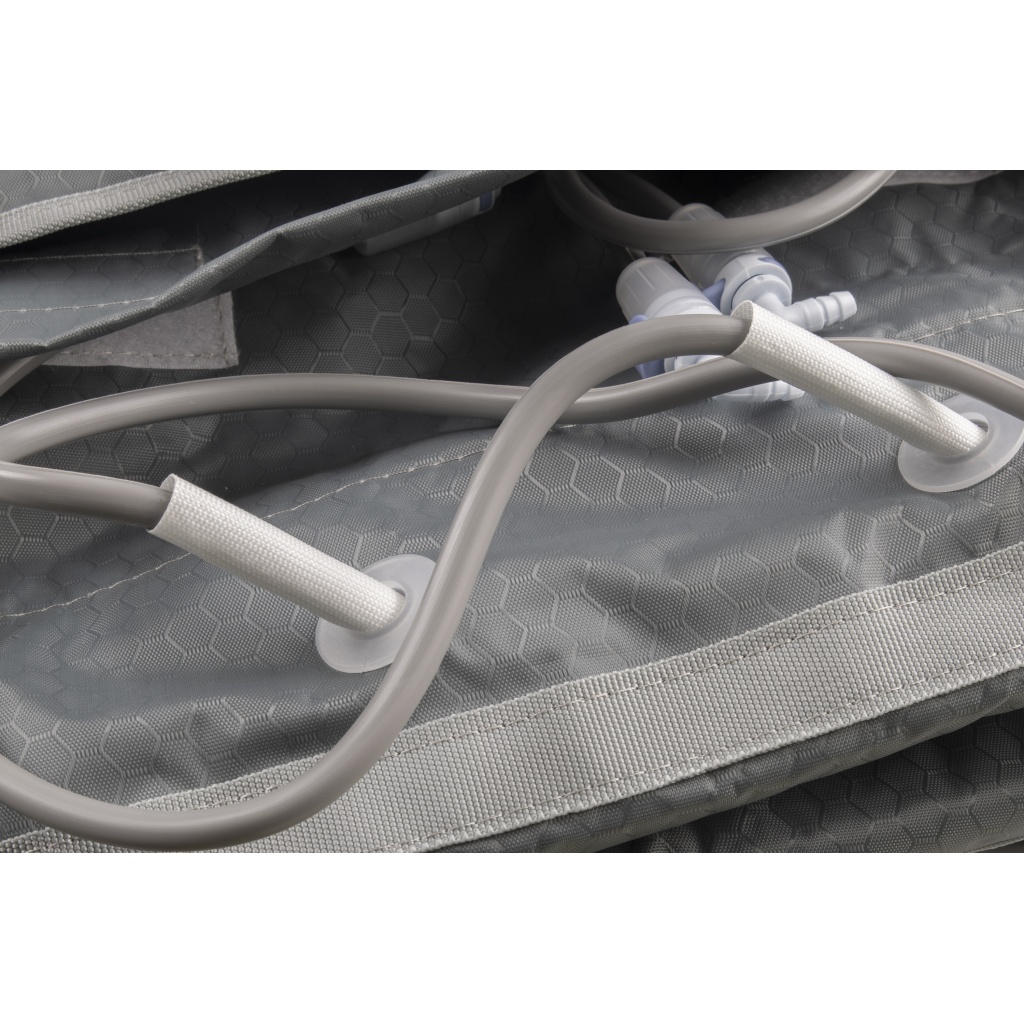

Air pressure operation

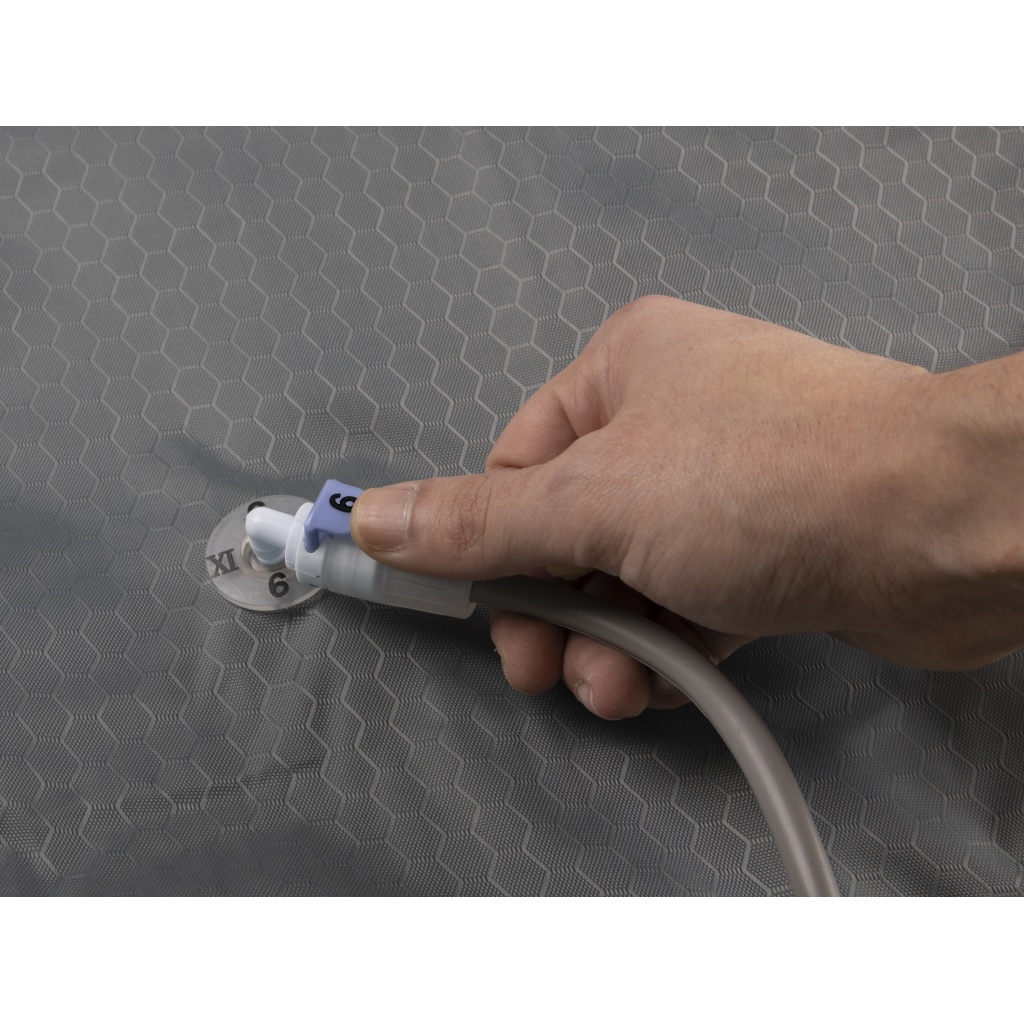

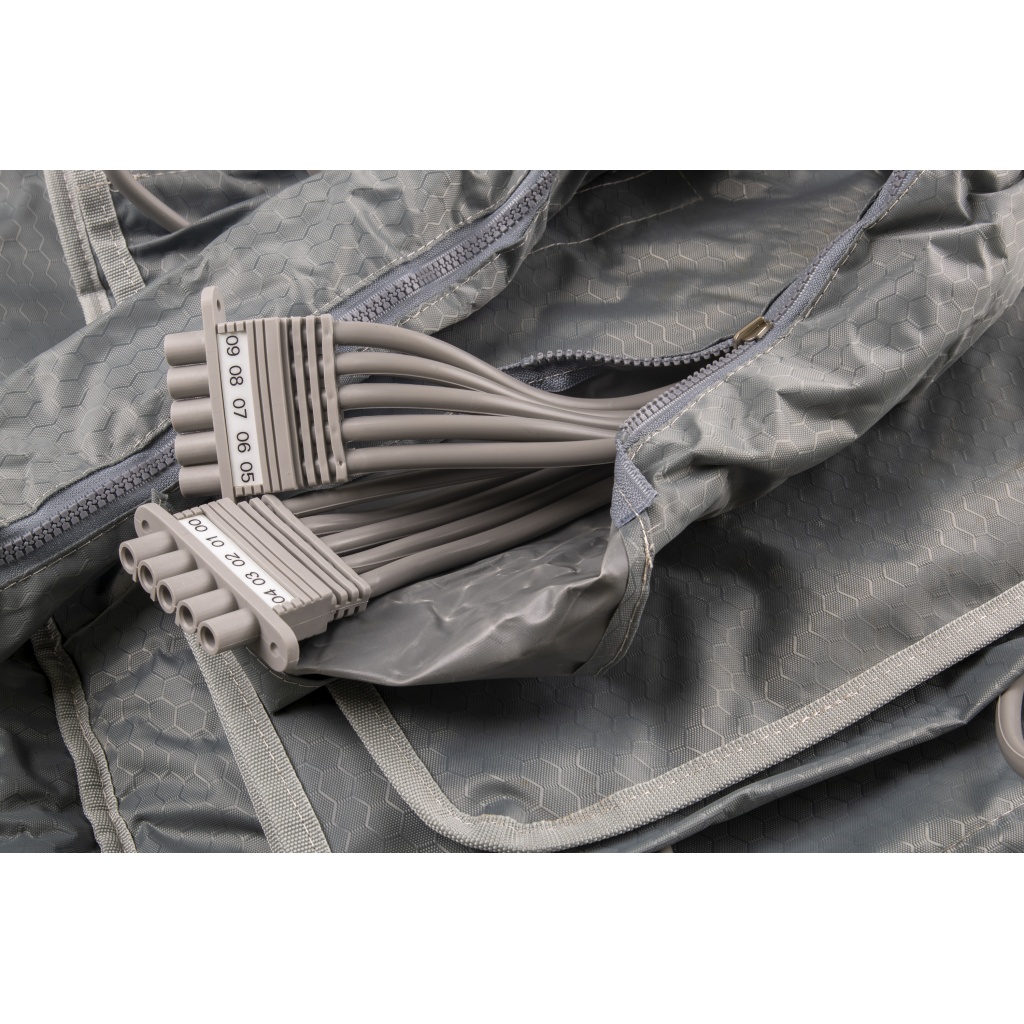

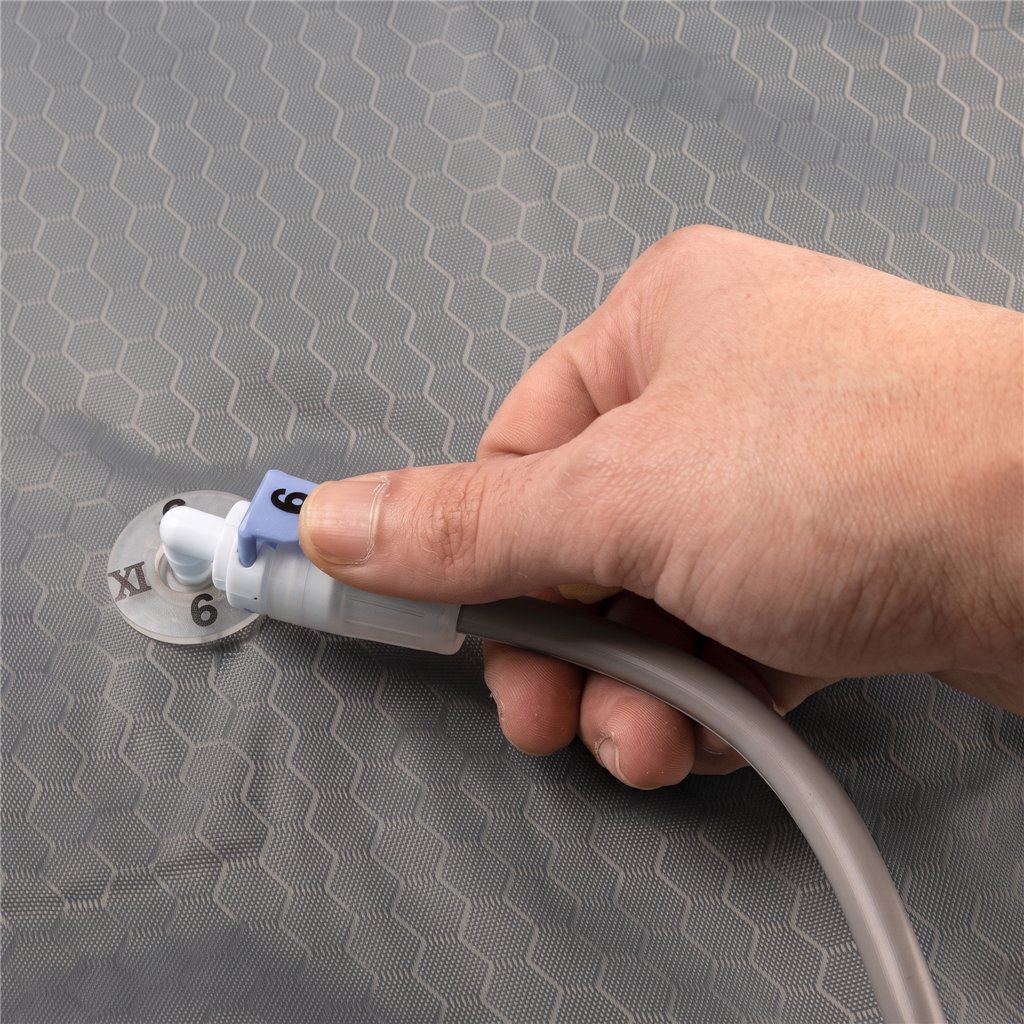

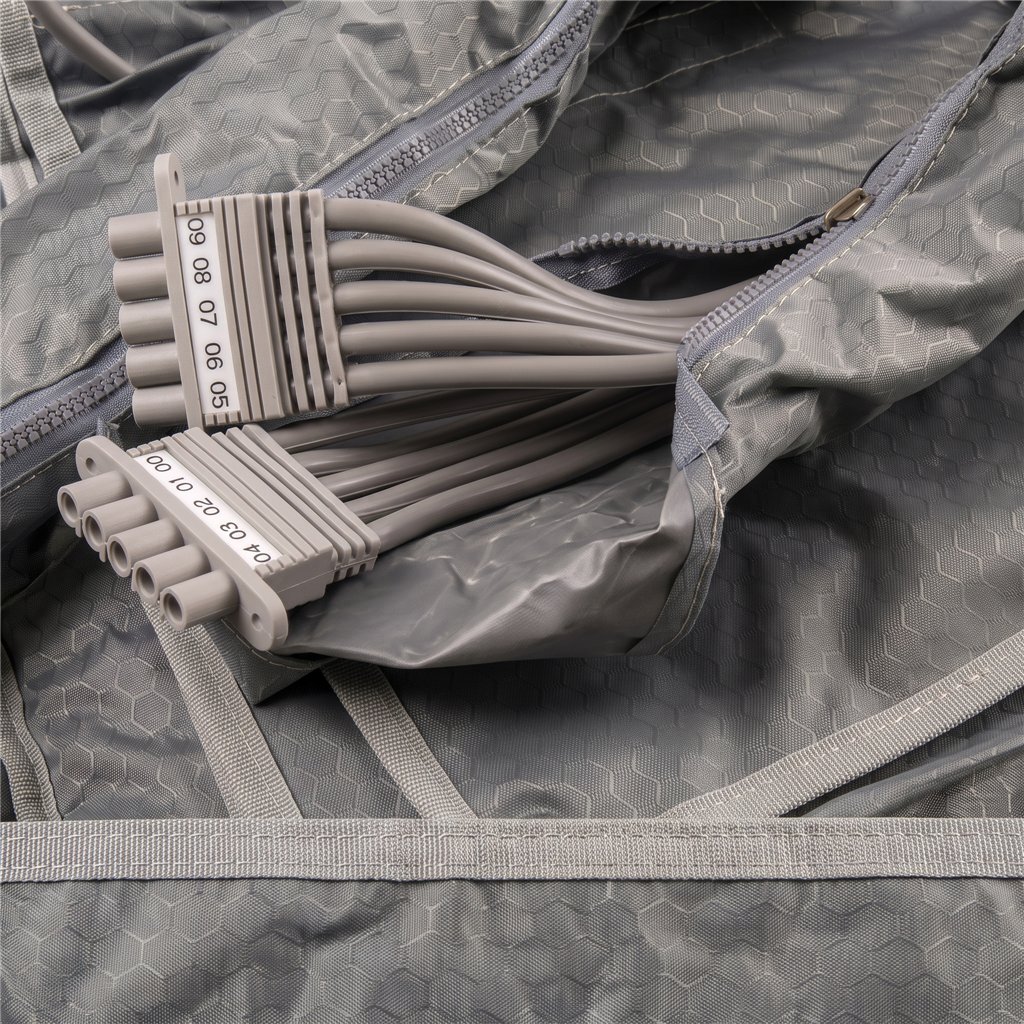

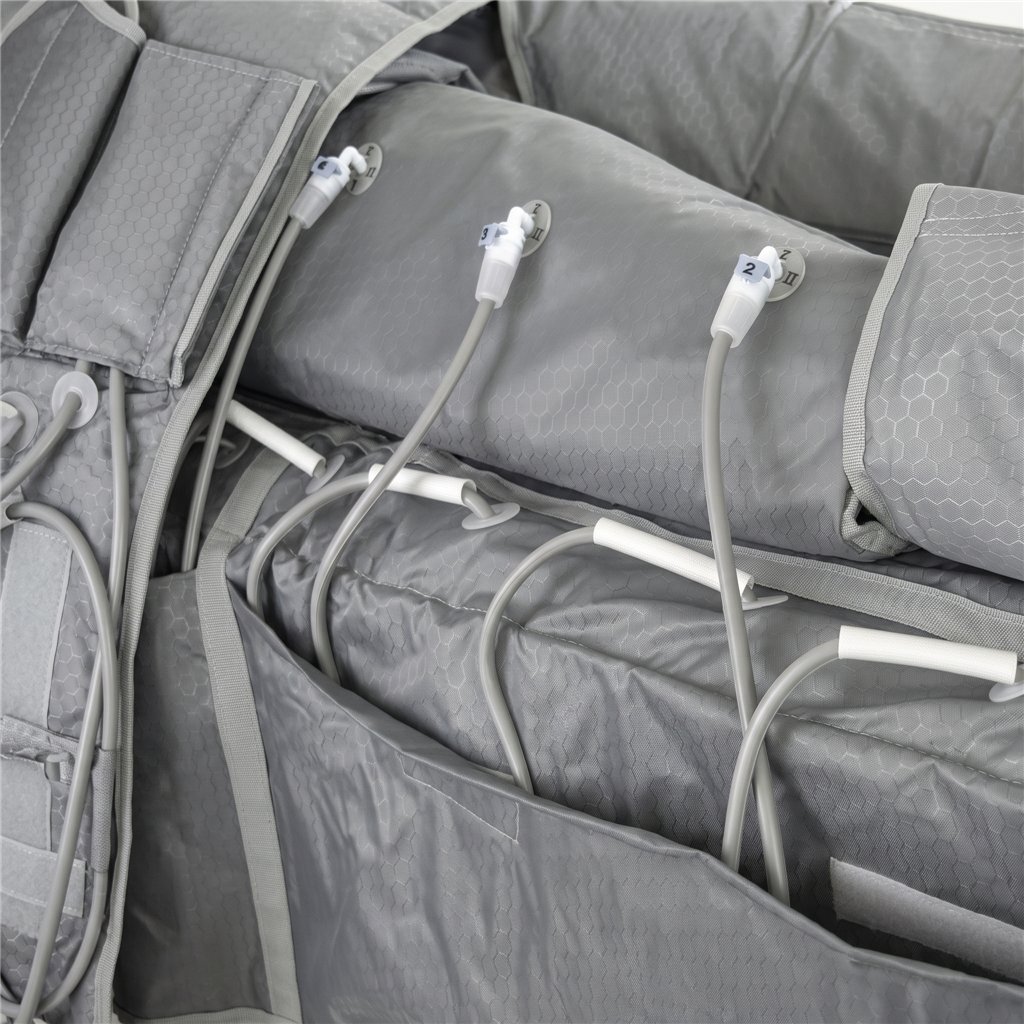

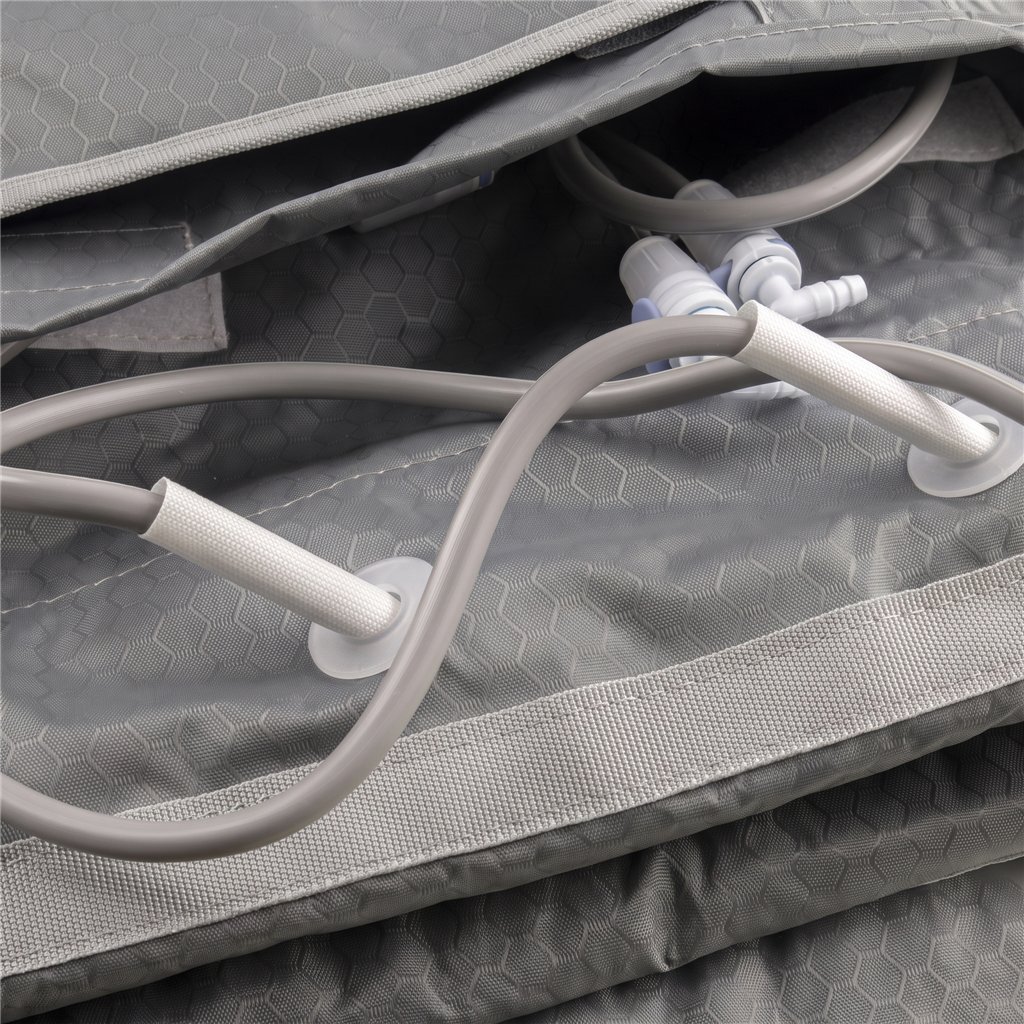

The unit uses an air pressure tubing connection line between the main unit and the accessories. For correct use, the tubing must be connected, locked and secured with the corresponding screws, preventing it from coming loose during operation.

The stated maximum pressure is 210 mmHg, equivalent to 28 kPa. The indicated working pressure is 28 kPa / 210.02 mmHg. These values provide a clear technical reference for service adjustment within the unit’s operating parameters.

Set components

The packing list indicated for GALE beauty includes the main elements required for installation and initial use in the treatment room. The set is supplied with main unit, air pressure suit, power cable, fuses, user manual and mattress.

• Main unit 1 set
• Air pressure suit 1 set
• Power cable 1 unit
• Fuses 2 units
• User manual 1 unit

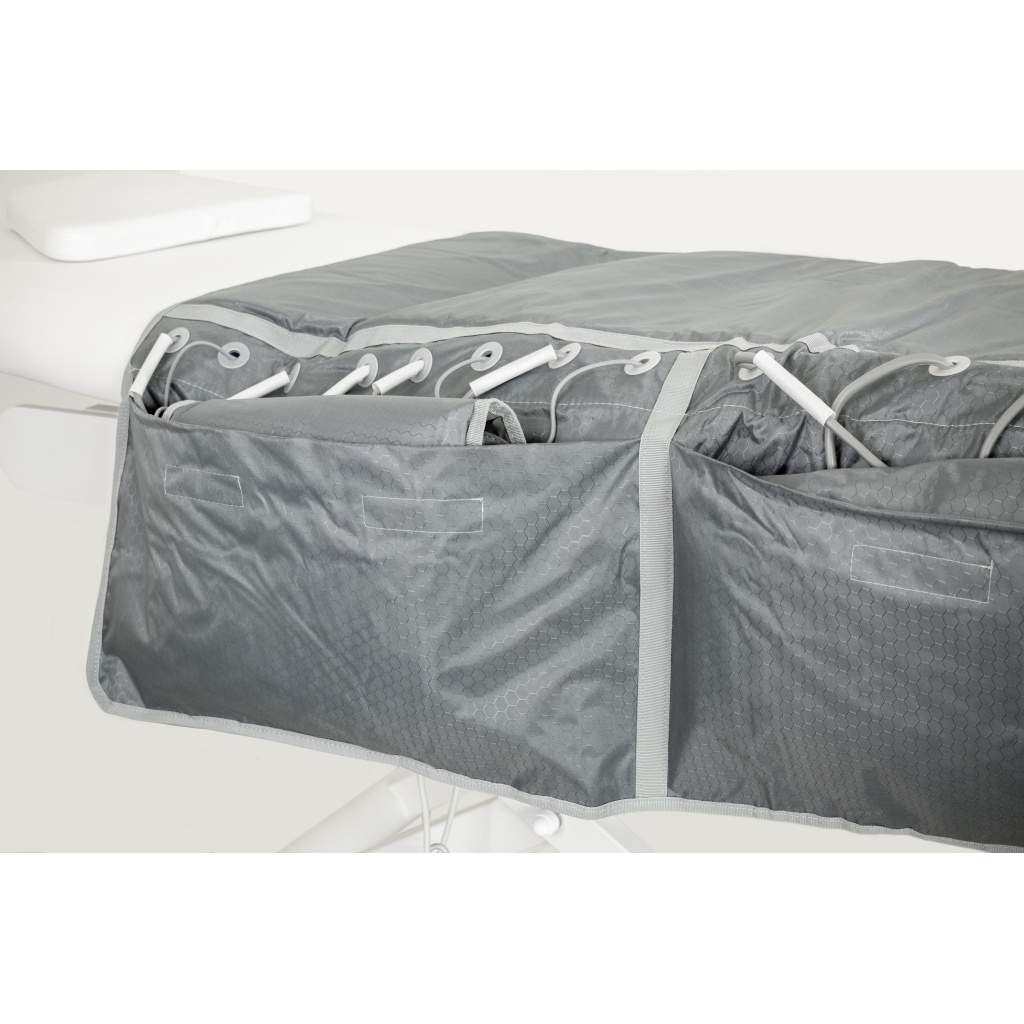

• Mattress 1 unit

Technical parameters

• Maximum pressure 210 mmHg / 28 kPa
• Working pressure 28 kPa / 210.02 mmHg
• Air pressure massage duration 15 to 30 min
• Preset time 30 min
• Power 50 W
• Current 2 A
• Voltage 220 V
• Frequency 50 Hz
• Use Indoor

Logistics data and indicated dimensions

GALE beauty is supplied in 1 package. The indicated package size is 69 × 45 × 50 cm, with a net weight of 16.7 kg and a gross weight of 19.5 kg. An accessory size of 79 × 42.5 × 17 cm is also indicated.

• Package size 69 × 45 × 50 cm
• Accessory size 79 × 42.5 × 17 cm
• Net weight 16.7 kg
• Gross weight 19.5 kg
• Number of packages 1

Basic use and maintenance

For start-up, the unit must be connected to the power supply, switched on from the main switch and operated from the panel. If there is no output, it is recommended to check that the accessories are correctly connected to the main unit. If the unit does not receive power, the power cable connection and fuse condition should be checked.

The indicated use is indoors. The air pressure tube connection should be checked before each session to ensure proper coupling. In the event of operating incidents, overheating or fuse replacement, intervention must be carried out following the manufacturer’s safety instructions and, where appropriate, by qualified personnel.
