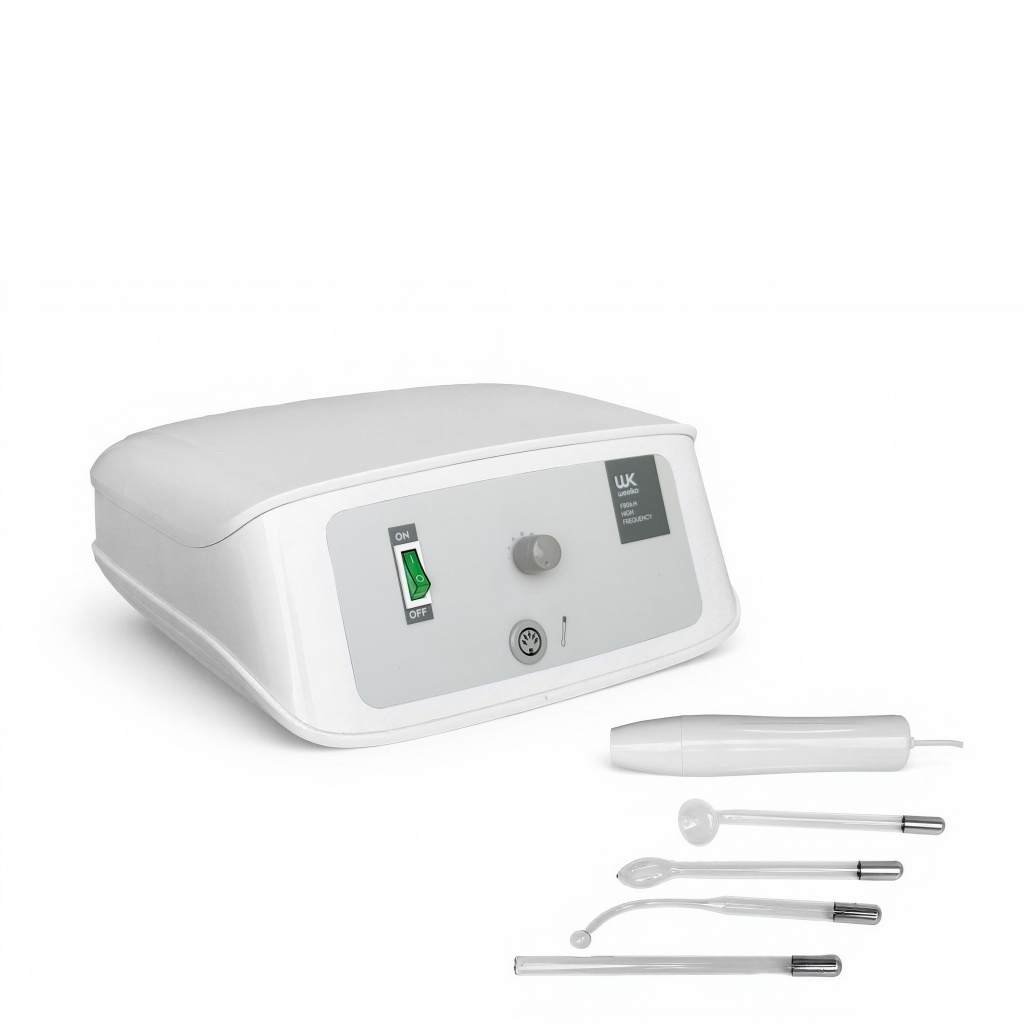

Weelko Utech F806.N high frequency device

Weelko Utech F806.N high frequency device for beauty treatment rooms

The Weelko Utech high frequency F806.N is a professional high frequency device designed for use in beauty centres and facial treatment rooms. Its tabletop format makes it easy to integrate into the workstation, keeping the intensity control and main accessories within reach during the service.

High frequency is used in professional cosmetic protocols as support during the preparation and completion of facial treatments. This device allows direct and indirect operation, with a stated high frequency range of 200-500 kHz and an intensity range from 1 to 10, making it possible to adjust the application progressively according to professional criteria and the type of service performed.

Professional use in beauty treatments

Utech is intended for professionals who need a compact device for high frequency applications in the treatment room. The product is designed for professional use to support superficial activation, assist cosmetic deep cleansing and facilitate the application of active ingredients within beauty protocols.

The device works with orange gas glass electrodes. It includes 4 electrodes to adapt contact and working area: the technical specification identifies mushroom, spoon, ball and straight shapes, while the packing list indicates electrotherapy tubes in tongue, straight, curved and mushroom shapes. In both cases, the set includes four electrodes.

Intensity control and operating modes

The 1-10 intensity adjustment allows each application to begin at low levels and be increased progressively when appropriate. The device supports direct and indirect high frequency, two common modes in professional beauty equipment that must be applied by the operator according to their training, treatment room protocol and the manufacturer’s instructions for use.

• Brand Weelko
• Model Utech high frequency
• Reference F806.N
• Equipment type Professional high frequency device
• Format Tabletop
• Intensity range 1-10
• High frequency type Direct and indirect
• High frequency frequency 200-500 kHz
• Glass electrodes 4 units
• Electrode gas type Orange

Included accessories

The device is supplied with the essential elements required for use in the treatment room: main machine, high frequency handle, four electrotherapy tubes and power cord. The electrodes allow work on different areas and surfaces, always following the appropriate professional procedure.

• Main device 1 unit
• High frequency handle 1 unit
• Electrotherapy tubes 4 units
• Stated shapes Mushroom, spoon, ball and straight / tongue, straight, curved and mushroom
• Power cord Included

Electrical data and packaging

The Weelko Utech F806.N operates with AC 220-240 V input voltage and 50/60 Hz electrical frequency. For safe use in the treatment room, it must be connected to a properly grounded socket and placed on a stable surface, leaving space around the unit for ventilation.

• Input voltage AC 220-240 V
• Electrical frequency 50/60 Hz
• Power supply requirement 220V±22V, 50Hz±1Hz, effectively grounded socket
• Stated power 10 W / 60 W
• Packaging dimensions 34 x 34 x 22 cm / 34 x 22 x 34 cm
• Net weight 2.25 kg
• Gross weight 2.75 kg
• Stated weight 3.15 kg

Installation, use and maintenance recommendations

The device should be placed on a stable surface, avoiding vibrations, inclined positions, high humidity, proximity to water, direct sunlight, environments with corrosive gases or areas where chemical products are stored. It is advisable to leave at least 5 cm of clearance around the device to support ventilation and not to cover the air outlets during operation.

Before starting, the operator must understand how the device works and use it in accordance with professional instructions. It is not recommended to connect it through power strips, use damaged cables or operate it close to equipment that may generate interference. After each service, the handle and electrodes should be cleaned carefully to keep them in suitable condition for the next use.

In the event of abnormal operation, a burning smell, smoke, a fall, visible damage or inability to use the device normally, the application must be stopped, the unit switched off and disconnected from the power supply. Internal repair or modification must only be carried out by qualified technical personnel.
