Sunlighten RED Light Therapy Panel

Sunlighten RED Light Therapy Panel

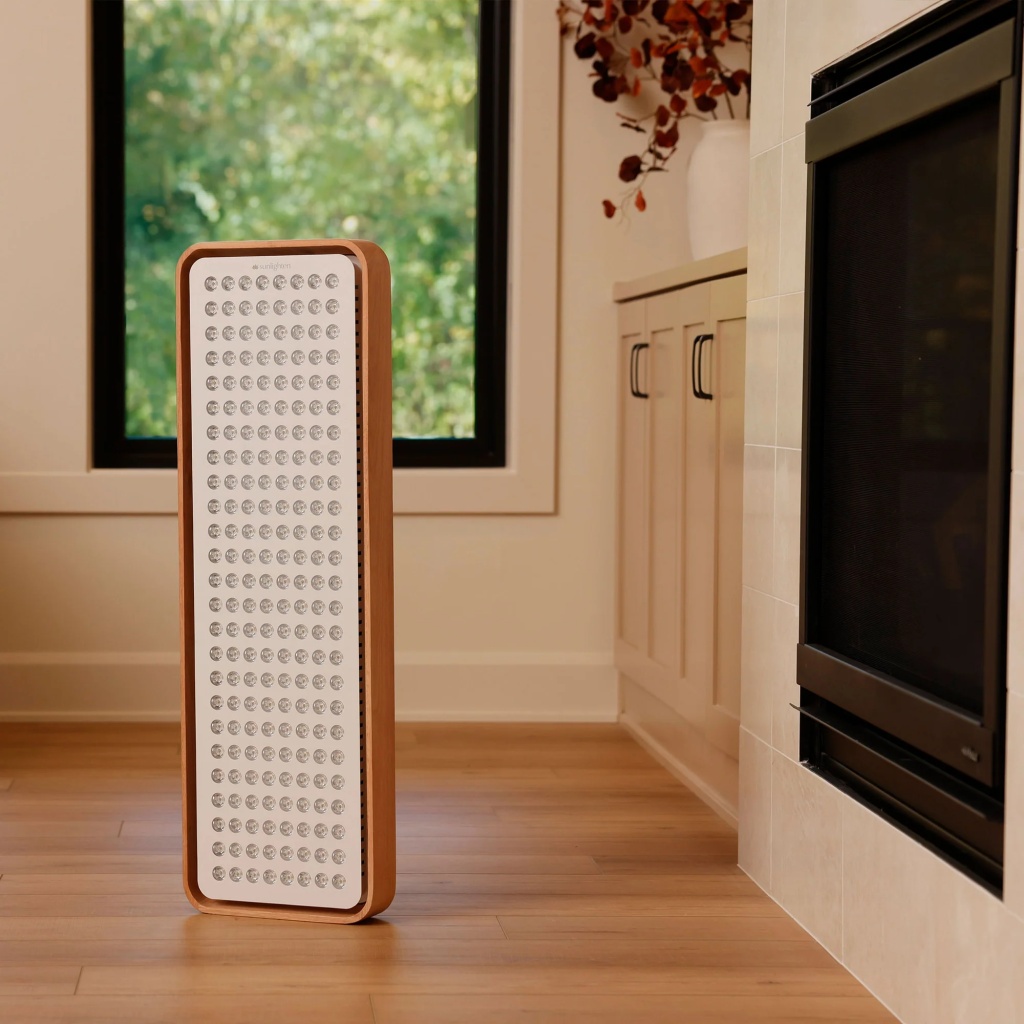

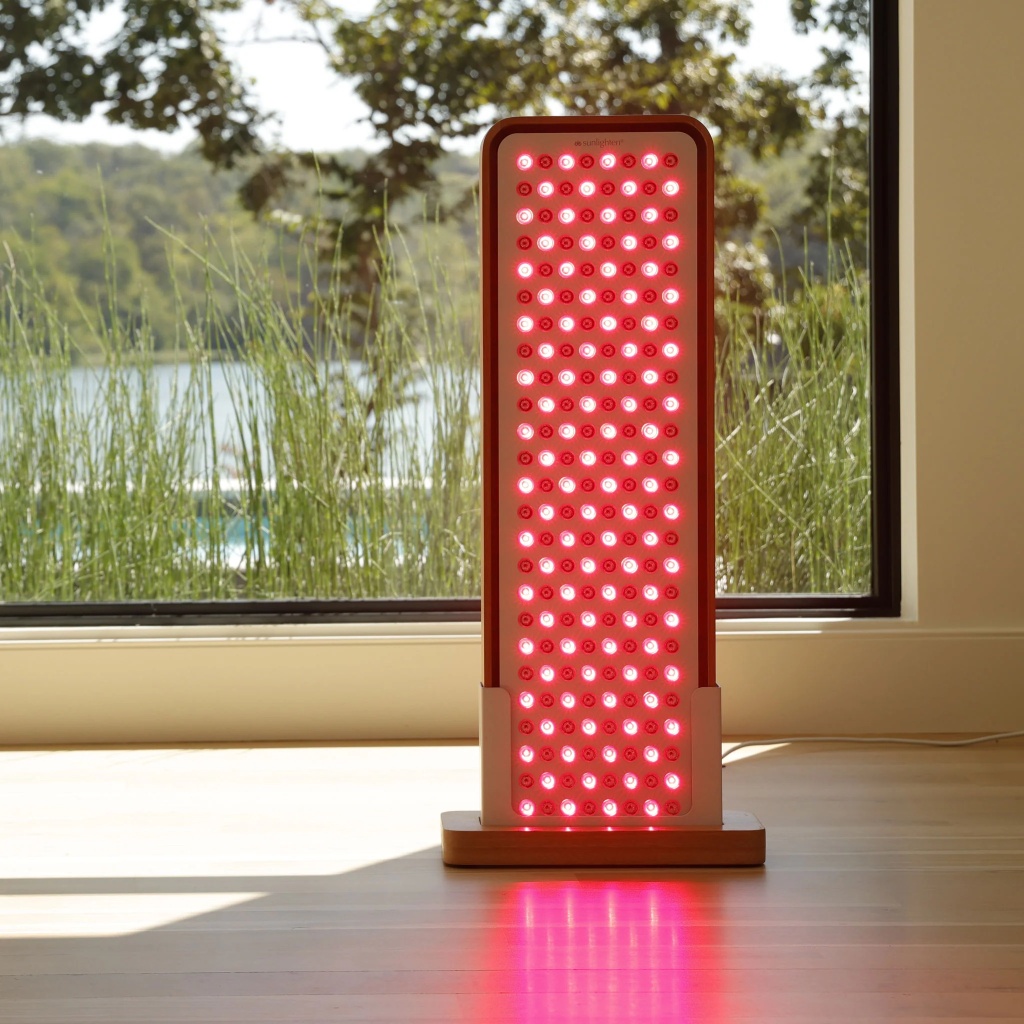

The Sunlighten RED Light Therapy Panel is a red and near-infrared light panel designed to integrate photobiomodulation sessions into wellness environments, professional centres, recovery spaces and advanced personal care routines. Its vertical format helps cover larger areas with an even light distribution, combining 660 nm red light and 850 nm NIR light.

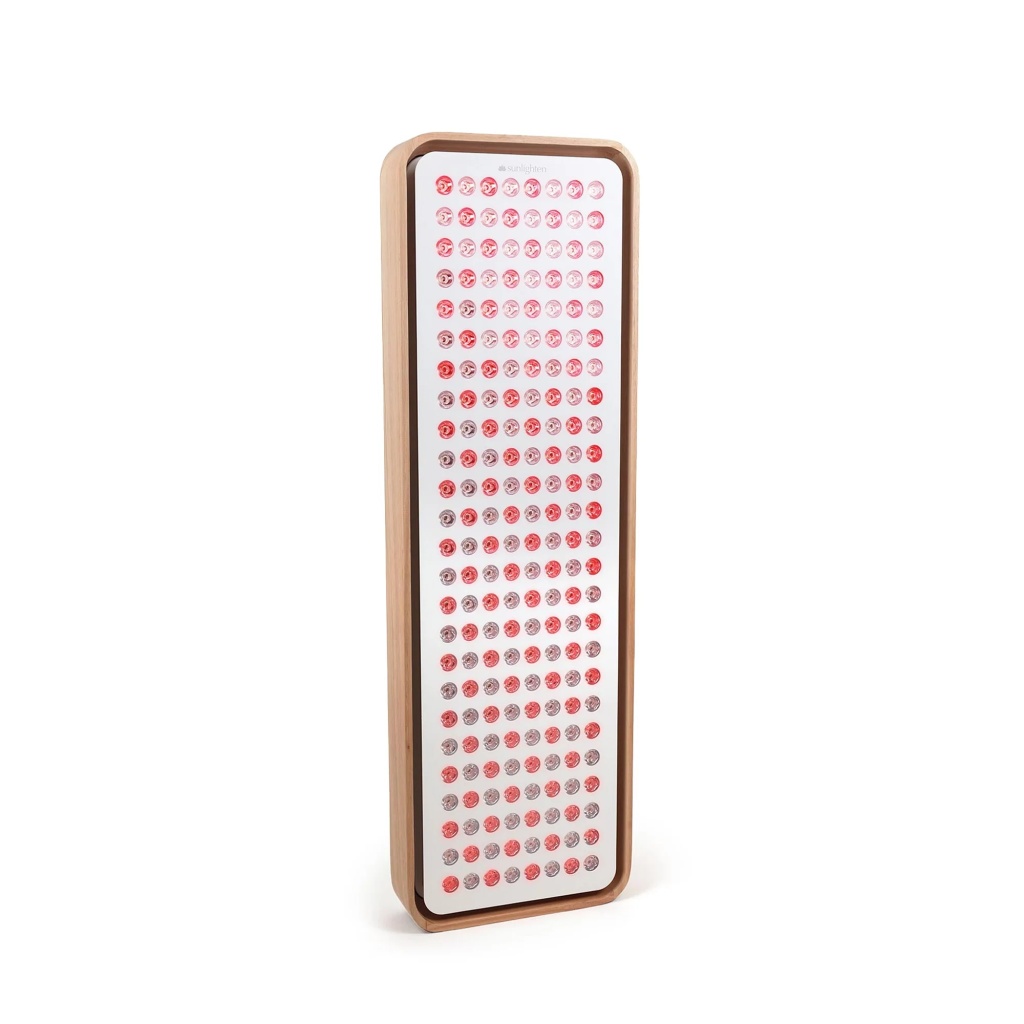

This full-size panel includes 200 LEDs, distributed as 100 red light LEDs and 100 near-infrared LEDs. Its configuration allows controlled sessions with different time and intensity settings, while offering convenient operation via both the remote control and the compatible Bluetooth app.

660 nm red light and 850 nm near-infrared light

The unit combines two wavelengths commonly used in photobiomodulation panels: 660 nm red light and 850 nm near-infrared light. Red light is associated with more superficial exposure, with an indicated penetration of 2 to 3 mm, while near-infrared light has an indicated penetration of up to 50 mm. These figures should be understood as technical reference values for the equipment, not as guaranteed results.

The stated maximum irradiance is 200 mW/cm², with a beam angle of 30 and 60 degrees. This combination of parameters allows the exposure and distance from the panel to be adapted according to the usage protocol defined by the centre or by the responsible professional.

Bluetooth app and remote control operation

The Sunlighten RED Light Therapy Panel enables practical session control. The Bluetooth app has an indicated range of 15 metres, making it easier to manage the panel within the working area. The remote control also allows intensity adjustment in 20% steps and selection of preset session times of 5, 10, 15 or 20 minutes.

For quick operation, the app’s Quick Mode allows the timer to be set between 1 and 30 minutes. This flexibility is useful in wellness cabins, recovery rooms, training areas, biohacking studios or professional spaces where simple exposure-time control is required.

Recommended use

The recommended working distance from the panel is 15 to 91 cm. The recommended session time is 5 to 10 minutes, with a suggested frequency of 2 to 3 times per week. A maximum daily session time of 20 to 30 minutes per day is also indicated.

As with any professional light equipment, it should be used responsibly, respecting the indicated times, distance and operating instructions. The panel should not be used as a substitute for professional assessment when a specific condition requires specialised supervision.

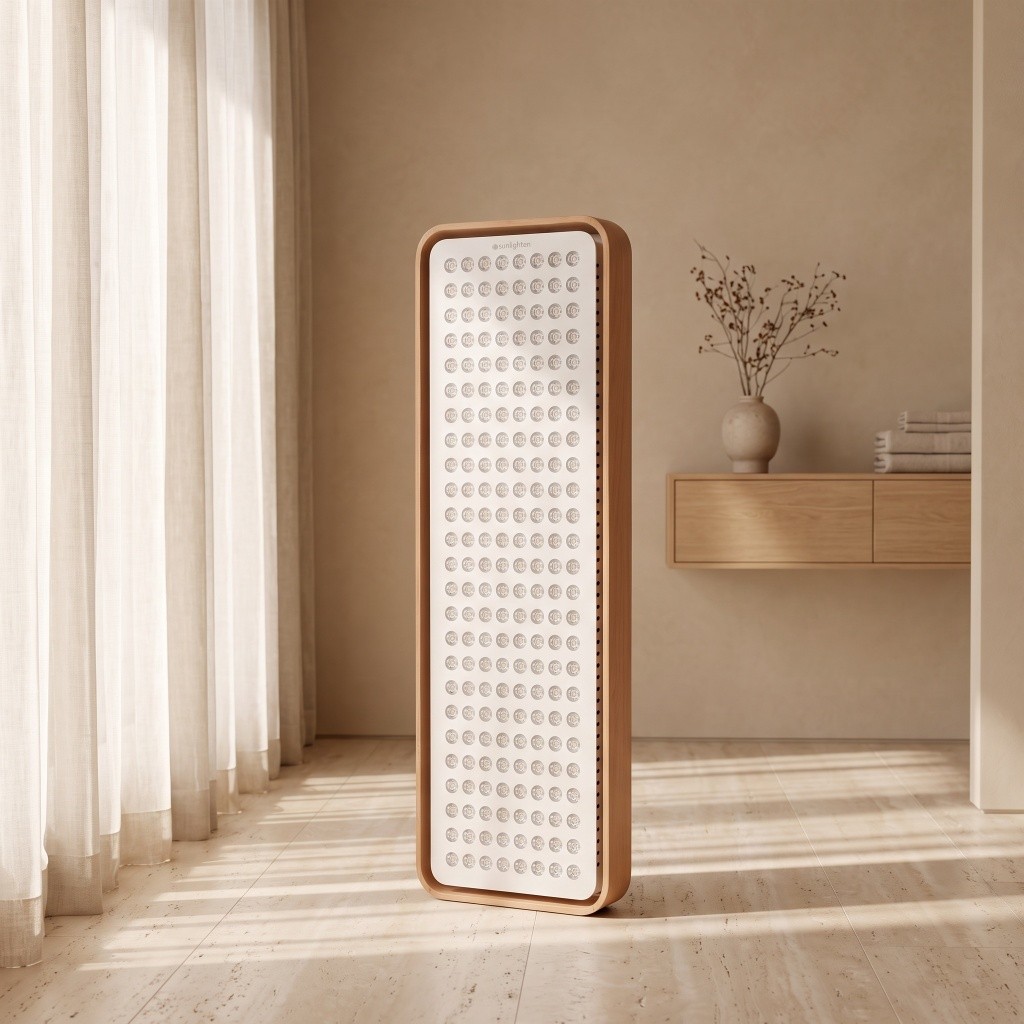

Vertical format for wellness and professional spaces

With dimensions of 89 x 28 x 6.8 cm and a weight of 10.2 kg, the panel provides a broad emission surface without taking up excessive space. The depth with the rubber feet attached is 10 cm, a useful detail when planning its placement, support or integration into the room.

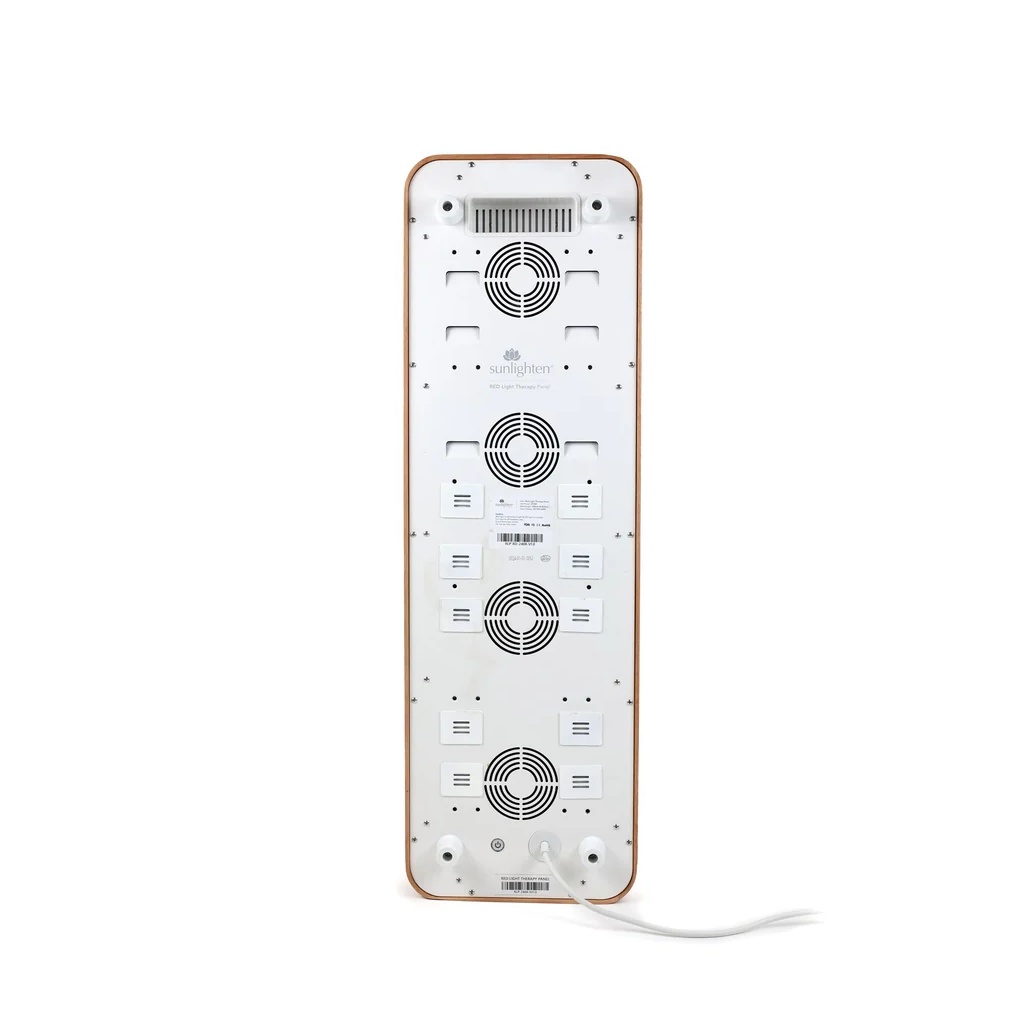

Its universal 100-240 VAC power input supports installation in compatible electrical environments. The stated power is 355 W. Before installation, it is advisable to check the location, control accessibility, ventilation and available distance from the user.

Key features

• Brand Sunlighten
• Model RED Light Therapy Panel
• Type Red and near-infrared light panel
• Wavelengths RED 660 nm and NIR 850 nm
• Number of LEDs 200 LEDs: 100 red light and 100 near-infrared
• Maximum irradiance 200 mW/cm²
• Beam angle 30 and 60 degrees
• Control Bluetooth app and remote control
• Bluetooth range 15 m
• Remote intensity adjustment 20% steps
• Time presets 5, 10, 15 and 20 minutes
• Quick Mode timer 1-30 minutes

Technical specifications

• Dimensions 89 x 28 x 6.8 cm
• Equivalent dimensions 35 x 11 x 2.76 in
• Depth with rubber feet 10 cm
• Equivalent depth with rubber feet 4 in
• Weight 10.2 kg
• Equivalent weight 22 lb
• Power input / power 100-240 VAC, 355 W
• Recommended distance 15-91 cm
• Equivalent recommended distance 6-36 in
• Recommended session time 5-10 minutes
• Recommended frequency 2-3 times per week
• Indicated maximum daily time 20-30 minutes/day
• Indicated red light penetration 2-3 mm
• Indicated near-infrared penetration Up to 50 mm / up to 2 in
• Warranty 3 years

Applications in beauty, wellness and biohacking

The Sunlighten RED Light Therapy Panel fits well in centres working with light technology, integral wellness, recovery and biohacking routines. Its design allows short, controlled sessions with time and intensity configuration to be incorporated into non-invasive protocols focused on wellbeing and body care.

For a consistent user experience, it is advisable to define each session protocol in advance: distance from the panel, duration, frequency, user position and intensity level. This helps integrate the equipment smoothly into the centre’s daily workflow.
