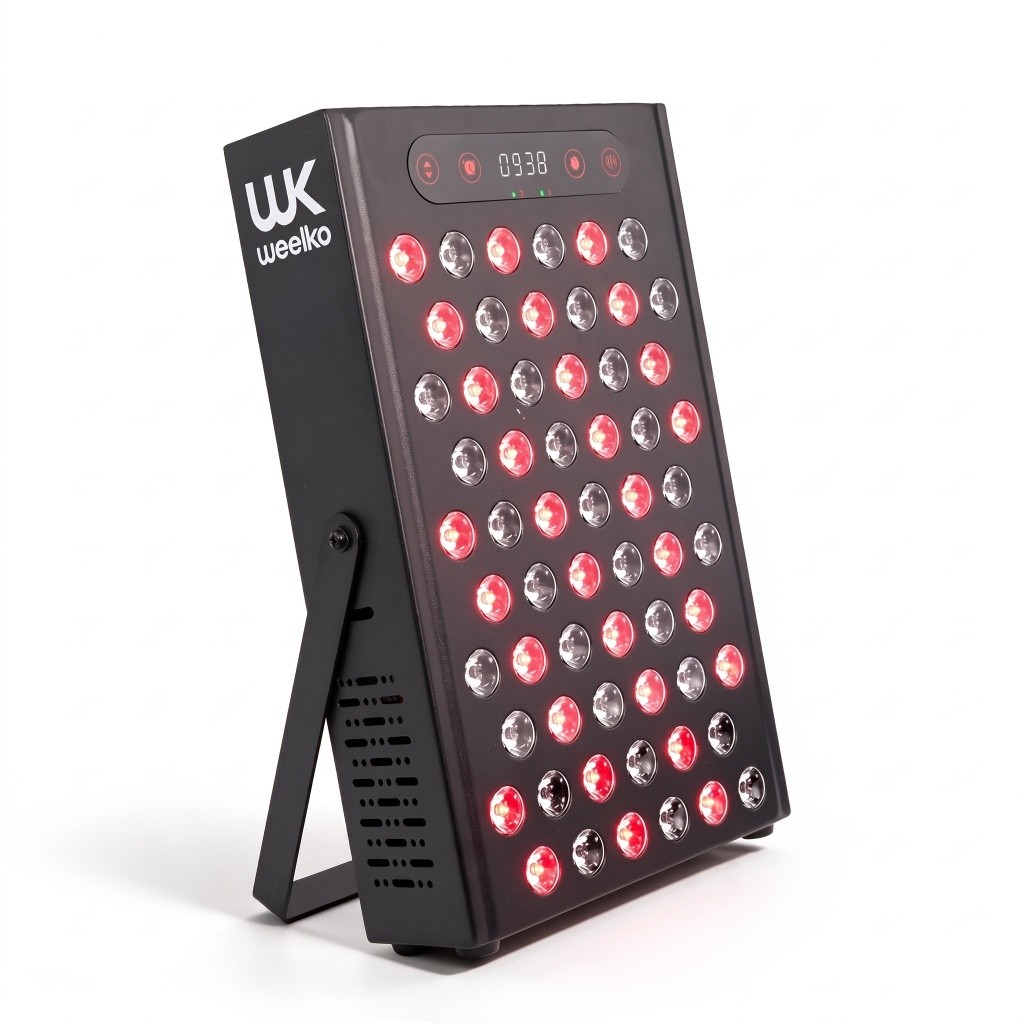

300 W LED phototherapy panel with red and near-infrared light

300 W LED phototherapy panel with red and near-infrared light

High-power LED phototherapy panel designed for professional applications with 660 nm red light and 850 nm near-infrared light in a 1:1 ratio. Its compact format allows work on localised areas with controlled irradiance, making it easy to integrate the unit into beauty cabins, wellness spaces, recovery areas and professional non-invasive photobiomodulation routines.

The device combines 60 dual-chip LEDs with a total power of 300 W, a 30° beam angle and irradiance above 147 mW/cm². It includes different intensity levels, an integrated timer and pulsed mode, allowing each session to be adapted to professional-use protocols without adding complexity to daily operation.

660 nm red light and 850 nm near-infrared light

The panel works with two wavelengths widely used in red light and photobiomodulation equipment: 660 nm, within the visible red light spectrum, and 850 nm, corresponding to near-infrared light. The 1:1 distribution provides a combined and balanced output for localised treatments on specific areas.

Thanks to its dual-chip LEDs, each emission point integrates both wavelengths, supporting even coverage within the panel’s working area. The 30° beam angle concentrates the light emission, an important aspect when the panel needs to be directed towards specific zones.

Adjustable operating modes

The panel includes an adjustable ambient mode with four intensity levels: 25%, 50%, 75% and 100%. This regulation allows the light output to be adjusted according to the type of session, working distance and user sensitivity, while keeping control simple from the device itself.

It also features a pulsed recovery mode with frequencies of 10 Hz, 20 Hz and 40 Hz. This function extends the configuration options for centres working with wellness routines, recovery sessions and professional red light protocols. Flicker Free operation contributes to stable emission, with no perceptible flicker.

Integrated timer for controlled sessions

The integrated timer allows sessions of 5, 10, 15, 20, 25 or 30 minutes to be selected. This programming helps control exposure time and supports organised operation in professional environments with different usage protocols.

Its size of 322 × 204 × 65 mm and net weight of 3 kg make the panel manageable for installation, suspension or positioning with the included accessories. The iron housing provides a robust structure for frequent cabin use.

Daisy Chain connectivity

The Daisy Chain system allows several units to be connected in series, a particularly useful function when a larger coverage area is required with multiple compatible panels. This connectivity enables modular configurations without relying on a single larger panel.

The unit is supplied with a Daisy Chain cable plus suspension and mounting accessories, offering different installation options according to the available space and intended use.

Technical features

• Product type High-power LED phototherapy panel
• Power 300 W
• Wavelengths 660 nm and 850 nm in a 1:1 ratio
• Number of LEDs 60 LEDs with dual chips
• Power per LED 5 W
• Beam angle 30°
• Irradiance >147 mW/cm²
• Housing material Iron
• Net weight 3 kg
• Product dimensions 322 × 204 × 65 mm
• Equivalent dimensions 12.6 × 8.0 × 2.5 in
• Adjustable ambient mode 25%, 50%, 75% and 100% intensity
• Pulsed recovery mode 10 Hz, 20 Hz and 40 Hz
• Integrated timer 5, 10, 15, 20, 25 and 30 minutes
• Operation Flicker Free
• Connectivity Daisy Chain for serial connection of multiple units

Package contents

• Main panel LED phototherapy panel
• Eye protection Eye protection glasses
• Installation Door hanger, adjustable pulley system, mounting screws and suspension cable
• Connection Power cable and Daisy Chain cable
• Documentation User manual

Professional use and recommendations

This panel is intended for localised treatments and for integration into professional red and near-infrared light routines. For proper use, intensity, time and working distance should be adjusted according to the centre’s protocol and the instructions in the user manual.

The included eye protection glasses should be used where appropriate to avoid direct eye exposure to the light emission. Installation must be carried out with the supplied accessories, checking the stability of the system before each session.
