DDUUEETT AVANT 532 5-section electric treatment table

DDUUEETT AVANT 532 electric table for professional treatments

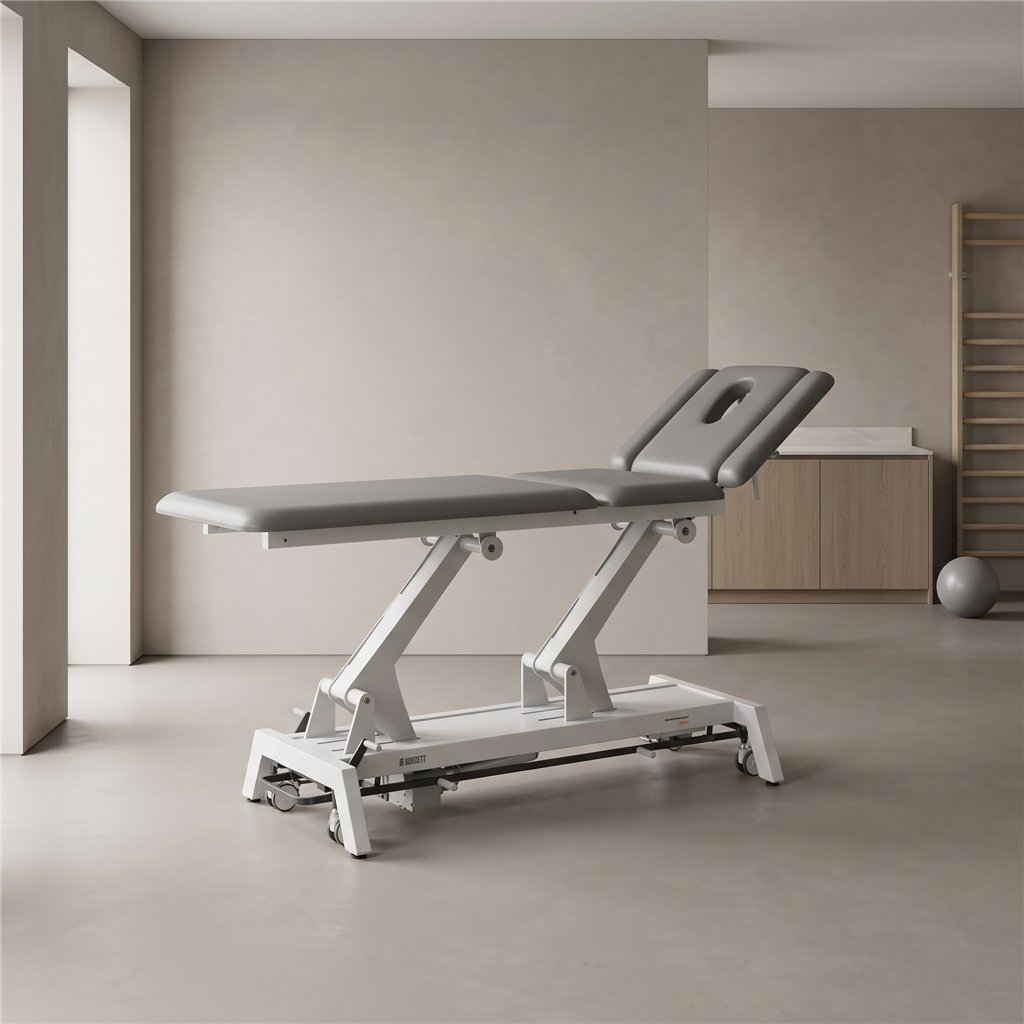

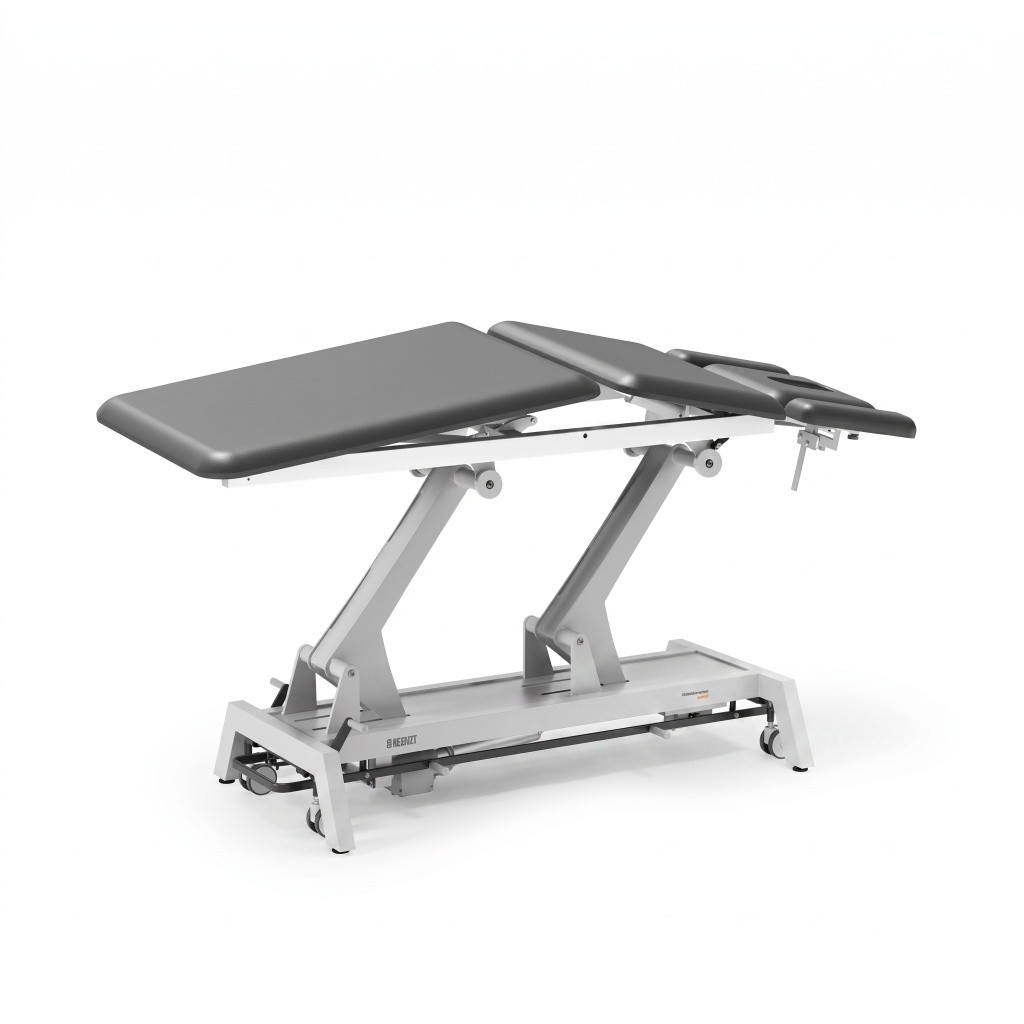

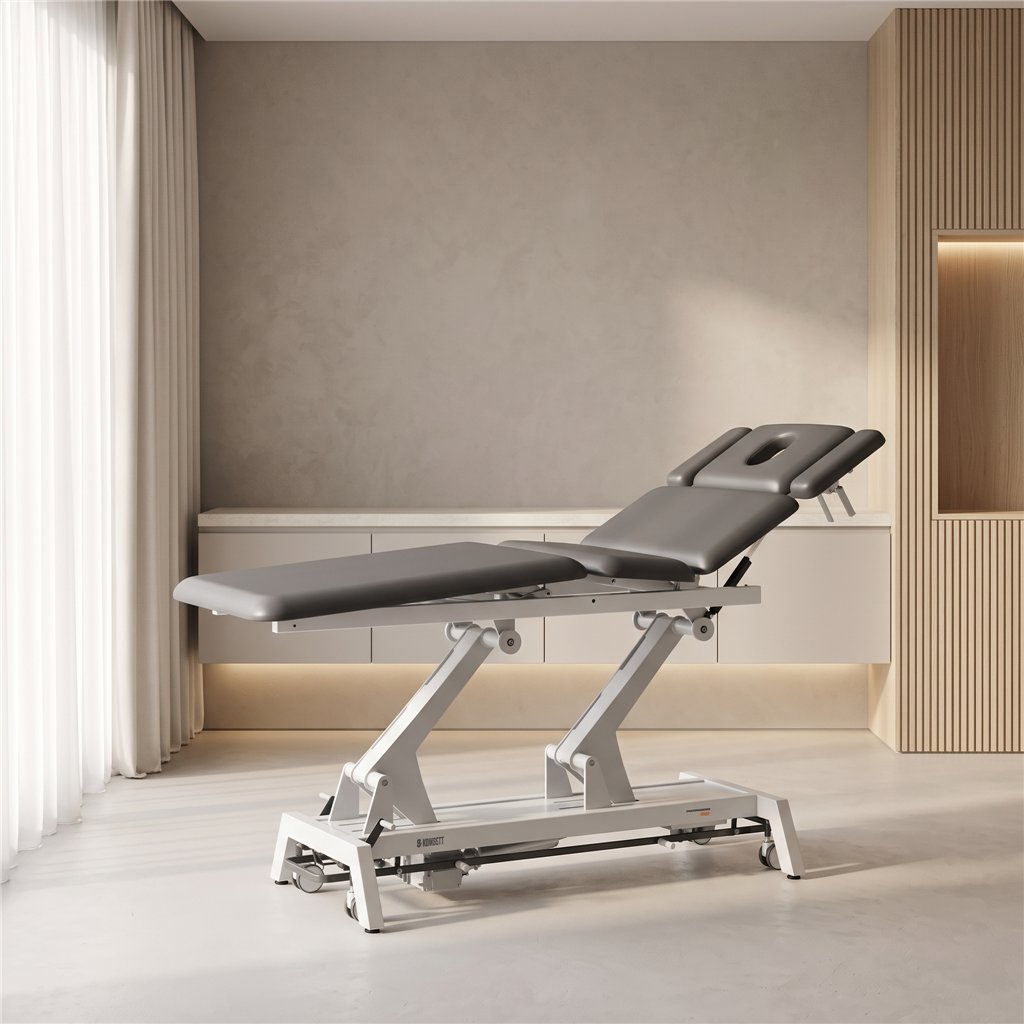

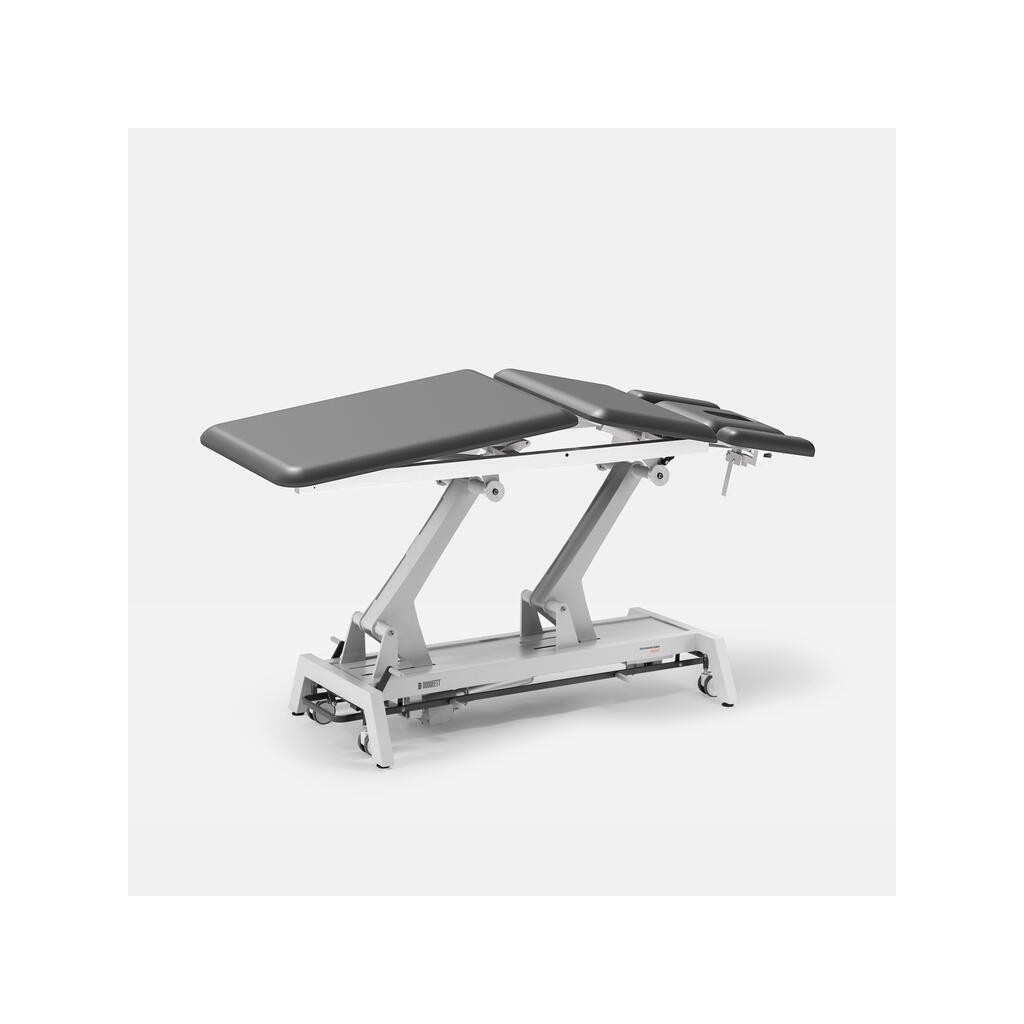

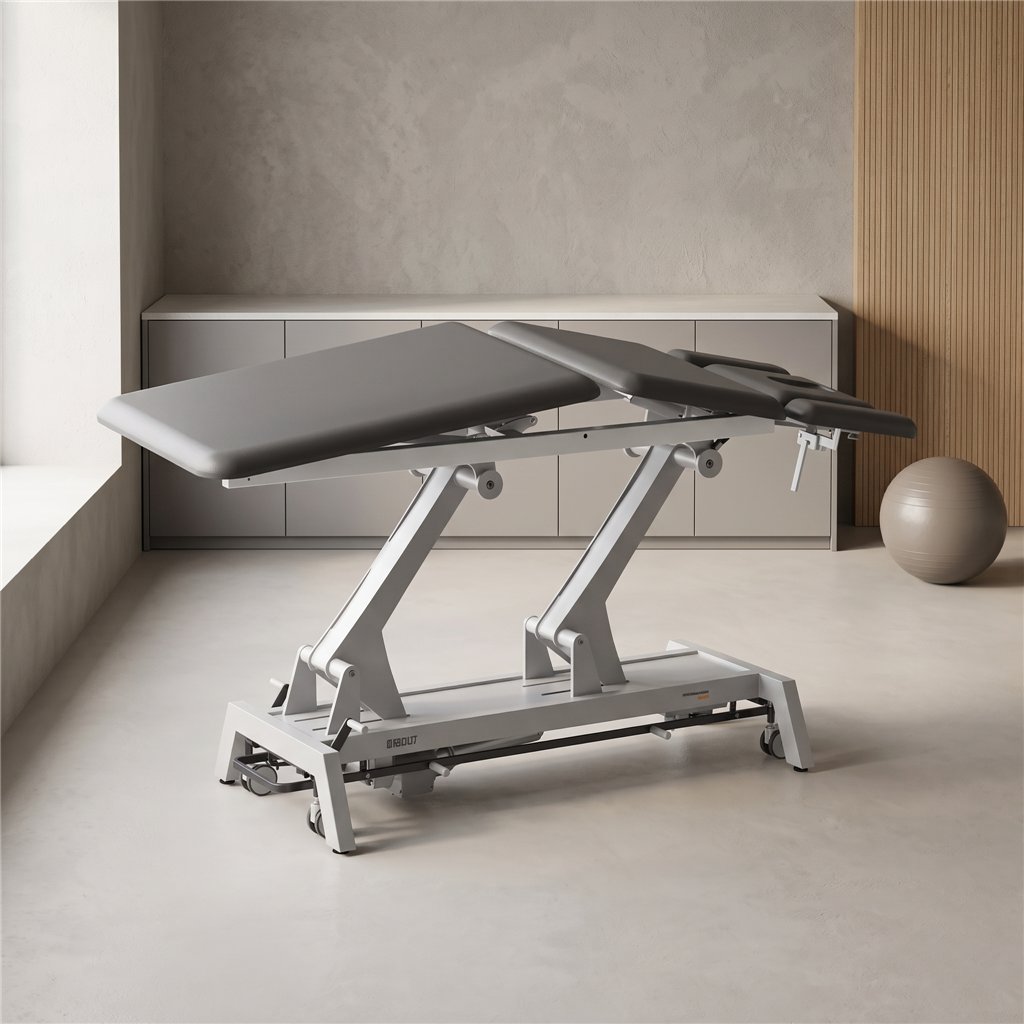

The DDUUEETT AVANT 532 is a five-section electric treatment table designed for professional physiotherapy, massage, functional rehabilitation and wellness spaces that require a stable, adjustable and comfortable surface for daily work.

Its structure allows height adjustment from 47 to 97 cm in the flat position, helping professionals adapt their working posture during each session. The table combines electric height adjustment with gas-spring assisted settings for the headrest and footrest, providing a versatile configuration for different working positions.

Five-section design with functional adjustment

The five-section design makes it possible to adapt the user's position according to the treatment being carried out. The adjustable headrest is fitted with a gas spring and offers a tilt range of -30° to +70°, while the adjustable footrest, also gas-spring assisted, allows adjustment from 0° to +80°.

The table includes manually adjustable armrests, a useful feature for improving positioning in prone treatments or in protocols that require comfortable access to the cervical, dorsal or scapular area. The included facial hole also helps provide a more comfortable position when working face down.

Electric height adjustment with perimeter control bar

The AVANT 532 is equipped with 2 motors with 6000 N force and AC 220-240V 50/60Hz power supply. Height adjustment is operated via a perimeter control bar, allowing movement to be activated from different points around the table without interrupting the treatment workflow.

For Trendelenburg/kyphosis adjustment, the table includes a foot control with +20° tilt. This solution helps keep the hands free and supports position changes during professional work, always within the intended uses of the equipment.

Mobility, stability and use in the treatment room

With a weight of 95 kg and a maximum load of 250 kg, the DDUUEETT AVANT 532 is intended for intensive professional use within its specified duty cycle. The 4 retractable wheels system makes it easier to move the table within the room when required for cleaning, space reorganisation or adjustment of the working area.

The medical PVC upholstery, with a thickness of 5.5 cm and a density of 40 kg/m³, provides a padded surface suitable for treatment sessions. The table also includes a roll holder, a practical accessory for using protective paper in a cabin or consultation room.

Main features

• Model DDUUEETT AVANT 532
• Reference SKU 110045*
• Type Electric treatment table
• Sections 5 sections
• Adjustable height 47 - 97 cm in flat position
• Headrest Gas-spring assisted adjustable headrest, -30°/+70° tilt
• Footrest Gas-spring assisted adjustable footrest, 0°/+80° tilt
• Armrests Manually adjustable
• Trendelenburg/kyphosis Foot control, +20° adjustment
• Height adjustment Perimeter control bar
• Mobility 4 retractable wheels system
• Included accessories Facial hole and roll holder

Technical specifications

• Dimensions 201 x 68 cm
• Height 47 - 97 cm
• Weight 95 kg
• Maximum load 250 kg
• Motors 2 motors
• Motor force 6000 N
• Power supply AC 220-240V 50/60Hz
• Motor voltage DC24V
• Motor current 5.5 A
• Motor power 132 W
• Upholstery Medical PVC
• Upholstery thickness and density 5.5 cm - 40 kg/m³
• Duty cycle 10%
• Maximum on time 2 min ON
• Minimum off time 18 min OFF
• Warranty 5 years
• UDI-DI 06976904610024
• Medical device class Class I
• Regulation (EU) 2017/745

Professional application

The AVANT 532 is suitable for centres that require a robust, adjustable electric table that can be easily adapted to different body treatments. Its combination of electric height adjustment, articulated sections, gas-spring assisted headrest and footrest, retractable wheels and included accessories provides a complete working configuration without the need for basic external elements.

For correct use, it is recommended to respect the duty cycle specified by the manufacturer: 10%, maximum 2 minutes of operation and 18 minutes of rest. This guideline supports proper use of the motors and helps maintain the equipment’s performance in professional environments.
