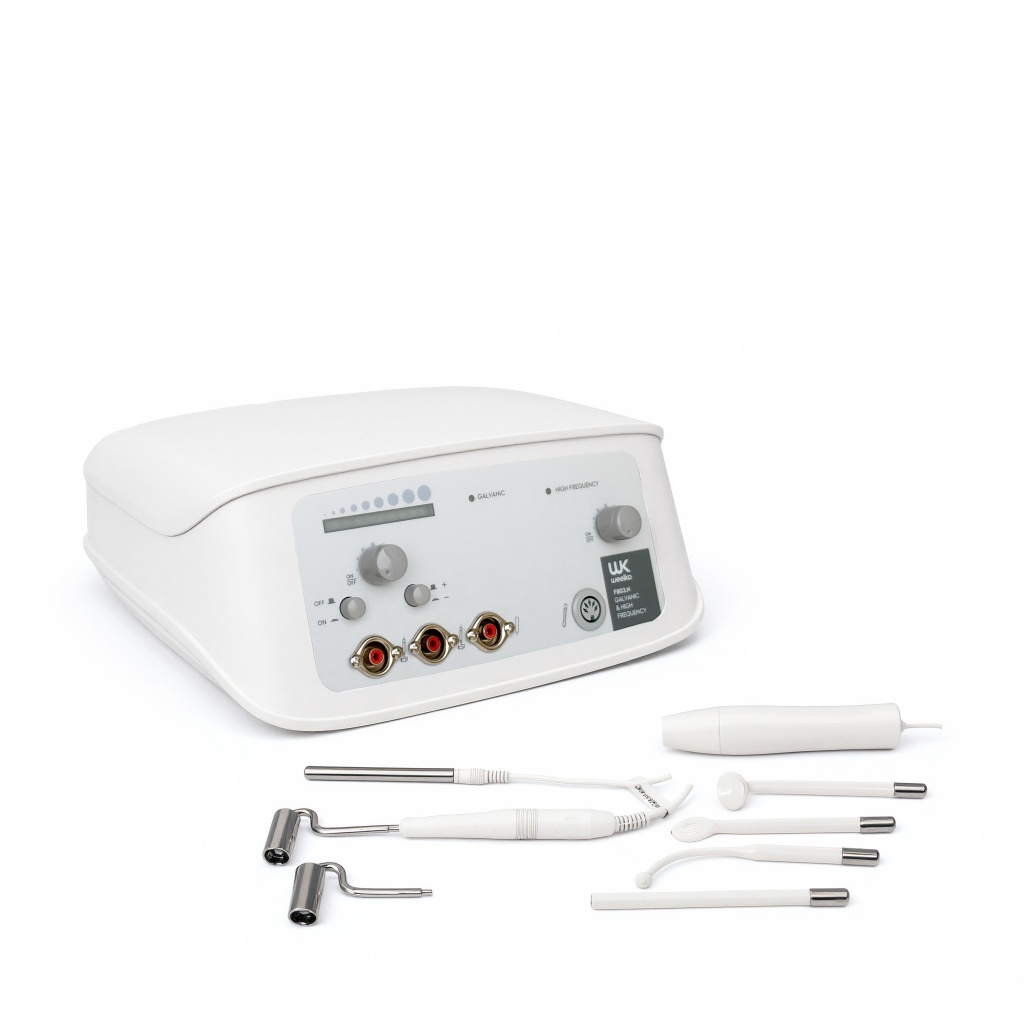

Weelko Utech high+galvanic F803.N high frequency and galvanic device

Weelko Utech high+galvanic F803.N: high frequency and galvanic current in a tabletop device

Weelko Utech high+galvanic F803.N is a professional beauty equipment device that integrates two common cabin functions: high frequency and galvanic current. Its tabletop format makes it easy to incorporate into beauty centres, facial treatment rooms and professional spaces that need a compact solution for hygiene protocols, skin preparation and the application of cosmetic active ingredients.

The device works with direct and indirect high frequency and with positive and negative polarity galvanic current. This combination allows the procedure to be adapted to different stages of a cosmetic treatment, always within professional use and following the application criteria, conductive cosmetics and timings defined by the treatment protocol.

Direct and indirect high frequency

The high frequency function of the Utech high+galvanic allows work in direct or indirect mode, with an operating frequency of 200-500 kHz. The device includes 4 glass electrodes with orange gas and shapes designed to adapt to different facial areas and application techniques.

• Mushroom electrode For larger areas and general surface work.
• Spoon electrode For areas where more localised support is required.
• Ball electrode For targeted applications and smaller areas.
• Straight electrode For linear movements or areas requiring more specific access.

Galvanic current with positive and negative polarity

The galvanic function allows selection of positive or negative polarity and operation with continuous or pressure-activated current. The device features an iontophoresis function and a desincrustation function, two resources used in professional beauty treatments to support cosmetic protocols for preparation, deep facial cleansing and the application of products compatible with galvanic beauty equipment.

When working with galvanic current, a suitable conductive gel or conductive essence must be used. Dry use is not indicated, as the conductivity of the cosmetic medium is part of the correct operation of the treatment.

Compact format for professional treatment rooms

With dimensions of 28 x 27 x 13 cm, this tabletop device is easy to integrate into treatment rooms where the workspace needs to remain organised. Its 15 W power and 220-240 V, 50/60 Hz power supply make it a practical device for daily professional use, always connected to an earthed socket and placed on a stable surface.

Technical features

• Brand Weelko
• Model Utech high+galvanic
• Reference F803.N
• Device type High frequency and galvanic current
• Format Tabletop
• Intensity range 1-10
• High frequency type Direct and indirect
• High frequency frequency 200-500 kHz
• Glass electrodes 4 units
• Electrode gas Orange
• Electrode shapes Mushroom, spoon, ball and straight
• Galvanic current type Continuous and pressure-activated
• Polarity modes Positive and negative
• Iontophoresis function Yes
• Desincrustation function Yes
• Power 15 W
• Input voltage 220-240 V
• Mains frequency 50/60 Hz
• Device dimensions 28 x 27 x 13 cm
• Packaging dimensions 34 x 22 x 34 cm
• Gross weight 3.3 kg

Installation and use recommendations

The device should be placed on a stable surface, leaving space around it to support ventilation. It should not be covered during use or placed in environments with high humidity, direct sunlight, proximity to water, vibration, inclination, strong magnetic fields or corrosive gases.

Before moving the device, it should be disconnected from the power supply. Water, cosmetics or residues should also be prevented from entering the device. For safe professional use, it should be operated by personnel trained in beauty equipment and familiar with the device’s instructions for use.

Main precautions

Use is not recommended for people with pacemakers, defibrillators, metal implants, pregnancy, epilepsy, hypertension, severe heart disease, diabetes, tumours or cancer, thyroid disorders, open wounds, skin damage, severe inflammation, eczema, dermatitis, facial telangiectasias or rosacea. Recent beauty treatments such as botulinum toxin, fillers, laser, chemical peeling or plastic surgery should also be assessed before applying beauty equipment to the area.

As with any beauty equipment device, the selection of parameters, polarity, accessory, conductive cosmetic and working time should be made according to professional criteria, avoiding use on non-indicated areas or under conditions that could compromise treatment safety.
